Oliver 4015 User manual

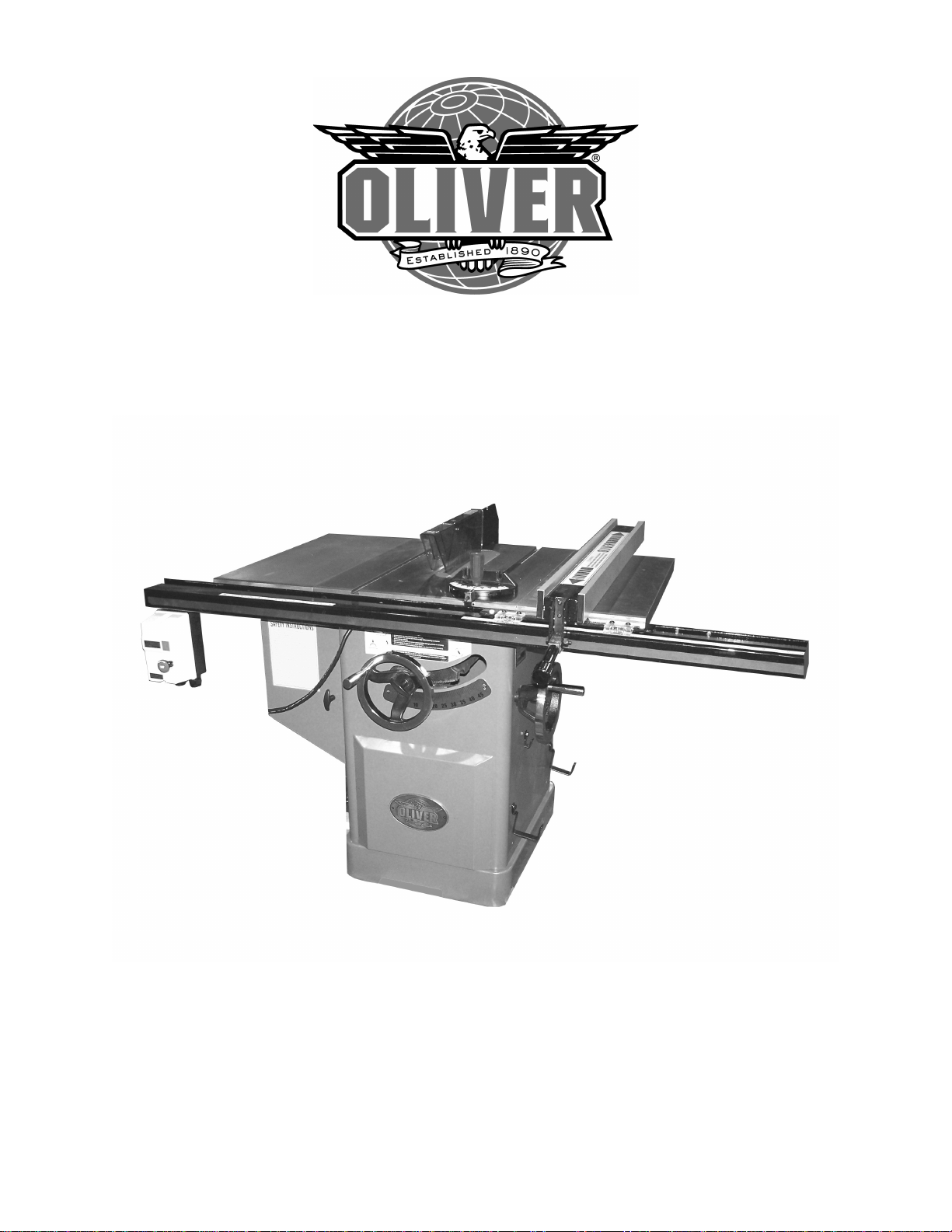

4015 10” Professional Tablesaw
Owner’s Manual
Oliver Machinery M-4015 10/2005
1210 Andover Park East
Tukwila, WA 98188  Cop right 2003
Fax: [phone] www.olivermachiner .net
Phone: [phone] email: info@olivermachiner .net

Warranty
Oliver makes ever effort possible to assure that its equipment meets the highest possible standards of
qualit and durabilit . All products sold b Oliver are warranted to the original customer to be free from
defects for a period of 2 (two) ears on all parts, excluding electronics and motors, which are warranted
for 1 ear. Oliver’s obligation under this warrant shall be exclusivel limited to repairing or replacing (at
Oliver’s option) products which are determined b Oliver to be defective upon deliver F.O.B. (return
freight paid b customer) to Oliver, and on inspection b Oliver. This warrant does not appl to defects
due, directl or indirectl , to misuse, abuse, negligence, accidents, unauthorized repairs, alterations, lack
of maintenance, acts of nature, or items that would normall be consumed or require replacement due to
normal wear. In no event shall Oliver be liable for death, personal or propert injur , or damages arising
from the use of its products.
Warning
Read this manual thoroughl before operating the machine. Oliver Machiner disclaims an liabilit for
machines that have been altered or abused. Oliver Machiner reserves the right to effect at an time,
without prior notice, those alterations to parts, fittings, and accessor equipment which the ma deem
necessar for an reason whatsoever.
or More Information
Oliver Machiner is alwa s adding new Industrial Woodworking products to the line. For complete, up-to-
date product information, check with our local Oliver Machiner distributor, or visit
www.olivermachiner .net
2

WARNING
Read this manual completel and observe all warning labels on the machine. Oliver Machiner has made
ever attempt to provide a safe, reliable, eas -to-use piece of machiner . Safet , however, is ultimatel
the responsibilit of the individual machine operator. As with an piece of machiner , the operator must
exercise caution, patience, and common sense to safel run the machine. Before operating this product,
become familiar with the safet rules in the following sections.
•Always keep guards in place and in proper operating condition.
•Use blade guard for every applicable operation including all through cuts. If guard is removed
for special non-through cuts such as dado and rabbet cuts, replace before further use of the
saw.
•Keep hands out of line with the saw blade.
•Use a push stick.
•Do not perform any operation freehand.
•Never reach around or over the saw blade.
1. If you are not properly trained in the use of a tablesaw do not use until the proper training has been
obtained.
2. Read, understand and follow the safet instructions found in this manual. Know the limitations and
hazards associated with this machine.
3. Electrical grounding: Make certain that the machine frame is electricall grounded and that a
ground lead is included in the incoming electrical service. In cases where a cord and plug are used,
make certain that the grounding plug connects to a suitable ground. Follow the grounding procedure
indicated in the National Electrical Code.
4. Eye safety: Wear an approved safet shield, goggles, or glasses to protect e es. Common
e eglasses are onl impact-resistant, the are not safet glasses.
5. Personal protection: Before operating the machine, remove tie, rings, watch and other jewelr and
roll up sleeves above the elbows. Remove all loose outer clothing and confine long hair. Protective
t pe footwear should be used. Where the noise exceeds the level of exposure allowed in Section
1910.95 of the OSHA Regulations, use hearing protective devices. Do not wear gloves.
6. Guards: Keep the machine guards in place for ever operation for which the can be used. If an
guards are removed for maintenance, DO NOT OPERATE the machine until the guards are
reinstalled.
7. Work area: Keep the floor around the machine clean and free of scrap material, saw dust, oil and
other liquids to minimize the danger of tripping or slipping. Be sure the table is free of all scrap,
foreign material and tools before starting to use the machine. Make certain the work area is well
lighted and that a proper exhaust s stem is used to minimize dust. Use anti-skid floor strips on the
floor area where the operator normall stands and mark off machine work area. Provide adequate
work space around the machine.
8. Material condition: Do not attempt to saw boards with loose knots or with nails or other foreign
material. Do not attempt to saw twisted, warped, bowed stock.
9. Operator position: Maintain a balanced stance and keep our bod under control at all times.
10. Before starting: Before turning on machine, remove all extra equipment such as ke s, wrenches,
scraps, and cleaning rags awa from the machine.
3

11. Careless acts: Give the work ou are doing our undivided attention. Looking around, carr ing on a
conversation, and “horsepla ” are careless acts that can result in serious injur .
12. Disconnect all power sources: Before performing an service, maintenance, adjustments or when
changing blades. A machine under repair should be RED TAGGED to show it should not be used
until the maintenance is complete.
13. Job completion: If the operator leaves the machine area for an reason, the tablesaw should be
turned "off" and the blade should come to a complete stop before their departure. The ke should be
placed in the “off” position, removed and given to a supervisor to prevent an unauthorized use of the
tablesaw.
14. Replacement parts: Use onl genuine Oliver Machiner factor authorized replacement parts and
accessories; otherwise the warrant and guarantee is null and void.
15. Misuse: Do not use this Oliver tablesaw for other than its intended use. If used for other purposes,
Oliver disclaims an real or implied warrant and holds itself harmless for an injur or damage which
ma result from that use.
16. Drugs, alcohol and medication: Do not operate this machine while under the influence of drugs,
alcohol, or an medication.
17. This machine is deigned for cutting wood products onl . Do not use to cut an kind of metal or
substance other then wood.
18. Never start the saw while a workpiece is in contact with the blade.
19. Raise or lower the blade onl when the machine has been turned “off” and the blade has come to a
complete stop.
20. Miter Gauge and Rip ence: Never use the miter gauge and rip fence at the same time.
21. Damaged Saw Blade: Never use a damaged saw blade or one that has been dropped. Check the
saw blade for cracks or missing teeth. Do not use a cracked or dull blade or one with missing teeth.
Make sure the blade is securel locked on the arbor.
22. Make sure the blade is running in the proper direction. Refer to the arrow on the blade. The teeth
should be pointing down when viewing from the front of the saw.
23. Alignment: Check the alignment of the splitter to the blade. Also, check the alignment of the fence
to the miter slot.
24. Health hazards: Some dust created b power sanding, sawing, grinding, drilling and other
construction activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
•Lead from lead-based paint.
•Cr stalline silica from bricks and cement and other masonr products.
•Arsenic and chromium from chemicall -treated lumber.
Your risk from these exposures varies, depending on how often ou do this t pe of work. To reduce
our exposure to these chemicals, work in a well-ventilated area, and work with approved safet
equipment, such as those dust masks that are specificall designed to filter out microscopic particles.
Familiarize ourself with the following safet notices used in this manual:
CAUTION: (This means that if precautions are not heeded, it ma result in minor or moderate injur
and/or possible machine damage)
WARNING: (This means that if precautions are not heeded, it could result in serious injur or possibl
even death).
4

Table of Contents Page Number
Warrant ......................................................................................................................................................2
Warnings..................................................................................................................................................3-4
Table of Contents........................................................................................................................................5
Specifications...............................................................................................................................................5
Contents of the Shipping Containers...........................................................................................................6
Machine Preparation and Setup..................................................................................................................7
Extension Wing Assembl ...........................................................................................................................7
Handwheel Assembl ..................................................................................................................................7
Rail Assembl ...........................................................................................................................................8-9
Fence Assembl and Adjustment...........................................................................................................9-10
Adjusting the Scale Reader.......................................................................................................................10
Adjusting 45° and 90° Stops.................................................................................................................10-11
Leveling Table Insert..................................................................................................................................11
Splitter and Blade Guard Assembl ......................................................................................................11-13
Miter Gauge...............................................................................................................................................14
Controls.....................................................................................................................................................14
Dust Collection...........................................................................................................................................14
Electrical Connections...............................................................................................................................15
Replacing the Blade...................................................................................................................................15
Replacing and Tensioning the Drive Belt...................................................................................................16
Maintenance..............................................................................................................................................16
Troubleshooting....................................................................................................................................17-18
Specifications
Model Number.......................................................................................................................................4015
Blade Diameter (In)....................................................................................................................................10
Arbor Diameter (In).................................................................................................................................5/8"
Maximum Depth of Cut at 90 Degrees (In).................................................................................................3"
Maximum Depth of Cut at 45 Degrees (In)...........................................................................................2-1/8"
Maximum Cut to the Right of Blade..........................................................................................................36”
Maximum Cut to the Left of Blade.............................................................................................................18”
Dust Port Diameter (In)................................................................................................................................4
Table Dimensions w/Extensions (LxW).....................................................................................27" x 45-1/4"
Table Height (In)...................................................................................................................................35-½”
Blade Tilt..................................................................................................................................................Left
Arbor Speed RPM.................................................................................................................................3,450
Overall Dimensions..............................................................................................27”L x 45-1/4"W x 40-½”H
Gross Weight...........................................................................................................................................530
5

Contents of the Shipping Containers
Oliver 4015, 10” Professional Tablesaw
Saw
Once the top is removed the saw will be as
shown with the left extension wing alread
attached. Inspect for freight damage and
call the freight carrier if an .
Contents
Blade guard
2. Blade guard support
3. Arbor wrenches
4. Wheel handle
5. Accessor holders
6. Tools
7. Hardware packet
8. Extension wing hardware
9. Mitre guage
10. Extension wing
ence and Rail Assembly
11. Fence
12. Lock handle
13. Front guide
14. Front guide
support bracket
15. Rear guide
Saw
Contents
Fence and Rail Assembl
6

Machine Preparation and Setup
WARNING!
The equipment used to lift this machine must
have a rated capacity at, or above the weight
of the tablesaw. ailure to comply may
cause serious injury!
The tablesaw must be positioned on a smooth,
level surface. The area must be well lit and
have plent of room to maneuver with large
pieces of wood.
Level the saw front to back and side to side
using a level placed on the table. Use shims
under the corners, if necessar , but make sure
the saw is stable before being placed into
service.
Clean all rust protected surfaces with a
commercial solvent. Do not use acetone,
gasoline, lacquer thinner or an t pe of
flammable solvent, or a cleaner that ma
damage paint. Cover cleaned surfaces with
WD-40 or a 20W machine oil.
Pa particular attention to cleaning in the miter
slot and the faces of table and extension wing.
Extension Wing Assembly
1. Attach extension wing (A, Figure 1) to table
with four hex head bolts, and four lock
washers (B, Figure 1). Snug but do not
tighten. Note: Start with one of the center
holes (C, Figure 1) to hold the wing in place.
2. Slide extension wing toward the front edge
of the saw table until two edges are flush.
3. Using a straight edge (D, Figure. 2), align
extension wing to saw table and tighten hex
cap bolts. Repeat for opposite wing.
Handwheel Assembly
1. Place handwheel (F, Figure 3) onto the saw
shaft. Use an allen ke to lock the wheel
onto the shaft with the set screw (G, Figure
3). Insert and screw the locking handle (H,
Figure 3) and the wheel handle (I, Figure 3)
into their respective holes. Repeat for other.
Figure 1
Figure 2
Figure 3
7

Rail Assembly
1. Rest the front guide support bracket on the
switch box as shown in Figure 4 and secure
into place using the chamfered bolts, nuts
and washers provided in hardware packet 7.
Note that the two outside holes require a nut
and washer as well as a bolt while the four
inside holes require the bolts onl .
2. Set the front guide on the support bracket as
shown in Figure 5 and secure into place with
the short bolts provided in hardware packet
7.
3. Install the rear guide as shown in Figure 6
using the supplied hardware. Note that the
two outside holes require a nut and washer
as well as a bolt while the four inside holes
require the bolts and washers onl .
Figure 4
Figure 5
Figure 6
8

ence Assembly and Adjustment
1. Place the fence on the guides as shown in
Figure 7. Look for the rubber nib on the
underside of the fence as shown and make
sure it lines up with the back support rail.
2. Align the fence with the mitre guage slot as
shown in Figure 7 and check to see if the
fence is parallel to the slot.
3. If the fence is not parallel to the mitre guage
slot, lift the fence off the guides and place it
on the table as shown in Figure 8. Turn the
appropriate screw, A to compensate for the
difference. Place the fence back on the
guides and check again for alignment to the
mitre guage. If it is still mis-aligned, repeat
the procedure.
Adjusting the Scale Reader
1. Raise the blade to it’s maximum height.
2. Place the fence
on the guides on the right side of blade and
then slide the fence toward the blade.
Continue until the fence just touches the
saw teeth. Do not push too hard or the
blade will deflect.
3. Looking at the
right side scale reader, the red pointer
should match up with the zero mark. If not,
loosen the two screws, B, Figure 9 and slide
the viewer to align the mark with zero.
Tighten the screws.
4. Move the fence
to the left side of the blade and repeat the
procedure for the left side viewer.
Figure 7
Figure 8
Figure 9
9

Adjusting 45° and 90° Stops
The stops have been adjusted at the factor and
should not need an adjustment. If ou need to
adjust the stops:
90° Stop
1. Disconnect saw from power source.
2. Raise the saw blade to its maximum height
b turning the blade raising handwheel
clockwise as far as it will go.
3. Loosen the 90 degree stop screw (A, Figure
11)
4. Place a square on the table as shown in
Figure 11 and turn the blade tilt handwheel
until the blade comes into 90 degrees with
the square. Make sure the square is
between the blade teeth.
5. Tighten the 90° stop (A, Figure 11).
6. At this point it is time to calibrate the angle
displa to zero degrees. Push and hold the
0° set button as shown in Figure 12 until the
displa stops blinking. The 0° is now set.
7. If necessar , loosen the screw (B, Figure
13) and adjust the pointer to zero on the
back-up angle scale.
Figure 11
Figure 12
Figure 13
10

45° Stop
1. Loosen the 45°stop (C, Figure 14) and then
tilt the blade until it mates up with the guage
as shown in Figure 14. Make sure the
guage is between the saw teeth.
2. Tighten the 45°stop.
3. Push and hold the 45° set button as shown
in Figure 15 until the displa stops blinking.
At this point the angle displa is calibrated.
Leveling Table Insert
Adjust the table insert flush with the table b
turning the four leveling screws (C, Figure 16).
Place a straight edge across the table and
insert. Raise the insert until it just touches the
straight edge. Check both the front and rear
section of the insert.
Figure 14
Figure 15
Figure 16
11

Splitter and Blade Guard Assembly
1. Disconnect saw from power source.
2. Remove table insert b loosening the screw
at the front of insert. Pull up and towards
ou to release the rear clip.
3. Insert the blade guard shaft (D, Figure 17)
into rear trunion through opening at rear of
saw.
4. Lock the shaft into place b turning the bolt
(A, Figure 18) until it secures the shaft, then
tighten the bolt with the jam nut (B).
5. Place bracket assembl (E, Figure 17) on to
the shaft and thread a hex head bolt and a
lock washer (F, Figure 17) into the bracket.
6. Thread the guard support assembl (G,
Figure 17) into the bracket.
7. Insert front fork of blade guard assembl (A,
Figure 19) through opening in the table. The
tab is held in place between the flat washer
and bracket, see Figure 19. Finger tighten
hex nut (B, Figure 19) onl at this time.
8. Insert the rear fork of the blade guard
assembl (C, Figure 19) into the guard
support assembl between the flat
washer and shoulder, see Figure 19.
Finger tighten hex nut (D, Figure 19)
onl at this time.
Figure 17
Figure 18
Figure 19
12

Splitter and Blade Guard Assembly
(cont.)
9. Place a straight edge against the splitter
and blade to make sure the align, as
shown in Figure 20. If adjustment is
necessar use the provided wrench to
loosen the jam nut (E, Figure 21) on the
rear fork. Thread the guard support in,
or out b turning the hex head (F, Figure
21) to bring the splitter in line with the
blade. Repeat the same procedure for
front fork.
10. Tighten the jam nut (E, Figure 21) and
tighten the hex nut (D, Figure 21) with
the provided wrenches. Repeat the
same procedure for the front fork.
Recheck the splitter alignment and
adjust if necessar .
Accessory Holders
See Figure 22 for the correct placement of
the accessor holders.
Figure 20
Figure 21
Figure 22
13

Miter Gauge
1. Slide the miter gauge bar into the miter
gauge slot in table. Loosen the handle (A,
Figure 23) and pull out indexing rod (B,
Figure 23) to pivot the miter gauge bod .
2. Push the indexing rod in to engage the
preset stops (C, Figure 23).
3. Adjust stops b loosening the hex nut (D,
Figure 23) and adjusting screw (E, Figure
23).
Note: Alwa s make test cuts. The scale is for
reference. There are two holes in the miter
gauge fence used to attach a wooden fence.
Controls (see igures 24 & 25)
A. Emergency Stop Button: Stops all
functions of machine, but the saw still has
power. To reset rotate switch clockwise until
the button pops out.
B. Start: Starts saw blade rotation. Will not
work if the “Emergenc Stop” switch is
engaged, or the ke is in the “OFF” position.
C. Main Control: Turn ke to the “OFF”
position and remove from the lock. The ke
should be given to a supervisor when the
saw is not in use b an authorized user.
D. Handwheel Lock: There is a handwheel
lock on both handwheels. Loosen lock to
turn handwheel and tighten when blade is in
desired location.
E. Raising and Lowering Handwheel:
Loosen handwheel lock. Turn handle
clockwise to raise the blade. The blade
should be 1/8”-1/4” above the top of
workpiece, or 3-5 blade teeth above the top
of workpiece.
F. Tilting Handwheel: Loosen handwheel
lock. Turn handle counter-clockwise to tilt
blade to the left.
Dust Collection
There is a 4” dust port (G, Figure 25) located on
the side of saw cabinet. Make sure dust
collection s stem has sufficient capacit and
suction for our tablesaw. Alwa s turn on dust
collection s stem before starting the tablesaw.
Figure 23
Figure 24
Figure 25
14

Electrical Connections
WARNING!
Electrical connections and wiring must be
done by a qualified electrician. The machine
must be properly grounded. ailure to
comply may cause serious injury!
This saw is available in both 1-Phase and 3-
Phase versions.
Electrical Connections for a 3-Phase Unit
This saw is 3-Phase, 220V/440V pre-wired
220V. If ou need to switch the tablesaw from
220V to 440V have a qualified electrician make
the changes. Oliver Machiner recommends
using a dedicated circuit.
Make sure the voltage of our power suppl
matches the specifications on the motor plate of
the machine.
With 3-Phase power verif the blade is turning in
the proper direction. Turn the saw on and make
sure the direction of the blade spins toward the
user when standing in front of the saw. If it does
not, disconnect the power source and reverse
an two power leads.
Electrical Connections for a 1-Phase Unit
This saw is 1-Phase, 220V onl . Oliver
Machiner recommends using a dedicated
circuit.
Make sure the voltage of our power suppl
matches the specifications on the motor plate of
the machine.
Replacing the Blade
The blade guard has been removed for photos,
but it is possible to change the blade without
removing the blade guard.
1. Disconnect saw from power source.
2. Remove the table insert and raise the blade
completel .
3. Use the two provided arbor wrenches to
loosen the arbor nut, as shown in Figure 25.
Place one wrench on the arbor nut and one
on the flats located on the arbor. Remove
the nut, flange and blade.
4. Replace the blade followed b the flange
and arbor nut. Tighten the arbor nut while
holding the arbor in place.
Note: Make sure the blade and arbor are clean
before installing a new blade. The blade teeth
should point down when viewing from the front
of saw.
Figure 25
15

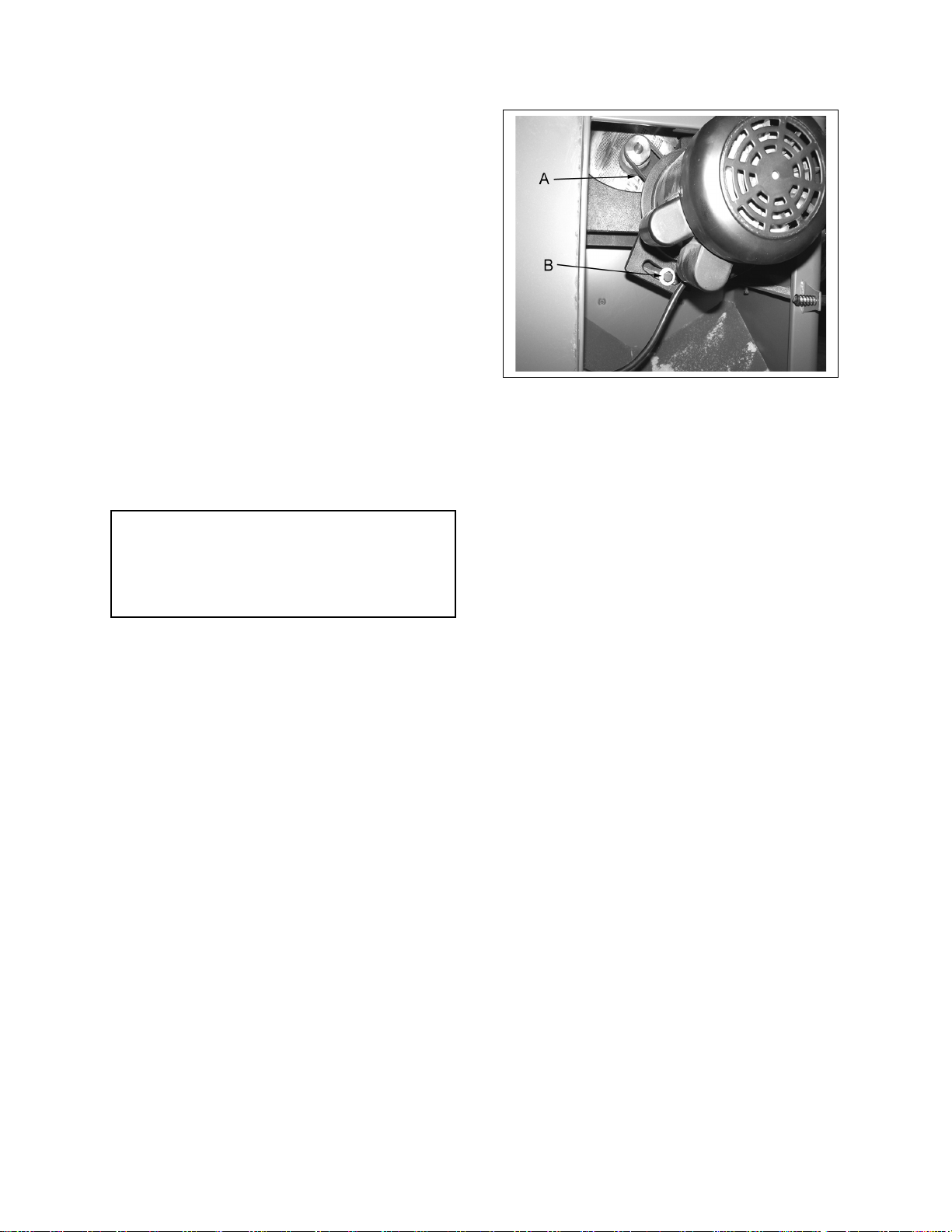

Replacing and Tensioning V-Belt
1. Disconnect saw from power source.
2. Lower the blade to its lowest position and
open the motor cover door.
3. Loosen the hex nut (B, Figure 26).
4. Take tension off of the belt (A, Figure 26) b
lifting up on the motor.
5. Remove the belt from the arbor and motor
pulle s.
6. Replace and tension the belt. The weight of
the motor should appl sufficient tension to
belts. Tighten the hex nut (B, Figure 26).
7. Check the belt tension after the saw has
been used for a few hours. Adjust as
necessar .
Maintenance
WARNING!
Disconnect the machine from power source
before proceeding with any maintenance, or
troubleshooting! ailure to comply may
cause serious injury!
Periodicall clean the inside of the machine for
dust control. Use an air hose to blow out dust
from motor fan and motor cover.
Use a wire brush to clean trunions and worm
gears. Appl white lithium grease or powdered
graphite to lubricate worm gears, and trunions.
Keep pulle s and belts free from dirt, dust, oil
and grease.
Replace worn v-belts as needed.
Remove rust from the tabletop with WD-40 and
a Scotch-Brite™ Hand Pad. Keep a light coat of
WD-40 on the table top when not in use
Figure 26
16

.
Troubleshooting
Description of Symptoms Possible Cause Corrective Action
Machine will not start
1. Fuse blown or circuit breaker
tripped
2. Cord Damaged
3. Fault switch
4. Not connected to power
source
5. Connected to wrong voltage
6. Ke in the “OFF” position
7. Emergenc stop button
pressed
1. Replace fuse or reset circuit
breaker
2. Have cord replaced
3. Replace switch
4. Check connection
5. Check voltage
6. Insert ke and turn to “ON”
position
7. Rotate emergenc stop button
clockwise until it pops out
Blade does not come up to speed
1. Cable too light or too long
2. Low current
3. Motor not wired for correct
voltage
1. Replace with adequate size
cable
2. Contact local electric
compan
3. Refer to motor nameplate for
correct voltage
Does not make accurate 45° or
90° cuts
1. Stops not adjusted correctl
2. Angle pointer not set
accuratel
3. Miter gauge out of adjustment
1. Check blade with combination
square and adjust stops
2. Check blade with combination
square and adjust pointer
3. Adjust miter gauge
Saw makes unsatisfactor cuts
1. Dull blade
2. Blade mounted backwards
3. Gum or pitch on blade
4. Incorrect blade for cut
1. Sharpen or replace blade
2. Turn blade around
3. Remove blade and clean
4. Change blade to correct t pe
Material binds blade when ripping
1. Fence not aligned with blade
2. Warped wood
3. Excessive feed rate
4. Splitter not aligned with blade
1. Check and adjust fence
2. Select another piece of wood
3. Reduce feed rate
4. Align splitter with blade
17

Saw vibrates excessivel
1. Stand on uneven floor
2. Damaged saw blade
3. Bad V-belts
4. Bent pulle
5. Improper motor mounting
6. Loose hardware
1. Reposition on flat, level
surface
2. Replace saw blade
3. Replace V-belts
4. Replace pulle
5. Check and adjust motor
6. Tighten hardware
Material kicked back from blade
1. Rip fence out of alignment
2. Splitter not aligned with blade
3. Feeding stock without rip
fence
4. Splitter not in place
5. Dull blade
6. Letting go of material before it
is past blade
7. Anti-kick back paws dull
1. Align rip fence with miter slot
2. Align splitter with blade
3. Install and use rip fence
4. Install and use splitter (with
guard)
5. Replace blade
6. Push material all the wa past
blade before releasing work
7. Replace or sharpen anti-kick
back paws
Blade does not raise or tilt freel Sawdust and debris in raising
and tilting mechanisms Clean and regrease
18

Main
22
230297-615
Fixing Rope
2
23
006001-009
Flat Washer
5.2*10*1.0t
4
24
000303-101
Round Head Screw
M5*0.8P*6
6
25
000203-101
Set Screw
M6*1.0P*6
4
26
000302-101
Round Head Screw
M4*0.7P*6
2
*27
TH17-01
Motor Ass’y

28
012003-007
Key
5*5*20
4
29
380383-902
Motor Pulley
1
30
014314-000
Belt
180J-9
1
31
006001-090
Flat Washer
12.2*22*2.0t
1
32
009017-100
Hex Nut
1/2”-13NC
1
33
006001-096
Flat Washer
13.5*32*3t
1
34
050584-008
Motor Bracket
1
35
000004-103
Hex Screw
M10*1.5P*30
4
36
360284-901
Bolt
1
37
380384-902
Blade Pulley
1
38
490318-000
Sensor Ass’y
1
39
030208-000
Ball Bearing
6204-2NSE
2
40
000301-201
Round HD Phil. Screw
M3*0.5P*6
4
41
360525-901
Fixing Ring
1
42
380370-901
Drive Arbor
1
43
390016-000
Saw Blade
40T
1
44
380283-901
Blade Washer
1
45
380220-901
Nut
2
46
006503-100
Tooth washer
6.4*11(BW-6)
1
47
002604-102
CAP Check Bolt
M10*1.5P*25
1
48
050587-008
Lifting Fixing Bracket
1
49
000004-112
Hex Screw
M10*1.5P*45
3
50
008007-100
Hex Nut
M10*1.5P(17B*8H)
5
51
050586-008
Lifting Gear
1
52
921148-000
Dust Guide Ass’y
1
171425-901
Dust Guide Plate
1
171426-901
Connecting Plate
1
53
000003-102
Hex Screw
M8*1.25P*16
4
54
000004-104
Hex Screw
M10*1.5P*35
4
55
050585-008
Turnnion Bracket
2
56
000003-106
Hex Screw
M8*1.25P*30
1
57
000003-105
Hex Screw
M8*1.25P*25
2
58
380386-901
Lock Bolt
1
59
006001-054
Flat Washer
8.5*20*2.0t
4
60
006307-100
Spring Washer
10.2*18.5
10
61
006001-067
Flat Washer
10*20*1.5t
6
62
050583-008
Turnnion
1
63
360281-901
Turnnion Arbor
1
64
171424-905
Bushing
2
65
380387-905
Nylock Nut
BWW6203(29.8*38.3)
1
66
010024-000
S-Ring
STW-28
1
67
171419-156
Indicator
1
68
000304-102
Round HD Phil. Screw
M6*1.0P*10
1
69
380385-901
Worm Gear
2
