BS-304, BS-308, BS-312, BS-316
Gas detection control panel
up to 16 inputs
Installation – operation manual

Page 2 from 22 921316000_09_016
Contents
1 Operation instructions -------------------------------------------------------------------------------------------- 3
1.1 Description ............................................................................................................................ 3
1.2 Indications and Controls ............................................................................................................ 3
1.3 Access level 1 ........................................................................................................................ 4
1.3.1 Events Menu ................................................................................................................... 5
1.4 Access level 2 (User access level) ................................................................................................. 5
2 Installation instructions ------------------------------------------------------------------------------------------- 6
2.1 General description ................................................................................................................. 6
2.2 Security ............................................................................................................................... 6
2.3 Mounting .............................................................................................................................. 6
2.4 Description of the internal parts of the panel ..................................................................................... 7
2.5 Cabling ................................................................................................................................ 7
2.5.1 Connecting the panels with the mains power supply (230V AC) and with the battery ............................... 7
2.5.2 Sensor connectivity ............................................................................................................ 8
2.5.3 Output connectivity ........................................................................................................... 10
2.5.4 Other outputs and their use.................................................................................................. 11
2.6 Network connection ................................................................................................................ 11
3 Technician menu -------------------------------------------------------------------------------------------------- 12
3.1 Access Technician menu .......................................................................................................... 12
3.2 Configuration ........................................................................................................................ 13
3.2.1 Sensor configuration ......................................................................................................... 13
*The parameter increase must be set to NO. ......................................................................................... 14
3.2.2 Relay programming .......................................................................................................... 14
3.2.3 Zones configuration .......................................................................................................... 15
3.3 Information menu .................................................................................................................. 16
3.4 Parameters menu ................................................................................................................... 17
3.5 Enable menu ........................................................................................................................ 19
3.6 Disable menu ........................................................................................................................ 19
3.7 Check menu ......................................................................................................................... 19
3.8 Useful notes to setup the panel BS-316 ......................................................................................... 20
4 Technical Characteristics ---------------------------------------------------------------------------------------- 20
4.1 Record Setup ........................................................................................................................ 22

Page 3 from 22 921316000_09_016
Operation instructions
Thank you for purchasing this product of Olympia Electronics. A European manufacturer.
This section contains general information and information regarding the use of the panel. All users of the panel
should read these instructions very carefully in order to be able to act in the event of an alarm or a fault condition.
1.1 Description
The BS-316 is a gas detection panel with 16 inputs. On each input it can be connected only one gas detector 4-20
mA.
1.2 Indications and Controls
The panel incorporates one liquid crystal display (LCD) and a series of indication LEDs that informs the user about
its status. The indication LEDs give general information (i.e. if an alarm becomes true, then the general alarm
indicator LED will turned ON.) and on display appears information about each event ( i.e. Alarm sensor 1,that
means alarm from sensor 1) .
Under the display there are 6 buttons for controlling the panel. On each button there is a number 1-6 and
corresponds to the functions left, right, up, down, enter, escape (exit or one step back). Generally by pushing a
button one action happens immediately or one menu appears with some functions. Inside the menu the buttons 1,
2, 3, 4 operate as dimension buttons and we can move inside the menu, the button 5 (enter) to select and button 6
(esc) to come back.
During the next pages we will refer to the buttons using the corresponding numbers.
All LEDs are grouped for easier indication. In detail the LEDs show the following:
General Alarm
(RED)
General Fault
(Yellow)
General alarm indicator Lights in the event of a
Fault
Disable Point
(Yellow)
Power
(Green)
Lights to show a disabled
inputs
General operation indicator of
the panel
Test
(Yellow)
Fault
Battery
(Yellow)
Lights to show that we
are in TEST mode
Lights to show a battery
problem
Figure 1: Main screen of BS-316

Page 4 from 22 921316000_09_016
1.3 Access level 1
This level contains 2 functions that can be implemented by pressing a single key.
- In the event of an Alarm or Fault condition, if the key number (1) is pressed then the internal buzzer is
silenced. For as long as the event is in effect the internal buzzer sounds once in every 30 seconds. Should
the panel see a new event in this state then the buzzer will start to sound continuously.
- When the panel is in standby mode (no alarm or fault events have occurred) then if the key number (2)
(lamp test) is pressed the system conducts a sequential LED and Display test.
When the system is in quiescence state, the lcd screen shows info about the system.
The below screen shows some information about the system
The below screen shows the panel name and the technician information.
The next screen shows the condition of each sensor (input)
The sensors 4-20mA incorporates the current have the next situations:
FAULT - (<1 mA)
UNDERFLOW (from 1 to 3.5 mA)
NORMAL (from 3.5 to 21 mA) inside these limits we can do the setup of alarm 1, alarm 2 and
alarm 3)
OVERFLOW (from 21 to 24mA)
FAULT+ (24mA and Higher).
There is the disable situation (ΝΟ CONFIGURATION)
In case alarm or fault the LCD display shows the corresponding message.
This screen shows a summary of the events in the system.
The alarm screen show which inputs are in alarm condition.
For example the second line 4: 14% LIE ALARM 2 means that the 4th input
sensor has detected 14% LIE of a gas and it is at ALARM 2 state.
The screen on the left shows the faults of the system.
For example the second line 1: FAULT + means that the 1st input sensor has a
FAULT +.
EVENTS IN SYSTEM
ALARMS 10
FAULTS 5
ALARM 10
4: 14%LIE ALARM 2
9: 60ppm ALARM 3
16: 20ppm ALARM 1
FAULT 5
1: FAULT +
3: FAULT -
BATTERY
OLYMPIA ELECTRONICS
BS-316 V.055
12:00:00 20/01/10
SYSTEM READY
PANEL NAME
MAIN BUILDING
TECHNICIAN INFO
OLYMPIA ELECTRONICS
1: 0%LIE NORMAL
2: NO CONFIGURATION
3: NO CONFIGURATION
4: 5ppm NORMAL

Page 5 from 22 921316000_09_016
1.3.1 Events Menu
All the events of the system can be shown by pressing the key “3” View Events and then the key Enter.
This screen on the left shows that the system has recorded 59 events. The
event shown in the example shows that this event is a ALARM 2 of the 4th
sensor (S=4) which belong to zone 2 (Z=2).
The third line in the timestamp when the event occurred.
The last line is the name of the sensor.
This screen on the left shows that the battery was disconnected at 11:00 on
18/01/10.
The screen on the left shows the panel start operating from 09:00 on 10/01/10.
1.4 Access level 2 (User access level)
All the functions of access level 2 can be accessed from a menu that is displayed when we push the button “4"
User menu.
To Reset the panel, from the central menu, we press button “5” and button “ENTER” and the next message is
displayed.
The user code is 1-1-1-1. So the key “1” must be pressed four times.
After this the panel resets.
ALARM 1 ( 59/ 59)
15%LIE S= 4 Z= 2
11:03:45 20/01/10
CAR PARKING - LPG
GENERAL ( 5/ 59)
PANEL
09:07:00 10/01/10
START
FAULT ( 13/ 59)
BATTERY
11:00:05 18/01/10
BATTERY DISCONNECTED
====================
TYPE USER CODE
----
====================

Page 6 from 22 921316000_09_016
Installation instructions
In this section there is information about the connectivity of panel, its peripherals, the programming of all the
functions and troubleshooting. All installers who want to connect and enable the gas detection panel must read this
manual carefully. The whole knowledge of the panel and its peripherals is necessary for work and installation.
General description
Input peripheral analysis for panel BS-316 :
- BS-380. LPG detector waterproof IP65.
- BS-381. Methane gas detector waterproof IP65.
- BS-382. Carbon monoxide detector waterproof IP65.
- BS-383. Ammonia detector waterproof IP65.
- BS-390. LPG detector anti-explosive type.
- BS-391. Methane gas detector anti-explosive type.
- BS-393. Ammonia detector anti-explosive type.
On the AUX input we can connect fire detection buttons, like the BS-536, BS-7000 (IP-65).
We can program and work the panel by using only the buttons that are on its keyboard.
Security
The panel cannot be installed correctly if the installation guide is not read.
This product must be installed, operated and maintained by skilled technician:
 Using all rules of electrical product installation in buildings.
 Installation guide.
- The operation voltage is 220-240V AC / 50-60Hz.
- Must be connected to the electrical panel of the building, but with a separate fuse.
Mounting
The mounting of panel must be in a visible place with easy access by the users. The panel BS-316 is a product for
easy wall mounting and indoor use. The mounting on the wall can be done by using plugs and screws that are
included in the panel package.

Page 7 from 22 921316000_09_016
Description of the internal parts of the panel
Cabling
The panel has pre-opened passages from where the installation cables will enter the panel.
The terminal blocks of the panel are capable of handling cable with a cross-section of up-to 2.5mm.
Connecting the panels with the mains power supply (230V AC) and with the battery
To connect the cable with the mains power supply, a cable with double insulation must be used. The connection is done
using the special terminals found on the right side of the panel as shown in the.
The battery can be placed on the bottom side of the panel.
The battery Α-986 of olympia electronics can be used. The charging circuit of the panel is also calculated for the
specific battery type. In case of replacement, the new battery must be of the same type.
Two cables with connectors are used to connect the battery to the panel. The black cable is connected to the
negative pole of the battery (marked with (-) or with black color) and the red cable is connected to the positive pole
of the battery (marked (+) or with red color).
Warnings.
1. During the installation, the connections to the mains power supply and the battery must be done after all
other connections are finished.
2. The panel connection with the mains supply must be done via a 16A external fuse or an automatic circuit
breaker rated at 16A.
3. Always use cables with double insulation.
4. The diameter of the cable must be at least 1mm.
5. The inner insulation of each cable must not be cut more than 1cm
6. The outer insulation must not be cut more than 1cm away from the internal insulation.
Figure 2: Inside the panel
Mounting holes
Mounting holes
Place batteries
Connect power cable
Ground terminals
Relay terminals
Inputs terminals

Page 8 from 22 921316000_09_016
Sensor connectivity
Before connecting any sensor to the panel, the main power supply must be disconnected. There are two ways of
connect the sensors depending on the number of contacts.
Α) Sensor with 2 contacts 4÷20mA
The connection of sensors with 2 contacts 4÷20mA must be between «+» and «-» of the sensor connector, that
correspond to «+» and “S” of the panel as shown in figure 4.
The cross-section of the cable depends on the length (see next table). On all sensors with 2 contacts you must
connect a coaxial cable. The shielding of the cable must be connected to the «-» of sensor.
Sensors
with
two contacts
Ranges
Cable type
From 0 to 100 meters 2 x 0,5 mm² shielded
From 100 to 200 meters 2 x 1 mm² shielded
Frοm 200 to 500 meters 2 x 1,5 mm² shielded
Frοm 500 to 1000 meters 2 x 2,5 mm² shielded
Β) Sensors with 3 contacts 4÷20mA
+
-
S

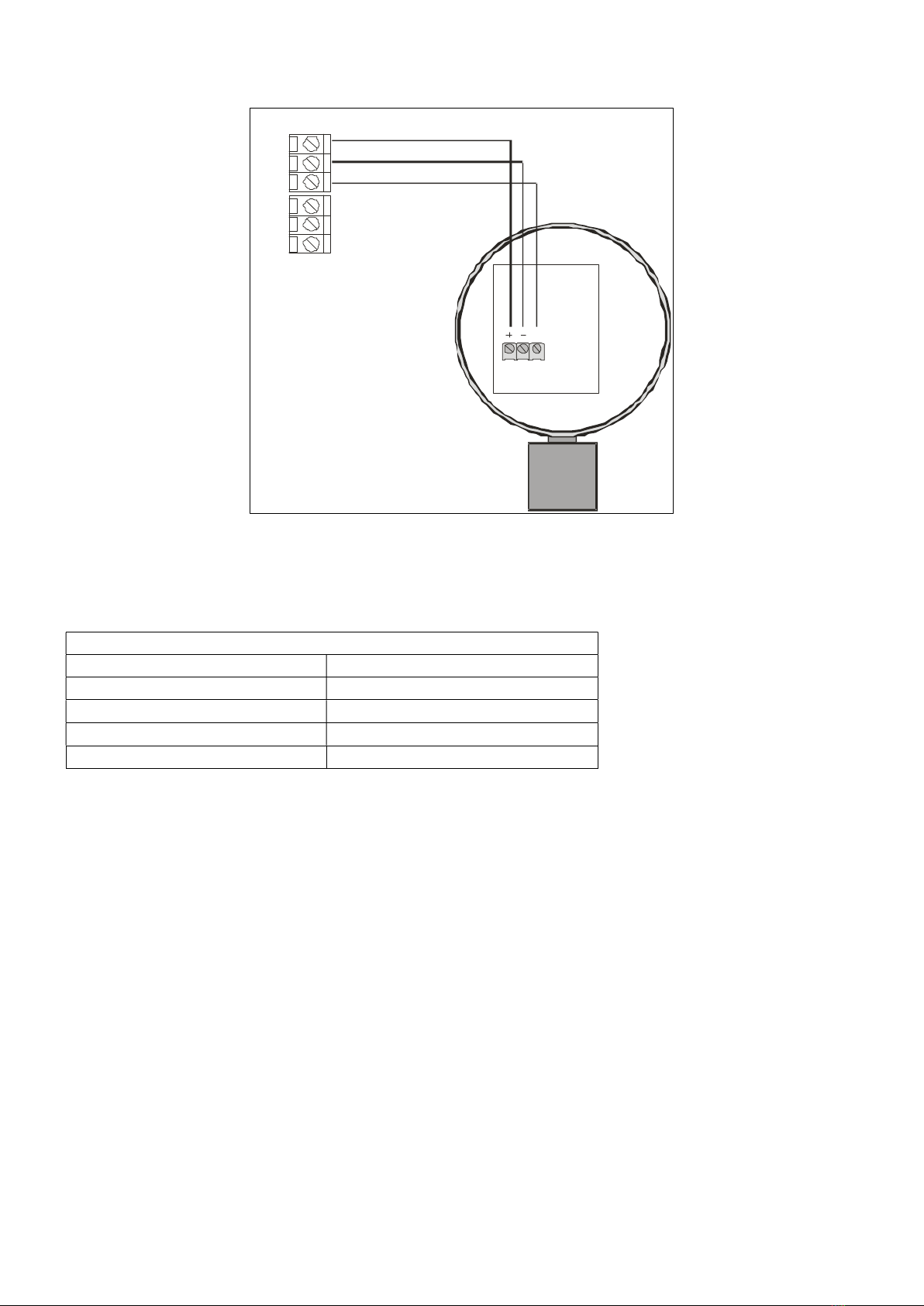

Figure 4: Connection diagram with two contact sensors
Figure 3:
Power
cable

Page 9 from 22 921316000_09_016
The connection of sensors with 3 contacts 4÷20mA, must be between «+», «-» and “S” of sensor that correspond
to «+», «-» and “S” of panel as shown in figure 5.
The cross-section of the cable depends on the cable length (see next table). The sensors with 3 contacts do not
require coaxial cables.
Sensor series with three contacts
Ranges
Cable type
From 0 to 300 meters 3 x 0,75 mm²
Up to 400 meters 3 x 1 mm²
Up to 500 meters 3 x 1.5 mm²
Up to 600 meters 3 x 2.5 mm²
The gas sensors, need a preheat time, in clear air, for about 20 seconds. After this time the sensor can sense
gases, but the maximum sense ability is after 3 hours of continuous operation. So a sample gas test should be
done after 3 hours.
The sensors BS-382, BS-383 have maximum sense ability, in clear air, after about 1-2 hours of continuous
operation.
After the electrical connection of the sensors, the technician must power the panel and setup all sensors.
About sensor setup see paragraph 2.6.1.
Figure 5: Connection diagram with three pad sensor
+
+
-
-
S
S
BS-390
S

Page 10 from 22 921316000_09_016
Finally on the AUX input we can connect fire detection buttons between inputs «-» and “S” of (Figure 6).
Figure 7: Connection diagram for BS-531.
Output connectivity
On the panel there are 16 programmable outputs relay. Each relay has a triple connector NO, NC, C. For more
information about output setup see paragraph 2.7.1.
+
-
AUX
Figure 6: Connection device diagram on helpful input.
