CDP24106 USER GUIDE Errata Sheet
CDP System does not include a V90 modem
CDP System does not support: Dial Up Networking (DUN); Personal Area Network Profile
(PAN); Cordless Telephony Profile (CTP); Object Exchange (OBEX)
The CDP is not user-upgradable
Pg. 12 What about security?
The Base is set to be discoverable by pressing and holding the page
Button for 10 seconds. The ‘envelope’ icon flashes and you’ll hear a
Beep to confirm the base is discoverable.
Pg. 42 North American dialing feature is not supported
Pg. 45 Registration
9. Press and hold down page on the base station until the
‘envelope’ icon flashes and you hear a beep.
10. After the ‘envelope’ icon flashes (not ‘mute’)…….
Pg. 52 Bluetooth functions – Device pairing
1. Press and hold the base page button for 10 seconds. The
‘envelope’ icon will blink to show the base station is discoverable.
Headset pairing
1. On the CDP handset, select MENU →BS SETTINGS →
BLUETOOTH →ADD HEADSET.
2. Put the headset into pairable mode (see headset user guide).
3. On the CDP handset, select NEXT to enter the PIN screen.
4. Enter the headset PIN code; the base station will beep while
it is searching. A final high pitched beep will indicate success;
a low pitched beep indicates failure.
5. If the procedure completes successfully, the headset will
terminate the pairing mode. If pairing fails, check your
headset PIN code and pairing instructions, then try again.
6. Press the headset call control button to activate headset
coordination with the CDP base. You may have to power
cycle the headset, base, or both. Your headset will now
receive calls via the base station.
Pg. 55 Base station does not have a Flash feature

WelcomeUser guide conventions
OThis kind of paragraph contains interesting information.
IThis kind of paragraph contains important information.
Your purchase
Thank you for purchasing the Olympia Cordless Data Phone (CDP). As you will have already realized, this
system is much more than just a cordless phone; it is a Bluetooth™ data network (complete with
built-in V90 modem) that incorporates a phone line, telecommunications system consisting of a base
station that can accommodate up to 4 handsets (one of which can be a Bluetooth™ headset).
Important safety instructions
ITHIS EQUIPMENT IS NOT DESIGNED FOR MAKING EMERGENCY TELEPHONE CALLS
WHEN THE POWER FAILS. ALTERNATIVE ARRANGEMENTS SHOULD BE MADE FOR
ACCESS TO EMERGENCY SERVICES.
Safety information
Only use the power supply included with the CDP. Using an unauthorized power supply will invalidate
your warranty and may damage the telephone.
Do not open the base station or handset (other than to change the battery pack). This could expose you
to high voltages or other risks.
IDanger of explosion if battery pack is incorrectly replaced. Use only an
Olympia approved battery pack in the handset of your CDP. To reduce the
risk of fire or injury, be careful not to short the battery pack with conducting
materials such as rings, bracelets and keys. The battery pack or conducting
material may overheat and cause burns. Use only the following type and size
of battery pack: GP70AAAH3BX
Radio signals transmitted between the handset & base may cause interference to hearing aids.
This product should not be used near emergency / intensive care medical equipment and should not be
used by people with pacemakers.
Never dispose of the battery pack in a fire. There is a serious risk of explosion and / or the release of
highly toxic chemicals. Check with local codes for possible special disposal instructions.
Only use the telephone cords provided with the CDP 24106.
Do not use this product near water, near a bath, wash bowl, kitchen sink or laundry tub, in a wet
basement, or near a swimming pool.
Unplug this product from the wall outlet under the following conditions.
•When the power supply cord or plug is damaged or frayed.
•If liquid has been spilled in the product.
•If the product has been exposed to water or rain.
•If the product has been dropped and the cabinet damaged.
•If the product exhibits a distinct change in performance.
AVOID USING A TELEPHONE DURING AN ELECTRICAL STORM. THERE MAY BE A REMOTE RISK OF
ELECTRIC SHOCK FROM LIGHTNING.
DO NOT USE THIS CORDLESS TELEPHONE TO REPORT A GAS LEAK IN THE VICINITY OF THE LEAK.
Welcome
USER
GUIDE www.olympiaphones.com Page 3

Copyright
Copyright©2003, Wave Industries Ltd. All Rights Reserved. Reproduction, adaptation, or translation
without prior written permission is prohibited, except as allowed under the copyright laws.
First Edition: April 2003.
Printed in China.
Trademark Information
Olympia®is a registered trademark of Olympia International Holdings Ltd.
Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by Mansella Limited and Giant
Wireless Technology Limited under license.
Disclaimer
The information contained in this document is subject to change without notice. Wave Industries makes
no warranty of any kind with respect to this information. Wave Industries shall not be liable for any
direct, indirect, incidental, consequential, or other damage alleged in connection with the furnishing or
use of this information.
USER
Page 4www.olympiaphones.com GUIDE
Welcome

ContentsWELCOME
User guide conventions····················3
Your purchase ························3
Important safety instructions ···············3
Safety information ··················3
Copyright ··························4
Trademark Information ··················4
Disclaimer ··························4
CONTENTS
FCC Information ·······················8
FCC Part 68 (USA only) ················8
FCC Part 15 (USA only) ················8
START UP
Package contents·······················9
Charging the battery ·····················9
Care of your system·····················10
Environmental ······················10
Base location ······················10
Cleaning ························10
Connecting the system ···················10
OVERVIEW
Your system's functions ···················11
Phone functions ·····················11
Data functions······················11
Bluetooth - A Technology Overview ·············12
How do the devices know to communicate with each other? 12
What about security? ··················12
What can my USB adapter do? ·············13
SYSTEM CONTROLS & INDICATORS
The phone ·························14
The phone buttons ···················14
Keypad ·······················14
Line buttons ·····················14
Menu scroll button ·················14
Option buttons ···················14
Phone display ······················15
Status icons ·····················15
Function icons····················16
Information area ··················16
Base station·························16
The base station buttons
·····························16
Page button ·····················16
Voice mail message indicator ············16
MENU MAPS
Main menu map ······················17
Phonebook menu map ···················17
System menu map ·····················18
In-call menu map ······················18

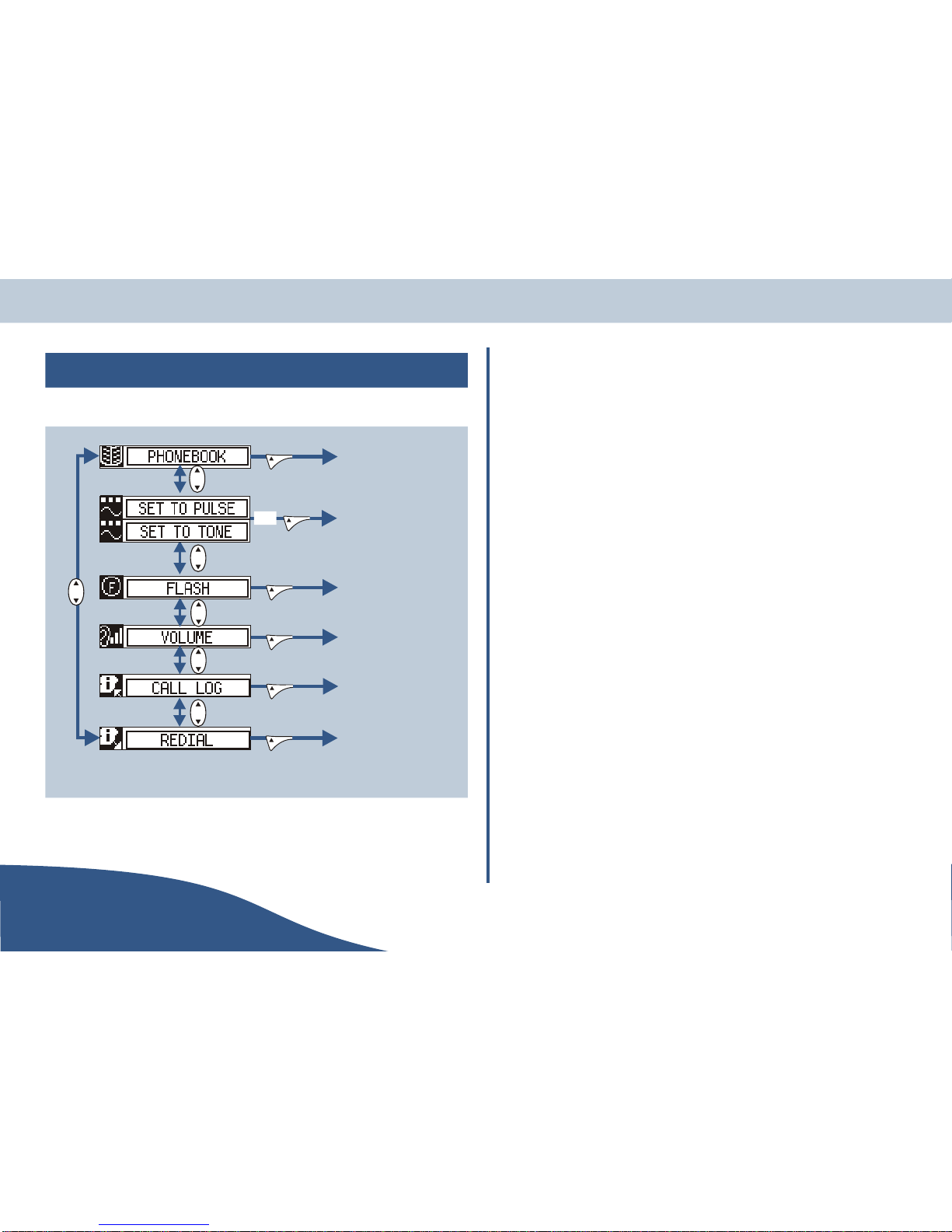

Pre-call menu map ·····················19
MAKING CALLS
Handset call methods ····················20
Receiving calls ······················20
Keypad call - line selected first··············20
Keypad - number first ··················20
Redial list (outgoing calls) ················21
Call log (incoming caller ID) ···············21
Phonebook ·······················22
Dialing options menu ····················22
In-call menu ························23
In-call volume ······················23
Mute on/off ·······················23
Contents
USER
GUIDE www.olympiaphones.com Page 5

Handset speaker on/off ·················23
Pulse/Tone ·······················24
Intercom ························24
Flash ··························24
Intercom ··························24
Handset intercom calls ·················24
Accessing Intercom (in-call menu) ··········24
Accessing Intercom (system menu)··········24
Handset to handset ·················25
Keypad lock·························25
Using a headset·······················25
Controlling two calls ····················26
Pre-call menu ························26
Phonebook ·······················26
Set to tone/pulse ····················26
Flash ··························26
Volume ·························27
Call log ·························27
Redial ··························27
SETTINGS
Handset set-up ·······················28
Accessing the handset settings menu ··········28
Handset audio settings ·················28
Handset ring type ··················28
Handset ringer volume ···············29
Handset auto answer (pickup/headset) ·······29
Tone (key click, out of range & battery warning) ···30
Handset name······················30
Registration menu ····················31
Language ························31
Backlight ························32
Reset ··························32
Base station set-up ·····················33
Accessing the base station settings menu ········33
Base station audio settings················33
Base station ring type ················33
Base station ringer volume ·············34
Bluetooth™ ·······················34
Base station name ····················35
Boost mode ·······················35
Set base passkey PIN ··················36
Pulse/Tone ·······················36
Home and local codes ··················37
Home code ·····················37
Local codes ·····················37
Reset base station ····················37
STORING & MANAGING NUMBERS
Phonebooks·························38
Storing phone numbers ·················38
Editing stored phone numbers ··············38
Deleting a stored phone number ············39
Phonebook editing menu ················39
Deleting all stored phone numbers ···········39
Copy a phonebook number ···············40
Redial list & call log ·····················40
Delete a number ····················40
Delete all numbers ···················41
Copy a number to a phonebook ·············41
North American dialing (7, 8, 10 &11 digit dialing feature) ·42
North American dialing example ··········42
USER
Page 6www.olympiaphones.com GUIDE
Contents

TEXT HANDLING
Text entry ··························43
BATTERY CARE
Battery type ·························44
Battery status ························44
Battery warning ·······················44
Charging the battery pack ·················44
Changing the battery pack ·················44
EXTRA HANDSETS
Overview ··························45
Registration ·························45
TROUBLESHOOTING
Troubleshooting guide ···················46
ADVANCED SYSTEM USE
Advanced facilities ·····················48
Software installation ···················48
Olympia Data Phone Manager (DPM) ············50
DPM setup························51
Bluetooth™ functions ····················52
Discoverable Mode ···················52
Pairing ·······················52
Device pairing····················52
Headset pairing ···················52
Dial up networking ···················53
Network access ·······················53
Setting up the client connection ·············54
Bluetooth™ profiles ·················55
Base station ·····················55
USB ADAPTOR
System requirements ····················56
Software installation ····················56
Driver installation ······················56
WARRANTY
Contents
USER
GUIDE www.olympiaphones.com Page 7

FCC Information
FCC Part 68 (USA only)
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the exterior of
the cabinet of this equipment is a label that contains, among other information, a product identifier in the format
US:QSPTM00BCDP24 If requested, this number must be provided to the telephone company.
•ACTA Registration Number: US:QSPTM00BCDP24
•Ringer Equivalence Number (REN): 0
•RPC Code: QSP
•Service Order Code (SOC Code): 9.0F
•USOC Jack Type: RJ11
A FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be
connected to the telephone network or premises wiring using a compatible modular jack that is Part 68 compliant.
See Installation Instructions for details.
The REN is used to determine the quantity of devices that may be connected to the telephone line. Excessive RENs on
the telephone line may result in the devices not ringing in response to an incoming call. Typically, the sum of RENs
should not exceed five (5.0). To be certain of the number of devices that may be connected to a line (as determined
by the total RENs) contact the local telephone company.
If this equipment Olympia CDP 2.4 causes harm to the telephone network, the telephone company will notify you in
advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone
company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with
the FCC if you believe it is necessary.
The telephone company may make changes to its facilities, equipment, operations or procedures that could affect the
operation of the equipment. If this happens the telephone company will provide advance notice so you can make the
necessary modifications to maintain uninterrupted service.
If trouble is experienced with this equipment Olympia CDP 2.4, for repair or warranty information, please contact Wave
Industries, 333 S.E. 2nd Avenue, Portland Oregon 97214 USA. If the equipment is causing harm to the telephone
network, the telephone company may request that you disconnect the equipment until the problem is resolved.
Connection to party line service is subject to state tariffs. (Contact the state public utility commission, public service
commission or corporation commission for information.)
FCC Part 15 (USA only)
This equipment complies with Part 15 of the Federal Communications Commission (FCC) rules for the
United States of America. Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
IChanges or modifications to this unit not expressly approved by the party
responsible for compliance could void the users authority to operate this equipment.
This equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the phone off
and on, the user is encouraged to try and correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment & receiver.
3. Connect the equipment into an outlet or on a circuit different to that from which the receiver is connected.
Consult the dealer or an experienced radio / TV technician for help.
Privacy of communications may not be ensured when using this phone.
USER
Page 8www.olympiaphones.com GUIDE

Start upPackage contents
1. Handset & battery cover 7. Line cord
2. Base station (including modem) 8. USB cable
3. 3 Clip-on covers (1 fitted, 2 spare) 9. Quick start guide
4. Battery pack 10. User guide
5. Power supply 11. Software on CD-ROM (CDP and USB Adaptor)
6. Belt clip 12. USB Adaptor
OIf anything is missing, please contact your
place of purchase.
Charging the battery
1. Connect the power supply to a
suitable power outlet and its
output lead to the rear of the
base station.
ODo NOT connect
any other lead at
this point.
2. Insert the battery pack as indicated and slide
the battery cover into position.
3. Place the phone into the base station and leave it
for approximately 16 hours and the battery icon is
displayed as shown.
While your handset is charging, why not read Overview
in your user guide to acquaint yourself with advantages
and benefits provided by your Olympia Cordless Data Phone
(CDP) on page 11.
When the handset is fully charged, continue
with the set-up procedures.
Start up
USER
GUIDE www.olympiaphones.com Page 9
11
3
6
7
4
8
1
9
5
12
2
10
+
-
