Olympus ScopeGuide UPD-3 User manual

ScopeGuide is designed to provide a real-time 3D image of the shape and configuration of the
colonoscope inside the body.
CAUTION: This quick reference guide is only a summary of the ScopeGuide Instructions for Use. For detailed operating instructions, be sure to follow the ScopeGuide
(UPD-3) Instruction Manual that was included with your ScopeGuide (UPD-3) purchase.
Pre-Procedure Checklist
ScopeGuide Functions

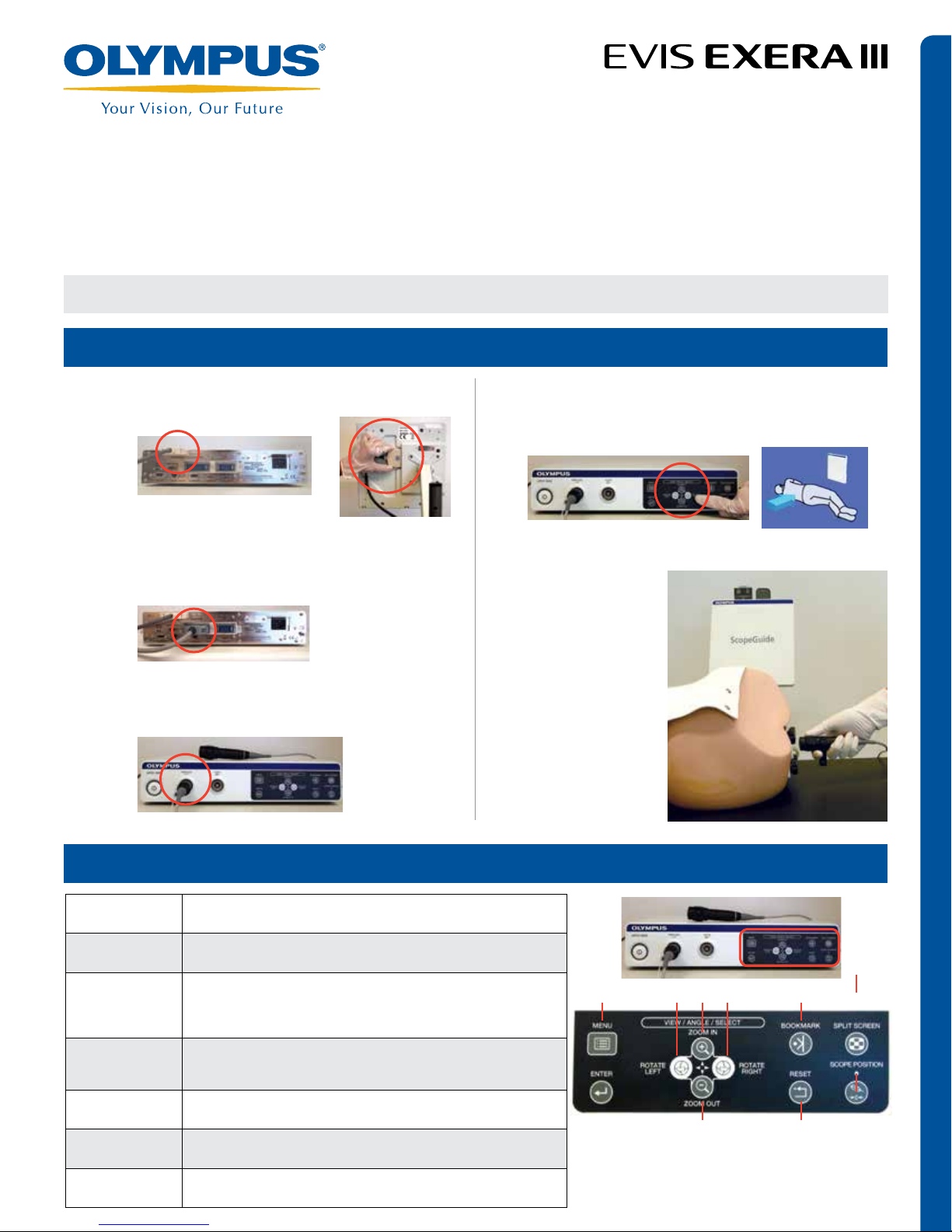

Connect the receiver dish to the UPD-3 via the receiver dish
cable (MAJ-1875).
Use the arrow keys or the remote control to change the
orientation of the scope image to correspond with the
positioning of the patient after the system is powered on.
1 4
25
6
3
Use the ScopeGuide-enabled CF-HQ190L colonoscope or
connect the MAJ-1878 probe to the UPD cable (MAJ-1881) for
use with a non-ScopeGuide enabled colonoscope.
Connect the hand coil (MAJ-1859) to the UPD-3.
Position the receiver
dish (MAJ-1868) next
to the stretcher and
up and over the bed
rail, then align the right
edge of the receiver
dish with the patient’s
anus.
Set the starting
position by holding the
endoscope tip and the
hand coil close to the
anus. Then press the
scope position button.
1. Menu Press to display or exit the menu list.
2. Rotate Press rotate to change the orientation of the patient image if the
patient’s position on the stretcher changes.
3. Zoom
Press to magnify and reduce the endoscope model display if the image
size on the screen is not optimal. Zoom is also helpful if capturing
images for procedure reports. Magnify the ScopeGuide image to ensure
it is visible in small report images.
4. Bookmark
Press to mark an area of interest or polyp on the insertion length of the
scope for reference. Note that actual locations of bookmarked areas
may vary if loops are reduced while manoeuvering to reach the cecum.
5. Split screen Press to alternate between split-screen and single-screen display.
6. Scope position Press to set or release the endoscope start position. This enables the
processor to measure the length of the scope within the patient.
7. Reset Press to return to default ScopeGuide settings.
1 2 2 43
73
5
6
ScopeGuide®(UPD-3)
Quick Reference Guide

Olympus is a registered trademark of Olympus Corporation, Olympus America Inc., and/or their affiliates.
3500 Corporate Parkway, PO Box 610, Center Valley, PA 18034
For more information, contact your Olympus
sales representative, or call 800-848-9024.
www.medical.olympusamerica.com
©2014 Olympus America Inc. All rights reserved.
Printed in the USA OAIGI1014QRG14205
CAUTION: The loop identification and subsequent description cannot be used as examination instruction. Olympus is not liable for any patient injury caused by improper
examination methods.
ScopeGuide is designed to provide a real-time 3D image of the shape and configuration of the
colonoscope inside the body.
ScopeGuide®
Quick Reference Guide
Loop Identification
Alpha Loop
Reduce with a clockwise twist.
Reverse
Alpha Loop
Reduce with a counterclockwise twist.
N Loop
Advance carefully and reduce with
a clockwise twist if there is a spiral
component.
Spiral
Sigmoid Loop
Reduce with a clockwise twist.
1
1
1
1
2
2
2
2
3
3
3
3
4
4
4
4
