OLYS AC1230PRO User manual

Smart Battery Charger
ENG
Model：AC1230PRO|12V,30A
AC2415PRO|24V,15A

1.Safety instructions
CAUTION: CAREFULLY READ AND FOLLOW ALL SAFETY INSTRUCTIONS
!
•
• do not cover or place anything on the top of the charger.
• do not place the charger on top of the battery.
• ensure that there is no spark or ignition source near the battery;
The battery will release explosive gas when charged.
• battery acid is corrosive; If the battery acid comes into contact
with the skin, rinse it with water immediately.
• do not attempt to charge non rechargeable or frozen batteries.
• children or people who cannot read and understand the
instructions shall not use the charger manual unless they are under
the strict supervision of the person in charge,So as to ensure the
use of the charger and safely store and use the charger in a place
out of the reach of children.
• the charger must be connected in thefollowing order:1. Connect
the charger output DC cable to the
battery terminal, away from the battery and any fuel line / power
supply2. Connect the AC power cable to the main power outlet
and turn on the AC switch
• after charging, the charger must be disconnected in the following
sequence (opposite to the connection sequence):
1. Disconnect the AC power cable from the main power outlet
2. Disconnect the DC cable to the chassis
3. Disconnect the DC cable connected to the battery terminal
• power connections must comply with local electrical regulations.
If the AC power cable is damaged, please contact the manufacturer or service agent
.• the charger can only be plugged into a grounded AC power outlet.
Ensure that the area around the battery and charger is well ventilated.

1.Quick start guide

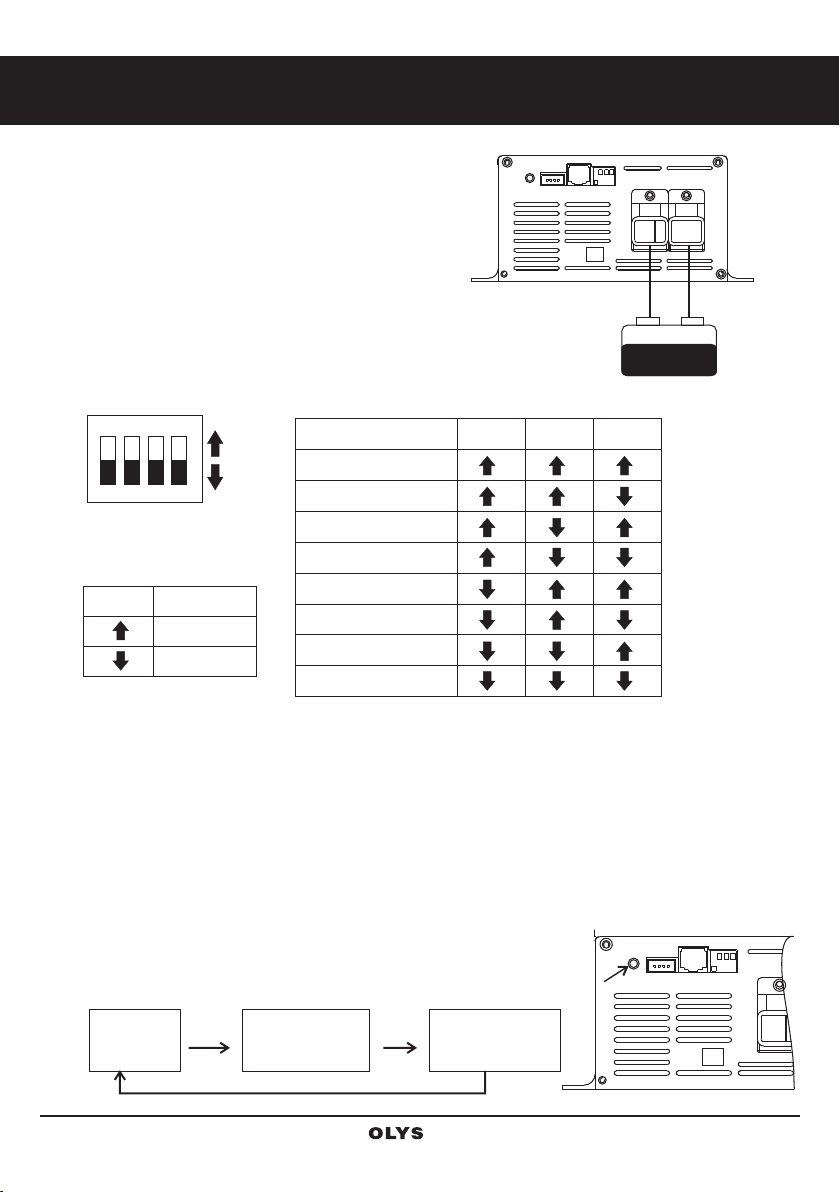

1. Connect the charger to the battery with a DC cable.
Make sure the cable is firmly connectedSolid, the
cable diameter is recommended to be more than 6mm
+-
2.Select battery type and 0 ℃ charging function
ON
1 2 3 4
Lithium battery 0 ℃
charging function
10℃ charge
NO
YES
Battery Selection
234
GEL（14 . 3V)
Lead-acid(14.4V)
AGM(14.7V)
LiFePO4(13.9V)
Battery type
LiFePO4(14.2V)
LiFePO4(14.4V)
LiFePO4(14.6V)
Li-ion(12.6V)
NOTE： AC power socket with grounding wire
4Pin DIP Switch
Mode
Normal
(LED ON)
Low Current
(LED Flash)
2
Note: connect the charger terminal first,
and then connect the battery
2. If 0 ℃ charging function is required, external temperature sensor (RTs)
must be connected. If not, the charger can charge by default
1. The 0 ℃ charging function is only applicable to charging lithium batteries,
Lead acid battery do not need to be set
NOTE:
3. Connect the AC cable to the main power outlet
4.Select charging mode (default Normal mode)
Press and hold "mode" for 1s, and the yellow light flashes
quickly. Release the button and change to another mode.
The three modes cycle
30A 15A
mode
1s mode 1s Night
(LED OFF)
10A

3.Function
3.1. Buletooth+APP(optional)
3.2. 4-stage charging mode
pre charging, constant current charging(ABS), constant voltage charging(Bulk)
and floating charging
3.3. Temperature compensation
3.4. Protection function
3.5. Low current mode（5 0% current）
3.6. Night mode
3.7. Fan speed control

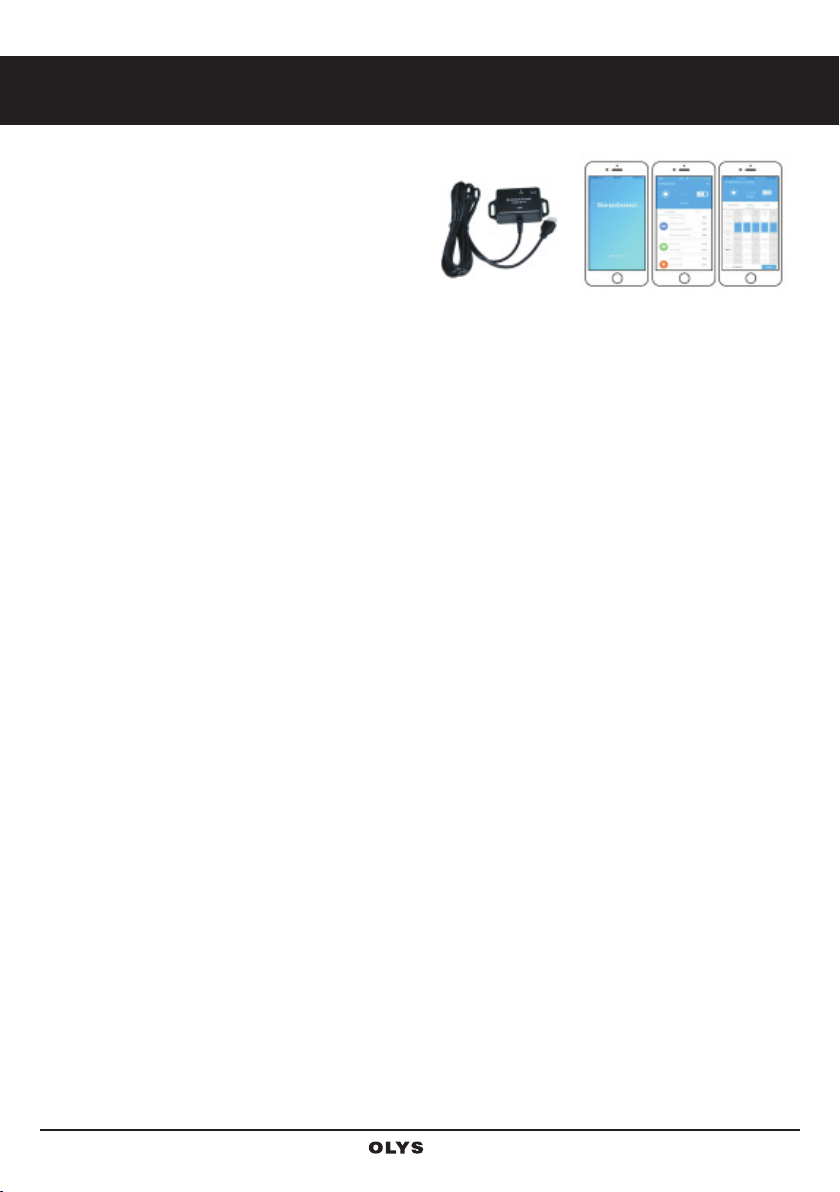

Connected to the Bluetooth module BT10,
Download app "chargerconnect",
The mobile phone can display charging
parameters and fault information I
n real time
Temperature compensation charging voltage, automatic compensation according to
ambient temperature; This ensures that the battery is charged at the optimum charging
voltage,Regardless of the climate, there is no need to manually adjust the settings.
Note: 1. Charging the lithium battery without temperature compensation2.
The temperature sensor (RTs) is an optional part and needs to be purchased separately
If not connected, no temperature compensation
Overheating protection: the internal temperature> 85 ℃ ,charger stop working
Current reduction protection: the internal temperature > 70 ℃,
the current is reduced by 50% for charging
Short circuit protection: battery is short circuited and the charger stops working
Reverse connection protection: the battery is reversely connected and the charger
does not work
The charger is charged with 50% current of standard specification
Night mode charging, Keep 10% fan speed allowed during charging process,
and Keep silent , the charging current will reach 10A (AC1230 PRO) or 6A(AC2415PRO)
Detect charging current and charger temperature to change fan speed
3.8.
Lithium battery 0V automatic activation charging
When the lithium battery is low voltage protection (UVP) state, the charger can
automatically activate the lithium battery charging
3.9. lithium battery 0℃ charging function
The 0 ℃ charging function of lithium battery can be selected through the DIP switch

Connection diagram
4.
+-
+
-
Temperature
sensor
Fuse
45A
（Optional)
Bluetooth Dongle
5m
3m
Monitor（MT-2)
（Optional）
Mode button
Battery
selection
ON/FF
3m
AC Fuse
5A
AC input
Fan

5.Setting
5.1. Battery selection
ON
1 2 3 4
10℃ charging
NO
YES
234
GEL（14.3V)
Lead-adic(14.4V)
AGM(14.7V)
LiFePO4(13.9V)
Battery type
LiFePO4(14.2V)
LiFePO4(14.4V)
LiFePO4(14.6V)
Lithium-ion(12.6V)
4pin DIP switch
Battery selection
0℃charging
selection
5.2. 0 ℃ charging function of lithium battery
Normal： Rated current
Low current： 50% rated current
Night： No fan mode，6 .5 A(AC1230PRO), 5A(AC2415PRO)
5.3. Charging Mode
Normal
LED ON
Low current
LED Flash
Night
LED OFF
"Mode"1S"Mode"1S
"Mode"1S

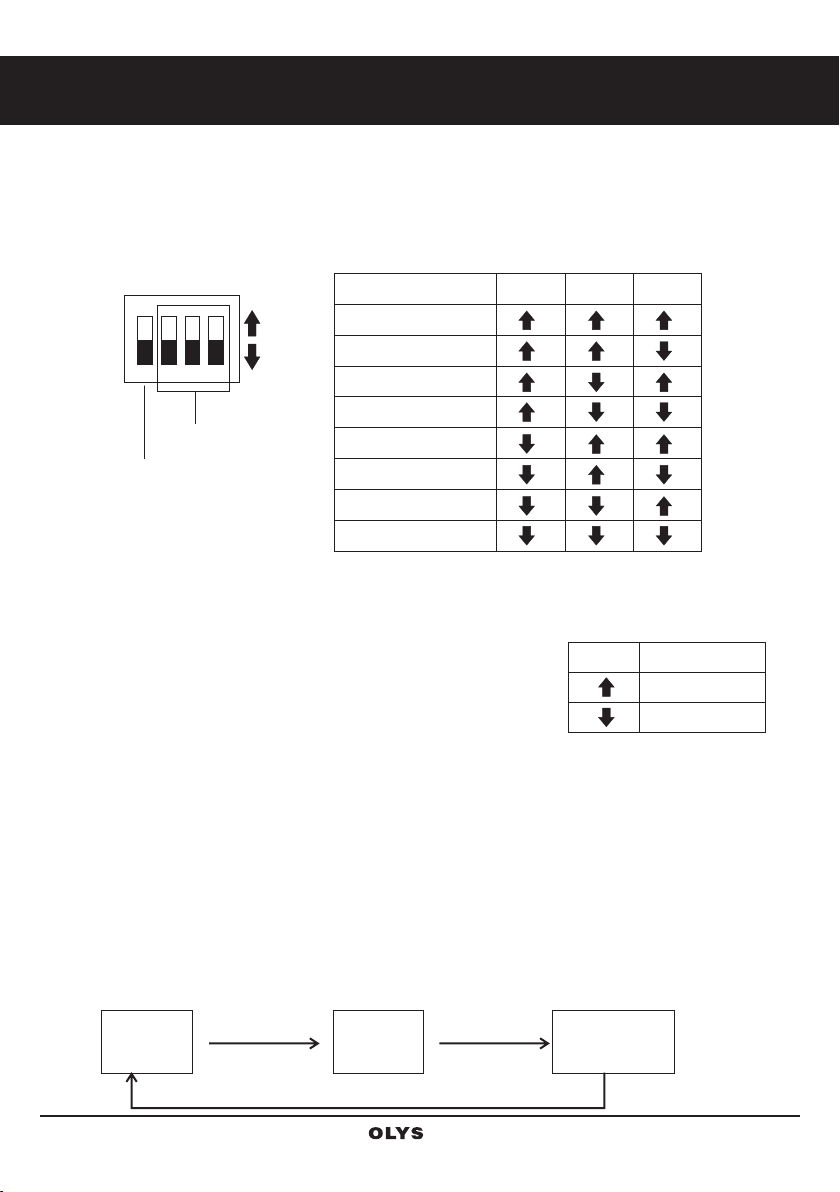

The DIPswitch numbers 2, 3 and 4 are used to select the battery type. Refer to the
following table.It is recommended to select the battery before charging, if the battery
type is changed during charging, the charging will stop for a few seconds, and then
recharge according to the new battery parameters
DIP switch No. 1 is used to select 0 ℃ charging of lithium batteryfunction
REMARKS:
1. 0 ℃ charging function is only applicable to charging
lithium battery. Default charging of lead-acid battery
2. If 0 ℃ charging function is required, external temperature
transmitter must be purchased separately, Charger
will be charged by default if it is not connected
Press and hold the "mode" button for 1s while charging or before the battery is not
connected. The mode indicator will flash quickly. Release the button to change the
charging mode. The three modes will change cyclically. If there is no other operation
within 5S, the mode will take effect. The charger will recharge according to the new
mode

6.LED Indicator Status
"Mode" :Yellow
Normal ON
Low current Flash
Night OFF
"Battery Full" : Green
Battery Full ON
Battery not fully charged OFF
"Charging" : Blue
"Error" :Red
No charging or charging timeout OFF
Constant current charging(ABS)Slow flash（1 time/2S）
Constant voltage charging(BULK) Fast flash（1time/1S）
Float charging ON
No f a ul t OFF
No b a tt er y co nne c te d ON
硬件过 流 1 time / 3.5 seconds
充电超 时
过温保 护
输入过 压
输入低 压
输出欠 压
控制板 与AC板通 信失 败 1 time/1second
电池规 格错 误
软件过 流
Flash 2 times continuously, pause for 3.5 seconds
Flash 3 times continuously, pause for 3.5 seconds
Flash 4 times continuously, pause for 3.5 seconds
Flash 5 times continuously, pause for 3.5 seconds
Flash 6 times continuously, pause for 3.5 seconds
Flash 7 times continuously, pause for 3.5 seconds
2 time/1second
Note: flashing frequency: 1 time / 1s

7.Charging parameters
Battery type
GEL
Lead-acid(14.4V)
AGM(14.7V)
LiFePO4(13.9V)
LiFePO4(14.2V)
LiFePO4(14.4V)
LiFePO4(14.6V)
Lithium-ion(12.6V)
Absorption Float
14.3V
14.4V
14.7V
13.9V
14.2V
14.4V
14.6V
12.6V
13.8V
13.5V
13.5V
13.8V
13.8V
13.8V
13.8V
12.5V
Note: 24V charger, multiply all parameters by 2
8.Optional accessories
8. 1 Temperature sensor
（RTS)
8.2 Monitor(MT-2) Display battery voltage, charging current,
charging AH, charging WH
8.3 Bluetooth dongle
Connect the mobile phone app (chargerconnect) to display the
battery in real timeVoltage, charging current, charging AH,
charging WH, and fault information
Specification: NTC 10K
measure the externalenvironment temperature, for lead-acid batteries
Temperature compensation for charging parameters,
compensation value; 18mV/℃(12V)， 36mV/℃(24V)
Note: the temperature sensor is not connected, and the charging is
based on the default 25 ℃ standard parameter

2.Technical specifications
Model AC1230 Pro AC2415 Pro
Input voltage and frequency range 180V-260VAC|50HZ
Efficiency >90%
Max.output current-Normal mode 30A 15A
Max.output current-low current mode 15A 7.5A
Max.output current-Night mode(quiet mode) 10A
6A
Max battery capacity (recommended) 300AH
150AH
Min battery capacity (recommended) 100AH
50AH
Battery voltage 12V 24V
Temperature compensation (lead-acid only) 18mV/℃36mV/℃
Charge algorithm 4-stage adaptive
Protection Reverse polarity (fuse), output short
circuit, over temperature
Operating temperature -20 to +50°C
Material & Colour Aluminium,Iron grey
Battery connection M8 screw
Protection category IP22 (indoor use)
Weight
Dimensions (h x w x d) 221×155 70mm×
1.4kg
