Omnik Omniksol-1k-TL2 User manual

User Manual V1.0
User Manual
-Installation
-Operation
Omniksol-1k-TL2
Omniksol-1.5k-TL2
Omniksol-2k-TL2
Omniksol-2.5k-TL2-M
Omniksol-3k-TL2-M
Omnik New Energy Co., Ltd.
www.progenergy.com
RIVENDITORE AUTORIZZATO


Catalog
1. Notes on this manual.........................................................................................................................................................2
1.1 Scope of Validation......................................................................................................................................................2
1.2 Symbols Used .............................................................................................................................................................2
1.3 Target Group...............................................................................................................................................................3
2. Preparation ........................................................................................................................................................................4
2.1 Safety Instructions.......................................................................................................................................................4
2.2 Explanations of Symbols on Inverter ...........................................................................................................................6
3. Product Information............................................................................................................................................................7
3.1 Overview......................................................................................................................................................................7
3.2 Major Characteristics...................................................................................................................................................8
3.3 Datasheet....................................................................................................................................................................9
4. Packing checklist .............................................................................................................................................................13
4.1 Assembly parts..........................................................................................................................................................13
4.2 Product Appearance..................................................................................................................................................14
4.3 Product Identification.................................................................................................................................................15
4.4 Further Information....................................................................................................................................................15
5. Installation........................................................................................................................................................................16
5.1 Safety ........................................................................................................................................................................16
5.2 Mounting Instructions.................................................................................................................................................17
5.3 Safety Clearance.......................................................................................................................................................18
5.4 Mounting Procedure ..................................................................................................................................................19
5.5 Safety lock.................................................................................................................................................................22
6. Electrical Connection.......................................................................................................................................................23
6.1 Safety ........................................................................................................................................................................23
6.2 AC Side Connection ..................................................................................................................................................23
6.3 DC Side Connection..................................................................................................................................................26
6.4 Communication and Monitoring Device.....................................................................................................................30
7. Display and Operation .....................................................................................................................................................31
7.1 LCD Panel.................................................................................................................................................................31
7.2 Commissioning..........................................................................................................................................................32
7.3 Operation...................................................................................................................................................................33
7.4 State Information.......................................................................................................................................................44
8. Recycling and Disposal....................................................................................................................................................45
9. Troubleshooting...............................................................................................................................................................46
10. Abbreviation.....................................................................................................................................................................48
11. Contact.............................................................................................................................................................................49

2
1. Notes on this manual
1.1 Scope of Validation
The main purpose of this User’s Manual is to provide instructions and detailed
procedures for installing, operating, maintaining, and troubleshooting the following five
types of Omnik New Energy-Solar Inverters:
Omniksol-1k-TL2
Omniksol-1.5k-TL2
Omniksol-2k-TL2
Omniksol-2.5k-TL2-M
Omniksol-3k-TL2-M
Please keep this user manual all time available in case of emergency.
1.2 Symbols Used
CAUTION
CAUTION indicates a hazardous condition which, if not
avoided, can result in minor or moderate injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, can result in death or serious injury or moderate
injury.
DANGER
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.

3
1.3 Target Group
Chapter 1, 2, 3, 4, 7, 8, 9, 10 and chapter 11 are intended for anyone who is intended
to use Omnik Grid Tie Solar Inverter. Before any further action, the operators must
first read all safety regulations and be aware of the potential danger to operate high-
voltage devices. Operators must also have a complete understanding of this device’s
features and functions.
Chapter 5 and chapter 6 are only for qualified personnel who are intended to install
or uninstall the Omnik Grid Tie Solar Inverter.
NOTICE
Hereby qualified personnel means he/she has the valid
license from the local authority in:
•Installing electrical equipment and PV power systems (up to
1000 V).
•Applying all applicable installation codes.
•Analyzing and reducing the hazards involved in performing
electrical work.
•Selecting and using Personal Protective Equipment (PPE).
WARNING
Do not use this product unless it has been successfully
installed by qualified personnel in accordance with the
instructions in Chapter 5. “Installation”
NOTICE
NOTICE indicates a situation that can result in property
damage, if not avoided.

4
2. Preparation
2.1 Safety Instructions
WARNING
The installation, service, recycling and disposal of the
inverters must be performed by qualified personnel only in
compliance with national and local standards and
regulations. Please contact your dealer to get the
information of authorized repair facility for any maintenance
or repairmen. Any unauthorized actions including
modification of product functionality of any form will affect
the validation of warranty service; Omnik may deny the
obligation of warranty service accordingly.
DANGER
DANGER due to electrical shock and high voltage
DO NOT touch the operating component of the inverter, it
might result in burning or death.
TO prevent risk of electric shock during installation and
maintenance, please make sure that all AC and DC
terminals are plugged out.
DO NOT stay close to the instruments while there is severe
weather conditions including storm, lighting etc.

5
CAUTION
The PV inverter will become hot during operation; please
don’t touch the heat sink or peripheral surface during or
shortly after operation.
Risk of damage due to improper modifications. Never
modify or manipulate the inverter or other components of
the system.
NOTICE
Public utility only
The PV inverter designed to feed AC power directly into the
public utility power grid; do not connect AC output of the
device to any private AC equipment.

6
2.2 Explanations of Symbols on Inverter
Symbol
Description
Dangerous electrical voltage
This device is directly connected to public grid, thus all work to the
inverter shall only be carried out by qualified personnel.
DANGER to life due to high electrical voltage!
There might be residual currents in inverter because of large
capacitors. Wait 10 MINUTES before you remove the front lid.
NOTICE, danger!
This device directly connected with electricity generators and public
grid.
Danger of hot surface
The components inside the inverter will release a log of heat during
operation, DO NOT touch aluminum housing during operating.
An error has occurred
Please go to Part 9 “Trouble Shooting” to remedy the error.
This device SHALL NOT be disposed of in residential waste
Please go to Part 8 “Recycling and Disposal” for proper treatments.
Without Transformer
This inverter does not use transformer for the isolation function.
Standards Association of Australian
The inverter complies with the requirement of the AS4777.
CE Mark
Equipment with the CE mark fulfils the basic requirements of the
Guideline Governing Low-Voltage and Electromagnetic Compatibility.
No unauthorized perforations or modifications
Any unauthorized perforations or modifications are strictly forbidden, if
any defect or damage (device/person) is occurred, Omnik shall not
take any responsibility for it.

7
3. Product Information
3.1 Overview
Industrial Layout
Excellent Heat Elimination

8
Effective Shield For DC/AC/Communication Connections
3.2 Major Characteristics
Omnik inverter has following characteristics which make Omnik inverter “High Efficiency,
High Reliability, High Cost Effective Ratio”
Wide DC input voltage and current range, enables more PV panels connected.
Wide MPP voltage range ensure high yield under various weather conditions.
High MPP tracking accuracy, ensure the minimum power loses during converting.
Complete set of protection methods.
Also, following protection methods are integrated in Omnik inverter:
Internal overvoltage
DC insulation monitoring
Ground fault protection
Grid monitoring
Ground fault current monitoring
DC current monitoring
Integrated DC switch (Optional)

9
3.3 Datasheet
Type
Omniksol-1k-TL2
Omniksol-1.5k-TL2
Omniksol-2k-TL2
Input (DC)
Max. PV Power
1300W
1750W
2300W
Max DC Voltage
500V
500V
500V
Nominal DC Voltage
360V
360V
360V
Operating MPPT Voltage
Range
80-360V
120-450V
120-450V
MPPT Voltage Range at
Nominal Power
150-360V
150-450V
150-450V
Start up DC Voltage
90V
150V
150V
Turn off DC Voltage
80V
120V
120V
Max. DC Current
16A
18A
18A
Max. Short Circuit Current
for each MPPT
20A
20A
20A
Number of MPP trackers
1
1
1
Number of DC Connection
for each MPPT
1
1
1
DC Connection Type
MC4 Connector
MC4 Connector
MC4 Connector
Output (AC)
Max. AC Apparent Power
1100VA
1650VA
2200VA
Nominal AC Power
(cos phi = 1)
1000W
1500W
2000W
Nominal Grid Voltage
220V/230V/240V
220V/230V/240V
220V/230V/240V
Nominal Grid Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
Max. AC Current
5.8A
9.0A
12.0A
Grid Voltage Range*
185-276V
185-276V
185-276V
Grid Frequency Range*
45-55Hz/55-65Hz
45-55Hz/55-65Hz
45-55Hz/55-65Hz
Power Factor
0.95 capacitive…0.95
inductive
0.95 capacitive…0.95
inductive
0.95 capacitive…0.95
inductive
Total Harmonic Distortion
(THD)
<2%
<2%
<2%
Feed in Starting Power
30W
30W
30W
Night time Power
Consumption
<1W
<1W
<1W
Standby Consumption
6W
6W
6W
AC Connection Type
Plug-in connector
Plug-in connector
Plug-in connector
Efficiency
Max. Efficiency (at
360Vdc)
97.5%
97.5%
97.5%
Euro Efficiency (at
360Vdc)
96.3%
96.5%
96.6%
MPPT Efficiency
99.9%
99.9%
99.9%

10
Type
Omniksol-1k-TL2
Omniksol-1.5k-TL2
Omniksol-2k-TL2
Safety and Protection
DC Insulation Monitoring
Yes
DC Switch
Optional
Residual Current
Monitoring Unit (RCMU)
Integrated
Grid Monitoring with Anti-
islanding
Yes
Protection Class
I (According to IEC 62103)
Overvoltage Category
PV II / Mains III (According to IEC 62109-1)
Reference Standard
Safety Standard
EN 62109, AS/NZS 3100
EMC Standard
EN 61000-6-1, EN 61000-6-3, EN 61000-6-2, EN 61000-6-4, EN61000-3-2,
EN61000-3-3, EN61000-3-11, EN61000-3-12
Grid Standard
VDE-AR-N-4105, VDE 0126-1-1, RD1699, CEI0-21, C10/11, G83/2, UTE C15-
712-1, AS4777, CQC
Physical Structure
Dimensions (WxHxD)
343x281x130mm
Weight
11kg
Environmental Protection
Rating
IP 65 (According to IEC 60529)
Cooling Concept
Natural convection
Mounting Information
Wall bracket
General Data
Operating Temperature
Range
-20°C to +60°C(derating above 45℃)
Relative Humidity
0% to 98%, no condensation
Max. Altitude (above sea
level)
2000m
Noise Level
< 40dB
Isolation Type
Transformerless
Display
3 LED, Backlight, 4 x 20 Character LCD
Data Communication
Interfaces
RS485(WiFi, GPRS integrated)
Computer Communication
USB
Standard Warranty
10 Years (15 years optional)
*The AC voltage and frequency range may vary depending on specific country grid

11
Type
Omniksol-2.5k-TL2-MOmniksol-3k-TL2-M
Input (DC)
Max. PV Power
2800W
3250W
Max DC Voltage
500V
500V
Nominal DC Voltage
360V
360V
Operating MPPT Voltage Range
120-450V
120-450V
MPPT Voltage Range at Nominal
Power
150-450V
150-450V
Start up DC Voltage
150V
150V
Turn off DC Voltage
120V
120V
Max. DC Current
18A
18A
Max. Short Circuit Current for each
MPPT
20A
20A
Number of MPP trackers
1
1
Number of DC Connection for each
MPPT
1
1
DC Connection Type
MC4 Connector
MC4 Connector
Output (AC)
Max. AC Apparent Power
2750VA
3000VA
Nominal AC Power(cos phi = 1)
2500W
3000W
Nominal Grid Voltage
220V/230V/240V
220V/230V/240V
Nominal Grid Frequency
50Hz/60Hz
50Hz/60Hz
Max. AC Current
12.5A
14.0A
Grid Voltage Range*
185-276V
185-276V
Grid Frequency Range*
45-55Hz/55-65Hz
45-55Hz/55-65Hz
Power Factor
0.95 capacitive…0.95 inductive
0.95 capacitive…0.95 inductive
Total Harmonic Distortion (THD)
<2%
<2%
Feed in Starting Power
30W
30W
Night time Power Consumption
<1W
<1W
Standby Consumption
6W
6W
AC Connection Type
Plug-in connector
Plug-in connector
Efficiency
Max. Efficiency (at 360Vdc)
97.7%
97.7%
Euro Efficiency (at 360Vdc)
96.9%
97.0%
MPPT Efficiency
99.9%
99.9%

12
Type
Omniksol-2.5k-TL2-MOmniksol-3k-TL2-M
Safety and Protection
DC Insulation Monitoring
Yes
DC Switch
Optional
Residual Current Monitoring Unit
(RCMU)
Integrated
Grid Monitoring with Anti-islanding
Yes
Protection Class
I (According to IEC 62103)
Overvoltage Category
PV II / Mains III (According to IEC 62109-1)
Reference Standard
Safety Standard
EN 62109, AS/NZS 3100
EMC Standard
EN 61000-6-1, EN 61000-6-3, EN 61000-6-2, EN 61000-6-4, EN61000-3-2,
EN61000-3-3,
EN61000-3-11, EN61000-3-12
Grid Standard
VDE-AR-N-4105, VDE 0126-1-1, RD1699, CEI0-21, C10/11, G83/2, UTE C15-712-
1, AS4777, CQC
Physical Structure
Dimensions (WxHxD)
343x281x150mm
Weight
13kg
Environmental Protection Rating
IP 65 (According to IEC 60529)
Cooling Concept
Natural convection
Mounting Information
Wall bracket
General Data
Operating Temperature Range
-20°C to +60°C(derating above 45℃)
Relative Humidity
0% to 98%, no condensation
Max. Altitude (above sea level)
2000m
Noise Level
< 40dB
Isolation Type
Transformerless
Display
3 LED, Backlight, 4 x 20 Character LCD
Data Communication Interfaces
RS485(WiFi, GPRS integrated)
Computer Communication
USB
Standard Warranty
10 Years (15 years optional)
*The AC voltage and frequency range may vary depending on specific country grid

13
4. Packing checklist
4.1 Assembly parts
After you receive the Omnik inverter, please check if there is any damage on the carton,
and then check the inside completeness for any visible external damage on the inverter
or any accessories. Contact your dealer if anything is damaged or missing.
Object
Quantity
Description
A
1
Omnik inverter
B
2 pairs
DC connector
C
1
AC connector
D
1
Wall mounting bracket
E
4
Screw (ST6×50)
F
4
Expansion tube
G
1
Installation and operating instructions
A
B
C
D
E
F
G

14

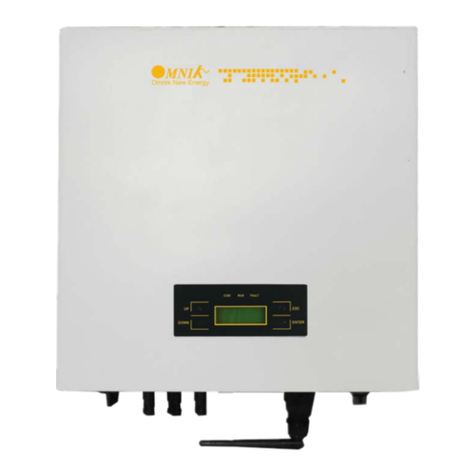

4.2 Product Appearance
Front
Object
Description
A
Removable front shield
B
LED light (3 pcs)
C
Function keys for displays and setting(4 pcs)
D
Monitoring LCD with backlighting
Bottom
A
B
C
D
A
D
B
C

15
Object
Description
A
DC switch (optional)
B
Plug connectors for DC input
C
Terminal for grid connection (AC output)
D
Communication interface(RS485/GPRS/WiFi/USB)
4.3 Product Identification
You can identify the inverter by the side name plate. Information such as type of the
inverter, as well as inverter specifications are specified on the side name plate. The
name plate is on the middle part of the right side of the inverter housing. And the
following figure is the side name plate example as on Omniksol-2k-TL2.
4.4 Further Information
If you have any further questions concerning the type of accessories or
installation, please check our website www.omniksolar.it or contact our service hotline.

16
5. Installation
5.1 Safety
NOTICE
NOTICE due to the inappropriate or the harmonized
installation environment may jeopardize the life span of
the inverter.
Do NOT expose to direct sunlight to avoid power derating due to
increase in the internal temperature of the inverter.
Do NOT expose to rain and snow cover to enhance inverter life
time.
The installation site MUST have good ventilation condition.
DANGER
DANGER to life due to potential fire or electricity shock.
DO NOT installs the inverter near any inflammable or
explosive items.
This inverter will be directly connected with HIGH VOLTAGE
power generation device; the installation must be performed
by qualified personnel only in compliance with national and
local standards and regulations.

17
5.2 Mounting Instructions
Omnik inverter is designed for indoors and outdoors installation, Omnik suggests to
install the inverter in basement or garage where there’s no directly sunlight or rain.
Do not install in rooms where people live or where the prolonged presence of people
or animals is expected because of the noise that the inverter makes during operation.
Please mount the inverter in the direction as illustrated above.
Install the inverter in the vertical direction is recommended, with a max.15 degrees
backwards.
For the convenience of checking the LCD display and possible maintenance
activities, please install the inverter at eye level.
Make sure the wall you selected is strong enough to handle the screws and bear the
weight of the inverter.
Ensure the device is properly fixed to the wall.
It is not recommended that the inverter is exposed to the strong sunshine, because
the excess heating might lead to power reduction.
The ambient temperature of installation site should be between -20 °C and +60 °C
( between -4 °F and 140 °F ) .
Make sure the ventilation of the installation spot, not sufficient ventilation may reduce
the performance of the electronic components inside the inverter and shorten the life
of the inverter.

18
5.3 Safety Clearance
Observe the following minimum clearances to walls, other devices or objects to
guarantee sufficient heat dissipation and enough space for pulling the electronic solar
switch handle.
Direction
Minimum clearance
Above
30 cm
Below
40 cm
Sides
10 cm
This manual suits for next models
4
Table of contents
Other Omnik Inverter manuals

Omnik
Omnik NS Series User manual

Omnik
Omnik Omniksol-2k-TL3-S User manual

Omnik
Omnik Omniksol-10k-TL3 User manual

Omnik
Omnik Omniksol-5KW-TH-TL3-NS User manual

Omnik
Omnik Omniksol-1k-TL User manual

Omnik
Omnik Omniksol-3k-TL User manual

Omnik
Omnik SMP300 User manual

Omnik
Omnik Omniksol-2k-TL3-S User manual

Omnik
Omnik Omnikhyd Inverter 3KW User manual

Omnik
Omnik Omniksol-2.5k-TL2-S User manual
