Automatic Blood Pressure Monitor
Model M6
Instruction Manual
English
Français
Deutsch
Italiano
Nederlands
IM-HEM-7213-E(V)-02-01/2012
5333266-2B
Español
Automatic Blood Pressure Monitor
Model M6W
Instruction Manual
English
Français
Deutsch
Italiano
Nederlands
IM-HEM-7213-E(V)-02-01/2012
5333266-2B
Español

Contents
Thank you for purchasing the OMRON M6W Automatic Blood Pressure Monitor.
The OMRON M6W is a compact, fully automatic blood pressure monitor, operating on the
oscillometric principle.It measures your blood pressure and pulse rate simply and quickly.
For comfortable controlled inflation without the need of pressure pre-setting or re-inflation the
device uses its advanced “IntelliSense” technology.
Intended Use
This product is designed to measure the blood pressure and pulse rate of people within the
range of the designated arm cuff, following the instructions in this instruction manual.
It is mainly designed for general household use. Please read the Important Safety Information
in this instruction manual before using the unit.
Important Safety Information ........................1
1. Overview.................................................................3
2. Preparation.............................................................4
2.1 Installing/Replacing the Batteries...........4
2.2 Setting the Date and Time .....................5
3. Using the Unit ........................................................6
3.1 Applying the Arm Cuff ............................6
3.2 How to Sit Correctly ...............................7
3.3 Taking a Reading ...................................8

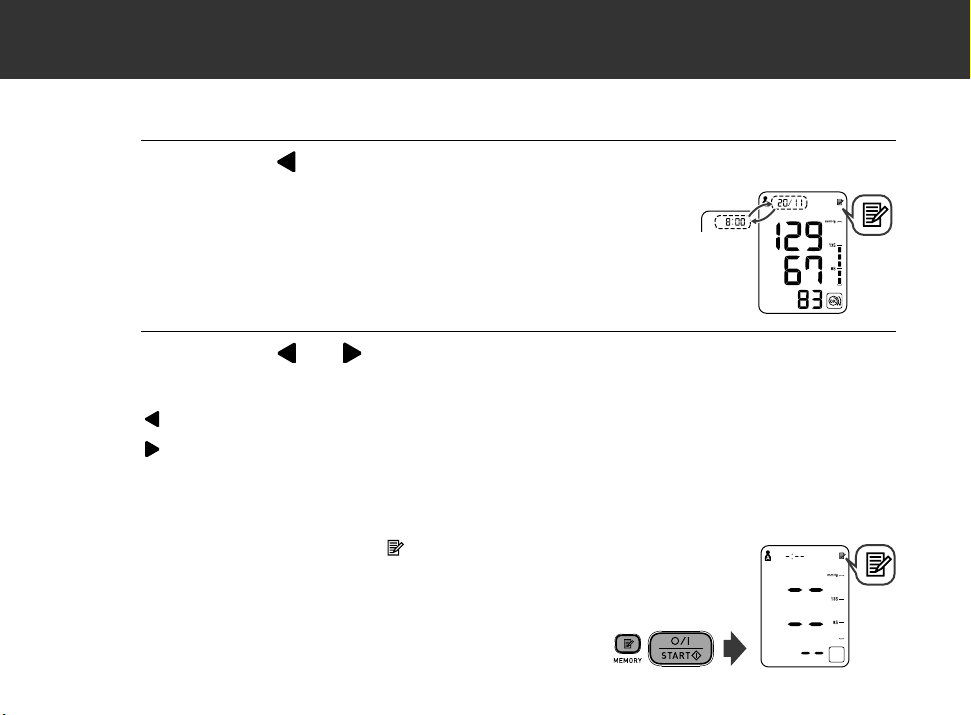

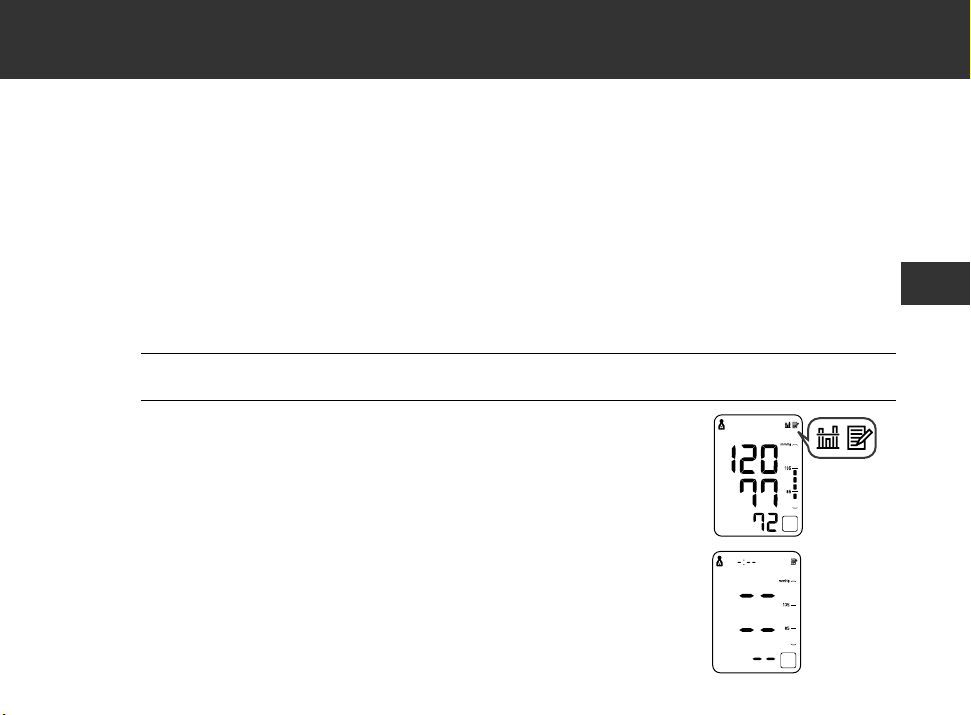

3.4 Using the Memory Function .................11
4. Troubleshooting and Maintenance................13

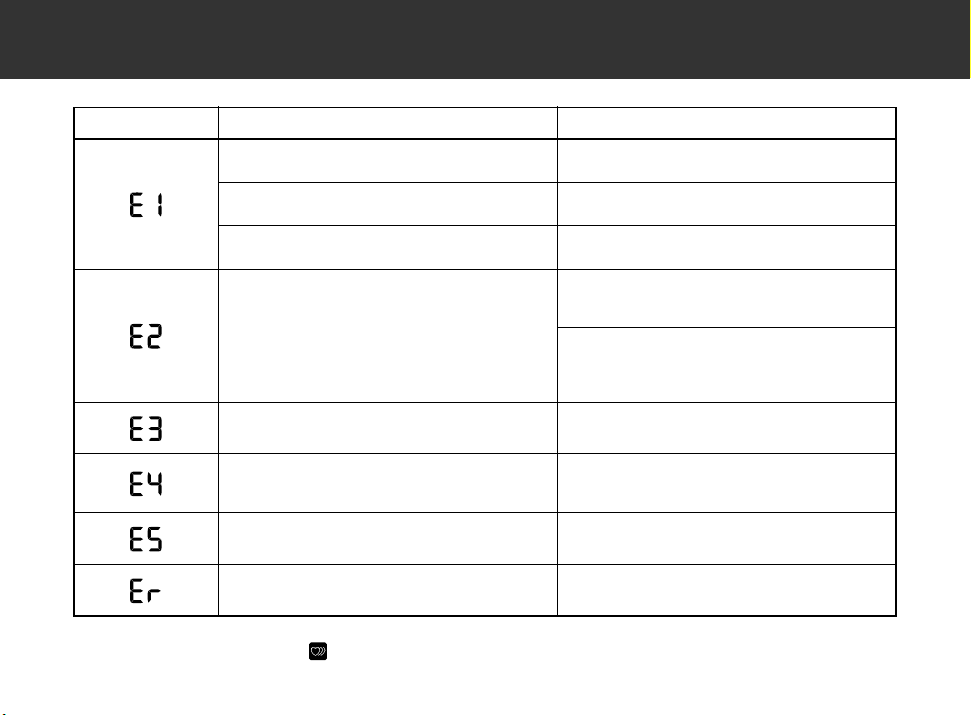

4.1 The Icons and Error Messages ........... 13
4.2 Troubleshooting................................... 15
4.3 Maintenance ........................................ 17
4.4 Storage ................................................ 18
5. Optional Parts......................................................19
6. Technical Data.....................................................20
7. Some Useful Information about Blood Pressure ..23
Please read this instruction manual thoroughly before using the unit.
Please keep for future reference.
For specific information about your own blood pressure, CONSULT YOUR
DOCTOR.
2
a
b
K
1
c
d
G
M
O
N
P
Q
R
S
T
U
V
W
X
Y
AA
AB
Z
A
B
C
D
F
G
GH
HI
E
J K L
M

1
EN
Important Safety Information
Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia or arteriosclerosis.
Please read this section carefully before using the unit.
Warning:
• Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results and self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should consult a doctor before using the unit, as cuff
inflation can cause internal bleeding.
(AC Adapter Usage)
• Never plug in or unplug the power cord from the electric outlet with wet hands.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Consult a doctor immediately.
Caution:
• Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user
or patient or damage to the equipment or other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who cannot express their consent.
• Do not use the unit for any purpose other than measuring blood pressure.
• Use only the approved arm cuff for this unit. Use of other arm cuffs may result in incorrect measurement results.
• Make sure that the air tube is not wrapped around other parts of your body when taking measurements. This could
result in injury when the air pressure in the air tube is increased.
• Do not leave the cuff wrapped on the arm if taking measurements during the night. This could result in injury.
• Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in
incorrect operation of the unit.
• Do not operate the unit in a moving vehicle (car, airplane).
• To inflate the cuff manually, refer to Section 3.3. If the cuff is over inflated, it can cause internal bleeding.
HEM-7213-E(V)_A_M_main.book Page 1 Monday, October 10, 2011 1:43 PM

2
Important Safety Information
(AC Adapter Usage)
• Use only the original AC adapter (optional) designed for this unit. Use of unsupported adapters may damage and/or
may be hazardous to the unit.
• Plug the AC adapter into the appropriate voltage outlet. Do not use a multiple-tap.
• Do not use the AC adapter if the unit or the power cord is damaged. Turn off the power and unplug the power cord
immediately.
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse with plenty of clean water.
• Use only four “AA” alkaline or manganese batteries with this unit. Do not use other types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace all four batteries at the same time.
• Remove the batteries if the unit will not be used for three months or more.
• Do not use new and used batteries together.
General Precautions

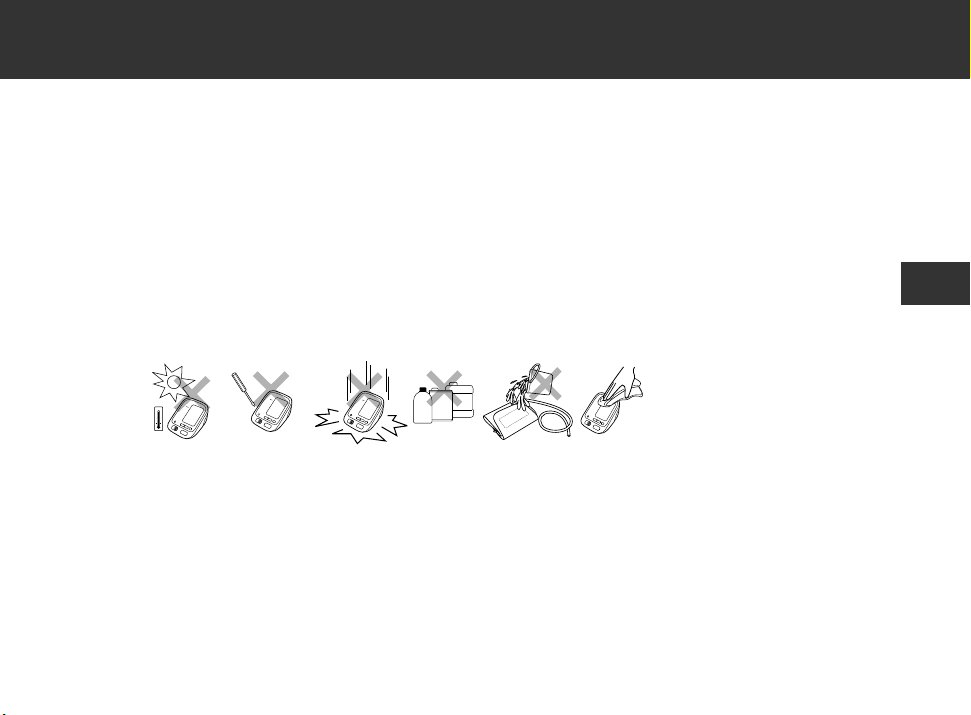

• Do not apply strong shocks and vibrations to or drop the unit and arm cuff.
• Do not take measurements after bathing, drinking alcohol or caffeine, smoking, exercising or eating.
• Do not forcibly bend the arm cuff or bend the air tube excessively.
• When removing the air tube, pull on the air plug at the connection with the main unit not the tube itself.
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Read and follow the “Important information regarding Electro Magnetic Compatibility (EMC)” in the Technical Data
Section.
• Read and follow the “Correct Disposal of This Product” in the Technical Data Section when disposing of the device
and any used accessories or optional parts.
HEM-7213-E(V)_A_M_main.book Page 2 Monday, October 10, 2011 1:43 PM

3
EN
1. Overview
Main unit
Display
Memory button
O/I START ( ) button
Up/Down ( ) buttons
USER ID Selection Switch (A / B)
Date/Time setting ( ) button
Air Jack
Battery compartment
AC adapter jack (for optional AC
adapter)
Arm cuff
Arm cuff (Wide Range Cuff: arm
circumference 22-42 cm)
Marker
Air tube
Air plug
Display
Date/Time display
USER ID symbol (A / B)
Dual Check System
Systolic blood pressure
Diastolic blood pressure
Heartbeat symbol
(Flashes during measurement)
Battery low symbol
Average value symbol
Memory symbol

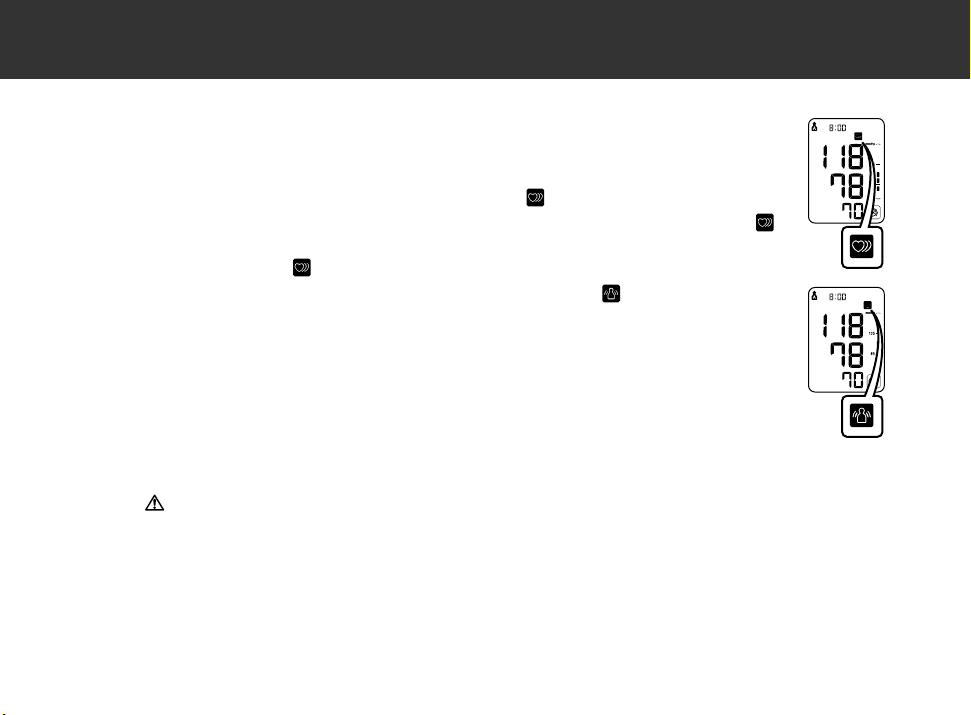

Irregular heartbeat symbol
Movement error symbol

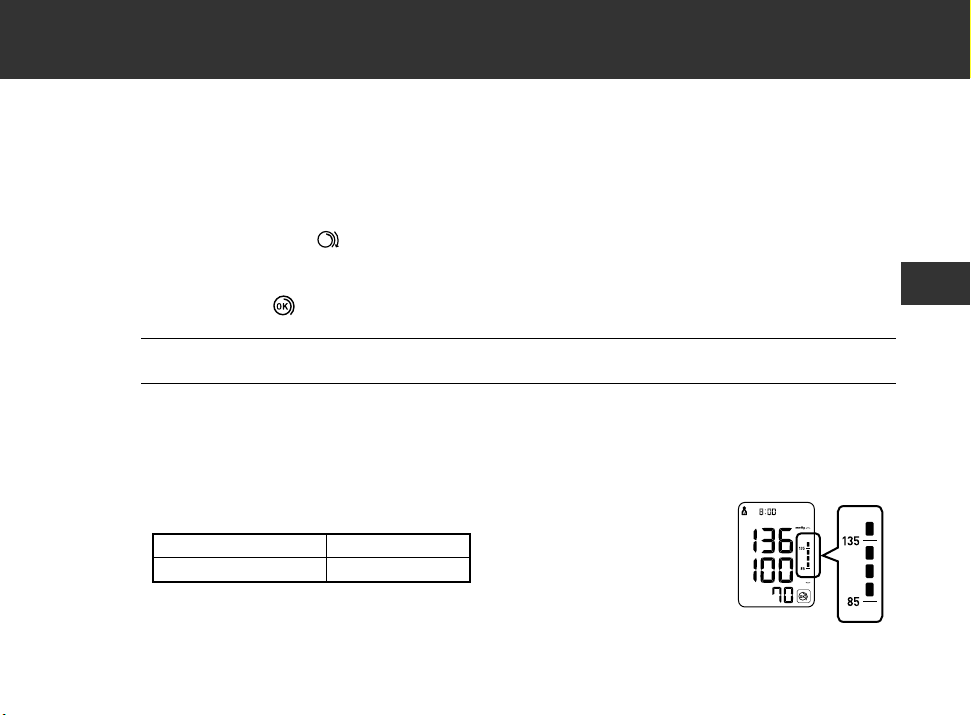

Blood pressure level indicator
Deflation symbol
Cuff wrapping guide
Pulse display and Memory
number

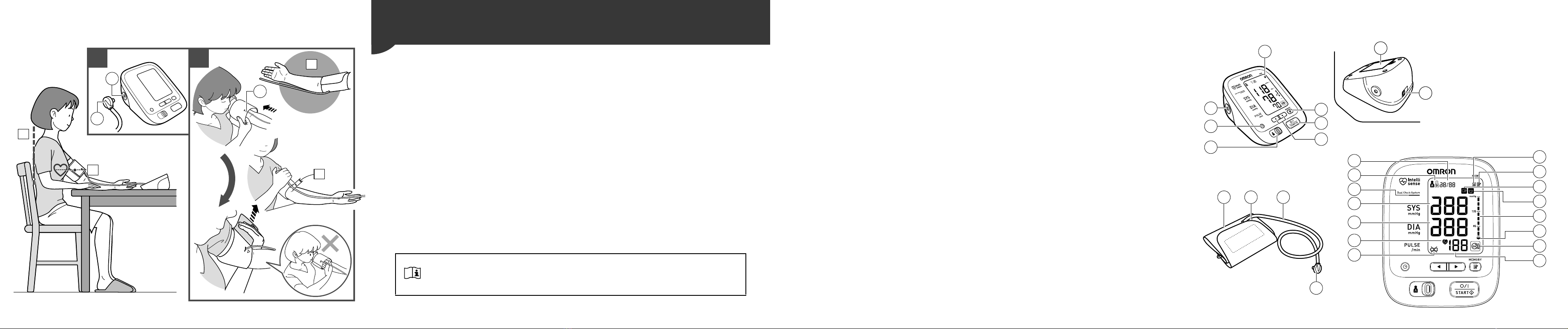

Open the rear cover page to read following:
The alphabet in the rear cover page correspond to those in the body page.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
AB
HEM-7213-E(V)_A_M_main.book Page 3 Monday, October 10, 2011 1:43 PM

4
2. Preparation
2.1 Installing/Replacingthe
Batteries
1. Remove the battery cover.
2. Insert four “AA” batteries as
indicated in the battery
compartment and then replace the battery cover.
Notes:
• If the battery low symbol ( ) appears on the display, turn the unit off then replace all batteries at the same
time.
• The measurement values continue to be stored in memory even after the batteries are replaced.
Disposal of used batteries should be carried out in accordance with the national
regulations for the disposal of batteries.
HEM-7213-E(V)_A_M_main.book Page 4 Monday, October 10, 2011 1:43 PM

5
2. Preparation
EN
2.2 Setting the Date and Time
1. Press the button.
2. Set the monitor to the correct date and time before
taking a measurement for the first time.
3. Press the O/I START button to store the setting.
Notes:
• If the batteries have been removed for 30 seconds or more, the date and time setting will need to be reset.
• If the date and time are not set, “-:--” appears during or after measurement.
1)
2)
Year Month Day Hour Minute
Push or buttons to
change.
Push the button to confirm.
Next setting appears.
HEM-7213-E(V)_A_M_main.book Page 5 Monday, October 10, 2011 1:43 PM

6
3. Using the Unit
3.1 Applying the Arm Cuff
Remove tight-fitting clothing or tight rolled up sleeve from your upper arm.
Do not place the cuff over thick clothes.
1. Insert the air plug into the air jack.
2. Put your arm through the cuff loop.
3. Position the arm correctly.
The bottom edge of the cuff should be 1 to 2 cm above the elbow. Marker
(arrow under tube) is centred on the middle of your inner arm. Close the fabric
fastener FIRMLY.
Notes:
• When you take a measurement on the right arm, air tube will be at the side of your elbow. Be careful not
to rest your arm on the air tube. ---
• The blood pressure can differ between the right arm and the left arm, and therefore also the measured
blood pressure values can be different. OMRON recommends to always use the same arm for
measurement. If the values between the two arms differ substantially, please check with your physician
which arm to use for your measurement.
Open both the front and rear covers to read following:
The alphabet and number in the cover page correspond to those in the body page.
M
G
a
K
b
HEM-7213-E(V)_A_M_main.book Page 6 Monday, October 10, 2011 1:43 PM

7
3. Using the Unit
EN
3.2 How to Sit Correctly
To take a measurement, you need to be relaxed and comfortably seated, under
comfortable room temperature. No bathing, drinking alcohol or caffeine, smoking,
exercising or eating 30 minutes before taking a measurement.
• Sit on a chair with your feet flat on the floor.
• Sit upright with your back straight. ---
• The cuff should be at the same level as your heart. ---
c
d
HEM-7213-E(V)_A_M_main.book Page 7 Monday, October 10, 2011 1:43 PM

8
3. Using the Unit
3.3 Taking a Reading
Notes:
• To cancel a measurement, press the O/I START button to turn the unit off and to release the air in the arm cuff.
• Remain still while taking a measurement.
The monitor is designed to take measurements and store the measurement values in
the memory for two people using USER ID A and USER ID B.
1. Select your USER ID (A or B).
2. Press the O/I START button.
The cuff will start to inflate automatically.
If your systolic pressure is
more than 220 mmHg
After the cuff starts to inflate, press and hold
the O/I START button until the monitor
inflates 30 to 40 mmHg higher than your
expected systolic pressure.
Notes:
• The monitor will not inflate above 299 mmHg.
• Do not apply more pressure than necessary.
START INFLATE DEFLATE COMPLETE END
Dual
Check
System Cuff Wrapping Guide
HEM-7213-E(V)_A_M_main.book Page 8 Monday, October 10, 2011 1:43 PM

9
3. Using the Unit
EN
Dual Check System
Press the O/I START button, then the Dual Check System lamp lights and the unit starts detecting a device
error. If the unit is accurate and functioning correctly, the Dual Check System lamp remains lit during the
measurement. If an error is detected, the Dual Check System lamp flashes and “Er” will appear on the display.
Cuff Wrapping Guide
The Cuff Wrapping Guide is a unique feature that indicates if the cuff is not wrapped tightly enough around
the arm. Even when the is displayed, a blood pressure reading will be taken.
Note: This reading is NOT reliable due to the incorrect wrapping of the cuff. Please wrap the cuff again,
taking care to wrap it correctly and take the measurement again.
When the is displayed, the cuff is correctly wrapped tightly enough on the arm and the reading
is accurate and reliable.
3. Remove the arm cuff.
4. Press the O/I START button to turn the monitor off.
The monitor automatically stores the measurement in its memory.
It will automatically turn off after 2 minutes.
Important:
• Recent research suggests that the following values can be used as a guide to
high blood pressure for measurements taken at home.
This criteria is for home blood pressure measurement.
For professional office blood pressure measurement criteria, please refer to
Chapter 7.
Systolic Blood Pressure Above 135 mmHg
Diastolic Blood Pressure Above 85 mmHg
HEM-7213-E(V)_A_M_main.book Page 9 Monday, October 10, 2011 1:43 PM

10
3. Using the Unit
• Your blood pressure monitor includes an irregular heartbeat feature. Irregular heartbeats
can influence the results of the measurement. The irregular heartbeat algorithm
automatically determines if the measurement is usable or needs to be repeated. If the
measurement results are affected by irregular heartbeats but the result is valid, the result is
shown together with the irregular heartbeat symbol ( ). If the irregular heartbeats cause
the measurement to be invalid, no result is shown. If the irregular heartbeat symbol ( )
is shown after you have taken a measurement, repeat the measurement. If the irregular
heartbeat symbol ( ) is shown frequently, please make your doctor aware of it.
• If you move during measurement, the movement error symbol ( ) will appear on the
display. Keep still and repeat the measurement.
Note: Wait 2-3 minutes before taking another blood pressure measurement. Waiting between readings
allows the arteries to return to the condition prior to taking the blood pressure measurement.
Warning:
Self-diagnosis of measured results and treatment are dangerous. Please follow the instructions of
your doctor.
HEM-7213-E(V)_A_M_main.book Page 10 Monday, October 10, 2011 1:43 PM

11
3. Using the Unit
EN
3.4 Using the Memory Function
The monitor automatically stores the result up to 100 sets for each user (A and B). It
can also calculate an average reading based on the measurements from the last
three readings taken within 10 minutes. If there are only two readings in memory for
that period, the average will be based on two readings. If there is one reading in
memory for that period, the average will be based on one reading.
Notes:
• If the memory is full, the monitor will delete the oldest readings.
• When viewing the reading taken without setting the date and time, “-:--” is displayed instead of the date and time.
To View the Average Value
1. Select your USER ID (A or B).
2. Press the Memory button.
Note: If there are no measurements results stored in the memory, the
screen to the right is displayed.
HEM-7213-E(V)_A_M_main.book Page 11 Monday, October 10, 2011 1:43 PM

12
3. Using the Unit
To View the Readings Stored in Memory
1. Press the button, while the average value is displayed.
The Memory number appears for a second
before the pulse rate is displayed. The newest
set is numbered “1”.
2. Press the or button to view the readings stored in
memory.
: To the older readings
: To the more recent readings
To Delete All the Values Stored in Memory
The values stored in the memory are deleted by USER ID.
When the memory symbol ( ) appears, first press
the Memory button. Then while holding it down,
press the O/I START button simultaneously for
about 2-3 seconds.
Note: You cannot partially delete values stored in the memory.
All values for the user you select will be deleted.
Alternating date/
time display
HEM-7213-E(V)_A_M_main.book Page 12 Monday, October 10, 2011 1:43 PM

13
EN
4. Troubleshooting and Maintenance
4.1 The Icons and Error Messages
Error Display Cause Remedy
Irregular heartbeats are detected.
Remove the arm cuff. Wait 2-3 minutes and
then take another measurement.
Repeat the steps in section 3.3. If this error
continues to appear, contact your doctor.
Movement during measurement. Carefully read and repeat the steps in section
3.3.
Cuff is not applied correctly. Apply the arm cuff correctly.
Refer to section 3.1.
The batteries are low. You should replace them with new ones
ahead of time.
Refer to section 2.1.
The batteries are exhausted. You should replace them with new ones at
once.
Refer to section 2.1.
Blink
Lit
HEM-7213-E(V)_A_M_main.book Page 13 Monday, October 10, 2011 1:43 PM

14
4. Troubleshooting and Maintenance
Note:
The irregular heartbeat symbol ( ) may also be displayed with error messages.
Air plug disconnected. Insert the plug securely.
Refer to section 3.1.
Arm cuff not applied correctly. Apply the arm cuff correctly.
Refer to section 3.1.
Air is leaking from the arm cuff. Replace the cuff with the new one.
Refer to Chapter 5.
Cuff over inflated.
Repeat measurement. Remain still and do not
talk during measurement.
Refer to section 3.3.
If “E2” appears repeatedly, inflate the cuff
manually until it is 30 to 40 mmHg above your
previous measurement result.
Refer to section 3.3.
The arm cuff was inflated above 299 mmHg when
inflating the cuff manually. Do not inflate the cuff above 299 mmHg.
Refer to section 3.3.
Movement during measurement. Repeat measurement. Remain still and do not
talk during measurement.
Refer to section 3.3.
Clothing is interfering with the arm cuff. Remove any clothing interfering with the arm cuff.
Refer to section 3.1.
Device error. Contact your OMRON retail outlet or distributor.
Error Display Cause Remedy
HEM-7213-E(V)_en.fm Page 14 Monday, October 17, 2011 2:53 PM

15
4. Troubleshooting and Maintenance
EN
4.2 Troubleshooting
Problem Cause Remedy
The reading is extremely low (or
high).
Arm cuff not applied correctly. Apply the arm cuff correctly.
Refer to section 3.1.
Movement or talking during
measurement.
Remain still and do not talk during
measurement.
Refer to section 3.3.
Clothing is interfering with the arm
cuff.
Remove any clothing interfering
with the arm cuff.
Refer to section 3.1.
Arm cuff pressure does not rise.
The air tube is not securely
connected into the main unit.
Make sure that the air tube is
connected securely.
Refer to section 3.1.
Air is leaking from the arm cuff.
Replace the arm cuff with a new
one.
Refer to Chapter 5.
Arm cuff deflates too soon. The arm cuff is loose.
Apply the cuff correctly so that it is
firmly wrapped around the arm.
Refer to section 3.1.
Cannot measure or readings are too
low or too high. The arm cuff has not been inflated sufficiently.
Inflate the cuff so that it is 30 to
40 mmHg above your previous
measurement result.
Refer to section 3.3.
HEM-7213-E(V)_A_M_main.book Page 15 Monday, October 10, 2011 1:43 PM

16
4. Troubleshooting and Maintenance
Nothing happens when you press the
buttons.
The batteries are empty.
Replace the batteries with new
ones.
Refer to section 2.1.
The batteries have been inserted
incorrectly.
Insert the batteries with the correct
(+/ -) polarity.
Refer to section 2.1.
Other problems.
• Press the O/I START button and repeat measurement.
• If the problem continues, try replacing the batteries with new ones.
If this still does not solve the problem, contact your OMRON retail outlet or
distributor.
Problem Cause Remedy
HEM-7213-E(V)_A_M_main.book Page 16 Monday, October 10, 2011 1:43 PM

17
4. Troubleshooting and Maintenance
EN
4.3 Maintenance
To protect your unit from damage, please observe the following:
• Do not subject the main unit and the cuff to extreme temperatures, humidity, moisture or direct sunlight.
• Do not fold the cuff or tubing tightly.
• Do not disassemble the unit.
• Do not subject the unit to strong shocks or vibrations (for example, dropping the unit on the floor).
• Do not use volatile liquids to clean the main unit.
• Do not wash the arm cuff or immerse it in water.
• Do not use petrol, thinners or similar solvents to clean the arm cuff.
• Do not carry out repairs of any kind yourself. If a defect occurs, consult your OMRON retail outlet or
distributor as mentioned on the packaging.
• The unit should be cleaned with a soft, dry cloth.
• Use a soft, moistened cloth and soap to clean the arm cuff.
Calibration and Service
• The accuracy of this blood pressure monitor has been carefully tested and is designed for a long service
life.
• It is generally recommended to have the unit inspected every two years to ensure correct functioning and
accuracy. Please consult your authorised OMRON dealer or the OMRON Customer Service at the
address given on the packaging or attached literature.
HEM-7213-E(V)_A_M_main.book Page 17 Monday, October 10, 2011 1:43 PM

18
4. Troubleshooting and Maintenance
4.4 Storage
Keep the unit in its storage case when not in use.
1. Unplug the air plug from the air jack.
2. Gently fold the air tube into the arm cuff.
Note: Do not bend the air tube excessively.
3. Place the arm cuff and main unit in the
storage case.
Do not store the unit in the following situations:
• If the unit is wet.
• Locations exposed to extreme temperatures, humidity, direct sunlight, dust or
corrosive vapours.
• Locations exposed to vibrations, shocks or where it will be at an angle.
HEM-7213-E(V)_A_M_main.book Page 18 Monday, October 10, 2011 1:43 PM
