IntelliSense®Blood Pressure Monitor
ModelHEM-907XL
Table of Contents
Be Sure to Read This Section
Exemptions ........................................2
Notes on Safety .................................3
Know Your Unit
Features of the Product .....................7
Components of the Product...............8
Options...........................................9
Features and Functions...................10
Names of the Parts ......................10
Functions and setting
while the unit is in use..................12
Preparations before Measurement

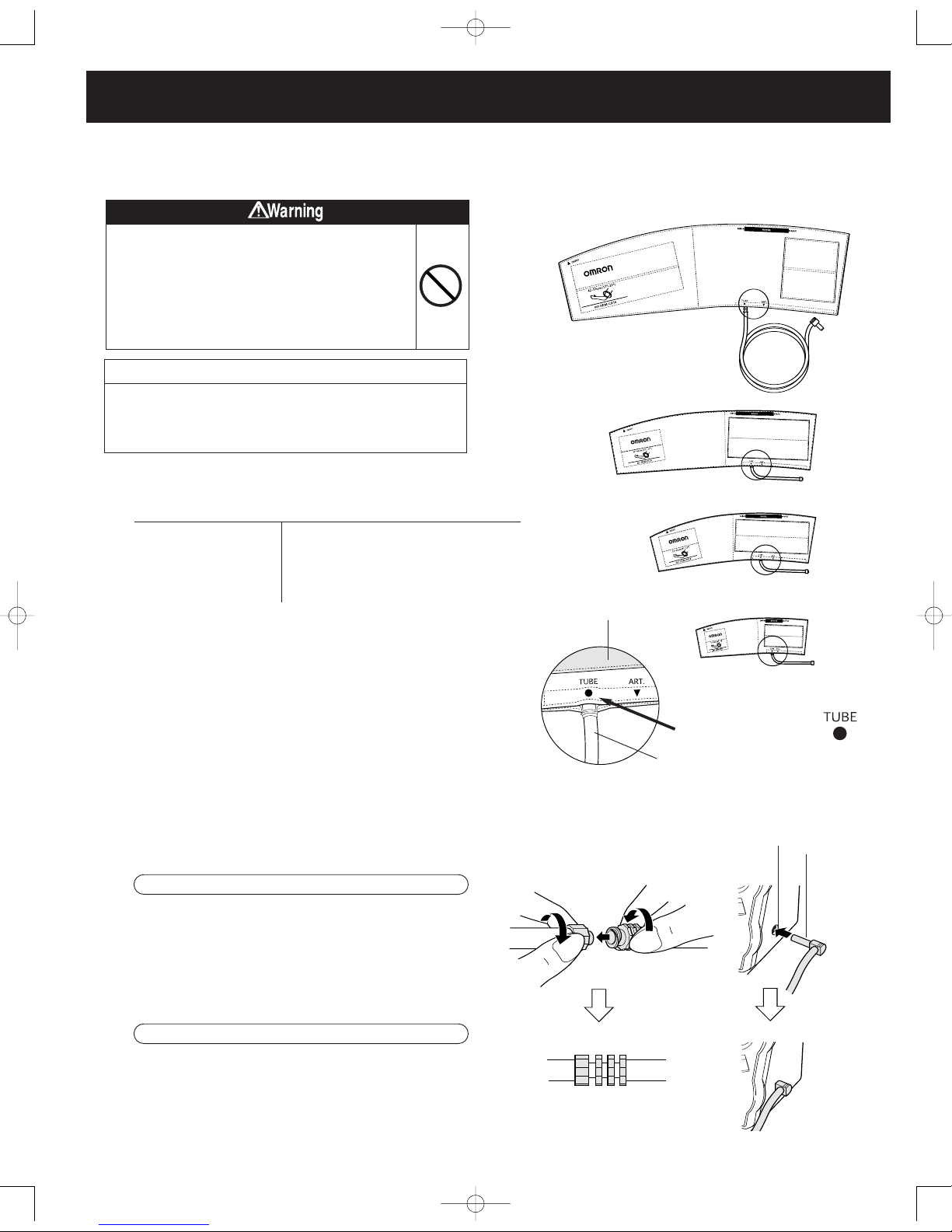

How to Apply the Cuff......................14
How to Use the Power Source ........16
How to Use the AC Adapter............16
Installation and Replacement
of Battery Pack.............................17
How to Measure Blood Pressure
List of Measurement Modes ............19
SINGLE Mode ..............................20
AVG Mode....................................22
MANU Mode.................................24
How to Check Pressure Accuracy..26
How to Clean the Unit after Use........27
List of Error Codes...........................28
Troubleshooting................................29
Specifications
Caution.............................................30
Five Year Limited Warranty..............31
Specifications...................................31
Thank you for purchasing the OMRON
IntelliSense®Blood Pressure Monitor.
Please thoroughly read this Instruction Manual
before using this monitor to ensure safe and
accurate use.
Please keep this manual near the monitor all
the time for future reference.
INSTRUCTION MANUAL
HEM-907XL Rev B 3/2/07 1:41 AM Page 1

2
EXEMPTIONS
OMRON does not accept liability and warranty becomes void under the following
circumstances:
1. When persons, not authorized by OMRON, perform repairs or modifications of this
product.
2. When use and/or operation of this device is adversely effected by a device not
manufactured by OMRON.
3. When use and/or operation of this device is adversely effected by use of parts, not
authorized by OMRON, to repair or modify this product.
4. When Notes on Safety or Instructions for Use contained in this manual are not followed.
5. When use and/or operation of this device is effected by an act of God, such as fire,
earthquake, flood or other natural disasters.
1. The product and contents of this Instruction Manual may be changed without prior notice.
2. We have prepared the contents of this Instruction Manual thoroughly. However, if an
inadequate description or error is found, please let us know.
3. Reproducing or copying any or all of this Instruction Manual without OMRON’s written
consent is prohibited.
HEM-907XL Rev B 3/2/07 1:41 AM Page 2

3
NOTES ON SAFETY
• The warning signs and the sample icons shown here are listed to insure safe and accurate use.
• The icons and meanings are as follows.
Warning sign Contents
Indicates matters in which death or severe bodily damage may arise as a result
of incorrect handling.
Indicates matters in which bodily harm or material damage* may arise as a
result of incorrect handling.
* Material damage refers to a wide range of damage involving your house, household goods, domestic animals, and pets.
Examples of signs
The icon indicates caution (including warning and danger).
Matters involving actual caution are indicated by text or pictures in or near .
The pictured icon refers to "caution for flammability".
The icon indicates prohibitions (what you cannot do).
Matters involving actual prohibitions are indicated by text or pictures in or near .
The pictured icon refers to "prohibition to disassemble".
The icon indicates something that is compulsory (always follow).
Matters involving actual compulsory actions are indicated by text or pictures in or near .
The pictured icon refers to "unplugging the power source plug".
Do not wrap the cuff over an arm to which intravenous injection or transfusion
is being conducted, or when otherwise contraindicated.
Do not connect the air tube or the cuff to other equipment which is connected
to an intracorporeal organ. Air embolisms may result.
Self diagnosis of measured results or treatment is dangerous. Please follow
the instruction of the doctor or healthcare provider.
If cuff inflation does not stop, remove the cuff or pull out the air tube from the
main unit.
If battery fluid gets into your eye or comes in contact with skin, wash the effected
area with water repeatedly. Immediately consult a doctor for treatment.
Do not use this unit in the presence of flammable gas or anesthetics or in a
high pressure oxygen room or oxygen tent.
Do not use the battery pack for devices other than for this unit.
Do not disassemble the battery pack.
Do not touch the AC adapter with wet hands.
HEM-907XL Rev B 3/2/07 1:41 AM Page 3

4
NOTES ON SAFETY
Unplug the AC adapter from the electric outlet if this unit is unused for an
extended period of time.
Unplug the AC adapter from the electric outlet when installing, removing, or
cleaning the unit.
Confirm readings with a stethoscope when an irregular pulse wave is
displayed or when the measured value is questionable or erratic.
Use an AC adapter indicated for use with a power supply of 110 VAC.
Do not share an electric outlet with other unit or electric appliance.
After cleaning this unit, dry it well before plugging the AC adapter in the
electric outlet.
If this unit fails to perform as indicated, discontinue use, turn off the unit,
unplug the AC adapter from the electric outlet, and contact OMRON’s repair
department.
Do not disassemble or modify this unit.
Do not use any cuff other than the models exclusive for this unit.
Do not use this unit on infants.
Do not use this unit on patients using a pump oxygenator.
Do not use an AC adapter or battery pack not specified for this unit.
NOTES ON SAFETY
HEM-907XL Rev B 3/2/07 1:41 AM Page 4

5
NOTES ON SAFETY
Do not use a cellular phone near this unit.
Do not use this unit in a vehicle.
Do not install the parts and/or instruments not specified for this unit.
Do not use a broken power cord or AC adapter.
Do not install or store this unit where it may come in contact with water or
liquid medication.
This is a Class II device with double isolation. Earth pin is not for protective
purposes.
General advice
Do not place or put anything on this unit.
Do not drop this unit.
Turn off power to the unit and unplug the AC adapter from the electric outlet before moving
the unit.
Read the instruction manual of the other devices to be used at the same time with this unit, to
understand and be aware of the interaction between the devices.
When using the unit
• Do not inflate the cuff without being wrapped over the arm.
• Do not use a damaged cuff.
• Be sure that patients do not touch the Buttons of this unit.
After using the unit
• Do not disinfect this unit by autoclave or gas sterilization (EtO, gluteraldehyde, or high
concentration ozone).
Do not install or store this unit in the following places.
• Under the direct sunlight,
• Dusty or salty environment,
• Places having slope, vibration, and/or shock,
• Storage of chemicals or where combustable gas may be generated,
• Under high temperature and high humidity.
HEM-907XL Rev B 3/2/07 1:41 AM Page 5

6
NOTES ON SAFETY
Maintenance and inspection
1. Check the unit operation on regular basis.
2. If this unit has not been used for more than three months, be sure to check that this unit
operates normally and safely before use.
Troubleshooting
If device error 9 (Er9) occurs, take the following procedure promptly:
(1) Remove the cuff from the patient's arm.
(2) Turn off the power of the unit and unplug the AC adapter from the electric outlet.
(3) Display "Out of use" on this unit so that it cannot be used.
(4) Contact Omron Healthcare’s Customer Service at 1-877-216-1336.
HEM-907XL Rev B 3/2/07 1:41 AM Page 6

7
FEATURES OF THE PRODUCT
OMRON IntelliSense®Blood Pressure unit, Model HEM-907XL is developed to measure blood
pressure and pulse rate accurately and simply in a doctor's office, examination room,
or patient bedside.
• One-button operation
Simply wrap the cuff and push the START Button. Blood pressure and pulse rate are automatically
measured by the oscillometric method.
• Automatic pressure setting
When the P-SET (Pressure Setting) Knob is set to "AUTO," the unit will automatically inflate the
cuff to the optimal pressure according to each patient's blood pressure. Pre-setting inflation level
is not necessary.
• Noiseless operation
This unit operates so quietly that it can be used in the patient room at night.
• Average Mode (AVG Mode)
In the AVG Mode, this unit will automatically measure for two or three times. The average of
systolic and diastolic blood pressures and pulse rate are displayed. Each measurement can also
be shown individually. The number of measurements, waiting time before first measurement, and
the interval can be changed.
• Auscultation Mode (MANU Mode)
You can measure auscultatory blood pressure by using a stethoscope, with automatic cuff inflation
and deflation by this unit. Because the cuff pressures during deflation are displayed digitally and
synchronized with the heart beat, they can be read with accuracy. After taking systolic reading
you can accelerate cuff deflation to shorten measurement time.
• Large and easy to read display
Large and easy to read figures are displayed on the LCD display.
The IntelliSense®Monitor inflates the cuff to the ideal level with each use. No adjustments are
required by the user to select an inflation level. This is especially convenient for hypertensive users
and for people with certain arrhythmia or heart disorders, because their blood pressure is likely to
fluctuate. The advantage is Personalized Inflation for maximum comfort.
HEM-907XL Rev B 3/2/07 1:41 AM Page 7

8
COMPONENTS OF THE PRODUCT
XL
®
®
Main unit
Accessories
Air tube 1.0m (39 1/3") *
Model: HEM-TUBE-100X
AC adapter
Model: HEM-AC-J Instruction Manual
Items identified with an asterisk (*) are consumables and not covered by the guarantee.
IntelliSense®Blood Pressure
Monitor, Model HEM-907XL
(Included and also available separately)
Cuff / bladder set Large
(with built-in bladder) *
Model: HEM-907-CL19
Applicable arm circumference:
13
" to 17" ( 32 to 42 cm)
Cuff / bladder set Small
(with built-in bladder) *
Model: HEM-907-CS19
Applicable arm circumference:
7” to 9
" ( 17 to 22 cm)
Cuff / bladder set Medium
(with built-in bladder) *
Model: HEM-907-CR19
Applicable arm circumference:
9
" to 13" (22 to 32 cm)
Battery pack (48H907N)
Model: HEM-907-PBAT
The air tube is available for the
large, medium or small cuff size.
It is NOT for use with the
extra-large cuff size.
Cuff / bladder set Extra Large
(with built-in bladder) *
Model: HEM-907-CX19
For use with the HEM-907XL
unit only.
Applicable arm circumference:
17
" to 20" ( 42 to 50 cm)
HEM-907XL Rev B 3/2/07 1:41 AM Page 8

9
COMPONENTS OF THE PRODUCT
Exclusive Stand
Model: HEM-907-STAND Wall-hanging kit Model: HEM-907-WKIT
Bladders *
Pole-mounting kit
Model: HEM-907-PKIT
Cuffs without bladder *
Options
Large Cuff
Model:HEM-907-CUFFL
Extra Large Cuff
For use with the
HEM-907XL only.
Model:HEM-907-CUFFX
Medium Cuff
Model: HEM-907-CUFFM
Small Cuff
Model: HEM-907-CUFFS
Large Bladder
Model: HEM-907-BLDRL
Extra Large Bladder
For use with the
HEM-907XL only.
Model: HEM-907-BLDRX
Medium Bladder
Model: HEM-907-BLDRM
Small Bladder
Model: HEM-907-BLDRS
Air tube 1.3 m (51 1/6")*
Model: HEM-TUBE-130
Items identified
with an asterisk (*)
are consumables
and not covered by
the guarantee.
Accessories and
options are subject
to change without
prior notice.
(not included)
The air tube is available for the large,
medium or small size cuff.
It is NOT for use with the extra-large
cuff size.
HEM-907XL Rev B 3/2/07 1:41 AM Page 9

10
FEATURES AND FUNCTIONS
Main unit
1.Display: Displays blood pressure and, pulse rate readings, and oscillation pulse level.
2.HIDE Button: Switches display and non-display of measured results.
3.DC jack: Connects the AC adapter.
4.P-SET (pressure setting) Knob: In the AUTO position, inflation level is automatically set.
Otherwise, inflation level can optionally be set manually between 100 and 280 mmHg.
5.MODE Selector: Selects the operation mode.
• One-time Measurement Mode (SINGLE Mode): Measurement with automatic inflation.
• Average Mode (AVG Mode): Automatically measures two (or three) times consecutively.
• Auscultation Mode (MANU Mode): Automatic inflation, automatic deflation, and pressure display for auscultation (does
not measure blood pressure).
• Check Mode (CHECK Mode): Checks the accuracy of pressure display. Displays only pressure.
6.ON/OFF (power) Button: Turns on or off the unit.
7.START Button: Starts the measurement.
8. DEFLATION (deflation control) /Measurement Result Display Switch Button:
• In the MANU Mode, deflates the cuff by approximately 5 to 10 mmHg with each push during deflation.
• In the AVG Mode, switches the display of average values and the measurement results with each push.
9.Air Connector: Connects the air tube.
10.STOP Button: Stops the measurement and deflates air rapidly.
HIDE
P-
SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
mmHg
SYS
mmHg
DIA
BPM
PULSE
AC
DC8V
XL
®
1. Display
2. HIDE (non-display) Button
3. DC jack
4. P-SET (pressure
setting) Knob
5. MODE Selector
6. ON/OFF (power)
Button
7. START Button
8. DEFLATION
(deflation control)
/Measurement
Result Display
Switch Button
9. Air Connector
10. STOP Button
Names of the Parts
(See Page 11 for detail)
HEM-907XL Rev B 3/2/07 1:41 AM Page 10
