Omron M10-IT User manual

Digital Automatic Blood Pressure Monitor
Model M10-IT
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
IM-HEM-7080IT-E-03-03/07
1663794-1D
EN
FR
DE
IT
ES
NL
RU
HEM-7080IT-E.book Page 1 Monday, April 2, 2007 11:52 AM

2
Contents
Before using the unit
Introduction .................................................................................3
Important Safety Information.....................................................4
1. Overview ................................................................................6
2. Preparation .......................................................................... 10
2.1 Installing/Replacing the Batteries ...............................................10
2.2 Setting the Date and Time..........................................................12
Operating instructions
3. Using the Unit......................................................................16
3.1 How to Sit Correctly When Taking a Measurement....................16
3.2 Applying the Arm Cuff.................................................................18
3.3 Taking a Reading........................................................................21
3.4 Instructions for Special Conditions .............................................31
3.5 Using the Memory Function........................................................32
3.6 Downloading Data to a PC .........................................................39
4. Quick Reference Guide ...................................................... 40
Care and maintenance
5. Handling Errors and Problems .......................................... 41
5.1 Error Messages ..........................................................................41
5.2 Troubleshooting..........................................................................42
6. Maintenance and Storage ..................................................43
7. Optional Parts .....................................................................44
8. Technical Data.....................................................................45
9. Some Useful Information about Blood Pressure .............47
HEM-7080IT-E.book Page 2 Monday, April 2, 2007 11:52 AM

3
Introduction
EN
Before using the unit
Introduction
Thank you for purchasing the OMRON M10-IT Intellisense Upper Arm
Blood Pressure Monitor.
The OMRON M10-IT Intellisense is a fully automatic blood pressure
monitor, operating on the oscillometric principle. It measures your
blood pressure and pulse rate simply and quickly. For comfortable
controlled inflation without the need for pressure pre-setting or re-
inflation the device uses its advanced “Intellisense” technology.
The monitor stores measurement results for two people and features
morning and evening averages. The auto mode allows for three
consecutive measurements with timed intervals for an average
reading.
Omron’s blood pressure management software included with this unit
allows you to view, manage and print data about blood pressure
measured by the OMRON M10-IT Intellisense. Included software is in
English only.
Please read this instruction manual thoroughly before using the
unit. For specific information about your own blood pressure,
CONSULT YOUR DOCTOR.
HEM-7080IT-E.book Page 3 Monday, April 2, 2007 11:52 AM

4
Important Safety Information
Important Safety Information
Consult your doctor during pregnancy, arrhythmia and arteriosclerosis.
Use the unit only to store the designated users measurement results.
Please read this section carefully before using the unit.
Caution:
(General Usage)
• Always consult your doctor. You should never stop or change the
dosage of medication prescribed by your doctor.
• Do not leave the unit unattended with infants or persons who cannot
express their consent.
• Do not use the unit for any purpose other than measuring blood
pressure.
• Use only the approved arm cuff for this unit. Use of other arm cuffs
may result in incorrect measurement results.
• Do not disassemble the unit or arm cuff.
• Make sure that the air tube is not wrapped around other parts of your
body when taking measurements at night. This could result in injury
when the air pressure in the air tube is increased.
• Do not wrap the arm cuff tightly when taking measurements at night.
This could result in injury.
• Do not inflate the arm cuff over 299 mmHg.
• Do not allow objects to come into contact with the USB connector on
the right of the unit when taking measurements.
(Optional AC Adapter Usage)
• Use only the original AC adapter designed for this unit. Use of
unsupported adapters may damage and/or may be hazardous to the
unit. Plug the AC adapter into the appropriate voltage outlet. Do not
overload power outlets or use extension cords.
• Do not use the AC adapter if the unit or the power cord is damaged.
Turn off the power and unplug the power cord immediately.
HEM-7080IT-E.book Page 4 Monday, April 2, 2007 11:52 AM

5
Important Safety Information
EN
• Never plug in or unplug the power cord from the electric outlet with
wet hands.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty
of clean water. Consult a doctor immediately.
• If battery fluid should get on your skin or clothing, immediately rinse
with plenty of clean water.
• Use only four “AA” alkaline batteries with this unit. Do not use other
types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace all four
batteries at the same time.
• Remove the batteries if the unit will not be used for three months or
more. If the batteries have been removed for more than 30 seconds,
the date and time setting will need to be reset.
• Do not use new and used batteries together.
• Read and follow the “Important information regarding Electro
Magnetic Compatibility (EMC)” in the Technical Data Section.
General Safety Precautions
• Do not forcibly bend the arm cuff or bend the air tube excessively.
• When removing the air tube, pull on the air plug at the connection with
the main unit not the tube itself.
• Do not apply strong shocks and vibrations to or drop the main unit
and arm cuff.
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Do not wash the arm cuff or immerse it in water.
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating.
• Read and follow the “Correct Disposal of This Product” in the
Technical Data Section when disposing of the device and any used
accessories or optional parts.
HEM-7080IT-E.book Page 5 Monday, April 2, 2007 11:52 AM

6
1. Overview
1. Overview

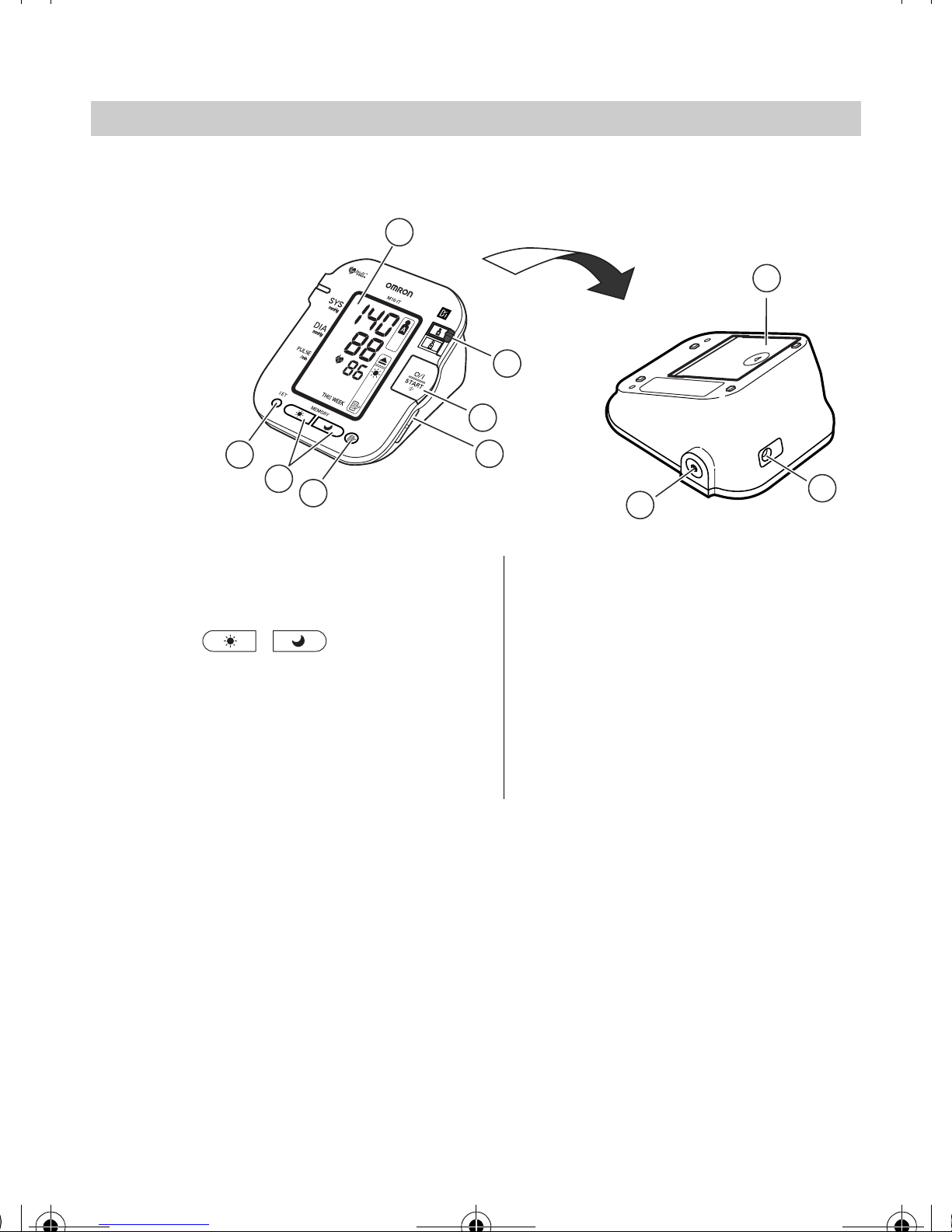

Main Unit
A. Display
B. SET button
C. Morning/Evening Average
( / ) buttons
D. MEMORY button
E. USB connector jack (USB 1.1
compatible)
F. O/I START button
G. User ID selection switch
(A & B)
H. Battery compartment
I. Air jack
J. AC adapter jack (for AC
adapter)
F
E
G
B
A
CD
H
J
I
HEM-7080IT-E.book Page 6 Monday, April 2, 2007 11:52 AM

7
1. Overview
EN
Arm Cuff
K. Arm cuff
(Cuff: arm circumference 22-42 cm)
L. Air Plug
M. Air Tube
K
ML
HEM-7080IT-E.book Page 7 Monday, April 2, 2007 11:52 AM

8
1. Overview
Display
N. Systolic blood pressure
O. Diastolic blood pressure
P. Heartbeat symbol
1. (Flashes during measurement)
2. (If flashing after measurement
completed indicates blood
pressure out of recommended
range)
Q. Movement symbol
(Displayed if you move your
body during the measurement.)
R. Irregular heartbeat symbol
S. Deflation symbol
T. Auto mode symbol
(Displayed when Auto Mode is
set.)
U. Battery low symbol
V. User ID symbol (A or B)
(Indicates user A or user B as
selected by the user to take a
measurement or when using
the memory function.)
W. Pulse display
X. Early morning hypertension
symbol
(Displayed if the morning
average reading for a week is
above 135 for the systolic
blood pressure value and/or 85
for the diastolic blood pressure
value.)
Y. Morning average symbol
(Displayed when viewing
morning averages using the
memory function.)
Z. Evening average symbol
(Displayed when viewing
evening averages using the
memory function.)
AA.Average value symbol
(Displayed when viewing value
for the last three
measurements)
AB.Memory symbol
(Displayed when viewing
values stored in memory)
AC.Week display
AD.Date/Time display
NV
Y
Q
O
S
U
P
R
X
Z
AB
AD
W
AA
AC
T
HEM-7080IT-E.book Page 8 Monday, April 2, 2007 11:52 AM

9
1. Overview
EN

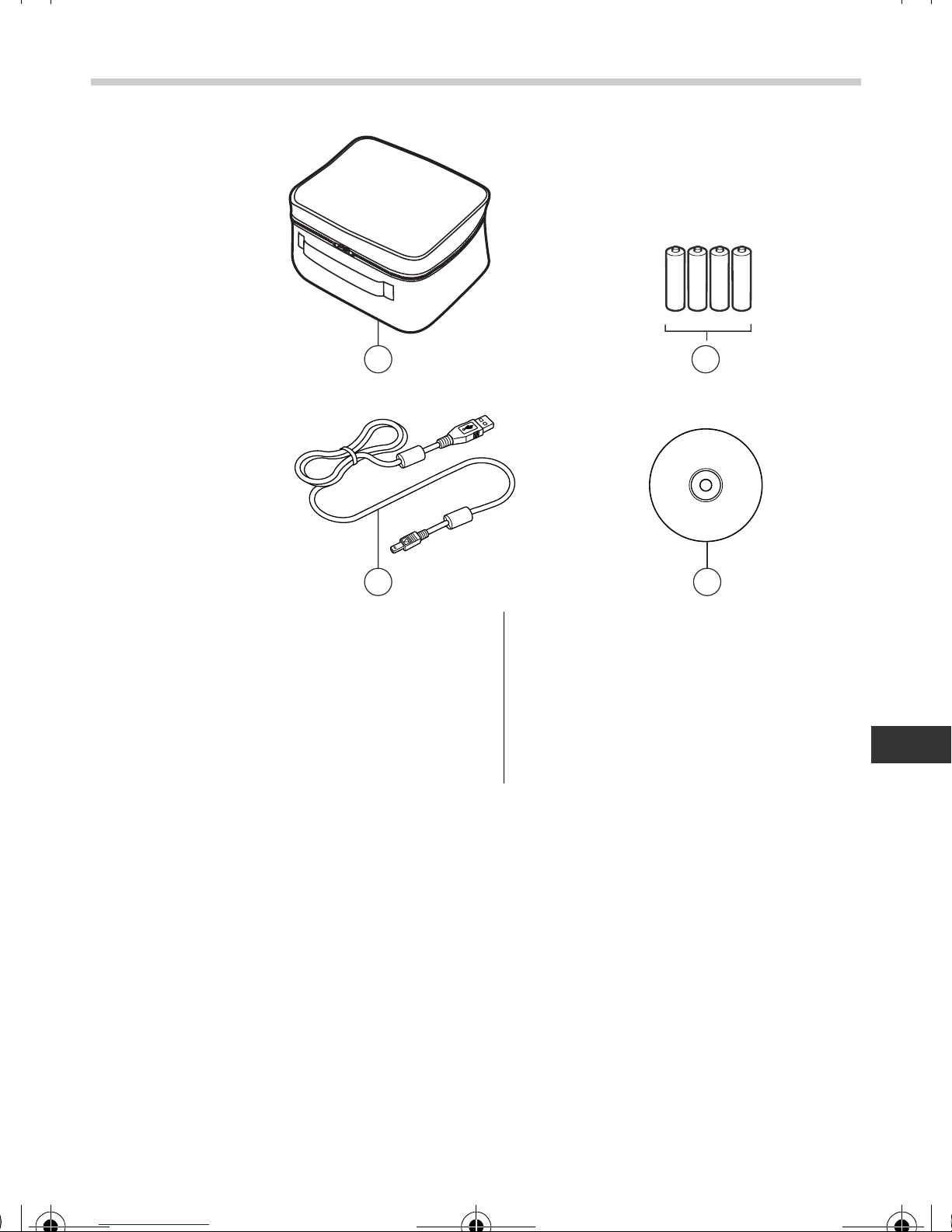

Package Contents
AE.Soft storage bag
AF.Four “AA” alkaline (LR6)
batteries
AG.USB cable
AH.CD-ROM (Blood pressure
management software)
• Instruction manual
• Guarantee card
• Blood pressure pass
• Blood Pressure Monitor unit
• Installation guide (for Blood
pressure management
software)
AFAE
AG AH
HEM-7080IT-E.book Page 9 Monday, April 2, 2007 11:52 AM

10
2. Preparation
2. Preparation

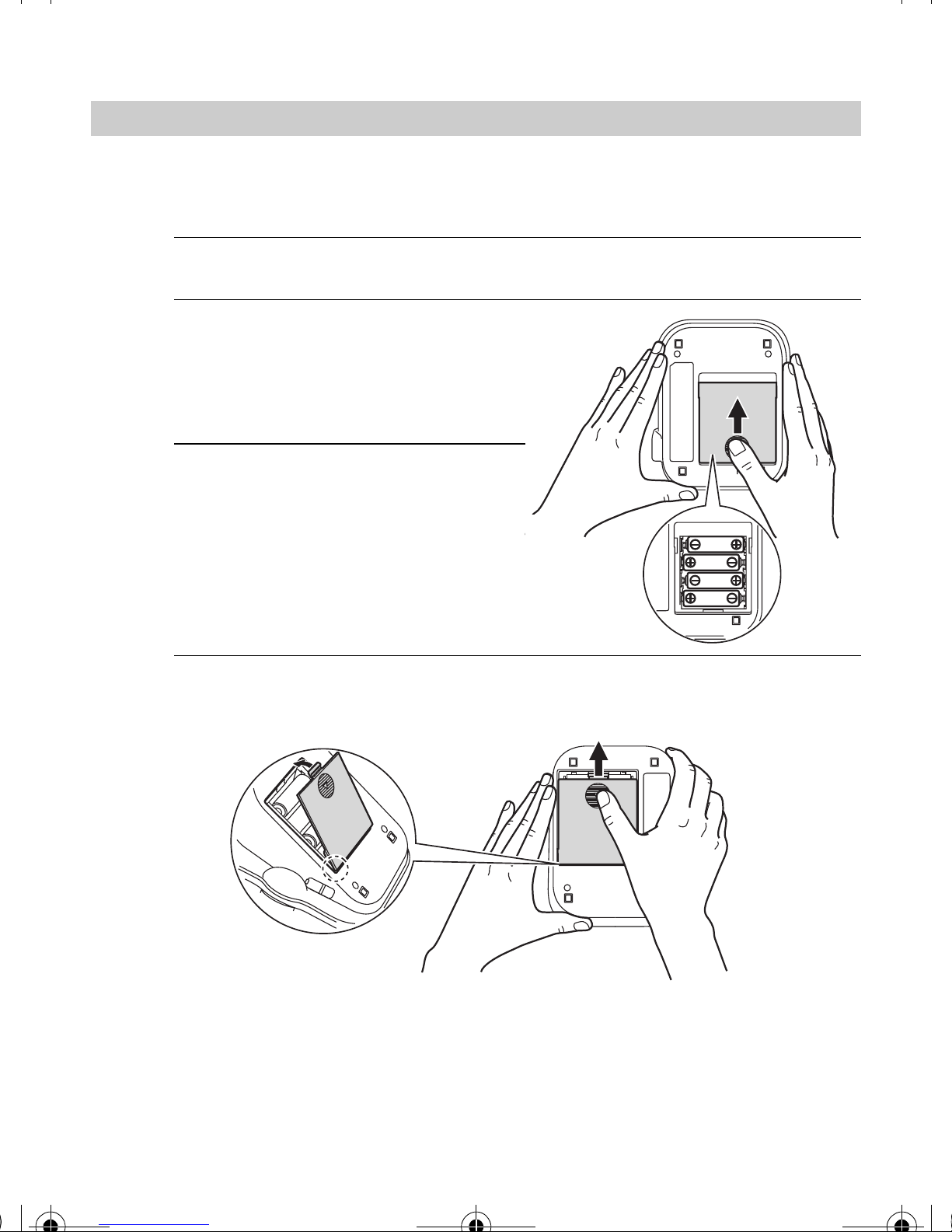

2.1 Installing/Replacing the Batteries
1. Turn the main unit upside down.
2. Slide the battery cover in the
direction of the arrow while
pressing the ribbed part of the
cover.
3. Install or replace four “AA”size
batteries so that the + (positive)
and - (negative) polarities
match the polarities indicated
on the battery compartment.
4. Put the battery cover back in place.
Slide the battery cover as indicated, until it clicks into place.
Note: The measurement values continue to be stored in memory even
after the batteries are replaced.
HEM-7080IT-E.book Page 10 Monday, April 2, 2007 11:52 AM

11
2. Preparation
EN
Battery Life & Replacement
If the battery low symbol ( ) appears on the display, replace all four
batteries at the same time.
- When the battery low symbol ( ) starts to blink, you will still be
able to use the unit for a short while. You should replace the
batteries with new ones ahead of time.
- When the symbol ( ) remains lit, the batteries are exhausted. You
should replace the batteries with new ones at once.Turn the unit off
before replacing the batteries.
• Remove the batteries if the unit will not be used for three months or
more.
• If the batteries have been removed for more than 30 seconds, the
Date/Time setting will need to be reset. See Chapter 2.2 for details.
• Dispose of batteries according to applicable local regulations.
Four new “AA”alkaline batteries will last for approximately
1400 measurements, when used to take six measurements a day.
Since the supplied batteries are for monitoring use only, they may have
a shorter life and not last for 1400 measurements.
HEM-7080IT-E.book Page 11 Monday, April 2, 2007 11:52 AM

12
2. Preparation
2.2 Setting the Date and Time
Your blood pressure monitor automatically stores up to 84 individual
measurement values with the date and time.
To make use of the memory and average values functions:
• Set the unit to the correct date and time before taking a measurement
for the first time.
• If the batteries have been removed for more than 30 seconds, the
Date/Time setting will need to be reset.

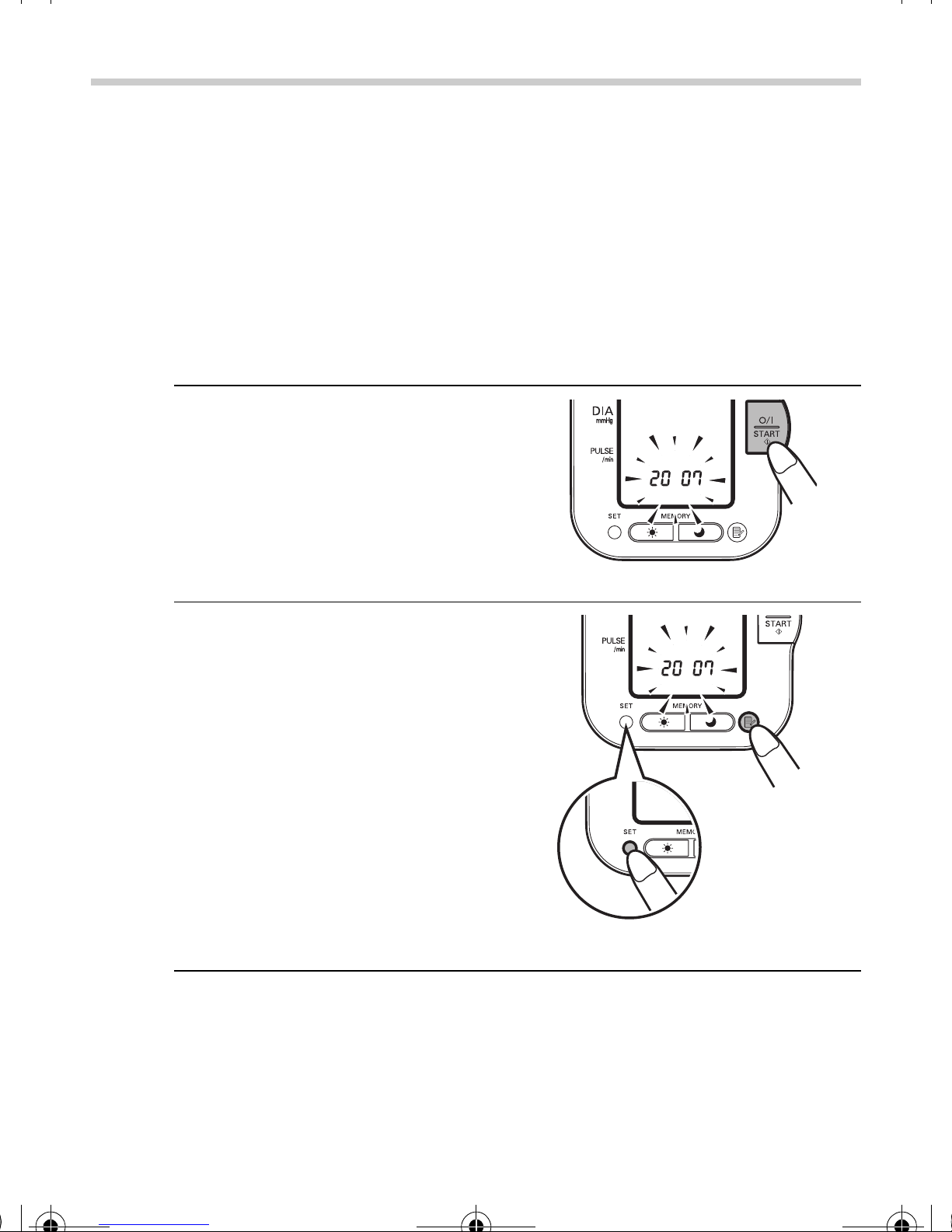

1. When the O/I START button is
pressed to turn the unit on for
the first time after inserting
batteries, the year digits
(2007) will flash on the
display.

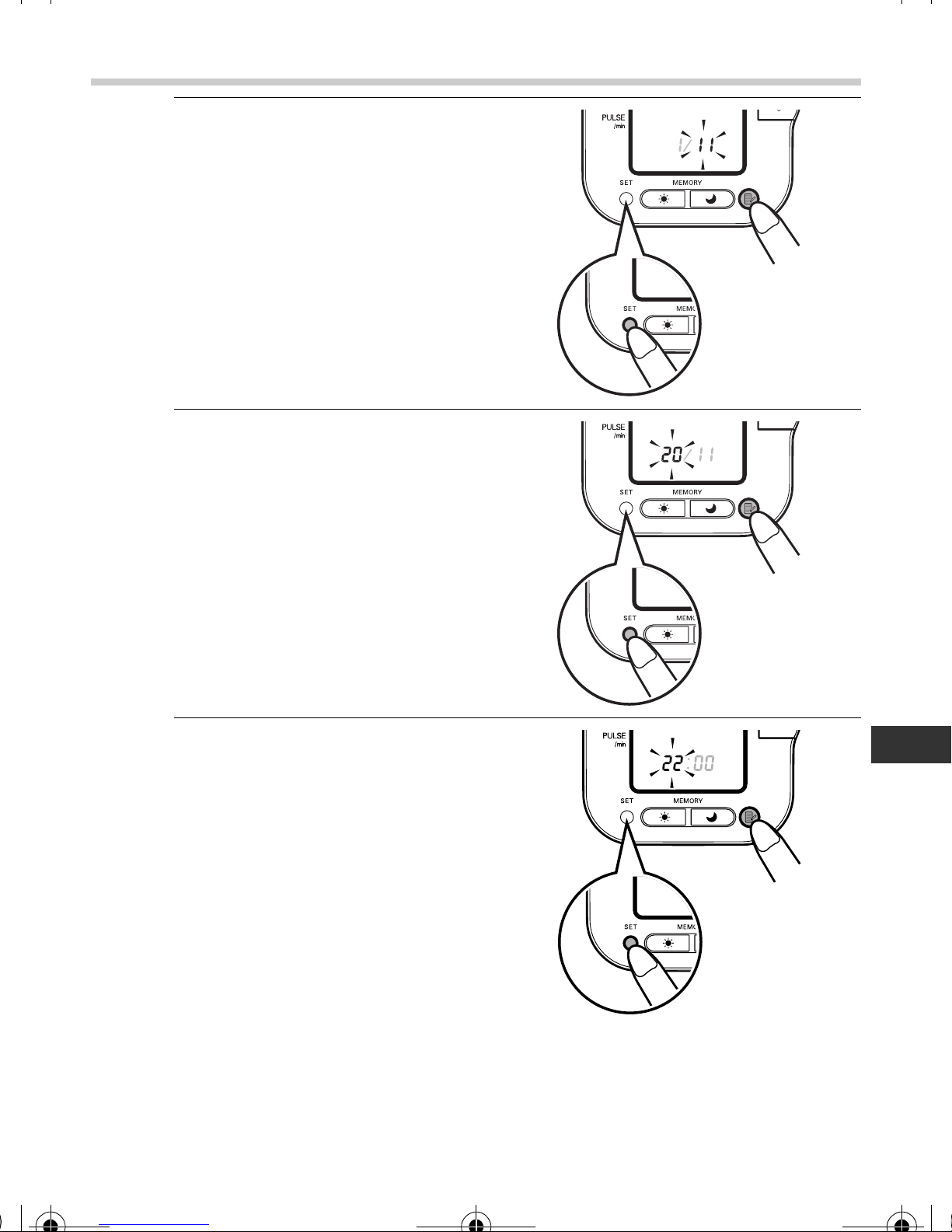

2. Press the MEMORY button to
advance the digits one at a
time.
Notes:
• The range for the year
setting is 2007 to 2030. If the
year reaches 2030, it will
return to 2007.
• If you hold down the
MEMORY button, the digits
will advance rapidly.
3. Press the SET button to confirm the setting when the desired
number appears on the display.
The year is set and the month digits flash on the display.
HEM-7080IT-E.book Page 12 Monday, April 2, 2007 11:52 AM

13
2. Preparation
EN
4. Repeat steps 2 and 3 to set
the month.
The month is set and the day
digits flash on the display.
5. Repeat steps 2 and 3 to set
the day.
The day is set and the hour
digits flash on the display.
6. Repeat steps 2 and 3 to set
the hour.
The hour is set and the
minutes digits flash on the
display.
HEM-7080IT-E.book Page 13 Monday, April 2, 2007 11:52 AM

14
2. Preparation
7. Repeat steps 2 and 3 to set
the minutes.
The minutes settings is set.
The unit automatically turns
itself off after the minute
setting has been set.
To adjust the date and time,
press the SET button while
the unit is in standby mode.
Notes on Adjusting the Date and Time Setting
If you need to adjust the date and time for some reason, or if the date
and time has been reset after replacing the batteries, adjust the date
and time between 10:00 and 18:59. This will avoid problems with
morning and evening weekly averages stored in memory.
To adjust the date or time at a later stage, start the unit in the off
position. Follow the steps below.
1. Press and hold the SET button.
The auto mode symbol and the current setting (on or
oFF) will appear on the display for the user ID selected.
If the year is not flashing, press the SET button once or twice
until the year is flashing.
The year flashes on the display.
HEM-7080IT-E.book Page 14 Monday, April 2, 2007 11:52 AM

15
2. Preparation
EN
2. Refer to Chapter 2.2.2 to start setting the date and time.
With this manual setting of date and time the unit needs to be
manually shut off. It will not automatically turn off after the
minutes have been set.
Notes:
• Please ensure that the date and time have been set correctly so that
the weekly averages will be displayed correctly. If the Date/Time
settings have been accidentally set incorrectly, press the SET button
to circle through the settings in order to adjust to their correct values.
• In the case where the time displays incorrectly after a long period of
non-use of the unit, reset the Date and Time (refer to Chapter 2.2 for
instructions on setting the clock values). Erase the recorded values
when reusing the unit (refer to Chapter 3.5 for directions on erasing
the recorded values).
HEM-7080IT-E.book Page 15 Monday, April 2, 2007 11:52 AM

16
3. Using the Unit
Operating instructions
3. Using the Unit
3.1 How to Sit Correctly When Taking a Measurement
You can take a measurement on either your left or right arm.
Notes:
• Measurements should be taken in a quiet place and you should be in
a relaxed, seated position. Make sure that the room is not too hot or
cold.
• Avoid eating, smoking, or exercising for at least 30 minutes before
taking a measurement.
• Do not move or talk during measurement.
Correct
Posture Remove tight fitting clothing from
your upper arm, and any thick
clothing such as a sweater.
Do not place the cuff over thick
clothes and do not roll up your sleeve
if it is too tight.
Sit upright
with your
back straight. Place your arm on a table so
that the cuff will be at the same
level as your heart.
The gap between the
chair and the top of the
table should be between
25cm to 30cm.
HEM-7080IT-E.book Page 16 Monday, April 2, 2007 11:52 AM

17
3. Using the Unit
EN
Notes:
• Correct posture during measurement is necessary to get accurate
results.
• You should also try to measure your blood pressure at the same time
each day. (Within 1 hour after waking up is recommended.)
Incorrect Posture
These situations could lead to higher blood pressure values due to
strain or the arm cuff being lower than the heart.
If the arm cuff is at a lower position than your heart use cushions
etc., to adjust the height of your arm.
•Arched back (leaning
forwards)
•Sitting cross-legged
•Sitting on a sofa or at a low
table so that you tend to lean
forward
HEM-7080IT-E.book Page 17 Monday, April 2, 2007 11:52 AM

18
3. Using the Unit
3.2 Applying the Arm Cuff
You can wrap the cuff either on your right or left arm.
• Remove tight-fitting clothing from your
upper arm.
• Do not place the cuff over thick clothes and
do not roll up your sleeve if it is too tight.
1. Insert the air plug into the air jack (on the left side of the
device).
The cuff must be fully deflated when it is inserted into the air
jack.
2. Sit in a chair with your feet flat on the floor and place your arm
on a table so that the cuff will be at the same level as your
heart.
Air plug
Air jack
HEM-7080IT-E.book Page 18 Monday, April 2, 2007 11:52 AM

19
3. Using the Unit
EN

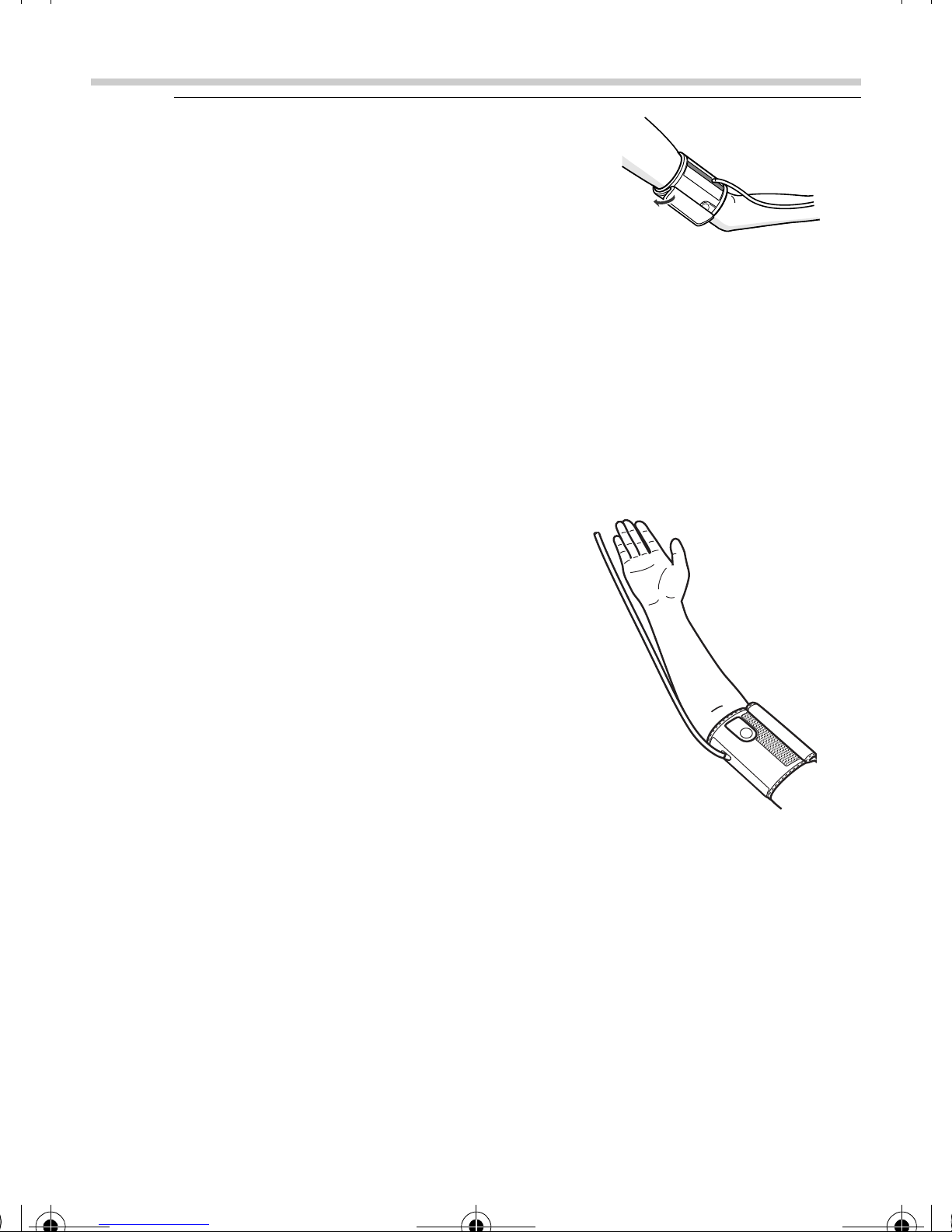

3. Hold the grip on the cuff securely
with your hand.
4. Turn the palm of your hand upward.
5. Apply the cuff to your upper arm so that the blue strip is centred
on the middle of your inner arm and points down the inside of
the arm. The air tube should run down the inside of your
forearm and be in line with your middle finger.
The bottom of the cuff should be approximately 1 to 2 cm
above the elbow.
Grip
Fabric fastene
r
Blue strip
Bottom edge 1 to 2 cm
Air tube
HEM-7080IT-E.book Page 19 Monday, April 2, 2007 11:52 AM

20
3. Using the Unit
6. When the cuff is positioned correctly,
close the fabric fastener FIRMLY.
Notes:
• Make certain the cuff fits snugly around your arm.
• The cuff should make good contact with your skin. You should
be able to fit your index finger between the cuff and your arm
easily, so you can pull the cuff off and on.
• Make sure that there are no kinks in the air tubing.
Taking measurements on the right arm
Please note the following points when
applying the cuff to your right arm. Apply the
cuff so that the air tube is at the side of your
elbow.
Notes:
• Be careful not to rest your arm on the air
tube, or otherwise restrict the flow of air to
the cuff.
• Apply the arm cuff so that no part of the
cuff is positioned over the elbow joint. The
cuff should be 1 to 2 cm above the elbow.
• If used 2 times per day, the cuff will last for 3 years.
• The blood pressure can differ between the right arm and the left arm,
and therefore also the measured blood pressure values can be
different. Omron recommends to always use the same arm for
measurement. If the values between the two arms differ substantially,
please check with your physician which arm to use for your
measurement.
HEM-7080IT-E.book Page 20 Monday, April 2, 2007 11:52 AM
