Omron COMP A-I-R NE-C801 User manual

Compressor Nebulizer
Model NE-C801
Instruction Manual
TM
10/2011
5329892-8B
NE-C801S-ID_B_M01_111219.pdf
NE-C801S-ID_B_M.book Page 1 Friday, December 16, 2011 11:46 AM

2
Contents
Before using the device
Introduction ................................................................................................... 3
Intended use .................................................................................................. 3
Important safety instructions....................................................................... 4
1. Know your unit........................................................................................ 7
2. Guide to using the device ...................................................................... 9
Operating instructions
3. Preparing the nebulizer for use ........................................................... 10

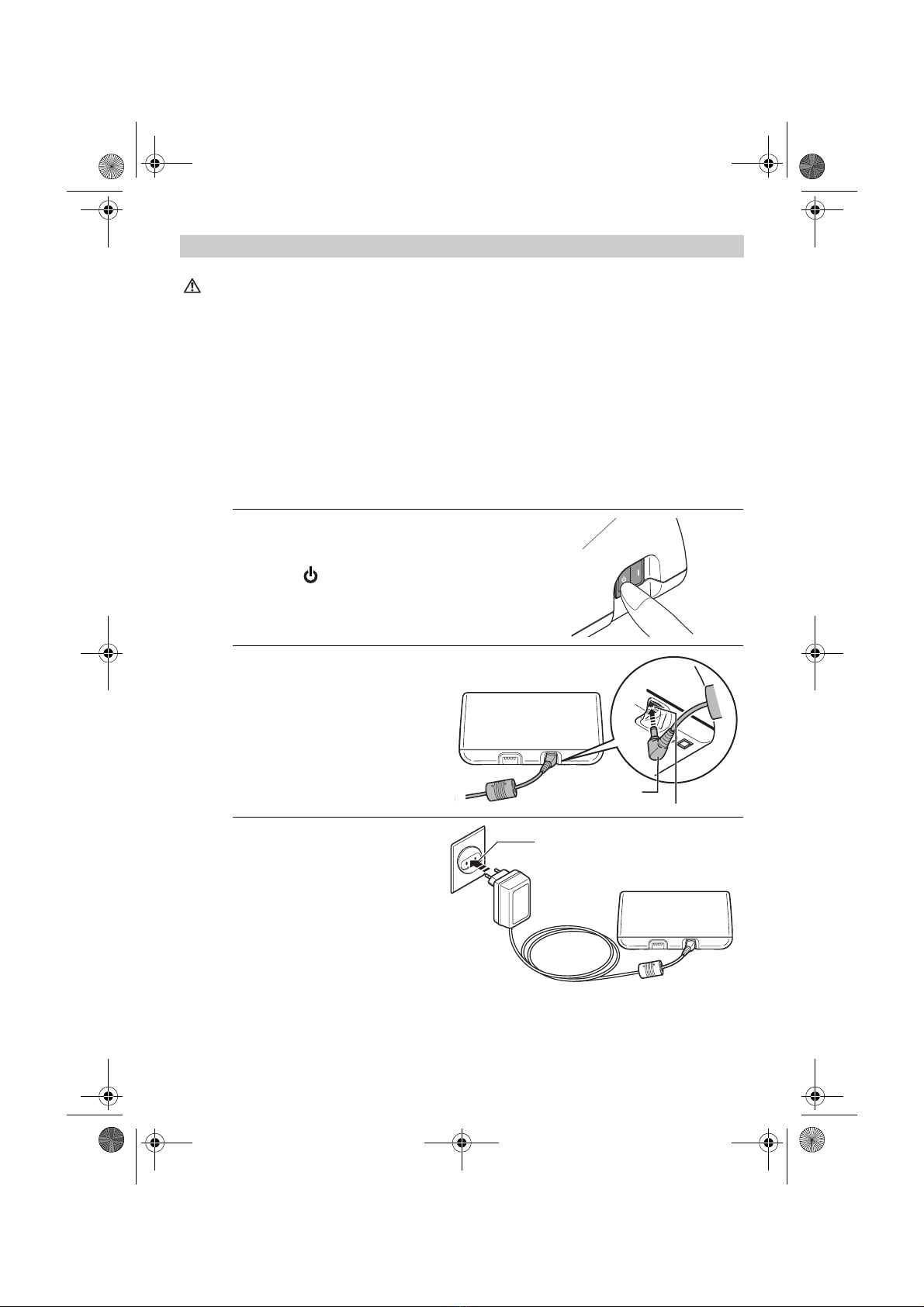

3.1 Connecting AC adapter...................................................................... 10
3.2 Adding medication and assembling the parts .................................... 11
4. Taking medication ................................................................................ 14
Care and maintenance
5. Cleaning and daily disinfecting ........................................................... 17
5.1 Cleaning............................................................................................. 17
5.2 Disinfecting the nebulizing parts ........................................................ 18
6. Maintenance and storage..................................................................... 22
7. Changing the air filter........................................................................... 23
8. Troubleshooting.................................................................................... 24
9. Technical data ...................................................................................... 25
10. Optional parts and accessories........................................................... 29
Before using the device
NE-C801S-ID_B_M.book Page 2 Friday, December 16, 2011 11:46 AM

3
Introduction
Thank you for purchasing the OMRON COMP AIR.
This product was developed in conjunction with respiratory therapists for the
successful treatment of asthma, chronic bronchitis, allergies and other respiratory
disorders. The compressor forces air to the nebulizer kit. When the air enters the
nebulizer kit, it converts the prescribed medication into an aerosol of microscopic
droplets that can easily be inhaled.
This is a medical device. Operate the device only as instructed by your doctor
and/or respiratory therapist.
Medical Purpose This product is intended to be used for inhaling medication
for respiratory disorders.
Intended User • Legally certified medical experts, such as doctor, nurse and
therapist, or healthcare personnel or patient under the
guidance of qualified medical experts.
• The user should also be capable of understanding general
machine operation and the content of instruction manual.
Intended Patients This product should not be used by patients, who are
unconscious or are not breathing spontaneously.
Environment This product is intended for use in a medical facility, such as
Hospital, clinic and doctor’s office, and in a room of general
household.
Durable period Durable periods are as follows, provided the product is used
to nebulize 2 ml of medication 2 times a day for 6 minutes
each time at room temperature (23°C).
Durable period may vary depending on usage environment.
Compressor (Main unit) 5 years
Nebulizer Kit 1 year
(Cap, Inhalation Top,
Vaporiser Head, Medication Tank)
Mouthpiece 1 year
Nosepiece (optional) 1 year
Air Tube (PVC, 100cm) 1 year
Air Filter 60 days
Adult Mask (PVC) 1 year
Child Mask (PVC) 1 year
Precautions for use Warnings and cautions described in the instruction manual
should be observed.
Intended use
NE-C801S-ID_B_M.book Page 3 Friday, December 16, 2011 11:46 AM

4
Important safety instructions
Read all the information in the instruction manual and any other literature included
in the box before using the device.
When using an electrical product, especially when children are present, basic
safety precautions should always be followed including the following:
Warning:
Indicates a potentially hazardous situation which, if not avoided, could result in
serious injury.
(Usage)
• For type, dose, and regime of medication follow the instructions of your doctor or
respiratory therapist.
• If you feel anything unusual during use, stop using the device immediately and
consult your doctor.
• Do not use only water in the nebulizer, for inhaling purposes.
• Clean and disinfect the nebulizer kit and the mask, mouthpiece or optional nosepiece
before using them for the first time after purchase, or if the device has not been used
for a long period of time, or if more than one person uses the same device.
• Be sure to wash the parts after use, and ensure that they are thoroughly
disinfected and dried, and stored in a clean location.
• Keep the device out of the reach of unsupervised infants and children. The
device may contain small pieces that can be swallowed.
• Store the device and accessories in a clean location.
• Do not store the air tube while there is moisture or medication remaining inside it.
• Always rinse the nebulizing parts with clean hot tap water after disinfecting them.
Never leave the cleaning solution in the medication tank or mouthpiece.
• Do not use or store the device where it may be exposed to noxious fumes or
volatile substances.
• Do not use the device where it may be exposed to flammable gas.
• Do not cover the compressor with a blanket or towel etc., during use.
• Make sure that the nebulizer kit is clean before use.
• Always dispose of any remaining medication after use, and use fresh medication
each time.
• Do not use in anaesthetic or ventilator breathing circuits.
(Risk of electrical shock)
• Do not use the compressor or AC adapter while they are wet, or connect them to
a power outlet or other devices with wet hands.
• The compressor and AC adapter are not waterproof. Do not spill water, or other
liquids, on these parts. If liquid does spill on these parts, immediately unplug the
power cord and wipe off the liquid with gauze or other absorbent material.
• Do not immerse the compressor in water or other liquid.
• Do not use or store the device in humid locations, such as a bathroom.
NE-C801S-ID_B_M.book Page 4 Friday, December 16, 2011 11:46 AM

5
Important safety instructions
• Use only original OMRON AC adapter. Use of unsupported AC adapter may
damage the device.
• Do not operate the device with a damaged power cord or plug.
• Keep the power cord away from heated surfaces.
• Read and follow the “Important information regarding Electro Magnetic
Compatibility (EMC)” (page 27) in the Technical Data Section.
Caution:
Indicates a potentially hazardous situation which if not avoided, may result in minor
or moderate injury, or physical damage.
(Usage)
• Provide close supervision when this device is used by, on, or near children or invalids.
• Make sure that the parts are attached correctly.
• Make sure that the vaporiser head is correctly installed before use.
• Make sure that the air filter is correctly attached.
• Make sure that the air filter is clean. If the air filter has changed colour, or has
been used on average for more than 60 days, replace it with a new one.
• Do not spill liquid or medication on the compressor.
• Do not tilt the nebulizer kit so that it is at an angle of greater than 45°, or shake it
while in use.
• Do not use or store the device while the air tube is creased.
• Use only original nebulizing parts, air tube, air filter and air filter cover.
• Do not add more than 7 ml of medication to the medication tank.
• Do not carry or leave the nebulizer kit while the medication tank contains
medication.
• Do not leave the device unattended with infants or persons who cannot express
their consent.
• Do not subject the device or the parts to any strong shocks such as dropping the
device on the floor.
• Do not distort the vaporiser head, or jab the nozzle of the medication tank with a
pin etc.
• Do not insert fingers or objects inside the compressor.
• Do not disassemble or attempt to repair the compressor or power cord.
• Do not leave the device or its parts where it will be exposed to extreme
temperatures or changes in humidity, such as in a vehicle during the summer, or
where it will be exposed to direct sunlight.
• Do not block the air filter cover.
• When sterilising parts by boiling, make sure that the container does not boil dry.
• Never place, or attempt to dry the compressor, AC adapter or nebulizer kit in a
microwave oven.
• Do not use the device while sleeping or if drowsy.
• To avoid injury to the nose mucosa, do not squeeze the optional nosepiece into
the back of the nose.
NE-C801S-ID_B_M.book Page 5 Friday, December 16, 2011 11:46 AM

6
Important safety instructions
• Do not block the slit between the cap and the inhalation air inlet.
• Do not use a microwave oven or hair dryer to dry the nebulizing parts.
• Approved for human use only.
• If the device is used continuously, the service life of the device may be shortened.
• Limit use to 20 minutes at a time, and allow a 40 minute interval before using the
device again.
• When using the device, the main unit may become hot.
• Do not touch the main unit for other than necessary operation such as turning off
the power while nebulizing.
• To avoid the medication remains on the face, be sure to wipe the face after
removing the Mask.
(Risk of electrical shock)
• Always unplug the AC adapter from the power outlet after use and before cleaning.
• Plug the device into the appropriate voltage outlet. Do not overload power outlets
or use extension cords.
• Always remove the AC adapter from the device after use and before cleaning.
• Do not misuse the cord of the AC adapter.
• Do not wind the cord of the AC adapter around the compressor or AC adapter.
• Changes or modifications not approved by OMRON HEALTHCARE will void the
user warranty.
• Do not pluck the power cord of AC adapter strongly.
General Safety Precautions:
• Inspect the device and parts before using them each time, and check that there
are no problems. In particular, be sure to check the following:
- That the vaporiser head, nozzle or air tube are not damaged.
- That the nozzle is not blocked.
- That the compressor operates normally.
• When using this device, there will be some noise and vibration caused by the
pump in the compressor. There will also be some noise caused by the emission
of compressed air from the nebulizer kit. This is normal and does not indicate a
malfunction.
• Operate the device only as intended. Do not use the device for any other purpose.
• Do not use the device at temperatures greater than +40°C.
• Make sure that the air tube is securely attached to the compressor and nebulizer
kit, and does not come loose. Twist the air tube plug slightly when inserting it into
the air tube connectors to avoid the air tube disconnecting during use.
• The AC adapter is provided so that the device can be completely isolated from
the power source. To completely isolate the device from the power source unplug
the plug from the power source.
• Read and follow the “Correct Disposal of This Product” in the Technical Data
Section (page 28) when disposing of the device and any used accessories or
optional parts.
Save these instructions for future reference.
NE-C801S-ID_B_M.book Page 6 Friday, December 16, 2011 11:46 AM

7

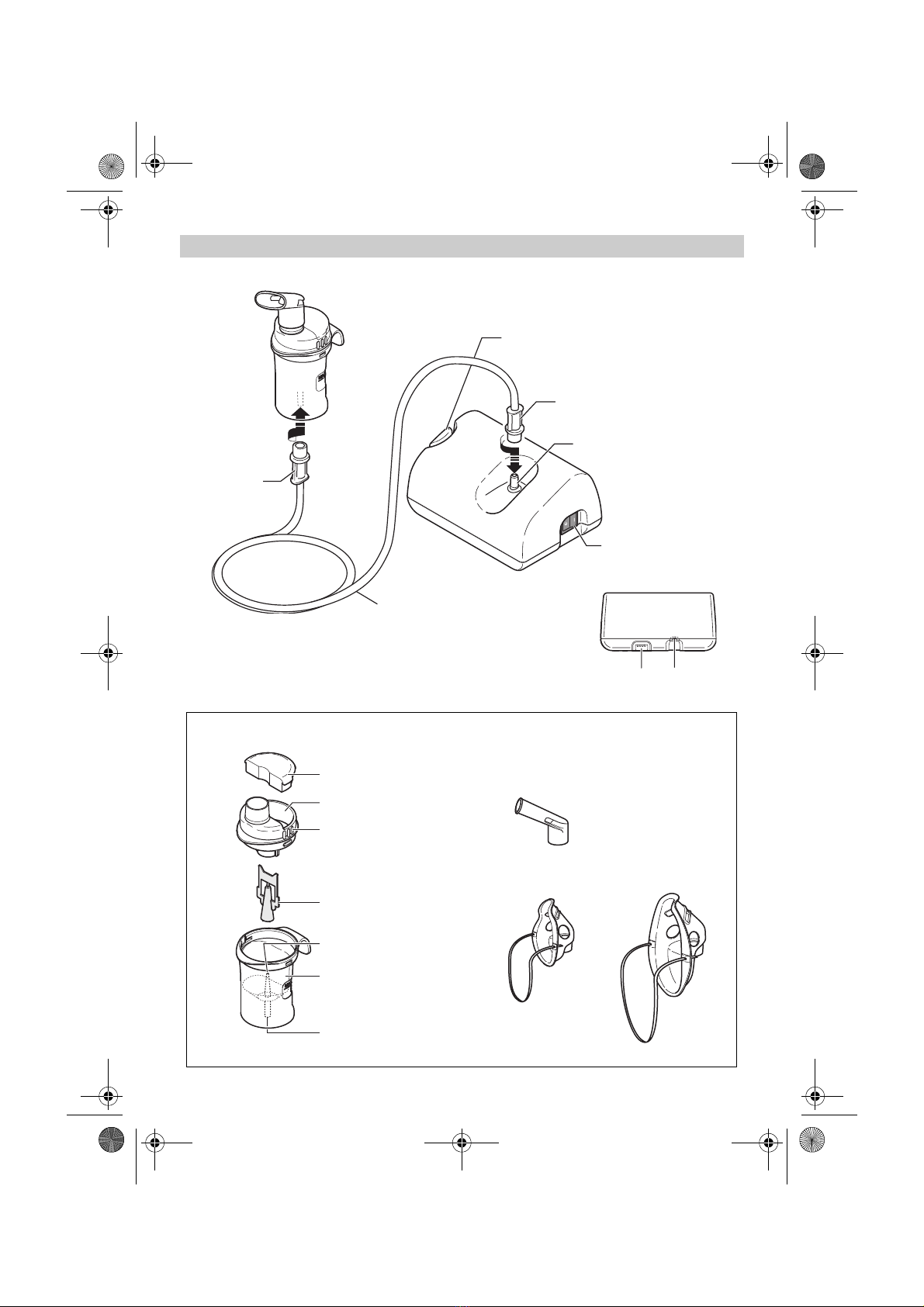

1. Know your unit
Air Tube
(PVC, 100cm)
Air Tube Connector
Nebulizer Kit Holder
Air Filter Cover
*Air filter inside
Power
Connector
Compressor (Main Unit)
Cap
Inhalation Air Inlet
Inhalation Top
Vaporiser Head
Medication Tank
Air Tube
Connector
Nozzle
Mouthpiece
Child Mask (PVC) Adult Mask (PVC)
Rear View
Air Tube
Plug
Air Tube Plug
Inhalation Attachments
Power Switch
Nebulizer Kit
Nebulizer Kit
NE-C801S-ID_B_M.book Page 7 Friday, December 16, 2011 11:46 AM

8
1. Know your unit

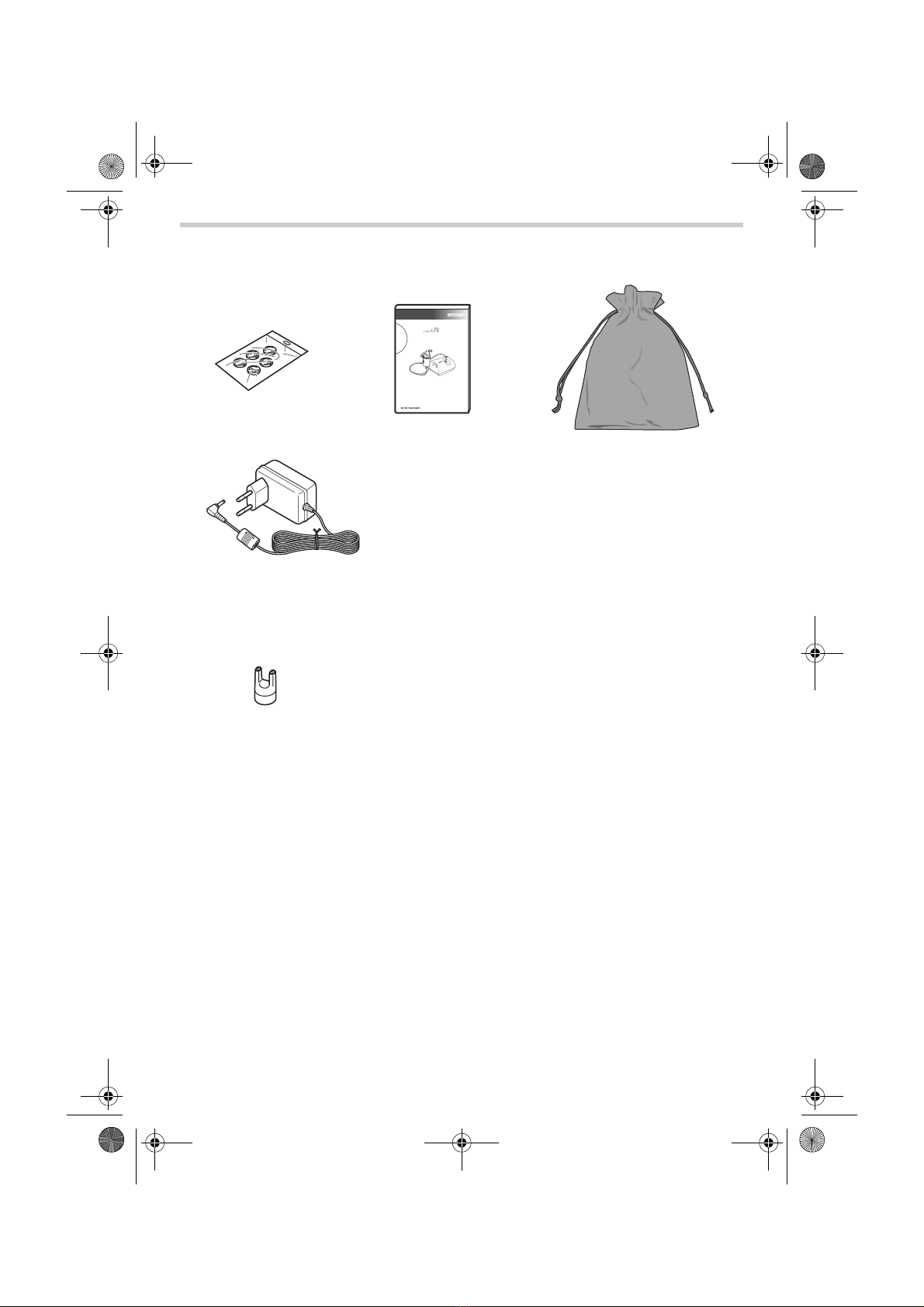

Accessories
Optional Accessories
Compressor Nebulizer
Model NE-C801
Instruction Manual
TM
10/2011
5329892-8B
Spare Air Filters ×5
AC adapter
Storage Bag
Instruction Manual
Nosepiece
NE-C801S-ID_B_M.book Page 8 Friday, December 16, 2011 11:46 AM

9
2. Guide to using the device
Preparing the Nebulizer for Use - Section 3 (page 10-13)
Warning:
Clean and disinfect the nebulizer kit, mouthpiece and nosepiece or masks
before using them for the first time after purchase, or if the device has not
been used for a long period of time, or if more than one person uses the
same device.
Taking Medication - Section 4
(page 14-16)
Caution:
• Do not tilt the nebulizer kit so that it is at an
angle of greater than 45°.
• Do not crease or fold the air tube.
Cleaning and Daily Disinfecting
- Section 5 (page 17-21)
Note: Failure to clean the nebulizing parts
after use may lead to infection.
How the nebulizer kit works
The medication that is pumped up
through the medication channel is
mixed with compressed air which is
generated by a compressor pump.
The compressed air mixed with
medication is turned into fine
particles and sprayed when in
contact with the baffle.
Baffle
Aerosol
Medication
Channel
Medication
Compressed Air
Aerosol
Medication
Nozzle
Operating instructions
NE-C801S-ID_B_M.book Page 9 Friday, December 16, 2011 11:46 AM

10
3. Preparing the nebulizer for use
Warning:
Clean and disinfect the nebulizer kit and the mask, mouthpiece or optional
nosepiece before using them for the first time after purchase, or if the device
has not been used for a long period of time, or if more than one person uses
the same device.
For directions on cleaning and disinfecting refer to Section 5 (page 17-21).
Note: Make sure that the air filter is changed regularly. Refer to Section 7
“Changing the air filter” (page 23).
3.1 Connecting AC adapter
1. Make sure that the power switch is turned off.
Check that the power switch is
in the off ( ) position.
2. Inserting the power plug of the
AC adapter into the power
connector on the compressor.
3. Plug the AC adapter into a
power outlet.
Note: When disconnecting
the AC adapter, unplug
the AC adapter from
the power outlet before
removing the power
connector on the
compressor.
Power Plug
Power Connector
Power Outlet
NE-C801S-ID_B_M.book Page 10 Friday, December 16, 2011 11:46 AM

11
3. Preparing the nebulizer for use

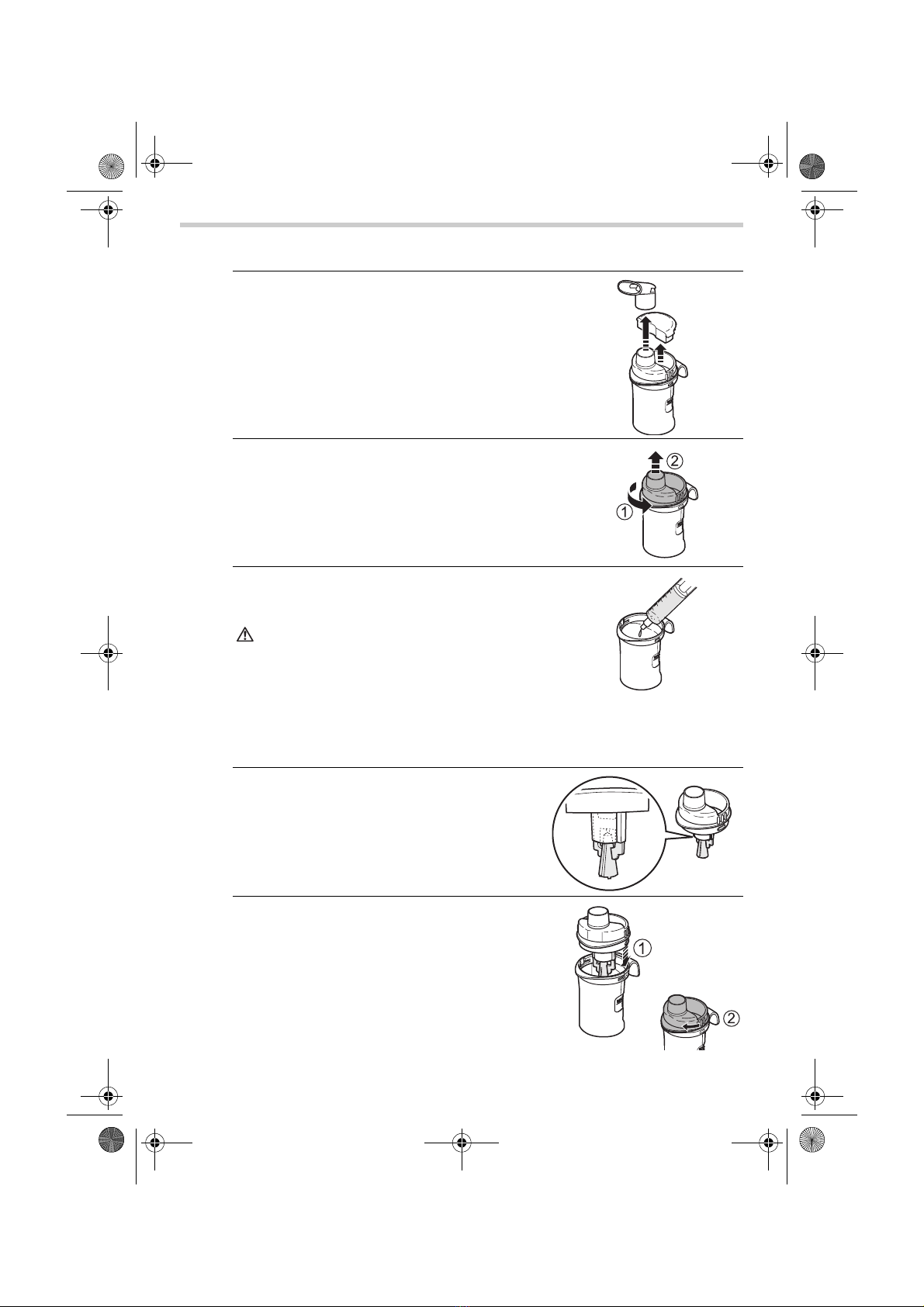

3.2 Adding medication and assembling the parts
1. Remove the mouthpiece and cap from the
nebulizer kit.
2. Remove the inhalation top from the medication
tank.
1) Rotate the inhalation top anti-clockwise.
2) Lift the inhalation top out of the medication
tank.
3. Add the correct amount of prescribed medication
to the medication tank.
Caution:
The capacity of the medication tank is
2 to 7 ml.
Note: Scales on the nebulizer kit are for
reference only. The scale on the outside of the tank is with no
vaporiser head in place. Please use the scale on your syringe or vial
for accurate measurement of medication.
4. Make sure that the vaporiser head is
securely attached to the inhalation top.
5. Put the inhalation top back inside the
medication tank.
1) Align the protrusion on the inhalation top with
the indent on the medication tank, as shown.
2) Rotate the inhalation top clockwise and align
with the medication tank until they click in
place.
NE-C801S-ID_B_M.book Page 11 Friday, December 16, 2011 11:46 AM

12
3. Preparing the nebulizer for use
6. Attach the desired inhalation attachment, as described below.
Attaching the mouthpiece
1) Attach the cap to the inhalation air inlet.
2) Attach the mouthpiece to the inhalation top.
Attaching the nosepiece (optional)
1) Attach the cap to the inhalation air inlet.
2) Attach the nosepiece to the inhalation top.
Attaching the adult mask (PVC)
Attach the adult mask to the inhalation top.
Note: If the amount of aerosol is too great,
attach the cap.
Attaching the child mask (PVC)
1) Attach the cap to the inhalation air inlet.
2) Attach the child mask to the inhalation top.
Note: If the amount of aerosol is too small, it is
not necessary to place the cap.
NE-C801S-ID_B_M.book Page 12 Friday, December 16, 2011 11:46 AM

13
3. Preparing the nebulizer for use
7. Attach the air tube.
1) Twist the air tube plug slightly and push it firmly into the air tube
connector on the compressor.
2) Twist the air tube plug slightly and push it firmly into the air tube
connector on the medication tank.
Notes:
• Make sure that the air tube is securely attached to the compressor and
nebulizer kit, and does not come loose. Twist the air tube plug slightly
when inserting it into the air tube connectors to avoid the air tube
disconnecting during use.
• Take care not to spill the medication when attaching the air tube. Keep
the nebulizer kit upright.
3) Use the nebulizer kit holder as a temporary holder for the nebulizer kit.
Note: Align the mark on the unit with the mark on the nebulizer kit as shown.
NE-C801S-ID_B_M.book Page 13 Friday, December 16, 2011 11:46 AM

14
4. Taking medication
1. Hold the nebulizer kit as indicated on the right.
Caution:
Do not tilt the nebulizer kit at an
angle of greater than 45° in all
direction. Medication may flow
into the mouth.
2. Press the power switch to the on ( ) position.
The compressor starts and nebulization starts.
Note: Observe whether aerosol is generated.
To stop nebulization
Press the power switch to the off ( ) position.
Warning:
Do not cover the compressor with a blanket or towel etc., during use.
Caution:
• Do not block the air filter cover.
• Limit use to 20 minutes at a time, and allow a 40 minute interval
before using the device again.
• When using the device, the main unit may become hot.
• Do not touch the main unit for other than necessary operation such
as turning off the power while nebulizing.
Note: Do not leave the compressor on for a long period of time. This could
result in the compressor overheating or malfunctioning.
45°45°
Right angle
NE-C801S-ID_B_M.book Page 14 Friday, December 16, 2011 11:46 AM

15
4. Taking medication
3. Inhale medication according to your doctor’s and/or health care adviser’s
instructions.
Prepare the inhalation attachment according to Section 3 (page 12).

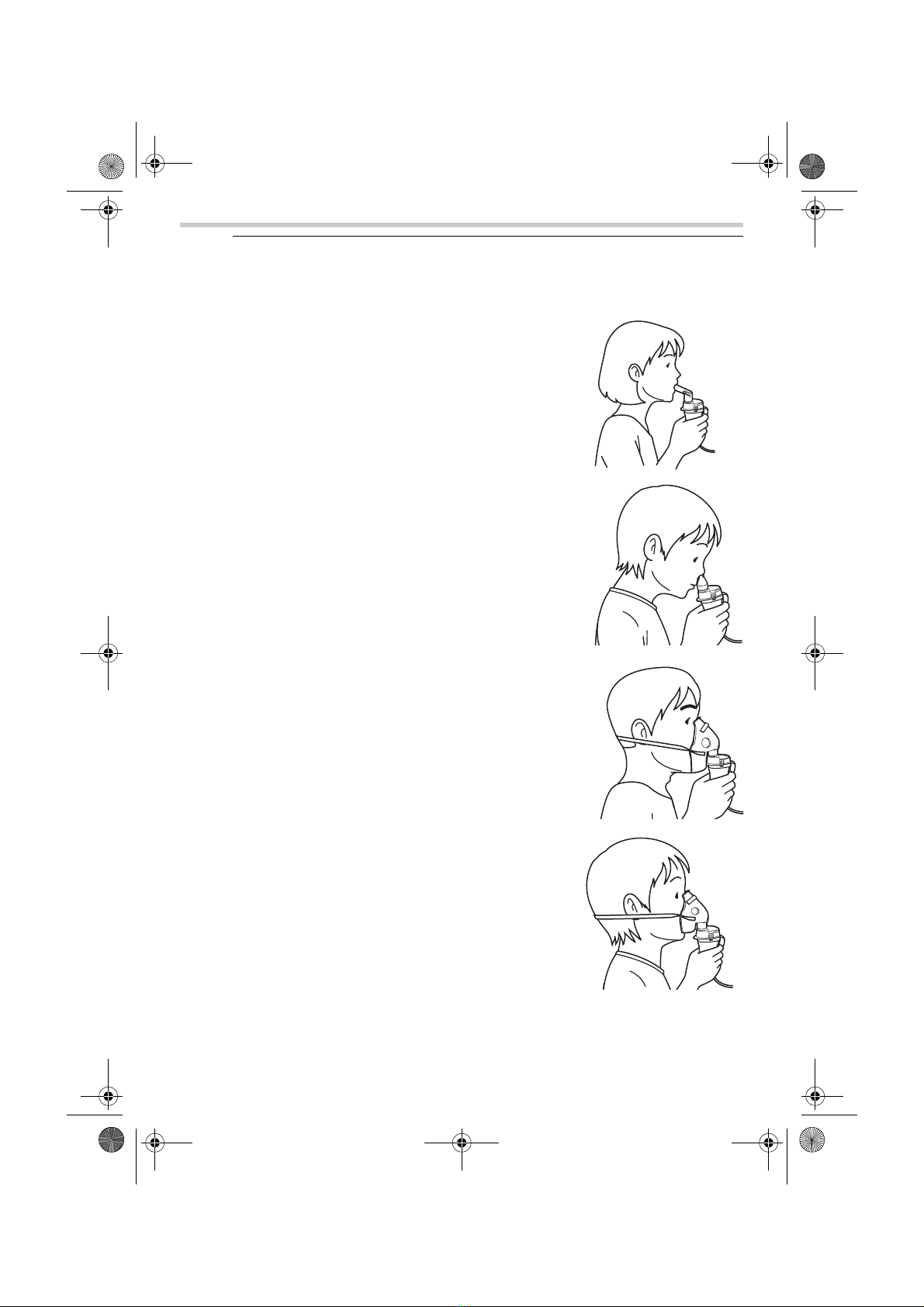

Using the mouthpiece
Insert the mouthpiece into your mouth and
inhale the medication breathing normally.
Exhale as normal through the mouthpiece.
Using the nosepiece (optional)
Inhale the medication through the nosepiece, as
shown and exhale through the mouth.
Using the adult mask (PVC)
Attach the mask so that it covers your nose and
mouth and inhale the medication.
Exhale through the mask.
Using the child mask (PVC)
Attach the mask so that it covers your nose and
mouth and inhale the medication.
Exhale through the mask.
max
5
3
NE-C801S-ID_B_M.book Page 15 Friday, December 16, 2011 11:46 AM

16
4. Taking medication
4. When treatment is complete, turn the power off. Check that there is no
condensation or moisture in the air tube and unplug the device from the
power outlet.
Warning:
Condensation may occur in the air tube. Do not store the air tube
while it contains condensation or moisture. This could result in
infection via bacteria.
If there is moisture or liquid remaining in the air tube, be sure to follow the
procedure below to remove any moisture from within the air tube.
1) Make sure that the air tube is still connected to the air connector on the
compressor.
2) Unplug the air tube from the nebulizer kit.
3) Turn on the compressor and pump air through the air tube to expel the
moisture.
Care and maintenance
NE-C801S-ID_B_M.book Page 16 Friday, December 16, 2011 11:46 AM

17
5. Cleaning and daily disinfecting
5.1 Cleaning
Following the cleaning instructions after each use will prevent any remaining
medication in the tank from drying, resulting in the device not nebulizing effectively
and also for preventing infections.
Warning:
Thoroughly rinse the nebulizer kit and the mask, mouthpiece or optional
nosepiece with clean hot tap water after each use, and disinfect the parts of
the nebulizer kit and applicable inhalation attachments after the last treatment
of the day.
Note: Do not start operation before the cleaned parts are completely dried.
1. Make sure that the power switch is in the off ( ) position.
2. Disconnect the AC adapter from the wall outlet and the compressor.
3. Remove the nebulizer kit from the air tube and disassemble the nebulizer
kit. Refer to Section 3 (page 11-13).
4. Discard any remaining medication in the
medication tank.
5. Wash all the nebulizing parts in warm water and
mild detergent and rinse in clean hot tap water.
For instructions on how to disinfect the parts, see the following section.
6. After cleaning and disinfecting the parts, rinse them thoroughly with clean
water and allow the parts to air dry in a clean environment.
NE-C801S-ID_B_M.book Page 17 Friday, December 16, 2011 11:46 AM

18
5. Cleaning and daily disinfecting

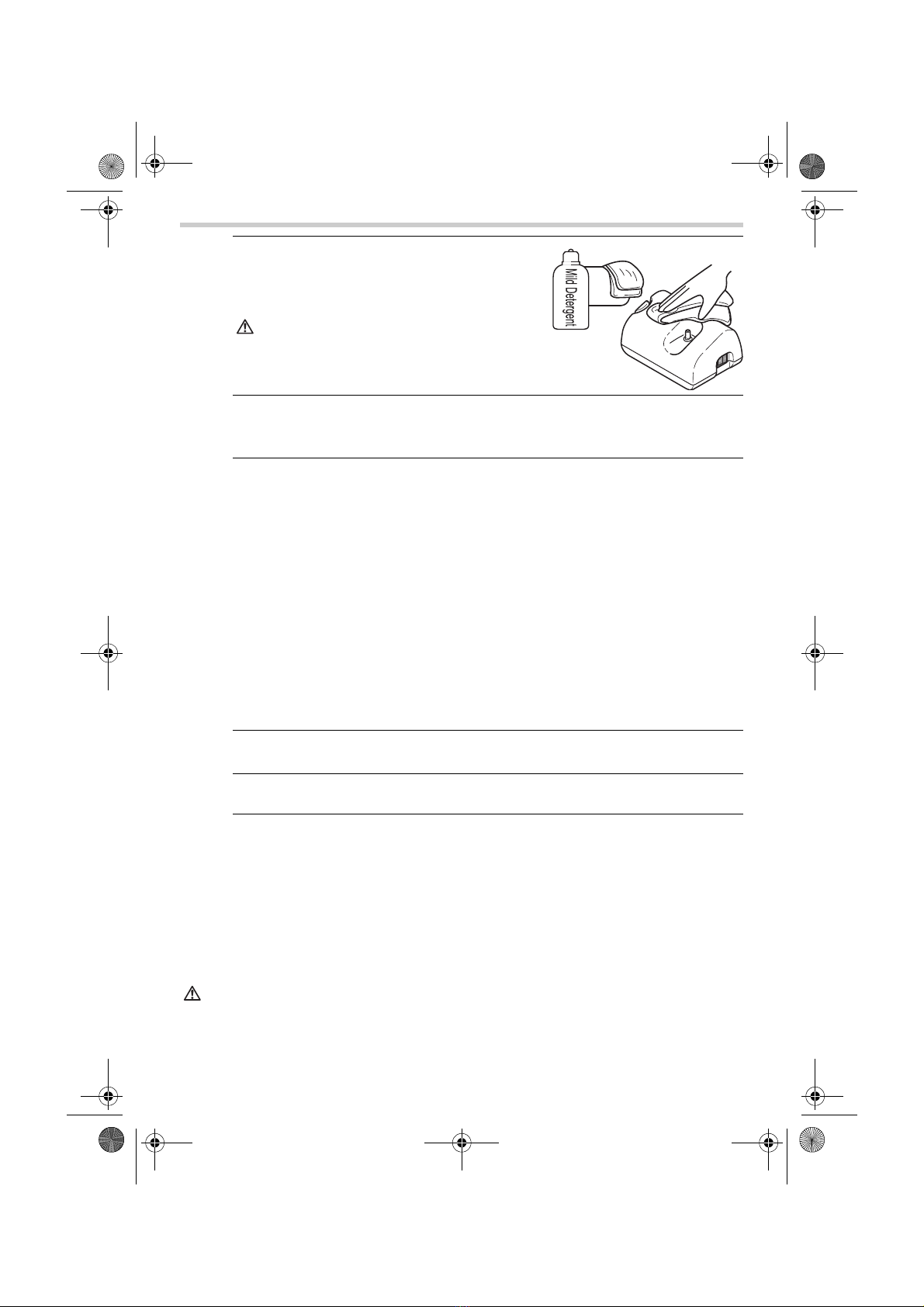

7. If the compressor is dirty, wipe it clean with a
soft cloth moistened with water or mild
detergent.
Caution:
The compressor is not waterproof.
8. If the outside of the air tube is dirty, wipe it clean with a soft cloth moistened
with water or mild detergent.
9. Reassemble the nebulizer kit. Put it in the storage bag.
Note: Nebulizer kit should be replaced after using for one year.
5.2 Disinfecting the nebulizing parts
Always clean before disinfection. (See Section 5.1 “Cleaning”)
Always disinfect the medication tank, mouthpiece and other nebulizing parts after
the last treatment of the day. To know the appropriate method for disinfecting each
parts, refer to page 20 -21.
To disinfect the parts, use one of the methods described below:
A. Use a commercially available disinfectant. Follow the instructions provided by
the disinfectant manufacturer.
1. Submerge the parts in the cleansing solution for the specified period.
2. Remove the parts and discard the solution.
3. Rinse the parts with clean hot tap water, shake off excess water and allow
to air dry in a clean environment.
B. Parts may be boiled between 15 to 20 minutes.
After boiling, carefully remove the parts, shake off excess water and allow to air dry
in a clean environment.
Note: Do not boil Air tube, Adult mask (PVC), Child mask (PVC), Air filter and Air
filter cover
Caution:
Do not use an autoclave, EOG gas disinfection or low temperature plasma
sterilizer to disinfect the device.
NE-C801S-ID_B_M.book Page 18 Friday, December 16, 2011 11:46 AM

19
5. Cleaning and daily disinfecting
Handling the Vaporiser Head
The vaporiser head is an important part that is used to vaporise medication.
Be sure to observe the following precautions when handling it.
Caution:
• Always wash the vaporiser head after each
use.
• Do not use a brush or pin etc., to clean the
parts.
• When disinfecting the parts by boiling, be
sure to boil them in plenty of water.
• Do not boil vaporiser head together with other
objects, other than applicable nebulizer
accessories.
• Do not use a microwave oven, dish dryer or
hair dryer to dry parts.
Baffle
Vaporiser Head
NE-C801S-ID_B_M.book Page 19 Friday, December 16, 2011 11:46 AM

20
5. Cleaning and daily disinfecting
Use the table below as a guideline to select a method for disinfecting.
Parts Model Materials
Mouthpiece C28-3P PP
Nosepiece (optional) C28-7 PP
Nebulizer Kit Set C801-NSET3
Cap: PP
Inhalation Top: PP
Vaporiser Head: PC
Medication Tank: PP
Air Filter C801-AFR-E Polyester
Air Filter Cover C801-FC ABS
Air Tube (PVC, 100cm) C801-ATBP PVC
Adult Mask (PVC) C28-8
Mask: PVC
Band: Rubber
(non-latex)
Child Mask (PVC) C28-9
Mask: PVC
Band: Rubber
(non-latex)
NE-C801S-ID_B_M.book Page 20 Friday, December 16, 2011 11:46 AM
