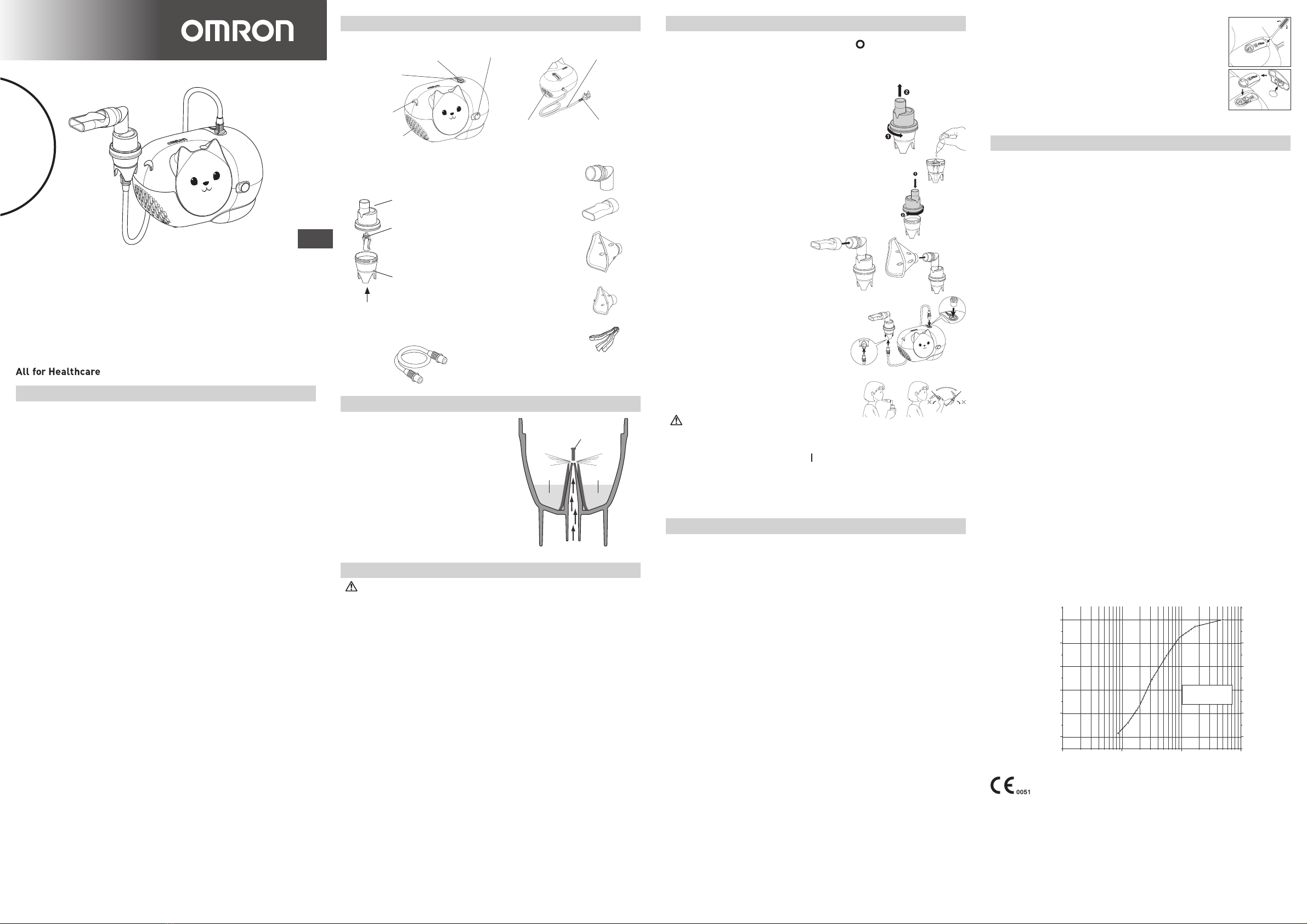

Omron Nami Cat User manual

Intended use
Medical Purpose:
This product is intended to be used for inhaling medication for respiratory disorders.
Intended User:
• Legally certified medical experts, such as doctor, nurse and therapist, or
healthcare personnel or patient under the guidance of qualified medical
experts.
• The user should also be capable of understanding the general operation
of Nami Cat nebulizer and the content of this instruction manual.
Intended Patients:
Persons who suffer from respiratory disorders and require inhalation of
medications.
Environment:
This product is intended for use in a medical facility, such as hospital, clinic
and doctor’s office, and in general household.
Durable period:
Durable periods are as follows, provided the product is used to nebulize
3 times a day for 10 minutes each time at room temperature (23°C).
Durable period may vary depending on usage environment.
Compressor (Main unit): 5 years
Air Tube - Nebulizer Kit - Mouthpiece -
Child Mask - Adult Mask - Adapter: 1 year
Air Filter: 70 applications
Frequent usage of the product may shorten the durable period.
Replacing the Air Filter:
If the air filter has changed colour, or has been used for
more than 70 applications, replace it with a new one. To
purchase the filters – see Other Optional/Replacement
Parts paragraph. Remove the air filter cover using a flat
screwdriver as shown in figure; remove the filter and fit
the new filter as shown.
Put the air filter cover back in place.
Note: Do not wash or clean the air filter. If the air filter becomes
wet, replace it. Damp air filters can cause blockages.
Technical data
Product Category: Aerosoltherapy Equipment
Product Description: Compressor Nebulizer
Model (code): Nami Cat (NE-C303K-KDUK/
NE-C303L-KDUK/NE-C303J-KDUK)
Rating: 230V ~50Hz
Power Consumption: 150VA
Operating Mode: Continuous Use
Operating Temperature/
Humidity/Air Pressure:
+5°C to +40°C / 15% to 85%RH /
700 to 1060 hPa
Storage and Transport
Temperature/Humidity/
Air Pressure:
-20°C to +60°C / 5% to 95%RH /
500 to 1060 hPa
Classifications: Type BF (Applied part): Mouthpiece and Masks
&ODVV,,3URWHFWLRQDJDLQႋHOHFWULFVKRFN
IP Classification: IP21 (Ingress Protection)
Weight of Compressor: Approx. 1.2 kg (compressor only)
Dimensions of Compressor: Approx. 180 (W) x 135 (H) x 148 (D) mm
Contents: Compressor, Nebulizer Kit, Air Tube (PVC,
100 cm), Mouthpiece, Adapter, Adult Mask
(PVC), Child Mask (PVC), Instruction Manual
Appropriate Medication
Quantities:
2 ml minimum - 12 ml maximum
Residual volume of
medication:
Approx. 0.7 ml
Sound: Noise level
(at 1 m distance)
Approx. 58 dB
Particle Size (MMAD): $SSUR[ȝP
Nebulization Rate
(by weight loss):
Approx. 0.35 ml/min (NaCl 0.9%)
Aerosol Output
(2 ml, 1% NaF):
Approx. 0.21 ml
Aerosol Output Rate
(2 ml, 1% NaF):
Approx. 0.06 ml/min
MMAD = Mass Median Aerodynamic Diameter
Cumulative % particle mass of sodium fluoride undersize
Results of Cascade impactor measurements for Particle size
Cumulative Undersize %
3DUWLFOHVL]H'SȝP
0.10 1.00 10.00 100.00
100.00
80.00
60.00
40.00
20.00
0.00
____ Mean
........ Individual
Compressor Nebulizer
Nami Cat (NE-C303K-KDUK)
Nami Cat (NE-C303L-KDUK)
Nami Cat (NE-C303J-KDUK)
Instruction Manual
Know your unit
How the nebulizer kit works
The medication that is pumped up through
the medication channel is mixed with
compressed air which is generated by a
compressor pump.
The compressed air mixed with medication
is turned into fine particles and sprayed
when in contact with the baffle.
Important safety instructions
Read the instructions carefully before use.
Warning:
1. Use the device only as inhalator for therapeutic purposes. Any other
use is improper and may be dangerous. The manufacturer is not liable
for improper uses.
2. Do not use in anaesthetic or ventilator breathing circuits.
3. Always disconnect the power plug after use.
4. Do not to cover the ventilation slots during use. The compressor could
get hot and there is a possible risk of a burn if touched.
5. The compressor and power plug are not waterproof. Do not spill water
or other liquids on these parts. If liquid does spill on these parts,
immediately unplug the power plug and wipe off the liquid.
6. Do not attempt to repair the device. See Troubleshooting section.
7. Keep the device out of reach of unsupervised infants and children. The
device may contain small pieces that can be swallowed.
8. Provide close supervision when this device is used by, on, or near
children or invalids.
9. For type, dose, and regime of medication follow the instructions of your
doctor or respiratory therapist.
10. This product should not be used on patients, who are unconscious or
are not breathing spontaneously.
11. After finishing the treatment remember to disconnect the air tube from
the nebulizer kit and from the compressor.
12. In view of their length, the power plug and air tube could constitute a
strangulation hazard.
13. Be sure to use the compressor at a place where the power plug is
easily accessible during treatment.
14. If you experience any allergic reactions or other difficulties during use,
stop using the device immediately and consult your doctor.
15. While using this device, make sure that no mobile phone or any other
electrical devices that emit electromagnetic fields is within 30 cm. This
may result in degradation of performance of the device.
16. Do not use oils, decoctions and tinctures from herbs for inhalation in
the compressor nebulizer.
Elastic bands
(2 pcs)
Instruction manual
Child Mask (PVC)
Adult Mask (PVC)
Mouthpiece
Adapter
Air Tube
(PVC, 100 cm)
Ventilation Slots Power Plug
Power Cord
Rear View
Air Tube Connector
Medication Tank
Vaporiser Head
Inhalation Top
Nebulizer Kit
Power Switch
Ventilation Slots
Nebulizer Kit
Holder
Air Tube
Connector
Air Filter Cover
Including air filter
Compressor (Main unit)
Baffle
Aerosol
Medication
Aerosol
Medication
Compressed Air
How to use
1. Make sure that the power switch is in the off ( ) position.
2. Plug the power plug into a power outlet.
Note: Do not place the device in a location where it is difficult to
disconnect the power cord.
3. Remove the inhalation top from the medication tank.
1) Rotate the inhalation top anti-clockwise.
2) Lift the inhalation top out of the medication tank.
4. Add the correct amount of prescribed medication
into the medication tank.
5. Verify the presence of the vaporiser head inside the
medication tank.
6. Put the inhalation top back onto the medication tank.
1) Lower the inhalation top on the medication tank.
2) Rotate the inhalation top clockwise.
7. Attach the adapter, and the Mask or
mouthpiece to the nebulizer kit tightly.
8. Attach the air tube. While twisting the air
tube plug slightly, push it firmly into the air
tube connector.
9. Hold the nebulizer kit as indicated on the right.
Follow the instructions of your doctor or
respiratory therapist.
Caution:
Do not tilt the nebulizer kit at an angle of greater than 30 degrees in all directions.
Medication may flow into the mouth or it may result in ineffective nebulization.
10. Turn the power switch to the on ( ) position. As the compressor starts,
nebulization begins and aerosol is generated. Gently inhale the
medication. Exhale through the nebulizer kit.
11. When treatment is completed, turn the power off and unplug the
compressor from the power outlet.
Cleaning and daily disinfecting
Wash hands thoroughly before cleaning and disinfecting the nebulizer parts.
Always disinfect the device parts before first use, and if the device has not
been used for a long time, and also after the last treatment session of a day.
After each use remove any remaining medication and clean the nebulizer
parts. This will prevent inefficient nebulization and reduce risk of infection.
Please refer to the instructions below
ƔCleaning the Nebulizer Kit, Masks, Mouthpiece and Adapter:
Fully disassemble the nebulizer kit. Wash the parts in warm water and mild, neutral
detergent. Rinse them thoroughly with clean hot tap water, gently tap to remove
excess water and allow to air dry in a clean place. It is advisable to replace the
Nebulizer Kit after some 100 to 120 treatments or after about 20 boiling cycles.
ƔCleaning the Compressor:
Firstly, make sure that the power plug is unplugged from the power outlet.
Wipe clean with a soft cloth moistened with water or mild, neutral detergent.
ƔRemoving condensation from the Air Tube:
If moisture remains in the air tube, follow the procedure described below. Make sure
that the air tube is connected to the compressor. Disconnect the air tube from the
nebulizer kit. Turn on the compressor and dry the air tube by passing air through it.
ƔDisinfecting the Nebulizer Kit, Masks, Mouthpiece and Adapter:
Always disinfect the parts before using the product for the first time and
after the product has not been used for an extended period of time as
well as after the last treatment of the day. If the parts are heavily stained,
replace them with new ones. The Nebulizer Kit, Masks, Mouthpiece and
Adapter can be disinfected by using a chemical disinfectant such as ethanol,
sodium hypochlorite (Milton), Quaternary ammonium (Osvan), Chlorhexidine
(Hibitane) and Amphoteric Surfactant (Tego), following product instructions
and rinsing off with clean warm water. Leave to air-dry.
Note: Never clean with benzene, thinner or a flammable chemical. The
(non-latex) elastic bands cannot be disinfected. Remove them when
disinfecting the masks.
ƔBoiling:
The Nebulizer Kit, Mouthpiece and Adapter can also be disinfected by boiling
between 15 to 20 minutes in plenty of water. After boiling, carefully remove
the parts, shake off excess water and allow to air-dry in a clean environment.
Note: Do not boil the Mask and the Air Tube.
Right angle
EN
IM-NE-C303K-KDUK-01-09/2020
3A4362 rev.00
Issue Date: 2020-10-05

Should guarantee service be required please apply to the dealer whom the
product was purchased from or an authorised OMRON distributor. For the
address refer to the product packaging / literature or to your specialised retailer.
Repair or replacement under the guarantee does not give rise to any
extension or renewal of the guarantee period.
The guarantee will be granted only if the complete product is returned
together with the original invoice / cash ticket issued to the consumer by the
retailer. OMRON reserves the right to refuse the guarantee service if any
unclear information has been given.
Optional Medical Accessories
Product Description Model
Nebulizer Kit NEB6024
Adult Mask (PVC) NEB6007
Child Mask (PVC) NEB6008
Mouthpiece NEB6019
Adapter NEB6015
Air Tube (PVC, 100 cm) NEB6004
Nasal shower* NEB6014
* Reduces nasal respiratory symptoms by cleaning a blocked nose.
Other Optional/Replacement Parts
Product Description Model
Air Filter Set (Contents: 3 pieces) 3AC408
Important information regarding Electro Magnetic Compatibility (EMC)
This device manufactured by 3A HEALTH CARE S.r.l. conforms to
EN60601-1-2:2015 Electro Magnetic Compatibility (EMC) standard.
Further documentation in accordance with this EMC standard is available
at OMRON HEALTHCARE EUROPE at the address mentioned in this
instruction manual or at www.omron-healthcare.com.
DISPOSAL PROCEDURE (Dir. 2012/19/EU-WEEE)
This product is not to be treated as regular household waste but must
be returned to a collection point for recycling electric and electronic
devices. Further information is available from your municipality, your
municipality’s waste disposal services, or the retailer where you
purchased your product.
Manufacturer 3A HEALTH CARE S.r.l.
Via Marziale Cerutti, 90F/G
25017 Lonato del Garda (BS)
Italy
Distributor OMRON HEALTHCARE EUROPE B.V.
Scorpius 33, 2132 LR Hoofddorp,
THE NETHERLANDS
www.omron-healthcare.com
Subsidiary Importer in
the United
Kingdom
and UK
responsible
person
OMRON HEALTHCARE UK LTD.
Opal Drive, Fox Milne, Milton Keynes,
MK15 0DG, UK
www.omron-healthcare.com
Made in Italy
Symbols description
Need for the user to
consult the instructions
for use
Humidity limitation
Applied part – Type BF
Degree of protection
against electric shock
(leakage current)
Atmospheric pressure
limitation
Class ll
Protection against
electric shock
Power ON
IP XX
Ingress protection
degree provided by
IEC 60529
Power OFF
CE Marking Alternating current
LOT number Medical Device
Serial number Date of Manufacture
Temperature limitation
Product production date is integrated in the Serial number, which placed
on the product and/or sales package: the first 4 digits mean year of
production, the next 2 digits mean month of production.
General Notes:
• IP classification is degrees of protection provided by enclosures in
accordance with IEC 60529. The compressor is protected against solid
foreign objects of 12 mm diameter and greater such as a finger, and
against vertically falling water drops which may cause issues during a
normal operation.
• Subject to technical modification without prior notice.
• The device may not work if the temperature and voltage conditions are
different to those defined in the specifications.
• Performance may vary with drugs such as suspensions or high viscosity.
See drug supplier’s data sheet for further details.
Troubleshooting
In case of any of the below problems occur during use, first check that no
other electrical device is within 30 cm. If the problem persists, please refer to
the table below.
The device does not switch on
• Check that the power plug is properly fitted to the power outlet.
• Make sure the power switch is in the on position ( ).
The device switches on but does not nebulize
• Make sure the vaporizer head is fitted in the nebulizer kit.
• Make sure the air tube is not squashed or crooked.
• Check the air filter for blockage and dirt. Replace if necessary.
• Check that sufficient amount of medication has been put into the nebulizer kit.
The device suddenly stops working during operation.
• The thermal cut-out has shut the device down for one of the following reasons:
- the device was working in an environment with temperatures higher
than 40°C;
- the ventilation slots were covered.
Do not attempt to repair the device. Do not open and/or tamper with the
device. No parts of the device are user serviceable. Return the device to an
authorized OMRON retail outlet or distributor.
Please report to the manufacturer and the competent authority of the Member
State in which you are established about any serious incident that has
occurred in relation to this device.
Warranty
Thank you for buying an OMRON product. This product is constructed of
high quality materials and great care has been taken in its manufacturing.
It is designed to give you the highest level of comfort, provided it is properly
operated and maintained as described in the instruction manual. This product
is guaranteed by OMRON for a period of 3 years after the date of purchase.
The proper construction, workmanship and materials of this product is
guaranteed by OMRON. During this period of guarantee OMRON will,
without charge for labour or parts, repair or replace the defect product or any
defective parts. The guarantee does not cover any of the following:
a. Transport costs and risks of transport.
b. Costs for repairs and/or defects resulting from repairs done by
unauthorized persons.
c. Periodic check-ups and maintenance.
d. Failure or wear of optional parts or other attachments other than the main
device itself, unless explicitly guaranteed above.
e. Costs arising due to non-acceptance of a claim (those will be charged for).
f. Damages of any kind including personal caused accidentally or
from misuse.
