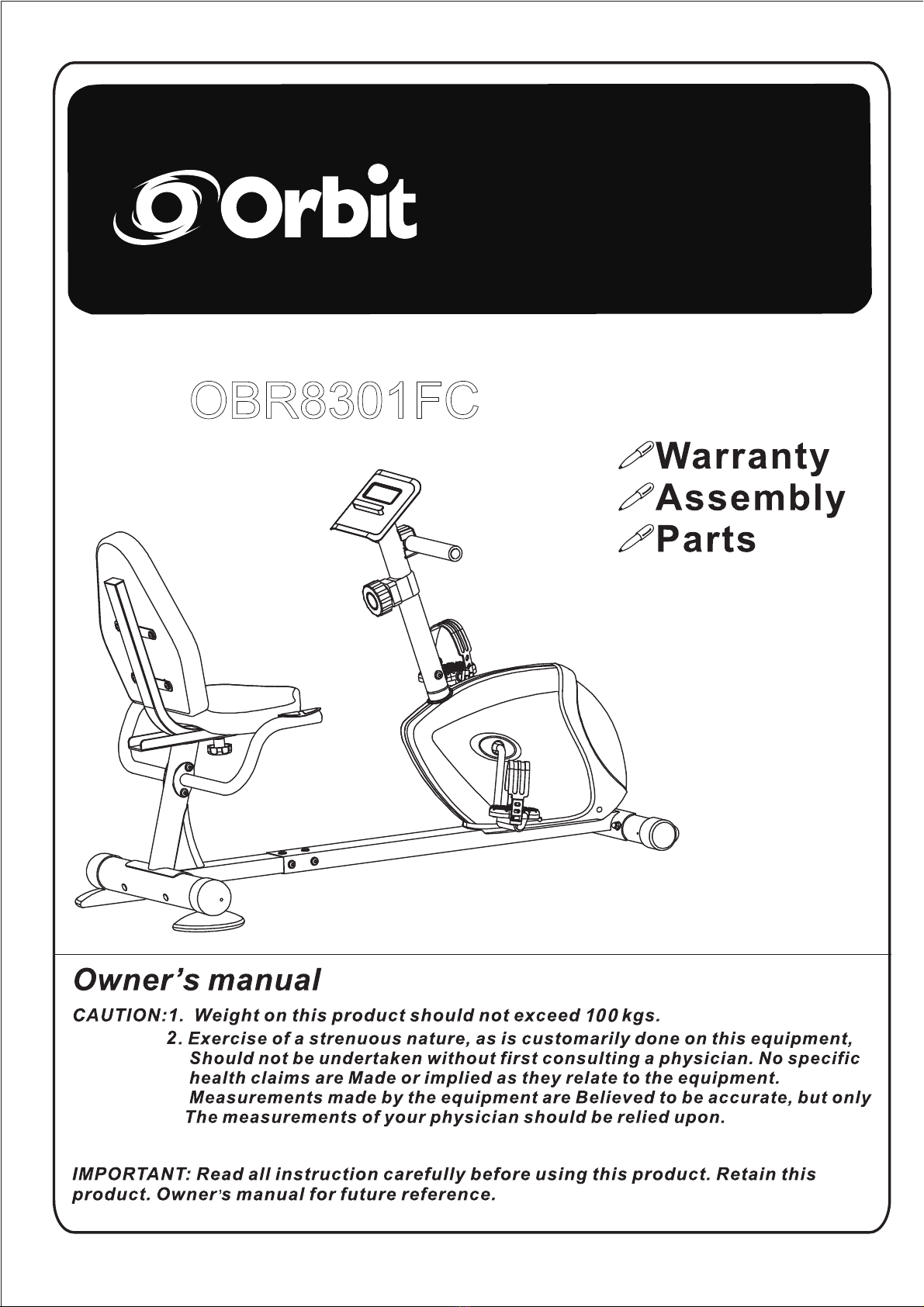

Orbit OBR8301FC User manual

OBR8301FC
OBR8301FC
OBR8301FC

Before You Start
Thank you for purchasing this Product! For your safety and benefit, read this manual carefully before
using the machine.
Prior to assembly, remove components from the box and verify that all the listed parts were supplied.
Assembly instructions are described in the following steps and illustrations.
IMPORTANT SAFETY NOTICE
PRECAUTIONS
BE SURE TO READ THE ENTIRE MANUAL BEFORE YOU ASSEMBLE OR OPERATE
YOUR MACHINE. IN PARTICULAR, NOTE THE FOLLOWING SAFETY PRECAUTIONS:
01- Check all the screws, nuts and other connections before using the machine for the first time and
ensure that the trainer is in the safe condition.
02- Set up the machine in a dry level place and leave it away from moisture and water.
03- Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine in the area of
assembly to avoid dirt and etc..
04- Before beginning training, remove all objects within a radius of 2 meters from the machine.
05- DO NOT use aggressive cleaning articles to clean the machine, Only use the supplied tools or
suitable tools of your own to assemble the machine or repair any parts of machine. Remove drops
of sweat from the machine immediately after finishing training.
06- Your health can be affected by incorrect or excessive training. Consult a doctor before beginning a
training program. He can define the maximum setting (Pulse. Watts. Duration of training etc) to
which you may train yourself and can get precise information during training. This machine is not
suitable for therapeutic purpose.
07- Only do training on the machine when it is in correct working way. Use only original spare parts for
any necessary repairs.
08- This machine can be used for only one person’s training at a time.
09- Wear training clothes and shoes which are suitable for fitness training with the machine. Your
training shoes should be appropriate for the trainer.
10- If you have a feeling of dizziness, sickness or other abnormal symptoms, please stop training and
consult a doctor asap.
11- People such as children and handicapped persons should only use the machine in the presence of
another person who can give aid and advice.
12- The power of the machine increases with increasing the speed, and the reverse.
13- To reduce the risk of electrical shock, burns, fire or other possible injuries to the user, it is important
to review this manual and the precautions before operation.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35
OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT.
SAVE THESE INSTRUCTIONS / Maximum user’s weight: 100KGS

EXPLODED DRAWING

PARTS LIST
No.
Description
Q’ty
No.
Description
Q’ty
1
Front main frame
1
25
Backrest
1
2
Front stabilizer
1
26
Cross tapping screw
ST4X20
11
3
Rear stabilizer
1
27 L/ R
Pedal
1pr.
4
Carriage bolt M8X90
2
28
Sensor wire
1
5
Arc washer
d8.2Xd20X2XR30
12
29
Spring washer d8
2
6
Acorn nut M8
4
30
Extension wire
2
7
Front end cap
2
31
Extension wire
1
8
Rear end cap
2
32
Handlebar post
1
9
Rear main frame
1
33
Carriage bolt M8X73
2
10
Extension wire
2
34
Crank
1
11
Foam grip
2
35
Meter
1
12
Allen bolt M8X80
2
36
Handlebar chuck cover
1
13
Nylon nut M8
2
37
Hex bolt M8X30
2
14
Pulse sensor wire
2
38
Cross tapping screw
ST4.2X18
2
15 L/ R
Armrest
1pr
39
Handlebar
1
16
Knob nut
1
40
Foam grip
2
17
Flat washer d10
1
41
Cross screw M5X10
4
18
U shape support
1
42
End caps
2
19
End cap
2
43
Tension controller
1
20
Allen bolt M8X15
18
44
Cross screw M5X50
1
21
Flat washer d8
14
45
Flat washer D5
1
22
Square end cap
2
46
Tension cover
1
23
Seat frame
1
47
Tension cable
1
24
Seat
1
48
Extension wire
2
NOTE:
Most of the listed assembly hardware has been packaged separately, but some hardware items have
been preinstalled in the identified assembly parts. In these instances, simply remove and reinstall the
hardware as assembly is required.
Please reference the individual assembly steps and make note of all preinstalled hardware.

ASSEMBLY INSTRUCTION
Step 1:
A: Fix the front stabilizer (2)
onto the front main frame (1)
with the carriage bolt (33), ar
c
washer (5) and acorn nut (6).
B: Fix rear stabilizer (3) in the
rear main frame (9) with the
carriage bolt (4), arc washer
(5) and acorn nut (6).
C: Connect the extension wire (10) (48) well and then fix the front main frame (1) to the rear main
frame (9) with allen bolt (20) and flat washer (21).
Step 2:
Connect the pulse sensor wire
(14) with extension wire (48) and
then fix the armrest (15L/R) onto
the rear main frame (9) using
allen bolt (12), arc washer (5)
and nylon nut (13) as shown.
Step 3:
A: Fix the seat frame (23) onto the rear main frame (9) with knob
nut (16) and flat washer (17).
B: Fix the seat (24) onto the seat frame (23) with allen bolt (20)
and flat washer (21) as shown.
C: Fix the backrest (25) onto the seat frame (23) with allen bolt
(20) and flat washer (21) as shown.

Step 4:
Attach the pedal (27L/R) to the crank (34) of the front mai
n
frame (1).
NOTE: Be sure the pedal marked (R) is attached to the crank
(R) and tighten in clockwise direction, and the pedal marked
(L) is attach to the crank (L) and tightened in the
counterclockwise direction.
Step 5:
A: Connect the extension wire (10) with extension wire (30)
and connect extension wire (31) with the sensor wire (28),
finally connect the tension cable (47) with the tension
controller (43) well as shown in picture A.
B: Attach the tension controller (43) to the handlebar post (32)
using cross screw (44) and flat washer (45) and tension cover
(46) as shown.
C: Fix the handlebar post (32) on the post of front main frame
(1) with allen bolt (20) and arc washer (5).
Step 6:
A: Fix the handlebar (39) to the handlebar post (32) with hex bolt
(37) and spring washer (29) and then cover the handlebar chuck
cover (36)
B: Connect the extension wire (30) and sensor wire (31) with the
wires coming from the meter (35), and then fix the meter (35) on
meter bracket of the handlebar post (32) with the cross screw
(41).

WARM-UP and COOL-DOWN
A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the
entire program at least two and preferably three times a week, resting for a day between
workouts. After several months, you can increase your workouts to four or five times per week.
WARM-UP
The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm
up for two to five minutes before strength-training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
STRETCHING
Stretching while your muscles are warm after a proper warm-up and again after your strength
or aerobic training session is very important. Muscles stretch more easily at these times because
of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. DO NOT BOUNCE.
Remember always to check with your physician before starting any exercise program.
COOL-DOWN
The purpose of cooling down is to return the body to its normal or near normal, resting state at the
end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood
to return to the heart.
Calf-Achilles Stretch
Inner Thigh Stretch
Toe Touch
Side Stretch
Hamstring Stretch

OPERATION GUIDE
SPECIFICATIONS:
TIME ………………………………………………….…. 00:00-99:59
SPEED(SPD) ..………………………………………..... 0.0-99.9KM/H (ML/H)
DISTANCE …………………………………………….... 0.00-9999KM (ML)
CALORIES …………………………………………….... 0.0-9999KCAL
ODOMETER(ODO) …………………………..…….….. 0.0-9999KM (ML)
PULSE(PUL) ……................................................ ...... 0-240BPM
KEY FUNCTIONS:
1. MODE: This key is to select and lock on to a particular function you want.
2. SET: This key is to proceed the data for “TIME” “DISTANCE” “CALORIES” “PULSE”.
3. CLEAR(RESET): The key is to reset the data to zero by pressing the key.
4. ON/OFF(START/STOP): The key is to pause the signal input by pressing the key.
OPERATION PROCEDURES:
1. AUTO ON/OFF
The systemturns on when any key is pressed or when it sense an input from the speed sensor.
The systemturns off automatically when the speed has no signal input or no key are pressed for
approximately 4 minutes.
2. RESET
The unit can be reset by either changing battery or pressing the MODE key for 3 seconds.
3. MODE
To choose the SCAN or LOCK if you do not want the scan mode, press the MODE key when the
pointer on the function you want which begins blinking.
FUNCTIONS:
1. TIME: Press the MODE key until pointer lock on to TIME. The total working timewill be shown
when starting exercise.
2. SPEED:Press the MODE key until the pointer advance to SPEED. The current speed will be
shown.
3. DISTANCE:Press the MODE key until the pointer advance to DISTANCE. The distance of
each workout will be displayed.

displayed when starting exercise.
5. ODOMETER: Press the MODE key until the pointer advance to ODOMETER. The total
accumulated distance will be shown.
6. PULSE: Press the MODE key until the pointer advance to PULSE .User’s current heart rate
will be displayed in beats per minute. Place the palms of your hands on both of the contact
pads(or put ear-clip to ear),and wait for 30 seconds for the most accurate reading.
SCAN: The display changes automatically every 4 seconds.
BATTERY: If monitor display improperly, please re-install the batteries to have a good result.
4. CALORIE: Press the MODE key until pointer lock on to CALORIE. The calorie burned will be
