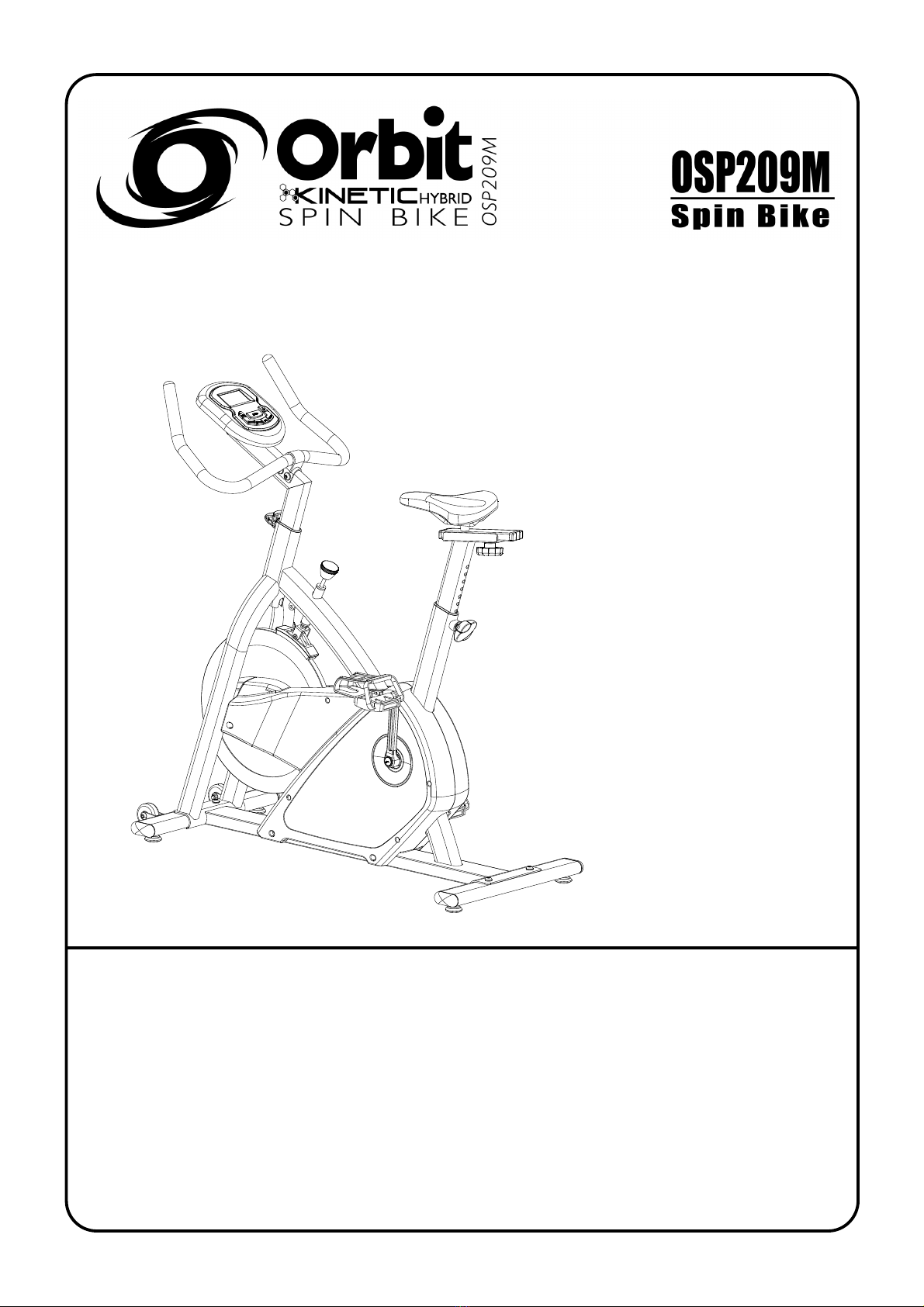

Orbit OSP209M Kinetic Hybrid Spin Bike User manual

Owner's manual OSP209
CAUTION: 1. Weight on this product should not exceed 150kg
2 Exercise of a strenuous nature, as is customarily done on this equipment,
Should not be undertaken without first consulting a physician.
No specific health claims are made or implied as they relate to the equipment.
Measurements made by the equipment are believed to be accurate, but only the
measurements of your physician should be relied upon.
IMPORTANT: Read all instruction carefully before using this product. Retain this product owner's
manual for future reference.
•Warranty
•Assembly
•Parts
OSP209

2

3
大 爆 图

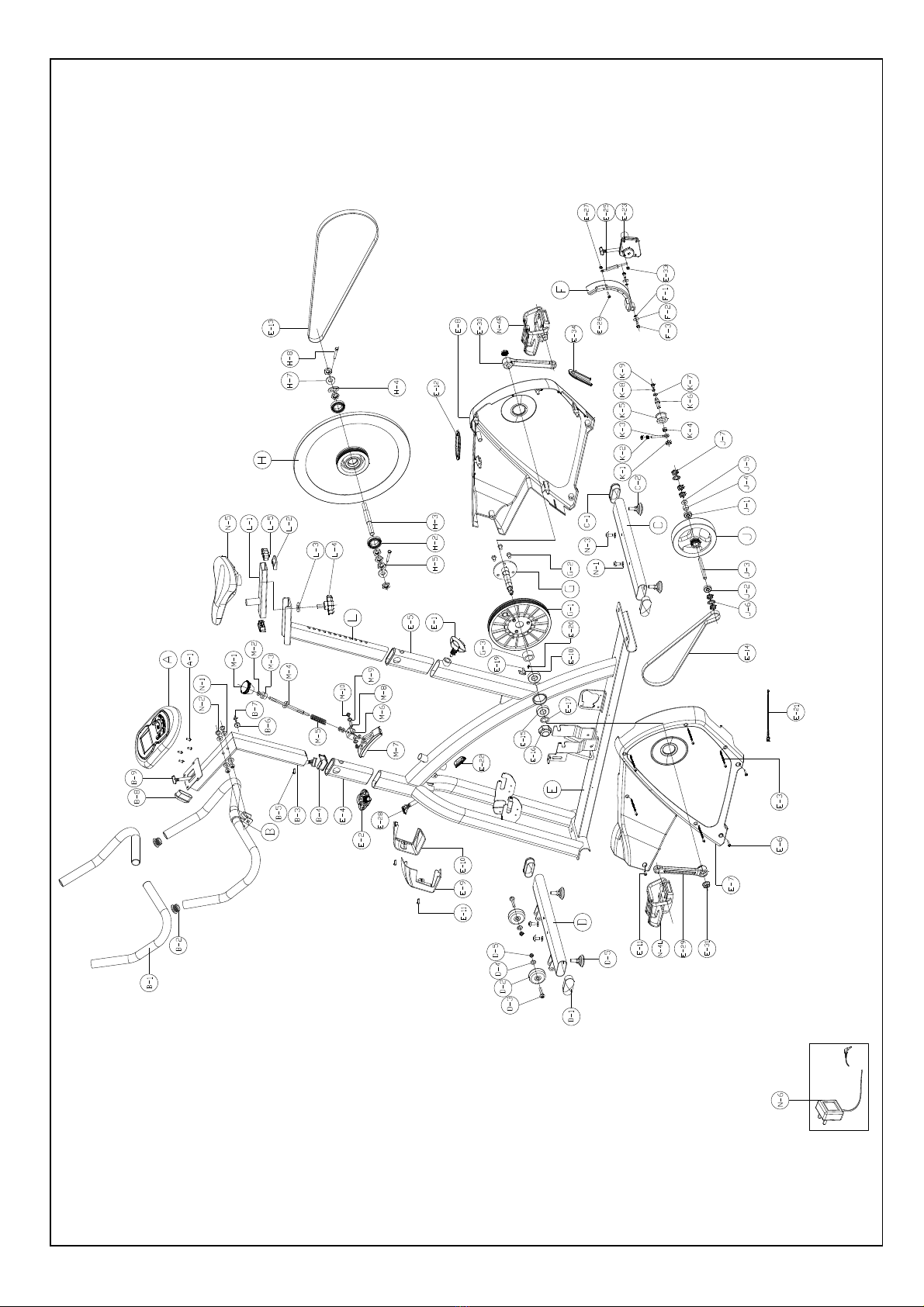

EXPLORATION DRAWING

4

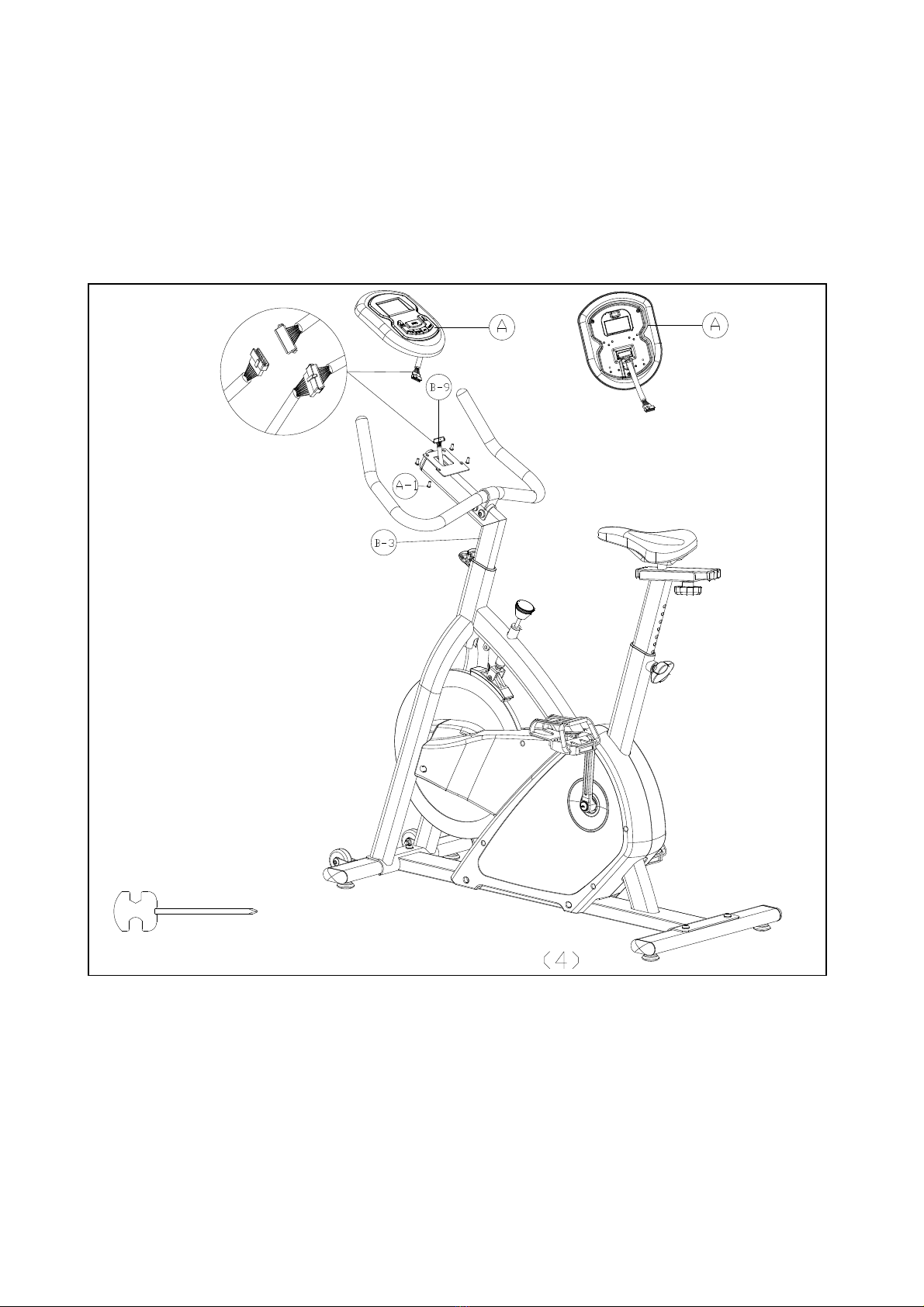

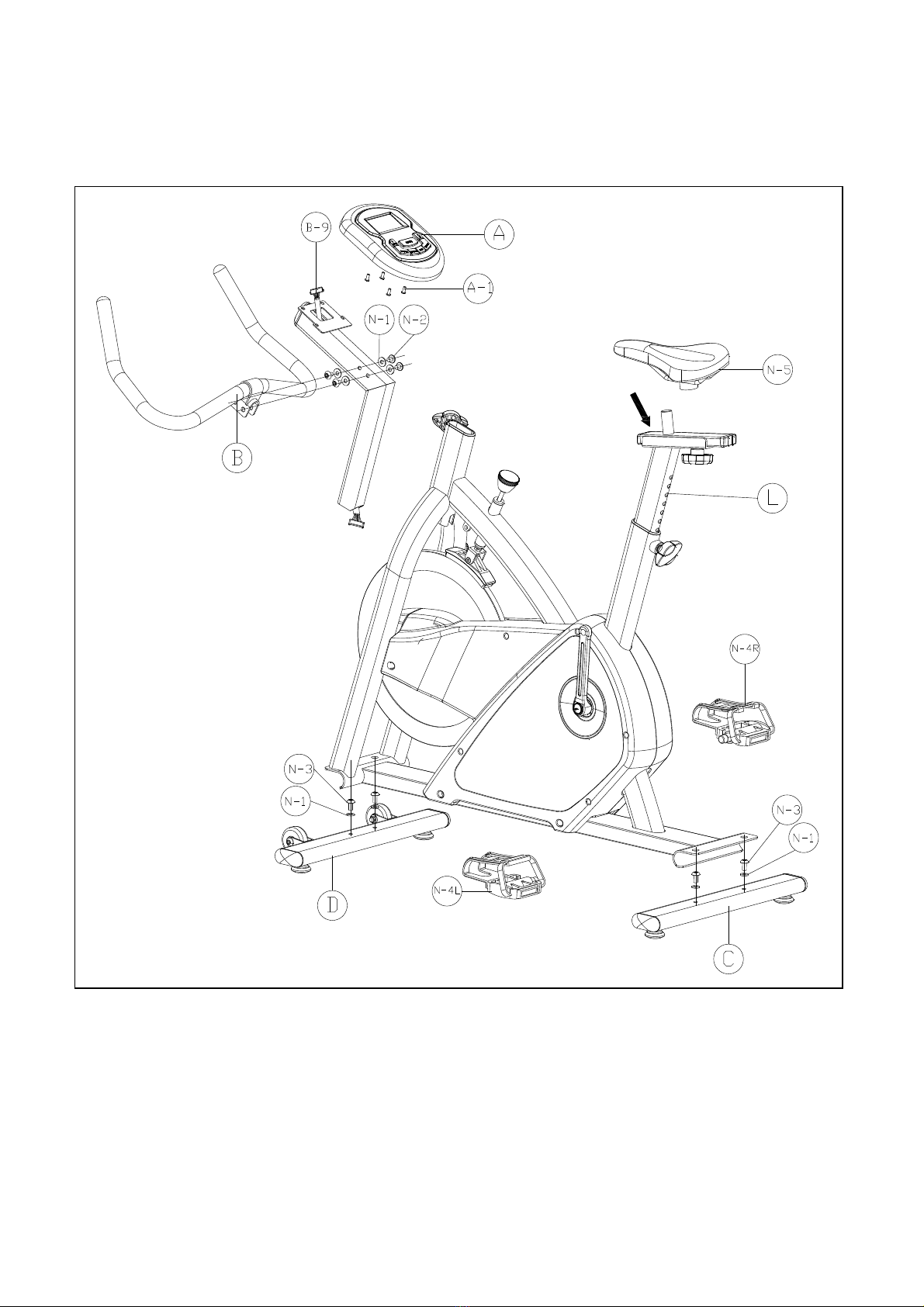

COMPLETE BIKE ASSEMBLY

5
PARTS LIST
PART NO.
DESCRIPTION
QTY
A, A-1
Computer and Screw
1PC
B
Handlebar
1PC
B-1
Foam grip for handlebar
2PCS
B-2
Cap for handlebar
2PCS
B-3
Handlebar post
1PC
B-4
End cap of handlebar post
1PC
B-5
Screw M3*14
1PC
B-6
Stopper for handlebar
1PC
B-7
Screw M3*14
1PC
B-8
Upper cap for handlebar post
1PC
B-9
Upper cable for computer
1PC
C
Rear stabilizer
1PC
C-1
End cap for rear stabilizer
2PCS
C-2
Adjustor pad for rear stabilizer
2PCS
D
Front stabilizer
1PC
D-1
End cap for front stabilizer
2PCS
D-2
Transportation wheel for front stabilizer
2PCS
D-3
Screw M8xP1.25x40L
2PCS
D-4
Flat washer φ8xφ16x1t
2PCS
D-5
Nylon nut M8
2PCS
D-6
Adjustor pad for front stabilizer
2PCS
E
Main frame
1SET
E-1
Adjusting knob for seat post
1PC
E-2
Adjusting knob for handlebar post
1PC
E-3
Screw M4x50L
5PCS
E-4
Sleeve for handlebar post holder
1PC
E-5
Sleeve for seat post holder
1PC
E-6
Screw M5x16L
4PCS
E-7
Left chain cover
1PC
E-8
Right chain cover
1PC
E-9
Front cover - Left
1PC
E-10
Front cover - Right
1PC
E-11
Screw M5x14L
4PCS
E-12
Bushing for chain cover
1PC
E-13
Belts 1320m/m
1PC
E-14
Belts 813m/m
1PC
E-15
Bearing 6004RS
2PCS
E-16
Nut M20*P1.0
1PC
E-17
Flat washerφ20.3xφ30x1t
1PC

6
E-18
Sensor holder
1PC
E-19
Sensor box
1PC
E-20
Screw M4x10L for sensor holder
1PC
E-21
DC cable
1PC
E-22
Cap for hand post holder
1PC
E-23,E-28
Gear box set
1SET
E-25
Support bar for gear box
1PC
E-26
Screw M4x12L
1PC
E-27
Hex screw M4
1PC
E-29
Left crank
1PC
E-30
Right crank
1PC
E-31
Nut M10xP1.25x10T
2PCS
E-33
Hex nut M3
1PC
E-34
Bushing for chain cover
1PC
F~F-3
Magnetic set
1SET
G
Shaft
1PC
G-1
Big pulley
1PC
G-2
Hex screw M6xP1.0*16L
3PCS
G-3
Bushingφ20*φ28*9.5L
1PC
H~H-8
Big flywheel set
1SET
J~J-7
Small flywheel set
1SET
K~K-9
Idler wheel set
1SET
L
Seat post
1PC
L-1~L-5
Slider set for seat post
1SET
M-1
Brake knob for Brake
1PC
M-2
Hex screw M8 for Brake
1PC
M-3
Plastic bushingφ10xφ22.2x15t
1PC
M-4
Brake bar for Brake
1PC
M-5
Pressing spring for Brake
1PC
M-6
U holder for Brake
1PC
M-7
Brake piece for Brake
1PC
M-8
Bushing φ9x18L for Brake
1PC
M-9
Flat washerφ10xφ14x1t for Brake
2PCS
M-10
Screw M5x8 for Brake
2PCS
N-1~N-3
Bolts & nuts pack
1SET
N-4
Pedal
1SET
N-5
Seat
1PC
N-6
Adaptor
1PC

7

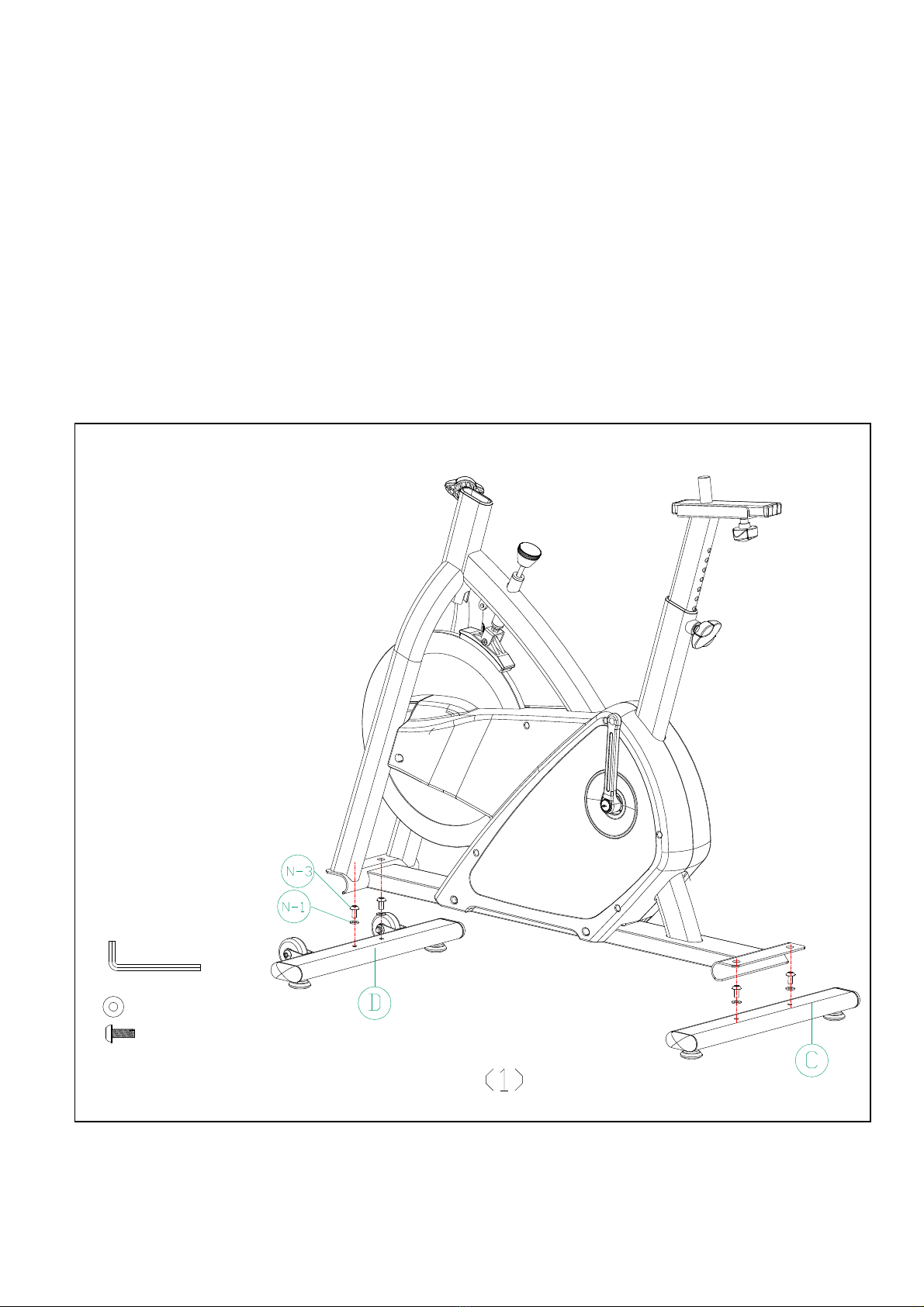

STEP 1
1. Attach the front stabilizer (D) to the main frame (E) using two flat washer (N-1) and allen
bolt (N-3).
2. Attach the rear stabilizer (C) to the main frame (E) using two flat washer (N-1) and allen
bolt (N-3)
After assembly, the Trainer can be adjusted to slightly uneven ground by adjusting the
height of the foot caps at the front and back. The pre-assembled transportation wheels in
the front allow easy moving of the Elliptical and therefore during assembly, need to be
pointing down at the front (45°).

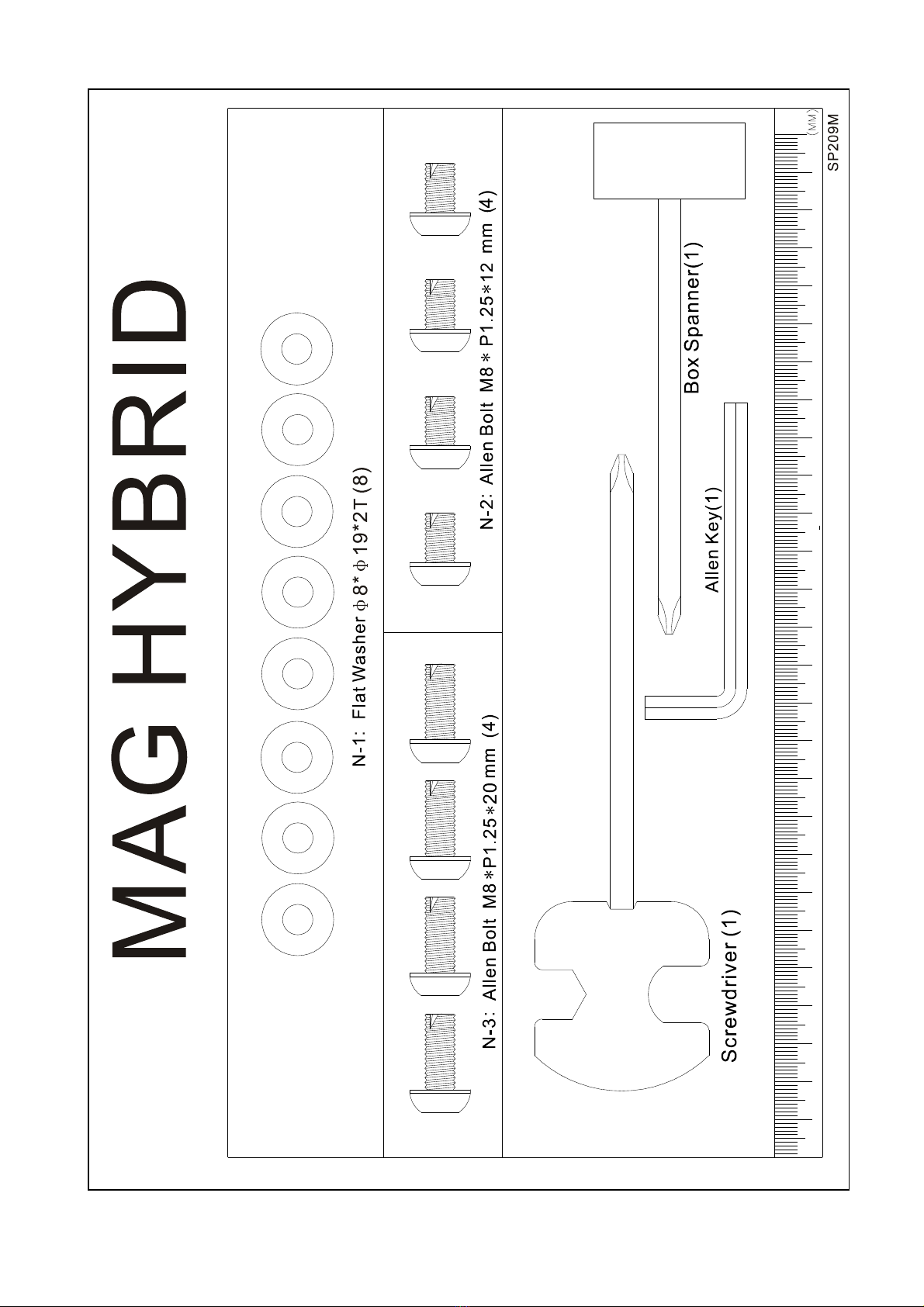

Allen Key(1)
N-3 Allen Bolt M8 *P1.25*20mm (4)
N-1 Flat Washer ?8*?1 9*2t (4)

8

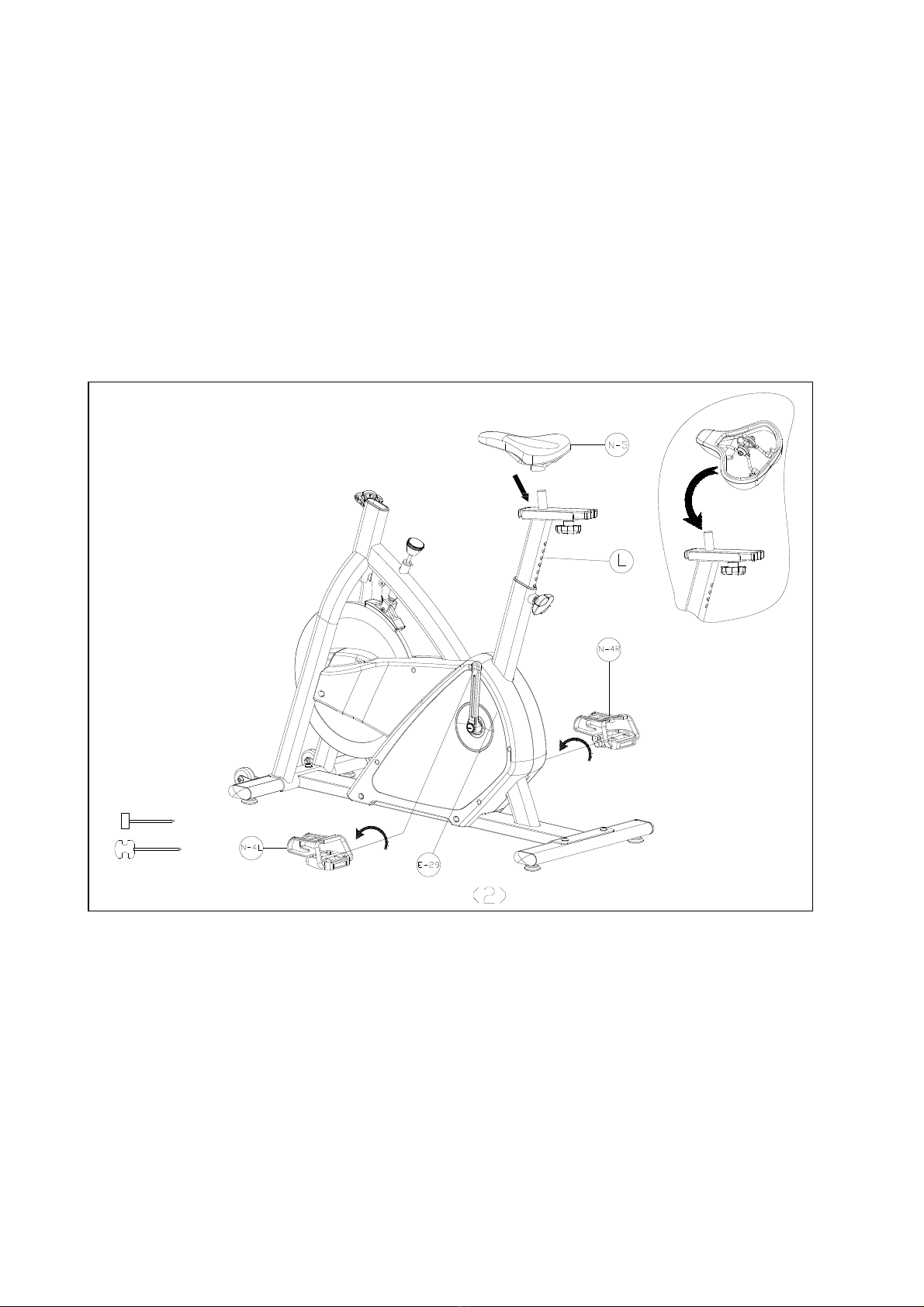

STEP 2
1. Assemble the left pedal (N-4L) to the left crank (E-29) and the right pedal (N-4R) to right
crank (E-30).
2. Assemble the seat (N-5) to the seat post (L).
3. Then choose the desired position and tighten the knob (E-1). Be sure the knob is always
tightened.
Remarks: When you have chosen a desired position, tighten the Seat Post Knob until you
hear a “click”.
Box Spanner(1)
Screwdriver (1)

9

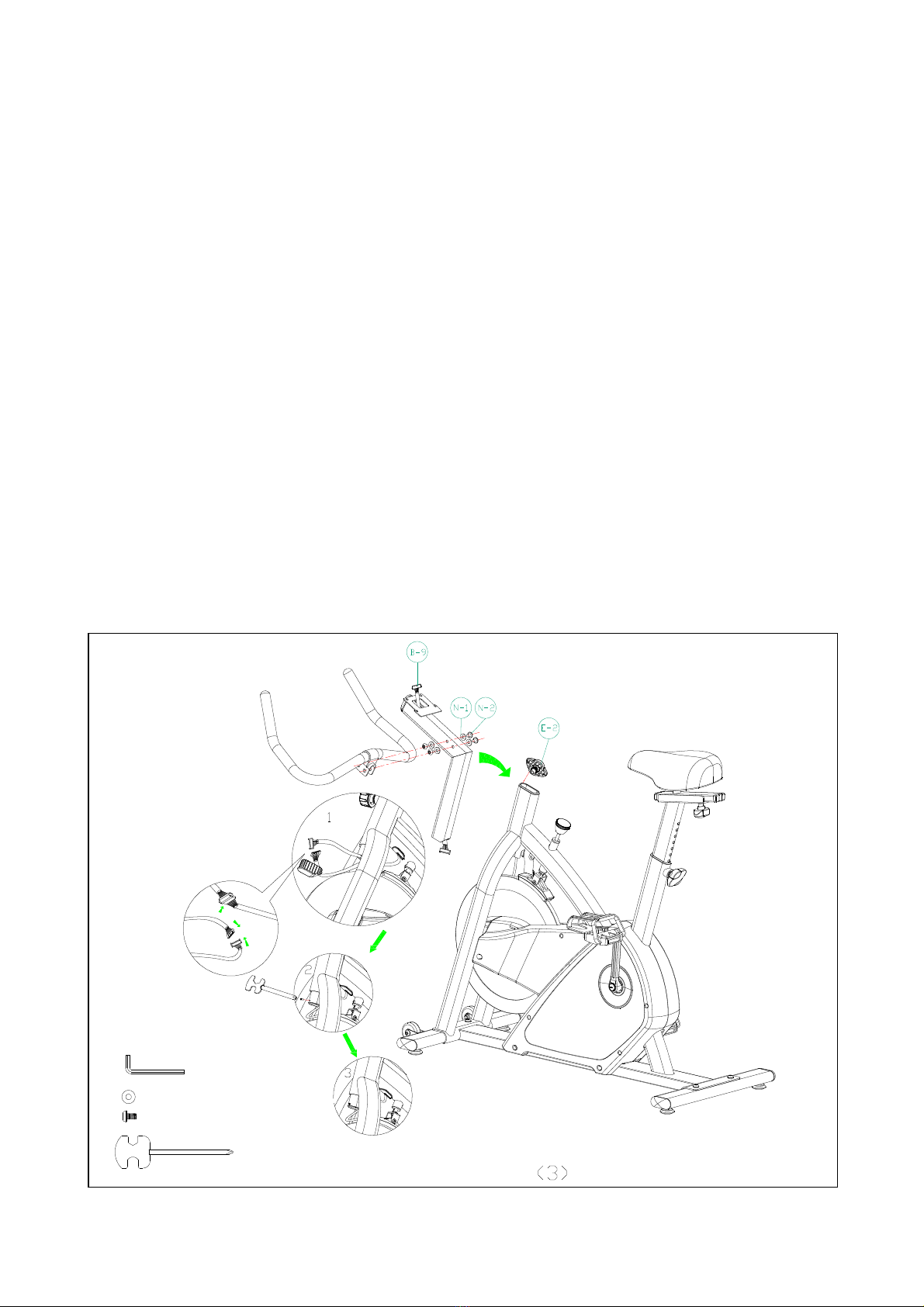

STEP 3
3.1 : Please remove the adjusting knob (E-2) from the main frame (E).
3.2 : Release the screw from the lower sleeve and take off the sleeve from the handlebar
post but do not take the sleeve off the lower cable.
3.3 : Insert the handlebar post (B-3) into the main frame (E), then choose the desired
position and tighten the adjusting knob (E-2). Be sure the knob is always tightened.
3.4 : Attach the handlebar (B) to the handlebar post (B-3) using the four flat washers (N-1)
and four allen bolt (N-2) in each side.
3.5 : Connect the lower cable (E-28) and the upper cable (B-9) in the handlebar post.
3.6 : Double check the cables are connected correctly.
3.7 : Put the sleeve into the handlebar post.
3.8 : Set up the screw for the sleeve
Remarks: When you have chosen a desired position, tighten the handlebar post knob until
you hear a “click”.
Screwdriver (N)
Allen Key(1)
N-2 Allen Bolt M8*P1.25*12mm (4)
N-1 Flat Washer ?8*?19*2t (4)
