Oregon Scientific BAR609HGA User manual

Deluxe Weather Forecaster with
Wireless UV Sensor
Model: BAR609HGA
USER MANUAL
© 2005 Oregon Scientific. All rights reserved.
086-003767-011
All manuals and user guides at all-guides.com
all-guides.com

EN
1
Deluxe Weather Forecaster with
Wireless UV Sensor
BAR609HGA
USER MA UAL
CO TE TS
Introduction ................................................................ 2
Product Overview ...................................................... 3
Front View ................................................................ 3
Back View ................................................................. 4
Thermo-Hygro Sensor (TH R122NX) ..................... 5
Front View (UVN128) ............................................... 6
Back View (UVN128) ................................................ 6
Getting Started ........................................................... 7
Batteries ................................................................... 7
Access Front Button Panel ....................................... 7
Change Settings ....................................................... 7
Table Stand or Wall Mount ........................................ 7
Thermo-Hygro Sensor (THGR122 X) ...................... 7
Setup Sensor ............................................................ 8
Data Transmission .................................................... 9
Search for Sensor ..................................................... 9
Clock ........................................................................... 9
Turn Atomic Clock ON / OFF .................................. 10
Set Clock ................................................................ 10
Switch Clock Display .............................................. 10
Alarm ........................................................................ 10
View Alarm Settings ................................................ 11
Set Alarm ................................................................ 11
Activate Alarm ......................................................... 11
Silence Alarm .......................................................... 11
Barometer ................................................................. 11
Barometric Trend .................................................... 11
Set Unit and Altitude ............................................... 11
Weather Forecast .................................................... 12
Temperature and Humidity ..................................... 12
Select Temperature Unit ......................................... 12
Select Channel Number ......................................... 12
Minimum / Maximum Records ................................ 13
Ice Warning ............................................................. 13
Heat Index ................................................................ 13
UV Sensor (UV 128) ............................................... 14
Setup Sensor .......................................................... 14
UV Index Readings ................................................. 15
Moon Phase ............................................................. 15
Backlight .................................................................. 15
Reset System ........................................................... 15
Safety and Care ....................................................... 16
BAR609HGAmanual-ENG 05/1/18, 7:11 PM1
All manuals and user guides at all-guides.com

EN
2
I TRODUCTIO
Thank you for selecting the Oregon ScientificTM Deluxe
Weather Forecaster with Wireless UV Sensor
(BAR609H A). This device bundles precise time
keeping, UV measurement, weather forecast, barometric
trend with altitude adjustment, and indoor and outdoor
temperature and humidity monitoring features into a
single tool you can use from the convenience of your
home.
In this box, you will find:
• Main unit
• Thermo-Hygro sensor (TH R122NX)
• UV sensor (UVN128)
Keep this manual handy as you use your new product.
It contains practical step-by-step instructions, as well
as technical specifications and warnings you should
know.
Warnings .................................................................. 16
Troubleshooting ...................................................... 17
Specifications .......................................................... 17
Main Unit Dimensions ............................................. 17
Thermo-Hygro Sensor Dimensions ........................ 17
UV Sensor Dimensions .......................................... 17
Temperature ........................................................... 17
Relative Humidity .................................................... 18
Barometer ............................................................... 18
Thermo-Hygro Sensor (TH R122NX) ................... 18
Clock ....................................................................... 18
Power ..................................................................... 18
UV Sensor (UVN128) ............................................. 18
About Oregon Scientific ......................................... 19
FCC Statement ......................................................... 19
Declaration of Conformity ....................................... 20
BAR609HGAmanual-ENG 05/1/18, 7:11 PM2
All manuals and user guides at all-guides.com

EN
3
PRODUCT OVERVIEW
FRO T VIEW
1. S OOZE / LIGHT button
2. Weather Forecast & Barometric Area
3. Indoor / Outdoor Temperature & Humidity Area
4. UV Index (UVI) Area
5. Moon Phase
6 Clock / Alarm Area
7. and : increase or decrease setting / activate
or deactivate Atomic Clock
8. RESET hole
9. CHA EL: switch remote sensor
10.HEAT I DEX: switch between heat index, indoor /
outdoor temperature and humidity displays
11. MEMORY: view current, max and min temperature,
humidity and UVI
12.MODE: change clock display / settings
13.°C / °F switch
14. : display / change alarm time, enable / disable
alarm
15.PRESSURE: change altitude measurement unit (mb
or inHg) and altitude compensation value
BAR609HGAmanual-ENG 05/1/18, 7:11 PM3
All manuals and user guides at all-guides.com

EN
4
BACK VIEW
1. Wall mount
2. Battery compartment
3. Table stand
BAR609HGAmanual-ENG 05/1/18, 7:11 PM4
All manuals and user guides at all-guides.com

EN
5
THERMO-HYGRO SE SOR (THGR122 X)
1. LCD display
2. LED status indicator
1. Wall mount hole
2. RESET
3. Channel number (1 - 3)
4. Battery compartment
(Battery compartment cover not shown)
BAR609HGAmanual-ENG 05/1/18, 7:11 PM5
All manuals and user guides at all-guides.com
all-guides.com

EN
6
FRO T VIEW (UV 128)
1. Sensor
2. LED indicator
BACK VIEW (UV 128)
1. RESET hole
2. Connector for stake apparatus
BAR609HGAmanual-ENG 05/1/18, 7:11 PM6
All manuals and user guides at all-guides.com

EN
7
GETTI G STARTED
BATTERIES
Batteries are not supplied with this product. You will need
to purchase the following alkaline batteries:
• Main unit 3 x UM-3 / AA 1.5V
• Remote sensor 2 x UM-4 / AAA 1.5V
• UV sensor 2 x UM-3 / AA 1.5V
Insert batteries before first use, matching the polarity as
shown in the battery compartment. For best results,
install batteries in the sensors before the main unit. Press
RESET after each battery change.
OTE Do not use rechargeable batteries.
shows when batteries are low.
ACCESS FRO T BUTTO PA EL
The front button panel is located inside the right portion
of the main unit. Slide it right to access the buttons.
U IT
Main Unit &
Remote Sensor
UV Sensor
LOCATIO
Temperature / Humidity Area
UV Index Area
CHA GE SETTI GS
1. Press and hold MODE for 2 seconds to enter setting
mode.
2. Press or to change settings.
3. Press MODE to confirm.
TABLE STA D OR WALL MOU T
Use the stand on the back of the product, or mount it on
a wall with a nail.
THERMO-HYGRO SE SOR (THGR122 X)
This product is shipped with a TH R122NX Thermo/
Hygro Sensor that collects Temperature and Humidity
data. Data can be collected from up to 3 sensors.
Additional sensors sold separately.
BAR609HGAmanual-ENG 05/1/18, 7:11 PM7
All manuals and user guides at all-guides.com

EN
8
SWITCH OPTIO
Channel Channel 1 - 3. If you are using
more than one sensor, select a
different channel for each sensor.

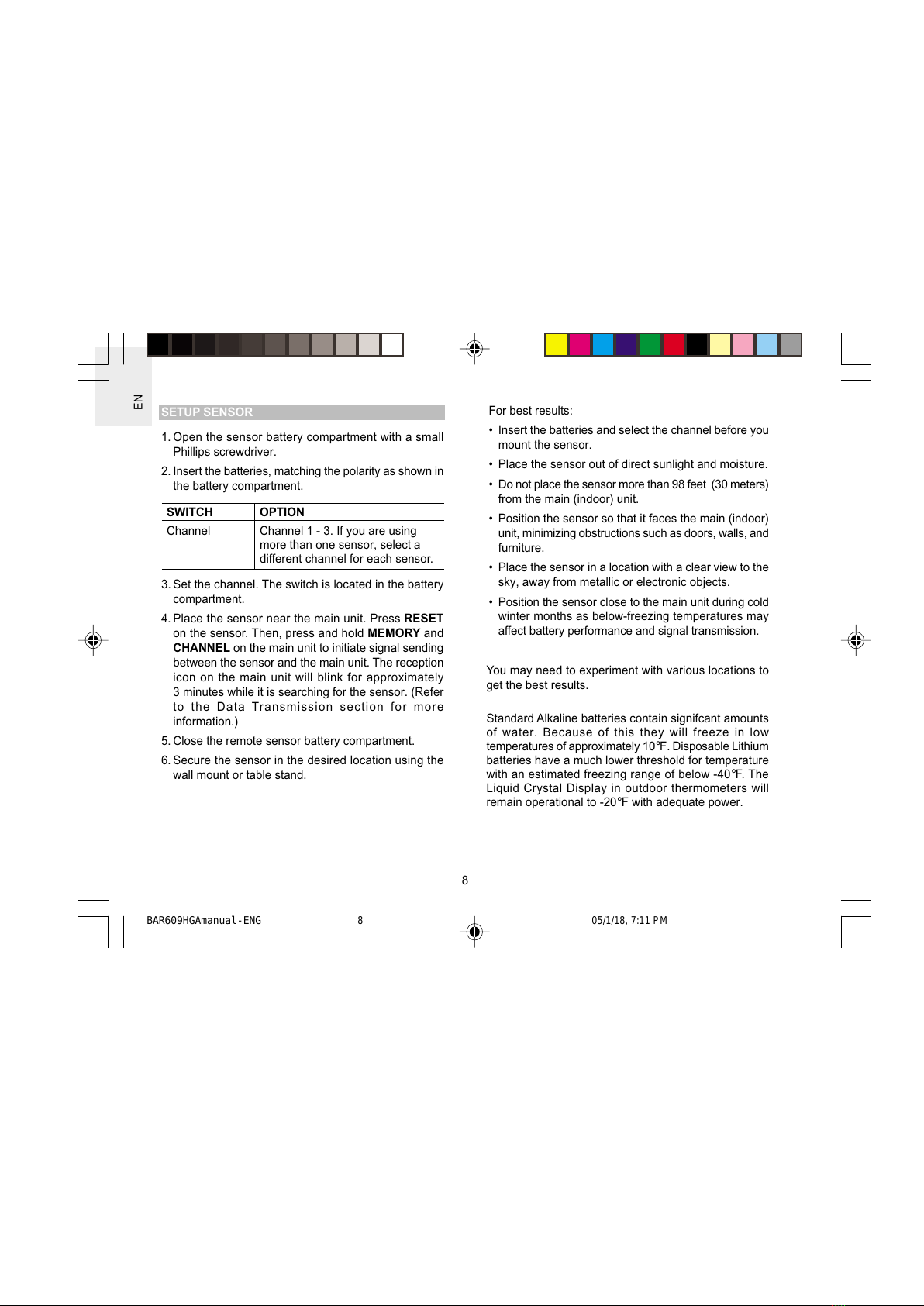

SETUP SE SOR
1. Open the sensor battery compartment with a small
Phillips screwdriver.
2. Insert the batteries, matching the polarity as shown in
the battery compartment.
3. Set the channel. The switch is located in the battery
compartment.
4. Place the sensor near the main unit. Press RESET
on the sensor. Then, press and hold MEMORY and
CHA EL on the main unit to initiate signal sending
between the sensor and the main unit. The reception
icon on the main unit will blink for approximately
3 minutes while it is searching for the sensor. (Refer
to the Data Transmission section for more
information.)
5. Close the remote sensor battery compartment.
6. Secure the sensor in the desired location using the
wall mount or table stand.
For best results:
• Insert the batteries and select the channel before you
mount the sensor.
• Place the sensor out of direct sunlight and moisture.
• Do not place the sensor more than 98 feet (30 meters)
from the main (indoor) unit.
• Position the sensor so that it faces the main (indoor)
unit, minimizing obstructions such as doors, walls, and
furniture.
• Place the sensor in a location with a clear view to the
sky, away from metallic or electronic objects.
• Position the sensor close to the main unit during cold
winter months as below-freezing temperatures may
affect battery performance and signal transmission.
You may need to experiment with various locations to
get the best results.
Standard Alkaline batteries contain signifcant amounts
of water. Because of this they will freeze in low
temperatures of approximately 10°F. Disposable Lithium
batteries have a much lower threshold for temperature
with an estimated freezing range of below -40°F. The
Liquid Crystal Display in outdoor thermometers will
remain operational to -20°F with adequate power.
BAR609HGAmanual-ENG 05/1/18, 7:11 PM8
All manuals and user guides at all-guides.com

EN
9
Wireless ranges can be impacted by a variety of factors
such as extremely cold temperatures. Extreme cold may
temporarily reduce the effective range between the
sensor and the base station.
If the unit's performance fails due to low temperature,
the unit will resume proper functioning as the
temperature rises to within the normal temperature range
(i.e no permanent damage will occur to the unit due to
low temperatures).
DATA TRA SMISSIO
Data is sent from the sensor(s) every 40 seconds.
The reception icon shown in the Temperature and
Humidity Area shows the status.
--- shows in Outdoor
Temp / Humidity Area
ICO DESCRIPTIO
Main unit is searching for
sensors.
At least 1 channel has
been found.
Channel 1 is selected (number
will change depending on the
sensor you select)
The selected sensor cannot
be found. Search for the
sensor or check batteries.
SEARCH FOR SE SOR
To search for a sensor, press and hold MEMORY and
CHANNEL for 2 seconds.
OTE If the sensor is still not found, check the batteries,
obstructions, and remote unit location.
OTE Signals from household devices such as
doorbells, electronic garage doors, and home security
systems may cause temporary reception failure. This is
normal and does not affect general product performance.
The reception will resume once the interference ends.
CLOCK
This product shows the current time, and day of week in
English, French, erman, Italian, or Spanish. The US
Atomic Clock in Boulder, Colorado automatically updates
this information unless you disable the feature. The
signals are collected by the main unit when it is within
932 miles (1500 km) of a signal.
Initial reception takes 2 - 10 minutes, and is initiated
when you first setup the unit, and whenever you press
RESET. Once complete, the reception icon will stop
blinking. The icon is shown in the Clock Area.
BAR609HGAmanual-ENG 05/1/18, 7:11 PM9
All manuals and user guides at all-guides.com

EN
10
To force a manual search for Atomic Clock signals, press
and hold for 2 seconds. If no signal is found, check
the batteries.
OTE If the Atomic Clock signal is received and the
hour is incorrect, use the "time zone offset" feature to
adjust it to the appropriate time zone. Please see "Set
Clock section" for instructions.
TUR ATOMIC CLOCK O / OFF
Perform this step if you cannot receive Atomic Clock
signals. Press and hold for 2 seconds. Then, manually
set the clock following the Set Clock section for
instructions.
The signal icon indicates that the Atomic Clock
feature is ON. No icon means that it is OFF.
STRO G SIG AL WEAK SIG AL O SIG AL SET CLOCK
You only need to do this if you cannot receive the Atomic
Clock signal, or you wish to adjust the appropriate time
zone.
1. Press and hold MODE for 2 seconds. The Clock Area
will blink.
2. Select the time zone, hour, minute, year, month, day,
and language. Press or to change the setting.
Press MODE to confirm.
OTE The language options are (E) English, (F) French,
(D) erman, (I) Italian, and (S) Spanish.
OTE The time zone options are (PA) Pacific, (CE)
Central, (MO) Mountain, and (EA) Eastern.
SWITCH CLOCK DISPLAY
Press MODE to toggle between Clock with Seconds and
Clock with Weekday display.
ALARM
This product is equipped with a 2-minute crescendo
alarm.
BAR609HGAmanual-ENG 05/1/18, 7:11 PM10
All manuals and user guides at all-guides.com
all-guides.com

EN
11
BAROMETER
This product tracks barometric pressure changes over
the past 24 hours to provide the weather forecast
and a trend line showing the direction of barometric
change. Barometric changes are measured by the main
(indoor) unit.
BAROMETRIC TRE D
SET U IT A D ALTITUDE
You can set the unit of measurement (mb or inHg) and
altitude. Doing this allows the product to take more
accurate barometric measurements.
TRE D DESCRIPTIO
Rising
Steady
Falling
VIEW ALARM SETTI GS
Press . The alarm time and status will show in the
Clock Area.
SET ALARM
1. Press to switch to alarm display.
2. Press and hold again for 2 seconds. The alarm
settings will blink.
3. Select the hour and minute. Press or to change
settings. Press to confirm.
ACTIVATE ALARM
Press to activate or deactivate the alarm.
shows in the Clock / Alarm Area when the
alarm is activated.
SILE CE ALARM
When the alarm time is reached, the crescendo alarm
will sound for 2 minutes. Press S OOZE / LIGHT to
silence it for 8 minutes. Or, press to turn it off until
the next day.
If no button is pressed, the alarm will automatically
silence after 2 minutes. It will then sound again after
8 minutes.
BAR609HGAmanual-ENG 05/1/18, 7:12 PM11
All manuals and user guides at all-guides.com

EN
12
CLEAR PARTLY
CLOUDY CLOUDY RAI Y
Indoor
Display
DESIG ATED
DISPLAY
Remote
Display
Channel 1
KI ETIC-WAVE
ICO
Remote
Display
Channel 2
Remote
Display
Channel 3
1. Press PRESSURE to select the unit of measurement:
mb or inHg.
2. Press and hold PRESSURE for 2 seconds.
3. Select the altitude (-328 feet to 8203 feet in increments
of approximately 33). Press or to change the
setting. Press PRESSURE to confirm.
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of weather
within a 30 to 50 mile (19 - 31 km) radius with 70 to
75 percent accuracy. The weather forecast is always
displayed.
TEMPERATURE, HUMIDITY A D HEAT I DEX
This product can display current, minimum, and maximum
temperature, humidity percentage and heat index
information collected by the remote sensors and main
(indoor) unit.
Outdoor data is collected and displayed every 40
seconds. Indoor data is collected and displayed every
10 seconds.
SELECT TEMPERATURE U IT
Slide the °C / °F switch into the desired location. The
switch is located on the front button panel. The setting
for the main unit overrides the Thermo-Hygro sensor
setting.
SELECT CHA EL UMBER
Press CHA EL to switch between sensors 1-3.
The icon shows the selected sensor.
To auto-scan between sensors, press and hold
CHA EL for 2 seconds. Each sensor's data will be
displayed for 3 seconds. To end auto-scan, press
CHA EL or MEMORY.
OTE If you use a sensor that collects only temperature
data, humidity will not be shown.
BAR609HGAmanual-ENG 05/1/18, 7:12 PM12
All manuals and user guides at all-guides.com

EN
13
MI IMUM / MAXIMUM RECORDS
To view temperature, humidity or UV Index current,
maximum (MAX) and minimum (MI ) records:
1. Press CHA EL to select channel 1-3 or indoor.
2. Press MEMORY to view the selected channel's
records.
Press MEMORY to toggle between current, maximum
(MAX) and minimum (MI ) records. To clear the records,
press and hold MEMORY for 2 seconds. A beep will
sound to confirm that the memory has been cleared.
ICE WAR I G
The temperature range at which water begins to freeze
and turns to ice is approx. 37°F (3°C) to 28°F (-2°C). It
is during this period that ice becomes most slippery,
creating hazardous surface conditions dangerous for
travelling.
The BAR609H A’s Ice Warning feature gives out
temperature readings to warn you when the temperature
is approaching freezing. If Channel 1 sensor falls
between 37°F to 28°F (3°C to -2°C), the freeze alert
icon will flash on the main unit display.
HEAT I DEX
Heat index is the temperature the body feels when heat
and humidity are combined. The temperature you feel
does not always correspond to the actual air temperature
and relative humidity. The heat index (apparent
temperature) is how hot the heat-humidity combination
makes you feel.
The BAR609H A’s heat index feature advises 4 levels
of warning if the temperature is high.
• To display the heat index, press HEAT I DEX.
• To toggle between current / maximum / minimum
readings, press HEAT I DEX, then press CHA EL
to select channel 1-3 or indoor, followed by MEMORY.
• To toggle between temperature / humidity and heat
index display, press and hold HEAT I DEX for 2
seconds. Press HEAT I DEX again to stop this
feature.
OTE If the heat index is below 80°F / 26°C, or the
desired channel is not working, the heat index will display
“NA”.
WAR I G
Extreme
danger
Danger
Extreme
caution
Caution
MEA I G
Strong possibility of
heat stroke
Heat exhaustion likely
Possibility of heat
dehydration
Possibility of heat
exhaustion
HEAT I DEX
°F°C
130 or 54.5 or
above above
105-129 40.5-53.9
90-104 32.2-40
80-89 26.6-31.7
BAR609HGAmanual-ENG 05/1/18, 7:12 PM13
All manuals and user guides at all-guides.com

EN
14
4. You can place the sensor in the ground. To do this, fix
the stake into the base of the sensor.
Then place the stake into the ground up to the insertion
level indicator (see point 1 below) at your desired
location.
UV SE SOR (UV 128)
The UV sensor measures the UV Index. It transmits data
to the main unit every 73 seconds and has a maximum
transmission range of 328 feet (100 meters).
SETUP SE SOR
1. Insert the batteries as shown.
2. Close the battery door and press RESET to turn the
sensor on.
3. Press and hold CHA EL and MEMORY on the main
unit to initiate a signal search. The UVI sensor icon
on the main unit will flash to show it is searching
for the sensor. It will stop flashing when it has found
the sensor. If the main unit cannot find the sensor,
"- -" will appear on the LCD.
uv
sensor
uvsensor
s
e
n
s
o
r
u
v
1
BAR609HGAmanual-ENG 05/1/18, 7:12 PM14
All manuals and user guides at all-guides.com

EN
15
OTE To get the most accurate readings, place the
sensor in a position that has minimum obstructions (i.e.
walls and doors) between it and the main unit. The
sensor should be placed in an upright position, away
from any shade or shadows that may affect how accurate
the sensor provides readings.
UV I DEX READI GS
To interpret the UV readings on the LCD display, see
the table below.
MOO PHASE
The Calendar must be set for this feature to work.
see set clock section:
• Press or to view the moon phase for the
next or previous day.
• Press and hold or to scan quickly through the
years (2001 to 2099).
BACKLIGHT
BACKLIGHT
Press S OOZE / LIGHT to activate the backlight for
8 seconds.
RESET SYSTEM
The RESET button is located behind the front button
panel for the main unit. Press RESET when you change
the batteries and whenever performance is not behaving
UV MESSAGE
Low
Med
High
Very high
Extreme
UV I DEX
1-2
3-5
6-7
8-10
11-25
PRECAUTIO
Apply sunscreen
Wear protective clothing
Wear sunglasses and
protective clothing
Avoid the sun between
10am and 4pm
Very strong rays stay
indoors
New Moon
Waxing Crescent
First Quarter
Waxing ibbous
Full Moon
Waning ibbous
Last Quarter
Waning Crescent
BAR609HGAmanual-ENG 05/1/18, 7:12 PM15
All manuals and user guides at all-guides.com
all-guides.com

EN
16
as expected (for example, unable to establish radio
frequency link with sensor or Atomic Clock).
OTE When you press RESET, all settings will return
to default value, and you will lose all stored information.
SAFETY A D CARE
Clean the product with a slightly damp cloth and alcohol-
free, mild detergent. Avoid dropping the product or
placing it in a high-traffic location.
WAR I GS
This product is designed to give you years of service if
handled properly. Observe the following guidelines:
• Never immerse the product in water. This can cause
electrical shock and damage the product.
• Do not subject the main unit to extreme force, shock,
or fluctuations in temperature or humidity.
• Do not tamper with the internal components.
• Do not mix new and old batteries or batteries of
different types.
• Do not use rechargeable batteries with this product.
• Remove the batteries if storing this product for a long
period of time.
• Do not scratch the LCD display.
Do not make any changes or modifications to this
product. Unauthorized changes may void your right to
use the product. The technical specification of this
product and contents of this user guide are subject to
change without notice. Images not drawn to scale.
BAR609HGAmanual-ENG 05/1/18, 7:12 PM16
All manuals and user guides at all-guides.com

EN
17
Cannot auto-
synch
1. Adjust batteries
2. Press RESET
3. Manually activate
Atomic Clock
feature
Temp Shows "LLL"
or "HHH"
Temperature is out-of-
range
Check batteries
Check location
Sensor Cannot locate
remote
sensor
Problem Symptom Remedy
Calendar Strange date /
month
Change language
Clock Cannot adjust
clock
Disable Atomic Clock
Data does
not match
main unit
Initiate a manual sensor
search
Cannot
change
channel
Check sensors. Only
one sensor is working
Sensor
TROUBLESHOOTI G
Check here before contacting our customer service
department.
SPECIFICATIO S
MAI U IT DIME SIO S
L x W x H 5.5 x 2.5 x 6.2 inches
(142 x 63 x 158 mm)
Weight 12.96 ounces (366 g)
with battery
THERMO-HYGRO SE SOR DIME SIO S
L x W x H 3.6 x 2.4 x 0.79 inches
(92 x 60 x 20 mm)
Weight 2.22 ounces (63 g)
without battery
UV SE SOR DIME SIO S
W X H X L 2.7 x 4 x 1.9 inches
(67.7 x 102.5 x 47 mm)
Weight 2.89 ounces (82 g)
without battery
TEMPERATURE
Unit °F or °C
Indoor Range -23°F to 122°F
(-5°C to 50°C)
Outdoor Range -22°F to 140°F
(-30°C to 60°C)
Resolution 0.2°F (0.1°C)
BAR609HGAmanual-ENG 05/1/18, 7:12 PM17
All manuals and user guides at all-guides.com

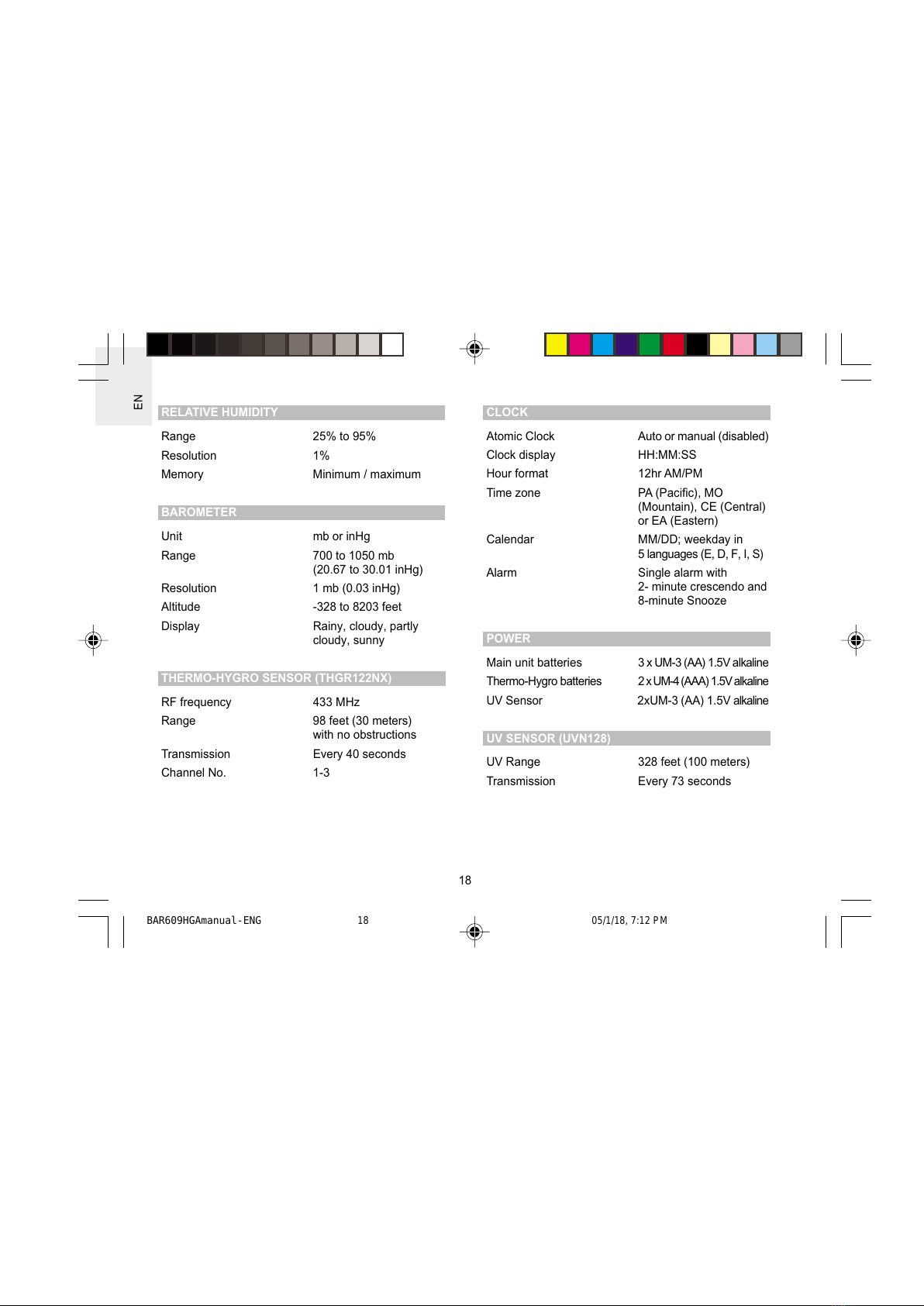

EN
18
RELATIVE HUMIDITY
Range 25% to 95%
Resolution 1%
Memory Minimum / maximum
BAROMETER
Unit mb or inHg
Range 700 to 1050 mb
(20.67 to 30.01 inHg)
Resolution 1 mb (0.03 inHg)
Altitude -328 to 8203 feet
Display Rainy, cloudy, partly
cloudy, sunny
THERMO-HYGRO SE SOR (THGR122 X)
RF frequency 433 MHz
Range 98 feet (30 meters)
with no obstructions
Transmission Every 40 seconds
Channel No. 1-3
CLOCK
Atomic Clock Auto or manual (disabled)
Clock display HH:MM:SS
Hour format 12hr AM/PM
Time zone PA (Pacific), MO
(Mountain), CE (Central)
or EA (Eastern)
Calendar MM/DD; weekday in
5 languages (E, D, F, I, S)
Alarm Single alarm with
2- minute crescendo and
8-minute Snooze
POWER
Main unit batteries 3 x UM-3 (AA) 1.5V alkaline
Thermo-Hygro batteries 2 x UM-4 (AAA) 1.5V alkaline
UV Sensor 2xUM-3 (AA) 1.5V alkaline
UV SE SOR (UV 128)
UV Range 328 feet (100 meters)
Transmission Every 73 seconds
BAR609HGAmanual-ENG 05/1/18, 7:12 PM18
All manuals and user guides at all-guides.com

EN
19
ABOUT OREGO SCIE TIFIC
Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products such as digital
cameras; MP3 players; children's electronic learning
products and games; projection clocks; health and
fitness gear; weather stations; and digital and conference
phones. The website also includes contact information
for our customer care department in case you need to
reach us, as well as frequently asked questions and
customer downloads.
We hope you will find all the information you need on
our website, however if you're in the US and would like
to contact the Oregon Scientific Customer Care
department directly, please visit: www2.oregonscientific.
com/service/support OR Call 949-608-2848.
For international enquiries, please visit: www2.
oregonscientific.com/about/international/default.asp
FCC STATEME T
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
WAR I G Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user's authority to operate
the equipment.
OTE This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
BAR609HGAmanual-ENG 05/1/18, 7:12 PM19
All manuals and user guides at all-guides.com
