OVERVIEW
FRONT VIEW

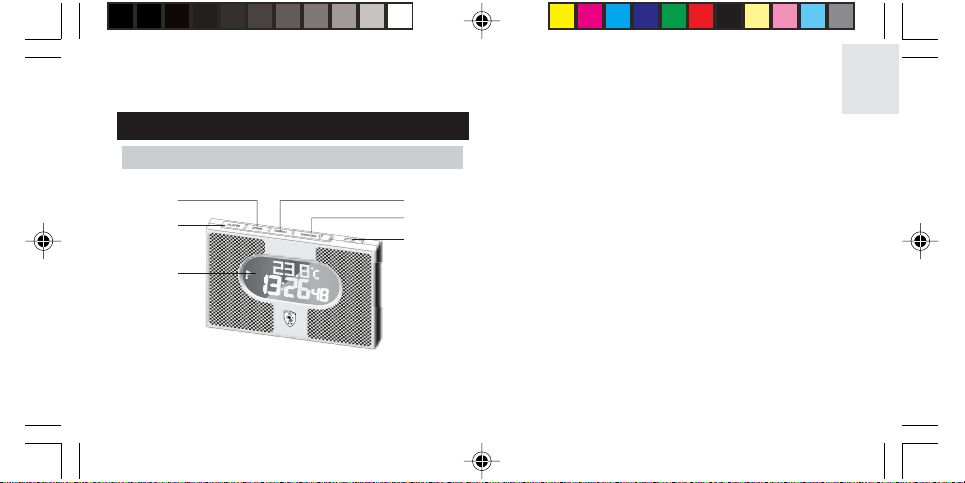

1. ZONE: Displays and sets the 2nd time zone
2. ALARM: Displays, sets, activates / deactivates alarms
3. LCD screen
4. SIGNAL: Displays and sets the radio reception signal
5. SNOOZE / LIGHT: Enables the snooze function and /
or the backlight
6. MODE / +/ -: Toggles between clock displays; enters
clock setting mode; increases / decreases the value
of a setting
Fat101_M_EN_V0.p65 2005.8.4, 4:01 PM3

4
EN

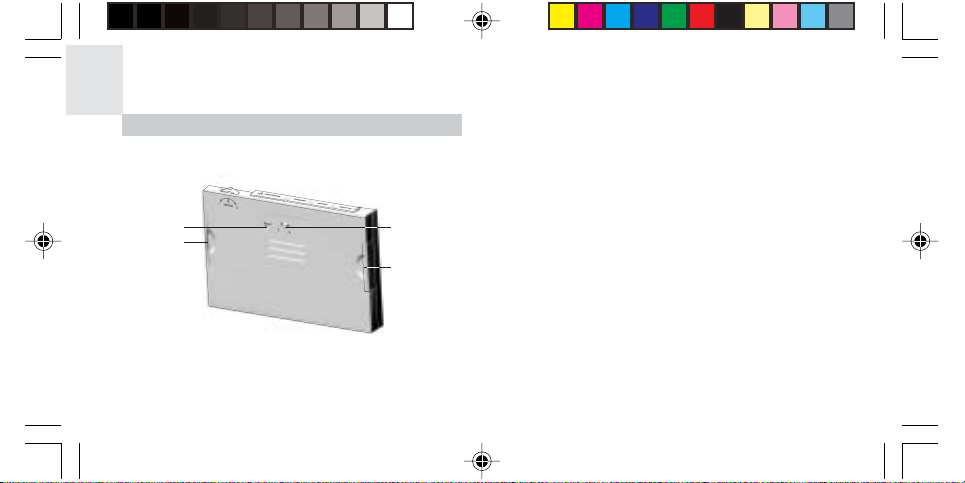

1. RESET: Resets the unit to default settings
2. Main battery
3. °C / °F: Selects temperature unit
4. Backlight battery
4
2
13
BACK VIEW
Fat101_M_EN_V0.p65 2005.8.4, 4:01 PM4

EN
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
LCD DISPLAY 1. 2nd time zone
2. City for main clock or 2nd time zone
3. Radio signal
4. Radio reception status
5. 12 hour clock
6. Main battery is low
7. Backlight battery is low
8. Clock or alarm time
9. Date, city or temperature
10. Main clock alarm is displayed or set
11. 2nd time zone alarm is displayed or set
12. Hourly chime
13. Daylight Saving Time
14. Keypad lock is activated
Fat101_M_EN_V0.p65 2005.8.4, 4:01 PM5

6
EN
The unit uses 2 x CR2032 batteries. The backlight battery
powers the backlight while the main battery powers all
other functions.
NOTE shows when main battery is low. shows
when backlight battery is low.
2. Once the batteries have been inserted the unit will
immediately ask you to set the clock reception signal
(see Clock Reception section for signal options).
3. Roll the + / – button towards + to scroll through the
signal options.
4. Press the MODE button down to confirm.
5. For the time to be correct time you MUST select your
OWN city (see Clock Settings section for how to do
this).
GETTING STARTED
SET UP
1. Insert batteries before first use, matching the polarity
(+ and -) as shown:
CR2032
CR2032
CR2032
CR2032
1
1
2
2
3
3
Fat101_M_EN_V0.p65 2005.8.4, 4:01 PM6

EN
7
USING MODE / + / - BUTTON

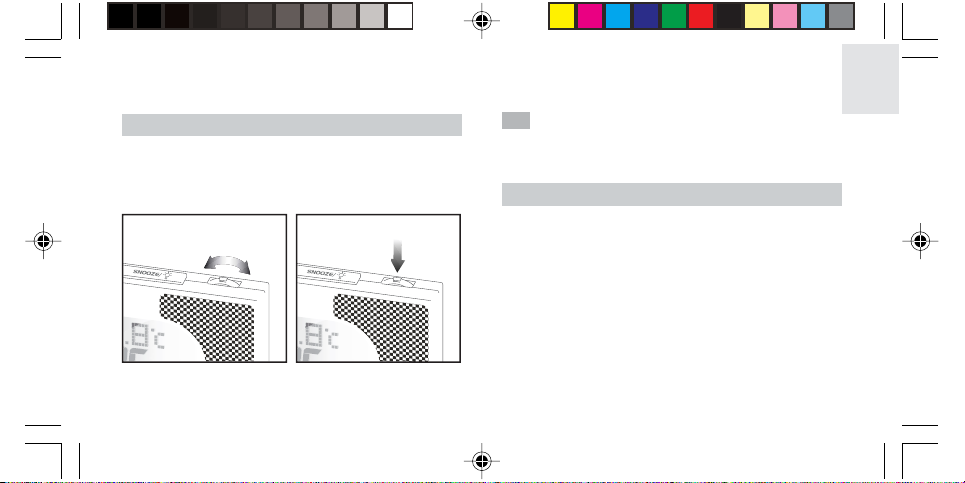

To activate + or -,
roll the button
towards + or -.
To activate MODE,
press the button
straight down.
TIP To speed through the setting options, roll the button
towards + or – and then hold until the desired option is
displayed.
CLOCK DISPLAY
Press MODE to toggle between the clock displays:
•Temperature, Clock and Seconds
•Temperature, Clock and Weekday
•Calendar Clock and Weekday
•Main Clock City, Clock and Weekday
Fat101_M_EN_V0.p65 2005.8.4, 4:01 PM7

8
EN
The signals are collected by the unit when it is within
1500 km (932 miles) of a signal.
To select the radio signal:
1. Press SIGNAL.
2. Press and hold SIGNAL to enter setting mode.
3. Use + / - to change the flashing setting.
4. Press SIGNAL to confirm.
CLOCK
CLOCK RECEPTION
The clock automatically synchronizes the current time
and date when it is brought within range of the reception
signal you have selected:
DISPLAY SIGNAL LOCATION
OFF No signal No signal
EU DCF-77 Central Europe
UK MSF-60 UK
US WWVB-60 US
JP-60 JP-60 Japan – West
JP-40 JP-40 Japan – East
JAPAN JP-60 and Japan – West
JP-40 and East
Fat101_M_EN_V0.p65 2005.8.4, 4:01 PM8

EN
9

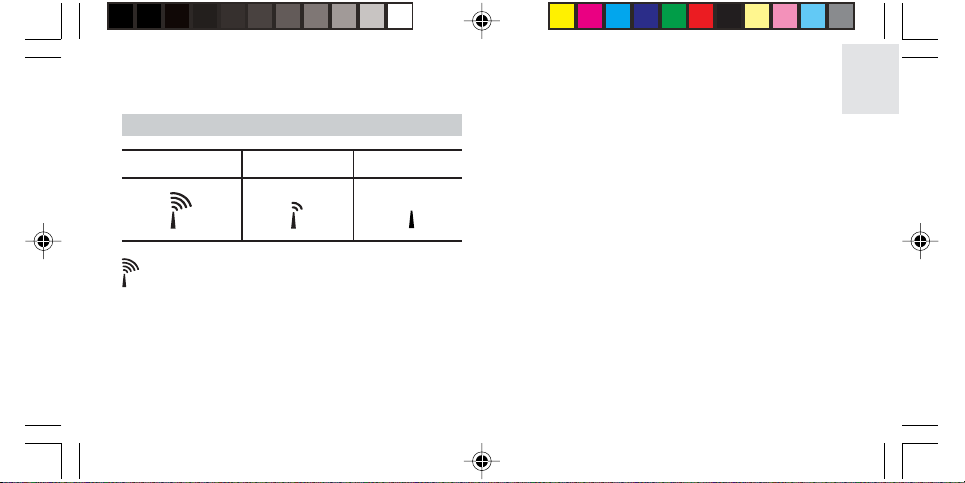

STRONG WEAK NO SIGNAL
RECEPTION SIGNAL
appears when the clock radio reception is ON. No
icon means that it is OFF.
The reception icon will blink when it is searching for a
signal. Normally, it takes up to 7 minutes to get a valid
radio signal reception. However, if the radio signal is
weak, it can take up to 24 hours.
For best reception, place the clock away from metal
objects and electrical appliances and place near a
window.
To enable the clock reception and force a manual search
of your selected signal:
•Roll towards + and hold for 2 seconds.
OR
•Enter the setting mode and select your current signal
again.
Fat101_M_EN_V0.p65 2005.8.4, 4:01 PM9

10
EN
•2nd time zone clock – press ZONE to enter the display;
press and hold ZONE to enter setting mode; use + / -
to change the setting and press ZONE to confirm.
ZONE CITY appears on the display when you are
viewing this clock.
The clocks have 130 cities to choose from with Daylight
Saving Time (DST) automatically adjusted.
To disable the clock reception:
•Roll towards - and hold for 2 seconds.
NOTE “OFF” appears in the signal display when the
clock radio reception is disabled. If it is not disabled, the
signal in use will be displayed e.g. “US”.
MAIN CLOCK AND 2ND TIME ZONE
The unit has 2 clocks that you can set:
•Main clock – enter the clock setting mode and select a
city, (see Clock Settings section below).
CITY appears on the display when you are viewing
this time.
Fat101_M_EN_V0.p65 2005.8.4, 4:01 PM10

EN
11
WORLD CITY ABBREVIATION LIST
