Oregon Scientific DP200 User manual

Radio Controlled Daylight
Projection Clock with
Outdoor Temperature
Model:DP200/DP200A
User Manual
RGR126_COVER.indd 1 5/11/06 2:29:53 PM

EN
1
Radio Controlled Daylight Projection
Clock with Outdoor Temperature
Model: DP200 / DP200A
USER MANUAL
CONTENTS
Overview....................................................................2
Front View ..................................................................2
Back View ...................................................................2
Remote Sensor............................................................3
Getting Started..........................................................3
Power Supply..............................................................3
Remote Sensor..........................................................3
Sensor Data Transmission..........................................4
Clock .........................................................................4
Clock Reception..........................................................4
Manually Set Clock.....................................................4
LCD Display...............................................................5
Alarm..........................................................................5
Projection..................................................................5
Temperature..............................................................6
Reset..........................................................................6
Precautions...............................................................6
Specifications............................................................7
About Oregon Scientific...........................................7
EU-Declaration of Conformity..................................7
FCC Statement .........................................................7
Declaration of Conformity............................................8
DP200 IM EN R4.indd 1 2007.6.29 2:52:11 PM

EN
2
OVERVIEW

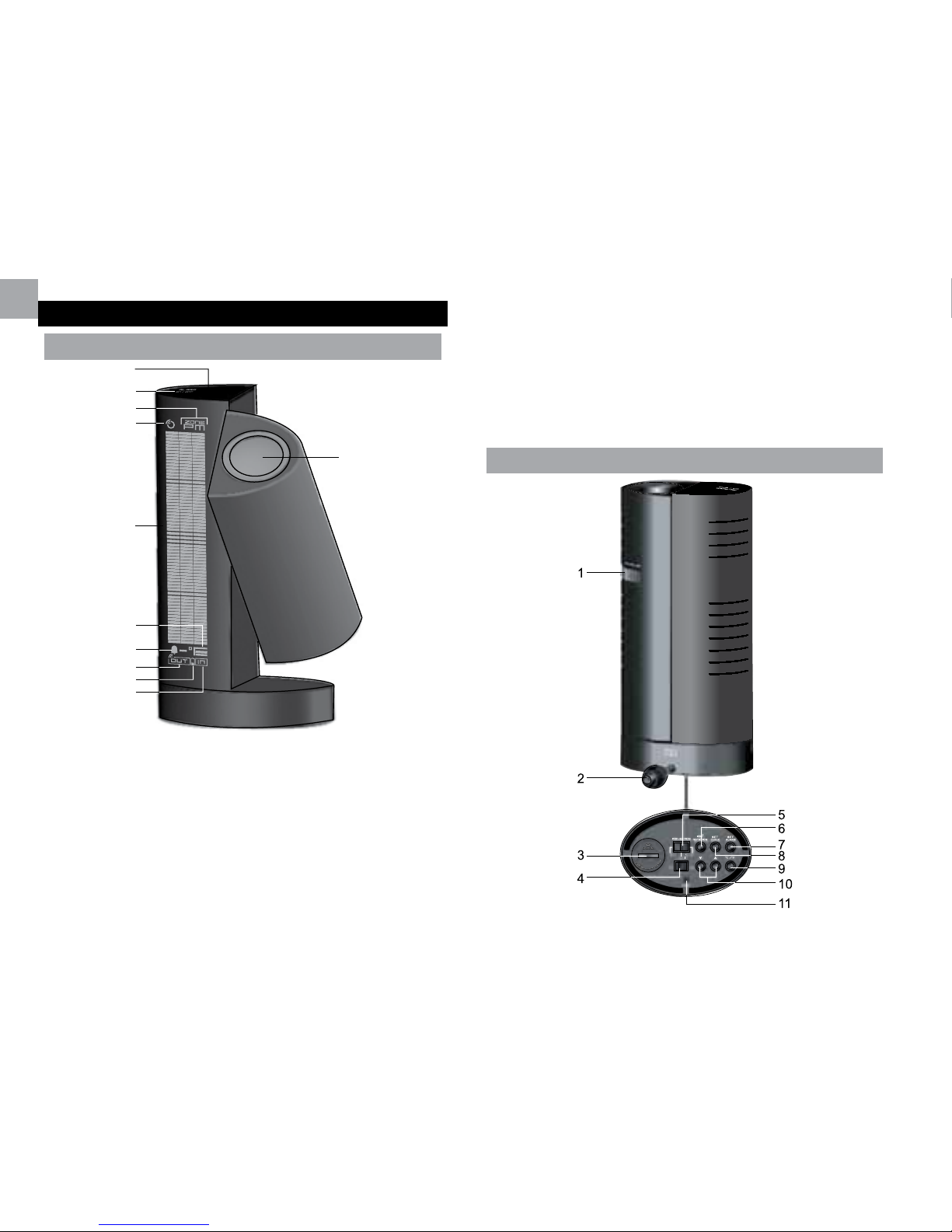

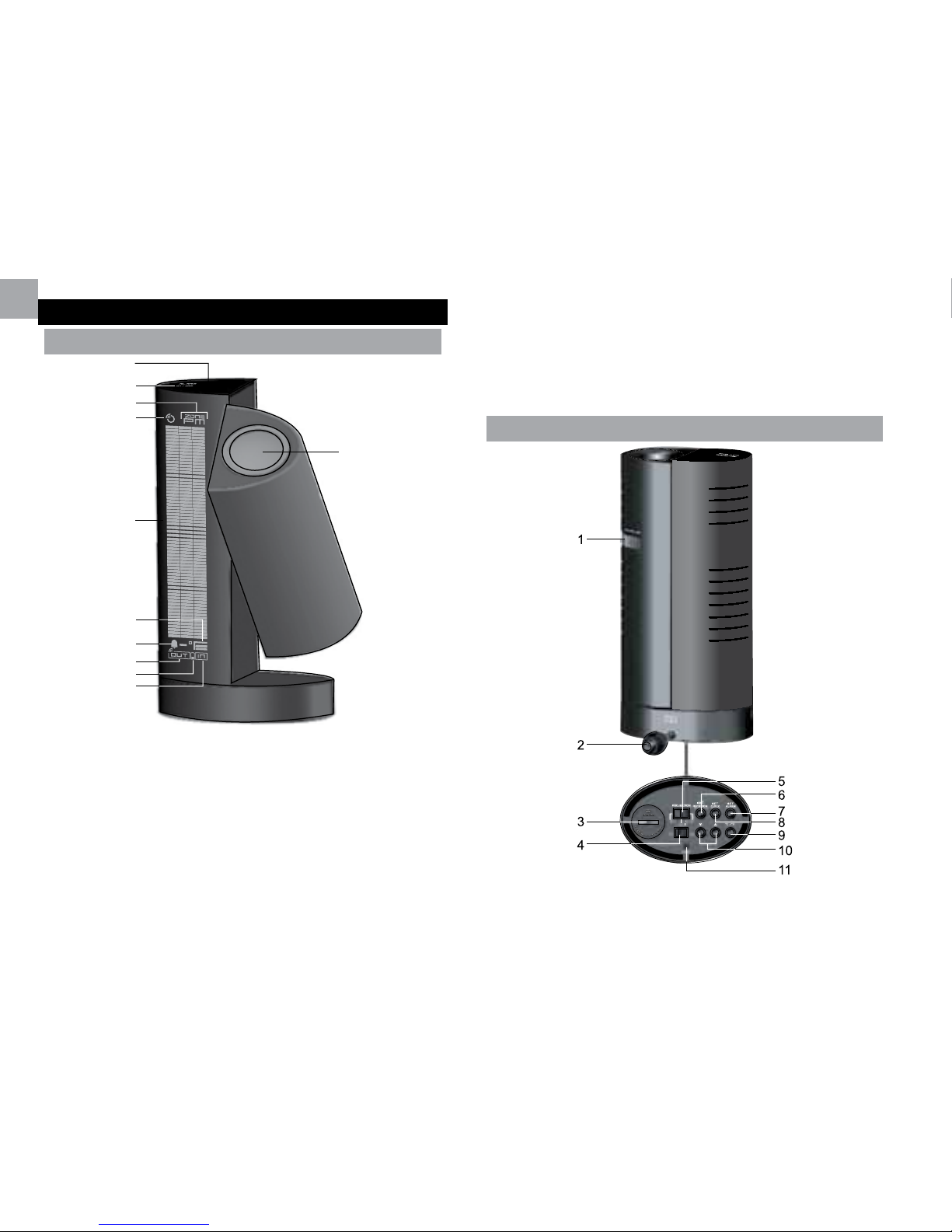

FRONT VIEW
1
2
3
5
4
6
7
8
9
10
11
1. IR motion sensors (at the top): Snooze; change
display mode
2. ALARM ON / OFF (at the top): Enable / disable
alarm
3. Time zone
4. Clock signal reception indicator
5. Clock, alarm and temperature display
6. °C / °F temperature unit display
7. Alarm icon
8. Outdoor temperature icon
9. Battery low indicator
10. Indoor temperature icon
11. Projector: Project time,alarm status and indoor /
outdoor temperature
BACK VIEW
DP200 IM EN R4.indd 2 2007.6.29 2:52:14 PM

EN
3
1. FOCUS: Focus the projected image
2. Adaptor socket
3. Battery compartment
4. EU / UK: Select clock reception
5. PROJECTION AUTO / CLOCK / OFF: Select the
projection mode
6. 180° ROTATION: Rotate projection image by 180°
degrees
7. SET ALARM: Set alarm
8. SET CLOCK: Enter clock setting mode
9. °C / °F: Select temperature unit
10. / : Increase / decrease settings; activate /
deactivate clock reception signal
11. RESET: Reset unit to default settings

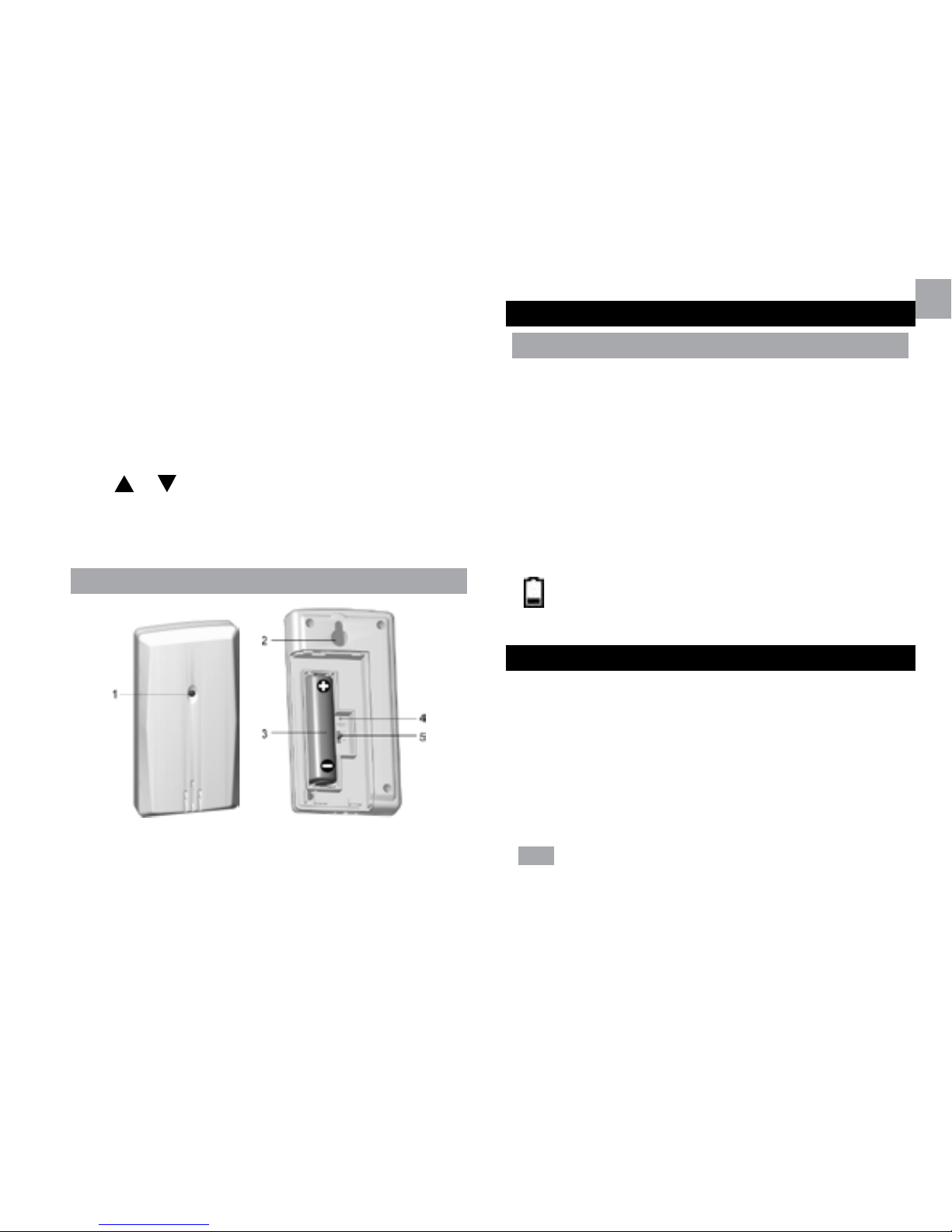

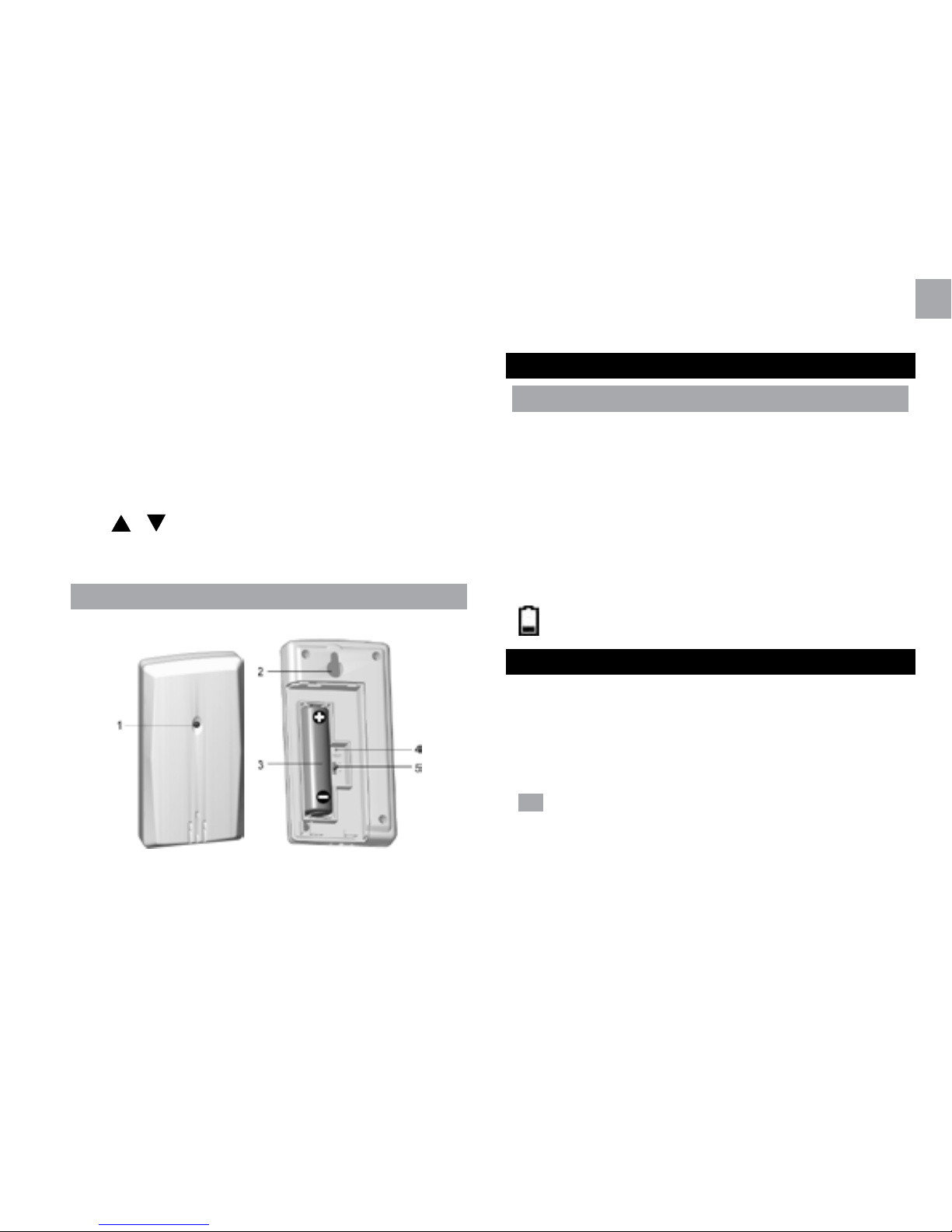

REMOTE SENSOR
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET hole
5. CHANNEL switch
GETTING STARTED
POWER SUPPLY
Batteries serve as back up. For continuous use of
projector and backlight, always plug in the adapter
socket. Make sure the socket outlet is easily accessible
to the unit.
To insert batteries:
1. Remove the battery compartment and insert the
batteries, matching the polarities.
2. Press RESET after each battery change.
indicates main unit batteries are low.
REMOTE SENSOR
To set up the sensor:
1. Open the battery compartment.
2. Select a channel then press RESET.
3. Close the battery door.
4. Place the sensor within 30 m (98 ft) of the main unit
using the table stand or wall mount .
TIP The transmission range may vary depending on
many factors. You may need to experiment with various
locations to get the best results.
DP200 IM EN R4.indd 3 2007.6.29 2:52:15 PM

EN
4
SENSOR DATA TRANSMISSION
The main unit will automatically search for the outdoor
sensor. The sensor reception icon in the remote sensor
area shows the status:
ICON DESCRIPTION
Main unit is searching
for sensor(s).
A channel has been
found.
Sensor 1 data
received.
and “--.-“
The sensor cannot
be found.
NOTE If the sensor is not found, check the batteries,
obstructions and remote sensor location.
For best results:
• Place the sensor out of direct sunlight and rain.
• Position the sensor facing the main unit, minimizing
obstructions.
• Place the sensor in a location away from metallic or
electronic objects.
• Position the sensor closer to the main unit during
cold winter months.
CLOCK
CLOCK RECEPTION
This product is designed to synchronize its clock
automatically with a clock signal.
DP200:
Slide EU / UK to select the signal received.
• EU: DCF-77 signal: within 1500 km (932 miles) of
Frankfurt, Germany.
• UK: MSF-60 signal: within 1500 km (932 miles) of
Anthorn, England.
DP200A:
• WWVB-60 signal: within 3200km (2000 miles) of
Fort Collins Colorado. Manually set clock to select
time zone (Pacific, Mountain, Central or Eastern).
To enable / disable signal reception:
Press and hold to enable or to disable signal
reception.
NOTE Reception takes 2-10 minutes. If the signal is
weak, it can take up to 24 hours to get a valid signal.
Clock signal reception indicator:
STRONG
SIGNAL WEAK SIGNAL NO SIGNAL
MANUALLY SET CLOCK
To set the clock manually, disable the signal reception
first.
1. Press and hold SET CLOCK.
2. Press or to change the settings.
DP200 IM EN R4.indd 4 2007.6.29 2:52:17 PM

EN
5
3. Press SET CLOCK to confirm.
4. The settings order is: time zone offset, 12/24 hr
format, hour and minute.
DP200: Time zone offset sets the clock +/- 23 hours
from the received clock signal time.
DP200A: Select the time zone: (P) Pacific, (E) Eastern,
(C) Central or (M) Mountain.
LCD DISPLAY
Wave your hand at least 3 inches above the IR motion
sensors to toggle display modes between:
• Clock
• Alarm
• Outdoor temperature
• Indoor temperature
ALARM
To set the alarm:
1. Press and hold SET ALARM.
2. Press / to set hour / minute.
3. Press SET ALARM to confirm. indicates alarm is
ON.
To toggle alarms ON / OFF:
1. Press SET ALARM to display alarm time.
2. Press ALARM ON / OFF to turn alarm ON / OFF.
To silence the alarm:
• Wave your hand above the IR motion sensors to
silence it for 8 minutes.
OR
• Press ALARM ON / OFF to turn the alarm off and
activate it again after 24 hours.
PROJECTION
The ultra-bright LED enables daylight projection of time
and temperature information.
To activate projection:
Slide PROJECTION to AUTO or CLOCK.
• Slide to AUTO to toggle between current time and
indoor / outdoor temperature.
• Slide to CLOCK to project current time only.
To adjust the projection image:
• Press 180° ROTATION to rotate the image by
180°.
• Focus the projector image by turning the FOCUS
wheel.
NOTE The installed CDS light sensor inside the unit
will activate automatic projection / display dimming.

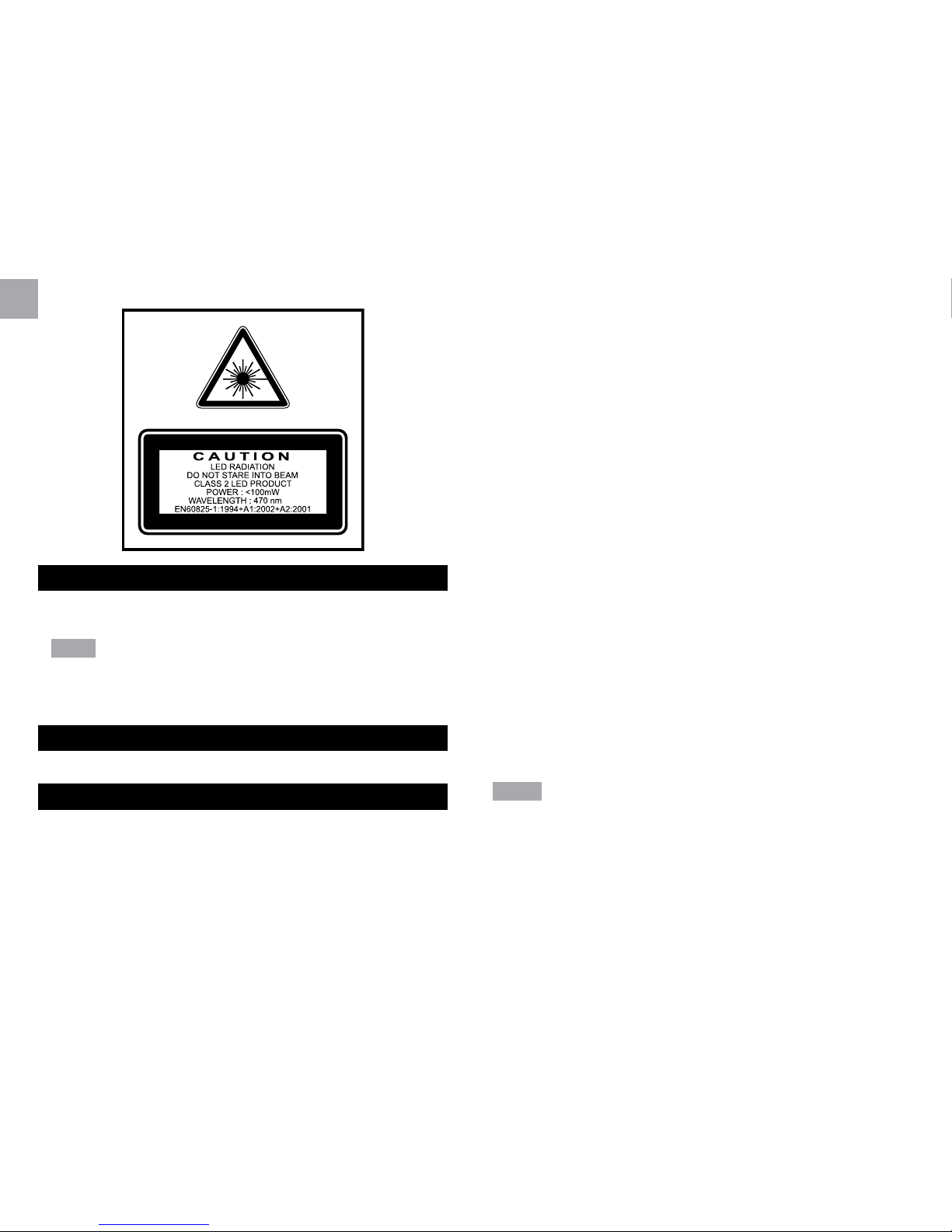

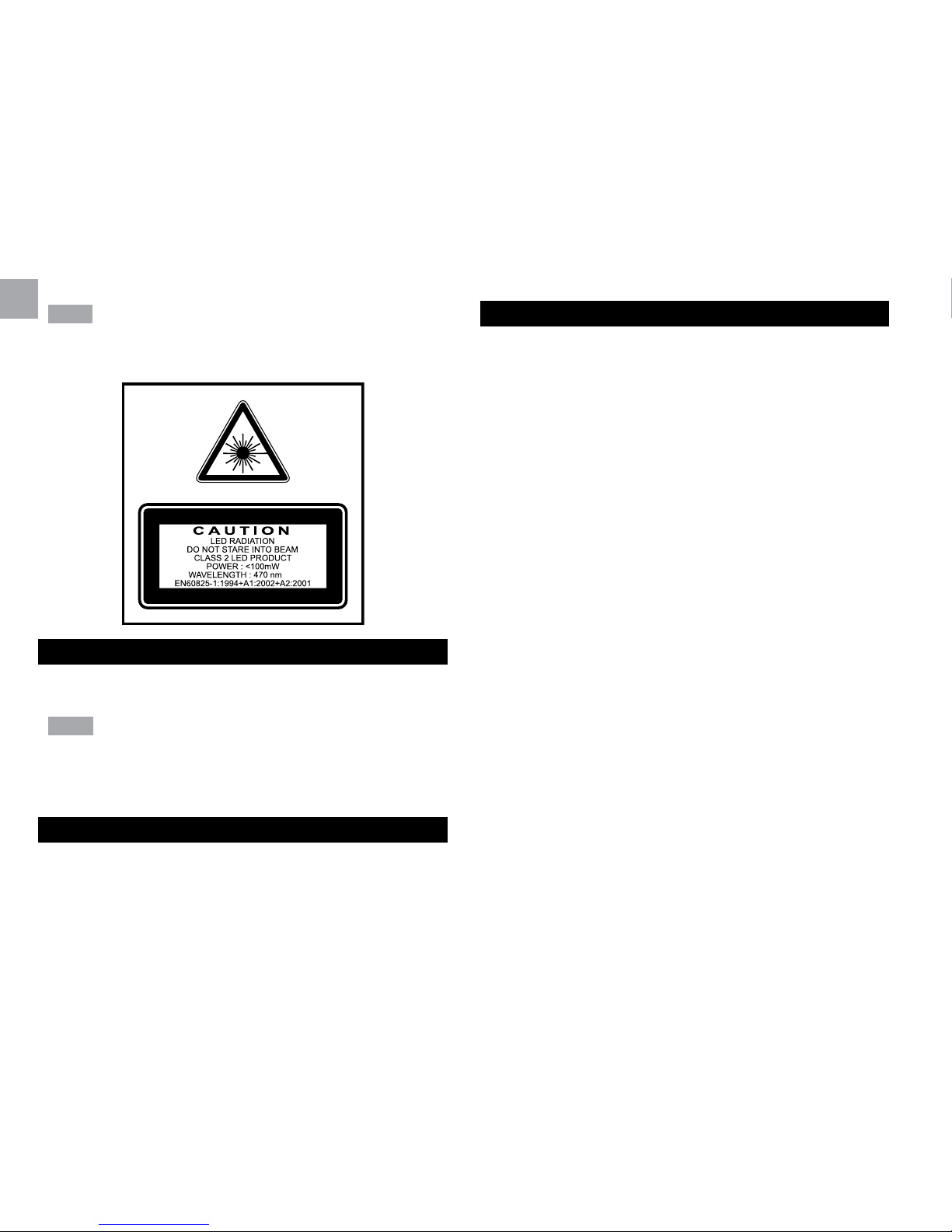

NOTE If projection is illuminated, do not look directly
into the projector. Oregon Scientific will not be held
responsible for any results or consequences arising
from the misuse of this product.
DP200 IM EN R4.indd 5 2007.6.29 2:52:17 PM

EN
6
TEMPERATURE
To toggle temperature unit:
Press °C / °F.
NOTE Please keep the temperature sensor (adjacent
to the adaptor socket) away from the main unit or
electrical devices as heat from these devices will affect
accurate indoor temperature readings.
RESET
Press RESET to return to the default settings.
PRECAUTIONS
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items
such as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components.
This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is
collected separately for special treatment.
• Placement of this product on certain types of
wood may result in damage to its finish for which
Oregon Scientific will not be responsible. Consult
the furniture manufacturer's care instructions for
information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste.Collection of such waste separately for
special treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the
battery compartment before first use.
NOTE The technical specifications for this product and
the contents of the user manual are subject to change
without notice.
DP200 IM EN R4.indd 6 2007.6.29 2:52:18 PM

EN
7
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
L x W x H 85 x 90 x 90 mm
(3.35 x 3.54 x 3.54 in)
Weight 510 g (17.99 oz)
without battery
Indoor temperature
range
0°C to 50°C
(32°F to 122°F)
Outdoor
temperature range
-30°C to 60°C
(-22°F to 140°F)
Resolution 0.1°C (0.2°F)
Signal frequency 433 MHz
Main power supply DC 5.0V power adapter
Back-up power
supply 1 x CR2032 3 V battery
REMOTE UNIT (THN132N)
L x W x H 92 x 60 x 20 mm
(3.6 x 2.4 x 0.8 in)
Weight 62 g (2.22 oz)
Transmission range 30 m (98 ft) unobstructed
Temperature range -30°C to 60°C
(-22°F to 140°F)
Power 1 x UM-4 (AA) 1.5 V
batteries
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products. If you’re in
the US and would like to contact our Customer Care
departmentdirectly,pleasevisit:www2.oregonscientific.
com/service/support
OR
Call 1-800-853-8883.
For international inquiries, please visit: www2.
oregonscientific.com/about/international
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Radio
Controlled Daylight Projection Clock with Outdoor
Temperature (model: DP200 / DP200A) is in compliance
with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A copy of the signed
and dated Declaration of Conformity is available on
request via our Oregon Scientific Customer Service.
COUNTRIES RTTE APPROVAL COMPLIED
All EU countries, Switzerland CH
and Norway N
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
WARNING Changes or modifications not expressly
DP200 IM EN R4.indd 7 2007.6.29 2:52:18 PM

EN
8
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician
for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact
for support or sales. Please call our customer service
number (listed on our website at www.oregonscientific.
com or on the warranty card for this product) for all
inquiries instead.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th Ave.,Tualatin,Oregon
97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.: DP200 / DP200A
Product Name: Radio Controlled Daylight
Projection Clock with Outdoor
Temperature
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,Phase
1,41 Man Yue St.,Hung Hom,
Kowloon, Hong Kong
is in conformity with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: 1)
This device may not cause harmful interference. 2) This
device must accept any interference received, including
interference that may cause undesired operation.
DP200 IM EN R4.indd 8 2007.6.29 2:52:18 PM

ES
1
Reloj Proyector en luz diurna
Radiocontrolado y con Temperatura
exterior
Modelo: DP200 / DP200A
MANUAL DE USUARIO
ÍNDICE
Resumen............................................................................2
Vista Frontal / Superior LCD...............................................2
Vista Trasera / Inferior ........................................................2
Sensor Remoto...................................................................3
Para Empezar....................................................................3
Suministro De Corriente......................................................3
Sensor Remoto.................................................................3
Transmisión De Datos Del Sensor......................................4
Reloj...................................................................................4
Recepción Del Reloj...........................................................4
Ajuste Manual Del Reloj ....................................................5
Pantalla LCD.....................................................................5
Alarma...............................................................................5
Proyección........................................................................5
Temperatura......................................................................6
Reinicio..............................................................................6
Precaución.........................................................................6
Ficha Técnica....................................................................7
Sobre Oregon Scientific...................................................7
EU - Declaración De Conformidad...................................7
DP200 IM ES R3.indd 1 2007.6.29 2:53:19 PM
