Oregon Mini Grinder User manual

BENCH-MOUNTED MINI GRINDER
120V AND 12V BAR-MOUNTED MINI GRINDERS
FOR ASSEMBLY SET-UP
AND OPERATIONAL USE
THIS MANUAL
CONTAINS
IMPORTANT
INFORMATION
O N ASSEMBLY,
OPERATION,
MAINTENANCE,
AND SAFETY.
PLEASE READ
CAREFULLY.
THESE M INI
GRINDERS MEET
O R EXCEED ALL
APPLICABLE
INDUSTRY
STANDARDS.
ENGLISH
FRENCH
SPANISH
INSTRUCTION MANUAL
C
M
Y
CM
MY
CY
CMY
K
Cop_1190119.pdf 07/02/2006 11.53.13Cop_1190119.pdf 07/02/2006 11.53.13

SAFETY SYMBOLS AND WARNINGS
Used to draw special attention to operator and/or bystanders
to help prevent possible injury.
INSTALLING/DRESSING THE GRINDING WHEEL
There is the risk of severe personal injury from high speed ejection
of material. Read and follow all instructions in this manual.
Always wear eye protection.
A grinding wheel that has been
damaged or improperly installed may
crack and disintegrate during operation.
This can cause wheel fragments to eject
at very high rates of speed.
Always perform proper grinding wheel
maintenance, check for visible cracks
and perform a “ring test.” (A good
grinding wheel will sound a clear musical
tone when tapped gently with metal tool
like an Allen wrench.)
Do not force a grinding wheel onto the
machine or alter the size of the mounting
hole. Do not use a wheel that does not fit
exactly. Use of Oregon®grinding wheels
only is recommended.
Make sure the mounting flange nut is
serviceable and not damaged in any way.
If grinding wheel vibration should occur
when the grinder is started, or running,
stop the machine. Remove and inspect
the mounting flange and the grinding
wheel.
To minimize the risk of injury from
grinding wheel failure, always allow a
new grinding wheel to run at operating
speed for at least one minute before
grinding or dressing.
Do not use the side of the grinding wheel
for grinding.
Always work cautiously, maintain a strong
grip on the dressing brick, and watch
what you are doing.
Dressing the grinding wheel places the
fingers of the operator in close proximity
to the grinding wheel. Contact with a
rapidly turning wheel may result in injury.
Saw chain depth gauges not properly
filed/ground can substantially increase the
risk of kickback and injury. To reduce the
likelihood of kickback, always file/grind
depth gauges to original profile and follow
exactly sharpening instructions for your
saw chain.
OWNER’S INFORMATION AND RESPONSIBILITY
23905_Manual_2004 6-08-2004 8:25 Pagina 2

TABLE OF CONTENTS
▲Introduction 4- 6
Safety Rules and Precautions 4
Parts Included for Assembly 6
▲Assembly Instructions 7- 9
Grounding Instructions 7
Mounting Base Unit to Bench/Wall/Stand 7
Selecting and Mounting The Grinding Wheel 8
Mounting Shield/ Arbor Guard 8
Dressing The Grinding Wheel 9
▲Operating Instructions 10-16
Inspecting the Chain 10
Chain Setup 11
Setting Vise for Top Plate Angle 11
Setting the Chain Stop 11
Setting Grind Depth 11
Grinding Cutters 12

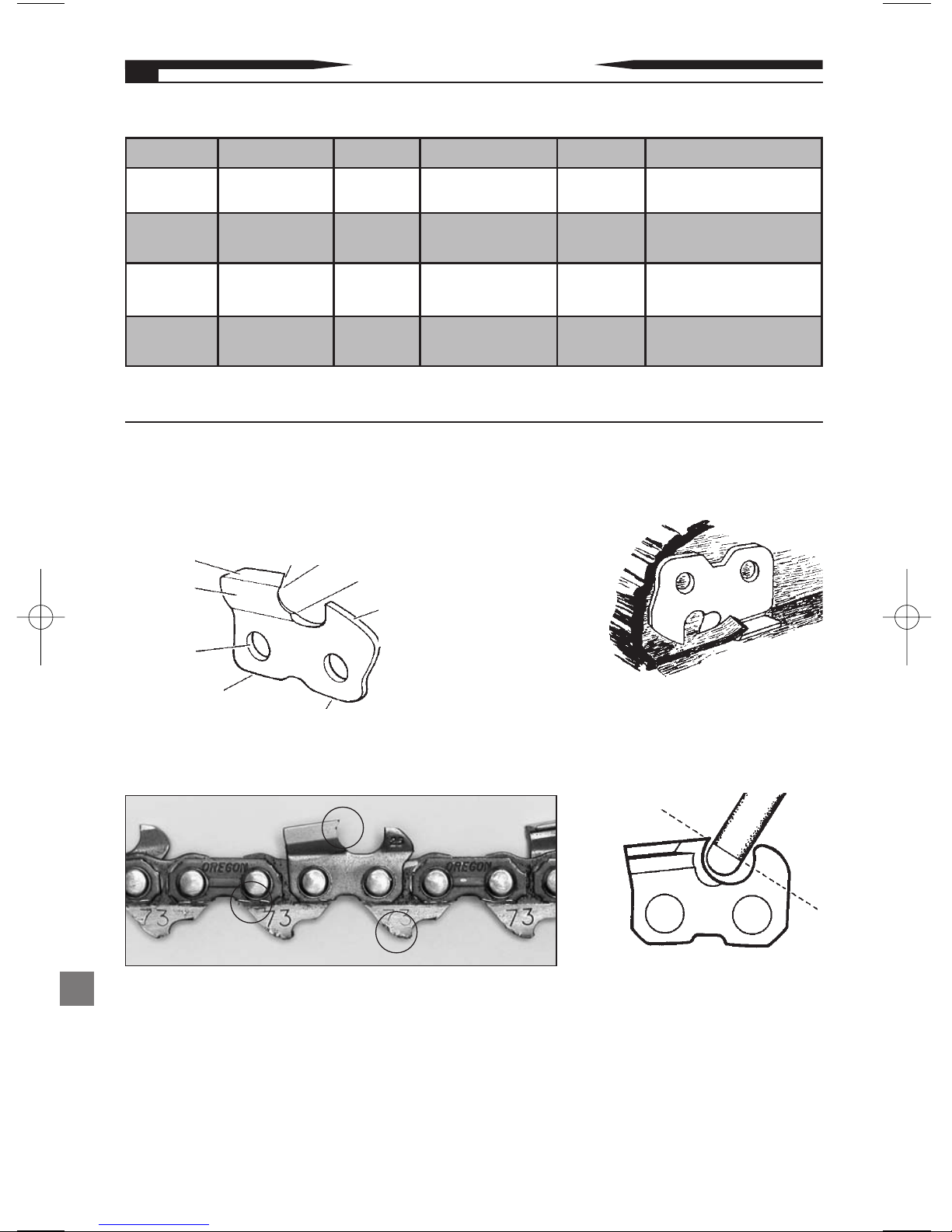

Parts of a Cutter 10
How a Cutter Works 10

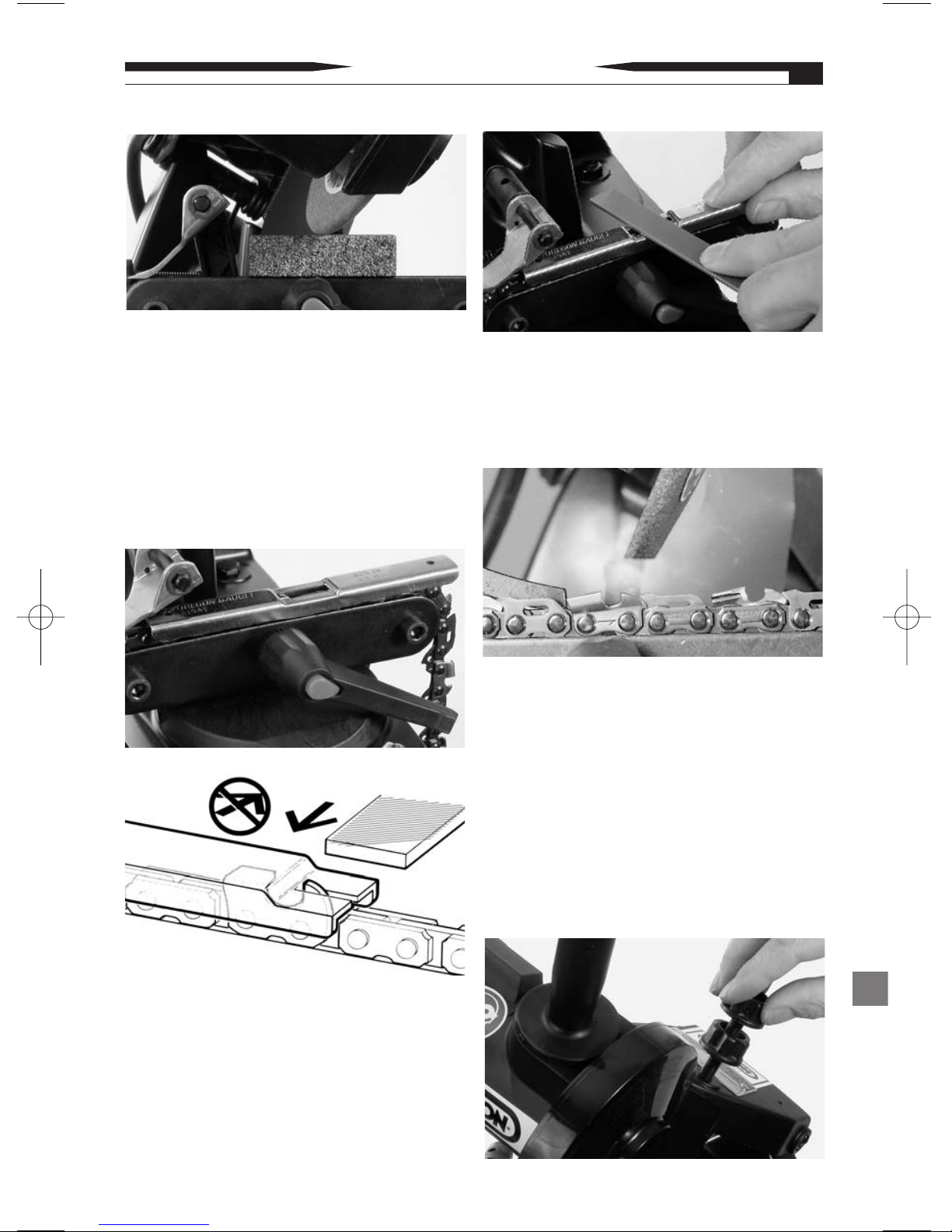

Dressing the Wheel for Depth Gauges 12

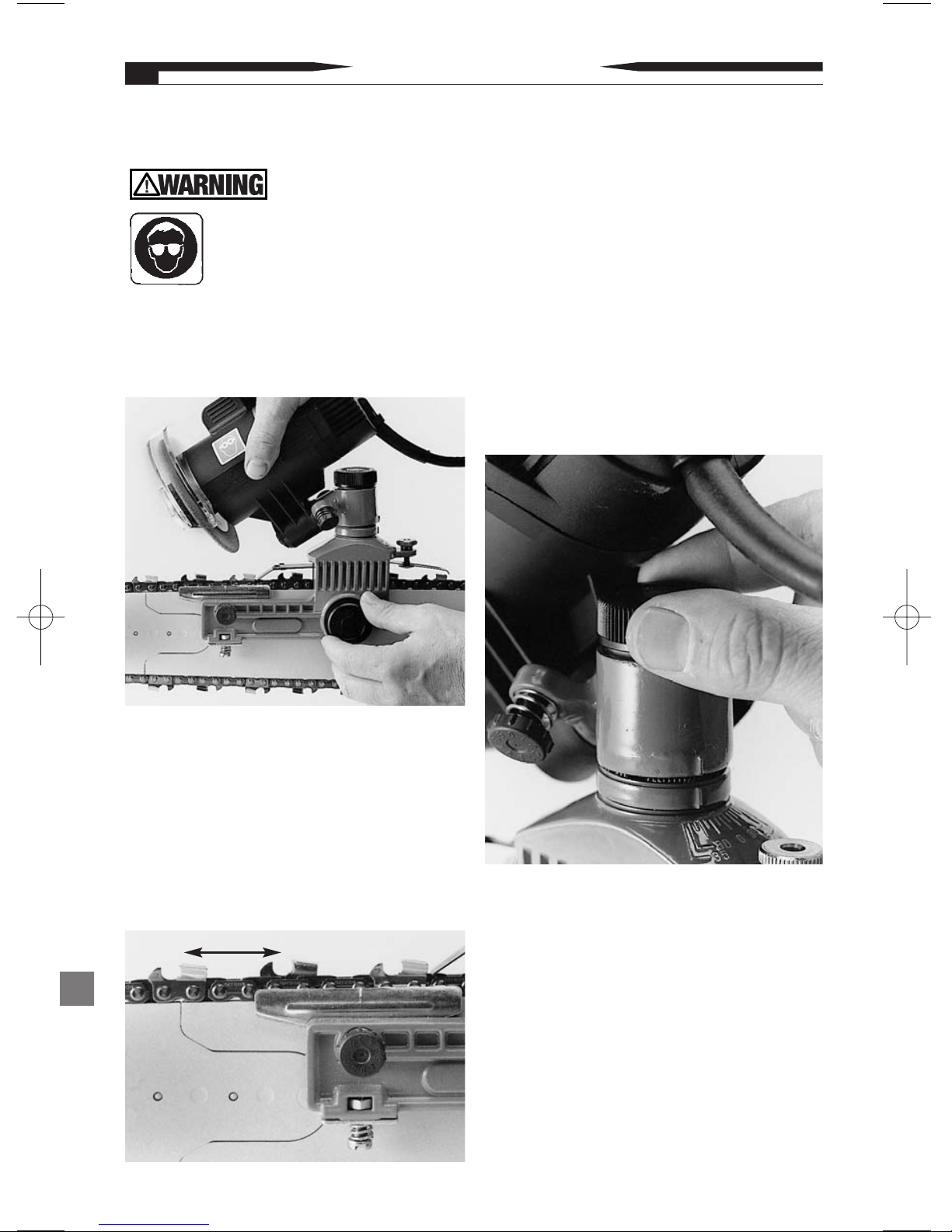

Grinding for a bar-mounted chain 14
▲Chain Grinding Chart 17
▲Grinder Replacement 17 -20
Part Numbers And
Exploded View Parts
23905_Manual_2004 6-08-2004 8:25 Pagina 3

INTRODUCTION
■OPERATION:
Wear safety glasses and gloves when
operating the grinder or while profiling the
wheel with the dressing stone. Everyday eye-
glasses do not have impact resistant lenses
and can not be used as an alternative to
approved safety glasses.
Wear proper apparel. Never wear loose
clothing, neckties, bracelets, rings or other
items that could come into contact or become
entangled with the grinding wheel. Wear
protective hair covering to contain long hair.
Work safely. Work in a stable, safe position.
Serious injury could occur if the grinding wheel
is damaged from inadvertent impact, or if the
cutting tool is unintentionally contacted.
Never attempt to stop the wheel with your
hands. There is risk of injury from contact
with the grinding wheel.
Do not remove, damage or disable any
safety device. Never work with a damaged,
poorly repaired, incorrectly fitted or modified
grinder.
Use grinder only for sharpening saw chain.
Never use the grinder to cut or grind objects
other than saw chain that is secured in the
chain clamping vise.
Remove adjusting keys and wrenches.
Make certain keys and adjusting wrenches
are removed before turning the grinder to
the “on” position.
■GRINDER INSTALLATION:
Secure the grinder to bench or wall. Make
sure that the grinder is secured as shown in
Figure 1, Page 7 or Figure 2, Page 8.
Use proper extension cord. Make sure any
extension cord used for your grinder is in good
condition and is heavy enough to carry the
current you will need to perform the grinding
operation. See Table 1, Page 10 for required
extension cord size. If in doubt, use the next
heavier cord (the next smaller gauge is the
heavier cord).
FOR YOUR OWN SAFETY, READ THIS INSTRUCTION MANUAL
BEFORE OPERATING THIS GRINDER.
■Keep this manual for future reference.
■ To ensure the correct use of the grinder
and to prevent accidents, do not start
working without reading this
manual carefully.
■ This manual explains how the various
components work and provides instructions
for carrying out the necessary checks and
maintenance operations.
SAFETY RULES AND PRECAUTIONS
There is risk of serious personal injury to the operator or to bystanders
from high speed ejection of particles or from electrical shock. Read
and follow all instructions in this manual. Do not use accessories or
attachments not recommended for this tool. Do not use this tool
if the wheel guard is broken or missing.
4
23905_Manual_2004 6-08-2004 8:25 Pagina 4

INTRODUCTION
Avoid damage to electrical cords. Keep the
electric cords away from heat, oil, sharp objects
and away from contact with the grinding wheel.
Do not jerk the cord to disconnect it from the
electrical outlet, and make certain the cord is
not under tension when in use.
Do not use damaged or defective cords
or plugs. Remove the plug from the outlet
immediately if it is damaged or cut. Never
use cords that are defective or non-standard.
Before starting the grinder, make certain it
is secure, and that the grinding wheel is
correctly installed. Check to make sure all
devices, those for safety and others, are in
good working order and free from obvious
damage that could affect performance and
safety or reliability during use.
Reduce the risk of unintentional starting.
Make certain the start switch is in the “0”
(off) position before connecting the plug to
the outlet.
■GRINDER MAINTENANCE:
Read and follow all maintenance instructions
in this manual. It is critical that grinding
wheels are fitted properly and that they are
free of defects. – do not over tighten the wheel
retaining nut.
Keep guards in place and in good working
order. Never use the grinder with a damaged
wheel guard, or if the wheel guard is missing.
Disconnect power cord before servicing.
Make sure the plug is disconnected when
performing maintenance or when fitting
or changing the grinding wheel.
Use only recommended accessories or
replacement parts. Use only wheel mounting
flanges furnished with the grinder, as incorrect
flanges can cause the wheel to break, leading
to high speed ejection of parts.
Use only recommended grinding wheels.
Refer to Table 2, Page 17 for wheel size.
Wheel hole size must fit the grinder arbor size
exactly. Arbor size is identified on the grinder
identification plate. Check replacement
wheels for cracks – see procedure Page 8,
Paragraph B.
■WORKING ENVIRONMENT:
Don’t use in a dangerous environment.
Do not use your grinder in damp or wet
locations, or in an explosive or flammable
atmosphere.
Keep work area clean and well lighted.
Cluttered or dirty work areas invite accidents.
Make sure that the working area of the grinder
is free of tools or other objects before starting.
Frequently clean grinding dust from beneath
the grinder.
Keep children or other bystanders away.
All bystanders should be kept a safe distance
from work areas. Your grinder should be
secured to avoid access to children or other
untrained users.
5
23905_Manual_2004 6-08-2004 8:25 Pagina 5

6
5
4
3
2
7
1
9
11 12
10
INTRODUCTION
Refer to this page when following assembly instructions which call out a specific name
and part number.
These parts are included to complete the assembly of the OREGON®
Bench-Mounted Mini Grinder.
1. Depth adjustment knob
2. Grinding wheel, 3/16"
3. Shield guard
4. Large washer
5. Flange nut
6. Shield guard screw
7. Knob
8. Vise assembly
9. Dressing brick
10. Template
11. Handle bolt
12. Operating handle
Note: For Replacement parts of bench-mounted or bar-mounted mini grinders, see the exploded
view descriptions on pages 18 through 20.
PARTS INCLUDED FOR ASSEMBLY
6
8
23905_Manual_2004 6-08-2004 8:25 Pagina 6

ASSEMBLY INSTRUCTIONS
The grinder must be used only in a place that is protected from dust
and dampness, that is well-lighted, out of the reach of children, and away
from gases or other flammable or explosive liquids.The grinder must
be situated near a normal electrical outlet equipped with earth (grounded).**
Avoid using dangerous extension cords (See Table 1, page 10).
**Grounding Instructions.
1. In the event of malfunction or breakdown,
grounding provides a path of least
resistance for electric current to reduce
the risk of electric shock. This grinder is
equipped with an electric cord having an
equipment-grounding conductor and
grounding plug that looks like the plug
illustrated in Figure B. The plug must be
plugged into a matching outlet that looks
like the one in Figure A. This outlet must
be properly installed and grounded in
accordance with all local codes
and ordinances.
2. Do not modify the plug provided.
If it will not fit the outlet, have the proper
outlet installed by a qualified electrician.
Alternatively, a temporary adapter which
looks like the one shown in Figure C can
be use if the wall outlet to be used does
not have a three-prong configuration.
3. Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. If repair or replacement
of the electric cord or plug is necessary,
do not connect the equipment-grounding
conductor to a live terminal. The conductor
with insulation having an outer surface that
is green, with or without yellow stripes, is
the equipment-grounding conductor.
4. Use only three-wire extension cords
that have three-prong grounding plugs
and three-pole receptacles that accept
the grinder’s plug. Repair or replace
a damaged or worn cord immediately.
See Table 1, page 10 for extension cord
requirements.
5. Check with a qualified electrician if the
grounding instructions are not completely
understood, or if in doubt as the whether
the tool is properly grounded.

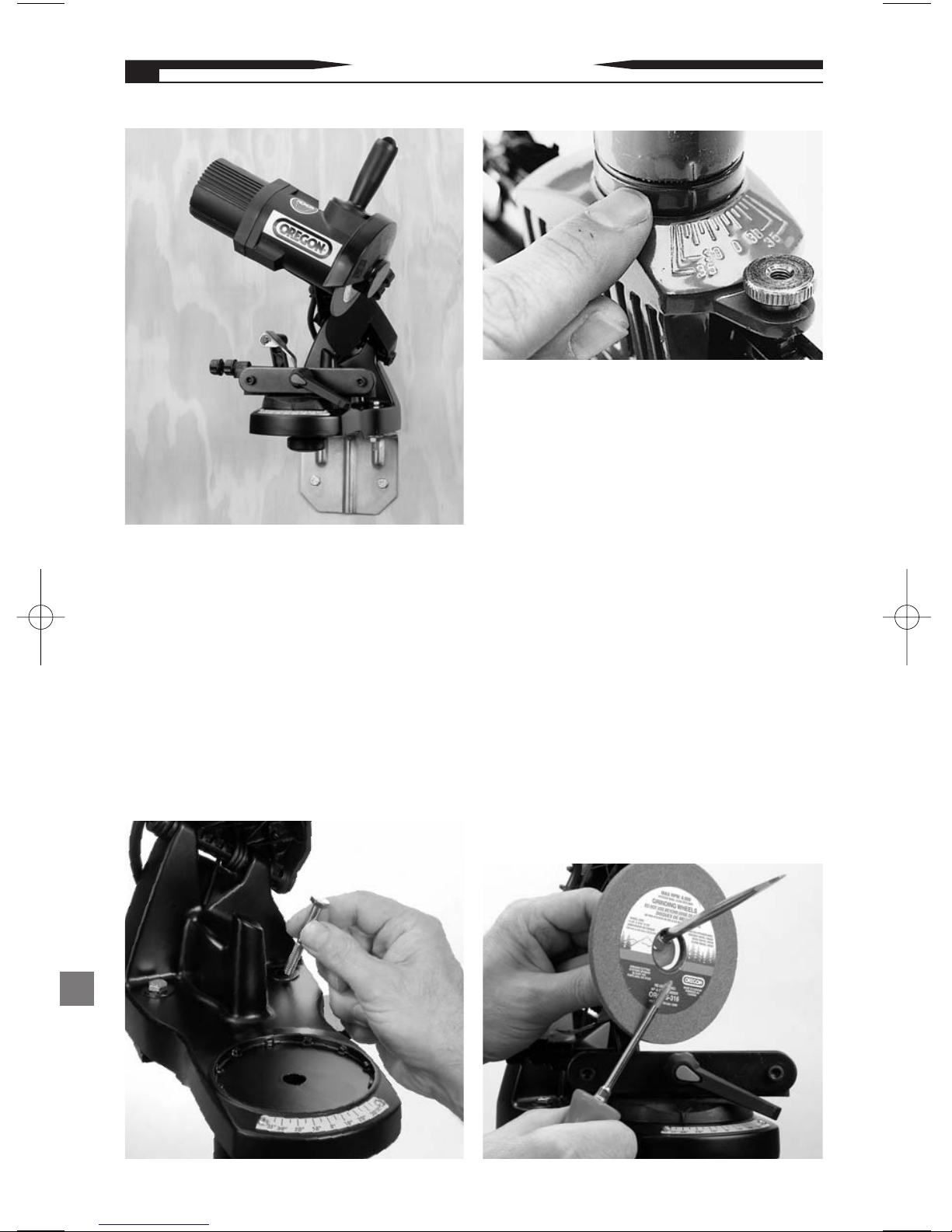

Assembly/Setup
A. Mount Grinder to a Bench/Wall/Stand:
1. Mount the unit to a workbench using nuts
and bolts (see Figure 1).
Figure 1
7
Bench
Alignment Notch
23905_Manual_2004 6-08-2004 8:25 Pagina 7

ASSEMBLY INSTRUCTIONS
2. For correct bench positioning, use the
notch on the base of the grinder (see inset
photo, Figure 1, page 7).
3. To mount the unit to a workshop wall, use
optional wall/vise mount fixture assembly,
part no. 109430 (see Figure 2). The optional
wall/vise mount fixture can be used with a
common industrial sized bench vise.
4. To mount the unit to a stand use nuts and
bolts (see Figure 3).
Note: The bar-mounted grinder units
come assembled with a spacer that is
required to sharpen standard type-chains
(see Figure 4). This spacer must be
removed to sharpen all other types of chain.
B. Selecting and Mounting the Grinding
Wheel:
1. For the appropriate size grinding wheel
see table 2 on page 17.
2. Make sure that the grinding wheel is in
perfect condition. Hang the wheel by the
center hole and tap it lightly with a metal
object on one side near the perimeter. If a
flat tone is heard it may be cracked or
broken. Do not use! (see Figure 5 ).
3. Remove the black plastic shield from
the unit by first removing the position lock
screw, then the shield (see Figure 6, page 9).
Figure 2
Figure 3
Figure 4
Figure 5
8
23905_Manual_2004 6-08-2004 8:25 Pagina 8

Note: Inspect the shield for cracks or
obvious defects prior to reinstallation.
4. Remove the large plastic grind wheel outer
retaining flange nut (see Figure 7).
5.Position the desired grind wheel securely
onto the shaft arbor fitting and reinstall the
washer and outer retaining flange nut (see
Figure 7). Tighten by hand only, being
careful not to over-tighten the flange nut.
6.Reinstall the plastic shield and secure with
the position lock screw (see Figure 8).
Note: Do not over-tighten the lock screw.
7.Connect the plug to a serviceable electrical
outlet, move to the side of the unit, and
turn the grinder to the on position (see
Figure 15, page 12).
8. From a safe distance at the side of the unit,
observe the grinding wheel as it turns to
make sure it does not wobble.
Replace the wheel if necessary.
C. Dressing The Grinding Wheel:
1. With the grinder in the off position (see
Figure 15, page 12), check the profile of the
wheel using the template (item 10, page 6).
If necessary, dress the wheel (power on)
using quick, light strokes with the brick to
form the desired profile (see Figure 9).
2. Turn the unit off and re-check the wheel
profile. If necessary, redress the wheel until
the desired profile is obtained.
ASSEMBLY INSTRUCTIONS
Figure 7
Figure 8
Figure 9
9
Figure 6
Note:
Place the washer’s
flat side flush against
the grind wheel.
23905_Manual_2004 6-08-2004 8:25 Pagina 9

OPERATING INSTRUCTIONS
Volts Cord length Amps Gauge needed Amps Gauge needed
115/120V 25 ft 0 - 6 18 10 - 12 16
6 - 10 18 12 - 16 14
115/120V 50 ft 0 - 6 18 10 - 12 16
6 - 10 18 12 - 16 14
115/120V 100 ft 0 - 6 16 10 - 12 14
6 - 10 14 12 - 16 not recommended
115/120V 150 ft 0 - 6 14 10 - 12 12
6 - 10 12 12 - 16 not recommended
Table 1 Extension Cord Requirements
Inspecting the Chain
Always inspect an incoming cutting chain and review any
problems with owner or user. Always check for proper
installation of tie straps and/or reversed drive links.
How a Cutter Works
A. Depth gauge
(controls bite of
the cutter).
B. Working corner
(slices the cross
grain – does most
the work).
C. Top plate edge (lifts out chips after cross grain
has been cut).
D. Heel and toe (support cutter while working).
Top Plate
Side Plate
Rivet Hole
D. Heel
E. Toe
C. Top Plate
Edge B. Working Corner
A. Depth
Gauge
Parts of a Cutter
Gullet
Note: For proper side plate angle,
do not grind the gullet deeper
than where the grinding wheels’
radius meets the flat of the wheel.
10
23905_Manual_2004 6-08-2004 8:25 Pagina 10

OPERATING INSTRUCTIONS
Grinding A Chain
Immediately unplug the
power cord if the motor
does not turn the grind wheel
when the grinder power switch
is in the “on” position. Refer to
page 7: **Grounding Instructions.
1. For best results it is recommended that
the chain be clean before grinding.
2. Always wear approved eye protection
during all steps of the grind operation and
when the grind wheel is in motion.
3. Grind all cutters of the same type (left or
right) before positioning the grinding wheel
to the opposite side.
4. When changing the grind position, make
sure the unit is turned to the “off” position
(“o” Figure 15, page 12) and the wheel
has come to a full stop before making
any adjustments.
5. To avoid overloading the motor and prevent
damage to the saw chain, remove only the
minimum amount of material necessary
and do not grind any one tooth for too
long a period.
6. Do not use cooling liquids while grinding.
7. Replace worn grinding wheels when the
diameter of the wheel reaches 70mm (2.8”).
Note: Always remember to turn the grinder
to the “off” position when not in use.
D. Low-Profile Grinding for
Bench/Wall/Stand Mounted
Workstations:
There is risk of serious
personal injury for chain
saw operators or bystanders from improperly
sharpened saw chain. Read and follow all
manufacturer’s instructions for your chain saw.
1. Position the saw chain to be ground onto
the vise (see Figure 10).
2. Use reference table 2 page 17 , select type
of chain, rotate vise to appropriate angle
for left and right cutters (see Figure 11 ).
Note: All adjustments must be made prior
to applying power to the unit.
3. Set the chain stop into the desired grind
position (see Figure 12 ).
4. Lower the grind head into the grind
position and adjust depth adjustment
knob (see Figure 13, page 12).
5. After all adjustments have been made,
engage the vise clamping feature by
depressing the red push button and rotating
the adjustment knob in a clockwise direction
until the saw chain is firmly held in position
for grind operation (see Figure 14, page 12).
Figure 11
Chain
Direction
Figure 10
Figure 12
11
Chain Stop
Adjustment
Knob
Chain
Stop
23905_Manual_2004 6-08-2004 8:26 Pagina 11

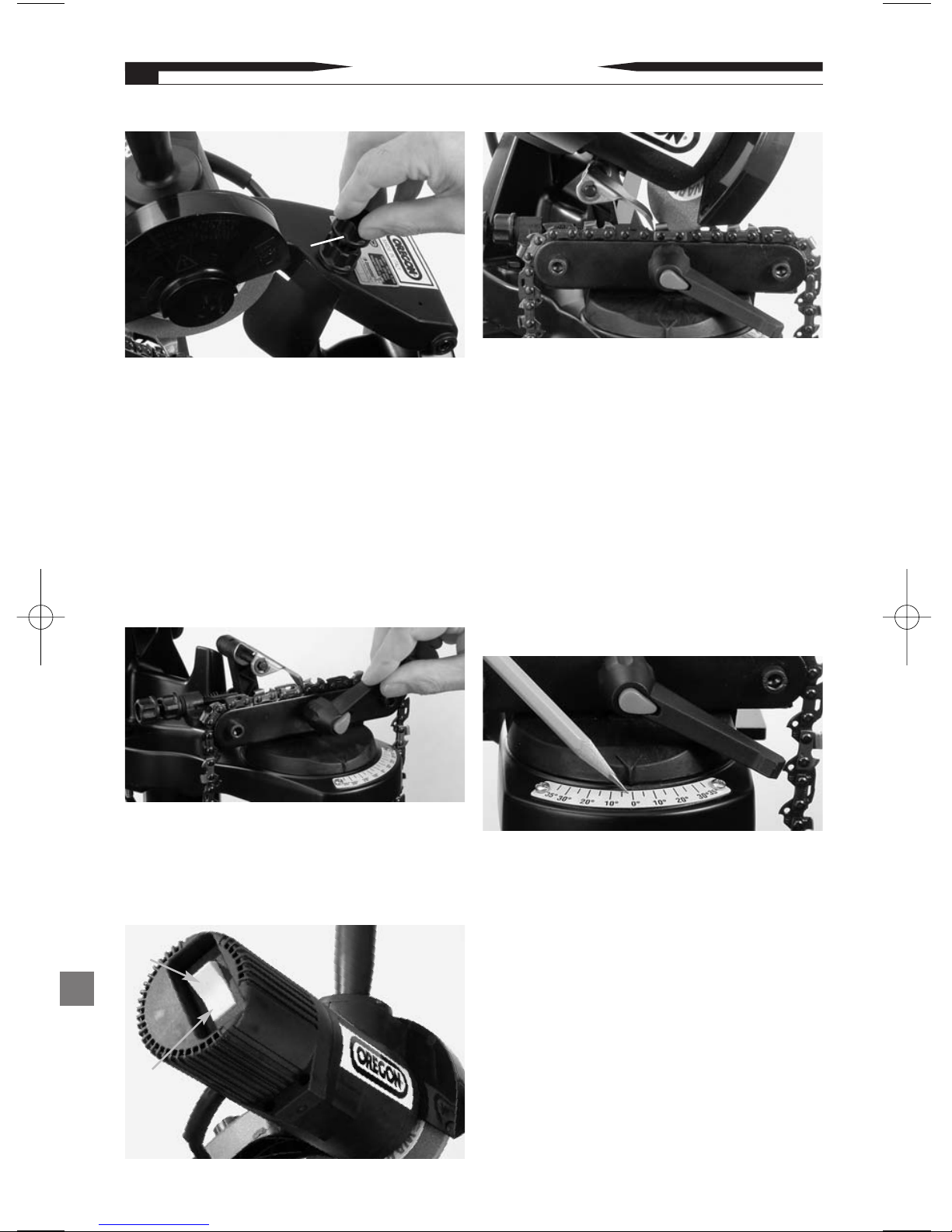

6. Turn the unit on by pressing the on-switch
located on the backside of the motor (the
white switch with the dash mark pushed
down) (see Figure 15).
7. Lower the grind head/wheel into the grind
position and grind the chain cutter (see
Figure 16).
Note: Use several light downward motions
when grinding to prevent burning of the
cutter during grind.
8. After grind is complete, allow the grind
head/wheel to raise to the upper rest
position.
9. Disengage the clamping feature by
depressing the red push button and rotating
the adjustment knob in a counterclockwise
direction. Then move the saw chain, while
still positioned in the vise, to the next cutter
to be ground.
Note: Grind all like cutters in a sequence
first. Example - If the first cutter to be
ground is a right hand cutter, then grind all
right hand cutters before changing the
grind setting to the left hand grind position
or vice versa.
10. Once all cutters of the same side (left or
right) have been ground, repeat steps 2 - 9
in section D, on opposite side cutters.
E. Setting the Depth Gauge:
1.To set the depth gauge the grinder head
is preset to 60°. Install the 1/4” wheel
(sold separately, Part No. OR-4125-14).
Set vise angle to 0°. (see Figure 17).
2.
To dress the wheel for depth gauges, place
dressing brick level on top of chain vise, then
lower the wheel onto the grinding brick.
Grind surface until shape for wheel is parallel
with chain vise (see Figure 18, page 13).
OPERATING INSTRUCTIONS
Figure 13
Figure 14
Figure 15
Figure 16
12
OFF
ON
Figure 17
Depth
Adjustment
Knob
23905_Manual_2004 6-08-2004 8:26 Pagina 12

Note: When dressing the grinding wheel,
use intermittent strokes. Using steady
pressure on dressing brick can cause it to
burn and shorten the life of the brick.
3.Place an Oregon®Gaugit (depth gauge
setting tool) on the chain in the vise over
the depth gauge portion of the cutter (see
Figure 19 ).
Note: Gaugit not included. Refer to table 2,
page 17, for the correct depth gauge tool
for chain type.
4.With an Oregon®flat file (P/N 12211), file
the first depth gauge (see Figure 20).
Note: The Oregon®flat file (P/N 12211) is
not included.
5.Remove the gaugit and lower the grinding
wheel so that it touches the portion of the
depth gauge that has just been hand filed
(See Figure 21).
6. Set the depth adjustment knob and lock
into place. This has just set the depth of
grind for the rest of the depth gauges (See
Figure 22).
7. Grind all depth gauges.
8. After all grinding actions have been
completed, turn off the unit using the
white on-off switch (see Figure 15,
page 12).
OPERATING INSTRUCTIONS
Figure 19
Figure 20Figure 18
Figure 21
13
Figure 22
23905_Manual_2004 6-08-2004 8:26 Pagina 13

There is risk of serious
personal injury for chain
saw operators or bystanders from
improperly sharpened saw chain.
Read and follow all manufacturer’s
instructions for your chainsaw.
1. Position the grinder onto the chainsaw bar
as illustrated in Figure 23.
2. While holding the grinder assemblies guide
plates in the proper position, tighten the
mounting screw knob to secure the unit to
the chainsaw bar. Adjust the left and right
guide plate adjustment screws to the
desired tension. Move the saw chain along
the bar to make sure guide plates are not
over-tightened (see Figure 24).
Note: Repeat steps 2 through 6 in Section
B (see pages 8-9) for selecting/installing
the grinding wheel.
3. With the grinder firmly mounted onto the
chainsaw bar, loosen swivel positioning
adjustment knob and rotate the grind
head/wheel into appropriate position to
grind left or right cutters (reference table 2,
page 17) using the degree markings
embossed onto the rear of the mounting
assembly (see Figure 25).
Note: All adjustments must be made prior
to applying power to the unit.
4. Position the cutter to be ground (left or
right) into the appropriate grind position
(See Figure 26, page 15).
5. Move the chain stop into the proper posi-
tion by loosening finger wheel nut on back
end of unit and sliding the stop forward or
backwards depending on current position
(See Figure 27, page 15).
OPERATING INSTRUCTIONS
14
Figure 23
Figure 24
Figure 25
LOW-PROFILE GRINDING FOR A BAR-MOUNTED CHAIN
23905_Manual_2004 6-08-2004 8:26 Pagina 14

OPERATING INSTRUCTIONS 15
6. Once the cutter is in the grind position and
the chain stop is in the desired position,
rotate the grind head/wheel down into the
grind position and adjust the appropriate
depth stop adjustment knob/wheel on the
lower left or right side of the motor (see
Figure 28).
7. With all initial adjustments made to the
grinder, connect the unit to the appropriate
power source (115 V electrical outlet or 12 V
external battery) depending on the unit
being used.
Figure 28
Figure 29
Figure 27
OFF ON
Figure 26
23905_Manual_2004 6-08-2004 8:26 Pagina 15

8. Turn the unit on by pressing the on-switch
located on the back side of the motor (the
green oval indicator with a white dash) (see
Figure 29 ).
9. Lower the grind head/wheel into the grind
position and grind the chain cutter (See
Figure 30).
Note: Use several light downward motions
when grinding to prevent burning of the
cutter during grind.
10. After grind is complete, allow the grind
head/wheel to raise to the upper rest position.
11. Using caution, pull the saw chain forward
on the bar until the next cutter to be ground
is in the appropriate position. Then repeat
steps 7-10 until all cutters (left or right)
have been ground.
12. Once all cutters of the same side (left or
right) have been ground, repeat steps 9-11
on the opposite side cutters.
13. After all grinding actions have been com-
pleted, turn off the unit by pressing the red
oval indicator with a white circle
(see Figure 29, page 15).
G. Setting the Depth Gauge:
1.Place an Oregon®Gaugit (depth gauge
setting tool) on the chain in vise over the
depth gauge portion of the cutter (see
Figure 31).
Note: Gaugit not included. See page 17 to
locate the correct depth gauge tool for
chain type.
2.With an Oregon®flat file (P/N 12211), file
the first depth gauge (see Figure 32).
Note: The Oregon®flat file (P/N 12211) is
not included.
3.File all depth Gauges.
OPERATING INSTRUCTIONS
16
Figure 32
Figure 31
Figure 30
23905_Manual_2004 6-08-2004 8:26 Pagina 16

GRINDING CHART 17
*Optional file size 5/32" (4.00mm) file and P/N 37534. For depth-gauge, use Oregon®flat file P/N 12211
*Note: Chart to be used for general maintenance reference only. *Note: Vise on Bench Mounted Mini Grinder does not tilt. Grind head is set at 60° for top-plate cutting angle.
GRINDING GRINDING FILE DEPTH TOP PLATE SIDE
CHAIN WHEEL WHEEL FILE GUIDE DEPTH GAUGE GRINDING PLATE
TYPE WIDTH P/N SIZE P/N GAUGE P/N ANGLE ANGLE
Oregon®Chain
Part Number
16H, 18H 3/16" OR4125-316 7/32" 31686 .050" 38850 35° 80° 20, 21, 22BP 3/16" OR4125-316 3/16" 31690 .025" 31941 30° 85° 20, 21, 22JP, LP 3/16" OR4125-316 3/16" 31690 .025" 31941 25° 60° 25AP 1/8" OR4125-18 5/32" 37534 .025" 22290 30° 85° 27, 27A 3/16" OR4125-316 7/32" 31686 .030" 22291 35° 80° 27R, RA 3/16" OR4125-316 7/32" ------- .030" 22291 10°/15° 75° 33, 34, 35LG, SL 1/8" OR4125-18 4.5mm* 31692* .025" 31941 25° 60° 72, 73, 75V 3/16" OR4125-316 7/32" 31686 .025" 31941 25° 60° 72AP, 72, 73, 75DP 3/16" OR4125-316 7/32" 31686 .025" 31941 35° 85° 72, 73, 75JG, JP, LG, LP 3/16" OR4125-316 7/32" 31686 .025" 31941 25° 60° 72, 73, 75RD 3/16" OR4125-316 7/32" ------- .025" 31941 10°/15° 75° 90JG, SG 1/8" OR4125-18 4.5mm 31692* .025" 31941 30° 75° 91VG, VJ, VS, P, PJ 1/8" OR4125-18 5/32" 37534 .025" 31941 30° 80° 91R 1/8" OR4125-18 5/32" 37534 .025" 31941 5° 80° 95R 3/16" OR4125-316 3/16" ------- .030" 22291 5° 75° 95VP 3/16" OR4125-316 3/16" 31690 .025" 31941 30° 80°
Table 2
23905_Manual_2004 6-08-2004 8:26 Pagina 17

6
7
5
9
10
1
11
24
3
8
EXPLODED VIEWS
18
Item Part
No. No. Description
1 110579 CHAIN STOP RETROFIT KIT
2 111941 ALUMINUM ARBOR RETROFIT KIT
3 109169 PLASTIC FLANGE, OUTER
4 109170 PLASTIC GUARD/SHIELD
5 109171 VISE POSITION/TENSION ADJUSTMENT KNOB
6 109172 VISE PLATE, MINI GRINDER
7 109174 RETURN SPRING, CHAIN ADVANCE
8 109175 RETURN SPRING, GRIND LEVER
9 108205 KNOB KIT, HEIGHT ADJUSTMENT
10 108290 KNOB
11 105538 HANDLE KIT
12 35596 TEMPLATE
13 DB-2 DRESSING BRICK
Bench-Mounted Mini Grinder
12
13
23905_Manual_2004 6-08-2004 8:26 Pagina 18

EXPLODED VIEWS 19
12V Bar-Mounted Mini Grinder
32
19
5
4
7
8
6
7
8
12-VOLT BAR MOUNTED MINI GRINDER (P/N 109178)
Item Part
No. No. Description
1 111941 ALUMINUM ARBOR RETRO FIT KIT
2 109169 PLASTIC FLANGE, OUTER
3 109170 PLASTIC GUARD/SHIELD
4 108206 STOP SPRING
5 108207 MOUNT ADJUSTMENT NUT, STOP SPRING
6 108208 JAW PLATE
7 108209 ADJUSTMENT KNOB, JAW PLATE/STOP
8 108210 TENSION SPRING, JAW PLATE/STOP
9 108289 SWIVEL EXTENSION BLOCK
23905_Manual_2004 6-08-2004 8:26 Pagina 19

EXPLODED VIEWS
20
115V bar-mountedMini Grinder
115-VOLT BAR MOUNTED MINI GRINDER (P/N 109176)
3
2
19
5
4
7
8
6
7
8
Item Part
No. No. Description
1 111941 ALUMINUM ARBOR RETRO FIT KIT
2 109169 PLASTIC FLANGE, OUTER
3 109170 PLASTIC GUARD/SHIELD
4 108206 STOP SPRING
5 108207 MOUNT ADJUSTMENT NUT, STOP SPRING
6 108208 JAW PLATE
7 108209 ADJUSTMENT KNOB, JAW PLATE/STOP
8 108210 TENSION SPRING, JAW PLATE/STOP
9 108289 SWIVEL EXTENSION BLOCK
23905_Manual_2004 6-08-2004 8:26 Pagina 20
