Oriental motor SPR II Series User manual

HL-17013
SPRⅡSeries Slides
OPERATING MANUAL
Thank you for purchasing an Oriental Motor product.
This Operating Manual describes product handling procedures.
・Please read this Operating Manual and the separate manual entitled “BEFORE USING THE PRODUCT” thoroughly to
ensure safe operation.
・Always keep the manual where it is readily available.
Table of contents
1Introduction .................................................2
1.1 Compliance with the EC Directives....................2
1.2 Names of parts ...................................................3
2Installation ...................................................4
2.1 Changing the motor cable’s routing direction
(SPR6, SPR8 only) ..............................................4
2.2 Motorized linear slides installation .....................6
2.3 Installing a frame cover ......................................6
2.4 Installing a load ..................................................7
2.5 Installing the sensor and sensor cable holder....8
3Connection ................................................ 11
3.1 Confirmation of controller key designation.......11
3.2 Connection of motor cable ...............................11
4Inspection..................................................12
4.1 Inspection items and timing .............................12
4.2 External check and cleaning ............................12
4.3 Internal check/cleaning and greasing ..............13

1 Introduction
－2－
1 Introduction
1.1 Compliance with the EC Directives
The SPRKslides bear the CE Mark indicating their compliance with the EMC Directive. The controllers
combined with the SPRAand SPRCslides bear the CE Mark, but they do not conform to the EC
Directives if combined with a motorized linear slides.
• Installation condition
SPRK
Overvoltage category Ⅰ
Pollution degree 2
Protection against electric
shock ClassⅢequipment
Noise level 71 dB
• Environmental condition
Operation environment Storage environment Shipping environment
Ambient
temperature
0 to +40 °C
(32 to +104 °F)
(non-freezing)
0 to +50 °C
(32 to +122 °F)
(non-freezing)
- 20 to +60 °C
(
- 4 to +140 °F)
(non-freezing)
Ambient
humidity 85% or less (non-condensing)
Altitude Up to 1000 m (3300 ft.)
above sea level
Up to 3000 m (10000 ft.)
above sea level
Surrounding
atmosphere
• Area that is free of explosive atmosphere or toxic gas (such as sulfuric gas) or liquid
• Area not exposed to direct sun
• Area free of excessive amount of dust, iron particles or the like
• Area not subject to splashing water (rains, water droplets), oil (oil droplets) or other
liquids
• Area free of excessive salt
• Area not subject to continuous vibration or excessive shocks
• Area free of excessive electromagnetic noise (from welders, power machinery, etc.)
• Area free of radioactive materials, magnetic fields or vacuum
 EMC Directive
EMC of SPRKhas been measured in combination with a linear motion controller. Be sure to measure EMC
of the applicable equipment after installing this product, by referring to “Installing and wiring in compliance
with EMC Directives” in the Linear Motion Controller OPERATING MANUAL.
 Machinery Directive
Motorized linear slides is designed and manufactured for use as an internal component for general industrial
equipment, and therefore need not comply with the Machinery Directive. Nonetheless, they are evaluated
under the following standards:
Applicable Standards: EN ISO 12100-1, EN ISO 12100-2, EN 1050, EN 60204-1

1 Introduction
－3－
1.2 Names of parts

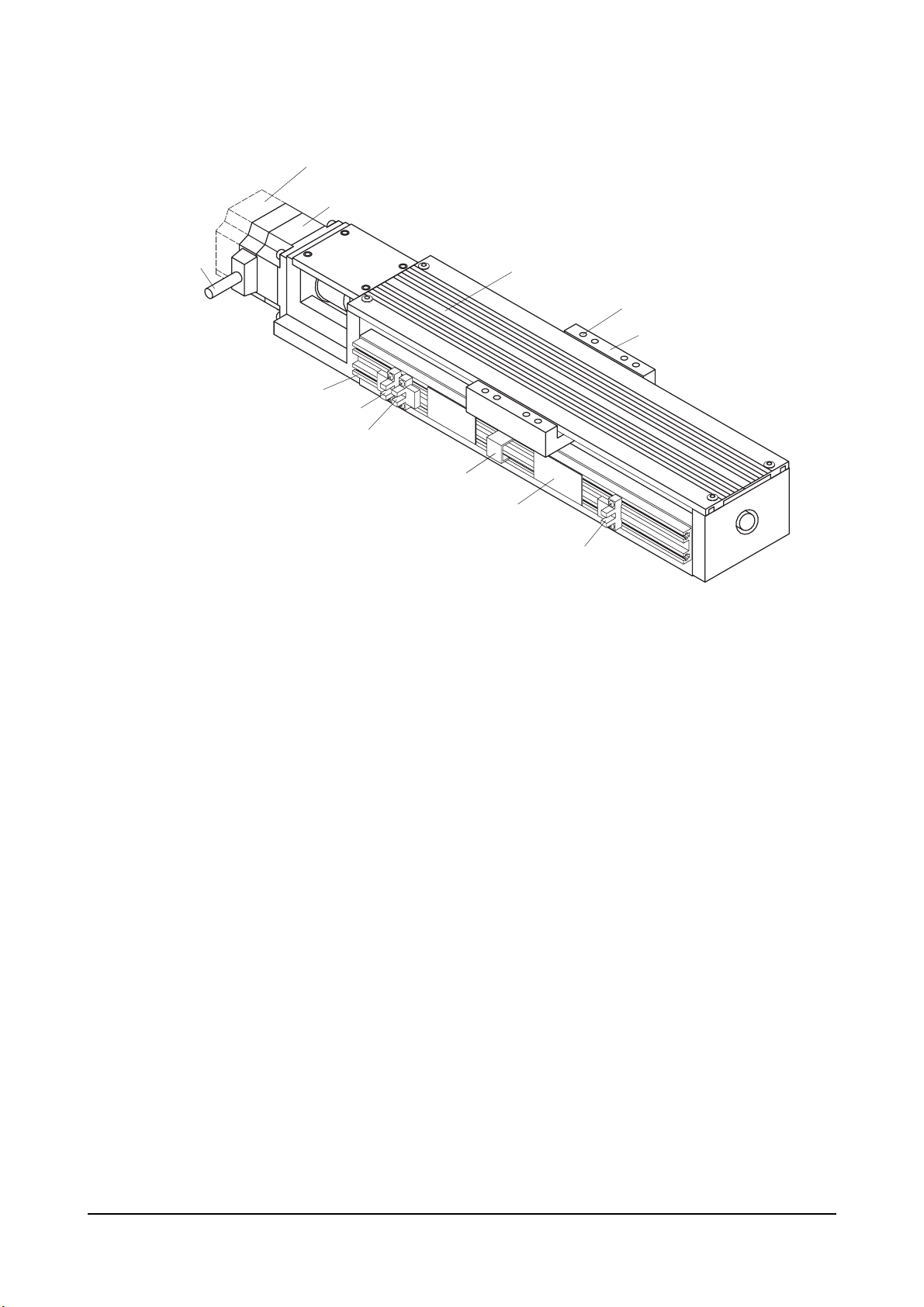

The figure shows the slides with the frame cover, sensors and sensor cable holders attached.
Motor
Tabl e
Shielded plate
Frame cover
+LS sensor
HOME sensor
- LS sensor
Sensor cable holders
Load mounting holes
Electromagnetic brake
(Only when an electromagnetic brake is supplied)
Motor cable
T-grooves

2 Installation
－4－
2 Installation
2.1 Changing the motor cable’s routing direction (SPR6, SPR8 only)
The motor cable can be routed in two directions on the SPR6 (left and right), and in four directions on the
SPR8 (top, bottom, left and right).
Note Change the motor cable’s routing direction before installing/connecting the motorized
linear slides.
 SPR6
1. Loosen and remove the hexagonal socket head screws.
Motor Hexagonal socket head screws
2. Turn the motor to change the motor cable’s routing direction.
3. Affix the motor mounting plate with the hexagonal socket head screws removed in step 1.
Tightening torque: 1.5 N·m (213 oz-in)

2 Installation
－5－
 SPR8
1. Loosen and remove the hexagonal socket head screws.
Motor
Hexagonal socket head screws
2. Turn the motor to change the motor cable’s routing direction.
3. Affix the motor with the hexagonal socket head screws removed in step 1.
Tightening torque: 2.4 N·m (340.8 oz-in)

2 Installation
－6－

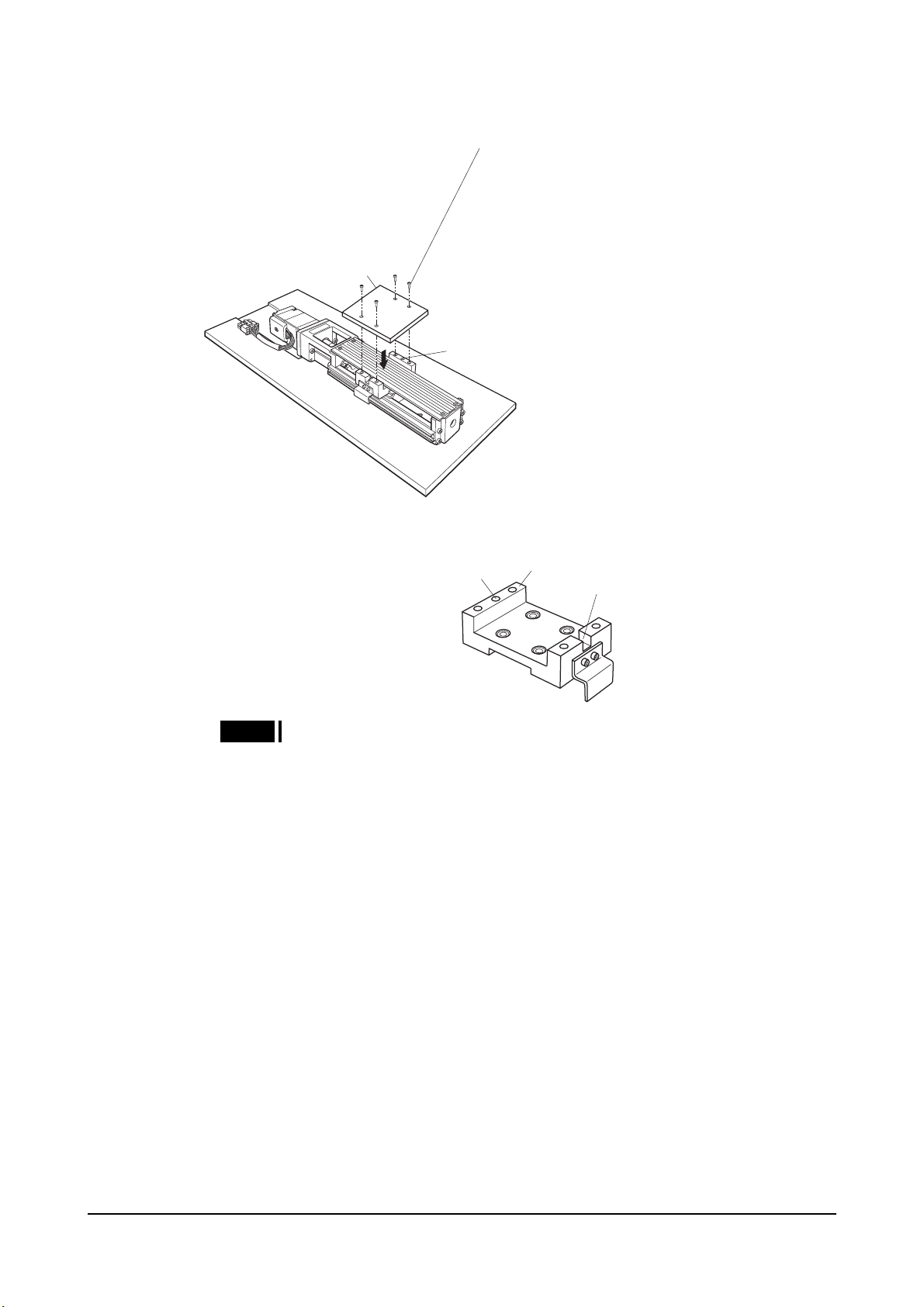

2.2 Motorized linear slides installation

SPR4
Mounting plate
Height gap : 1 mm (0.039 in.)
Hexagonal socket head screws (included)
Tightening torque: 1.5 N·m (213 oz-in)
Mounting plate
Plate thickness
Iron and Aluminum: 10 mm (0.39 in.) or more
Note There is a height gap of 1 mm (0.04 in.) at the motor installation part of the SPR4. Install
the slides in such a way that the motor does not contact the mounting plate.
 SPR6,SPR8
Mounting plate
Plate thickness
Iron and Aluminum: 10 mm (0.39 in.) or more
Hexagonal socket head screws (included)
Tightening torque: 5 N·m (710 oz-in)
2.3 Installing a frame cover
Frame cover (included)
Thin-head screws (included)
Tightening torque: 0.6 N·m (85.2 oz-in)

2 Installation
－7－
2.4 Installing a load
SPR4
4×M4
㩷Effective thread depth: 14.5 mm (0.57 in.)
㩷Tightening torque: 2.4 N·m (340.8 oz-in)
SPR6
4×M5
㩷Effective thread depth: 10 mm (0.39 in.)
㩷Tightening torque: 5 N·m (710 oz-in)
SPR8
4×M5 or M6
㩷Effective thread depth: 20 mm (0.78 in.)
㩷Tightening torque: 5 N·m (710 oz-in)
Load
Positioning pin hole
(Pins cannot be press-fit.)
To ensure positional repeatability after removing and reinstalling a load, use the positioning pin holes and
notches provided in the table (SPR4 only).
Positioning pin hole Ø4 (Ø0.16 in.)
[Depth: 4 mm (0.16 in.)] Notch
Table
Note Be sure to affix the positioning pin to the load side.

2 Installation
－8－
2.5 Installing the sensor and sensor cable holder

SPR4

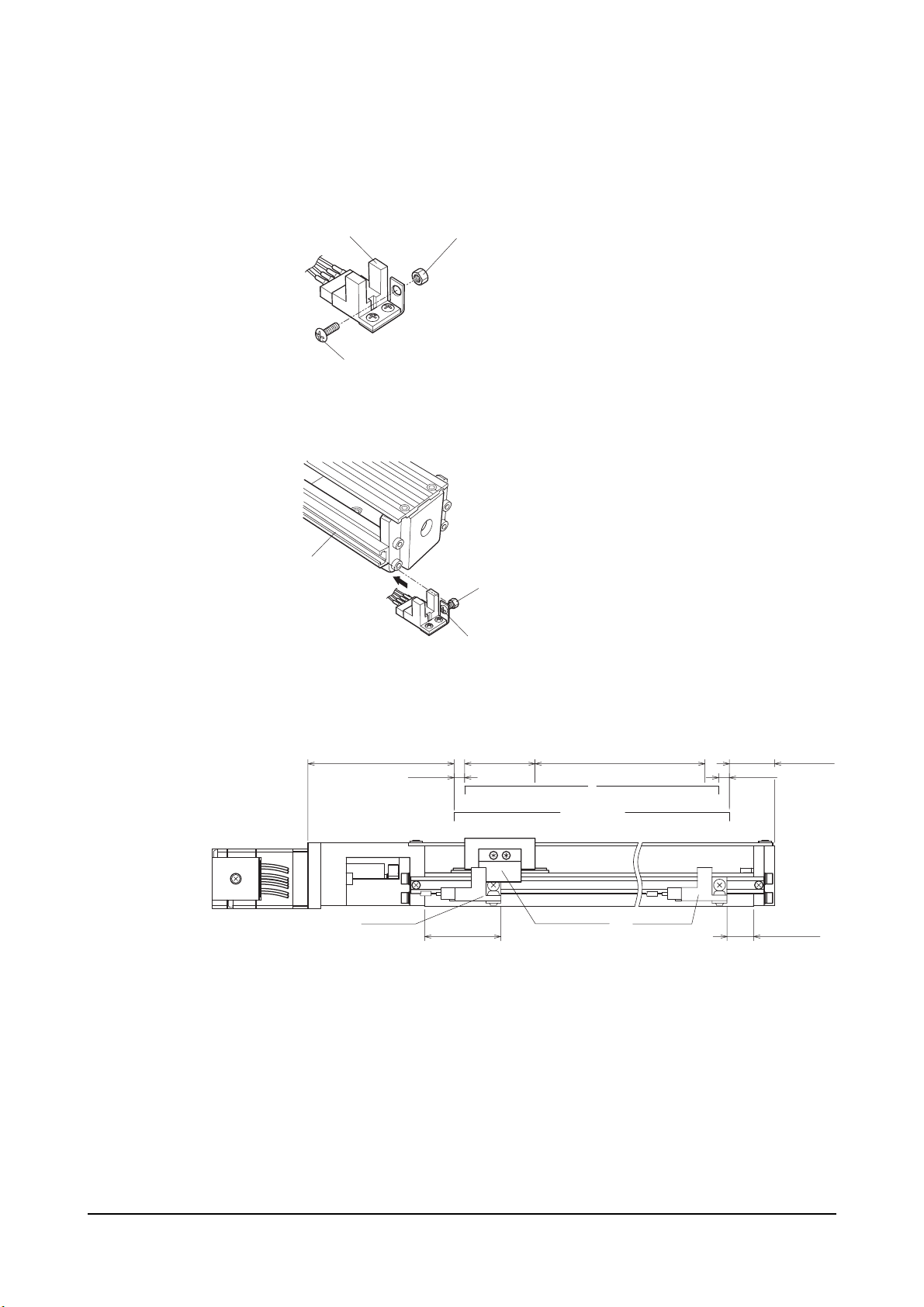

1. Loosely affix the supplied pan-head screws on the sensor by making sure they do not project
from the hexagonal nuts.
Hexagonal nut (included)
Pan-head screw (included)
Sensor (included)
2. Slide the hexagonal nuts on the sensor assembled in step 1, into the T-groove provided on the
side of the frame.
Motor side
Sensor rail
Pan-head screw
Hexagonal nut
3. Move the sensor to the recommended installation position, and then affix it in this position
using the pan-head screws.
Tightening torque: 0.6 N·m (85.2 oz-in)
Mechanical limit
table position
Mechanical limit
table position
- LS sensor-detection
table position +LS sensor-detection
table position
68.9 (2.71)
Shielded plate
- LS sensor
+LS sensor
5 (0.20) 5 (0.20)
(33.2 [1.31])
Effective stroke of
motorized linear slides 21.4 (0.84)
35 (1.38)
∗
12.5 (0.49)
∗
[Unit: mm (in.)]
∗ Recommended sensor installation position
The sensor and shielded plate can be installed on the side opposite to the one shown above.
Tightening torque for installing the sensor rail and shielded plate: 0.4 N·m (56.8 oz-in)

2 Installation
－9－
 SPR6, SPR8
1. Loosely affix the supplied pan-head screws on the sensor by making sure they do not project
from the hexagonal nuts.
Hexagonal nuts (included)
Pan-head screws
(included)
Sensor (included)
2. Slide the hexagonal nuts on the sensor assembled in step 1, into the T-groove provided on the
side of the frame.
Sensor rail section
Sensor with hex nuts loosely tightened
Motor side
Sensor rail
3. Move the sensor to the recommended installation position, and then affix it in this position
using the pan-head screws.
Tightening torque: 0.6 N·m (85.2 oz-in)
• SPR6
HOME sensor-detection
table position
- LS sensor-detection
table position
Mechanical limit
table position
+LS sensor-detection
table position
Mechanical limit
table position
35.5 (1.40)
∗
22 (0.87)
3 (0.12) 10 (0.39) 3 (0.12)
(54 [2.13]) Effective stroke of motorized linear slides 27.5 (1.08)
41 (1.61)
∗
10 (0.39)
∗
16.5 (0.65)
Shielded plate
- LS sensor
HOME sensor
+LS sensor
[Unit: mm (in.)]
∗ Recommended sensor installation position
The sensor and shielded plate can be installed on the side opposite to the one shown above.
Tightening torque for installing the sensor rail: 0.5 N·m (71 oz-in)
Tightening torque for installing the shielded plate: 1 N·m (142 oz-in)

2 Installation
－10－
• SPR8
Mechanical limit
table position
Mechanical limit
table position
+LS sensor-detection
table position
- LS sensor-detection
table position
HOME sensor-detection
table position
22.5 (0.89)
5 (0.20) 10 (0.39)
23.5 (0.93)
5 (0.20)
36.5 (1.44) Effective stroke of motorized linear slides
57 (2.24)
∗
10 (0.39)
∗
Shielded plate
58 (2.28)
∗
+LS sensor
HOME sensor
- LS sensor
[Unit: mm (in.)]
(81 [3.19])
The sensor and shielded plate can be installed on the side opposite to the one shown above.
Tightening torque for installing the sensor rail: 0.5 N·m (71 oz-in)
Tightening torque for installing the shielded plate: 1 N·m (142 oz-in)
4. Press in the sensor cable holders while paying attention not to pinch the sensor cables.
Sensor cables
Sensor cable holder (included)
Sensor rail section
Note • The connector for the sensor with cable is detachable, but do not detach/attach the
connector while the power is supplied. It may damage the sensor.
• When removing the connector, do not pull it by the cables. Pull out the connector while
pressing it firmly from the top and bottom.

3 Connection
－11－
3 Connection
Connect one end of the motor cable (sold separately) to the motor cable of the motorized linear slides, and
connect the other end to the motor connectors on the controller.
For the wiring of sensor cables, refer to 3.6 “Wiring the sensor I/O and user I/O” in the Linear Motion
Controller OPERATING MANUAL.
indicates an optional accessory (sold separately).

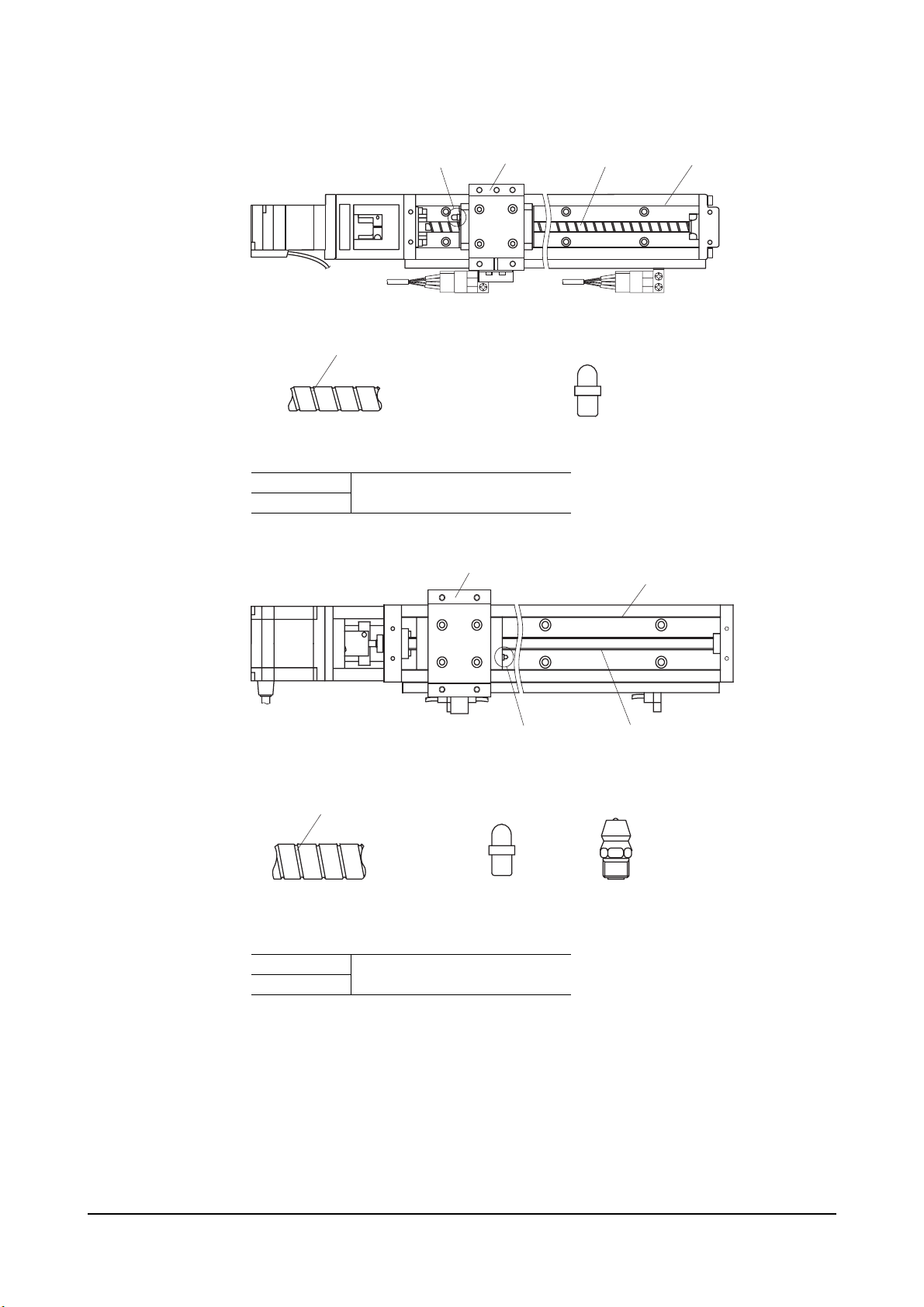

SPRK
SPRASPRC
To controller's
sensor connectors
To controller's motor connectors
Sensor cables
Controller
Must be soldered.
Motor cable
3.1 Confirmation of controller key designation
Be sure to confirm that the motorized linear slides model shown on the controller key is the same as the
model of the motorized linear slides connected to the controller. If the two do not match, the motorized linear
slides cannot be operated according to the specification.
When you purchased a motorized linear slides only, install the supplied controller key on a controller to be
connected. For details, refer to “Controller key” in the Linear Motion Controller OPERATING MANUAL.
Controller key
Motorized linear slides
model
3.2 Connection of motor cable
Connect one end of the optional motor cable (sold separately) to the motor cable of the motorized linear
slides (SPRKand SPRAhave two connectors, while SPRConly has one connector).
Affix each connector and place a cover, etc., to prevent the connector from moving or receiving excessive
force.
Note Insert each motor cable connector until the lock lever is securely affixed.

4 Inspection
－12－
4 Inspection
This chapter explains the maintenance items that must be performed to ensure safe, efficient operation of the
motorized linear slides.
Should you encounter any abnormality, immediately stop using the product and contact your nearest
Customer Service Center.
4.1 Inspection items and timing
Perform the inspections specified in the table below at the start of slides operation and after finishing the
operation.
Set an appropriate interval for post-operation inspection according to the utilization of the motorized linear
slides.
Inspection timing External check and cleaning Internal check
When operated for the first time ○―
After operation ○○
4.2 External check and cleaning
Check the items specified in table below.
Item What to check Action if problem is found
Motorized
linear slides
Are there any loose mounting screws? Tighten the screws securely.
Cables • Are there any damages or areas
receiving stress?
• Are there any loose connections with
the controller?
• Replace the damaged/stressed cable.
• Plug in the loose connector again.
Operating Are there any abnormal noise or
vibration from the bearings, etc.?
Check the installation of the load and
operating speed again.
• Clean the exterior surface of the motorized linear slides whenever necessary.
• Wipe off any dirt and stains using a soft cloth.
• Do not apply compressed air to prevent dust from entering through gaps.
• Do not use petroleum solvents, since they will damage the coated surface.
• To remove stubborn stains, wipe the area using a soft cloth moistened with neutral detergent.

4 Inspection
－13－
4.3 Internal check/cleaning and greasing
Remove the frame cover to check and clean the internal parts.
Note Before removing any component, clean the exterior surface first. If dust enters the
motorized linear slides, the slides may generate noise during operation or suffer
breakdown.
1. Loosen the thin-head screws and remove the frame cover.
Thin-head screws
Frame cover
2. Visual check of condition inside the motorized linear slides.
Item What to check Action if problem is found
Are there any deposits of foreign
matter such as dust?
Remove the foreign matter.Ball-screw
shaft
Has the grease lost its gloss or been
consumed?
Clean the screw shaft with a soft cloth and
apply grease to the ball rolling groove.
Are there any deposits of foreign
matter such as dust?
Remove the foreign matter.Guide rail
Has the grease lost its gloss or been
consumed?
Use a soft cloth to clean the ball rolling
groove on both sides of the guide rail, and
apply grease to the ball rolling grooves.
Even if grease has turned brown, you need not add grease as long as the traveling surface looks slick.

4 Inspection
－14－
3. Add grease.
• SPR4
PB107 nipple
Ball screw
Grease application position
(Ball rolling groove)
Table Ball screw Guide
Nipple
Grease has been applied before shipment.
Use the grease specified below.
Ball screw
Guide rail AFB-LF grease (THK CO., LTD.)
• SPR6, SPR8
Guide
䊶㩷SPR6
PB107 nipple
䊶㩷SPR8
A-M6F nipple
Ball screw
Grease application position
(Ball rolling groove)
Table
Ball screw
Nipple
Grease has been applied before shipment.
Use the grease specified below.
Ball screw
Guide rail AFB-LF grease (THK CO., LTD.)
4. Install the frame cover, and affix it with the thin-head screws.
Tightening torque: 0.6 N·m (85.2 oz-in)

• Unauthorized reproduction or copying of all or part of this Operating Manual is prohibited.
If a new copy is required to replace an original manual that has been damaged or lost, please contact your nearest Oriental Motor
branch or sales office.
• Characteristics, specifications and dimensions are subject to change without notice.
• While we make every effort to offer accurate information in the manual, we welcome your input. Should you find unclear
descriptions, errors or omissions, please contact the nearest office.
• and are trademarks of Oriental Motor Co., Ltd., and are registered in Japan and other countries.
is a trademark of Oriental Motor Co., Ltd.
Other product names and company names mentioned in this manual may be trademarks or registered trademarks of their respective
companies and are hereby acknowledged. The third-party products mentioned in this manual are recommended products, and
references to their names shall not be construed as any form of performance guarantee. Oriental Motor is not liable whatsoever for
the performance of these third-party products.
© Copyright ORIENTAL MOTOR CO., LTD. 2006
ORIENTAL MOTOR U.S.A. CORP.
Technical Support Line Tel:[phone]
A
vailable from 7:30 AM to 5:00 PM, P.S.T.
E-mail: [e-mail]
www.orientalmotor.com
ORIENTAL MOTOR (EUROPA) GmbH
Headquarters and Düsseldorf Office
Tel:[phone] Fax:[phone]
Munich Office
Tel:[phone] Fax:[phone]
Hamburg Office
Tel:[phone] Fax:[phone]
ORIENTAL MOTOR (UK) LTD.
Tel:[phone] Fax:[phone]
ORIENTAL MOTOR (FRANCE) SARL
Tel:[phone] Fax:[phone]
ORIENTAL MOTOR ITALIA s.r.l.
Tel:[phone] Fax:[phone]
• Please contact your nearest Oriental Motor office for further information.
Printed on Recycled Pape
r
TAIWAN ORIENTAL MOTOR CO., LTD.
Tel:[phone] Fax:[phone]
SINGAPORE ORIENTAL MOTOR PTE. LTD.
Tel:[phone] Fax:[phone]
INA ORIENTAL MOTOR CO., LTD.
KOREA
Tel:[phone]~3 Fax:[phone]
ORIENTAL MOTOR CO., LTD.
Headquarters Tokyo, Japan
Tel:[phone] Fax:[phone]
ORIENTAL MOTOR (MALAYSIA) SDN. BHD.
Tel:[phone] Fax:[phone]
