OSEE AURORA1600-4K User manual

AURORA1600-4K
Multi-image Processor
User Manual

Product Information
Model: AURORA1600-4K Multi-image Processor
Version: V010002
Release Date: February 15th, 2022
Company
OSEE TECHNOLOGY LTD.
Customer Support
Address: No.22 Building, No.68 zone, Beiqing Road, Haidian District,
Beijing, China
Post Code: 100094
Tel: [phone]
Fax: [phone]
Web: http://www.osee-dig.com
E-mail: [e-mail]

About this manual
Important
The following symbols are used in this manual:
The further information or know-how for described subjects above which
helps user to understand them better.
The safety matters or operations that user must pay attention to when using
this product.
Contents
The user manual applies to the following device types:
❖AURORA1600-4K-16
❖AURORA1600-3G-16
The images of AURORA1600-4K-16 adopted in the following descriptions, and
AURORA1600-4K-16 is called AURORA1600-4K for short in the following
documentary. The basic features and functionalities for AURORA1600-4K-16
and AURORA1600-3G-16 are almost the same. Any of the different
specifications between the device types are elaborated. Before reading the
manual, please confirm the device type.

Contents
Contents ..........................................................................................................I
Chapter 1 Product Overview.........................................................................1
Chapter 2 Safety.............................................................................................5
Chapter 3 Unpack and Installation...............................................................7
Chapter 4 AURORA1600-4K Features........................................................11
4.1 Front Panel Features ........................................................................11
4.2 Rear Panel Features..........................................................................11
4.2.1 Arrangement of Rear Connectors...................................................11
4.2.2 Operations of Rear Panel...............................................................12
4.2.3 Timing.............................................................................................18
Chapter 5 Specifications.............................................................................21

Product Overview
1
Chapter 1 Product Overview
This article is mainly about AURORA1600-4K, developed by OSEE with high
intelligent, which applied the 1U Multi-image Processor, which performs
multi-channels input signals displayed on one screen for surveillance. It
attaches, switches and zooms the video sources, and provides ideal visual
effect, flexible operation environment and easiness for configuration and
maintenance.
The device has the compact module structure, supports up to 16 channels of
12G/6G/3G/HD/SD-SDI inputs, and up to 4 channels of SDI/SFP outputs, two
HDMI outputs, the resolution is up to 4K. Signals can be appointed to any
output for display freely, and it allows the user easily to set up a display system
in 1U frame with 4 inputs, 8 inputs, 12 inputs or 16 inputs.
The device integrates an internal control software to connect to and configure
the controller. You can configure multi-walls and multi-scene with the input
video sources, and set them at any position and in arbitrary size in the
operating interface of the software. Each video window has adequate
resolution to show very high-quality frame effects. The software is a
WYSIWYG editor and easy to use.
The 1U Multi-image Processor and its inner control software compose the
Multi-image system, and it is widely used in studio, transmission control rooms,
video conference center, general control center, TV Stations and so on.
Figure 1-1 Module of 1U Multi-image Processor
Module
Input
Output
AURORA1600-4K-16
16 channelsSDI video input
16 channels analog audio input
4 channels SDI output
4 channels SFP output
2 channels HDMI output
1-channel audio output
AURORA1600-3G-16
16 channelsSDI video input
16 channels analog audio input
4 channels SDI output
4 channels SFP output
2 channels HDMI output
1-channel audio output
The appearance of AURORA1600-3G-16 is exactly as same as AURORA1600-4k-16’s.
The 12G resolution for SDI inputs (SDI IN1~16) are only available for AURORA1600-4K-16 device.
AURORA1600-4K-16 supports 12G/6G/3G/HD/SD-SDI adaptable video input, whilst
AURORA1600-3G-16 supports 6G/3G/HD/SD-SDI.

Product Overview
2
1U Multi-image Processor supports the following features:
Features
◼Using professional case for high reliability
◼Using 1U compact module structure
◼The window of a video source can be moved from one screen to
another screen in real time
◼Support the general video formats and the inputs are adaptive
◼Support up to 4K through one single output interface
◼Support up to 16 displays in a single screen
◼Support up to 4K resolution through four combined output interfaces
per 50/60 frame rate
◼All modules are redundant designed, and support online replacement
◼Signals can be appointed to any output for display flexibly
◼Support dual power supply. It is usually load balanced when the power
supply is normal, and once there is a fault in power supply, it will power
on the redundant power to keep persistent
◼Provide Video/Audio detection and alarming: video loss, video black,
and audio loss
◼Provide various detections on modules, temperature and power supply
Functionality
◼Support dual UMD, dual TALLY, and up to 4 channels of UV audio
meter, and support dynamic TSL protocol
◼Support several timing methods: LTC timing, native network timing,
manual timing
◼Support AFD information display and Network control
◼Support several types of timers: analog clock timer, digital clock timer,
countdown timer, and digital data timer.
◼Support various operation methods: web control and computer control
Topology Chart
The topology chart for this unit is shown as in Figure 1-2:

Product Overview
3
Figure 1-2 Topology of AURORA1600-4K

4

Safety
5
Chapter 2 Safety
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Safety
6
Warnings:
Read, keep and follow all of these instructions for your safety. Heed all
warnings.
Multi-image Processor
Upgrading of the device is subject to change without notice.
Contact your Customer Service representative if parts are missing or
damaged.
Position
Do not block any ventilation openings.
Do not use this unit near water.
Do not expose the unit to rain or moisture.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that product heat.
A nameplate indicating operating voltage, etc., is located on the rear
panel.
The socket-outlet shall be installed near the equipment and shall be
easily accessible.

Unpack and Installation
7
Chapter 3 Unpack and Installation
Unpack
When unpacking the components of this switcher, please verify that none of
the components listed in Table 3-1 are damaged or lack. If there is any missing,
contact your distributors or OSEE for it.
Table 3-1 Packing List
No.
Item
Quantity
Comments
1
Multi-image Processor
1
AURORA1600-4K
2
Power cord
1
3
Attachments
1
4
User manual
1
5
warranty card
1
About Unpacking and Shipping
This product was carefully inspected, tested, and calibrated before
shipment to ensure years of stable and trouble-free service. Before
you install this unit, do the followings:
Check the equipment for any visible damage that may have
occurred during transit.
Confirm receipt of all items on the packing list.
Contact your dealer if any item on the packing list is missing.
Contact the carrier if any item is damaged.
Remove all packaging material from the product before you install
the unit.
Retain at least one set of the original packaging materials, in the
event that you need to return a product for servicing.

Unpack and Installation
8
If the original package is not available, you can supply your own
packaging as long as it meets the following criteria:
The packaging must be able to withstand the product’s weight.
The product must be held rigid within the packaging
There must be at least 5 cm of space between the product and the
container.
The corners of the product must be protected.
Ship products back to us for servicing prepaid and, if possible, in the
original packaging material. If the product is still within the warranty
period, we will return the product prepaid after servicing.
Installation
1. Prepare for installation
Make sure you have prepared the followings before mount the converter:
Inspect for any apparent physical damage that may have occurred in
transit.
Make sure you have received all the components listed in packing list.
if there are any anti-static package or other packages, please take off
them.
Keep the package in case of future usage.
The safety matters or operations that user must pay attention to when using
this product.
Ensure that all handling precautions are taken to avoid electrostatic
discharge or other damage to sensitive electronic components. Wear an
earth strap and perform all PCB assembly at an appropriate anti-static work
station. Follow the instructions carefully to fit the modules.
2. Install AURORA1600-4K in your desired location of a standard EIA

Unpack and Installation
9
equipment rack. Adequate ventilation is required when installed to
prevent possible damage to the AURORA1600-4K components.
3. Connect required cables for signal input and output.
4. Connect power source using the included power cord.
5. Connect the power cord to the rear panel.
6. Fasten the power protect accessory.
7. As a final step, power AURORA1600-4K on.
Restore the default IP setting
AURORA1600-4K provides an Ethernet port for connecting with a
computer to access the network control page or run the device control tool
to modify the network settings. The default IP address of
AURORA1600-4K is 192.168.1. 2.
Restore the default IP setting by USB interface at the rear panel.
The instructions are as below:
◼Operations:
Firstly, power down the AURORA1600-4K device, insert the U disk which
has the IP restored program.
Secondly, power on AURORA1600-4K and keep it running for at least 60
seconds, thus, the IP address of AURORA1600-4K will be restored to the
default one.
At last, power off theAURORA1600-4K again, and pull out the U disk from
the USB interface, then power on the AURORA1600-4K, it will run
normally.

4

AURORA1600-4K Features
11
Chapter 4 AURORA1600-4K Features
This chapter describes the features of AURORA1600-4K.
4.1 Front Panel Features
There are two indicators in the center of the front panel, as shown in Figure
4.1-1
Figure 4.1-1 AURORA1600-4K - Front Panel
1. Production Information
It shows the basic information of the production: LOGO and model.
2. PS1 Indicator
It is used to indicate the PS1 power on or off.
3. PS2 Indicator
It is used to indicate the PS2 power on or off.
The Multi-image Processor performs the power supply, input, output and
control functions through the corresponding interfaces, and you should
make sure the cables has been connected to the correct interfaces in the
frame.
4.2 Rear Panel Features
It will introduce the arrangement and operations of the interfaces in rear of the
panel in the following.
4.2.1 Arrangement of Rear Connectors
As shown in Figure 4.2-1, AURORA1600-4K provides various connectors
for power supply, input, output and control, the details are as below:

AURORA1600-4K Features
12
Figure 4.2-1 Rear Connectors of AURORA1600-4K
1. Video Input: SDI IN 1~16
2. Video Output: SDI OUT1-12G, SDI OUT2-3G, SDI OUT3-3G, SDI
OUT4-3G
3. HDMI Output: HDMI OUT1~HDMI OUT2
4. SFP Output: SFP1~SFP2
5. Audio Input: AUDIO IN 1~16, AUDIO IN 17~32
6. TSL
7. ETHERNET
8. USB
9. LTC IN
10. Audio Output: AUD OUT
11. Power Input: PS1, PS2
4.2.2 Operations of Rear Panel
The details of these interfaces at the rear panel are described as below:
1. Video Input (BNC)
It provides 16 SDI input interfaces, they are labeled as SDI IN 1~16. The
SDI input interfaces are adaptive to 12G/6G/3G/HD/SD-SDI video signals,
and supports embedded audio.
Figure 4.2-2 SDI Video input Connector

AURORA1600-4K Features
13

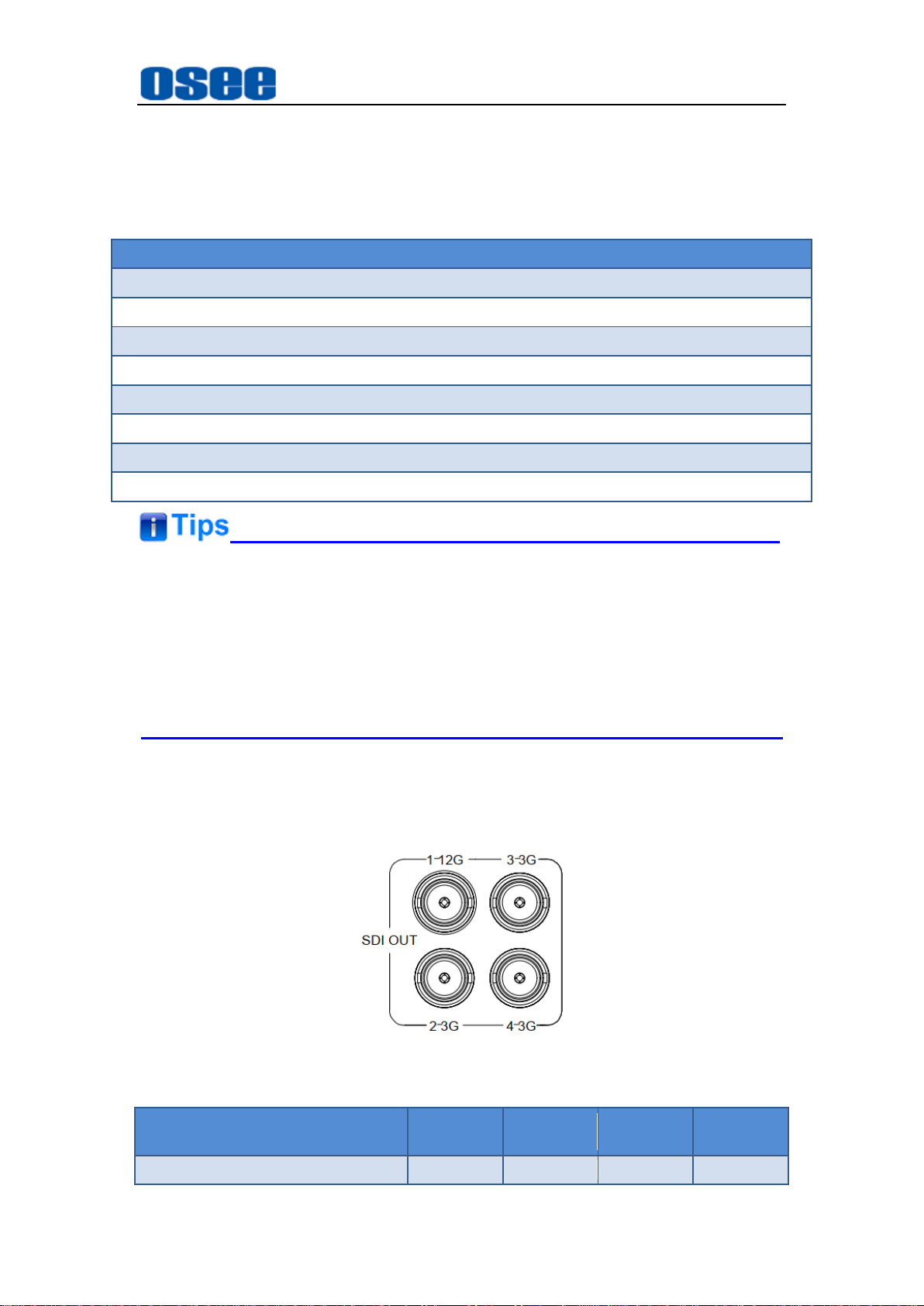

The SDI IN interface supports the following resolutions, as shown in Table
4-1:
Table 4-1 Resolutions of the SDI Interfaces
Input Format
3840x2160P(60 / 59.94 / 50 / 30 / 29.97 / 25 / 23.98) (only supported for AURORA1600-3G-16)
1080P (60 / 59.94 / 50) (Level A& B)
1080P (30 / 29.97 / 25 / 23.98)
1080i (60 / 59.94 / 50)
1080PsF (23.98)
720P (60/59.94/50)
480i60
576i50
The 12G resolution for SDI inputs (SDI IN1~16) are only available for
AURORA1600-4K-16 device. AURORA1600-4K-16 supports
12G/6G/3G/HD/SD-SDI adaptable video input, whilst AURORA1600-3G-16
supports 6G/3G/HD/SD-SDI adaptable video input, refer to Table 4-1 for
details.
2. SDI Video Output (BNC)
It provides four SDI output interfaces, they are labeled as SDI OUT 1-12G,
2-3G, 3-3G, 4-3G.
Figure 4.2-3 SDI Video Output Connector
Output Format
SDI OUT1
-12G
SDI OUT2
-3G
SDI OUT3
-3G
SDI OUT4
-3G
3840x2160P ( 59.94 / 50 / 29.97 /
√
√
√
√

AURORA1600-4K Features
14
Output Format
SDI OUT1
-12G
SDI OUT2
-3G
SDI OUT3
-3G
SDI OUT4
-3G
25)
1080P ( 59.94 / 50) (LevelA)
√
√
1080i ( 59.94 / 50)
√
√
The four-link outputs (SDI OUT1~4) are available only for 2SI mode.
3. HDMI Video Output (HDMI)
It provides 2 video output interfaces to receive and send HDMI/DVI
signals using HDMI-Type A connector. HDMI OUT1, HDMI2.0, supports
up to 2160P59.94. HDMI OUT2, HDMI1.4, supports up to 1080P59.94.
Figure 4.2-4 HDMI Output Interface
Output Format
HDMI OUT1
HDMI OUT2
3840x2160P ( 59.94 / 50 / 29.97 / 25)
√
1080P ( 59.94 / 50) (LevelA)
√
√
1080i ( 59.94 / 50)
√
√
4. SFP Video Output (SFP)
It provides 2 SFP output cages, labeled as SFP1, SFP2, supports double
optical fiber transmitter module, that is 4-channel SFP outputs.
Figure 4.2-5 SFP Output Interface
Output Format
SFP OUT1/2
SFP OUT3/4
1080P (59.94 / 50) (LevelA)
√
√
5. Audio Input Interface (DB26)
