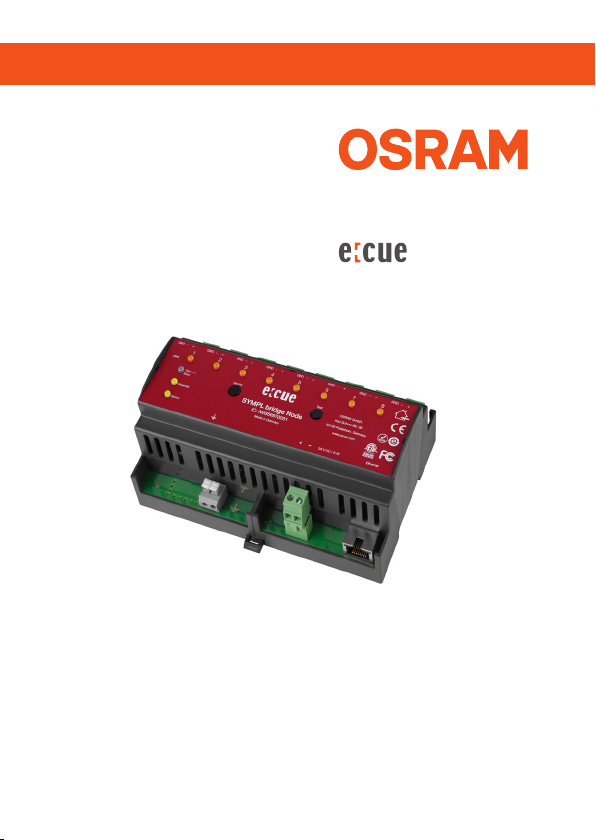

Osram e:cue SYMPL bridge Node Specification sheet

Our Brand
www.osram.com/ecue
Light is OSRAM
AM356970031
e:cue SYMPL bridge Node
Information for Use / Bedienungsanleitung

02
AM356970031
e:cue SYMPL bridge Node Information for Use (original issue)
e:cue SYMPL bridge Node Bedienungsanleitung (Originalversion)
Edition / Ausgabe:
23.07.20 [EN_DE_SYMPL_bridge_Setup_v1p2]
Published by / Herausgegeben von:
OSRAM GmbH
Karl-Schurz-Strasse 38
33100 Paderborn, Germany
©2020 OSRAM GmbH, BU Digital
All rights reserved / Alle Rechte vorbehalten
Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd

03
Read the Setup Manual and
the Safety instructions carefully.
Subject to modication without
prior notice. Typographical and
other errors do not justify any
claim for damages. All
dimensions should be veried
using an actual part.
Modication of the product is
prohibited.
This manual is designed for
electricians, system
administrators, and product
users.
All product names mentioned
in this manual are trademarks
of their respective owners.
Except for internal use,
relinquishment of the
instructions to a third party,
duplication in any type or form
- also extracts - as well as
exploitation and / or
communication of the contents
is not permitted.
Lesen Sie die
Installationsanleitung und das
Heft "Sicherheitshinweise"
sorgfältig durch. Alle Änderungen
vorbehalten. Rechtschreibfehler
oder andere Fehler rechtfertigen
keinen Anspruch bei Schäden.
Alle Maße sollten an einem realen
Gerät überprüft werden.
Modikation des Produktes ist
verboten.
Diese Anleitung richtet sich an
Installateure, IT-Administratoren
und Benutzer des Produktes.
Alle in dieser Anleitung
genannten Bezeichnungen von
Erzeugnissen sind Marken der
jeweiligen Hersteller.
Außer für interne Verwendung ist
die Überlassung dieser Anleitung
an Dritte, die gesamte oder
auszugsweise Veröffentlichung,
Verwertung oder Mitteilung in
jeglicher Art und Form nicht
gestattet.

04
Table of Contents / Inhalt
Table of Contents / Inhalt
English 07
1 Security instructions 08
1.1 Symbols 08
1.2 General security instructions 08
2 General device description 09
2.1 Delivery content 10
2.2 Connectors and Interfaces 11
2.3 User interface: LEDs 12
2.4 Identify button: Identication & Reset 13
3 General remarks 14
3.1 Transport 14
3.2 Unpacking 14
3.3 Warranty regulations 14
3.4 Maintenance and Repair 14
3.5 Disposal 15
3.6 Support 15
4 Installation 15
4.1 Installation conditions 16
4.2 Mounting process 16
4.3 Ethernet connection 16
4.4 DMX connection 17
4.5 Power supply 17
4.6 Protective Earth 18
5 Network configuration 19
5.1 Default network properties 19
5.2 Network conguration with SYMPHOLIGHT 19
5.3 Network conguration with the web interface 20
6 Output configuration 22

05
Table of Contents / Inhalt
6.1 Ports conguration 23
6.2 Data mapping (Sources conguration) 24
6.3 Source switch 26
7 Test mode 27
7.1 Test mode via Test button 27
7.2 Test mode via web interface 28
8 Firmware Update 30
9 Dismounting 31
10 Product specifications 32
11 Certifications 33
Deutsch 34
12 Sicherheitshinweise 35
12.1 Symbole 35
12.2 Sicherheitshinweise 35
13 Gerätebeschreibung 36
13.1 Lieferumfang 37
13.2 Anschlüsse und Schnittstellen 38
13.3 Benutzeroberäche: LEDs 39
13.4 Identify-Taster: Identizierung & Reset 40
14 Allgemeine Hinweise 41
14.1 Transport 41
14.2 Entpacken 41
14.3 Garantiebestimmungen 41
14.4 Wartung und Reparatur 42
14.5 Entsorgung 42
14.6 Technischer Support 43
15 Installation 43
15.1 Installationsbedingungen 43
15.2 Montage 44
15.3 Ethernet-Verbindung 44

06
Table of Contents / Inhalt
15.4 DMX-Verbindung 45
15.5 Spannungsversorgung 45
15.6 Erdung 46
16 Netzwerk-Konfiguration 47
16.1 Standardeinstellungen vom Netzwerk 47
16.2 Netzwerkeinstellung über SYMPHOLIGHT 47
16.3 Netzwerkeinstellung über die Webschnittstelle 48
17 Ausgabe-Konfiguration 50
17.1 Ausgangs-Konguration 51
17.2 Datenzuordnung (Quellen-Konguration) 53
17.3 Quellenwechsel 55
18 Testmodus 56
18.1 Testmodus über Test-Taster 57
18.2 Testmodus über Webschnittstelle 57
19 Firmware-Update 59
20 Demontage 60
21 Produktdaten 62
22 Zertifizierung 63
Dimensions / Abmessungen 64

07
English

08
Security instructions
1 Security instructions
Please read and follow the safety instructions, provided in a separate
manual, carefully. Make sure that the environmental, mounting, and
installation prerequisites are met. This manual should be kept at a safe
place and in reach of the device.
1.1 Symbols
!
The exclamation mark warns about possible damage of the
device itself or connected devices.
i
The information symbol gives general hints and informs
about handling and procedures for use of the device.
1.2 General security instructions
!
Connect cables and data only when the device is powered
down.
!
Ground the Ethernet and DMX connection cables for outdoor
installations (optional for indoor only). Connect the
SYMPL bridge Node to Protective Earth when at least one
connected cable runs outdoor.
!
The device must be supplied by a separate certied SELV
Class 2 power supply.
i
If security instructions are missing, please contact the
OSRAM support service to receive a new copy.

09
General device description
2 General device description
e:cue SYMPL Nodes are a system of interfaces for e:cue SYMPHOLIGHT
only. They provide various connection types like DMX/RDM, DALI, digital
inputs and outputs etc. SYMPL Nodes always operate in online mode, as a
device interface for SYMPHOLIGHT. All interactions are initiated and
controlled by SYMPHOLIGHT. Connections between servers, Cores and
Nodes are always made with e:net via Ethernet.
The SYMPL bridge Node is an Art-Net / e:net / sACN to e:pix / DMX
interface. It comes with 8 x DMX / e:pix universes over screw terminal
plugs.
The SYMPL bridge Node is designed for the control of medium to large size
installations with sACN, Art-Net and e:net. Switch between two input
sources on the y. The SYMPL bridge Node makes it possible to run up to
4096 DMX channels (= 1360 RGB pixels, 170 pxl/universe) via DMX
universes and up to 16,384 DMX channels (= 5456 RGB pixels, 682 pxl/
universe) via e:pix universes. The SYMPL bridge Node supports up to 32
sACN / Art-Net universes.
With an extended operating temperature of -40 ... 70°C (max 1 hour/day;
continuous operation at max. 60 °C) the SYMPL bridge Node is suited for
projects in tough outdoor environments. In addition to embedded
temperature and humidity sensors whose data is readable in
SYMPHOLIGHT, a backup on data loss and test modes add to the features
of the SYMPL Node.
The SYMPL Node is powered by an external power supply or via Power-
over-Ethernet. It is easily mounted on standard 35 mm DIN rails, or with a
key hole in the housing base on walls or on any stable vertical surface.

10
General device description
2.1 Delivery content
Delivery content of the e:cue SYMPL bridge Node -
Product number AM356970031
1. SYMPL bridge Node
2. Safety instructions
3. Installation guide.
i
To operate SYMPL Nodes a SYMPHOLIGHT version 2.0 or
higher is mandatory. Earlier versions do not support the
SYMPL Nodes. SYMPL Nodes are not supported by the
e:cue Lighting Application Suite.
i
e:cue SYMPL Noes are not hot-pluggable.

11
General device description
2.2 Connectors and Interfaces

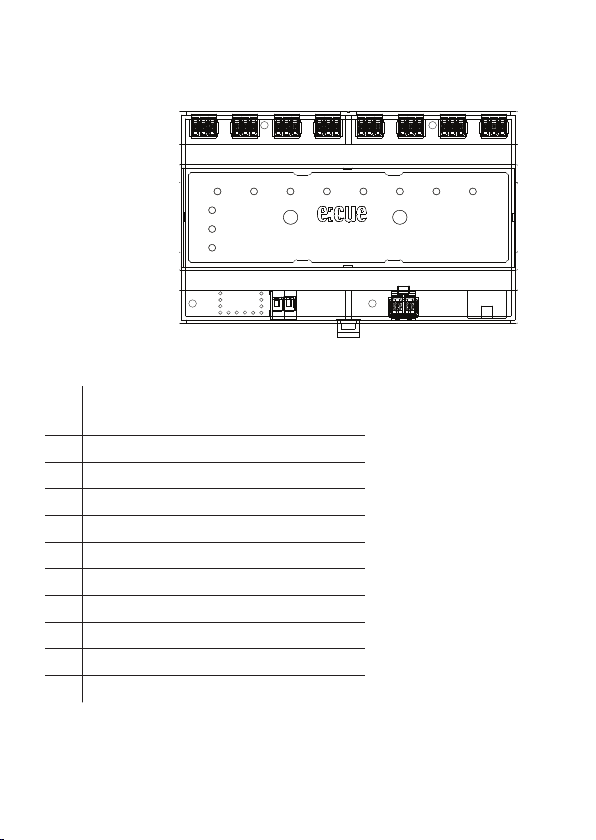

View from top:
1DMX output 1 ... 8
(GND, DMX-, DMX+ left to right)
2DMX / e:pix status LEDs
3Test / Error LED
4Ethernet LED (LAN activity)
5Status LED (Device status)
6Identify button
7Test button
8Protective Earth
9Power supply (Vcc+, Vcc- left to right)
10 Ethernet
11 DIN rail handle
1
3
4
5
6 7
8 9 10
11
2

12
General device description
2.3 User interface: LEDs
The SYMPL bridge Node has 11 LEDs on the front panel. The 11 LEDs
show the basic states of the SYMPL bridge Node.
LEDs
Status On: If constantly on, the device is online. Server
application is in operation.
Blinking: If blinking in one second intervals, the
device is ofine, no connection to a SYMPHOLIGHT
server or Core is available. If blinking more rapidly,
the device is in bootloader mode.
Ethernet Off: no link available.
On: link established.
Blinking: Ethernet trafc.
Test / Error Off: no error detected.
Short-short-long sequence: Test mode active.
On: If constantly lights in red, an error occurred. This
can be an internal error or malfunction of the device,
or an external error, e.g. a shortcut of interface
connections or alien power supply. Switch the device
off and on. If the error persists, check the wiring or
contact OSRAM Service.
Status +
Test / Error
The Status and Test / Error LED blink simultaneously
to identify the SYMPL Node (enabled “Identify
Interface Mode” in SYMPHOLIGHT).
DMX 1 ... 8 Orange: DMX data.
White: e:pix data.
Orange + White: port error.

13
General device description
2.4 Identify button: Identification & Reset
The Identify button has four functions: to send an Identify message (A), to
reset the Node (B), and to exit the error state (C). The Identify button
additionally switches protocol during Test mode (D).
(A) Only available with e:net: A short press during operation in online mode
sends an Identify message to the server. This helps to assign the Node in
the Setup tab in SYMPHOLIGHT.
(B) The Identify button can also be used to reset the device to factory state
or to stay in bootloader mode. With a reset you restore the password and
device settings by using the Identify button. Please note that the device
name is not reset:
• Keep the Identify button pressed while powering up, Status and
Test / Error LEDs light up at rst. Bootloader mode is signaled by a fast
blinking Status LED. Release the button now. The device stays in
bootloader mode to download a new rmware.
To exit the bootloader mode, short press the Identify button again.
• Press the Identify button during operation until Status and
Test / Error LEDs blink alternating, then blink together. Releasing the
button now resets the device to its factory settings. The password and
network settings are reset to their default values. Please note that the
device name cannot be reset.
• Keeping the button pressed further on, the device proceeds to
normal operation. No changes apply.
(C) Short press the Identify button if an error occurs and you want to exit
the error mode. The device will switch back to normal activity if the cause of
error is eliminated. The Node might reboot.
(D) During test mode, single press the Identify button to switch between
e:pix and DMX protocol in the test.

14
General remarks
3 General remarks
3.1 Transport
Only transport the device in its original packaging. This protects the device
from damage.
3.2 Unpacking
Only unpack the device at its installation location. To protect the device
against condensation water, unpack it and wait until all moisture remaining
in the device has evaporated. Condensation can occur when the device is
moved from a cold to a warm location. Keep the packaging for use in case
of further transport. Inspect all parts for completeness regarding chapter
“2.1 Delivery content” (page 10). If there is apparent damage to the
device or parts are missing from the delivery scope, please contact the
OSRAM support service.
3.3 Warranty regulations
Depending on the product, guaranty regulations are of different duration.
The warranty time is usually noted in the quote and in the order
conrmation. See “Services”  “OSRAM Guarantees” at www.osram.com
for details. Legal warranty regulations apply in any case.
3.4 Maintenance and Repair
This device requires no maintenance.
!
Before dismounting, appropriate measures must be taken to
protect the respective components against damage caused
by electrostatic discharge (ESD protection).
!
Do not try to repair the device. Return it to your OSRAM
distributor for replacement or repair.

15
Installation
To update the rmware see „19 Firmware-Update“ on page 59.
3.5 Disposal
The proper disposal of packing materials and of the device is the
responsibility of the respective user and for his account; in all other matters,
the retrieval obligation for packing materials and the device is subject to the
statutory regulations.
3.6 Support
In case of technical problems or questions regarding installation and repair
please contact:
OSRAM GmbH
Customer Service
Karl-Schurz-Str. 38
33100 Paderborn, Deutschland
[phone]
[email protected]
4 Installation
The installation of the SYMPL bridge Node consists of mounting the device,
connections to power supply, to Ethernet, and to the DMX (e:pix) devices.
The sequence of cabling is not dened. Supply the device with power after
all cabling is completed; it starts booting.
Batteries and technical appliances must not be disposed of
with domestic waste, but should be handed in at the
appropriate collection and disposal points.
!
Connect cables and data only when the device is powered
down.

16
Installation
4.1 Installation conditions
Installation position Terminals on top and bottom
Horizontal spacing On both sides 18 mm
Minimum vertical rail grid spacing 115 mm (90 + 25 mm)
(excluding conduit)
Recommended vertical rail grid spacing 160 mm (with 40 mm conduit)
4.2 Mounting process
The SYMPL bridge Node is designed to mount onto a 35mm DIN rail
(EN 60715) in a horizontal position.
1. Clip the device to the rail from
top.
2. Apply gentle pressure to the
top front to snap it in place. The
device has been mounted
successfully.
You can also mount the device on any at surface. Use a 3 to 3.5mm screw
for the hanger hole.
For mechanical stability, mounting on a rail is recommended.
4.3 Ethernet connection
The pin-assignment of the Ethernet port corresponds to RJ45 standards.
You can use every common Ethernet component, like cable, splitters, and
switches. Connect the SYMPL bridge Node at the designated Ethernet
interface with a patch cable (RJ45, CAT5).
1
2
!
Ground the Ethernet cable for outdoor installations (optional
for indoor only).

17
Installation
4.4 DMX connection
The SYMPL bridge Node can control eight DMX / e:pix universes with its
eight DMX ports. Connect DMX / e:pix devices to the SYMPL Node using
3-pin terminal plugs at the DMX interface of the SYMPL Node.
The appropriate pin assignment is dened as follows:
From left to right: GND, DMX-, DMX+
It is recommended to use twisted pair cabling.
Use shielded cables for outdoor installations.
4.5 Power supply
The e:cue SYMPL bridge Node can be powered by an external power
supply or via Power-over-Ethernet.
PoE:
For PoE, simply connect an Ethernet connection from a power sourcing
device.
External power supply:
Connect the SYMPL bridge Node to a certied NEC Class 2 24 V DC
power supply unit. Present power supply equates to the status “On” or
running of the SYMPL Node.
i
Never connect more than one SYMPL bridge Node in
factory state to a network. The identical IP addresses will
conict and disturb proper communication.
!
Ground the DMX connection cable for outdoor installations
(optional for indoor only). Ground each cable seperately.

18
Installation
To connect the device to a power supply unit, use the provided 2-pole
terminal and lay the wires as stated on the front label. The voltage
assignment is left V+ and right V-.
Turn the power on when all cables are connected to the
SYMPL bridge Node. The device starts booting. During the booting process
all DMX LEDs turn on consecutively. The device has nished booting and is
in operation when the LED Status is ashing.
4.6 Protective Earth
Grounding of the SYMPL bridge Node
Use Protective Earth where
applicable.
Ground the DMX connection
cable and the Ethernet cable.
Ground each cable separately.
i
The SYMPL bridge Node is not suited for powering over a
DC power supply network. Use a separate certied SELV
Class 2 power supply unit in the control cabinet for
supplying 24 V DC to the SYMPL bridge Node.
!
Connect the SYMPL bridge Node’s Portective Earth to earth
when at least one connected cable runs outdoors.

19
Network conguration
5 Network conguration
The network properties of the device are precongured. The successful
installation of the power supply is required for changing the network
conguration. You can either adjust the network settings with
SYMPHOLIGHT or using the web interface of the device.
5.1 Default network properties
The SYMPL bridge Node has as factory setting the default IP address
192.168.123.1.
Subnet mask: 255.255.255.0.
DHCP is disabled by default.
Login credentials for the web interface of the SYMPL bridge Node:
The default password is: ecue
To change the network conguration use either SYMPHOLIGHT or the web
interface of the device:
5.2 Network configuration with SYMPHOLIGHT

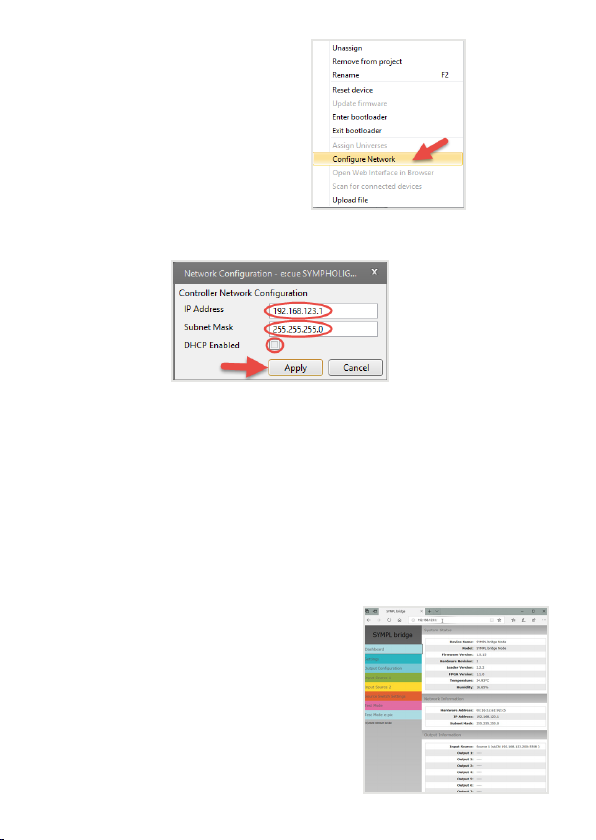

1. Open the context menu of the SYMPL bridge Node in the Setup
tab of SYMPHOLIGHT by a right-click on the device.

20
Network conguration
2. Select “Congure Network”:
3. Dene the IP address, the subnet mask and the DHCP settings to
your needs:
4. Click “Apply” to submit the changes.
The network conguration of the device is completed.
5.3 Network configuration with the web interface
1. Open a common web browser on a connected PC. Enter the
SYMPL bridge Node’s IP address into the address bar:
e.g. http://192.168.123.1.
The web interface of the device is displayed:
