English

07
Security instructions
1 Security instructions
Please read the safety instructions, provided in a separate manual, carefully.
Make sure that the environmental, mounting, and installation prerequisites
are met. This manual should be kept at a safe place and in reach of the
installation.
1.1 Symbols
!
The exclamation mark warns about possible damage of the
device itself or connected devices.
i
The information symbol gives general hints and informs
about handling and procedures for use of the device.
1.2 General security instructions
!
Connect cables and data only when the device is powered
down.
!
For electrical safety reasons it is not allowed that SYMPL dali
Nodes share the same power supply with other SYMPL
nodes, such as SYMPL dmx Node etc.
Please make sure to use one dedicated power supply unit
only for the DALI devices.
!
The device must be supplied by a separate certied SELV
Class 2 power supply.
!
The maximum length of each connected cable is 30 m.
i
If safety instructions are missing, please contact OSRAM to
receive a new copy.

08
General device description
2 General device description
e:cue SYMPL Nodes are a system of interfaces for e:cue SYMPHOLIGHT
only. They provide various connection types like DMX512, DALI, digital
inputs and outputs etc. SYMPL Nodes always operate in online mode, as a
device interface for SYMPHOLIGHT. All interactions are initiated and
controlled by SYMPHOLIGHT. Connections between servers, Cores and
Nodes are always made with e:net via Ethernet.
The e:cue SYMPL dali Node is a single line DALI interface. It provides a
DALI interface for up to 64 DALI devices in one line including bus power
and full support for DALI ballast and OSRAM sensors / inputs. The
SYMPL dali Node is powered by an external power supply. It is easily
mounted on standard 35 mm DIN rails, or with a key hole in the housing
base on walls or on any stable vertical surface. Via SYMPHOLIGHT, DALI
commands like linear dimming curve (DT6), RGB, RGBW, and Color
Temperature (DT8) are supported. The SYMPL dali Node is a simple,
reliable and easy to use interface solution for e:cue lighting control solutions
with SYMPHOLIGHT
2.1 Delivery content
Delivery content for the e:cue SYMPL dali Node (AB444230035):
1. e:cue SYMPL dali Node
2. Safety instructions
3. Installation guide (English only)
i
To operate SYMPL Nodes a SYMPHOLIGHT version 2.0 or
higher is mandatory. Earlier versions do not support the
SYMPL Nodes. SYMPL Nodes are not supported by the
e:cue Lighting Application Suite.
i
e:cue SYMPL dali Node is not hot-pluggable.

09
General device description
2.2 Connectors and interfaces
View from top
1DALI interface
(left to right : DA -, DA +)
2Identify button
3e:net / Ethernet
4DIN rail handle
5Power supply
(left to right : V +, V –)
6Status LED (Device status)
7e:net LED (Ethernet, LAN activity)
8Test / Error LED
9Active LED
10 Bus LED
2.3 User interface: LEDs
The SYMPL dali Node has ve LEDs. The ve LEDs show the basic states
of the SYMPL Node.
LEDs
Status On: If constantly on, the device is online. Server
application is in operation.
Blinking: If blinking in one second intervals, the device is
ofine, no connection to a SYMPHOLIGHT server or
Core is available. If blinking more rapidly, the device is in
bootloader mode
1
2
3
4
5
6
7
8
9 10
DA - DA +
V + V -

10
General device description
e:net Off: no link available.
On: link established.
Blinking: e:net trafc.
Test / Error Off: no error detected.
Short-short-long sequence: Test mode active.
On: If constantly lights in red, an error occurred. This
can be an internal error or malfunction of the device, or
an external error, e.g. a shortcut of interface
connections or alien power supply. Switch the device off
and on. If the error persists, check the wiring or contact
OSRAM Service.
Status +
Test / Error
The Status and Test / Error LED blink simultaneously to
identify the SYMPL Node (enabled “Identify Interface
Mode” in SYMPHOLIGHT).
Active Yellow blinking: data output from the DALI Node to the
xtures.
Blue blinking: incoming data to the DALI Node.
Bus Off: SYMPL dali Node is not connected to DALI bus.
On: DALI bus ready to operate.
Blinking: alien power supply detected.
2.4 Identify button: Identification & Reset & Testing
The Identify button has four functions: to send an Identify message (A), to
reset the Node (B), to test the installation (C), and to exit the error state (D).
(A) A short press during operation in online mode sends an Identify
message to the server. This helps to assign the Node in the Layout in
SYMPHOLIGHT.
(B) The Identify button can also be used to reset the device to factory state
or to stay in bootloader mode:

11
General device description
• Keep the Identify button pressed while powering up, Status and
Test / Error light up at rst. Bootloader mode is signaled by a fast
blinking Status LED. Release the button now. The device stays in
bootloader mode to download a new rmware.
To exit the bootloader mode, short press the Identify button again
• Press the Identify button until Status and Test / Error LEDs blink
alternating, then blink together. Releasing the button now resets the
device to its factory settings. The password and other settings are reset
to their default values. To employ a reset Startup behavior, a restart of
the device is required.
• Keeping the button pressed further on, the device proceeds to
normal operation. No changes apply.
(C) Use the Identify button also to test the connected xtures to ensure
their correct installation.
• Access the Test mode of the SYMPL Node by double-pressing the
Identify button during operation. The Test / Error LED signals the Test
mode by blinking short-short-long repeatedly.
• Single-press the Identify button to switch between the following
Test patterns:
1. All ballasts on maximum value.
2. All ballasts on minimum value.
3. All ballasts toggle between 0 and 255.
• Exit the Test mode any time by double-pressing the Identify button
again. The device proceeds to normal operation. The Test / Error LED is
off.
(D) Short press the Identify button if an error occurs and you want to exit
the error mode. The device will switch back to normal activity if the cause of
error is eliminated. The Node might reboot.

12
General remarks
3 General remarks
3.1 Transport
Only transport the device in its original packaging. This protects the device
from damage.
3.2 Unpacking
Only unpack the e:cue SYMPL dali Node at its installation location. To
protect the device against condensation water, unpack it and wait until all
moisture remaining in the device has evaporated. Condensation can occur
when the device is moved from a cold to a warm location. Keep the
packaging for use in case of further transport. Inspect all parts for
completeness regarding chapter „2.1 Delivery content“ on page 08. If
there is apparent damage to the device or parts are missing from the
delivery scope, please contact the OSRAM Support service.
3.3 Warranty regulations
Depending on the product, guaranty regulations are of different duration.
The warranty time is usually noted in the quote and in the order
conrmation. See “Services”  “OSRAM Guarantee” at www.osram.com
for details. Legal warranty regulations apply in any case.
3.4 Maintenance and Repair
This device requires no maintenance.
!
Before dismounting, appropriate measures must be taken to
protect the respective components against damage caused
by electrostatic discharge (ESD protection).
!
Do not try to repair the device. Return it to your OSRAM
distributor for replacement or repair.

13
Installation
3.5 Disposal
The proper disposal of packing materials and of the device is the
responsibility of the respective user and for his account; in all other matters,
the retrieval obligation for packing materials and the device is subject to the
statutory regulations.
3.6 Support
In case of technical problems or questions regarding installation and repair
please contact:
OSRAM GmbH
Customer Service
Karl-Schurz-Str. 38
33100 Paderborn, Germany
[phone]
[email protected]
4 Installation
The installation of the SYMPL dali Node consists of mounting the device,
connections to DALI devices, to e:net and to power supply.
The sequence of cabling is not dened. Supply the SYMPL dali Node with
power after all cabling is completed; it starts booting.
Batteries and technical appliances must not be disposed of
with domestic waste, but should be handed in at the
appropriate collection and disposal points.
!
Connect cables and data only when the device is powered
down.
!
Each cable should not exceed a length of 30 m.

14
Installation
4.1 Installation conditions
Installation position: Terminals on top and bottom
Horizontal spacing: No spacing necessary
Minimum vertical rail grid spacing: 115 mm (90 + 25 mm)
(excluding conduit)
Recommended vertical rail grid spacing: 160 mm (with 40 mm conduit)
Installation location Indoor
4.2 Mounting process
The e:cue SYMPL Node is designed to mount onto a 35 mm DIN rail
(EN 60715) in a vertical position.

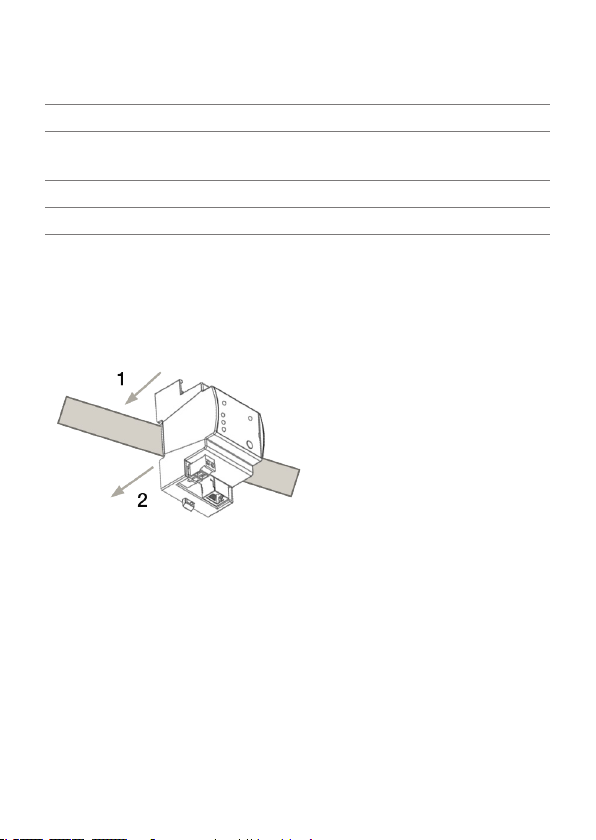

1. Clip the device to the rail from
top.
2. Gentle pressure is then
applied to the top front to snap it
in place. The SYMPL dali Node
has been mounted successfully.
You can also mount the e:cue
SYMPL Node on any at vertical surface. Use a 3 to 3.5 mm screw for the
hanger hole.
For mechanical stability, mounting on a rail is recommended.
The e:cue SYMPL dali Node provides connectivity to Ethernet via e:net and
to DALI xtures via the DALI bus. A separate power supply unit as external
power source has to be attached to the dali Node.

15
Installation
4.3 Ethernet connection
The pin-assignment of the Ethernet port corresponds to RJ45 standards.
You can use every common Ethernet component, like cable, splitters, and
switches. Connect the SYMPL dali Node at the designated Ethernet
interface with a patch cable (RJ45, CAT5).
4.4 DALI connection
The e:cue SYMPL dali Node offers a 2-pin assigned screw terminal plug for
the DALI output. Use a screw driver to open and close the terminal for
attaching the two DALI bus wires. Connect the wires according to the pin
assignment on the label.
The Node provides two terminals for each pin if the wires exceed the gauge
of the terminal plugs. In this case, please divide the wire’s end into two and
attach both cable heads in juxtaposition with each other and according to
the pin assignment to the terminal plugs.
4.5 Power supply
Connect a certied NEC Class 2 24 V DC power supply unit to the
SYMPL dali Node. Present power supply equates to the status “On” or
running of the SYMPL Node.
To connect the SYMPL dali Node to a power supply unit, the dali Node
provides a 2-pin screw terminal plug. Use an electrostatic sensitive screw
i
Never connect more than one SYMPL Node in factory state
to a network. The identical IP addresses will conict and
disturb proper communication.
i
The Ethernet port of the SYMPL Node is not designed for
inter-building connections with power and lighting transients.
Use only intra-building networks to connect the SYMPL
Nodes and Cores.

16
Installation
driver to open and close the terminal for attaching the two power supply
wires of a 24 V DC power supply. Connect the wires according to the pin
assignment on the label.
Turn the power on when all cables are connected to the SYMPL dali Node.
The device starts booting. The device has nished booting and is in
operation when the LED Status is ashing.
The dali Node runs a power supply check automatically but only at the rst
instant after switching on. The power supply check scans the DALI bus
system for alien power supply and incorrect voltage. In case of alien power
supply or incorrect voltage, the DALI bus will not be powered.
A Mean Well DR-15-24 power supply unit is recommended.
!
For electrical safety reasons it is not allowed that SYMPL dali
Nodes share the same power supply with other SYMPL
nodes, such as SYMPL dmx Node etc.
Please make sure to use one dedicated power supply unit
only for the DALI devices.
!
The SYMPL dali Node is not suited for powering over a DC
power supply network. Use a separate certied SELV Class 2
power supply unit in the control cabinet for supplying 24 V
DC to the SYMPL dali Node.
i
Detach from the power supply whenever working on the
DALI bus or any attached DALI devices. DALI bus related
changes can cause damage to the installation and are only
detected after switching on the SYMPL dali Node. A power
supply check for the DALI bus system executes.

17
Network conguration
5 Network conguration
The conguration of the e:cue SYMPL dali Node is completely done via
e:cue SYMPHOLIGHT. See the SYMPHOLIGHT System Manual for details
on conguration, available at www.ecue.com.
The network properties of the SYMPL dali Node are precongured. The
successful installation of the power supply is required for changing the
network conguration. You can either adjust the network settings with
SYMPHOLIGHT or using the web interface of the SYMPL dali Node. Via the
web interface extended DALI settings are congurable.
5.1 Default network properties
The SYMPL dali Node has as factory setting the default IP address
192.168.123.1.
DHCP is enabled by default.
Login credentials for the web interface of the SYMPL dali Node:
The default password is: ecue
To change the network conguration use either SYMPHOLIGHT or the web
interface of the SYMPL dali Node:
5.2 Network configuration with SYMPHOLIGHT
1. Open the context menu of the SYMPL dali Node in the Setup tab
of SYMPHOLIGHT by a right-click on the device.

18
Network conguration
2. Select “Congure Network”:
3. Dene the IP address, the subnet mask and the DHCP settings to
your needs:
4. Click “Apply” to submit the changes.
The network conguration of the SYMPL dali Node is completed.
5.3 Network configuration with the web interface
1. Open a common web browser on a connected PC. Enter the
SYMPL dali Node's IP address into the address bar:
e.g. http://192.168.123.1
The web interface of the SYMPL dali Node is displayed:

19
Network conguration
2. On the left side, select “Settings” and enter the default password
ecue:
3. Click “Apply”. The Settings page is displayed:
4. Dene the network settings at “Device Basics” to your needs. You
can also change the password for entry to the web interfaces of the
SYMPL dali Node here.
5. Click “Submit” to apply the settings.
The network conguration of the SYMPL dali Node is completed.
i
The employment of a discrete network is recommended.

20
Network conguration
5.4 Extended DALI settings
DALI settings are congured via SYMPHOLIGHT at the properties of the
SYMPL dali Node in the Setup Tab. Is the Node not connected to
SYMPHOLIGHT, extended DALI settings take effect.
Over the web interface of the SYMPL dali Node you can dene the
extended DALI properties for:
Properties
Bus Power on
Start
Dene whether the SYMPL dali Node provides DALI bus
power to the connected DALI devices on its startup.
Useful in emergency cases when the SYMPL dali Node
is powered prior to the connected devices and
SYMPHOLIGHT’s DALI bus power command is not
available on startup.
ON: DALI bus power provided. The connected
devices switch to their Power On Level.
OFF: DALI bus power disabled. The connected
devices display their System Failure Level.
i
Note down all employed and, if applicable, reserved IP
addresses. Keep the information for future network
congurations.
i
You can change the login password to the
SYMPL dali Node's conguration page and the device name
of the SYMPL dali Node at “Settings” page. Do not forget
the new password.
