Osram e:cue SYMPL relay Node User guide

AB444190035
e:cue SYMPL relay Node
Setup Manual / Installationsanleitung
Our Brand
www.osram.com/ecue
Light is OSRAM

02
AB444190035
e:cue SYMPL relay Node Setup Manual (original issue)
e:cue SYMPL relay Node Installationsanleitung (Originalversion)
Edition/Ausgabe: 17.10.19 [EN_DE_SYMPL_relay_Node_Setup_v2p3]
Published by / Herausgegeben von:
OSRAM GmbH
Karl-Schurz-Strasse 38
33100 Paderborn, Germany
©2019 OSRAM GmbH, BU Digital
All rights reserved / Alle Rechte vorbehalten
Read the Setup Manual
carefully before unpacking the
product. Subject to
modication without prior
notice. Typographical and other
errors do not justify any claim
for damages. All dimensions
should be veried using an
actual part.
Except for internal use,
relinquishment of the
instructions to a third party,
duplication in any type or form
- also extracts - as well as
exploitation and/or
communication of the contents
is not permitted.
Lesen Sie die
Installationsanleitung vor dem
Auspacken des Produktes
sorgfältig durch. Alle Änderungen
vorbehalten.
Rechtschreibfehler oder andere
Fehler rechtfertigen keinen
Anspruch bei Schäden. Alle
Maße sollten an einem realen
Gerät überprüft werden.
Außer für interne Verwendung ist
die Überlassung dieser Anleitung
an Dritte, die gesamte oder
auszugsweise Veröffentlichung,
Verwertung oder Mitteilung in
jeglicher Art und Form sind nicht
gestattet.

03
Table of Contents / Inhalt
Table of Contents / Inhalt
English 06
1 Security instructions 07
1.1 Symbols 07
1.2 General security instructions 07
2 General device description 08
2.1 Delivery content 08
2.2 Connectors and interfaces 09
2.3 User interface: LEDs 10
2.4 Identify button: Identication & Reset & Testing 10
3 General remarks 12
3.1 Transport 12
3.2 Unpacking 12
3.3 Warranty regulations 12
3.4 Maintenance and Repair 12
3.5 Disposal 13
3.6 Support 13
4 Installation 14
4.1 Installation conditions 14
4.2 Mounting process 14
4.3 Ethernet connection 15
4.4 Load connection 15
4.5 Power supply 16
5 Network configuration 16
5.1 Default network properties 17
5.2 Network conguration with SYMPHOLIGHT 17
5.3 Network conguration with the web interface 18
6 Test mode 20
7 Firmware Update 21

04
Table of Contents / Inhalt
8 Dismounting 21
9 Product specifications 22
10 Certifications 23
Deutsch 24
11 Sicherheitshinweise 25
11.1 Symbole 25
11.2 Hinweise 25
12 Gerätebeschreibung 26
12.1 Lieferumfang 26
12.2 Anschlüsse und Schnittstellen 27
12.3 Benutzeroberäche: LEDs 27
12.4 Identify-Taster: Identikation & Reset & Test 28
13 Allgemeine Hinweise 30
13.1 Transport 30
13.2 Entpacken 30
13.3 Garantiebestimmungen 30
13.4 Reparatur und Wartung 31
13.5 Entsorgung 31
13.6 Technischer Support 31
14 Installation 32
14.1 Installationsbedingungen 32
14.2 Montage 33
14.3 Ethernet-Verbindung 33
14.4 Lasten-Verbindung 34
14.5 Stromversorgung 34
15 Netzwerk-Konfiguration 35
15.1 Standardeinstellungen vom Netzwerk 35
15.2 Netzwerkeinstellung über SYMPHOLIGHT 36
15.3 Netzwerkeinstellung über die Webseite 37
16 Testmodus 39
17 Firmware-Update 40

05
Table of Contents / Inhalt
18 Demontage 40
19 Produktdaten 41
20 Zertifizierung 42
Dimensions / Abmessungen 43

06
English

07
Security instructions
1 Security instructions
Please read the safety instructions, provided in a separate manual, carefully.
Make sure that the environmental, mounting, and installation prerequisites
are met. This manual should be kept at a safe place and in reach of the
installation.
1.1 Symbols
!
The exclamation mark warns about possible damage of the
device itself or connected devices.
i
The information symbol gives general hints and informs
about handling and procedures for use of the device.
1.2 General security instructions
!
Connect cables and data only when the device is powered
down.
!
The device must be supplied by a separate certied SELV
Class 2 power supply.
!
The maximum length of each connected cable is 30 m.
i
If safety instructions are missing, please contact OSRAM to
receive a new copy.

08
General device description
2 General device description
e:cue SYMPL Nodes are a system of interfaces for e:cue SYMPHOLIGHT
only. They provide various connection types like DMX512, DALI, digital
inputs and outputs etc. SYMPL Nodes always operate in online mode, as a
device interface for SYMPHOLIGHT. All interactions are initiated and
controlled by SYMPHOLIGHT. Connections between servers, Cores and
Nodes are always made with e:net via Ethernet.
The e:cue SYMPL relay Node is a switching interface for use with e:cue’s
lighting control solution SYMPHOLIGHT. It provides three relay interfaces in
single-pole double-throw conguration. The e:cue SYMPL relay Node can
be powered by an external power supply or via Power-over-Ethernet. It is
easily mounted on standard 35 mm DIN rails, or with a key hole in the
housing base on walls or on any stable vertical surface. The e:cue
SYMPL relay Node is a simple, reliable and easy to use interface solution
for e:cue lighting control solutions with SYMPHOLIGHT.
2.1 Delivery content
Delivery content for the e:cue SYMPL relay Node (AB444190035):
1. e:cue SYMPL relay Node
2. Safety instructions
3. Installation guide (English only)
i
To operate SYMPL Nodes a SYMPHOLIGHT version 2.0 or
higher is mandatory. Earlier versions do not support the
SYMPL Nodes. SYMPL Nodes are not supported by the
e:cue Lighting Application Suite.
i
e:cue SYMPL relay Node is not hot-pluggable.

09
General device description
2.2 Connectors and interfaces
View from top
1a Relay output 1
(NO/NC/COM left to right *)
1b Relay output 2
(NO/NC/COM left to right *)
1c Relay output 3
(NO/NC/COM left to right *)
2Relay 1 status LED
3Relay 2 status LED
4Relay 3 status LED
5Test / Error LED
6e:net LED (Ethernet, LAN activity)
7Status LED (Device status)
8Identify button
9Power supply
(Vcc+, Vcc– left to right)
10 e:net / Ethernet
*) LED is off: relay is inactive
NO (normally open) = not connected to COM
NC (normally closed) =connected to COM
COM = common
LED is on: relay is active
NO (normally open) = connected to COM
NC (normally closed) = not connected to COM
COM = common

10
General device description
2.3 User interface: LEDs
The SYMPL relay Node has six LEDs. The six LEDs show the basic states
of the SYMPL Node.
LEDs
Status On: If constantly on, the device is online. Server
application is in operation.
Blinking: If blinking in one second intervals, the device is
ofine, no connection to a SYMPHOLIGHT server or
Core is available. If blinking more rapidly, the device is in
bootloader mode.
e:net Off: no link available.
On: link established.
Blinking: e:net trafc.
Test / Error Off: no error detected.
Short-short-long sequence: Test mode active.
On: If constantly lights in red, an error occurred. This
can be an internal error or malfunction of the device, or
an external error, e.g. a shortcut of interface
connections or alien power supply. Switch the device off
and on. If the error persists, check the wiring or contact
OSRAM Service.
Status +
Test / Error
The Status and Test / Error LED blink simultaneously to
identify the SYMPL Node (enabled “Identify Interface
Mode” in SYMPHOLIGHT).
Status relay 1
to 3
Off: relay inactive (=open).
Orange: relay active (=closed).
2.4 Identify button: Identification & Reset & Testing
The Identify button has four functions: to send an Identify message (A), to
reset the Node (B), to test the installation (C), and to exit the error state (D).

11
General device description
(A) A short press during operation in online mode sends an Identify
message to the server. This helps to assign the Node in the Layout in
SYMPHOLIGHT.
(B) The Identify button can also be used to reset the device to factory state
or to stay in bootloader mode:
• Keep the Identify button pressed while powering up, Status and
Test / Error light up at rst. Bootloader mode is signaled by a fast
blinking Status LED. Release the button now. The device stays in
bootloader mode to download a new rmware.
To exit the bootloader mode, short press the Identify button again.
• Press the Identify button until Status and Test / Error LEDs blink
alternating, then blink together. Releasing the button now resets the
device to its factory settings. The password and other settings are reset
to their default values.
• Keeping the button pressed further on, the device proceeds to
normal operation. No changes apply.
(C) Use the Identify button also to test the connected xtures to ensure
their correct installation.
• Access the Test mode of the SYMPL Node by double-pressing the
Identify button during operation. The Test / Error LED signals the Test
mode by blinking short-short-long repeatedly.
• Single-press the Identify button to switch between the following
Test patterns:
- Each relay closed (=active) consecutively.
- All relays closed (=active).
- All relays open.
• Exit the Test mode any time by double-pressing the Identify button
again. The device proceeds to normal operation. The Test / Error LED is
off.

12
General remarks
(D) Short press the Identify button if an error occurs and you want to exit
the error mode. The device will switch back to normal activity if the cause of
error is eliminated. The Node might reboot.
3 General remarks
3.1 Transport
Only transport the device in its original packaging. This protects the device
from damage.
3.2 Unpacking
Only unpack the e:cue SYMPL relay Node at its installation location. To
protect the device against condensation water, unpack it and wait until all
moisture remaining in the device has evaporated. Condensation can occur
when the device is moved from a cold to a warm location. Keep the
packaging for use in case of further transport. Inspect all parts for
completeness regarding chapter „2.1 Delivery content“ on page 08. If
there is apparent damage to the device or parts are missing from the
delivery scope, please contact the OSRAM Support service.
3.3 Warranty regulations
Depending on the product, guaranty regulations are of different duration.
The warranty time is usually noted in the quote and in the order
conrmation. See “Services”  “OSRAM Guarantee” at www.osram.com
for details. Legal warranty regulations apply in any case.
3.4 Maintenance and Repair
This device requires no maintenance.

13
General remarks
3.5 Disposal
The proper disposal of packing materials and of the device is the
responsibility of the respective user and for his account; in all other matters,
the retrieval obligation for packing materials and the device is subject to the
statutory regulations.
3.6 Support
In case of technical problems or questions regarding installation and repair
please contact:
OSRAM GmbH
Customer Service
Karl-Schurz-Str. 38
33100 Paderborn, Germany
[phone]
[email protected]
!
Before dismounting, appropriate measures must be taken to
protect the respective components against damage caused
by electrostatic discharge (ESD protection).
!
Do not try to repair the device. Return it to your OSRAM
distributor for replacement or repair.
Batteries and technical appliances must not be disposed of
with domestic waste, but should be handed in at the
appropriate collection and disposal points.

14
Installation
4 Installation
The installation of the SYMPL relay Node consists of mounting the device,
connections to loads, to e:net, and to power supply.
The sequence of cabling is not dened. Supply the SYMPL relay Node with
power after all cabling is completed; it starts booting.
4.1 Installation conditions
Installation position: Terminals on top and bottom
Horizontal spacing: No spacing necessary
Minimum vertical rail grid spacing: 115 mm (90 + 25 mm)
(excluding conduit)
Recommended vertical rail grid spacing: 160 mm (with 40 mm conduit)
Installation location Indoor
4.2 Mounting process
The e:cue SYMPL Node is designed to mount onto a 35 mm DIN rail
(EN 60715) in a vertical position.
!
Connect cables and data only when the device is powered
down.
!
Each cable should not exceed a length of 30 m.

15
Installation
1. Clip the device to the rail from
top.
2. Gentle pressure is then
applied to the top front to snap it
in place. The SYMPL relay Node
has been mounted successfully.
You can also mount the e:cue
SYMPL Node on any at vertical surface. Use a 3 to 3.5 mm screw for the
hanger hole.
For mechanical stability, mounting on a rail is recommended.
4.3 Ethernet connection
The pin-assignment of the Ethernet port corresponds to RJ45 standards.
You can use every common Ethernet component, like cable, splitters, and
switches. Connect the SYMPL relay Node at the designated Ethernet
interface with a patch cable (RJ45, CAT5).
4.4 Load connection
The SYMPL relay Node can control three loads with its three relay
interfaces. Connect loads to the SYMPL Node using 3-pin terminal plugs at
the relay interfaces of the SYMPL Node.
i
Never connect more than one SYMPL Node in factory state
to a network. The identical IP addresses will conict and
disturb proper communication.
i
The Ethernet port of the SYMPL Node is not designed for
inter-building connections with power and lighting transients.
Use only intra-building networks to connect the SYMPL
Nodes and Cores.

16
Network conguration
The appropriate pin assignment is dened as follows:
From left to right: NO, NC, COM.
4.5 Power supply
The e:cue SYMPL relay Node can be powered by an external power supply
or via Power-over-Ethernet.
PoE:
For PoE, simply connect an Ethernet connection from a power sourcing
device.
External power supply:
Connect the SYMPL relay Node to a certied NEC Class 2 24 V DC power
supply unit. Present power supply equates to the status “On” or running of
the SYMPL Node.
To connect the device to a power supply unit, use the provided 2-pole
terminal and lay the wires as stated on the front label. The voltage
assignment is left V+ and right V-.
Turn the power on when all cables are connected to the SYMPL relay Node.
The device starts booting. The device has nished booting and is in
operation when the LED Status is ashing.
5 Network conguration
The conguration of the e:cue SYMPL relay Node is completely done via
e:cue SYMPHOLIGHT. See the SYMPHOLIGHT System Manual for details
!
The SYMPL relay Node is not suited for powering over a DC
power supply network. Use a separate certied SELV Class 2
power supply unit in the control cabinet for supplying 24 V
DC to the SYMPL relay Node.

17
Network conguration
on conguration, available at www.ecue.com.
The network properties of the SYMPL relay Node are precongured. The
successful installation of the power supply is required for changing the
network conguration. You can either adjust the network settings with
SYMPHOLIGHT or using the web interface of the SYMPL relay Node.
5.1 Default network properties
The SYMPL relay Node has as factory setting the default IP address
192.168.123.1.
DHCP is enabled by default.
Login credentials for the web interface of the SYMPL relay Node:
The default password is: ecue
To change the network conguration use either SYMPHOLIGHT or the web
interface of the SYMPL relay Node:
5.2 Network configuration with SYMPHOLIGHT

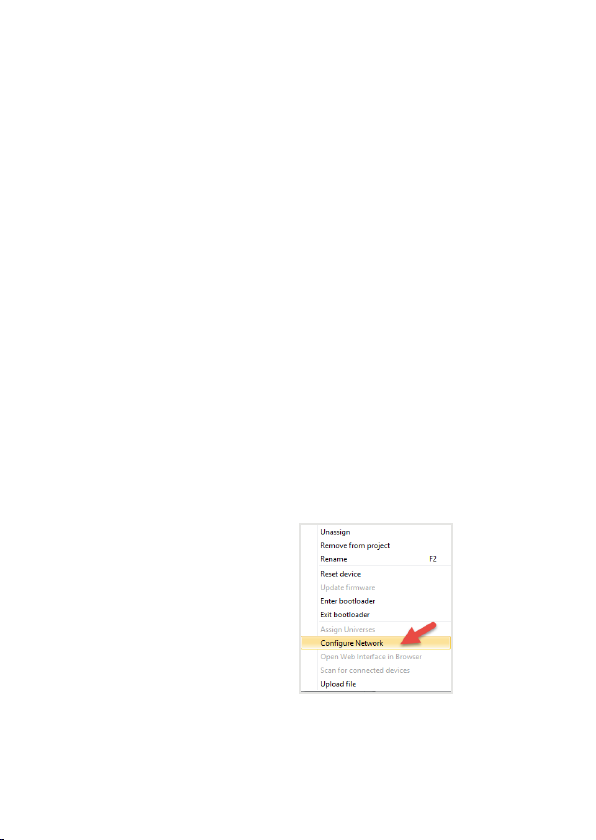

1. Open the context menu of the SYMPL relay Node in the Setup tab
of SYMPHOLIGHT by a right-click on the device.
2. Select “Congure Network”:

18
Network conguration

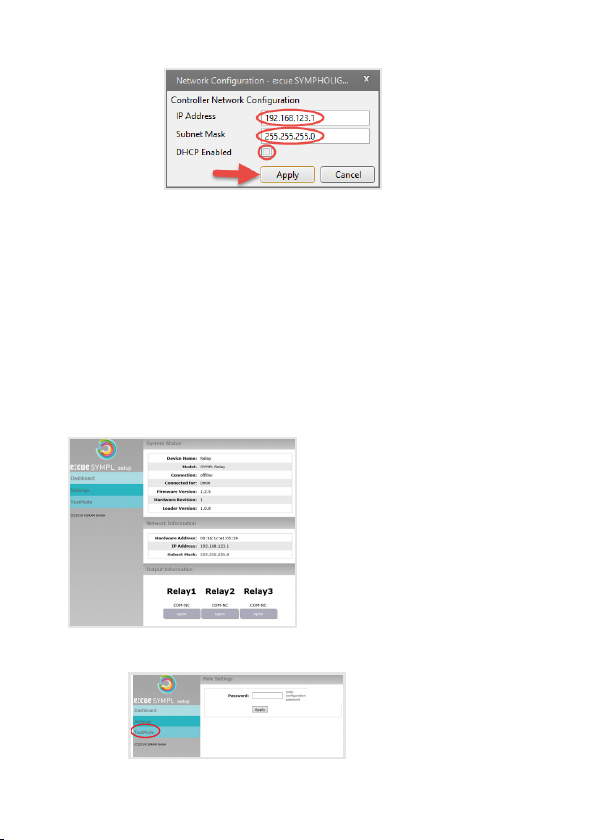

3. Dene the IP address, the subnet mask and the DHCP settings to
your needs:
4. Click “Apply” to submit the changes.
The network conguration of the SYMPL relay Node is completed.
5.3 Network configuration with the web interface
1. Open a common web browser on a connected PC. Enter the
SYMPL relay Node's IP address into the address bar:
e.g. http://192.168.123.1
The web interface of the SYMPL relay Node is displayed:
2. On the left side, select “Settings” and enter the default password
ecue:

19
Network conguration
3. Click “Apply”. The Settings page is displayed:
4. Dene the network settings at “Device Basics” to your needs. You
can also change the password for entry to the web interfaces of the
SYMPL relay Node here.
5. Click “Submit” to apply the settings.
The network conguration of the SYMPL relay Node is completed.
i
The employment of a discrete network is recommended.
i
Note down all employed and, if applicable, reserved IP
addresses. Keep the information for future network
congurations.
i
You can change the login password to the
SYMPL relay Node's conguration page and the device
name of the SYMPL relay Node at “Settings” page. Do not
forget the new password.

20
Test mode
6 Test mode
- SYMPHOLIGHT v5.0 or higher needed-
The SYMPL relay Node provides a Test mode for the connected loads.
There are two kinds: using the Identify button and using the web interface
of the SYMPL relay Node.
Please note that the Test mode overwrites all relay states from running
shows for the time of testing. A running show is reverted to after exiting the
Test mode.
The Test mode is indicated by the blinking Test / Error LED.
Test mode via Identify button
See section (C) on page 11 at “2.4 Identify button: Identication & Reset
& Testing”.
Test mode via Web interface
The web interface of the SYMPL relay Node provides individual relay testing
in free combination.
To access the web interface, open a common web browser on a connected
PC. Enter the SYMPL relay Node‘s IP address into the address bar:
e.g. http://192.168.123.1.

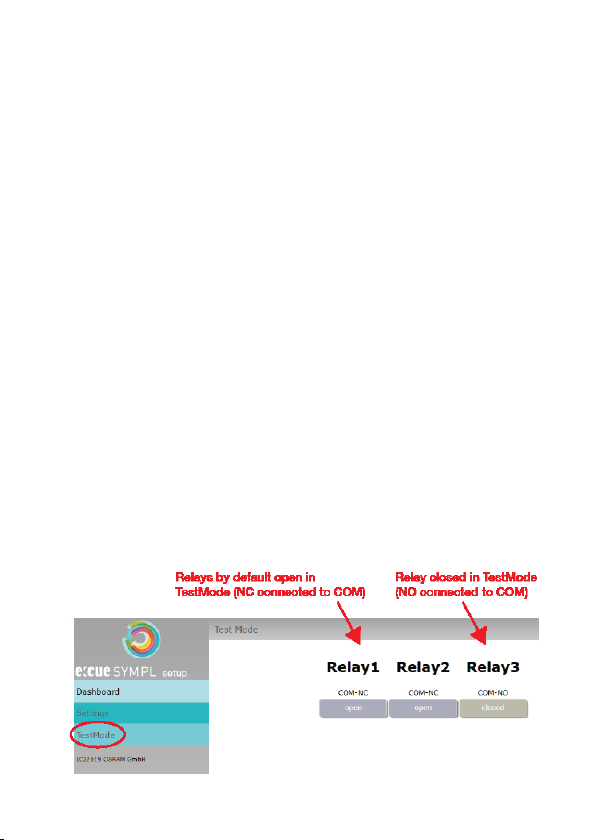

Open the Test mode page by selecting “TestMode” on the left side of the
web interface of the SYMPL relay Node:
