Ossur i-digits User manual

i-digits™
User Manual

This document provides information for i-digits™ users and should be used in conjunction with
advice from your clinical team.
Refer to www.touchbionics.com/downloads/document-library to ensure you have the latest copy
of this document.
For further training information and videos demonstrating use of i-digits devices in a variety of
functional activities visit http://training.touchbionics.com/user-en.html.
Download the my i-limb™app from the Apple App store.
i-digits™user manual
This symbol signifies important information and is used throughout the manual.

3 of 20
1.0 i-digits™4
1.1 Product Description 4
1.2 Intended Use 4
1.3 Prosthesis overview 5
1.4 Prosthesis Overview: Control Options 6
2.0 Control and Batteries 7
2.1 Wristband componentry 8
2.2 Controlling your prosthesis 8
2.3 Battery Charging 9
3.0 Covers 11
3.1 Cover Options 11
3.2 General Precautions 11
4.0 Grip Review 12
4.1 Grip Options 12
5.0 Support Information 14
5.1 Storage and Maintenance 14
5.2 Troubleshooting 15
5.3 General Safety, Warnings and Precautions 16
6.0 User Information 17
6.1 User Details 17
7.0 Appendix 18
7.1 Technical Information 18
7.2 Environmental Conditions 18
7.3 Component Compatibility 18
7.4 Warranty 18

4 of 20
1.0 i-digits™
1.1 Product Description
design. dexterity. intelligent motion.
Based on the industry-leading design of our i-limb®prod-
uct range, i-digits™ combines unsurpassed functionality
with style.
We are pleased that you and your clinical team decided
that i-digits™ is the most appropriate prosthesis for your
needs. You will have discussed your functional goals with
your clinical team. This manual, along with the training and
support of your clinical team, should help you understand
how i-digits™ will help you accomplish these goals.
Key features include:
• Smarter
- gesture control powered by i-mo™ technology uses
simple gestures to change grips*
- proximity control made available via grip chips™
technology
• Faster*
- adjustable speed boost increases speed up to 30%
• Stronger*
- up to 30% more power when needed
- improved component design for easier and more
reliable fabrication
- 50% longer battery life
• Smaller
- form fitting design decreases device size in every
dimension
- smaller digits now available
1.2 Intended Use
i-digits™ is intended to be used by individuals with partial
hand loss or deficiency. Devices are suited to individuals
with any 3, 4 or 5 digit loss, while patients or users with 1
or 2 digit loss are also indicated when the digits of loss are
either the thumb or the main digits of opposition, namely
the index and middle fingers.
* Note: only available on i-digits™ quantum.
i-digits™ is a fully customized partial hand prosthesis with
individually powered fingers. i-digits™ fingers move inde-
pendently and bend at the joint to work in conjunction with
any remaining fingers to help significantly increase func-
tional capabilities.
Each digit of the device has its own motor that allows the
digits to run until they meet the object being grasped. The
result of this is the device taking the shape of that object
(compliant grip). The power for the prosthesis comes from
two batteries which are located in the wristband. Initially,
you and your clinical team will develop control of opening
and closing your hand. At this stage, you should be able
to carry out a wide range of functional daily activities us-
ing your i-digits™ device.It takes time and practice to gain
control and master the best way to perform tasks with your
prosthetic device. The pace at which individuals gain this
control varies.
Your i-digits™ is covered under the Touch Care program.
Please contact your clinician for details about your specific
Touch Care coverage.

4 of 20 5 of 20
Fig. 1: Serial Number
Fig. 2: Weight distribution
1.3 Prosthesis overview
Each i-digits™ has a unique identifying number called the
serial number as depicted on the image to the right (fig.1).
This is an important piece of information and we recom-
mend that you make a note of it on page 16 of this manual.
i-digits™ will not provide you with sensation and so you
will not be able to feel things such as heat and moisture.
i-digits™ cannot absorb any shock as your own body is able
to do. If high degrees of force are applied, you may cause
damage to your i-digits™. If this does happen, then please
contact your clinical team who will contact Touch Bionics
Customer Support team to resolve the matter as quickly as
possible. To best protect the hand when carrying objects,
the weight should be distributed evenly across the digits
as close to the knuckles and palm of the device as possible
rather than out on the tips of the digits. The image to the
right (fig.2) is an example of how to correctly carry objects.
i-digits™ is like any other electrical device so do not im-
merse in water and do not pour water over the device.
When cleaning the covering use a damp cloth to remove
any dirt.
Do not use i-digits™ without an approved
cover.
If you have any specific questions about your i-digits™
device then please contact your clinical team or visit the
Touch Bionics website www.touchbionics.com for the latest
information and news.
Avoid the use of oils on your skin, such as
Vaseline or oil based moisturisers.

6 of 20
triggers
muscle control
g
r
i
p
c
h
i
p
i-mo™ intelligent motion
gesture control
quick grips™
app control
grip chips™
proximity control
1.4 Prosthesis Overview: Control Options
i-digits™ can access automated grips using a range of control
options depending on the type of i-digits™ device being used.
gesture control (only available on i-digits™ quantum):
By enabling i-mo™ technology, gesture control allows an auto-
mated grip to be accessed through a smooth and natural motion
of the prosthesis in 1 of 4 directions.
To access gesture control:
• Device must be in full open hand mode
• Hold arm parallel to ground (elbow bent to 90°)
• Maintain an open signal until finger twitches
• Move the hand (within 1 second) in direction assigned to
desired grip
• i-digits™ quantum will adopt the grip
Note: gesture control can also be accessed using co-contraction.
Depending on how your clinician has set up your prosthesis for
you.
app control:
i-digits™ can access a grip at the touch of an icon on the my i-
limb™ app, enabling all automated grips to be available. These
are called quick grips™.
i-digits™ will exit automated grip when icon is tapped again, or by
selecting another grip icon.
Speed boost (not available on i-digits™ access) is adjusted using
a simple slider bar on the my i-limb™ app. This increased speed
can provide benefits of a more responsive action, more natural
appearance of motion and increased grip force.
muscle control:
Triggers are specific muscle signals that you can use to instruct
i-digits™ to activate an automated grip. There are 4 potential trig-
gers: hold open, double impulse, triple impulse and co-contrac-
tion.
proximity control (not available on i-digits™ access):
Grip chips are small Bluetooth chips which change the function
of the i-limb quantum hand when the hand comes close to them.
Grip chips are programmed (and can be reprogrammed using
the myi-limb App.
To use grip chips, make sure the i-limb hand is not connected to
the App. The i-limb must be fully open/digits stalled open. Each
grip chips must be at least 24” apart.
Proximity is accessed by holding the i-limb hand fully opened
near (15 cm/ 6”) to a grip chip. Wait until the grip is accessed,
which may take up to 3 seconds. To exit a grip accessed via prox-
imity control, give a long open signal.
Double tapping a grip chip activates the grip. Quickly tap a grip
chip twice, just like double-clicking a computer mouse. The LED
on the grip chip flashes once when tapping is successful. NOTE:
a 3 second pause between each double tap is required.

6 of 20 7 of 20
2.0 Control and Batteries
Fig. 3: Prosthesis overview
Motorized Digit
Knuckle
Wristband
and batteries
This illustration above depicts an i-digits™ for users with sound thumb and 4 i-digits™.
Palmer view Dorsal view

8 of 20
2.1 Wristband componentry
The wristband houses the microprocessor and the batter-
ies unit. It is buckle fastened, designed to fit loosely around
the forearm. To switch the device on, press the button and
the LED light will illuminate. To switch it o, press the but-
ton again and the LED will light momentarily.
The wristband is designed to fit loosely around the forearm.
It is not designed to be used for suspension of the prosthe-
sis or to hold electrodes in position against the skin.
2.2 Controlling your prosthesis
To fit i-digits™ a socket interface has been specially cre-
ated by your prosthetist team. They will have made this to
ensure it is comfortable and fits directly to your residual
hand. You may experience some minor redness on your
residual hand but this should not last very long after you
remove the device. If the device is causing you discomfort
or aecting you using your i-digits™ then we recommend
that you contact your clinician.
As part of the fitting process, your prosthetist selected
the best method for you to provide control of your device.
This communicates to the processor whether you want
i-digits™ device to open or close. The most common input
type is called an electrode. Electrodes pick up on the elec-
trical activity that your body gives o when you contract
a muscle. While gaining good control may take time and
practice, your method of input should not cause pain. Talk
with your prosthetist if you do not understand how your
input control is working or if it is causing discomfort.

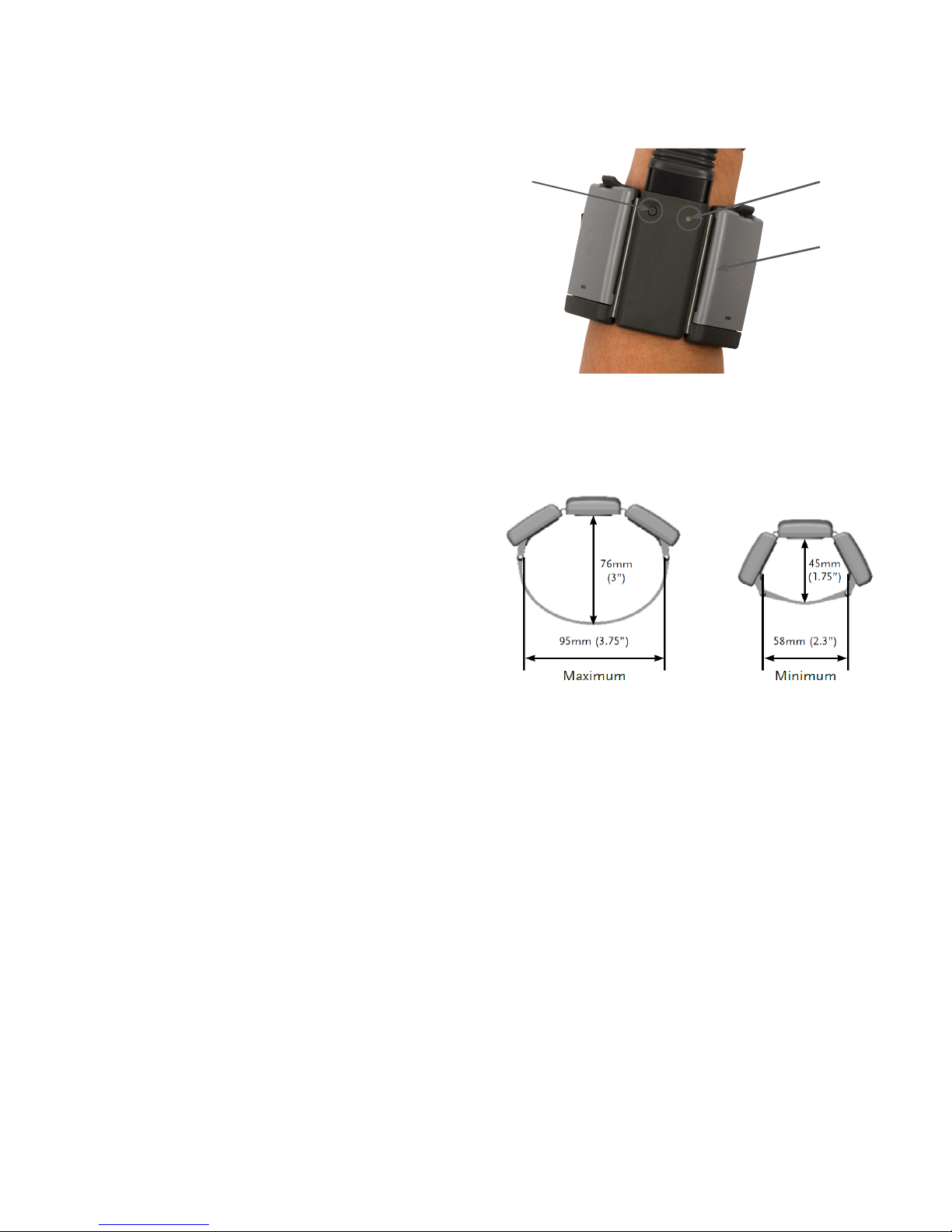

Fig. 4: Wristband
On/O button LED display
Batteries
Fig. 5: Wristband circumference range

8 of 20 9 of 20
UK
Europe
USA and Japan
Fig. 6: batteries
2.3 Battery Charging
i-digits™ is powered by two, 800mAh, 3.7 Volt batteries
which have been specifically designed to meet the power
requirements of i-digits™ devices. Four batteries are pro-
vided, two for the wristband and two spares. Two 3.7 V bat-
teries will be needed with the wristband (the wristband will
not work with only one battery).
Each battery is equipped with a LED display alerting you
when the battery is low on charge. If the battery is low on
charge the LED will illuminate RED. The LED will remain
illuminated until the battery is adequately charged.
Only use supplied Touch Bionics charger
to charge batteries. Depending on your
location, you will receive one of the chargers
shown (fig. 7).
If you intend to travel outside of your home country you will
need to ensure that you have a Touch Bionics charger that
will work in the country to which you are traveling. Addi-
tional chargers are available from Touch Bionics (see fig.7).
As an alternative to charging directly from domes-
tic power, a car charger is also provided with the
i-digits™.
Fig. 7: charger
Fig. 8: car charger

10 of 20
Fig. 9: wristband battery housing
Batteries are fitted into the wristband battery housing and
secured by the holding catch at the wrist side of the wrist-
band. Release the holding catch to remove the battery.
The batteries provided are designed to work
specifically with the Touch Bionics i-digits™
wristband and are not to be used with any
other device.
Only Touch Bionics batteries are approved
for use with i-digits™, use of alternative bat-
teries will invalidate the warranty.
Charging time from full discharge is approximately 2 hours.
i-limb®Power Pack batteries for i-digits™ should only be
charged using the Touch Bionics battery charger (fig.7)
supplied. Place the batteries in the charger as illustrated.
Insert the charger lead from the mains charger into the
charger base unit. Insert the mains charger into the power
outlet (fig.10).
On the base plate of the charger base unit you will see the
various light sequences:
• Middle light on: Charger is plugged in
• 2nd and 5th lights blinking Green: Batteries are
charging
• 2nd and 5th lights solid Green: Batteries are charged
• 1st and 4th Red lights on: Battery fault, unplug and
try again. If lights continue to illuminate, contact your
clinical team.
Fig. 10: charger base unit
Do not pull cable to remove the lead.
Switch the device OFF to preserve battery
power when not in use.
Replace the battery annually for optimal
performance.
To ensure i-digits is continually functional,
charge at the end of each day.

10 of 20 11 of 20
3.0 Covers
3.1 Cover Options
Coverings are an important part of the appearance and
durability of upper limb prostheses. The Touch Bionics i-
digits™ products are the first prosthetics and fingers to
imitate the individual digit articulation of the human hand,
and we provide flexible coverings which enable that articu-
lation.
Covers will be provided for i-digits™ device. Digit covers
will be ready to fit and are designed to cover each digit.
Touch Bionics’ approved digit covers must be used with
each digit of the device. The warranty will become void if
the device is used without an approved cover.
3.2 General Precautions
• i-digits™ device must be used with approved Touch
Bionics’ digits covers.
• Ensure covers are fitted properly.
i-digits™ covers do not provide full protection from mois-
ture, oil, dust and dirt ingress. Caution should be observed.

12 of 20
4.0 Grip Review
i-digits™ quantum has 20 dierent grip options available and 12 customizable my grips™ (not shown). All other i-digits™
devices have 12 grip options available. The grips can be accessed and programmed through the software package called
my i-limb™ app. The available grips for your device are displayed on the quick grips page of the my i-limb™ app.
The range of grips available is dependent on your i-digits™ device configuration. The following features catalogue reviews
the various available grips and provide a functional description of each. The range of grips are represented are as per a 5
digit device.
PRECISION PINCH GRIP OPTIONS
TRIPOD GRIP OPTIONS
Standard Precision Pinch Opened
middle, ring and little finger remain fully
opened and switch o. Index finger and
thumb provide grip.
Standard 3 Jaw Chuck (Tripod) Opened
ring and little finger remain fully opened
and switch o. Thumb, index and middle
fingers move to provide grip.
Thumb Precision Pinch Opened
middle, ring and little finger remain fully
opened and switch o. Thumb automati-
cally moves to a partially closed position.
Index finger will move to provide grip
against a fixed thumb.
Thumb 3 Jaw Chuck (Tripod) Opened
ring and little finger remain fully opened
and switch o. Thumb automatically
moves to a partially closed position. In-
dex and middle fingers move to provide
grip against a fixed thumb.
Standard Precision Pinch Closed
middle, ring and little finger automatical-
ly close and switch o. Index finger and
thumb provide grip.
Standard 3 Jaw Chuck (Tripod) Closed
ring and little finger move to terminal
close. Thumb, index and middle fingers
move to provide grip.
Thumb Precision Pinch Closed
middle, ring and little finger automatical-
ly close and switch o. Thumb automati-
cally moves to a partially closed position.
Index finger will move to provide grip
against a fixed thumb.
Thumb 3 Jaw Chuck (Tripod) Closed
ring and little finger move to terminal
close. Thumb automatically moves to a
partially closed position. Index and mid-
dle fingers move to provide grip against
a fixed thumb.
4.1 Grip Options

12 of 20 13 of 20
ADDITIONAL GRIP AND GESTURE OPTIONS
Thumb Park Continuous
all four fingers remain open and switch
o, only the thumb will move.
Lateral Grip
all four fingers fully close and switch o.
Only thumb will move.
Custom Gesture
all fingers automatically move to a user
defined fully opened or fully closed posi-
tion and switch o.
Thumb Park Quick
all four fingers remain open and switch
o, for 1.5 seconds the thumb will close
and then automatically return to an open
position.
Index Point
thumb, little, ring and middle fingers
close and switch o. Only the index fin-
ger will move.
Custom Grip
all fingers automatically move to a user
defined position. The user can choose to
keep certain digits active and switch oth-
ers o.
Grasp
fingers adopt a pre flexed position. All
fingers function in squeeze mode, for
rapid grasp and release of objects.
Handshake
hand forms a shape appropriate for shak-
ing another persons hand, and functions
in squeeze mode.
Mouse
hand forms shape appropriate for using a
computer mouse. Index finger functions
in squeeze mode, for clicking the mouse.
Trigger Two Finger
hand forms a shape appropriate for using
a spray bottle with the index and middle
finger active. Index and middle fingers
function in squeeze mode.
Thumb Trigger
hand forms shape appropriate for using
an aerosol spray can with thumb active
in squeeze mode.
One Finger Trigger
hand forms a shape appropriate for us-
ing a spray bottle with the index finger
active in squeeze mode.

14 of 20
5.0 Support Information
5.1 Storage and Maintenance
Always turn o your i-digits™ device when not in use.
Aim to charge the battery each day after use.
Replace the batteries every 12 months.
Ensure your i-digits™ is serviced every 12 months.

14 of 20 15 of 20
5.2 Troubleshooting
Problem Action
Prothesis does not operate Ensure the prosthesis is switched on
Ensure the battery is connected
Ensure the battery is charged
Check the electrodes have good contact
One digit does not operate Check if the digit operates correctly using the Hand Health Check in my i-limb™
app
Device stops halfway during an
action
Contact your Prosthetist
Prosthesis opens when a close
signal is provided
Contact your Prosthetist
Battery is not working Check the battery is connected
Check the battery is charged
Check the device using one of the spare i-digits™ batteries

16 of 20
If you experience technical problems
with i-digits™ contact your clinical team.
5.3 General Safety, Warnings and Precautions
i-digits™
Do not use without an approved cover.
Do not use under water.
Do not use to operate heavy / industrial machinery.
Do not use with machinery with moving parts that may
cause personal injury or damage.
Users must comply with local regulations on the operation
of automobiles, aircraft, sailing vessels of any kind and any
other motorized vehicle or device.
Do not use for extreme activities that may cause injury to
a natural hand.
Do not expose to excessive moisture, liquid, dust, vibra-
tion or shock.
Do not expose to high temperatures.
Do not expose to flames.
Do not use or expose to explosive atmospheres.
Do not disassemble componentry or modify in any way.
Maintenance, repairs and upgrades may only be per-
formed by qualified Touch Bionics technicians and techni-
cal partners.
Do not use with a damaged cover.
Damaged covers must be replaced or repaired by a quali-
fied Touch Bionics technician or technical partner.
Only approved Touch Bionics accessories and tooling may
be used with i-digits™.
Do not use an i-digits™ device to operate your mobile
device whilst it is connected to a mains outlet, as this can
aect EMG signal.
Failure to comply with the above guidelines will invalidate
the warranty.
Batteries
Do not bend or exert excessive pressure on the battery.
Do not pierce the battery.
Do not disassemble.
Do not expose to high temperatures.
Do not incinerate batteries.
Do not short circuit the battery.
Do not store batteries inside a vehicle.
Dispose of batteries in accordance with US, European or
local regulations.
Only use the appropriate Touch Bionics charger to charge
Touch Bionics batteries.
If the battery has visibly ballooned or swelled:
• discontinue the charging process immediately
• disconnect the battery
• remove to a safe area
• leave and observe for 15 minutes
• replace with new battery
• do not re-use
• dispose of any leaking batteries in an appropriate
manner
Failure to comply with the above guidelines will invalidate
the warranty.

16 of 20 17 of 20
6.0 User Information
6.1 User Details
Provision of the following information will enable easy identification of your device, should it be returned to customer
service. Please forward to Touch Bionics as per the contact information on the back page of this manual.
It is recommended that the above information is also included in the user notes.
User Name: ...........................................................................................................................................................
Fitting Date: ...........................................................................................................................................................
Device Purchase Date: ..........................................................................................................................................
Device Serial Number: ..........................................................................................................................................
Prosthetist Name & Contact Information: ...........................................................................................................
Therapist Name & Contact Information: .............................................................................................................

18 of 20
7.0 Appendix
i-digits™
Voltage 7.4 V (nominal)
Max. Current 5 A
Battery Capacity Rechargeable lithium polymer 7.4 V (nominal); 800 mAh capacity
Max device load 20kg
Finger Carry Load (static limit) 5kg
Time from full open to full close 0.8 seconds
Hazardous Area Classification
i-digits™ device is not intended for use outside the boundaries of the environments listed below.
The user of i-digits™ device should assure that it is not used in such environments.
Condition Level
Maximum temperature +70˚c
Minimum temperature -40˚c
Hazardous Area Classification Non Hazardous
7.1 Technical Information
7.2 Environmental Conditions
7.3 Component Compatibility
Please refer to www.touchbionics.com/downloads/document-library for Electro Magnetic Compatibility (EMC) and Elec-
trical Information for i-digits™ products.
7.4 Warranty
Refer to www.touchbionics.com/downloads/document-library to review warranty information.

18 of 20 19 of 20
Consult instructions for use
Class II equipment – provides double Isolation to protect against
electric shock
IP40
Degree of protection – IP40
Protection against penetration by solid particles with diameters larger
than 1 mm. No special protection against penetration by water
Serial Number
For i-digits™ devices:
The unique serial number for i-digits™ device is 2 letters followed by 6
digits, alpha / numeric number.
WEEE Compliance: This marking on the product, packaging, accesso-
ries or literature indicates that the product contains electronic compo-
nents and/or batteries that should not be disposed of in regular waste
at the end of its usable life. To prevent possible harm to the environ-
ment or human health from uncontrolled waste disposal users are re-
quested to separate these items from other types of waste and recycle
them responsibly to support sustainable reuse of material resources.
Users should contact their local government oce for information on
how these items can be recycled or disposed of in an environmentally
sound manner. To protect natural resources and to promote material
reuse, please separate batteries and electrical components from other
types of waste and recycle them through your local, free electronic
parts return system.
Catalog number
Manufacturer
European Conformity

WWW.OSSUR.COM ©Copyright Össur 2018 MA 01421 Revision 3, September 2018
Össur Americas
27051 Towne Centre Drive
Foothill Ranch, CA 92610, USA
Tel: [phone]
Tel: [phone]
Fax: [phone]
[e-mail]
Össur Canada
2150 – 6900 Graybar Road
Richmond, BC
V6W OA5 , Canada
Tel: [phone]
Fax: [phone]
Össur Europe BV
De Schakel 70
5651 GH Eindhoven
The Netherlands
Tel: [phone]
Tel: [phone]
Fax: [phone]
[e-mail]
Össur Deutschland GmbH
Augustinusstrasse 11A
50226 Frechen
Deutschland
Tel: [phone]
Fax. [phone]
[e-mail]
Össur Nordic
P.O. Box 67
751 03 Uppsala, Sweden
Tel: [phone]
Fax: [phone]
[e-mail]
Össur Iberia S.L.U
Calle Caléndula, 93 -
Miniparc III
Edificio E, Despacho M18
28109 El Soto de la Moraleja,
Alcobendas
Madrid – España
Tel: [phone]
Fax: [phone]
[e-mail]
[e-mail]
Össur UK Ltd
Unit No 1
S:Park
Hamilton Road
Stockport SK1 2AE, UK
Tel: [phone]
Fax: [phone]
[e-mail]
Össur Europe BV – Italy
Via Baroaldi, 29
40054 Budrio, Italy
Tel: [phone]
Fax: [phone]
[e-mail]
Össur APAC
2F, W16 B
No. 1801 Hongmei Road
200233, Shanghai, China
Tel: [phone]
Fax: [phone]
[e-mail]
Össur Australia
26 Ross Street,
North Parramatta
NSW 2151 Australia
Tel: [phone]
Fax: [phone]
[e-mail]
Össur hf.
Grjótháls 1-5
110 Reykjavík
Iceland
