oticon FittingLINK 3.0 User manual

TV Adapter 3.0
Instructions for use

Introduction to this booklet
This booklet gives you guidance on how to use and maintain your new
TV Adapter. Please read the booklet carefully, including the Warnings
section. This will help you get the most out of the TV Adapter.
If you have additional questions about the use of your TV Adapter,
please contact your hearing care professional.
About Installation Handling Warnings More info
For your convenience, this booklet contains a navigation bar to help you
navigate easily through the different sections.
Intended use
Intended use TV Adapter 3.0 is intended as a wireless transmitter of
sound from a TV or other electronic audio devices to
Oticon hearing aids.
Indications for use No indications for use.
Intended user Adults and children older than 36 months.
Use environment Home setting.
Contraindications No contraindications.
Clinical benefits See clinical benefits of the hearing aid.

Table of contents
About
Package content 6
TV Adapter overview 8
Installation
Installation 10
Place the TV Adapter 11
Connect to a power outlet 12
Connect to the TV 14
Connect using TOSLINK 16
Connect using RCA 18
Connect using mini jack adapter 20
Connect using SCART 22
Pair TV Adapter with hearing aids 24
Handling
Start TV sound using your hearing aids 26
Turn off TV sound using your hearing aids 27
Volume control using your hearing aids 28
Start TV sound using the hearing aid Remote Control 30
Turn off TV sound using Remote Control 31
Volume control using Remote Control 32
Mute using Remote Control 33
Use TV Adapter with Oticon On App 34
More than one user 35
Caring for TV Adapter 35
More than one TV Adapter 36
Remove a user/clear pairings 37
Warnings
Warnings 38
More info
Conditions of Use 40
International warranty 41
Technical information 42

TV Adapter 3.0
Instructions for use
6 7
About Installation Handling Warnings More info
Package content
The TV Adapter packaging box consists of the following elements:
TV Adapter This booklet (Instructions for use)
About
Box 1
Box 3
Box 2
Power supply
TOSLINK
RCA cable Mini jack Adapter

OUT
IN
R
L
POWER
8 9
About Installation Handling Warnings More info

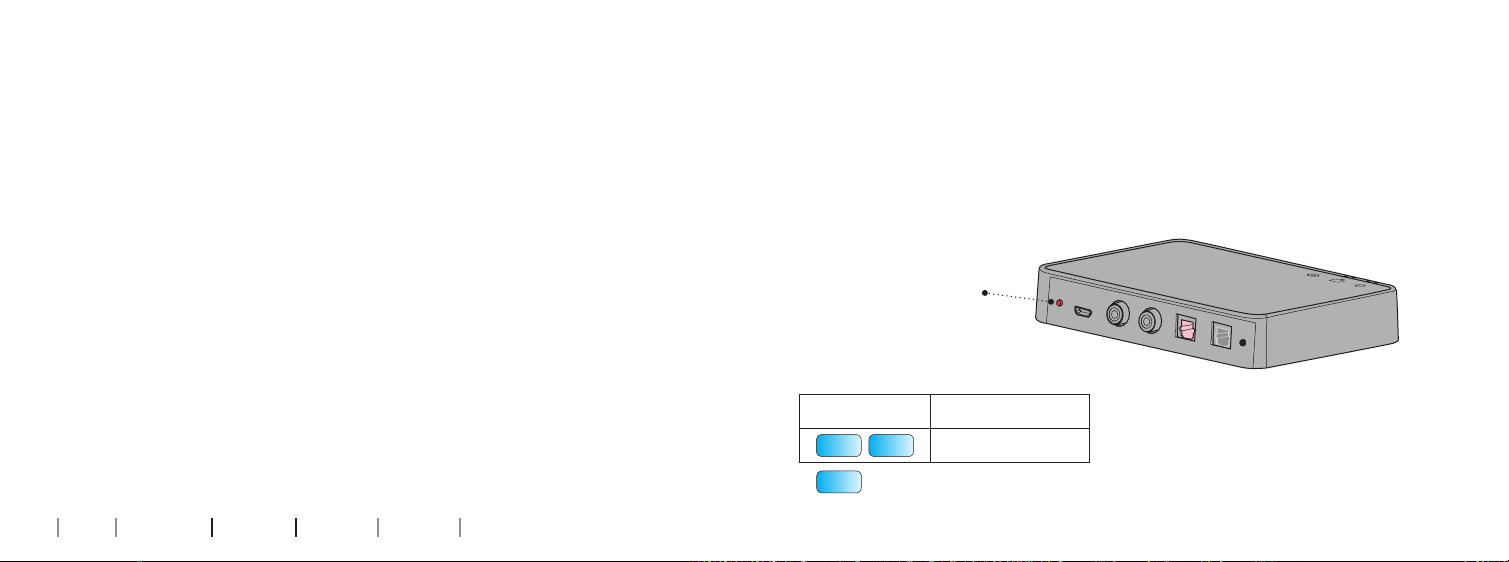

TV Adapter overview
Mode Power indicator TV indicator
Power on, not paired to any hearing aids
Pairing complete (steady light 30 seconds)
Power on, not streaming
RCA inserted and streaming
No RCA/Audio input
TOSLINK inserted and streaming (digital)
TOSLINK inserted and streaming (invalid signal)*
Fault condition **
No light
* Try other input connection
** Contact your hearing care professional
Blinking Fading Steady
Back
Power supply
Front
TV
TOSLINK in
Mode
TOSLINK out
RCA left and right
Power
Setup

10 11
About Installation Handling Warnings More info
Installation
Using the TV Adapter for the first time
Before you can use your hearing aids with your TV, the TV Adapter must
be connected to a power outlet, connected to the TV and paired with
your hearing aids.
This is a step-by-step guide on how to install the TV Adapter.
Place the TV Adapter
Place the TV Adapter close to the TV - horizontally, with free line of sight
to the hearing aids.
Installation

TUO
IN
POWER R
L
13
12 13
About Installation Handling Warnings More info

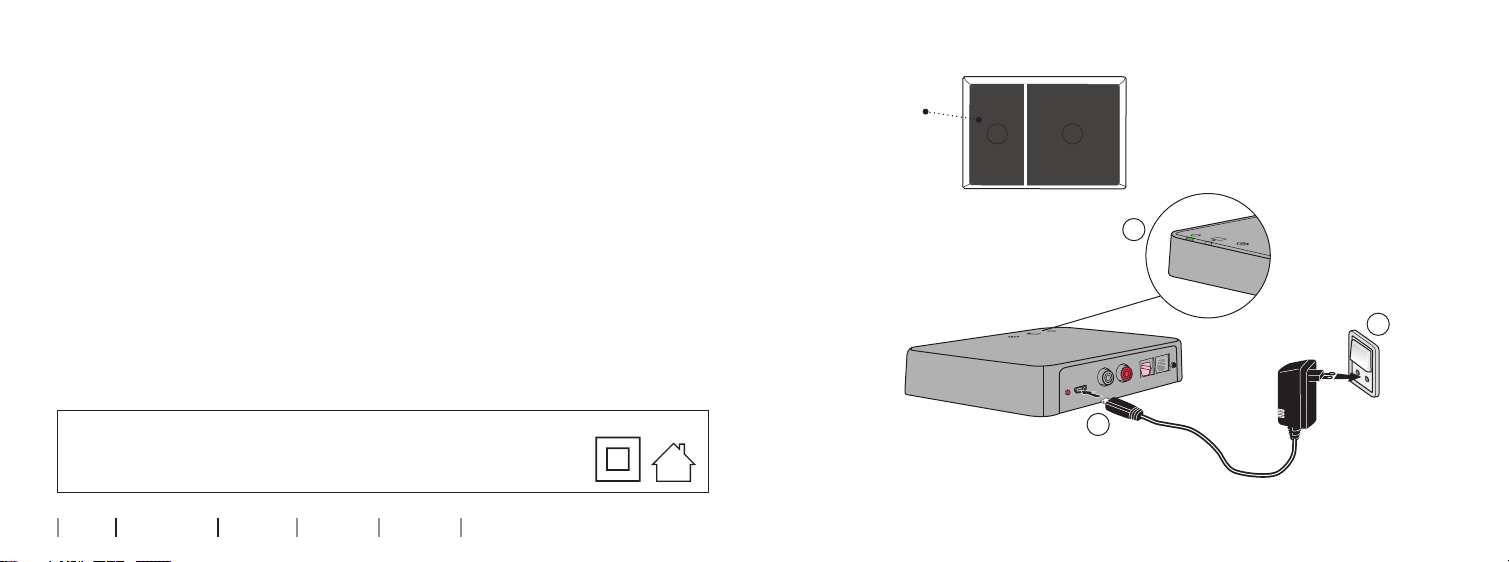

Connect to a power outlet
Use the power supply from box 1
1. Plug the power cord into the “power” connector on the TV Adapter (A).
2. Plug the power supply into the mains wall socket (B).
3. Check that the power is turned on; after a few seconds both indicators will
fade blue to indicate that pairing with your hearing aids is needed.
See page 24.
Box 1
B
C
A
IMPORTANT NOTICE
When charging the TV Adapter use the supplied original power
supply 5.0V/1A, CE and safety marked.

L
TUO
IN
R
13
2
13
L
TUO
IN
R
L
R
Audio
Out
L
TUO
IN
R
13
L
R
Audio
Out
L
TUO
IN
R
13
14 15
About Installation Handling Warnings More info
Connect to the TV
You can connect the TV Adapter to the TV in four different ways.
Connection Page
TOSLINK. Either digital stereo (PCM) or Dolby® Digital * 16
RCA audio output L+R 18
Mini jack audio output (typically headphone output) 20
SCART audio output (L+R) 22
*Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
We recommend using TOSLINK.
Please see the following pages for a solution which fits your TV.
RCA (p. 18)
SCART (p. 22)
TOSLINK (p. 16)
Mini jack (p. 20)

L
TUO
IN
R
13
2
L
TUO
IN
R
13
2
16 17
About Installation Handling Warnings More info
Connect using TOSLINK
1. Use the TOSLINK cable from box no. 3 (A).
2. Remove the plastic cap from the TOSLINK cable. (B)
3. Connect the TOSLINK cable to the TOSLINK output on your TV/home theatre
system (C).
4. Connect the TOSLINK cable to the pink TOSLINK input (D) on the TV Adapter.
5. The TOSLINK output (E) may be used to connect other TOSLINK devices such
as external Dolby® Decoders and surround sound systems.
6. Refer to page 24 for pairing of the TV Adapter with your hearing aids.
Note
It may be necessary to configure your TV, DVD player or home theatre system so
that the correct audio output is available on the TOSLINK output.
Box 3
B
C
C
A
DE

L
TUO
IN
R
12
L
R
Audio
Out
L
TUO
IN
R
13
L
R
Audio
Out
18 19
About Installation Handling Warnings More info
Connect using RCA
1. Use the RCA cable from box no. 2 (A).
2. Connect the RCA cable to the RCA output on your TV (B) or home theatre
system. (Typically marked “L – R AUDIO OUT” and found on the TV back or
bottom panel.)
3. Connect the RCA cable to the RCA connectors (C) on the back of the
TVAdapter.
4. Refer to page 24 for pairing of the TV Adapter with your hearing aids.
Note
It may be necessary to configure your TV so that the correct audio output is
available on the RCA output.
B
C
C
A
Box 2

L
TUO
IN
R
12
L
TUO
IN
R
13
20 21
About Installation Handling Warnings More info
Connect using mini jack adapter
1. Use the mini jack adapter from box no. 2 (A).
2. Connect the RCA cable to the mini jack adapter (B).
3. Connect the mini jack to the TV, this is typically the headphone output (B).
4. Connect the RCA connectors to the TV Adapter RCA input (C).
5. Refer to page 24 for pairing of the TV Adapter with your hearing aids.
Note
The TV speakers may be muted when connecting to the headphone output, and
sound only heard through the hearing aids/TV Adapter.
B
Box 2
A
C

L
TUO
IN
R
L
R
Audio
Out
L
TUO
IN
R
L
R
Audio
Out
22 23
About Installation Handling Warnings More info
SCART Adapter
(accessory)

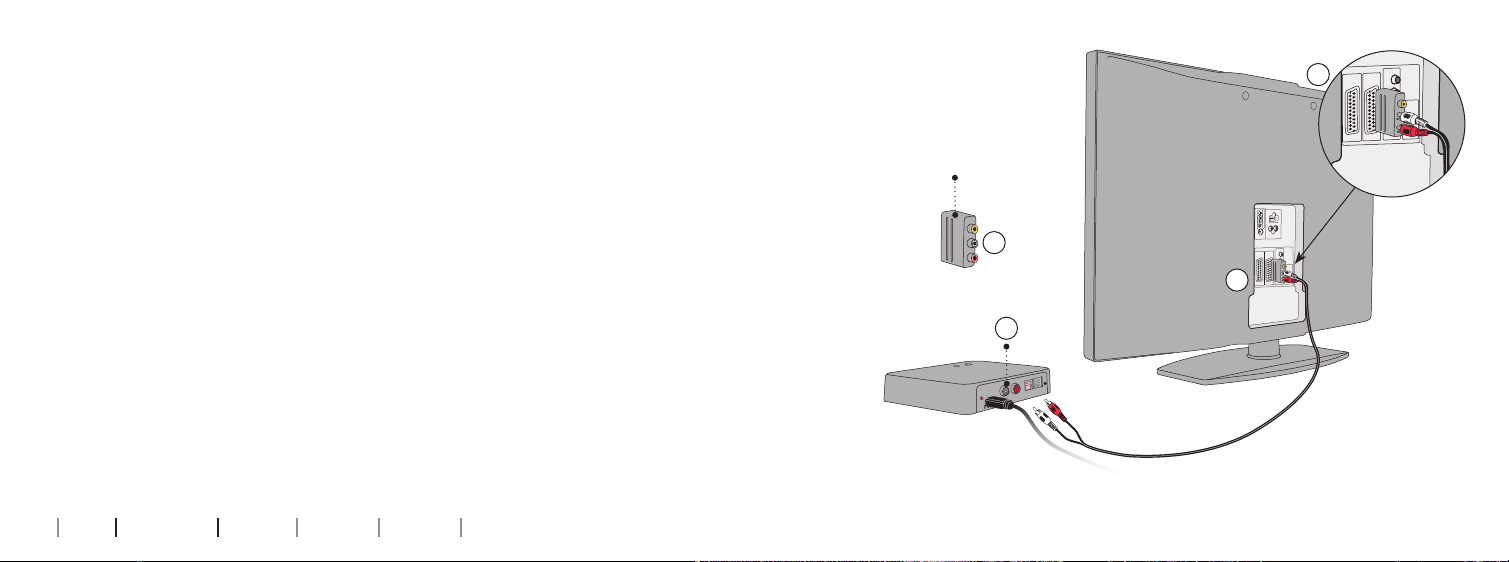

Connect using SCART
1. Use a SCART Adapter* (A).
2. Connect the RCA cable to the red and white terminals on the
SCART Adapter (B).
3. Connect the SCART Adapter to the SCART output on your TV (C).
4. Connect the RCA connectors to the TV Adapter RCA input (D).
5. Refer to page 24 for pairing of the TV Adapter with your hearing aids.
Note
The audio output on the SCART connector can be dependent on the source
selected on the TV. For example some TVs will only make TV sound available on
the SCART output (i.e. sound from a connected DVD player).
B
C
A
D
* The SCART Adapter is an accessory which is not included in the package content. If you need a SCART Adapter,
please contact your hearing care professional.

24 25
About Installation Handling Warnings More info
Pair TV Adapter with hearing aids
Before using the TV adapter, it must be paired with your hearing aids.
Pairing is only required once, and takes around 20-60 seconds.
Note
This TV Adapter can be paired with as many hearing aids as you like. All users will
be able to hear the same sound. Please see page 36 for more details.
IMPORTANT NOTICE
Please refer to your hearing aid‘s instructions for use for details on the
functionality of your specific hearing aid.
Ensure the TV adapter is powered
on.
Restart the hearing aids to activate
pairing mode.
To turn the hearing aids OFF and ON
again, see your hearing aid‘s
instructions for use.
Place both hearing aids close to, or on
top of the TV Adapter.
Pairing is completed when the power
indicator and the TV indicator is blue
for about 30 seconds.
TV Adapter Description
Pairing completed

P2 TVP1
Change program
26 27
About Installation Handling Warnings More info
Turn o TV sound using your hearing aids
To stop the sound from the TV simply change to the desired program in
your hearing aids.

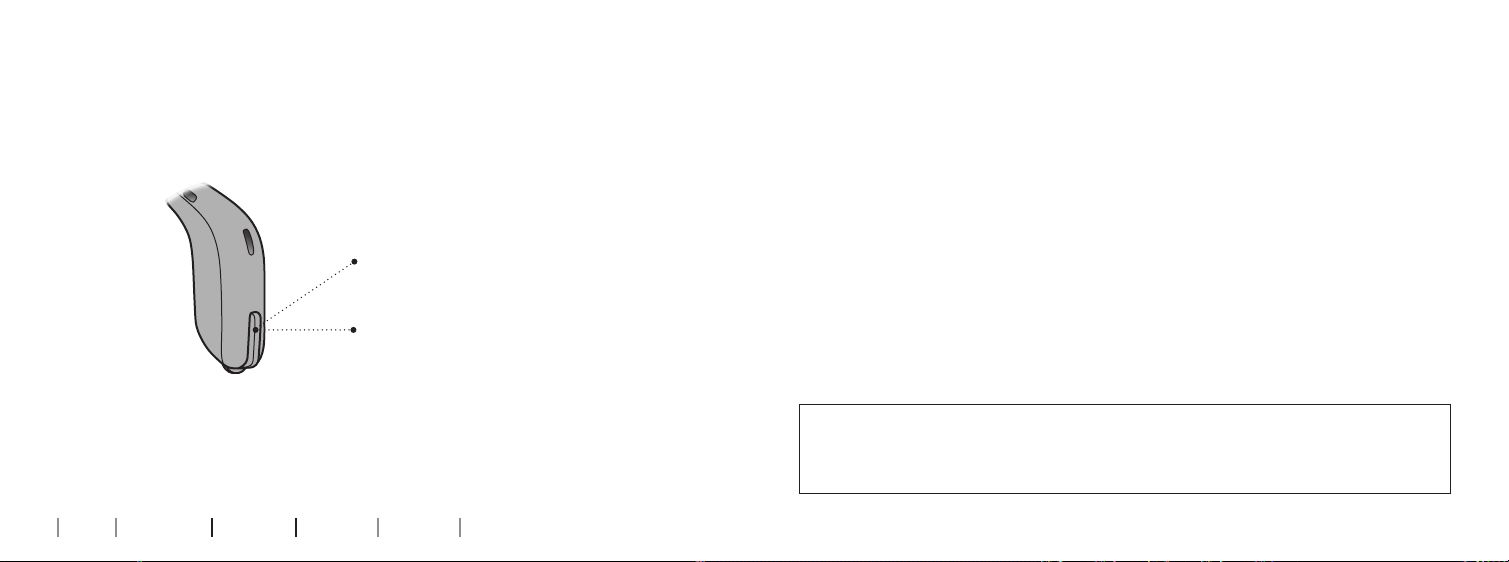

Start TV sound using your hearing aids
Once a TV Adapter has been paired with your hearing aids, it will be
available as a program in your hearing aids. To listen to TV simply press
and hold the push button on your hearing aids to change program.
The program cycle will depend on the programs already available in your
hearing aids.
The TV program indicator - which is different from hearing aid program
indicators - will be heard once the TV program is selected.
IMPORTANT NOTICE
Please refer to your hearing aid‘s instructions for use for details on the
functionality of your specific hearing aid.
Handling

28 About Installation Handling Warnings More info 29

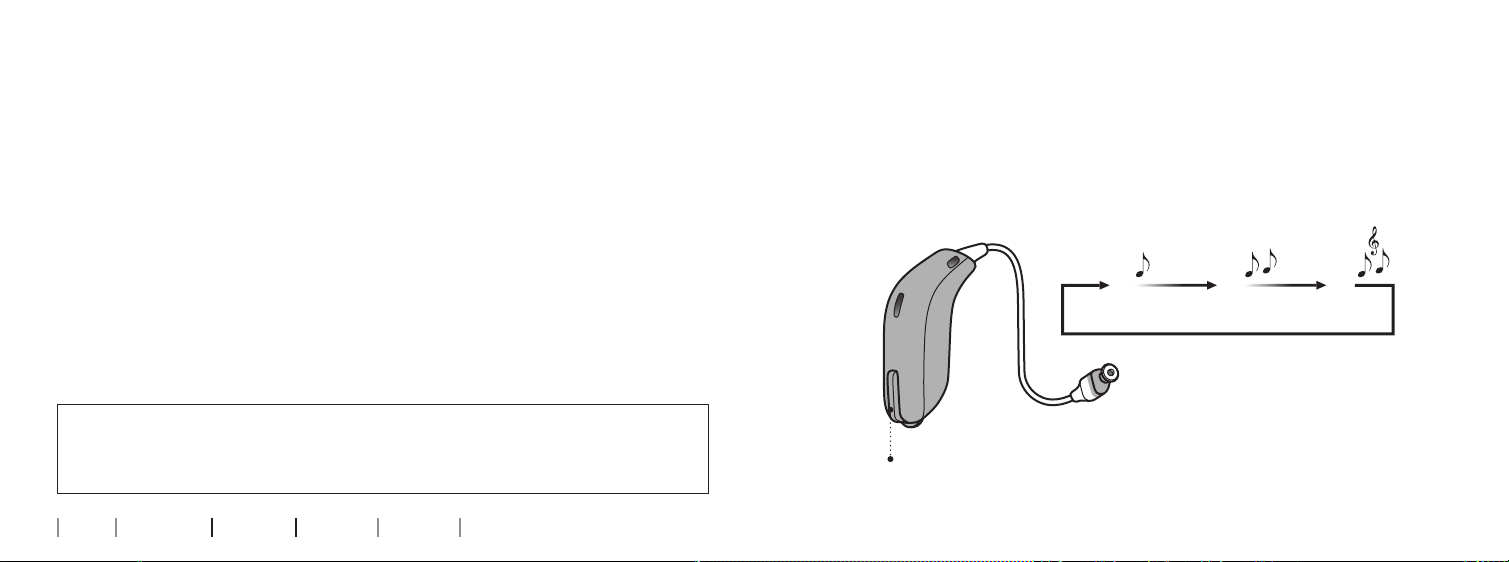

Volume control using your hearing aids
Use the push button on your hearing aid to adjust the TV volume level in
both hearing aids.
Note
The TV volume in the hearing aids is normally not affected by volume
adjustments from the TV remote control.
IMPORTANT NOTICE
Please refer to your hearing aid‘s instructions for use for details on the
functionality of your specific hearing aid.
A short press on the RIGHT
hearing aid increases the volume.
A short press on the LEFT
hearing aid decreases the
volume.

P2 TVP1
30 31
About Installation Handling Warnings More info

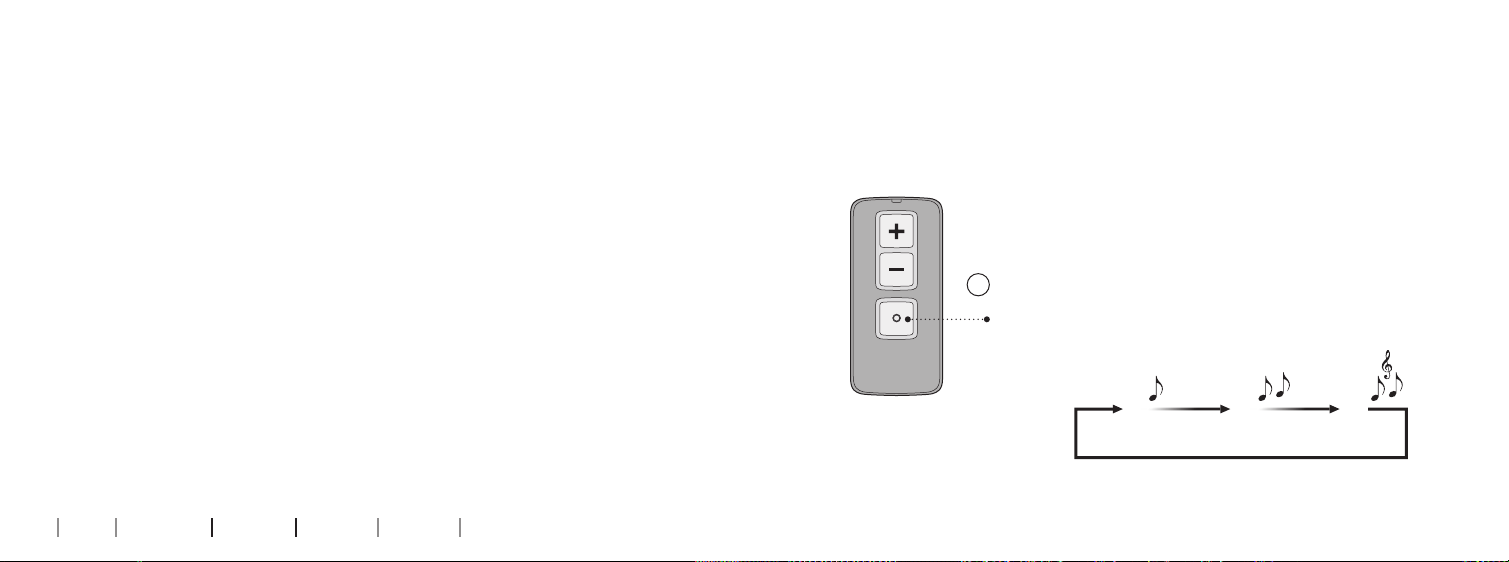

Start TV sound using the hearing aid Remote Control
Remote Control is an optional accessory to your wireless hearing aids.
Once a TV Adapter has been paired to your hearing aids it will be
available as a program. To listen to TV simply press the program selector
and change program (A).
The program cycle will depend on the programs already available in your
hearing aids.
The TV program indicator – which is different from Remote Control
program indicators – will be heard once the TV program is selected.
Turn o TV sound using Remote Control
To stop the sound from the TV simply change to the desired program in
your hearing aids.
Change program
A

32 33
About Installation Handling Warnings More info
Volume control using Remote Control
Use the volume buttons to adjust the TV volume level in both hearing
aids.
Note
The TV volume in the hearing aids is normally not affected by volume
adjustments from the TV remote control.
Adjust the volume by pressing up
or down briefly. Repeat the brief
press for further adjustments.
Mute using Remote Control
While watching TV you can switch off the microphones in your hearing
aids, so that only the sound from the TV is heard.
Note
The mute and volume functions are optional and can be customized by your
hearing care professional.
Press and hold the volume down button
for approx 3 seconds until the surrounding
sound is muted. You will hear a confirmation
beep indicating that the microphones in the
hearing aids are now muted.
To unmute simply press volume up or down
briefly.

34 35
About Installation Handling Warnings More info
Use TV Adapter with Oticon On App
Sound from the TV Adapter can also be controlled using the OticonON
App.
Please refer to the instructions for use “Oticon ON App” for further
information.
Apple, the Apple logo, iPhone, iPad, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other
countries. App Store is a service mark of Apple Inc. Android, Google Play, and the Google Play logo are trademarks
of Google LLC.
More than one user
An unlimited number of hearing aid users can listen to the sound from
one TV Adapter.
Pair the hearing aids to the TV Adapter as described on page 24.
Caring for TV Adapter
Use a soft, dry cloth to clean the TV Adapter.
IMPORTANT NOTICE
The TV Adapter must never be washed or immersed in water or other liquids.

OUT
IN
R
L
POWER
36 37
About Installation Handling Warnings More info
More than one TV Adapter
Your hearing aids can be paired with up to 4 TV Adapters. When you
switch to ”TV Program” mode, your hearing aids will automatically
connect to the last connected TV Adapter within range. I.e. the last TV
you were watching with sound streamed directly to your hearing aids.
If you hear sound from another TV than the one you wish to, you may:
1a. Turn OFF the TV you do NOT want to hear sound from and wait 5 minutes, or
1b. Turn OFF the TV Adapter streaming sound by disconnecting the power cord
2. Exit ”TV Program” in your hearing aids
3. Make sure you are within range of the TV and TV Adapter you wish to
connect to, and that these are (still) turned ON
4. Enter ”TV Program” in you hearing aids
5. Your hearing aids will now be connected to the right TV and TV Adapter
If another person wishes to watch the TV that you turned OFF, it can be turned
ON again after 5 minutes. If you do not wish to wait 5 minutes before turning
this ON, you shall choose step 1b above, and the power cord can be reconnected
immediately after step 5.
Remove a user/clear pairings
To remove a user from your TV Adapter perform a system reset and
repair the required hearing aids.
1. Reset system: Press and hold the setup button for more than 5 seconds
2. Indicators fade blue to indicate no pairings
3. Re-pair the required instruments (see page 24)
TV Adapter Description
No pairings
Fading
Setup

38 39
About Installation Handling Warnings More info
For your personal safety and to ensure
correct usage, you should familiarise
yourself fully with the following general
warnings before using your TV Adapter.
Consult your hearing care professional if
you experience unexpected operations
or serious incidents with your TV Adapter
during use or because of its use. Your
hearing care professional will support
you with issue handling and, if relevant,
reporting to the manufacturer and/or the
national authorities.
Fire hazards
The power source in your TV Adapter has
insufficient energy to cause fire in normal
usage conditions.
Interference
Your TV Adapter has been thoroughly
tested for interference according to the
most stringent international standards.
However, interference with your TV
adapter and other devices may occur. If this
occurs, increase the distance between the
TV adapter and the interfering device.
Connection to external equipment
The safety of the use TV Adapter when
connected to external equipment with an
auxiliary input cable, is determined by the
external signal source. When connected
to external equipment plugged into a
wall outlet, this equipment must comply
with IEC-62368-1 or equivalent safety
standards.
Incompatible non-supplied accessories
Only use accessories, transducers or cables
supplied by the manufacturer. Incompatible
accessories may result in reduced
electromagnetic compatibility (EMC) of
your device.
Warnings
Warnings
