Outsunny 840-239V00 User manual

EN_IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
FR_IMPORTANT:A LIRE ATTENTIVEMENT ET À CONSERVER POUR CONSULTATION
ULTÉRIEURE.
ES_IMPORTANTE, LEA Y GUARDE PARA FUTURAS REFERENCIAS.
PT_IMPORTANTE, RETER PARA REFERÊNCIA FUTURA: LEIA ATENTAMENTE.
DE_WICHTIG! SORGFÄLTIG LESEN UND FÜR SPÄTER NACHSCHLAGEN AUFBEWAHREN.
IT _ IMPORTANTE! CONSERVARE IL PRESENTE MANUALE PER FUTURO RIFERIMENTO E
LEGGERLO ATTENTAMENTE. US_CAUS_CA
IN221000375V01_GL_840-239V00_840-239V01
IN221000375V01_GL_840-239V00_840-239V01

1

2

3
A1 1
B1 1
E 1 F 1 G 1
I1 1 H 3 I2 1
A2 1
D1 1
C1 1
C2 1 D2 1
B2 1
J 4 K 2 L 8
M 2 N 4 O 1

4
Please prepare below tools before assembly. (Not included)
Measuring tape Non-metallic mallet
Wrench
(wrenches of 1 7mm)
Cross screwdriver
Power drill with
14 mm drilling
bit Two ladders or very sturdy chairs

5
Preparing Your Work Space
1. Before you begin, it is best to lay out all necessary tools to make setup smoother.
Refer to the required tools section for the list of necessary tools.
WARNING
DO NOT remove the safety wrap that holds the awning arms down. Serious injury
can result from removing the wrap too soon.
2. Open the awning box and unwrap each piece carefully to avoid damaging the
product.
3. Lay out each piece of the awning to ensure that all pieces are present. Refer to
the parts diagram for detailed information regarding parts.
4. Open the small, inner box that contains the small parts and lay them out as well.
5. It is recommended that at least 2 people install.
STEP 1 Connecting Roller tubes
1.Gather the two long silver tubes(B1&B2)and lay them in a line
2.Insert the roller tube(B2)into the interior end of the roller tube(B1) if insertion is
difficult, use a mallet to tap it gently in to place.
3.Once inserted, fix it into place with screws(L).

6
STEP 2 Connecting Front Bars
1.Insert the front bar(D2) into the interior end of the front bar(D1).If insertion is
difficult, use a mallet to tap it into place.
2.Once inserted, screw(L) it into place and tighten the screw nut on the bar.

7
STEP 3 Fabric Assembly
1.Open the fabric carefully to ensure that the product is not damaged.
2.Unfold both pieces of awning fabric.You should have one large fabric piece (F)
and a valance with scalloped edge(G).
3.You should also have three fabric liner cords(H).
4.Thread the fabric liners through both ends of the large awning fabric (F) as well as
the valance(G).
5.Once the liners are threaded through the fabric, find the roller tube.
Thread the fabric and its liner through the slot in the roller tube all the way to the
end. Note: the fabric has a front and a back side. The back side has a hem, and
should face downwards.
Then thread the other end of the awning fabric through the slot in the front
bar(Wedge-shaped piece).
Thread the valance(G) throuth the other slot in the front bar all the way to the
end.

8
6.Roller the awning fabric counterclockwise around the roller tubes as tightly and
evenly as possible.
7.Fix the bolt (J) on the hole of the roller bar (B1&B2)on the left& right side.
Screw it tightly.

9

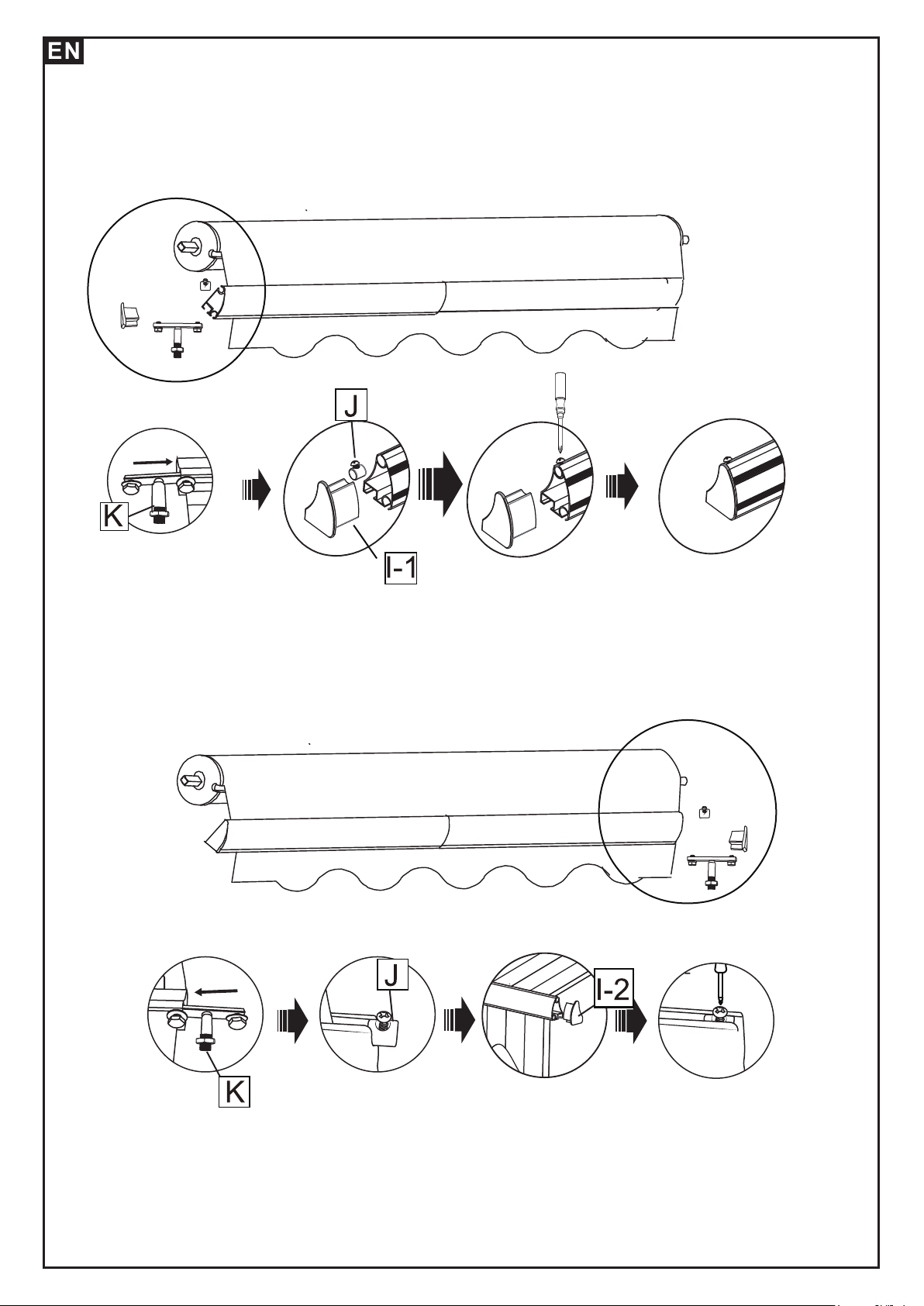

8.Slide arm-bar link(K) into the groove of the front bar on the left side.
Put the bolt(J) for fabric inserted,fix the bar end with a plastic cover(I-1).
Then tighten the screw on the bolt.
9.Slide arm-bar link(K) into the groove of the front bar on the right side.
Put the bolt(J) for fabric inserted,fix the bar end with a plastic cover(I-2).
Then tighten the screw on the bolt.

10

11

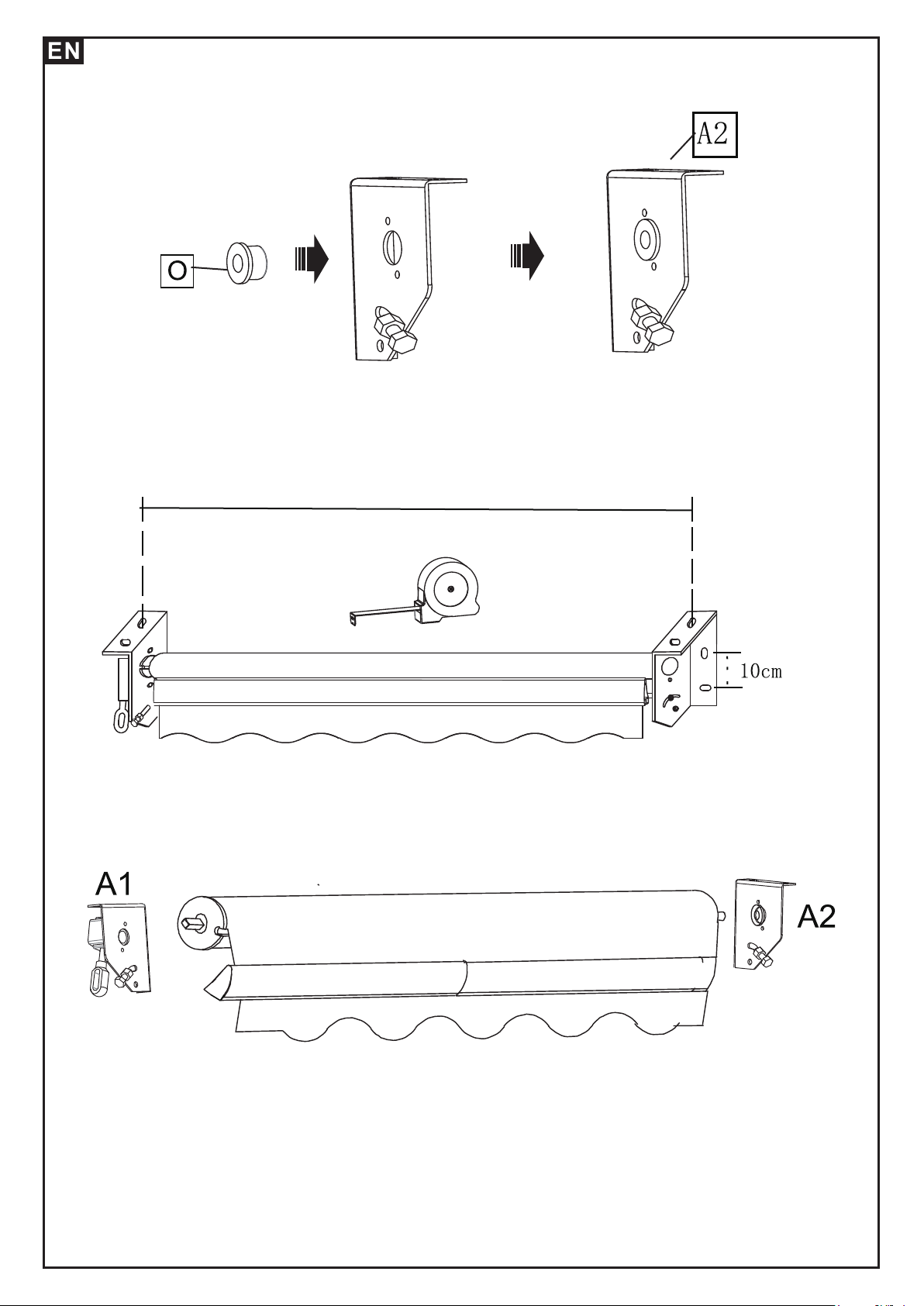

STEP 4 Arm Assembly
1. Insert part O into A2
2.Connect A1&A2 on the left and right side of the roller bar.
3.Measure the distance of product installation.
4.After measuring the distance,seprarte A1 and A2.

12

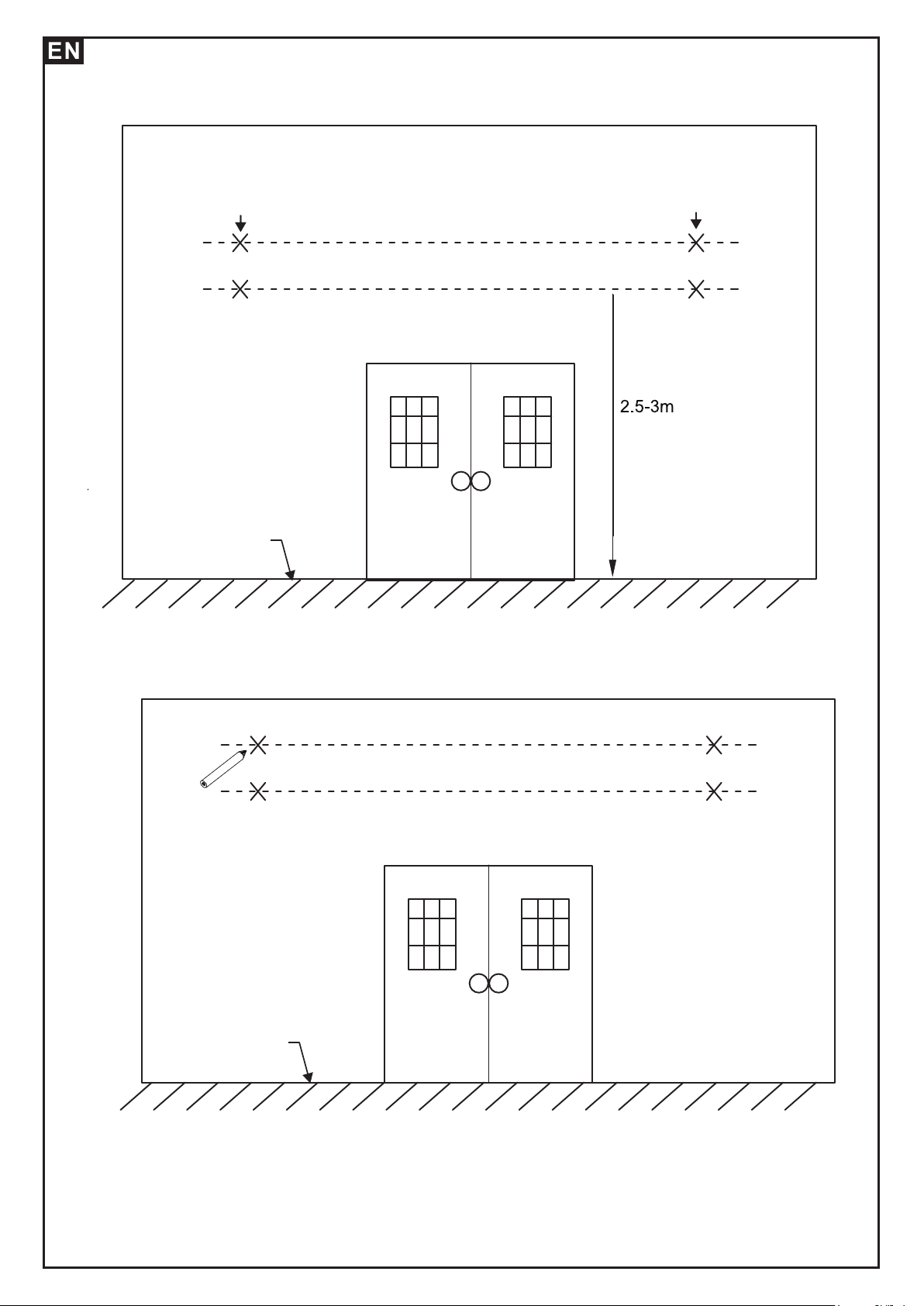

5.Mark the position on the wall.
Wall bracket Wall bracket
Level(horizontal line)
Ground
Ground

13
6.Drilling the bolt holes.
Ground
Drilling the Bolt Holes
1. Now that you have a straight level line across the wall with the locations of the
wall brackets and their bolt holes marked, you can drill holes to mount the brackets.
2. Using a 14mm masonry drill bit, drill the first bolt hole approximately 8 cm deep,
as shown in the diagram. This must be drilled through solid brick or concrete to offer
the necessary support for the awning.
3. Drill the remaining holes exactly as in step 2.
WA RNING
Failure to securely fasten all the brackets to the wall could result in the collapse
of the awning and cause personal injury or death.
All bolt holes must be aligned vertically and horizontally to ensure that the awning
hangs straight.
Double check alignment before drilling if you are not certain.
The diameter and depth of your mounting holes must be the same size as the
expansion bolts.
Preparing for Mounting
1. Now that all of your holes are drilled, then insert the expansion bolts.
2. It may be necessary to drive the bolts in with a wooden (or other non-metallic)
mallet.

14
7.Please assemble the A1on
the wall by first, tighten the
bolts by wrench.
If a mallet is necessary for installation, we recommend placing the nut on
the screw (loosely)before hammering to avoid damaging the bolt threads.
3. Make sure that the bolts are firm in place, yet let them stick out of the wall
approximately 2.5 cm or less-enough that the wall bracket can be installed onto
them. Firmly tighten the bolts with a 17 mm hex key. It is best to use the hex key with
a closed end rather than an open end to avoid damaging the nut, should it slip.
M10X80MM
Spring washer
Expansion bolt washer
bolt
8.Then insert the left side of the roller bar into A1 hole.
9. After installation on the left
side,insert right side of the roller bar
into the A2 hole, then tighten the
bolts using a wrench.

15
STEP 5 Assemble arms
Don't cut off the rope
on the arm.
WARNING!
1. Assemble arm C1 on the wall bracket, using A1 arm holes.
2. Tighten the arm screws.
3. Assemble arm C2 on the wall bracket, using A2 arm holes.
4. Tighten the arm screws.

16
Please ensure the arm is fully closed and placed directly under the awning. Insert
the 'K' into the mounting hole,ensuring it is reserved on the arm vertically. This step
is important.
Insert in Insert in

17
6.Installation notes
Move 'K' to a suitable position, ensuring the 'K' and the hole on the arm is in the
same vertical line. Then insert the arm-bar links to the holes on the end of both
arms.
7. Tighten the two screws and screw the nut with a wrench.
(Installation notes: Do not fully tighten the screw nut, leaving about 0.4cm space in
between).
Tip: If the screw nut is too tight, the arm will have no space - this can cause damage.

18
6.Carefully cut the tie and rope on the arm.
7. Open the awning with hand crank 'E'.
8. If you find the cloth surface has fallen down when opening the awning, please
retract the cloth surface
by 3-5cm to ensure it is tight.
Attention!
1. Keep this product away from heat and flames
2. Do not use this product in the rain or in strong winds.
3. Ensure leaves or water are not on the roof for too long.
4. Do not hang clothes on any part of awning.
5. You should often check if the fixed bracket has become loose in the wind.
If loose, please contact a professional to fix.
6. Ensure the place where you install the awning is strong enough to support the
weight of the product.
7. Close your awning during the winter, in case of adverse weather conditions.

19
When we fully unfold the awning, we may
find that the left and right sides of the
awning are unbalanced. At this time, we
need to adjust the inclination of the awning
so that the left and right sides of the
awning can be on the same horizontal line.
Tips:You can adjust only the left side or
only the right side, you can also adjust
both left side and right side. The
inclination of the awning is up to you, but
please remember the left side and right
side should be on the same horizontal line
finally.
How to adjust the awning inclination
The inclination of the awning is set by adjusting the screw
WARNING
when adjusting the awning inclination, please expand the awning completely
Step1: Hold up the arm and loosen the screw ( 1&2)
Don't loosen the screw directly without holding the arm up.
Step2: Keep holding up the arm(C1 )by your hand and
adjust the screw(3)
If you turn the screw in the direction of arrow a, the angle of
the awning will go down.
If you turn the screw in the direction of arrow b, the angle of
the awning will rise upward.
After adjusting the screw3, please check if the awning has
been adjusted to the proper angle, if not, please repeat the
above installation steps 2
hold up arm
