Outsunny 840-213 User guide

1
Instructions for Installation
And Operation
Attention:
Do not remove the bindings holding the two extension arms until fully assembled. These are
spring-loaded and can cause serious injury if allowed to spring free.
Attention:
Read this instruction manual carefully and completely before mounting and
usage. Keep this manual for future reference.
Dear Customer:
Congratulations and thank you for buying an awning from us. To enjoy this product for a long time
and for your own and the safety of other people please obey the mounting instructions.
Before you start mounting and using the awning, please get familiar with this product. Make sure all parts listed up
in below packing lists are delivered and intact. If you find that there are parts missing or damaged please do not
install the awning but contact after service . Do not start the mounting if parts are missing.
840-213 840-213V01 EN C000000

2
List of the parts
, Please choose part 20 instead of part 12.
x18
25 x1 28 x1 29 -1 x1 29 -2 x1

3
Explosive drawing of Awning
28
25
29 -1 29 -2

4
Important Safety Instructions
Warning: For your own and the safety of other persons it is important to follow below instructions and
obeywarnings.
Symbol explanation
This warning triangle calls attention to hazards that it can lead to death or to severe
injuries or which is important for the functioning of the awning.
This sign identifies important notes.
Safetyinstructions
To install this awning technical knowledge is necessary. Do not mount this awning
yourself but contact a professional workman for help if necessary
you are unsure if the awning can be mounted on the place you chose for
installation.
you do not understand the instruction manual or parts of it.
you do not have necessary tools available.
you do not have necessary technical knowledge
A minimum of two healthy adults are required to move and install the awning as
the product is big and heavy. Do not try to install the awning alone. If the awning falls, it
could cause serious injuries and damages! Contact an authorized assembler for help.
Do not install the awning when you find damage parts are that parts are missing.
Contact your dealer.
Keep children and pets out of the working area during assembly and
adjustments.
This product and its fixing parts are only suitable for installation on a plain
cement wall or stable unrendered brickwork. If the wall/brickwork shows cracks
you have to consult a professional.
If your building has an exterior shell (such as insulation, double brick wall, brick
facing), installation should be taken out by a professional.
Nobody is allowed to change the products’ design and structure without the
permission of manufacture or authorized deputy.
Please make sure that your hands are clean at the time of the assembly; otherwise you
may soil the awning fabric and frame.
The operation in frosty conditions may damage the awning.
The operation in snowyconditions may damage the awning.

5
In case of rain retract the awning if tilt angle is less than 14°.
Nobody is allowed to climb onto the awning. Hanging anything on the awning is
forbidden.
Sheeting was used to protect the paint. This must be removed afterwards.
When extended, various forces, including wind and rain, will affect an awning. These
sometimes substantial forces must be absorbed by the awning and transferred to the
assembled structure via its mounting brackets. Under extreme loads, excessive
attractive force can be exerted on the anchor bolts. Therefore, before starting
assembly, check the load-bearing capacity of the mounting baseand if
necessary take corresponding measures to ensure stable installation of the
brackets.
If the mounting base is unstable, you have to consult a specialist in your vicinity.
Assembly
Please read follow item before assembly
1).At least two adults are needed to move and install the awning as the product is big and heavy.
2).Please use all the screws and nuts tighter during installation as it is very dangerous if you leave it loose.
3).Do not cut the strings before the awning completely mounted on the wall.
4).Be careful with your finger during installation.
5).Take out the hand crank from loop after adjusting the awning as you wish and put it on a place that is not be touched
by children.
Tools required:
Step 1: Roller assembly
Keep the rollers aligned, assemble the roller with the connectors and secure it with the corresponding bolts as figure
below:

6
Step 2: Torsion bar and arm assembly:
keep the four face aligned , connect the torsion bar with the connectors and secure it with the corresponding bolts as
figure below:
Then assembly the arm to the torsion bar as figure below. Two arms need in the same
direction, the rope of arm cannot be unlocked until the whole assembly are complete.
Step3: Front bar assembly
Connect the front bar with connectors and secure it with the corresponding bolts as figure below:
. (please keep the front bar aligned).

7
Step 4: Front bar wrist support assembly:
Slide the front bar feet into the front bar without tightening. As shown in the figure below:
Step 5: Arms with front bar assembly:
Put front bar feet bolt through the hole of small arm, then position the front bar. After positioning, tighten the nut with
wrench, as figure below:
24
24
24
16 17
4cm

8
Step 6: Link the self-locking nut
Link the self-locking nut into screw which at the bottom of the screw in front bar feet by a wrench, stop when the thread
leakage 1 ~ 2 laps. As shown in the figure below:
ATTENTION: BEFORE BLOCKING THE NUT, ENSURE THAT THE ARMS ARE PROPERLY ALIGNED.
Step7: Left roller support with gear box assembly:
Hammer the left roller support with into the left end of torsion bar by wood hammer, then tighten the left screw
by phillips screwdriver. As shown in the figure below:
13
1

9
Step 8: Fabric and valance assembly:
Open the fabric bag, Spread out both fabric 14A and valance 14B and use the cloth guiding wire to line through the fabric.
As shown in the figure below:
Step 9: Roll in the fabric on the roller
Roll in the fabric on the roller, pay attention to the fabric direction needed, as shown in the figure below:
Please face up the fabric when assembling. Keep the same spacing X at both ends. Spread the fabric slowly
in case of damage.
21
22
22
21
23
23
23
21
23
21
6
5

Step 10:
One end of fabric through the groove of front bar, well-distributed the fabric after pull in all fabric, then insert shaft of roller
into the square hole of gear case. As shown in the figure below,
A
AB
B
10
23 22
24-4
24-1
24-5
24-3

11
23 22
24-4
24-1
24-5
24-3
Step 12: Assemble middle bracket and cover
25
29-1
29-2

12
Installation procedure:
Step 1: Draw lines on the wall
Choose the position,then draw up the position of bolt holt hole by pencil as blow picture,please make sure hole the of each
group on the same horizontally or vertically. Attention:figure
in “ L ” is product’s length ,the blow picture is mean
the distance for brackets holes is L-14cm(For example: the product actual length of 2.95 m,the distance
=2950mm-140mm=2810mm); longitudinal distance for holes is 10 cm.
Figure A for 2.95m, 3.45m; Figure B for 3.95m
A:
B:
82mm

13
Step 2. Installing the brackets
Drill the hole according to the line which was draw up in step 1 by 14mm( or 5/8 inch) wall drill, please pay attention to the
deep of hole that should not be less than 9cm. Making the expansion bolt through the bracket(keep the barbed side up),
hitting the expansion bolt into the hole with tighten by wrench. As shown in the figure below:
Or 5/8inch
Step 3: Installing the awning:
Install the awning into the brackets, and fasten the bolts of the brackets. As shown in the figure below:
Step 4: Open the arms
After locking the awning, please close the awning by hand crank, then cut the strings which raping the
arms. Attention, the strings can't be cut before !!
Step 5: Adjust the front bar
Open the awning totally, and check whether it is horizontal and adjust the height of the front bar you need. Please noted
the height between floor and front bar should be more than 2.5m. As shown in the figure:

14

15
Note: The awning is already delivered with an optimally adjusted tilt angle. However, users can adjust the
screen angle within a range of 5°to 40°As shown in the figure:
Step 6: The right way of the awning using
The awning can be operated normally when finish adjusting the horizontal of the front bar. Please use the awning in right
way. As shown in the figure below:










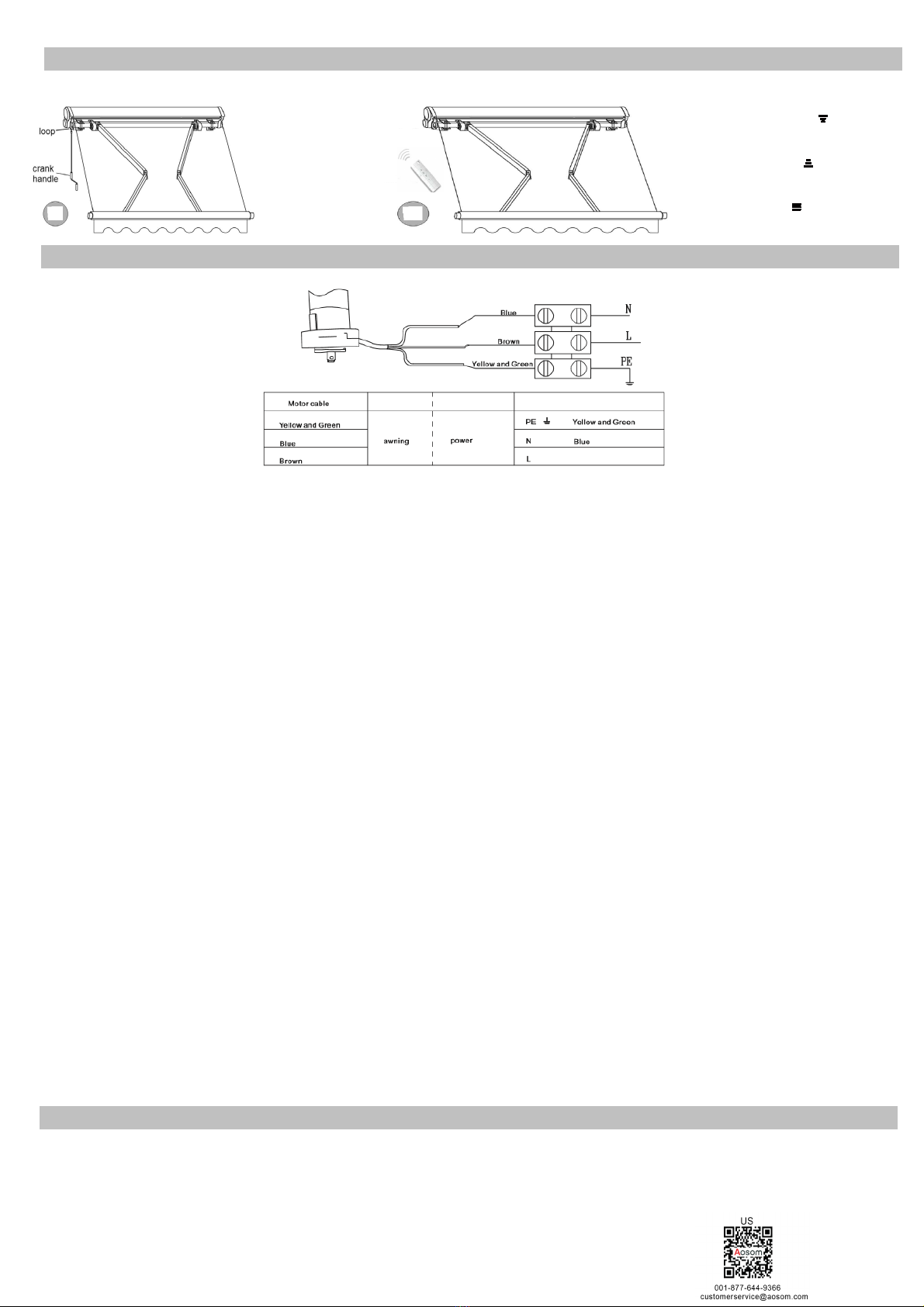

Drawing 8. 2:




Extend and retract the awning
The awning can be extended and retracted by a crank handle included in delivery or remote control.
Drawing 8. 1:






retract the awning. 8.28.1













NOTE:
NOTE: 

Note: 






NOTE:








Maintenance





16
