USER MANUAL
CTC 300 FRESNEL
300W LED fresnel with zoom

Table of contents
Caution!������������������������������������������������������������������������������������������������������������������������������������������������ 3
Introduction������������������������������������������������������������������������������������������������������������������������������������������ 3
Safety instructions �������������������������������������������������������������������������������������������������������������������������������3
Overview ���������������������������������������������������������������������������������������������������������������������������������������������� 4
Installation �������������������������������������������������������������������������������������������������������������������������������������������5
Read ‘Safety information’ before installing the xture..............................................................................5
Fastening the xture to a at surface ........................................................................................................5
Mounting the xture on a truss ..................................................................................................................5
Securing with a safety cable ......................................................................................................................5
DMX-512 connection/connection between xtures ..................................................................................6
Power connection .......................................................................................................................................6
Operation ���������������������������������������������������������������������������������������������������������������������������������������������7
Control Menu Map .......................................................................................................................................7
Control menu ...............................................................................................................................................8
Main Menu ...................................................................................................................................................8
Addressing ...................................................................................................................................................8
Universal DMX Control ................................................................................................................................9
RDM control .................................................................................................................................................9
Rotary Knob function ................................................................................................................................10
Set dimmer curves ....................................................................................................................................11
DMX Protocol ������������������������������������������������������������������������������������������������������������������������������������� 12
Fixture Cleaning ��������������������������������������������������������������������������������������������������������������������������������� 12
Fuse Replacement������������������������������������������������������������������������������������������������������������������������������ 13
Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������� 13
The xture does not work, no light ...........................................................................................................13
Technical specications ��������������������������������������������������������������������������������������������������������������������� 13

3V5www.hotion.com
Caution!
Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric
shock when touching the wires!
Avoid looking directly into the light source!
Wear protective glasses and other PPE (personal protective equipment) when working on or
near the xture.
For your own safety, please read this user manual carefully before you initial start-up.
Follow operating safety precautions and pay attention to warning signs methods and equip-
ment on the user manual.
Indoor use only! To prevent risk of re or shock, do not expose this product to rain or moisture.
IP 20 rating.
The ambient temperature must always be between -5° C and +45° C.
Always make sure you are connecting this product to the proper voltage in accordance with the
specications in this manual or on the product’s specication label.Make sure it is grounded
when using it!
Unplug mains lead before opening the housing!
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture
and the powercord from time to time.
Make sure to replace the fuse with another of the same type and rating.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot
during operation. After use, wait for a cool-down period of at least 10 minutes before handling
or transporting the device.
Every person involved with the installation, operation and maintenance of this device has to
- be qualied
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- download the latest version of the user manual from the Internet
Introduction
Thank you for having chosen CTC 300 Fresnel. You will see you acquired a powerful and versatile de-
vice.
Unpack your item. Before you initial start-up, please make sure that there is no damage caused by
transportation. Should there be any, consult your dealer and do not use the device.
Safety instructions
This device has left our premises in absolutely perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual. Always disconnect from the mains, when the device is not in
use or before cleaning it. Keep away children and amateurs from the device! There are no serviceable
parts inside the device. Maintenance and service operations are only to be carried out by authorized
dealers.

4V5www.hotion.com
Overview
Yoke
Accessories clip
Yoke locking knob
LCD display
Barn door and
color frame holder
Handle
Dmx out
5-pin
LCD display
Menu
button
Up
button
Down
button
Enter
button
Dmx in
5-pin
Fuse Power
in
On/off
switch
Safety cable
anchor point
Dmx
out
Dmx
in
Dmx signal indicator
Power indicator
Power
out
Rotary and Enter
button

5V5www.hotion.com
Installation
Read ‘Safety information’ before installing the xture.
The xture is designed for indoor use only and must be used in a dry location with adequate ventilation.
Ensure that none of the xture’s ventilation slots are blocked.
Fasten the xture to a secure structure or surface. Do not stand it on a surface or leave it where it can
be moved or fall over. If you install the xture in a location where it may cause injury or damage if it
falls, secure it as directed in this user manual using a securely anchored safety cable that will hold the
xture if the primary fastening method fails.
Fastening the xture to a at surface
The xture can be fastened to a hard, xed, at surface that is oriented at any angle. Ensure that the
surface and all fasteners used can support at least 10 times the weight of all xtures and equipment to
be installed on it.
Fasten the xture securely. Do not stand it on a surface or leave it where it can be moved or fall over. If
you install the xture in a location where it may cause injury or damage if it falls, secure it as directed
below with a securely anchored safety cable that will hold the xture if the primary fastening method
fails.

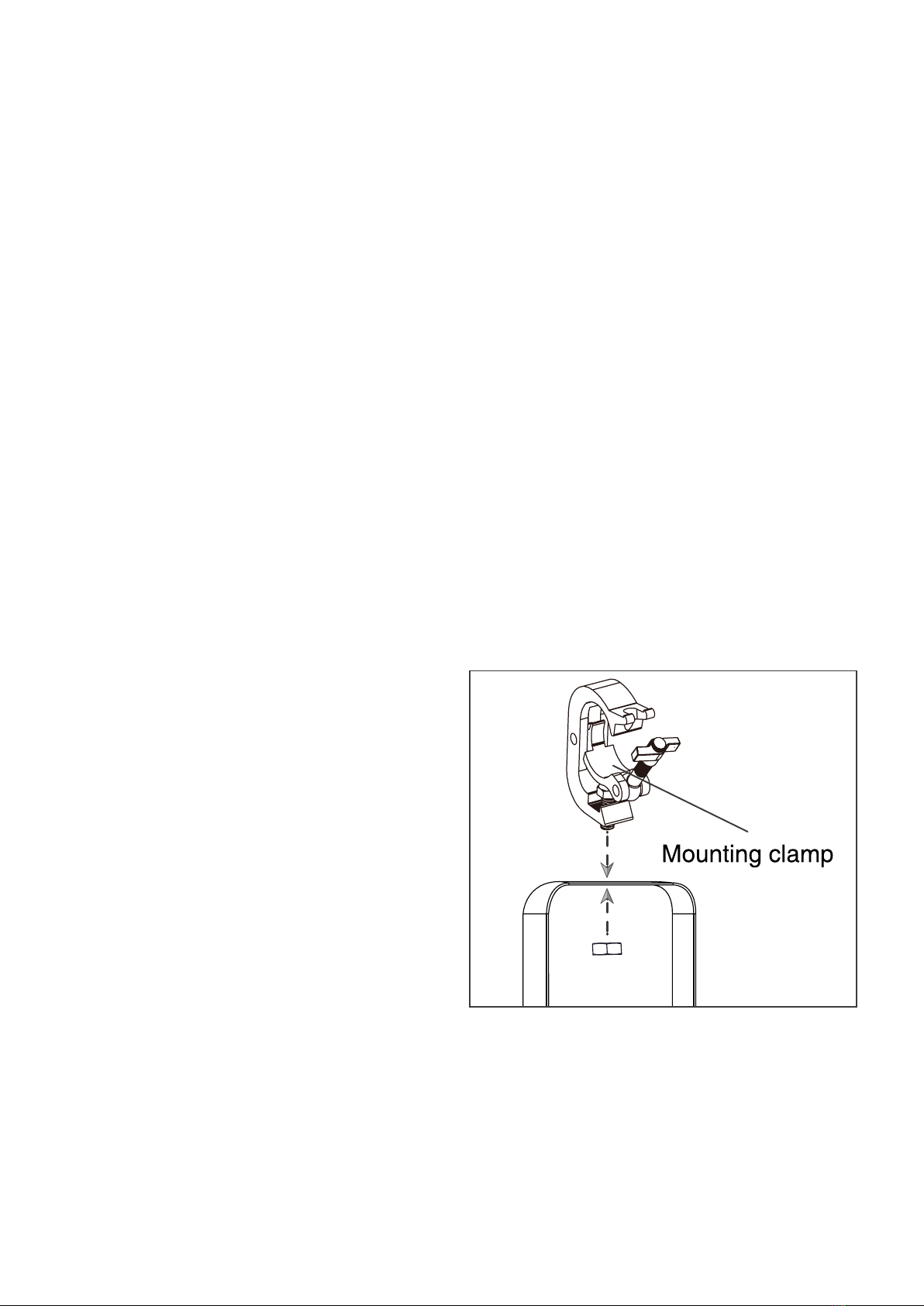

Mounting the xture on a truss
The xture can be clamped to a truss or similar rigging structure in any orientation. When installing the
xture hanging vertically down, you can use an open-type clamp such as a G-clamp. When installing in
any other orientation, you must use a half-coupler clamp that completely encircles the truss chord.
To clamp the xture to a truss:
1. Check that the rigging structure can support
at least 10 times the weight of all xtures and
equipment to be installed on it.
2. Block access under the work area.
3. Fold the legs of the mounting bracket togeth-
er and bolt a rigging clamp securely to the
mounting bracket. The bolt used must be
M10, grade 8.8 steel minimum. It must pass
through both mounting bracket legs and be
fastened with a self-locking nut.
4. Working from a stable platform, hang the x-
ture with its clamp on the truss and fasten the
clamp securely.
5. Secure the fixture with a safety cable as di-
rected below.
Securing with a safety cable
Secure the xture with a safety cable (or other secondary attachment) that is approved for the weight
of the xture so that the safety cable will hold the xture if a primary attachment fails.
Loop the safety cable through the eyebolt in the back of the fixture and around a secure anchoring
point. Do not loop the safety cable around the xture’s mounting bracket only, as this will leave the x-
ture unsecured if it separates from the bracket.

6V5www.hotion.com
DMX-512 connection/connection between xtures
DMX/RDM
controller
Occupation of the XLR-connection:
If you are using controllers with this occupation, you can connect the DMX-output of the controller di-
rectly with the DMX-input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers
with other XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture.
Always connect one output with the input of the next xture until all xtures are connected.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy environ-
ment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug
with a 120 resistor connected between pins 2 and 3, which is then plugged into the output XLR socket
of the last xture in the chain.
Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω
resistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the
last xture.
Power connection
Power Requirements
The CTC 300 Fresnel zoom luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The lumi-
naire contains an auto-ranging power supply.
Power linking between xtures:

7V5www.hotion.com
The xture with powercon in and out socket. Connect the power out to the power in socket in the next
xture till all are connected.
Caution: maximum power linking - 6 units.
Connection with the mains:
Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection cables as below:
Cable color Connection International
Brown Live L
Blue Neutral N
Yellow/green Earth(Ground)
Operation
The CTC 300 Fresnel zoom can operate in three different modes. In each mode you can run the xture
as a stand alone xture or in a master/slave conugration. This next section will detail the differences
in the operating modes.
Control Menu Map
Default setting in bold.
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION INSTRUCTION
DMX 001-512 DMX address setting
Mode
DMX 3/6CH DMX channel mode
Auto Program 001-009 Preset programs
Speed 001-009 Programs speed
Maunal
Dimmer 000-255 Dimmer 0-100%
CTO 2700K - 7000K Color temperature 2700K - 7000K
Zoom 000-255 Zoom from wide to narrow
Dimmer
Curve 0.3-3.0 Dimmer curves adjustment
Mode
Standard Dimmer mode, Standard
Stage Dimmer mode, Stage
TV Dimmer mode, TV
Architecture Dimmer mode, Architecture
Theatre Dimmer mode, Theatre
Studio Fan mode, less power
Custom
Fade in
(150 ms~2230 ms) Custom dimmer curve
Fade out
(150 ms~2230 ms)
Advance Authorization On/Off
Advanced settings/
calibration(Only qualied
technicians should perform this
function. Inqure your local dealer
for password.)

8V5www.hotion.com
Signal Hold On/Off Run if signal cut
RDM On/Off RDM function on/off
Screen Timeout 30S Display shut off time
Never
Screen Brightness 25 - 100% Display brightness
Dimming Freq 1.20 - 24.0 KHz Dimmer frequency setting
Software Version Vx.xx Software version
Reset Yes/No System reset
Reverse Yes/No Display reverse 180 degree
Control menu
The information menu will appear after the xture is switched on. In this menu, the following status is
displayed:
Main Menu
Press the MENU button to enter the Main Menu interface.
Menu
DMX
Advance
Mode
Dimmer
Addressing
All xtures should be given a DMX starting address when using a DMX signal, so that the correct xture
responds to the correct control signals. This digital starting address is the channel number from which
the xture starts to listen to the digital control information sent out from the DMX controller. The allo-
cation of this starting address is achieved by setting the correct number on the display located on the

9V5www.hotion.com
base of the device.
You can set the same starting address for all xtures or a group of xtures, or make different address
for
each xture individually.
If you set the same address, all the units will start to listen to the same control signal from the same
channel number. In other words, changing the settings of one channel will affect all the xtures simulta-
neously.
If you set a different address, each unit will start to listen to the channel number you have set, based on
the quantity of control channels of the unit. That means changing the settings of one channel will af-
fect only the selected xture.
In the case of the CTC 300 Fresnel zoom, which is 3/6 channels xture. If you set, for example, the ad-
dress in the 3 channel mode to channel 4, the device will use the channel 4-6 for control.
Note: After switching on, the device will automatically detect whether DMX 512 data is received or
not. If there is data received at the DMX input, you will see the DMX indicator light in green.
Universal DMX Control
This function allows you to use a universal DMX-512 controller to control the dimmer and strobe. A
DMX controller allows you to create unique programs tailored to your individual needs.

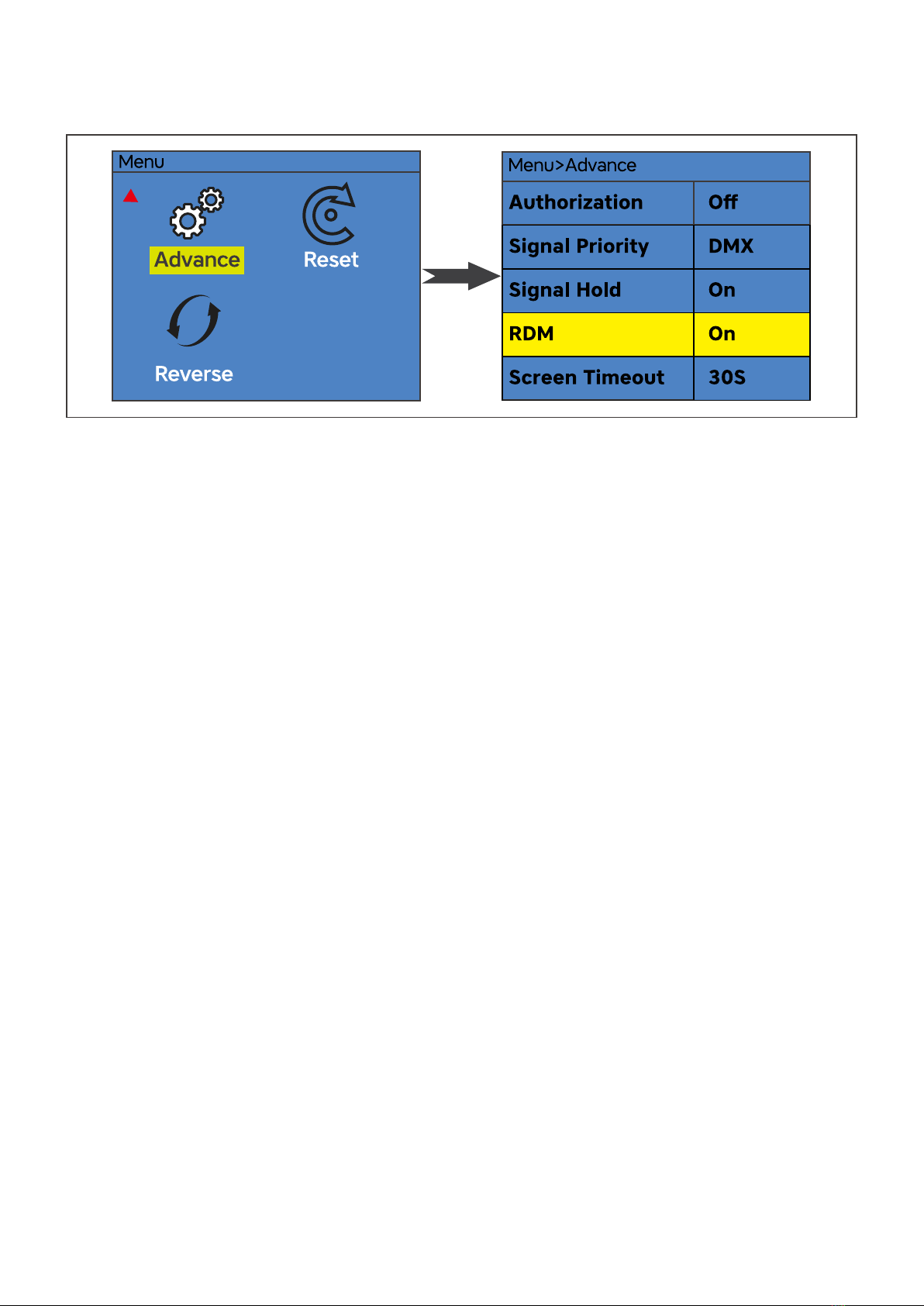

RDM control
The CTC 300 Fresnel can communicate using RDM (Remote Device Management) in accordance with
ESTA’s American National Standard E1.20-2006: Entertainment Technology RDM Remote Device Man-
agement Over DMX512 Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open
standard for DMX512 device conguration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting ex-
isting non-RDM equipment. It allows a console or dedicated RDM controller to send commands to and
receive messages from specic xtures.
With RDM function, you can set the DMX address of your xtures remotely. This is especially useful
when the device is installed in a remote area.

10 V5www.hotion.com
Each CTC 300 Fresnel has a factory set RDM UID (unique identication number).
Note: Before operation, enable RDM function in Advanced settings.
Rotary Knob function
The knob in the rear panel of the CTC 300 Fresnel act as multi function. Including rotary control of
dimmer, rotary control of dimmer, up/down/enter function function.
Dimmer & strobe function:
1. Press the MENU button to enter the main menu.
2. Press the UP or DOWN button to select Mode menu and press ENTER.
3. Press DOWN menu and select Manual sub menu.
4. Press ENTER and select Brightness or Strobe in third menu.
5. Rotate the rotary knob to control the dimmer(right stop = maximum output, left stop = zero output),
or strobe(right stop = maximum strobe, left stop = no strobe).
Note: Rotary dimmer or strobe function works in information Menu and Mode-Manual menu.
Zoom function:
1. Press the MENU button to enter the main menu.
2. Press the UP or DOWN button to select Mode menu and press ENTER.
3. Press DOWN menu and select Manual sub menu.
4. Press ENTER and select Zoom in third menu.
5. Rotate the rotary knob to control the dimmer(right stop = minimum zoom scale, left stop = maxi-
mum zoom scale)
Note: Zoom function works in information Menu and Mode-Manual menu.
Quick switch between brightness and Zoom in Main menu(information Menu):
In information menu(main menu) interface, you can easily switch between brightness adjustment func-
tion and zoom function.
1. Make sure the display in main menu, picture below.
2. Press the ENTER button or the Rotary knob(which also perform Enter function) to switch between
the two functions.

11 V5www.hotion.com
Brightness adjustment activated Zoom adjustment activated
001 Temp - 034℃
Signal Hold - On
Fan Speed
1800 (RPM)
Fan - Smart
Mode - Standard
Brightness 50%
50%
Zoom
001 Temp - 034℃
Signal Hold - On
Fan Speed
1800 (RPM)
Fan - Smart
Mode - Standard
Brightness 50%
50%
Zoom
Up, Down, Enter function:
The knob can also act as up, down and enter function.
1. Press the MENU button to enter the main menu interface.
2. Right rotation = Down, left rotation = Up, press = Enter function.
Set dimmer curves
This function allows you to select preset dimmer curves as well as custom dimmer curves.
Menu>Dimmer
Curve
1.0
Mode
Standard
Stage
TV
Architecture
Theatre
Menu
DMX
Advance
Mode
Dimmer

12 V5www.hotion.com
To set preset dimmer curves:
1. Press the MENU button to enter the main menu.
2. Press the UP or DOWN button to select Dimmer menu and press ENTER.
3. Press DOWN menu and select Mode sub menu.
4. Select disired dimmer mode.
Custom dimmer curves:
1. Press the MENU button to enter the main menu.
2. Press the UP or DOWN button to select Dimmer menu and press ENTER.
3. Press DOWN menu and select Mode sub menu.
4. Press the UP or DOWN button to select Custom menu and press ENTER.
5. Adjust fade in and fade out time to customize yout dimmer curves. Time vary from 150 ms to 2230
ms.
DMX Protocol
3 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Color Temperature 000-255: Color temperature 3200K - 5600K
CH3 Zoom 000-255: Zoom from wide to narrow
6 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Strobe 000-255: Strobe with speed increasing
CH3 WW 000-255: 0-100% warm white dimmer
CH4 CW 000-255: 0-100% cold white dimmer
CH5 Zoom 000-255: Zoom from wide to narrow
CH6 Color temperature 000-255: Color temperature 3200K - 5600K
Fixture Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should

13 V5www.hotion.com
be carried out periodically to optimize light output. Cleaning frequency depends on the environment in
which the xture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend clean-
ing on a monthly basis. Periodic cleaning will ensure longevity, and crisp output.
To clean the xture:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Vacuum or gently blow away dust and loose particles from the outside of the xture with low-pres-
sure compressed air.
3. Clean the surfaces by wiping gently with a soft, clean lint-free cloth moistened with a weak deter-
gent solution. Do not rub glass surfaces hard: lift particles off with a soft repeated press. Dry with a
soft, clean, lint-free cloth or low-pressure compressed air. Remove stuck particles with an unscent-
ed tissue or cotton swab moistened with glass cleaner or distilled water.
4. Check that the xture is dry before reapplying power.
Fuse Replacement
This fuse is located in a fuseholder next to the MAINS OUT socket on the connections panel.
To replace a fuse:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Unscrew the cap of the fuseholder and remove the fuse. Replace with a fuse of the same size and
rating only.
3. Reinstall the fuseholder cap before reapplying power.
Troubleshooting
Listed below are a few common problems that you may encounter, with solutions.
The xture does not work, no light
• Check the connection of power and main fuse. Be sure the external fuse has not blown.
• Measure the mains voltage on the main connector.
Technical specications
Model CTC 300 Fresnel
Power supply: AC100 - 240V, 50/60Hz
Light source: 300W COB LED
Color temperature: 2700K - 7000K tunable
Color Rendition: CRI 98, R9≥98, TLCI 98
Zoom scale: 8° - 60° motorized
Power connection: PowerCON in & out
Maximum power linking: 6 units
Signal connection: 3-pin XLR in & out, 5-pin XLR in & out
DMX channels: 3/6
Control mode: DMX, RDM, Rotary
Housing: Colour black, aluminum
Size: 428 x 295 x 451mm(16.9 x 11.6 x 17.6in)
Package(carton): 520 x 360 x 345mm(20.5 x 14.2 x 13.6in)
N.W.(barndoor incl.): 11kg(24.3lb)

14 V5www.hotion.com
G.W.: 13kg(28.7lb)
Accessories(included): Power lead, Safety rope, Gel frame
Accessories(optional): Clamp
Enviroment: IP20
Please note: All information is subject to change without prior notice� 11�12�2021

15 V5www.hotion.com

16 V5www.hotion.com
