Ovation PIONEER 100C ZOOM User manual

USER MANUAL
PIONEER 100C ZOOM
100W RGBW LED fresnel with zoom

Table of contents
Caution!������������������������������������������������������������������������������������������������������������������������������������������������ 3
Introduction������������������������������������������������������������������������������������������������������������������������������������������ 3
Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3
Overview ���������������������������������������������������������������������������������������������������������������������������������������������� 3
Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4
Read ‘Safety information’ before installing the xture. ................................................................................4
Fastening the xture to a at surface ...........................................................................................................4
Mounting the xture on a truss .....................................................................................................................5
Securing with a safety cable .........................................................................................................................5
DMX-512 connection/connection between xtures ....................................................................................5
Power connection ..........................................................................................................................................6
Operation ��������������������������������������������������������������������������������������������������������������������������������������������� 6
Control Menu Map .........................................................................................................................................6
Addressing ......................................................................................................................................................7
Universal DMX Control ...................................................................................................................................7
RDM control ....................................................................................................................................................7
DMX Protocol ��������������������������������������������������������������������������������������������������������������������������������������� 8
ID address selection(Stag-12 channels mode) ..........................................................................................10
Fixture Cleaning ��������������������������������������������������������������������������������������������������������������������������������� 11
Fuse Replacement������������������������������������������������������������������������������������������������������������������������������ 11
Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������� 11
The xture does not work, no light ..............................................................................................................11
Technical specications ��������������������������������������������������������������������������������������������������������������������� 11

3Version 1.0hotion.com
Caution!
Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric
shock when touching the wires!
Avoid looking directly into the light source!
Wear protective glasses and other PPE (personal protective equipment) when working on or near
the xture.
For your own safety, please read this user manual carefully before you initial start-up.
Follow operating safety precautions and pay attention to warning signs methods and equipment
on the user manual.
Indoor use only! To prevent risk of re or shock, do not expose this product to rain or moisture. IP
20 rating.
The ambient temperature must always be between -5° C and +45° C.
Always make sure you are connecting this product to the proper voltage in accordance with the
specifications in this manual or on the product’s specification label.Make sure it is grounded
when using it!
Unplug mains lead before opening the housing!
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture
and the powercord from time to time.
Make sure to replace the fuse with another of the same type and rating.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot
during operation. After use, wait for a cool-down period of at least 10 minutes before handling or
transporting the device.
Every person involved with the installation, operation and maintenance of this device has to
- be qualied
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- download the latest version of the user manual from the Internet
Introduction
Thank you for having chosen Pioneer 100C zoom. You will see you acquired a powerful and versatile de-
vice.
Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans-
portation. Should there be any, consult your dealer and do not use the device.
Safety instructions
This device has left our premises in absolutely perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual. Always disconnect from the mains, when the device is not in
use or before cleaning it. Keep away children and amateurs from the device! There are no serviceable
parts inside the device. Maintenance and service operations are only to be carried out by authorized deal-
ers.

4Version 1.0hotion.com

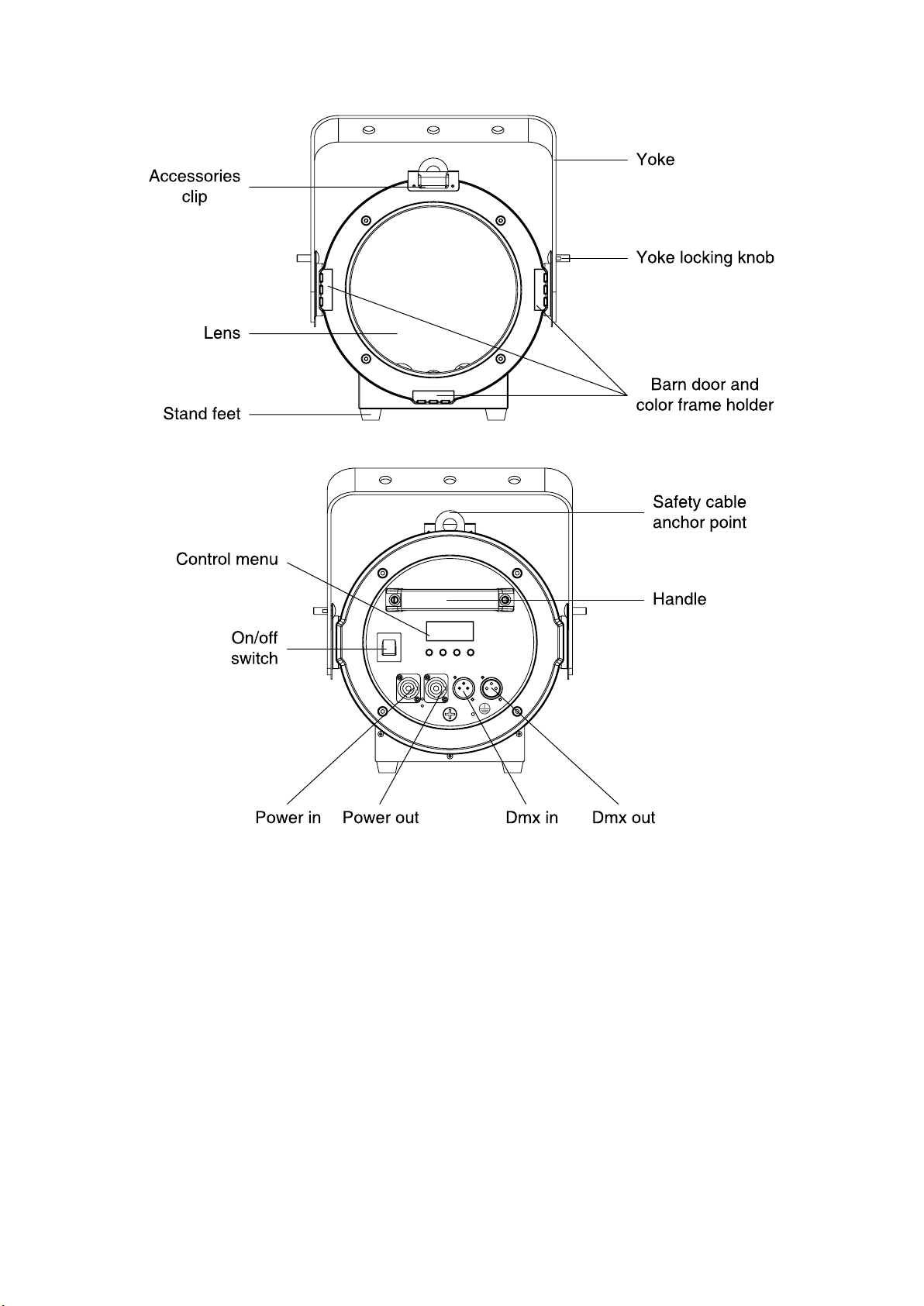

Overview
Installation
Read ‘Safety information’ before installing the xture.
The xture is designed for indoor use only and must be used in a dry location with adequate ventilation.
Ensure that none of the xture’s ventilation slots are blocked.
Fasten the xture to a secure structure or surface. Do not stand it on a surface or leave it where it can be
moved or fall over. If you install the xture in a location where it may cause injury or damage if it falls, se-
cure it as directed in this user manual using a securely anchored safety cable that will hold the xture if
the primary fastening method fails.
Fastening the xture to a at surface
The xture can be fastened to a hard, xed, at surface that is oriented at any angle. Ensure that the sur-
face and all fasteners used can support at least 10 times the weight of all xtures and equipment to be
installed on it.
Fasten the xture securely. Do not stand it on a surface or leave it where it can be moved or fall over. If

5Version 1.0hotion.com
you install the xture in a location where it may cause injury or damage if it falls, secure it as directed be-
low with a securely anchored safety cable that will hold the xture if the primary fastening method fails.
Mounting the xture on a truss
The xture can be clamped to a truss or similar rigging structure in any orientation. When installing the
xture hanging vertically down, you can use an open-type clamp such as a G-clamp. When installing in
any other orientation, you must use a half-coupler clamp that completely encircles the truss chord.
To clamp the xture to a truss:
1. Check that the rigging structure can support at least 10 times the weight of all xtures and equip-
ment to be installed on it.
2. Block access under the work area.
3. Fold the legs of the mounting bracket together and bolt a rigging clamp securely to the mounting
bracket. The bolt used must be M10, grade 8.8 steel minimum. It must pass through both mounting
bracket legs and be fastened with a self-locking nut.
4. Working from a stable platform, hang the xture with its clamp on the truss and fasten the clamp se-
curely.
5. Secure the xture with a safety cable as directed below.
Securing with a safety cable
Secure the xture with a safety cable (or other secondary attachment) that is approved for the weight of
the xture so that the safety cable will hold the xture if a primary attachment fails.
Loop the safety cable through the eyebolt in the back of the xture and around a secure anchoring point.
Do not loop the safety cable around the xture’s mounting bracket only, as this will leave the xture unse-
cured if it separates from the bracket.
DMX-512 connection/connection between xtures

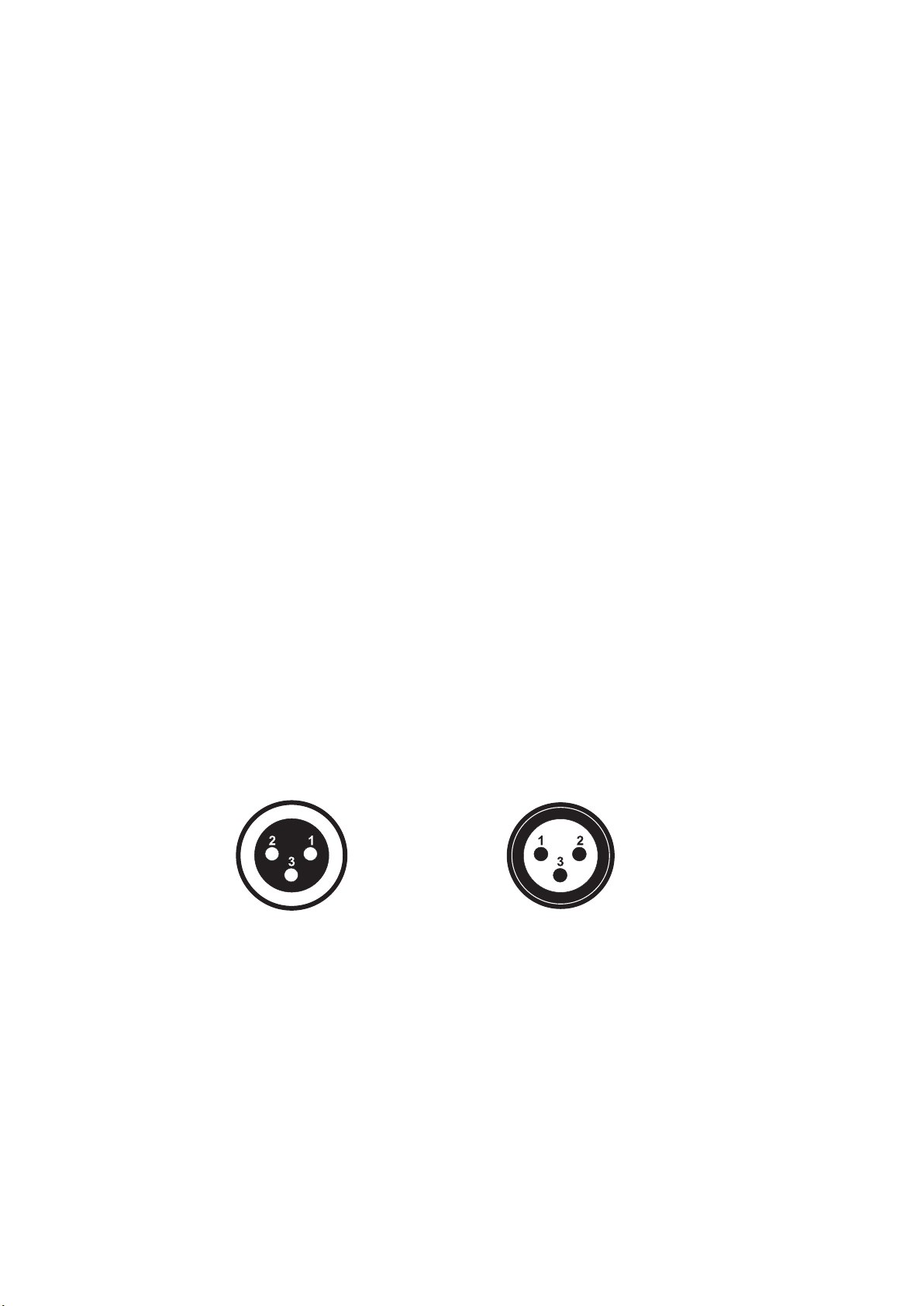

Occupation of the XLR-connection:
1. Group
2. Signal (-)
3. Signal (+)
DMX OUT
1. Group
2. Signal (-)
3. Signal (+)
DMX IN
If you are using controllers with this occupation, you can connect the DMX-output of the controller direct-
ly with the DMX-input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with
other XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture.
Always connect one output with the input of the next xture until all xtures are connected.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy environ-
ment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with
a 120 resistor connected between pins 2 and 3, which is then plugged into the output XLR socket of the

6Version 1.0hotion.com
last xture in the chain.
Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 resis-
tor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last
xture.
Power connection
Power Requirements
The Pioneer 100C zoom luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire
contains an auto-ranging power supply.
Power linking between xtures:
The xture with powercon in and out socket. Connect the power out to the power in socket in the next x-
ture till all are connected.
Caution: maximum power linking - 8 units.
Connection with the mains:
Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection cables as below:
Cable color Connection International
Brown Live L
Blue Neutral N
Yellow/green Earth(Ground)
Operation
The Pioneer 100C zoom can operate in different modes. In each mode you can run the xture as a stand
alone xture or in a master/slave conugration. This next section will detail the differences in the operat-
ing modes.
Control Menu Map
MENU SUB MENU OPERATION
Addr d001-d512 RDM/DMX address
CHnL
Stag(12CH)
Channel mode
ArC.1(3CH)
Ar1.d(4CH)
ArC.2(4CH)
Ar2.d(5CH)
Ar2.S(6CH)
HSV(3CH)
SP-- T.(00-99) Auto program speed increasing
Pr-- Pr01~Pr10 Auto programs
CoLo C.(01~15) Color preset
Sens S.(000-100) Sound sensitivity
Strb S.01-s.20 Strobe with spead increasing
rL-- r.(000-255) Red dimmer
gL-- g.(000-255) Green dimmer

7Version 1.0hotion.com
MENU SUB MENU OPERATION
bL-- b.(000-255) Blue dimmer
uL-- u.(000-255) White dimmer
Focu F.(000-255) Zoom
nodE
nod.0 Dimmer speed 0 (no delay)
nod.1 Dimmer speed 1
nod.2 Dimmer speed 2
nod.3 Dimmer speed 3
nod.4 Dimmer speed 4 (slowest speed)
Id Id.01-Id.66 ID address setting
tEnP -25~100 Fixture temperature
UErn Firmware version
rSEt yes/no Reset
pnnF (1.2~24.0)F PWM refresh rate adjustment(KHz)
Addressing
All xtures should be given a DMX starting address when using a DMX signal, so that the correct xture
responds to the correct control signals. This digital starting address is the channel number from which
the xture starts to listen to the digital control information sent out from the DMX controller. The alloca-
tion of this starting address is achieved by setting the correct number on the display located on the base
of the device.
You can set the same starting address for all xtures or a group of xtures, or make different address for
each xture individually.
If you set the same address, all the units will start to listen to the same control signal from the same
channel number. In other words, changing the settings of one channel will affect all the xtures simulta-
neously.
If you set a different address, each unit will start to listen to the channel number you have set, based on
the quantity of control channels of the unit. That means changing the settings of one channel will affect
only the selected xture.
In the case of the Pioneer 100C zoom, which is 3/4/5/6/12 channels xture. If you set, for example, the
address in the 3 channel mode to channel 4, the device will use the channel 4 to 7 for control.
Universal DMX Control
This function allows you to use a universal DMX-512 controller to control the dimmer and strobe. A DMX
controller allows you to create unique programs tailored to your individual needs.
RDM control
The Pioneer 100C zoom can communicate using RDM (Remote Device Management) in accordance with
ESTA’s American National Standard E1.20-2006: Entertainment Technology RDM Remote Device Man-
agement Over DMX512 Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open stan-
dard for DMX512 device conguration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting ex-

8Version 1.0hotion.com
isting non-RDM equipment. It allows a console or dedicated RDM controller to send commands to and
receive messages from specic xtures.
With RDM function, you can set the DMX address of your xtures remotely. This is especially useful when
the device is installed in a remote area.
Each Pioneer 200 zoom has a factory set RDM UID (unique identication number).
DMX Protocol
STAG
12 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Red 000-255: 0-100% Red dimmer
CH3 Green 000-255: 0-100% Green dimmer
CH4 Blue 000-255: 0-100% Blue dimmer
CH5 White 000-255: 0-100% White dimmer
CH6 Color preset & color temp
000-010: No function
011-030: Red 100%, Green0-100%, Blue 0%
031-050: Red 100-0%, Green 100%, Blue 0%
051-070: Red 0%, Green 100%, Blue 0-100%
071-090: Red 0%, Green 100-0%, Blue 100%
091-110: Red 0~100%, Green 0%, Blue 100%
111-130: Red 100%, Green 0%, Blue 100-0%
131-150: Red 100%, Green 0-100%, Blue 0-100%
151-170: Red 100-0%, Green 100-0%, Blue 100%
171-200: Red 100%, Green 100%, Blue 100%
201-220: Colour temperature1 3200K
220-255: Colour temperature2 5600K
CH7 Strobe 000-013: Strobe off
014-255: Strobe with speed increasing
CH8 Zoom 000-255: Zoom function

9Version 1.0hotion.com
12 Channels Mode Function Function Control
CH9 Auto program
000-020: no function
021-030: Auto1
031-040: Auto2
041-050: Auto3
051-060: Auto4
061-070: Auto5
071-080: Auto6
081-090: Auto7
091-100: Auto8
101-110: Auto9
111-120: Auto10
121-255: No function
CH10 Auto program speed 000-255: Speed increasing
CH11 Dimmer mode
000-005: Menu setting
006-055: Dimmer speed 0 (no delay)
056-105: Dimmer speed 1
106-155: Dimmer speed 2
156-205: Dimmer speed 3
206-255: Dimmer speed 4 (slowest speed)
CH12 ID address setting
000-009: ID1-ID66
010-019: ID1
020-029: ID2
030-039: ID3
...
200-209: ID20
210: ID21
211: ID22
...
255: ID66
ARC�1
3 Channels Mode Function Function Control
CH1 Red 000-255: 0-100% Red dimmer
CH2 Green 000-255: 0-100% Green dimmer
CH3 Blue 000-255: 0-100% Blue dimmer
AR1�D

10 Version 1.0hotion.com
4 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Red 000-255: 0-100% Red dimmer
CH3 Green 000-255: 0-100% Green dimmer
CH4 Blue 000-255: 0-100% Blue dimmer
ARC�2
4 Channels Mode Function Function Control
CH1 Red 000-255: 0-100% Red dimmer
CH2 Green 000-255: 0-100% Green dimmer
CH3 Blue 000-255: 0-100% Blue dimmer
CH4 White 000-255: 0-100% White dimmer
AR2�D
5 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Red 000-255: 0-100% Red dimmer
CH3 Green 000-255: 0-100% Green dimmer
CH4 Blue 000-255: 0-100% Blue dimmer
CH5 White 000-255: 0-100% White dimmer
AR2�S
6 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Red 000-255: 0-100% Red dimmer
CH3 Green 000-255: 0-100% Green dimmer
CH4 Blue 000-255: 0-100% Blue dimmer
CH5 White 000-255: 0-100% White dimmer
CH6 Strobe 000-255: Strobe with speed increasing
HSV
3 Channels Mode Function Function Control
CH1 Hue 000-255: 0-100% Hue
CH2 Saturation 000-255: 0-100% Saturation
CH3 Value(brightness) 000-255: 0-100% Value(brightness)
ID address selection(Stag-12 channels mode)
Each independent DMX address can have up to 66 ID addressed xtures. An ID address of 0 will activate
all ID address locations.
CH12 in Stag-12 CH mode is used to select the target ID address.

11 Version 1.0hotion.com
DMX value Function DMX value Function DMX value Function
000-009 ID1-ID66 212 ID23 235 ID46
010-019 ID1 213 ID24 236 ID47
020-029 ID2 214 ID25 237 ID48
030-039 ID3 215 ID26 238 ID49
040-049 ID4 216 ID27 239 ID50
050-059 ID5 217 ID28 240 ID51
060-069 ID6 218 ID29 241 ID52
070-079 ID7 219 ID30 242 ID53
080-089 ID8 220 ID31 243 ID54
090-099 ID9 221 ID32 244 ID55
100-109 ID10 222 ID33 245 ID56
110-119 ID11 223 ID34 246 ID57
120-129 ID12 224 ID35 247 ID58
130-139 ID13 225 ID36 248 ID59
140-149 ID14 226 ID37 249 ID60
150-159 ID15 227 ID38 250 ID61
160-169 ID16 228 ID39 251 ID62
170-179 ID17 229 ID40 252 ID63
180-189 ID18 230 ID41 253 ID64
190-199 ID19 231 ID42 254 ID65
200-209 ID20 232 ID43 255 ID66
210 ID21 233 ID44
211 ID22 234 ID45
Fixture Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should
be carried out periodically to optimize light output. Cleaning frequency depends on the environment in
which the xture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend cleaning
on a monthly basis. Periodic cleaning will ensure longevity, and crisp output.
To clean the xture:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Vacuum or gently blow away dust and loose particles from the outside of the xture with low-pres-
sure compressed air.
3. Clean the surfaces by wiping gently with a soft, clean lint-free cloth moistened with a weak detergent
solution. Do not rub glass surfaces hard: lift particles off with a soft repeated press. Dry with a soft,
clean, lint-free cloth or low-pressure compressed air. Remove stuck particles with an unscented tis-
sue or cotton swab moistened with glass cleaner or distilled water.
4. Check that the xture is dry before reapplying power.
Fuse Replacement
This fuse is located in a fuseholder next to the MAINS OUT socket on the connections panel.
To replace a fuse:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Unscrew the cap of the fuseholder and remove the fuse. Replace with a fuse of the same size and
rating only.
3. Reinstall the fuseholder cap before reapplying power.
Troubleshooting
Listed below are a few common problems that you may encounter, with solutions.

12 Version 1.0hotion.com
The xture does not work, no light
• Check the connection of power and main fuse. Be sure the external fuse has not blown.
• Measure the mains voltage on the main connector.
Technical specications
Model Pioneer 100C zoom
Power supply: AC100-240V, 50/60Hz
Light source: 100W LED
Color mixing: RGBW color mixing
Zoom scale: 25° - 65° motorized
Power connection: PowerCON in&out
Maximum power linking: 8 units
Signal connection: 3-pin XLR in&out(5-pin optional)
DMX channels: ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH),
STAG(12CH)
Control mode: RDM, DMX, Master-slave
Housing: Colour black, Aluminum
Size(barn door excluded): 331 x 210 x 345.7mm(13 x 8.3 x 13.6in)
Package(carton): 448 x 338 x 400mm(17.6 x 13.3 x 15.7in)
N.W.: 6.6 kg(14.5 lb)
Enviroment: IP20
Please note: All information is subject to change without prior notice� 13�11�2018
331. 0 mm
245. 7 mm
210. 0 mm
345. 7 mm
