Ovation SPACE MINI FRESNEL 50T User manual

USER
MANUAL
SPACE MINI FRESNEL 50T

Caution!������������������������������������������������������������������������������������������������������������������������������������������������ 3
Introduction������������������������������������������������������������������������������������������������������������������������������������������ 3
Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3
Overview ���������������������������������������������������������������������������������������������������������������������������������������������� 4
Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4
Read ‘Safety information’ before installing the xture. ................................................................................4
Iinstruction Installation of 3 Circuits Track System .....................................................................................5
3-circuit Track .................................................................................................................................................5
Track clamp mounting instruction ................................................................................................................6
Mounting .........................................................................................................................................................7
Securing wit h a safety cable ........................................................................................................................7
DMX-512 connection/connection between xtures ....................................................................................8
Operation ��������������������������������������������������������������������������������������������������������������������������������������������� 9
Addressing ......................................................................................................................................................9
Universal DMX Control ...................................................................................................................................9
Rotary control .................................................................................................................................................9
Zoom .............................................................................................................................................................10
Control Menu Map������������������������������������������������������������������������������������������������������������������������������ 11
DMX Protocol ������������������������������������������������������������������������������������������������������������������������������������� 11
ID address selection ....................................................................................................................................12
Fixture Cleaning ��������������������������������������������������������������������������������������������������������������������������������� 13
Fuse Replacement������������������������������������������������������������������������������������������������������������������������������ 13
Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������� 13
The xture does not work, no light ..............................................................................................................13
Technical specications ��������������������������������������������������������������������������������������������������������������������� 14
Table of contents

Space Track
3Ver 1.0hotion.com
Caution!
Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric
shock when touching the wires!
Avoid looking directly into the light source!
Wear protective glasses and other PPE (personal protective equipment) when working on or
near the xture.
For your own safety, please read this user manual carefully before you initial start-up.
Follow operating safety precautions and pay attention to warning signs methods and equip-
ment on the user manual.
Indoor use only! To prevent risk of re or shock, do not expose this product to rain or moisture.
IP 20 rating.
The ambient temperature must always be between -5° C and +45° C.
Always make sure you are connecting this product to the proper voltage in accordance with the
specifications in this manual or on the product’s specification label. Make sure it is grounded
when using it!
Switch off the mains before doing any installation work.
Make sure to replace the fuse with another of the same type and rating.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot
during operation. After use, wait for a cool-down period of at least 10 minutes before handling
or transporting the device.
Every person involved with the installation, operation and maintenance of this device has to
- be qualied
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- download the latest version of the user manual from the Internet
Introduction
Thank you for having chosen Space Mini Fresnel 40Z. You will see you acquired a powerful and versa-
tile device.
Unpack your item. Before you initial start-up, please make sure that there is no damage caused by
transportation. Should there be any, consult your dealer and do not use the device.
Safety instructions
This device has left our premises in absolutely perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual. Always disconnect from the mains, when the device is not in
use or before cleaning it. Keep away children and amateurs from the device! There are no serviceable
parts inside the device. Maintenance and service operations are only to be carried out by authorized

Space Track
4Ver 1.0hotion.com
dealers.

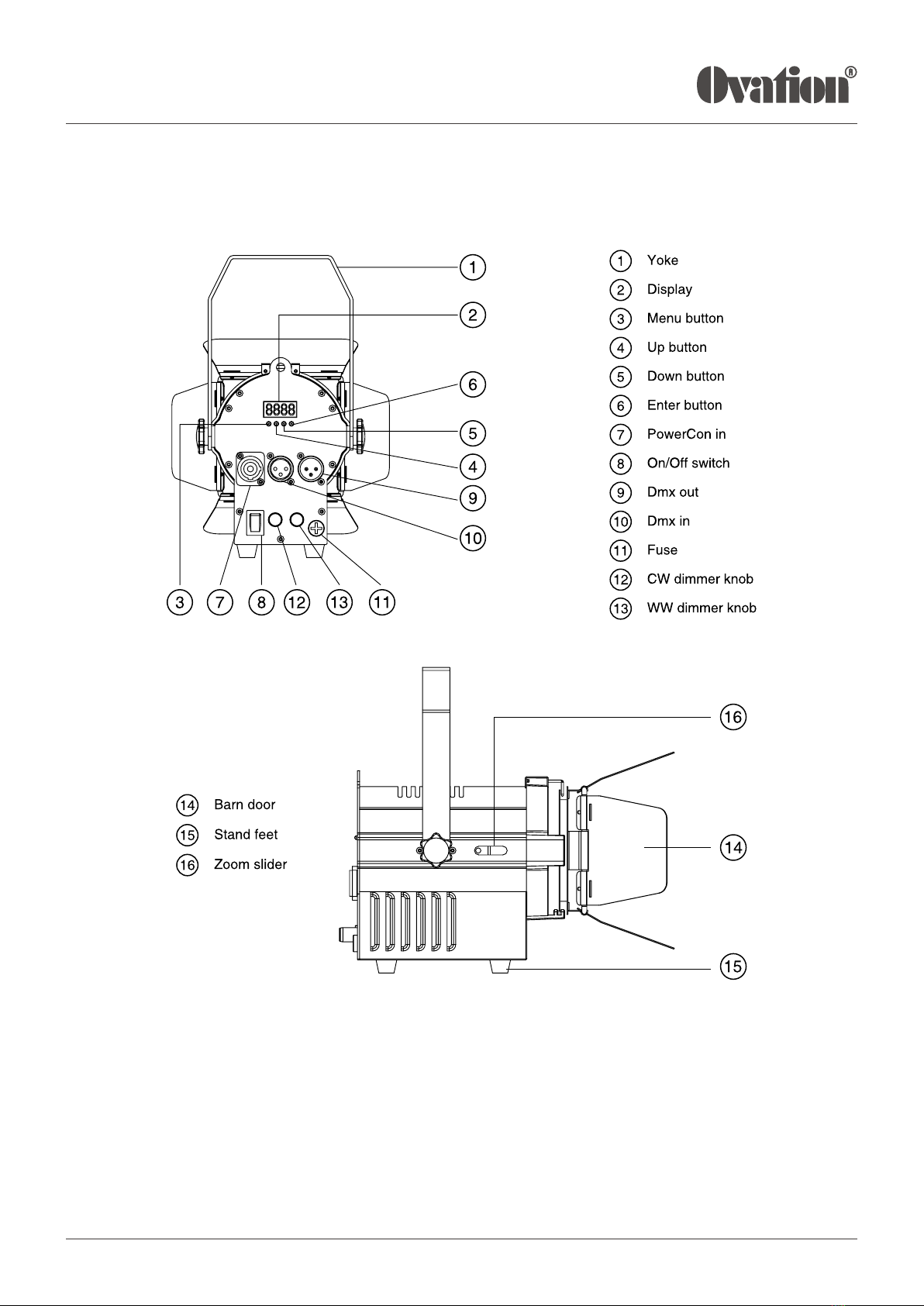

Overview
Installation
Read ‘Safety information’ before installing the xture.
The xture is designed for indoor use only and must be used in a dry location with adequate ventilation.
Ensure that none of the xture’s ventilation slots are blocked.
Fasten the xture to a secure structure or surface. Do not stand it on a surface or leave it where it can
be moved or fall over. If you install the fixture in a location where it may cause injury or damage if it
falls, secure it as directed in this user manual using a securely anchored safety cable that will hold the

Space Track
5Ver 1.0hotion.com
xture if the primary fastening method fails.
Iinstruction Installation of 3 Circuits Track System
Only be used with a voltage of 220V-250V!
3-circuit Track
Track clamp mounting instruction

Space Track
6Ver 1.0hotion.com
Mounting

Space Track
7Ver 1.0hotion.com

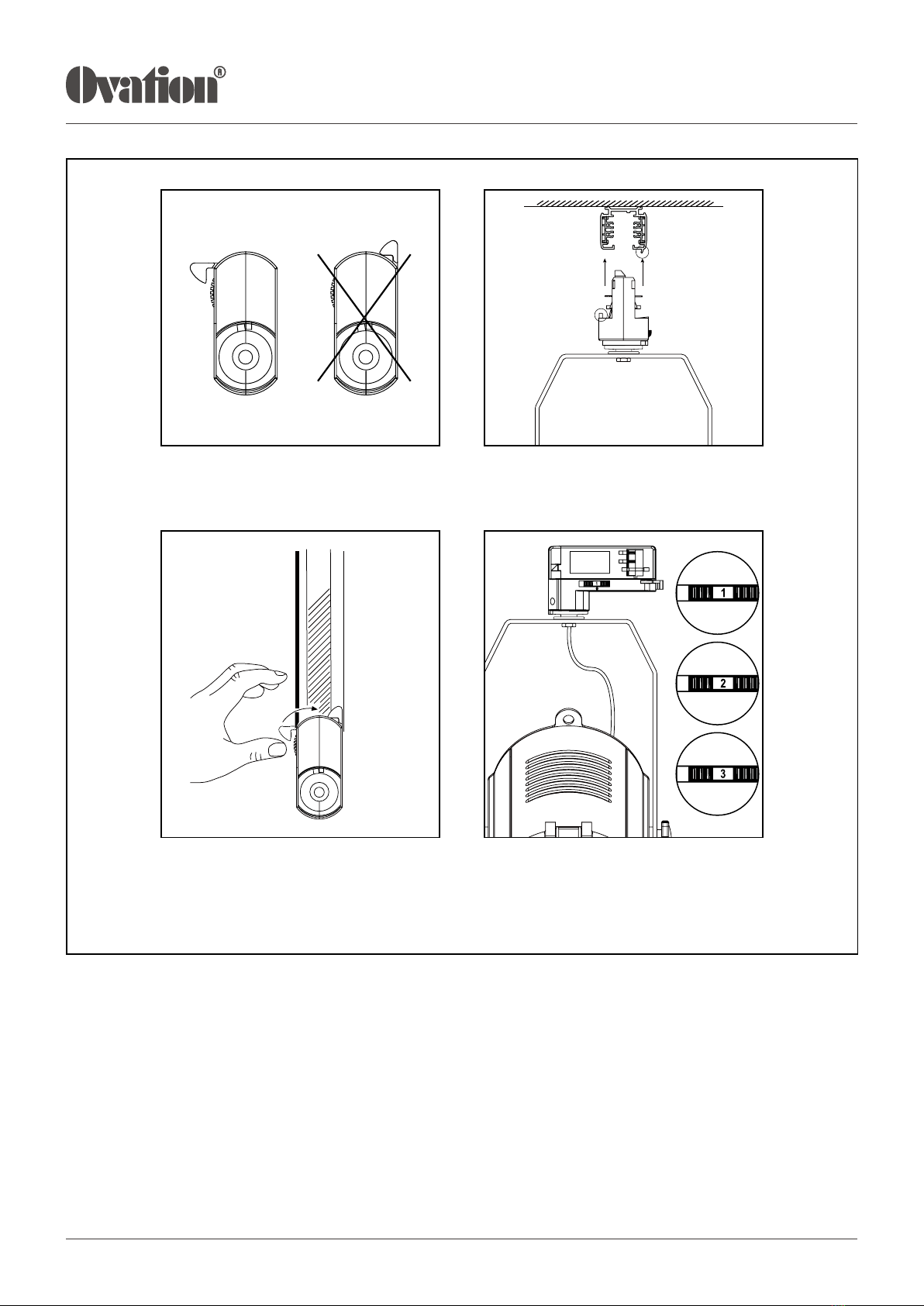

Step 1: Unlock the track
adapter before installation
Flange
Track plane
Step 2: The adaptor flange is in the
same direction with the track plane.
Lock
(Bottom view)
Step 3: Lock the hand grip Step 4: select the power knob: phase
1 / 2/ 3.
Swing clockwise and anticlockwise.
Securing wit h a safety cable
Secure the xture with a safety cable (or other secondary attachment) that is approved for the weight
of the xture so that the safety cable will hold the xture if a primary attachment fails.
Loop the safety cable through the eyebolt in the back of the fixture and around a secure anchoring
point. Do not loop the safety cable around the xture’s mounting bracket only, as this will leave the x-
ture unsecured if it separates from the bracket.

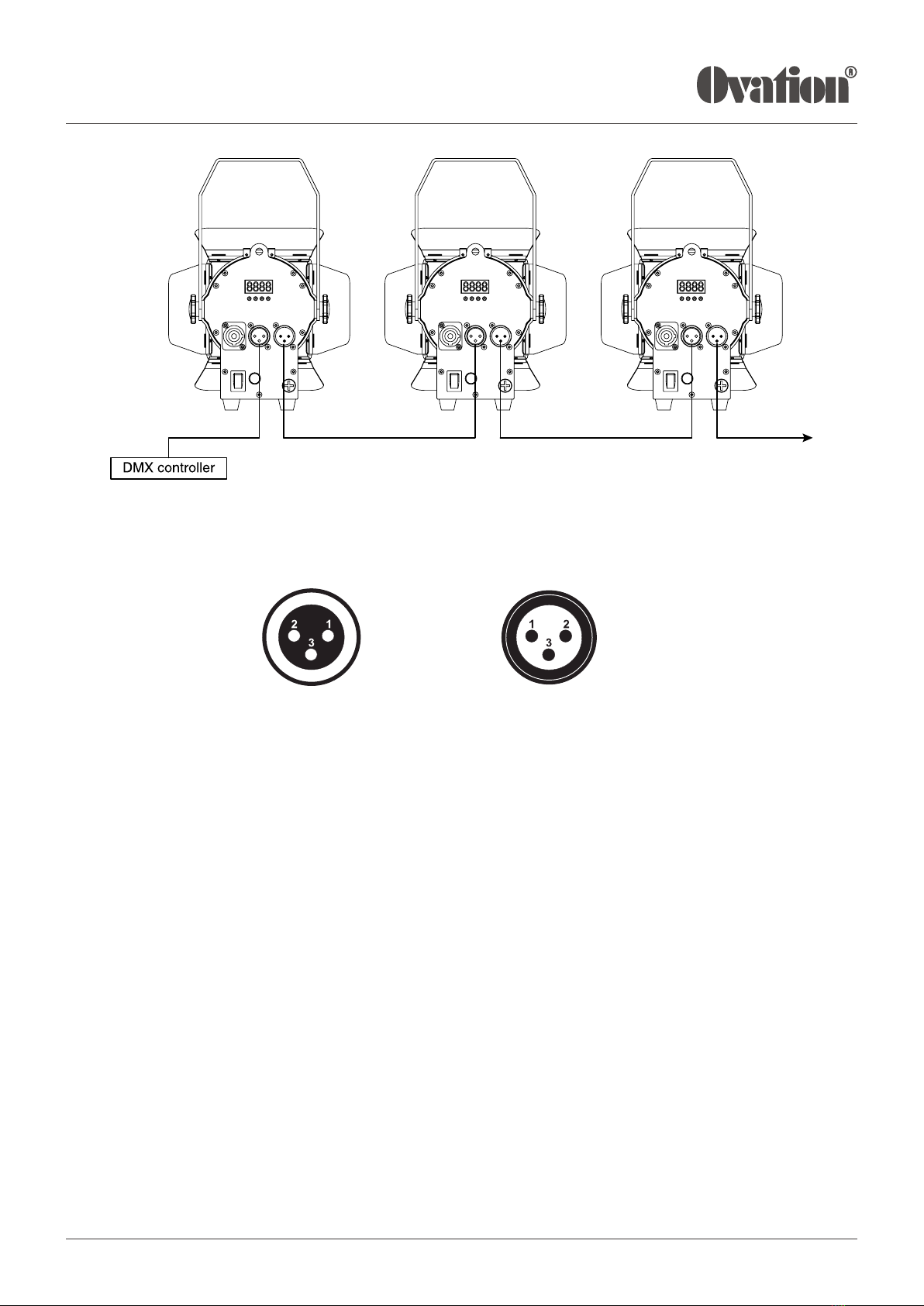

DMX-512 connection/connection between xtures

Space Track
8Ver 1.0hotion.com
Occupation of the XLR-connection:
1. Group
2. Signal (-)
3. Signal (+)
DMX OUT
1. Group
2. Signal (-)
3. Signal (+)
DMX IN
If you are using controllers with this occupation, you can connect the DMX-output of the controller di-
rectly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers
with other XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture.
Always connect one output with the input of the next xture until all xtures are connected.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy environ-
ment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug
with a 120 resistor connected between pins 2 and 3, which is then plugged into the output XLR socket
of the last xture in the chain.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω
resistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the
last xture.
Operation

Space Track
9Ver 1.0hotion.com
The Space Mini Fresnel 40Z can operate in three different modes. In each mode you can run the xture
as a stand alone xture or in a master/slave conugration. This next section will detail the differences
in the operating modes.
Addressing
All xtures should be given a DMX starting address when using a DMX signal, so that the correct xture
responds to the correct control signals. This digital starting address is the channel number from which
the xture starts to listen to the digital control information sent out from the DMX controller. The allo-
cation of this starting address is achieved by setting the correct number on the display located on the
base of the device.
You can set the same starting address for all xtures or a group of xtures, or make different address
for
each xture individually.
If you set the same address, all the units will start to listen to the same control signal from the same
channel number. In other words, changing the settings of one channel will affect all the xtures simulta-
neously.
If you set a different address, each unit will start to listen to the channel number you have set, based on
the quantity of control channels of the unit. That means changing the settings of one channel will af-
fect only the selected xture.
In the case of the Space Mini Fresnel 40Z, which is 1/2/3/4 channels xture. If you set, for example, the
address in the 2 channel mode to channel 2, the device will use the channel 2 to channel 3 for control.
Note: After switching on, the device will automatically detect whether DMX 512 data is received or
not. If there is data received at the DMX input, the dot in the display will ash.
Universal DMX Control
This function allows you to use a universal DMX-512 controller to control the dimmer and strobe. A
DMX controller allows you to create unique programs tailored to your individual needs.
Rotary control
This function allows you to control the dimmer of the Space Mini Fresnel 40Z with the knob in the rear
panel.
1. Press the MENU button and select “UOL”.
2. Press the ENTER button.
3. Adjust the dimmer through the knob on the panel. (right stop = maximum output, left stop = zero
output)

Space Track
10 Ver 1.0hotion.com
Zoom
This function allows you to adjust the beam width of the xture.
Step 1: Loosen the zoom buttons on the side of the device.
Step 2: Adjust the zoom by sliding the back lenshousing forward or backward.
Step 3: Tighten the zoom buttons.

Space Track
11 Ver 1.0hotion.com
Control Menu Map
MENU SUB MENU OPERATION
Addr d001-d512 RDM/DMX address
CHnL
1CH
Channel mode
2CH
3CH
5CH
Strb S.01-s.20 Strobe with spead increasing
uL-- u.000-u.255 WW dimmer
CL-- C.000-C.255 CW dimmer
UOL 000-255 Rotary control of dimmer
nodE
nod.0 Dimmer speed 0 (no delay)
nod.1 Dimmer speed 1
nod.2 Dimmer speed 2
nod.3 Dimmer speed 3
nod.4 Dimmer speed 4 (slowest speed)
tEnP -25~100 Fixture temperature
UErn Firmware version
rSEt Reset
pnnF (1.2~24.0)F PWM frequency adjustment(KHz)
DMX Protocol
1 Channel Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
2 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Strobe 000-255: Strobe with speed increasing
3 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Warm white 000-255: WW 0-100% dimmer
CH3 Cold white 000-255: CW 0-100% dimmer

Space Track
12 Ver 1.0hotion.com
5 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Color temperature 000-010: No func.
011-255: 2700K~6500K color temperature
CH3 Warm white 000-255: WW 0-100% dimmer
CH4 Cold white 000-255: CW 0-100% dimmer
CH5 Strobe 000-255: Strobe with speed increasing
Fixture Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should
be carried out periodically to optimize light output. Cleaning frequency depends on the environment in
which the xture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend clean-
ing on a monthly basis. Periodic cleaning will ensure longevity, and crisp output.
To clean the xture:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Vacuum or gently blow away dust and loose particles from the outside of the xture with low-pres-
sure compressed air.
3. Clean the surfaces by wiping gently with a soft, clean lint-free cloth moistened with a weak deter-
gent solution. Do not rub glass surfaces hard: lift particles off with a soft repeated press. Dry with a
soft, clean, lint-free cloth or low-pressure compressed air. Remove stuck particles with an unscent-
ed tissue or cotton swab moistened with glass cleaner or distilled water.
4. Check that the xture is dry before reapplying power.
Fuse Replacement
This fuse is located in a fuseholder next to the MAINS OUT socket on the connections panel.
To replace a fuse:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Unscrew the cap of the fuseholder and remove the fuse. Replace with a fuse of the same size and
rating only.
3. Reinstall the fuseholder cap before reapplying power.
Troubleshooting
Listed below are a few common problems that you may encounter, with solutions.
The xture does not work, no light
• Check the connection of power and main fuse. Be sure the external fuse has not blown.
• Measure the mains voltage on the main connector.

Space Track
13 Ver 1.0hotion.com
Technical specications
Model Mini Fresnel 50T zoom
Power supply: AC100-240V, 50/60Hz
Light source: 50W WW+50W CW tunable LED
Color temperature: 2700K - 6500K
Color Rendition: CRI 95, R9≥90
Zoom range: 25° - 80° manually
Power connection: PowerCON in
Signal connection: 3-pin XLR in&out
DMX channels: 1/2/3/5
Control mode: RDM, DMX, Rotary, Master-slave
Housing: Colour black, Aluminum
Size(barn door excluded): 230 x 156 x 279mm(21.6 x 6.1 x 10.9in)
Package(carton): 270 x 210 x 210mm(10.6 x 8.3 x 8.3in)
N.W.: 1.7kg(3.7lb), including barn door
G.W.: 2.8kg(6.2lb)
Accessories: Power lead, Gel frame, barn door, clamp(optional)
Enviroment: IP20
Please note: All information is subject to change without prior notice� 15�03�2022

Space Track
14 Ver 1.0hotion.com
Table of contents
Other Ovation Lighting Equipment manuals

Ovation
Ovation Event 100T User manual

Ovation
Ovation B-19 User manual

Ovation
Ovation EXT 1218 User manual

Ovation
Ovation Min-E-10WW User manual

Ovation
Ovation Solar Panel 150T User manual

Ovation
Ovation E-3 IP User manual

Ovation
Ovation PIONEER 100C ZOOM User manual

Ovation
Ovation Event 200T User manual

Ovation
Ovation SPACE MINI PROFILE 40Z User manual

Ovation
Ovation PIONEER 200C ZOOM User manual
