Owon ODP Series User manual
Nov. 2017 edition V1.0.1
Copyright © LILLIPUT Company. All rights reserved.
The LILLIPUT's products are under the protection of the patent rights, including ones which have
already obtained the patent rights and those which are applied for. The information in this manual will
replace all materials published.
The information in this manual was correct at the time of printing. However, LILLIPUT will continue to
improve products and reserves the rights to change specification at any time without notice.
is the registered trademark of the LILLIPUT Company.
General Warranty
OWON warrants that the product will be free from defects in materials and workmanship
for a period of 2 years (1 year for accessories) from the date of purchase of the product
by the original purchaser from the OWON Company. This warranty only applies to the
original purchaser and is not transferable to a third party.
If the product proves defective during the warranty period, OWON will either repair the
defective product without charge for parts and labour, or will provide a replacement in
exchange for the defective product. Parts, modules and replacement products used by
OWON for warranty work may be new or reconditioned like new. All replaced parts,
modules and products become the property of OWON.
To obtain service under this warranty, the customer must notify OWON of the defect
before the expiration of the warranty period. Customer shall be responsible for
packaging and shipping the defective product to OWON's designated service centre, a
copy of the customer’s proof of purchase is also required.
This warranty shall not apply to any defect, failure or damage caused by improper use or
improper or inadequate maintenance and care. OWON shall not be obligated to furnish
service under this warranty a) to repair damage resulting from attempts by personnel
other than OWON representatives to install, repair or service the product; b) to repair
damage resulting from improper use or connection to incompatible equipment; c) to
repair any damage or malfunction caused by the use of non-OWON supplies; or d) to
service a product that has been modified or integrated with other products when the
effect of such modification or integration increases the time or difficulty of servicing the
product.
Please contact the nearest OWON's Sales and Service Offices for services or a complete
copy of the warranty statement.
For better after-sales service, please visit www.owon.com.cn and register the purchased
product online.
Excepting the after-sales services provided in this summary or the applicable warranty statements,
OWON will not offer any guarantee for maintenance definitely declared or hinted, including but not
limited to the implied guarantee for marketability and special-purpose acceptability. OWON should
not take any responsibilities for any indirect, special or consequent damages.
i
Table of Contents
1. General Safety Requirements....................................................................................1
2. Safety Terms and Symbols ........................................................................................2
3. Quick Start...............................................................................................................3
3.1 Front/Rear Panel and User Interface.............................................................................. 3
3.1.1 Front Panel ...................................................................................................................................... 3
3.1.2 Rear Panel ....................................................................................................................................... 5

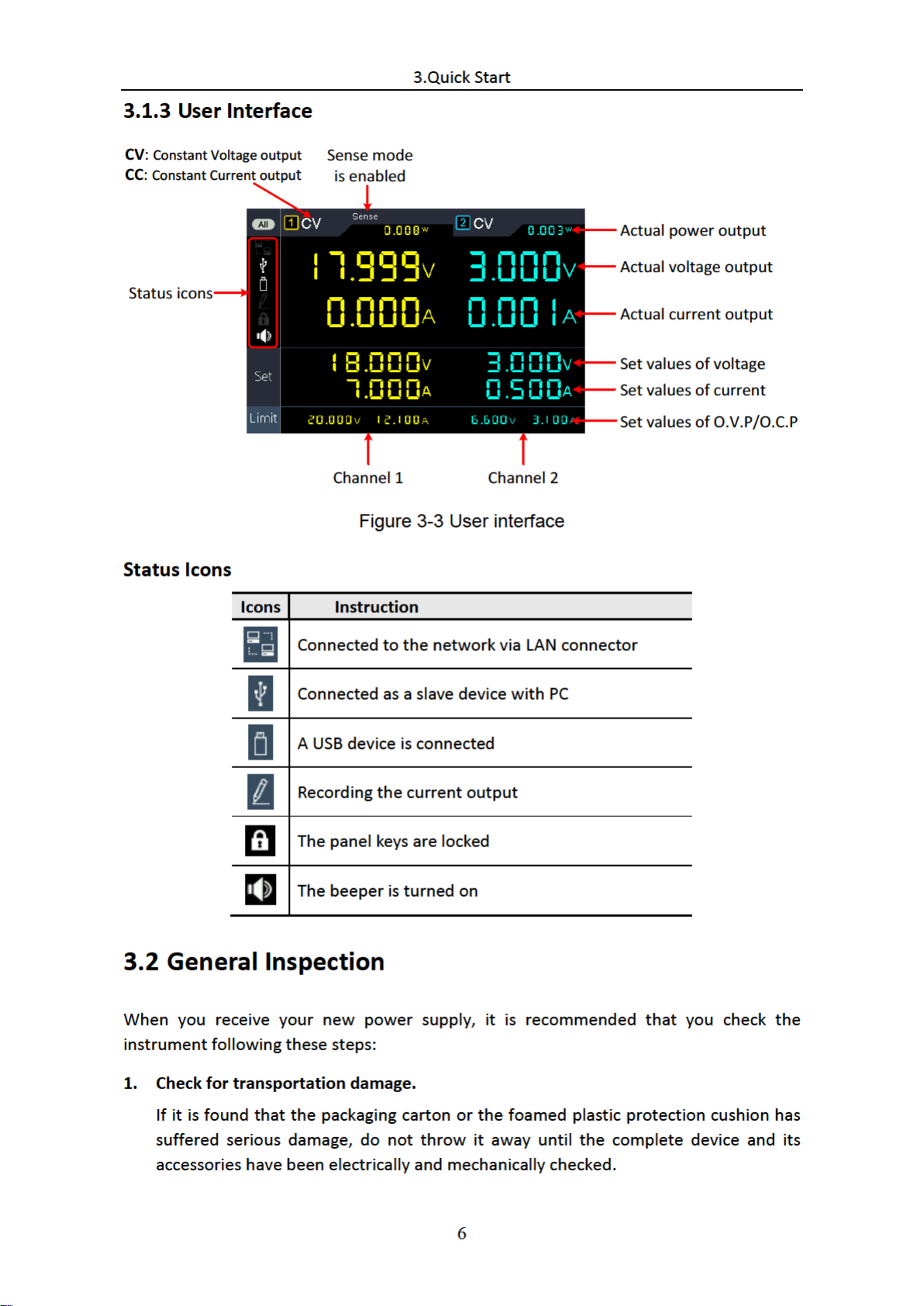

3.1.3 User Interface.................................................................................................................................. 6
Status Icons............................................................................................................................................................6
3.2 General Inspection ........................................................................................................ 6
3.3 Power-On Check............................................................................................................ 7
3.4 Output Inspection ......................................................................................................... 7
3.4.1 Voltage Output Inspection .............................................................................................................. 7
3.4.2 Current Output Inspection .............................................................................................................. 7
4. Front Panel Operation ..............................................................................................9
4.1 Turn On/Off the Channel Output ................................................................................... 9
4.2 Set the Output Voltage/Current..................................................................................... 9
4.2.1 Set the Output Voltage.................................................................................................................... 9
4.2.2 Set the Output Current.................................................................................................................... 9
4.3 Over Voltage/Current Protection ..................................................................................10
4.3.1 Set O.V.P........................................................................................................................................ 10
4.3.2 Set O.C.P........................................................................................................................................ 10
4.4 M1, M2, M3 Quick Output ............................................................................................11
4.5 Programmable Output..................................................................................................11
4.5.1 Data View ...................................................................................................................................... 11
4.5.2 Output Set ..................................................................................................................................... 12
4.5.3 Data process .................................................................................................................................. 12
4.5.4 Turn On/Off Programmable Output.............................................................................................. 13
4.6 Save Settings/Auto Record ...........................................................................................13
4.6.1 Save Settings ................................................................................................................................. 13
4.6.2 Auto Record................................................................................................................................... 14
4.6.3 View Record .................................................................................................................................. 14
4.7 Sense mode..................................................................................................................15
4.8 Utility Settings..............................................................................................................16
4.8.1 Language ....................................................................................................................................... 16
4.8.2 Brightness...................................................................................................................................... 17
4.8.3 Beeper ........................................................................................................................................... 17
ii
4.8.4 Clock .............................................................................................................................................. 17
4.9 System Info ..................................................................................................................17
4.9.1 View System Information .............................................................................................................. 17
4.9.2 Set as Default................................................................................................................................. 17
4.9.3 Update........................................................................................................................................... 18
4.10 Port Settings...............................................................................................................19
4.10.1 Serial port .................................................................................................................................... 19
4.10.2 LAN Set ........................................................................................................................................ 19
4.10.3 LCD Test....................................................................................................................................... 20
4.10.4 Key Test ....................................................................................................................................... 20
5. Troubleshooting ..................................................................................................... 21
6. Technical Specifications .........................................................................................22
7. Appendix................................................................................................................23
7.1 Appendix A: Packaging .................................................................................................23
7.2 Appendix B: General Care and Cleaning.........................................................................24
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
1.General Safety Requirements
1
1. General Safety Requirements
Before use, please read the following safety precautions to avoid any possible bodily
injury and to prevent this product or any other connected products from damage. To
avoid any contingent danger, ensure this product is only used within the ranges
specified.
Only a qualified person should perform internal maintenance.
To avoid Fire or Personal Injury:
Use Proper Power Cord. Use only the power cord supplied with the product and
certified to use in your country.
Product Grounded. This instrument is grounded through the power cord grounding
conductor. To avoid electric shock, the grounding conductor must be grounded. The
product must be grounded properly before any connection with its input or output
terminals.
Check all Terminal Ratings. To avoid fire or shock hazard, check all ratings and
markings on this product. Refer to the user manual for more information about
ratings before connecting to the instrument.
Do not operate without covers. Do not operate the instrument with covers or panels
removed.
Use the Proper Fuse. Use only the specified type and rating fuse for this instrument.
Avoid exposed circuit. Be careful when working on exposed circuitry to avoid risk of
electric shock or other injury.
Do not operate if any damage. If you suspect damage to the instrument, have it
inspected by qualified service personnel before further use.
Use your instrument in a well-ventilated area. Please keep well ventilated and
inspect the intake and fan regularly.
Do not operate in damp conditions. To avoid short circuiting to the interior of the
device or electric shock, please do not operate in a humid environment.
Do not operate in an explosive atmosphere. To avoid damages to the device or
personal injuries, it is important to operate the device away from an explosive
atmosphere.
Keep product surfaces clean and dry. To avoid the influence of dust or moisture in air,
please keep the surface of device clean and dry.
2.Safety Terms and Symbols
2
2. Safety Terms and Symbols
Safety Terms
Terms in this manual (The following terms may appear in this manual):
Warning: Warning indicates conditions or practices that could result in injury or
loss of life.
Caution: Caution indicates the conditions or practices that could result in
damage to this product or other property.
Terms on the product. The following terms may appear on this product:
Danger: Indicates an immediate hazard or injury possibility.
Warning: Indicates a possible hazard or injury.
Caution: Indicates potential damage to the instrument or other property.
Safety Symbols
Symbols on the product. The following symbols may appear on the product:
Hazardous Voltage
Refer to Manual
Protective Earth Terminal
Chassis Ground
Public Ground
3.Quick Start
4
⑧
CH2 control area Blue Volt/CV key: Set the output voltage of CH2
Blue Curr/CC key: Set the output current of CH2
Blue ON/OFF key: Enable/disable the output of CH2
⑨
CH2 output
terminals
Channel 2 output connectors
⑩
ALL key
In the M1/M2/M3 setting interface, enable or disable the CH1
and CH2 output
⑪
CH1 output
terminals
Channel 1 output connectors
⑫
Sense terminals
Compensate the voltage drop.
⑬
USB Host port Connect as a "host device" with an external USB device, such
as connect a USB disk to the instrument.
⑭
Power button
Turn on/off the instrument
⑮
CH1 control area
Orange Volt/CV key: Set the output voltage of CH1
Orange Curr/CC key: Set the output current of CH1
Orange ON/OFF key: Enable/disable the output of CH1
⑯
Function keys
Utility key: Menu of output mode, utility, info, port settings.
Record key: Save settings, auto record, and view recording.
Program key: Programmable output.
KeyLock key: Press and hold this key for 5 seconds to lock
the panel keys. Unlock method: Press and hold the key for
more than 5 seconds, and release.
Instructions for panel key indicator
ON/OFF key: The indicator will be lit after you turn on the channel.
Volt/CV key: The indicator will be lit when the channel is in Constant Voltage output
mode.
Curr/CC key: The indicator will be lit when the channel is in Constant Current output
mode.
3.1.2 Rear Panel
Area
Network (LAN)
USB Device
Connector
COM Connector
Power socket
Fuse
Fan
5
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
3.Quick Start
7
2. Check the Accessories
The supplied accessories are described in the "Appendix A: " of this Manual. Please
ensure that all the listed accessories are present and undamaged, if any problems
are found please contact your distributor or OWON’s local office.
3. Check the Complete Instrument
If there is any physical damage, operational fault, or performance issue please
contact your distributor or OWON’s local office. If there is any transportation
damage to the instrument please ensure you keep the original packaging. Ideally you
should always keep the original packaging if the instrument must be returned for
repair.
3.3 Power-On Check
(1) Connect the instrument to the AC supply using the supplied power cord.
Warning:
To avoid electric shock, the instrument must be grounded properly.
(2) Push the power button on the front panel, the keys will light and the screen will
show the boot screen.
3.4 Output Inspection
Output inspection is to ensure that the instrument can achieve its rated outputs and
properly respond to operation from the front panel. For the procedures below, it is
suggested that you read "Turn On/Off the Channel Output" on page 9 and "Set the Output
Voltage/Current" on page 9.
3.4.1 Voltage Output Inspection
The following steps verify basic voltage functions without load:
(1) When the instrument is under no load, select a channel and ensure the output
current setting for this channel is not at zero.
(2) Turn on the channel output, then ensure the channel is in Constant Voltage output
mode.
(3) Set some different voltage values on this channel; check if the actual voltage value
displayed is close to the set voltage value, and also that the actual current value
displayed is nearly to zero.
(4) Check that if the output voltage can be adjusted from zero to the maximum rating.
3.4.2 Current Output Inspection
The following steps check basic current functions with a short across the power supply's
output:
(1) Connect a short across (+) and (-) output terminals with an insulated test lead on this
3.Quick Start
8
channel. Use a wire size sufficient to handle the maximum current.
(2) Set the output voltage to the maximum rating on this channel.
(3) Turn on the channel output. Ensure the channel you used is in Constant Current
output mode.
(4) Set some different current values on this channel; check if the actual current value
displayed is close to the set current value, and to check if the actual voltage value
displayed is nearly zero.
(5) Check that if the output current can be adjusted from zero to the maximum rating.
(6) Turn off the channel output and remove the short circuit from the output terminals.
4.Front Panel Operation
9
4. Front Panel Operation
4.1 Turn On/Off the Channel Output
Press the orange ON/OFF key to turn on/off the Channel 1 output.
Press the blue ON/OFF key to turn on/off the Channel 2 output.
4.2 Set the Output Voltage/Current
4.2.1 Set the Output Voltage
Set the output voltage of CH1
Press the orange Volt/CV key, the first digit of the CH1 set voltage is flashing,
indicating the value is editable. There are two methods to change the value.
Modify: Turn the knob to change the value. Press the
＜
/
＞
key to move the
cursor. Press the knob or the key to confirm.
Input: Use the numeric keys to input, the input box of Channel 1 output voltage will
pop up. Enter a desired value. Press the key to confirm.
Set the output voltage of CH2
Press the blue Volt/CV key to enter edit mode. You can set the value in the same way
as CH1 above.
4.2.2 Set the Output Current
Set the output current of CH1
Press the orange Curr/CC key, the first digit of the CH1 set current is flashing,
indicating the value is editable. There are two methods to change the value.
Modify: Turn the knob to change the value. Press the
＜
/
＞
key to move the
cursor. Press the knob or the key to confirm.
Input: Use the numeric keys to input, the input box of Channel 1 output current will
pop up. Enter a desired value. Press the key to confirm.
Note: The minimum value for CH1 set current is 50 mA.
Set the output current of CH2
Press the blue Curr/CC key to enter edit mode. You can set the value in the same way
as CH1 above.
4.Front Panel Operation
10
4.3 Over Voltage/Current Protection
When the Over Voltage Protection (O.V.P) or Over Current Protection (O.C.P) is enabled,
once the output voltage/current reaches the set value of O.V.P/O.C.P, the instrument will
cut off the output, a warning will show on the screen.
Note:
When the instrument disables the output due to protection, after you make some
adjustments, the channel must be restarted to output normally.
This function can keep the power output from exceeding the load rating to protect the
load.
4.3.1 Set O.V.P
Set the O.V.P of CH1
Press the orange Volt/CV key, the first digit of the CH1 set voltage is flashing. Press
the ▼key, the first digit of the CH1 O.V.P is flashing, indicating the value is editable.
There are two methods to change the value.
Modify: Turn the knob to change the value. Press the
＜
/
＞
key to move the
cursor. Press the knob or the key to confirm.
Input: Use the numeric keys to input, the input box of Channel 1 limit voltage will
pop up. Enter a desired value. Press the key to confirm.
Set the O.V. P of CH2
Press the blue Volt/CV key, then press the ▼key to enter edit mode. You can set the
value in the same way as CH1 above.
4.3.2 Set O.C.P
Set the O.C.P of CH1
Press the orange Curr/CC key, the first digit of the CH1 set current is flashing. Press
the ▼key, the first digit of the CH1 O.C.P is flashing, indicating the value is editable.
There are two methods to change the value.
Modify: Turn the knob to change the value. Press the
＜
/
＞
key to move the
cursor. Press the knob or the key to confirm.
Input: Use the numeric keys to input, the input box of Channel 1 limit current will
pop up. Enter a desired value. Press the key to confirm.
Set the O.C.P of CH2
Press the blue Curr/CC key, then press the ▼key to enter edit mode. You can set the
value in the same way as CH1 above.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
4.Front Panel Operation
11
4.4 M1, M2, M3 Quick Output
You can save three groups of output parameters of CH1 and CH2 respectively for quick
outputting. Press M1, M2 or M3 front panel key to enter into the setting interface.
Take M1 for instance:
(1) Press the M1 key.
(2) In the setting interface, press the
＜
/
＞
key to move the cursor left and right.
Press the ▲/ ▼key to move the cursor up and down. Use the numeric keys to
input, the input box will pop up. Enter a desired value. Press the key to
confirm.
(3) In the setting interface, press the ALL key to enable the CH1 and CH2 output with
the setting parameters. Press the ALL key again to disable the output.
4.5 Programmable Output
The programmable output function is only available for CH1.
The programmable output function can preset up to 100 groups of timing parameters of
CH1. When you turn on the programmable output, the instrument will output the
pre-specified voltage, current in pre-specified time.
4.5.1 Data View
Press the Program key. The Data view menu is selected.
(1) The Memory sub menu is selected. Press the
＜
/
＞
key to select Internal or
External.
(2) Press the ▼key to select Import submenu. Press the key to import data.
(3) Press the ▼key to select Export submenu. Press the key to export data.
Note: When the memory is set as External, the programmable data file will be export
to U disk, the directory is ODPXXXX\Program (ODPXXXX is the model)
4.Front Panel Operation
12
(4) Press the ▼key to select Clear Data submenu. Press the key to clear data.
4.5.2 Output Set
Press the Program key, turn the knob to select [Output Set].
(1) The Cycle Mode sub menu is selected. Press the
＜
/
＞
key to select Oder or
Loop.
(2) Press the ▼key to select Start Point submenu. Use the numeric keys to input (1 to
100), press the key to confirm.
(3) Press the ▼key to select Stop Point submenu. Use the numeric keys to input (1 to
100), press the key to confirm.
(4) Press the ▼key to select Start submenu. Press the key to enter the data
processing interface and enable CH1 output.
4.5.3 Data process
You can set the programmable parameters of CH1, including voltage, current and output
time. This function allows up to 100 parameter groups.
Press the Program key, turn the knob to select [Data process].
Edit:
(1) The Edit sub menu is selected. The operation instruction shows on the screen. Press
the key to enter the data processing interface.
(2) In the data processing interface, Press the
＜
/
＞
key to move the cursor left and
right. Press the ▲/ ▼key to move the cursor up and down. Use the After selecting
the parameter, use the numeric keys to enter a desired value, press the key to
confirm.
Figure 4-1 Data processing Interface
(3) Press
←
to back to sub menu selection.
4.Front Panel Operation
13
Graph process is used to configure the graphical display in the Data processing
interface.
(1) Press the ▼key to select Graph process submenu. Press the key to enter the
editing interface.
(2) In the Graph processing interface, Press the
＜
/
＞
key to move the cursor left
and right. Press the ▲/ ▼key to move the cursor up and down. Press the key
to check or uncheck the item. If the item is checked, the corresponding line will be
displayed in the chart in the data processing interface.
(3) Press
←
to back to sub menu selection.
4.5.4 Turn On/Off Programmable Output
In the data processing interface:
Press orange ON/OFF key to turn on/off the programmable output.
In the data processing interface:
Press the ▼key to select Start submenu. Press the key to enter the data
processing interface and enable CH1 output.
Note:
In the process of programmable output, closing the channel output will reset the timer;
turning on the channel again will restart the programmable output and the timer.
4.6 Save Settings/Auto Record
4.6.1 Save Settings
You can store, recall and delete current setting parameters. The storage memory could be
set as internal or external (USB flash device). Up to 100 groups of settings can be saved.
Press the Record key. The Save Settings menu is selected.
(1) The Memory sub menu is selected. Press the
＜
/
＞
key to select Internal or
External.
(2) Press the ▼key to select Save submenu. Press the
＜
/
＞
key to select the
channel (CH1 or CH2), press the key to save the setting of the selected channel.
Note: When the memory is set as External, the setting will be saved to U disk as a
CSV file, the directory is ODPXXXX\Record_Option (ODPXXXX is the model).
(3) Press the ▼key to select Delete submenu. Press the key, a red box will show
in the table, indicating the selected item. Press the ▲/ ▼key to select. Press the
＜
/
＞
key to turn the page. Press the key to delete. Press
←
to back to
4.Front Panel Operation
14
sub menu selection.
(4) Press the ▼key to select Recall submenu. Press the key, a red box will show in
the table, indicating the selected item. Press the ▲/ ▼key to select. Press the
＜
/
＞
key to turn the page. Press the key to recall. Press
←
to back to sub
menu selection.
4.6.2 Auto Record
Press the Record key, turn the knob to select [Auto Record].
(1) The Memory sub menu is selected. Press the
＜
/
＞
key to select Internal or
External.
(2) Press the ▼key to select Interval submenu. Use the numeric keys to set the record
interval, press the key to confirm.
(3) Press the ▼key to select Points submenu. Use the numeric keys to set the points,
press the key to confirm.
(4) Press the ▼key to select Record Status submenu. Press the
＜
/
＞
key to select
the channel (CH1 or CH2), press the key to start recording the output of the
selected channel. Press the key again to stop recording. During recording, the
icon will be lighted on the status bar.
Note: When the memory is set as External, the record file will be saved to U disk as a
CSV file, the directory is ODPXXXX\Record_Auto (ODPXXXX is the model).
4.6.3 View Record
Press the Record key, turn the knob to select [View Record].
(1) Press the ▼key to select Memory submenu. Press the
＜
/
＞
key to select
Internal or External.
(2) When the Memory is set as Internal, press the ▲key to select Read submenu. Press
4.Front Panel Operation
15
the
＜
/
＞
key to select the channel (CH1 or CH2), press the key to read the
recording file of the selected channel. After reading successfully, if the display mode
is set as Table, a red box will show in the table, indicating you can press the
＜
/
＞
key to turn the page. Press
←
to back to sub menu selection.
When the Memory is set as External, press the ▲key to select Export submenu.
Press the
＜
/
＞
key to select the channel (CH1 or CH2), press the key to
export the recording file of the selected channel onto the U disk. The directory is
ODPXXXX\Record_Auto (ODPXXXX is the model).
(3) Press the ▼key to select Display submenu. Press the
＜
/
＞
key to select Graph
or Table.
Graph display mode
Table display mode
(4) Press the ▼key to select Clear submenu. Press the key to clear the recording
file.
4.7 Sense mode
Sense mode can only be applied to CH1.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
Other manuals for ODP Series
1
This manual suits for next models
2
Table of contents
Other Owon Power Supply manuals
