Ozito MFR-250 User manual

Motor size: 250 Watt
Input: 230-240V ~ 50Hz
No load speed: 15,000-21,000/min
Max. stroke length: 3.8mm
Orbit angle: 3.2°
Sanding pad size: 92 x 92 x 92mm
Variable speed: Yes
Weight: 1.35kg
KNOW YOUR PRODUCT
SPECIFICATIONS - MODEL NO. MFR-250
1
1. Variable speed dial
2. On/off switch
3. Metal gear box
4. Accessory drive spindle
5. Accessory fixing washer
6. Locking bolt
7. Allen key
8. Cutting blade square
9. Scraper blade chisel
10. Cutting blade round
11. Sanding paper
12. Sanding pad
13. Side handle
2
3
14
12 11 10 9 8 76 513
MFR-250 manual.qxd 1/12/11 11:24 AM Page 2

2
TABLE OF CONTENTS
SPECIFICATIONS………………………………………….
INTRODUCTION…………………………………………..
ELECRICAL SAFETY……………………………………….
GENERAL POWER TOOL SAFETY WARNINGS…………
ADDITIONAL SAFETY INSTRUCTIONS FOR MULTI
FUNCTION TOOLS……………………………………….
ASSEMBLY………………………………..…………………
OPERATION………………………………………………..
MAINTENANCE……………………………………………
SPARE PARTS………………………………………………
DESCRIPTION OF SYMBOLS…………………………….
CONTENTS…………………………………………………
WARRANTY…………………………………………………
Page 1
Page 3
Page 3
Page 4
Page 6
Page 7
Page 8
Page 12
Page 12
Page 13
Page 14
Page 15
MFR-250 manual.qxd 1/12/11 11:24 AM Page 3

INTRODUCTION
3
Congratulations on purchasing an Ozito Multi Function Tool.
We aim to provide quality tools at an affordable price.
We hope you will enjoy using this tool for many years. Your
MFR-250 Multi Function Tool has been designed for
sanding, chiselling, cutting and many additional
applications and is intended for DIY use only.
Warning! When using mains-powered equipment, basic safety
precautions, including the following, should always be followed to reduce
risk of fire, electric shock, personal injury and material damage.
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that
the power supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for
Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 600745-13100: 2002;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by a qualified electrician or a
power tool repairer in order to avoid a hazard.
If operating a power tool in a damp location is unavoidable use a residual current
device (RCD) protected supply Use of an RCD reduces the risk of electric shock.
Note: Double insulation does not take the place of normal safety precautions
when operating this tool. The insulation system is for added protection against
injury resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing.
Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use
of an extension lead not suitable for the power input of the tool or which is
damaged or defective may result in a risk of fire and electric shock.
ELECTRICAL SAFETY
!
!
!
!
MFR-250 manual.qxd 1/12/11 11:24 AM Page 4

4
General Power Tool Safety Warnings - Personal Safety
Warning! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in all of the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply.Use of an RCD reduces the risk of
electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool. Carrying power tools with your finger on the switch or energising power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
!
!
!
!
MFR-250 manual.qxd 1/12/11 11:24 AM Page 5

5
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these
devices can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it
was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/or the battery pack from
the power tool before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended
could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
General Power Tool Safety Warnings - Personal Safety
!
!
MFR-250 manual.qxd 1/12/11 11:24 AM Page 6

Additional Safety Instructions for Multi Function Tools
6
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Recommendations for the use of a residual current device with a rated residual
current of 30mA or less.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before
use, inspect the extension lead for signs of damage, wear and ageing. Replace the
extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an
extension lead not suitable for the power input of the tool or which is damaged or
defective may result in a risk of fire and electric shock.
It is recommended that the extension lead is a maximum of 25m in length. Do Not use
multiple extension leads.
!
!
MFR-250 manual.qxd 1/12/11 11:24 AM Page 7

7
ASSEMBLY
Attaching Your Accessory
1. To attach an accessory to the Multi Function Tool,
ensure that the large hole located within the
series of smaller perforated holes on the
accessory is correctly placed over the drive
spindle (4) of the Multi Function Tool.
Choose the desired angle required for your
application and position the series of smaller
accessory perforated holes over the raised
accessory locating pins on the drive spindle (4)
of the Multi Function Tool. Be sure that all of the
holes of the accessory are now correctly located
onto the drive spindle (4) and the accessory is
sitting flat against the face of the drive spindle (4)
(Fig. 1 & 1a).
2. Place the accessory fixing washer (5) in alignment
with the inner hole of the drive spindle (4). Ensure
the flat side of the accessory fixing washer (5) is
facing towards the accessory.
3. Insert the locking bolt (6) through the accessory
fixing washer (5) and into the drive spindle (4) of
the Multi Function Tool. Hand tighten only.
4. Tighten the locking bolt (6) using the allen key (7)
in a clockwise direction (Fig. 2). Do not overtighten!
Removing Your Accessory
1. Loosen the locking bolt (6) using the allen key (7) in an anti-clockwise direction.
2. Remove the locking bolt (6) and the accessory fixing washer (5) from the Multi
Function Tool. Remove the accessory.
3. To re-attach an accessory, follow the instructions on “Attaching your accessory”.
Attaching The Side Handle
The side handle (13) should be assembled to the Multi Function Tool prior to use.
This is done by screwing the threaded end of the side handle (13) firmly into the
alloy gear gase of the Multi Function Tool.
The side handle can be fitted to the left or right side of the Multi Function Tool to
maximise user comfort according to the type of application being undertaken.
Choose the most appropriate position considering user comfort (preferred hand)
and the task at hand.
To reduce the risk of injury and to ensure maximum control during use, hold the
tool with both hands while the tool is in operation.
Fig. 1
Fig. 1a
Fig. 2
Accessory Drive Spindle fixed
to the Multi Function Tool
Accessory
locating pins
Accessory
perforated
holes
MFR-250 manual.qxd 1/12/11 11:24 AM Page 8

8
ASSEMBLY (cont.)
Changing Sanding Paper
NOTE: The sanding pad (12) is a hook and loop baseplate covered with Velcro
material. The sanding paper (11) can therefore be quickly and simply attached or
removed from the Velcro fastening system.
1. Align the sanding paper (11) to the sanding pad (12)
and press firmly to hold in place. As this product does
not include a dust extraction system, it is not critical
that the holes in the sanding paper lines up with the
holes on the sanding pad (12).
2. To remove or change the sanding paper carefully
peel off the sanding paper from one of the triangle
ends (Fig. 3).
Operating the On/Off Switch
1. To turn the Multi Function Tool on, slide the on/off
switch (2) forward (Fig. 4).
2. To turn the Multi Function Tool off, slide the on/off
switch (2) towards the rear of the Multi Function Tool.
Adjusting the Variable Speed
NOTE: In various applications you will need to select the
correct speed.
1. When the Multi Function Tool power is turned on,
select the “oscillation frequency speed” by scrolling
the variable speed dial (1) to your desired speed.
(Fig. 5) The higher the number on the variable speed
dial (1) the faster the oscillation frequency of the
Multi Funtion Tool.
2. Recommended oscillation frequency for applications:
High oscillation frequency Sanding, sawing, rasping, and polishing stone and
metal
(rasping and polishing accessories not supplied)
Low oscillation frequency Polishing varnishes (polishing accessories not supplied)
Fig. 3
Fig. 4
Fig. 5
OPERATION
MFR-250 manual.qxd 1/12/11 11:24 AM Page 9

OPERATION (cont.)
9
Choosing the Correct Sanding Paper
Sanding paper (11) is rated according to the number marked on the rear of the
sanding paper (11). The higher the number, the smaller and less coarse the
particles are on the sanding paper (11). The lower the number, the larger and more
coarse the particles are on the sanding paper, this will provide a more aggressive
sanding action.
Coarse grit (eg.40) is used for removing paint and sanding down rough surfaces.
Medium grit (eg.80) is used for sanding down plain timber .
Fine grit (eg.120) is used to give a smooth finish to bare wood.
Extra fine grit (eg.400-1200) is used for polishing or sanding between coats of paint.
If there are still marks on your work after sanding, try stepping back to a coarser
grade of sanding paper and sanding the marks out. Then recommence with the
original choice of grit, or try using a finer (higher numbered) piece of sand paper
(11) to eliminate the unwanted marks and finish the job.
NOTE: Try not to apply excessive pressure when using the Multi Function Tool as a
sander as excessive pressure and coarse sanding paper (11) can lead to swirl marks
or “ring” impressions on your workpiece.
Sanding
NOTE: Ensure you have the correct sanding paper for your application.
Always test on a scrap workpiece before using on your workpiece.
1. In sanding mode, the Multi Function Tool can be used on materials such as
wood, plastic, metal and painted surfaces.
2. Slide the on/off switch (2) forward to the “on”
position. Ensure the Multi Function Tool is not
placed on the workpiece.
3. Select the desired oscillation frequency speed on
the variable speed dial (1) and wait until the
motor reaches its maximum speed.
4. Place the Multi Function Tool on your workpiece,
ensuring the whole area of the sanding base is in
contact with the work surface (Fig. 6).
5. Allow the Multi Function Tool to do the work and
do not apply heavy pressure on the Multi
Function Tool. Heavy pressure does not increase
the removal of material but will wear your
sanding paper (11) faster.
6. If sanding corners in hard to reach areas use the
tip or triangle edge of the sanding pad (12) (Fig. 7).
NOTE: Sanding pad must be kept flat on
workpiece. Do not tilt the sanding base and use the edge of the sanding
paper or the sanding pad will be damaged and not hold your sanding paper.
Fig. 6
Fig. 7
MFR-250 manual.qxd 1/12/11 11:24 AM Page 10

10
OPERATION (cont.)
Sawing – Round Blade
CAUTION: Clamp your workpiece securely if possible before commencing your work.
NOTE: Ensure your blades are not blunt or damaged in any way before
commencing your application.
1. In sawing mode the Multi Function Tool can be used on wood, plastics and
sheet metal.
2. Slide the on/off switch (2) forward to the “on”
position. Ensure it is not placed on the workpiece.
3. Select the desired oscillating frequency speed on the
variable speed dial (1) and wait until the motor
reaches its maximum speed
4. If plunging use a slight pendulum motion, to allow
sufficient chip or debris removal (Fig. 8).
NOTE: If using the Multi Function Tool for plunge cuts. Only use this application
on soft materials such as wood, gypsum plaster boards. Also check if there are
no nails or screws in the workpiece before cutting.
Sawing – Square Blade
CAUTION: Clamp your workpiece securely if possible
before commencing your work.
NOTE: Ensure your blades are not blunt or damaged
in any way before commencing your application.
1. In sawing mode, the Multi Function Tool can be used
on wood, plastics and sheet metal.
2. Slide the on/off switch (2) forward to the “on”
position. Ensure it is not placed on the workpiece.
3. Select the desired oscillation frequency speed on the
variable speed dial (1) and wait until the motor
reaches its maximum speed
4. If plunging use a slight pendulum motion, to allow
sufficient chip or debris removal (Fig. 9).
NOTE: If using the Multi Function Tool for plunge cuts. Only use this application
on soft materials such as wood, gypsum plaster boards. Also check if there are
no nails or screws in the workpiece before cutting.
Fig. 8
Fig. 9
MFR-250 manual.qxd 1/12/11 11:24 AM Page 11

OPERATION (cont.)

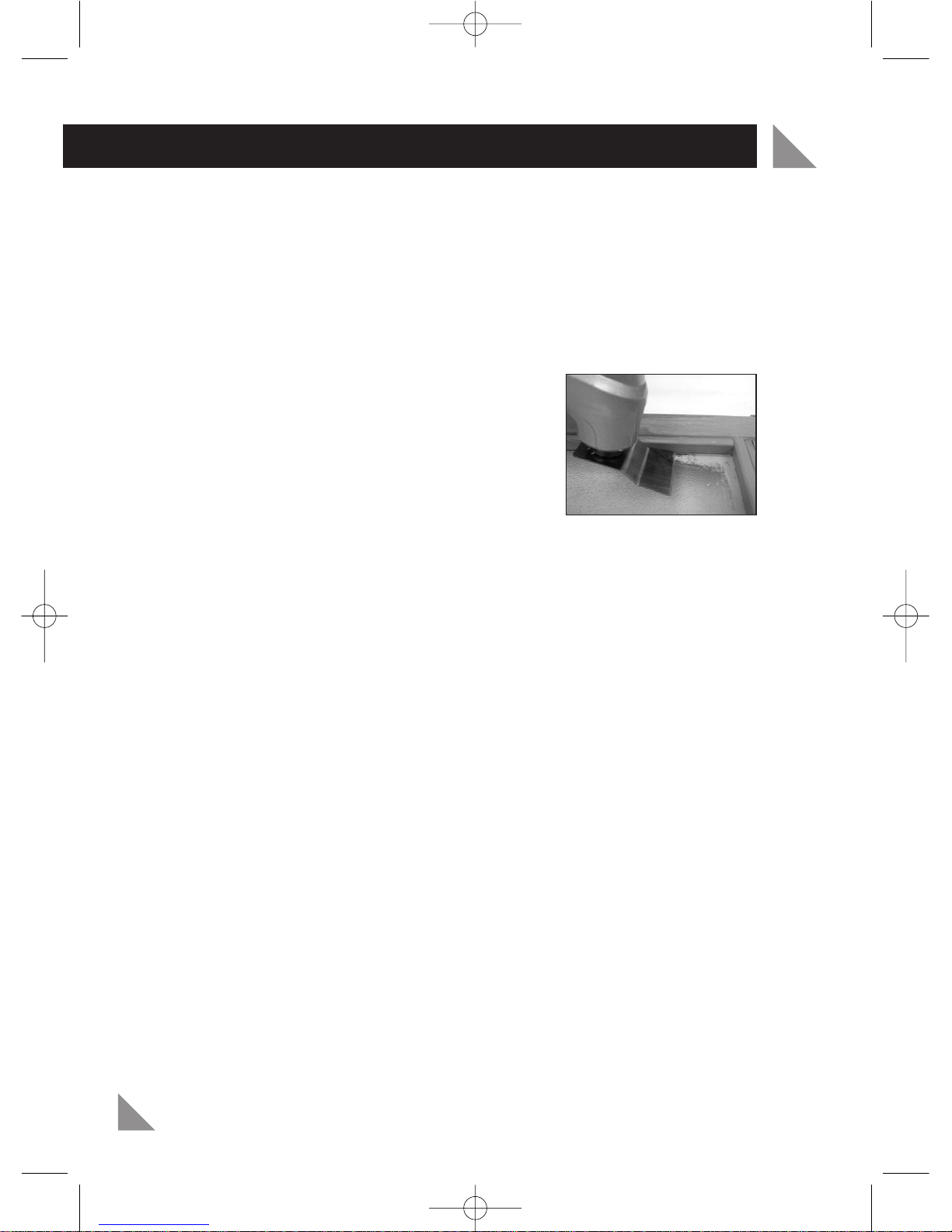

Scraping
NOTE: The scraping blade is designed for scraping surfaces and the removal
of soft materials. Ensure you have the correct angle and only apply light
pressure to avoid cutting the surface.
1. In scraping mode the Multi Function Tool can be used to remove materials
such as fabrics, adhesives and vinyls on materials such as wood, plastic,
metal and painted surfaces.
2. Slide the on/off switch (2) forward to the “on” position. Ensure it is not placed
on the workpiece.
3. Select the desired oscillation frequency speed on
the variable speed dial (1) and wait until the
motor reaches its maximum speed.
4. Place the Multi Function Tool on the workpiece.
Ensure you have angled the scraper blade
correctly (Fig. 10).
5. Allow the scraper to do the work and do not
apply heavy pressure on the Multi Function Tool. Heavy pressure can cut into
the surface or overload the Multi Function Tool.
11
Fig. 10
MFR-250 manual.qxd 1/12/11 11:24 AM Page 12

12
MAINTENANCE
•Keep the ventilation vents of the Multi Function Tool clean at all times, if possible,
prevent foreign matter from entering the vents.
• After each use, blow air through the Multi Function Tool housing to ensure it is
free from all dust particles which may build up. Build up of dust particles may
cause the Multi Function Tool to overheat and fail.
• If the enclosure of the Multi Function Tool requires cleaning do not use solvents
but a moist soft cloth only. Never let any liquid get inside the Tool; never immerse
any part of the Multi Function Tool into a liquid.
Carbon brushes
When the carbon brushes wear out the Multi Function Tool will
spark and/or stop. Discontinue use as soon as this happens.
They should be replaced prior to recommencing use of the
Multi Function Tool. Carbon brushes are a wearing component
of the tool therefore not covered under warranty. Continuing to
use the Multi Function Tool when carbon brushes need to be
replaced may cause permanent damage to the Multi Function
Tool. Carbon brushes will wear out after many uses but when
the carbon brushes need to be replaced take the tool to an electrician or a power tool
repairer for a quick and low cost replacement. Always replace both carbon brushes at
the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused by
the repair of the tool by an unauthorised person or by mishandling of the tool.
Limited spare parts are available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare parts.
Most common spare parts listed below
Spare Part Part No.
Locking bolt and accessory fixing washer SPMFR250-01
Sanding pad SPMFR250-03
Carbon brushes (pair) SPMFR250-25A
Scraper blade chisel SPMFR250-39
Cutting blade round SPMFR250-40
Cutting blade square SPMFR250-41
Side handle SPMFR250-43
Carbon brushes
SPARE PARTS
MFR-250 manual.qxd 1/12/11 11:24 AM Page 13

CARING FOR THE ENVIRONMENT
13
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
n o No load speed
Warning Read instruction manual
DESCRIPTION OF SYMBOLS
MFR-250 manual.qxd 1/12/11 11:24 AM Page 14

AUSTRALIA (Head Office)
1-23 Letcon Drive, Bangholme Victoria, Australia, 3175
Telephone: [phone]
Facsimile: [phone]
Website: www.ozito.com.au
Email: [email protected]
1 x Multi Function Tool MFR-250
1 x Side Handle
1 x Washer
1 x Scraper blade
1 x Locking bolt
1 x Cutting blade square
1 x Allen key
1 x Cutting blade round
1 x Kit box
1 x Sanding pad
3 x Sanding paper (60G/120G/240G)
1 x Instruction manual
OZITO INDUSTRIES PTY LTD
14
CONTENTS
MFR-250 manual.qxd 1/12/11 11:24 AM Page 15

WARRANTY
-THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD
BE RETAINED BY THE CUSTOMER AT ALL TIMES
The warranty is only made available by returning the product to your nearest
Bunnings Warehouse with a confirmed Bunnings register receipt.
PURCHASED FROM:________________________________________________
DATE PURCHASED: ________________________________________________
3 YEAR REPLACEMENT WARRANTY
Your Ozito tool is guaranteed for a period of 36 months from the original date of
purchase and is intended for DIY (Do it yourself) use only.
WARNING
The following actions will result in the warranty being void.
•Trade, professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specified on
the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse,
accidents or alterations.
• If the tool is disassembled or tampered with in any way.
Note: Warranty excludes consumable parts such as brushes, sanding paper, cutting
blades, scraping blades, allen keys and sanding pads.
YOUR WARRANTY FORM SHOULD BE RETAINED
BY YOU AT ALL TIMES.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY OR
REPAIR PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER
AND DATE OF PURCHASE AVAILABLE. AN OZITO CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
MFR-250 manual.qxd 1/12/11 11:24 AM Page 16
