Ozito HGN-2100 User manual

HEAT GUN
2000W
INSTRUCTION MANUAL
SPECIFICATIONS
Power: 2000W
Input: 230-240V~50Hz
Airflow: Fan Setting 1: 250 l/min
Fan Setting 2: 500 l/min
Temperature Control: Variable (50-450º/90-600º)
Weight: 0.81kg
HGN-2100
WHAT’S IN THE BOX
Heat Gun
Nozzles x 4
ozito.com.au
Scrapers x 2

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

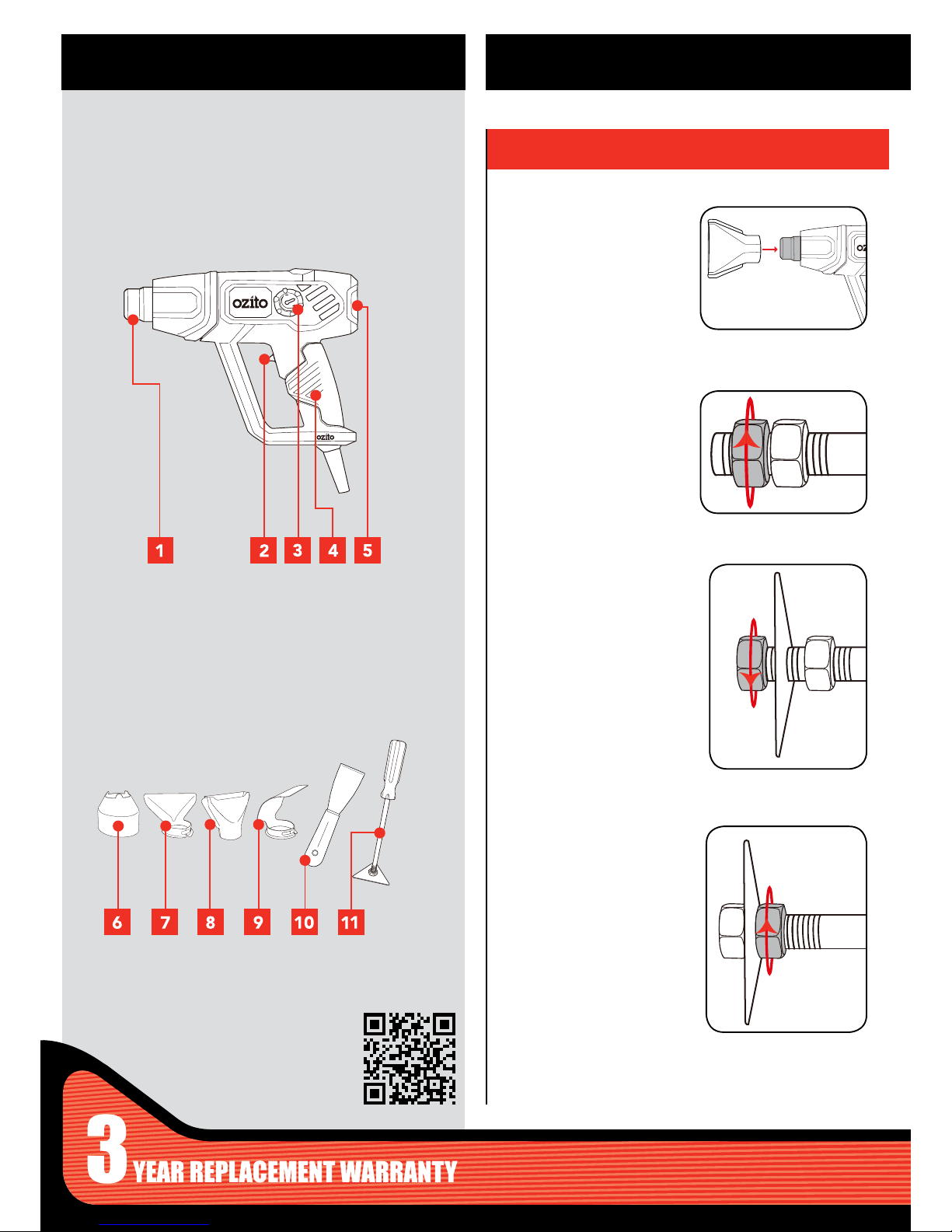

KNOW YOUR PRODUCT
1 Heating Element
2 2 Speed On/off Switch
3 Temperature Control Dial
4 Sure Grip Handle
5 Flat Base Stand
6 Cone Nozzle
7 Glass Protector Nozzle
8 Fish Tail Nozzle
9 ReectorNozzle
10 Scraper
11 Corner Scraper
1. ASSEMBLY
1. Push the open end of the
nozzle onto the heat gun.
1. Unscrew and remove the
rstnutonthescraper
handle.
ACCESSORIES
SETUP & PREPARATION
Nozzles
Scraper
2. Place the scraper blade
onto the handle and then
replaceandtightentherst
nut.
3. Tighten the second nut
until the scraper blade is
rmlysecuredbetweenthe
two nuts.
HEAT GUN

OPERATION
2. CONTROLS 3. OPERATING THE HEAT GUN
1. Slide the on/off switch up
one position for fan setting
1 or up two positions for
fan setting 2.
1. To increase the
temperature rotate the
temperature control dial
clockwise.
2. To lower the
temperature rotate the
temperature control dial
anti-clockwise.
2. Point the heat gun to the
work surface, then turn on
by selecting a fan setting.
1. Select the appropriate
heat setting.
WARNING: THIS TOOL IS DESIGNED FOR INDOOR
USE ONLY. USING THIS TOOL FOR PROLONGED
PERIODS MAY CAUSE IT TO OVERHEAT AND
MALFUNCTION. TO ENSURE THE TOOL DOES NOT
OVERHEAT, FREQUENT BREAKS ARE SUGGESTED
TO ALLOW THE TOLL TO COOL DOWN.
The tool is recommended for use with a residual current
device with a rated residual current of 30mA or less.
On/Off Switch
Temperature Control Dial
Caution: THE HEATGUN HAS A BUILT-IN THERMAL
PROTECTION OVERLOAD SWITCH. THE HEATGUN
STOPS IF AN OVERLOAD OCCURS. THE HEAT
GUN RESTARTS AUTOMATICALLY AFTER IT HAS
COOLED DOWN.
Note: Ensure the heat gun is in the off position ‘0’ before
conecting to a power supply.
2. Lower switch to “0” to
turn off.
3. Keep the heat gun
consistantly moving to
avoid having it pointed at
the one place for more
than 5 seconds.

HGN-2100

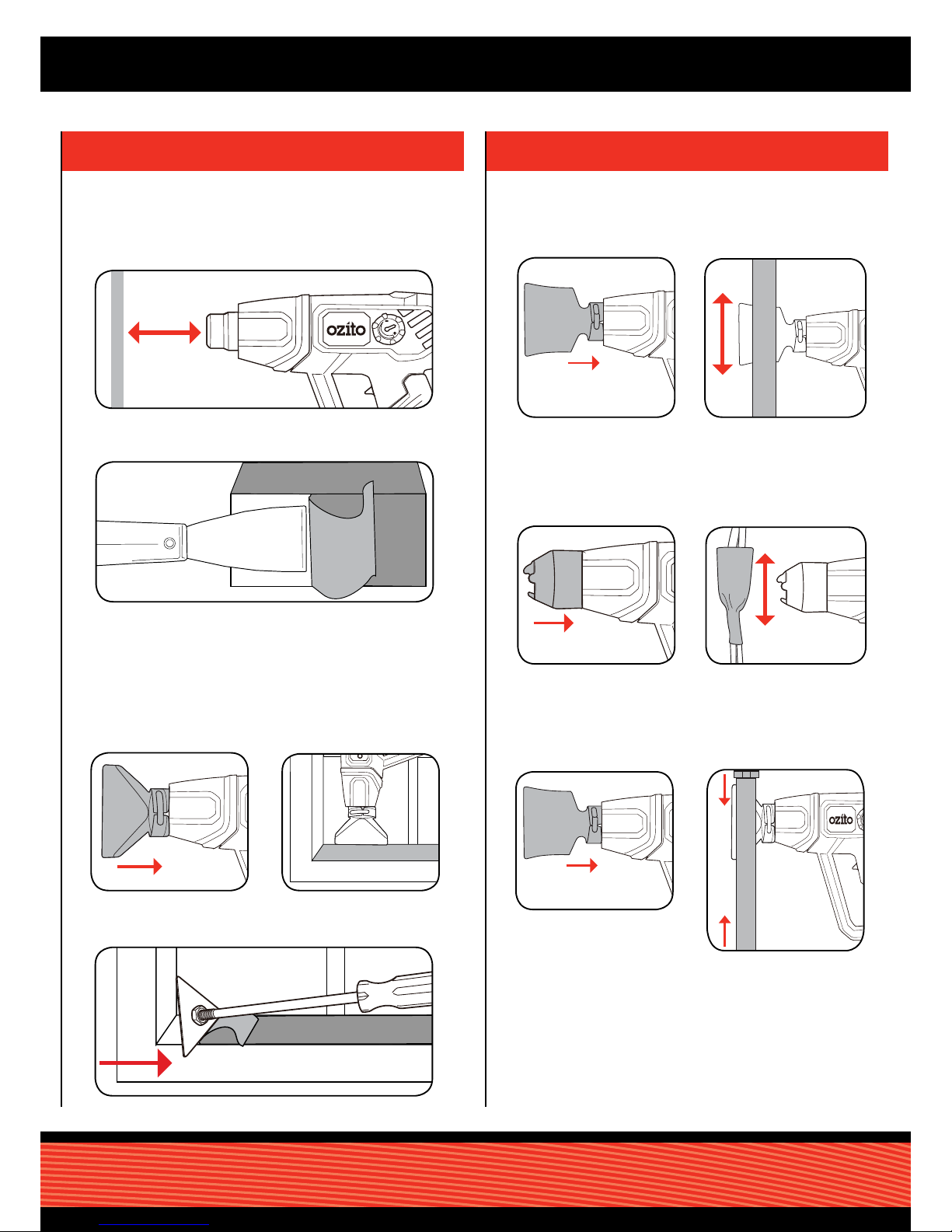

4. APPLICATIONS 5. APPLICATIONS CONT.
1. Position nozzle 10cm from surface. Work the heat gun from side
to side until the paint blisters.
2. Use the scraper to remove the softend paint.
1. Fitthereectornozzleand
rest the heat gun on its stand.
2. Heat the tubing evenly by
moving from side to side.
Paint Removal / Dissolving Adhesives
Note: Do not keep the heat gun pointed at one place or overheat
thepaintasthismayburnthepaint,makingitmoredifcultto
remove.
Paint Removal on Windows
1. Fit the glass protector
nozzle.
2. Heat the surface until the
paint blisters.
2. Remove paint with the corner scraper.
Shaping Plastic Tubing
Shrink Fitting
1. Fit the cone nozzle. 2. Cover the workpiece with a
heat-shrinkable sleeve and
heat evenly.
Defrosting Water Pipes
1. Fitthereectornozzle. 2. Heat frozen area inwards,
from the edge to the centre.
10cm

MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recyclingpackagingreducestheneedforlandllandrawmaterials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
•Keeptheventilationventsoftheheatguncleanatalltimes,ifpossible,prevent
foreign matter from entering the vents.
•Aftereachuse,blowairthroughtheheatgunhousingtoensureitisfreefromall
dust particles which may build up. Build up of dust particles may cause the heat
gun to overheat and fail.
•Iftheenclosureoftheheatgunrequirescleaning,donotusesolventsbuta
moistsoftclothonly.Neverletanyliquidgetinsidetheheatgun;neverimmerse
anypartoftheheatgunintoaliquid.
Switch SPHGN2100-18
For spare parts visit www.ozito.com.au
Or contact Ozito customer service
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
V Volts Hz Hertz
~Alternating current WWatts
°C Degrees Celsius Read instruction manual
Double insulated Regulator compliance mark

SPARE PARTS Tool: 2000W Heat Gun
Model No. HGN-2100
Item
No. Description Part No.
How To Order
18 Power Switch SPHGN2100-18
AvailablesparepartscanbeorderedthroughtheSpecialOrdersDeskatanyBunningsWarehouse.Ifyouhaveany
furtherquestions,pleasecontactOzitoCustomerServiceon:
Australia:1800069486
New Zealand: 0508 069 486
[email protected]
The following is a list of spare parts carried by Ozito.
Please contact Customer Service for any parts not
listed.
1
2
3
4
56
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22 23
24
25
26
27
28
Item
No. Description Part No.

WARNING! This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
WARNING!Aremayresultiftheapplianceisnotusedwithcare,therefore:
• be careful when using the appliance in places where there are combustible
materials
• do not apply to the same place for a long time
• do not use in the presence of an explosive atmosphere
• be aware that heat may be conducted to combustible materials that are out of
sight
• place the appliance on its stand after use and allow it to cool down before
storage
• do not leave the appliance unattended when it is switched on.
