Ozito OZMPS500A User manual

MULTI - PURPOSE SAW
500watt MODEL NO. OZMPS500A
OPERATING INSTRUCTIONS
www.ozito.com.au
To view our entire range visit

Motor: 500w
Input: 230V ~ 50Hz
No load speed: 500 - 3000 /min
Length of stroke: 12mm
Maximum cutting capacity: Timber 100mm
Aluminium 12mm
Non-alloyed steel 3mm
Blade fitment: Standard
Features: Ergonomically designed
Light weight
Safety switch lock button
2
SPECIFICATIONS - MODEL NO. OZMPS500A

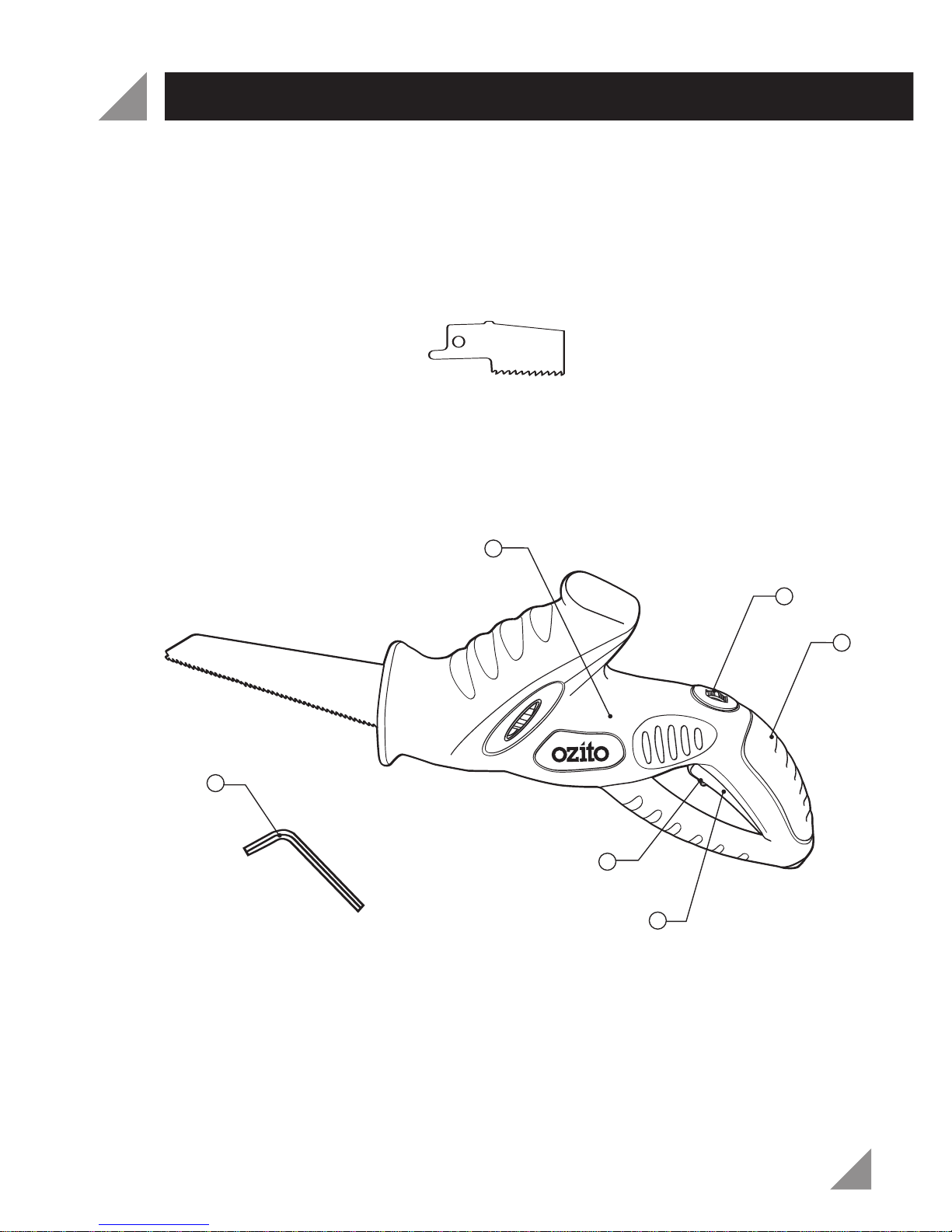

1. Motor housing 4. Rear handle
2. On/Off trigger 5. Variable speed control
3. On/Off trigger safety switch 6. Allen key
1
4
3
6
2
5

TABLE OF CONTENTS
3
SPECIFICATIONS - MODEL NO. OZMPS500A ………
TABLE OF CONTENTS…………………………………...
INTRODUCTION…………………………………………
SAFETY INSTRUCTIONS………………………………..
OPERATION ………………………………………………
MAINTENANCE …………….……………………………
CONTENTS ………………………………………………
WARRANTY……………………………………………….
Page 2
Page 3
Page 4
Page 6
Page 7
Page 9
Page 9
Page 10

4
INTRODUCTION
Congratulations on purchasing the Ozito Multi Purpose Saw.
We aim to provide quality tools at an affordable price. We hope
you will enjoy using this product for many years.
Your Ozito Multi Purpose Saw OZMPS500A has been designed
for cutting various materials such as timber, aluminium, steel
and plastics. It is intended for DIY use only.
Warning! When using mains-powered equipment, basic safety precautions,
including the following, should always be followed to reduce risk of fire, electric
shock, personal injury and material damage.
Read and understand the complete manual prior to operating this tool.
Save these instructions and other documents supplied with this machine for
future reference.
The electric motor has been designed for 230-240V only. Always check that the power
supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia
and New Zealand.
This tool is double insulated in accordance with AS/NZS 3160: 1996; therefore
no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool
repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when
operating this tool. The insulation system is for added protection against injury
resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before
use, inspect the extension lead for signs of damage, wear and ageing. Replace the
extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an
extension lead not suitable for the power input of the tool or which is damaged or
defective may result in a risk of fire and/or electric shock.
SAFETY INSTRUCTIONS
ELECTRICAL SAFETY

5
GENERAL
Warning! Read all instructions, Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury. The term “Power Tool” in
all of the warnings listed below refers to your mains operated (corded) power
tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e) Replacement of the supply cord. If the supply cord is damaged, it must be
replaced by an electrician or a power tool repairer.
f) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
g) Have your tool repaired by a an electrician or a power tool repairer. This
power tool complies with relevant safety requirements. To avoid danger,
electrical appliances must only be repaired by qualified personnel using original
spare parts; otherwise this may result in considerable danger to the user.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.

GENERAL (cont.)
6
c) Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balanceat all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these devices
can reduce dust related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it
was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power
tool that can not be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before making any adjustments,
changing accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools, unplugged & out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from intended could result in a
hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.

7
SAFETY INSTRUCTIONS FOR MULTI PURPOSE SAWS
OPERATION
Wear a hard hat (safety helmet), safety glasses and/or face shield. It is also
highly recommended that you wear a dust mask, ear protection and padded gloves.
Check the blade carefully for cracks or damage prior to operation. Replace
cracked or damaged blades immediately.
Hold the tool firmly during operation.
Ensure no one is below you when using the tool in elevated conditions.
Do not point the tool at anyone in the immediate vicinity.
Warning! When making a "blind" cut (you can't see behind what is being cut),
be sure that hidden electrical wiring or water pipes are not in the path of the
cut. If wires are present, they must be disconnected at their power source by a
qualified person or avoided to prevent the possibility of lethal shock or fire.
Only hold the tool by the insulated gripping surfaces to prevent electric shock
if you accidentally cut through a "live" wire. Water pipes in "blind" areas must be
drained and capped before cutting.
If the blade hits against objects during operation, damage to the tool or
dangerous blade breakage may occur
Watch out for cut-off portions of the work piece being cut. They may fall and
cause injury to you or someone near you.
When cutting metals, be cautious of hot, flying debris.
Do not touch the blade or the work piece immediately after operation; they may
be extremely hot and could potentially burn your skin.
Always switch off the tool and wait until the blade has come to a complete stop
before withdrawing the blade from the work piece. This will prevent the blade from
snapping which could cause you to lose your grip and/or control of the saw.
Warning! Always ensure that the Multi Purpose Saw is switched off and the
plug is disconnected from the power point prior to making any adjustments,
changing blades, cleaning or when the tool is not in use.
Fitting blades
The Multi Purpose Saw is
designed to accept different
blades which are suitable to cut
timber, metal or plastics.

8
OPERATION (cont.)
Locate the allen key that is attached to the cordset
protector near the rear handle. Find the blade
locking hex head screw in the slot on the side
housing as per diagram. Insert allen key and
loosen the blade locking screw but do not remove.
Position the hole in the blade over the retaining
pin between blade clamping plate and blade
holder shaft. Using the allen key, tighten the
blade clamp screw. Do not over tighten. Check
the blade clamping mechanism periodically to
ensure blade is secure.
Switch
The Multi Purpose Saw has a lock-off switch with a variable speed function. The on/off
switch is located on the underside of the rear handle. The variable speed control is
located on the top of the rear handle.
To turn the saw on, slide back the safety switch on the trigger and squeeze the on/off
trigger. To turn the saw off, release the on/off trigger.
The variable speed control fitted to the saw enables the operator to better control the
start of a cut. The operator can also choose the appropriate speed depending on the
circumstances. The dial is rotated to achieve the desired speed.
Making a cut
Warning! Ensure that work pieces being cut are securely clamped.
Hold the saw firmly with the blade facing away from you. Turn the saw on. Wait till the
motor has reached maximum speed before starting a cut.
Note: Only supply sufficient pressure to allow the blade to do the cutting. Do not
force the operation. Blades could be damaged if excessive pressure is applied.

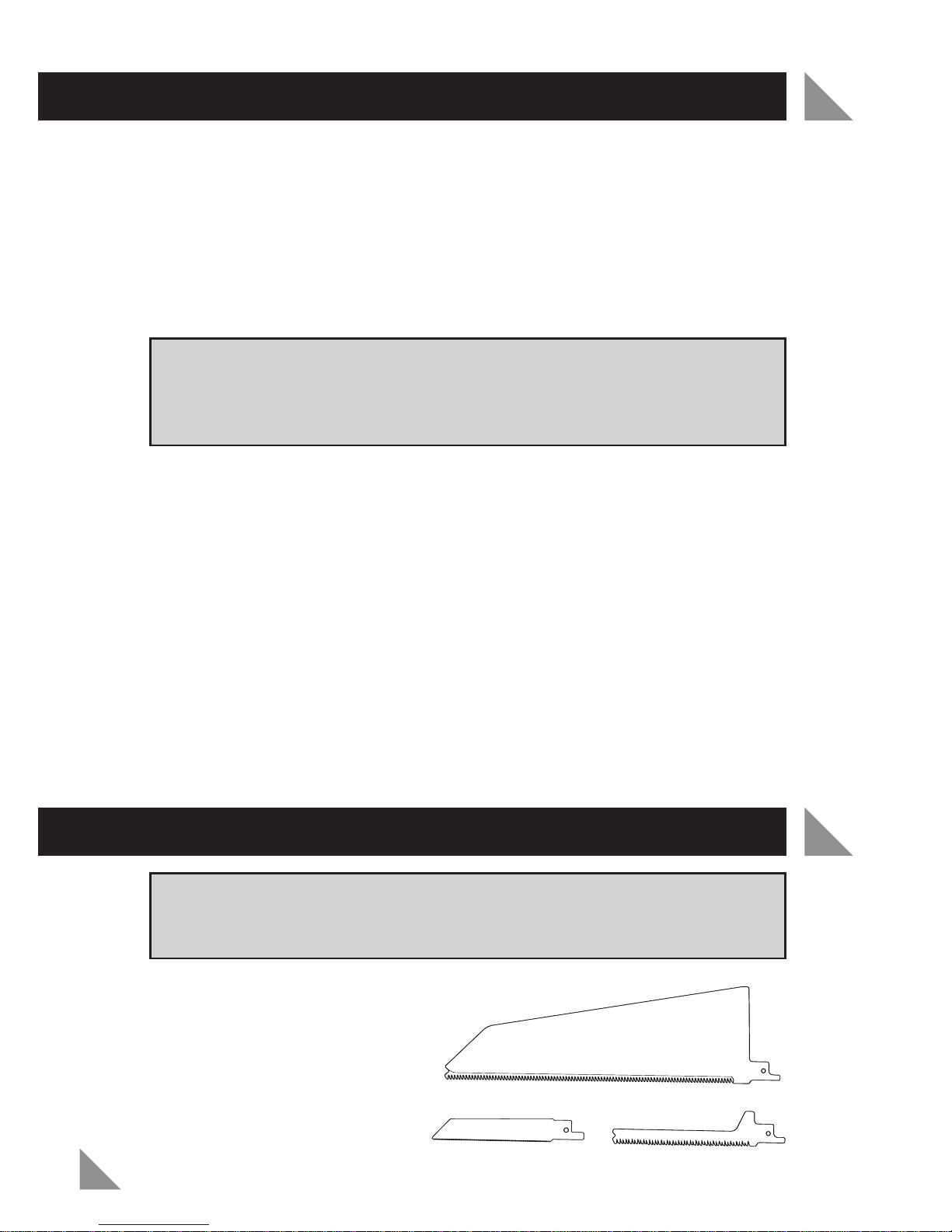

1 x Multi Purpose Saw OZMPS500A
1 x 230mm Wood Cutting Blade
1 x 118mm Jigsaw Blade
1 x Metal Cutting Blade
1 x Spare Set Carbon Brushes
1 x Operation manual
9
AUSTRALIA (Head Office)
5 Chestnut Crt, Dingley, Victoria, Australia, 3172
Telephone: [phone]
Facsimile:03 9558 0583
www.ozito.com.au
CONTENTS
OZITO INDUSTRIES PTY LTD
MAINTENANCE
• When not in use the sander should be stored in a dry, frost free location not
within the reach of children.
• Keep ventilation slots of the sander clean at all times and prevent any foreign
matter from entering.
• If the housing of the sander requires cleaning do not use solvents but a moist
soft cloth only.
• Blow out the unit through the rear ventilation slots with compressed air
periodically to ensure a dust free area around the switch.
Note: Ozito Industries will not be responsible for any damage or injuries caused by
repair of the sander by an unauthorised person or by mishandling of the tool.

WARRANTY
THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD
BE RETAINED BY THE CUSTOMER AT ALL TIMES
The warranty is only made available by returning the product to your nearest
Bunnings Building Supplies with a confirmed Bunnings register receipt.
PURCHASED FROM:________________________________________________
DATE PURCHASED: ________________________________________________
3 YEAR REPLACEMENT WARRANTY
Your Ozito tool is guaranteed for a period of 36 months from the original date of
purchase and is intended for DIY (Do it yourself) use only.
WARNING
The following actions will result in the warranty being void.
•Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specified on
the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse,
accidents or alterations.
• If the tool is disassembled or tampered with in any way.
Note: Warranty excludes consumable parts such as brushes, batteries, sanding
pads, blades, discs, drill bits, collects and router bits.
YOUR WARRANTY FORM SHOULD BE RETAINED
BY YOU AT ALL TIMES.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY OR
REPAIR PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER
AND DATE OF PURCHASE AVAILABLE. AN OZITO CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
