Ozito PXC PXHPCS-018 User manual

STANDARD EQUIPMENT
MANUAL
AUTO
MANUAL
AUTO
PXHPCS-018
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 18V
No Load Speed: 16,500/min
Max. Pressure: 160psi (11bar)
Max. Flow Rate: 12L/min
Hose Length: 0.6m
Weight: 0.8kg
ozito.com.au
1021
Cordless High Pressure Air
Inator
3 x Ination Adaptors
HIGH PRESSURE
AIR INFLATOR
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty and are excluded from the warranty extension. Warranty excludes
consumable parts.

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
MANUAL
AUTO
PSI KPA
BAR
-
+
BAR
Attaching Inflation Adaptors
The inator unit has 3 adaptors to allow a range of functions.
1. Unlock the nozzle by lifting the locking
lever.
3. Insert the adaptor into the hose
nozzle and lock by pushing down
the locking lever.
Note: When not in use, the
ination adaptors can be stored in
the slots on the tool.

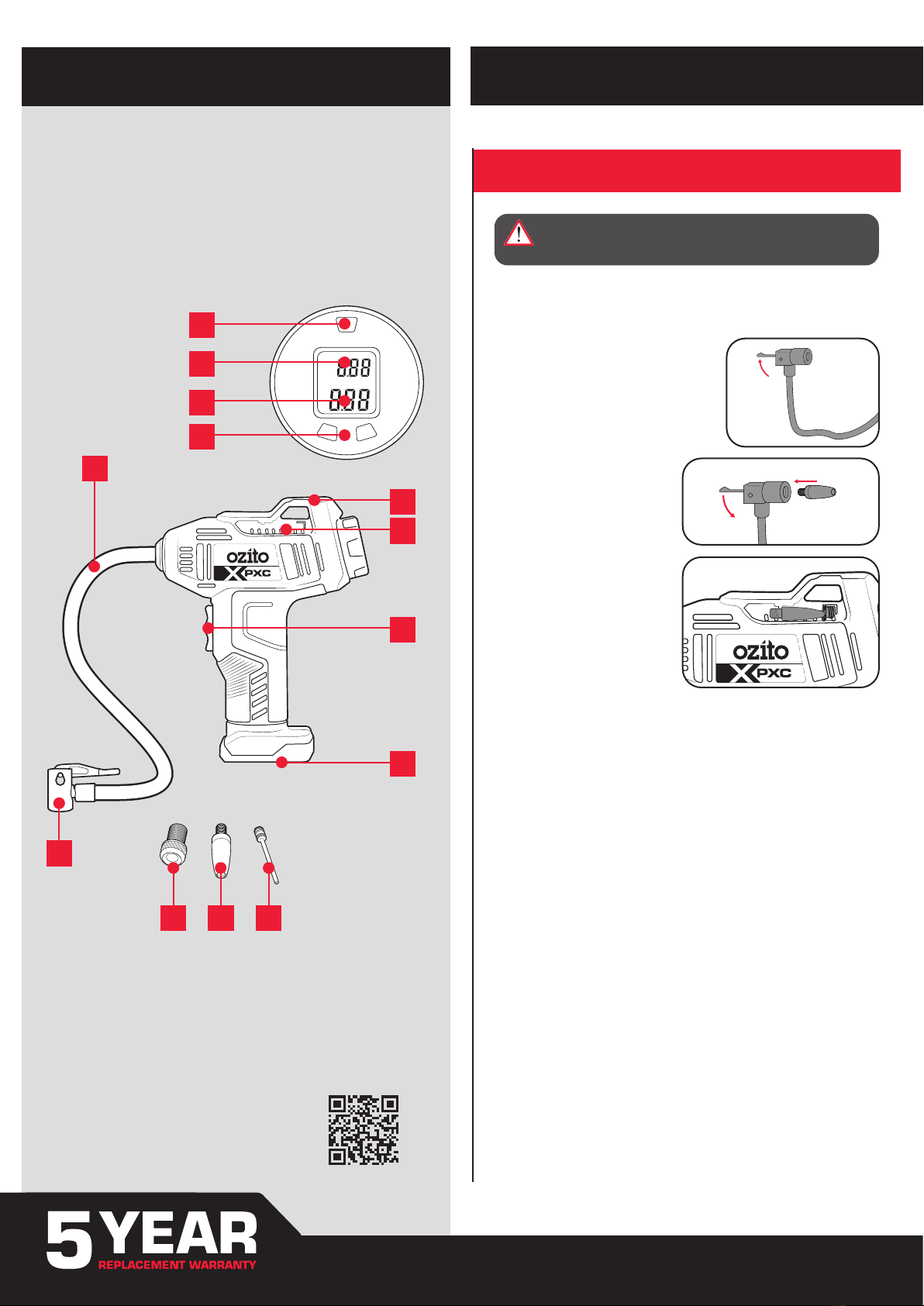

1. Pressure Mode Button
2. Preset Pressure
3. Current Pressure
4. Pressure Selection Buttons
5. Pressure Hose Storage Slot
6. Adaptor Storage
7. Manual / Auto Switch
8. Battery Seating
9. Hose Nozzle
10. High Pressure Hose
11. Presta Adaptor
12. General Purpose Adaptor
13. Ball Adaptor
This tool is compatible with all batteries & chargers from the Ozito Power X Change
range.
HIGH PRESSURE AIR INFLATOR
BATTERY & CHARGER
KNOW YOUR PRODUCT
1. CONNECTING ACCESSORIES
SETUP & PREPARATION
10
1
2
3
4
7
8
5
6
11
9
12 13
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
AC
DC
I
0
I
+
MODE
I
a
b
AC
DC
I
0
I
+
MODE
I
MANUAL
AUTO

Switching The Unit On/Off
1. Press the manual/auto trigger to
start the inator; the display will
light up.
2. Press and hold the pressure mode button for 2
seconds. The tool and display will shut off.
Note: The inator will switch off automatically
after approximately 5 minutes of inactivity; the
display will also power down.
Presetting The Pressure
1. Press the pressure mode button
to toggle between the 3 pressure
units (bar, psi or kPa).
2. Increase the preset pressure using the “+”
button or decrease the pressure using the
“-” button.
The preset pressure will be displayed on
the digital display as it is adjusted.
Digital Display
The upper value on the screen shows
the preset pressure.
The lower value on the screen
displays the pressure of the
connected item as it is being
inated.
Note: If the connected item is already partially inated, the existing
pressure will be registered on the display when connected.
WARNING! DO NOT LEAVE UNATTENDED WHILST
THE TOOL IS IN OPERATION.
Installing The Battery Pack
1. Slide the battery into the tool
base until it clicks into place.
Removing The Battery Pack
1. Hold down the battery release
button and then slide the battery
out.
2. FITTING THE BATTERY 3. CONTROLS
OPERATION
MANUAL
AUTO
MANUAL
AUTO
PSI KPA
BAR
-
+
BAR
PRESET
PRESSURE
CURRENT
PRESSURE
PSI KPA
BAR
-
+
BAR
PSI KPA
BAR
-
+
BAR
HOLD
PSI KPA
BAR
-
+
BAR
MANUAL
AUTO

4. INFLATING OBJECTS 5. TROUBLESHOOTING
PXHPCS-018
WARNING! DO NOT INFLATE THE OBJECT ABOVE
THE RECOMMENDED INFLATION PRESSURE. THIS
MAY LEAD TO DAMAGE AND/OR INJURIES.
WARNING! MAINTAIN A FIRM HOLD ON THE AIR
HOSE VALVE OR ENSURE THAT THE NOZZLE/VALVE
IS SECURELY ATTACHED, OTHERWISE THE HOSE
MAY BLOW OUT AND WHIP ABOUT.
Preset Inflation
The inator can be used to inate high pressure items such as car and bike
tyres or sporting equipment.
1. Attach the required ination adaptor to the
high pressure hose and secure using the
locking lever.
2. Insert / attach the hose adaptor to the item
to be inated.
3. Adjust the target pressure using the “+”
and “-” pressure adjustment buttons.
Note: The required pressure should be
written on the item.
4. Press the manual/auto trigger to the
‘AUTO’ position to start inating.
5. Once the preset pressure is reached, the
tool will automatically shut-off.
Note: For sporting equipment due to the small size and low pressure, the
inator may automatically cut-off prior to reaching the desired pressure. In
this case, cycle the unit on and off until the required pressure is reached or
top it off with the manual mode.
Manual Mode
Manual mode is handy for short burst of ination pressure and can be used
for topping up or making slight adjustments to the inated pressure.
1. Attach the required ination adaptor to the
high pressure hose and secure using the
locking lever.
2. Insert / attach the hose adaptor to the item
to be inated.
3. Press and hold the manual/auto trigger to
the ‘MANUAL’ position to start inating.
Release the trigger to stop inating.
PSI KPA
BAR
-
+
BAR
MANUAL
AUTO
MANUAL
AUTO
HOLD
Problem Cause Remedy
Inator is
not starting
Battery is low on
charge
Charge battery
Battery not connected
properly
Ensure battery is inserted correctly
Preset pressure is too
low
Set a higher pressure
Motor
stops while
inating
Battery has no power Charge battery
High pressure item
has reached preset
pressure.
The inator will automatically
shut-off when the high pressure
item reaches the preset pressure.
The digital
display is
not working
Power not connected
properly
Ensure the power supply is
connected and the operating mode
switch is in the correct position

DESCRIPTION OF SYMBOLS
Litres per minute Kilopascal
Wear hearing & eye protection
Warning
Regulatory Compliance Mark
(RCM)
Double insulated
Do not expose to rain
VVolts
bar
kPa
Direct current
psi
n0
/min
L/min
Pounds per square inch Unit of pressure
No load speedRevolutions per minute
Read Instruction Manual
Power tools that are no longer usable should not be disposed
of with household waste but in an environmentally friendly
way. Please recycle where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders
Desk at your local Bunnings Warehouse.
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer
Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
MAINTENANCE
WARNING! BEFORE CLEANING OR CARRYING OUT
ANY MAINTENANCE PROCEDURE, ENSURE THAT
THE BATTERIES HAVE BEEN REMOVED.
Cleaning
• Keep the ventilation slots of the tool clean at all times to ensure efcient
operation.
• After each use, blow air through the tool housing to ensure it is free from
all dust, dirt, etc. Build up of dust or dirt particles may cause the tool to
overheat and shorten the life of the tool.
• If the housing of the tool requires cleaning, do not use solvents. Use of a
cloth only is recommended.
• Never allow any liquid to get inside the tool, never immerse any part of
the tool into liquid.
Storage
When not in use, the tool should be stored in a dry, frost free location, keep
out of children’s reach.
Always disconnect the battery from the tool before storing.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the tool by an unauthorised person or by
mishandling.

ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of fire, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an
emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New
Zealand.
This tools charger is double insulated; therefore no earth wire is required.
Note: Double insulation does not take the place of normal safety precautions when
operating this tool. The insulation system is for added protection against injury resulting
from a possible electrical insulation failure within the tool.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in
order to avoid a hazard.
The power supply for this products charger should be protected by a residual current device (rated
at 30mA or less). A residual current device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal
injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related
hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a
second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling and control of the tool in unexpected
situations.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery
packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
e. Do not use a battery pack or tool that is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or
temperature above 130°C may cause explosion.
g. Follow all charging instructions and do not charge the battery pack or tool outside the
temperature range specified in the instructions. Charging improperly or at temperatures
outside the specified range may damage the battery and increase the risk of fire.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
b. Never service damaged battery packs. Service of battery packs should only be performed by
the manufacturer or authorized service provider.
INFLATOR SAFETY WARNINGS
The appliance is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction.
Young children should be supervised to ensure that they do not play with the appliance.
WARNING! Before connecting a tool to a power source (mains switch power point receptacle,
outlet, etc.) be sure that the voltage supply is the same as that specified on the nameplate of the
tool. A power source with a voltage greater than that specified for the tool can result in serious
injury to the user, as well as damage to the tool. If in doubt, do not plug in the tool. Using a power
source with a voltage less than the nameplate rating is harmful to the motor.
• Always remove the plug from the mains socket before making any adjustments or performing
maintenance.
• When using the compressor, ensure you are parked in a safe, well lit location, off the road and
with the hand brake engaged.
• Ensure your personal safety is not at risk and never use the air inflator while the car is in
motion.
• Do not place the hose end against any part of your body when turned on, as this may infuse air
into your blood stream putting your health at serious risk.
• Do not make any alterations to this Compressor. Only use the adaptors supplied with this
product.
• Use this product only in accordance with operation instructions included in this manual.
• If the vehicle fuse if blown, only replace with identical rated fuse.
• Inspect each part before use. Do not use if bent, broken, melted, burnt or if the unit appears
to be damaged.
• Check the tyre pressure before inflating. Never exceed the suggested pressure of the item
being inflated. If suggested pressure is exceeded, the item being inflated may burst.
• Do not bend or pinch the air hose while the Compressor is in use.
• It is not suggested that the Compressor work continuously for more than 10 minutes. If 10
minutes of use has been reached, turn it off and let it cool for 8 minutes before using again.
• If the Compressor is making abnormal sounds or its temperature if quite high, turn off the
power straight away and let it cool for at least 10 minutes before trying again. Improper use
may result in damage of the Compressor.
• Do not leave unattended and operating. Keep out of reach of children.
• Put the Compressor in a dry place if it is not in use for an extended period of time.
• Keep the Compressor away from flammable liquid or gas. Do not allow the Compressor to
become wet.
• Never put the connector and adaptors into your mouth, ear or eye. They are not toys.
• Do not use the inflator outdoors when it is raining or on a wet surface.
• Never point the outlet nozzle towards any part of your body or another person.
