Ozito XPXC PXMFTS-018 User manual

STANDARD EQUIPMENT
WOOD METAL
WOOD METAL
PXMFTS-018
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 18V DC
No Load Speed: 11,000 - 20,000/min
Orbit Angle: 3.2°
Sanding Pad Size: 90 x 90 x 90mm
Sandpaper Size: 93 x 93 x 93mm
Fitment Type: Starlock Style
Weight: 1.18kg
ozito.com.au
0921
Cordless Multi Function Tool
Wood Plunge Blade, Metal
Plunge Blade, Scraper &
Accessory Adaptor
Sanding Pad, 3 x 60grit, 3 x
80grit & 3 x 120grit Sandpaper
MULTI
FUNCTION TOOL
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty and are excluded from the warranty extension. Warranty excludes
consumable parts.

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
WOOD METAL
Installing The Battery Pack
1. Slide the battery into the tool
base until it clicks into place.
Removing The Battery Pack
1. Hold down the battery release
button and then slide the battery
out.
Vibration Absorption
To absorb the vibrations which arise
on the rechargeable battery, there
is some play between the battery
and the tool’s battery seating. This
is normal and has no effect on the
performance of the equipment or
the rechargeable battery.
Note: Wear protective gloves to
keep the vibrations to a minimum.
1. Accessory Locking Lever
2. On/Off Switch
3. Variable Speed Dial
4. Battery Seating
5. Accessory Drive Spindle
6. Sure Grip Handle
7. Sanding Pad
8. Sanding Paper
(3 x 60grit, 3 x 80grit, 3 x 120grit)
9. Wood Plunge Blade
10. Metal Plunge Blade
11. Scraper
12. Accessory Adaptor
This tool is compatible with all batteries & chargers from the Ozito Power X Change
range.
CORDLESS MULTI FUNCTION TOOL
ACCESSORIES
BATTERY & CHARGER
KNOW YOUR PRODUCT
1. FITTING THE BATTERY
SETUP & PREPARATION
ab
1 2 3 4
65
7 9 10 11 128

Turning On & Off
1. To start the tool press the on/
off switch forward into the on
position.
2. To stop the tool press the on/
off switch backward into the off
position.
WARNING! AFTER USE, HOLD THE TOOL AWAY
FROM YOUR BODY UNTIL THE SPINDLE STOPS
COMPLETELY.
Note: Hold the tool by the sure
grip handle. Your non-dominant
hand can also be used to steady
the tool on the by holding over the
accessory locking handle.
Variable Speed Control
1. To increase the speed of the tool, rotate
the variable speed dial to a higher
number.
2. To decrease the speed of the tool, rotate
the variable speed dial to a lower number.
2. ATTACHING ACCESSORIES 3. CONTROLS
OPERATION
Attaching Accessories
1. Rotate the accessory locking lever anti-
clockwise to open spindle tment.
2. Place the desired accessory
onto the accessory drive spindle
ensuring the holes in the
accessory align with the notches
on the tool.
3. When using other non-Ozito multi function tool
compatible accessories, the accessory adapter
may need to be tted to secure correctly.
4. Rotate the accessory locking
lever clockwise to secure the
accessory.
Note: Pull on the accessory to
check if it is secured correctly.
WARNING! KEEP FINGERS CLEAR OF SPINDLE
WHEN SECURING THE ACCESSORY TO AVOID
PINCHING.
Removing Accessories
1. To remove the accessory rotate
the locking lever anti-clockwise
and then remove from the
spindle.
10° - 15°
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
WARNING! THIS PRODUCT IS NOT RECOMMENDED
FOR SANDING DRYWALL OR PLASTER DUE TO
THE ULTRA-FINE SANDING PARTICLES PRODUCED.
DRYWALL SANDERS IN CONJUNCTION WITH DUST
EXTRACTION ARE RECOMMENDED FOR DRYWALL
AND PLASTER SANDING APPLICATIONS.
WARNING! ALWAYS WEAR GLOVES WHEN
HANDLING THE CUTTING ACCESSORY AS IT IS VERY
SHARP.

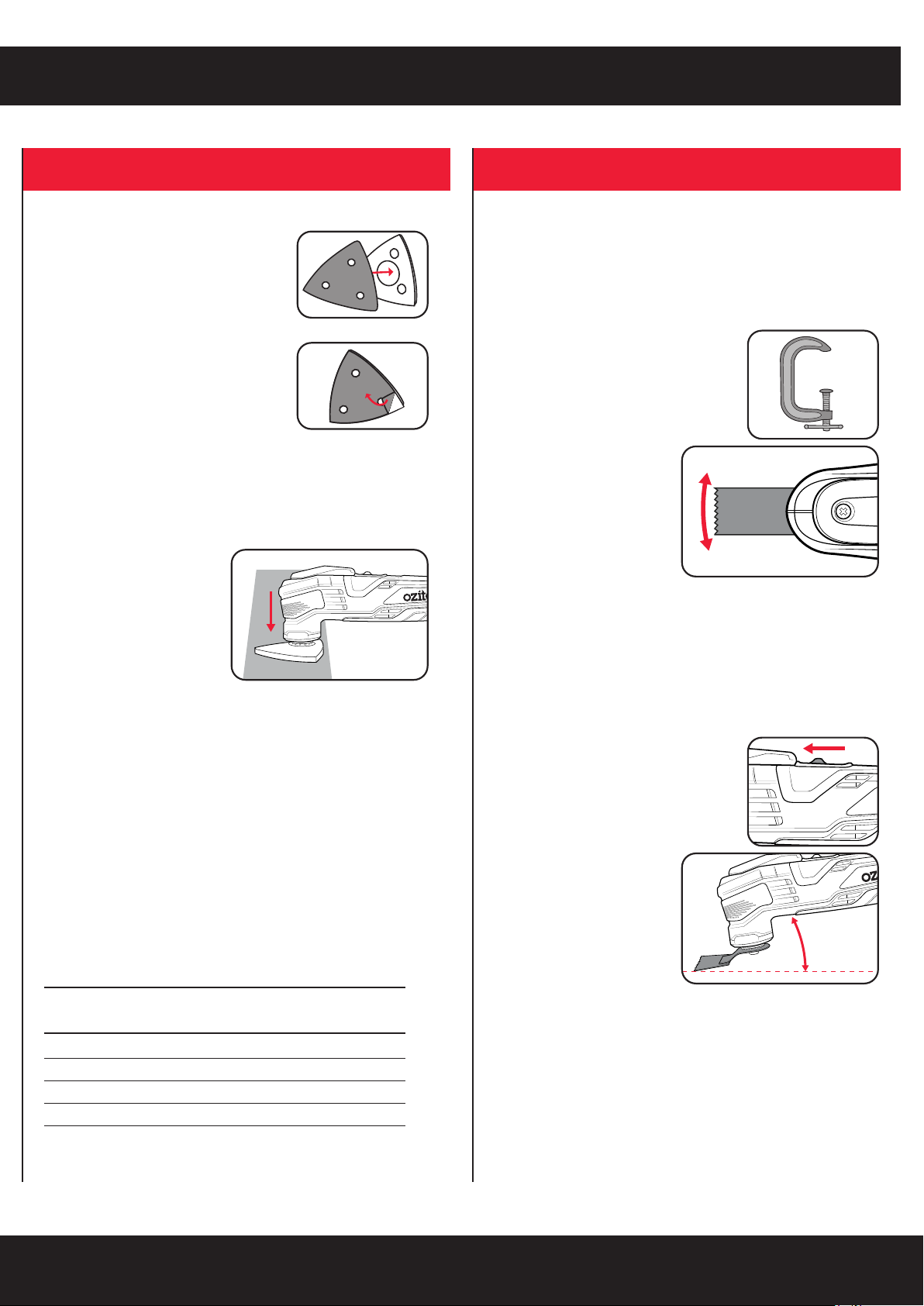

Fitting Sanding Paper
1. The sanding pad must rst be tted to the
spindle following the instructions in the
previous section.
2. Press the sanding paper onto the sanding pad
by aligning the edges and holes.
3. To remove, peel away from the sanding pad
starting from an edge.
Sanding
With the sanding pad and sand paper tted, the multi function tool can be
used on materials such as wood, plastic and painted surfaces.
1. Ensure the accessory is secure,
and then start the tool.
2. Place the multi function tool
at on the workpiece and
make smooth back and forth
movements.
Note: Do not apply heavy pressure to the tool or tilt the sanding base as
this will wear out the sanding paper and may damage the sanding pad.
Sandpaper Selection
Selecting the correct grit of sandpaper is an important step in achieving
optimum results. Coarse grit will remove the most material. Finer grit will
produce a smoother nish. The condition of the workpiece will determine
the grit of the sandpaper to be used. The higher the grit number, the ner
the grade of sandpaper.
If the surface is rough, start with a coarse grit and sand until the surface
is uniform. Medium grit may then be used to remove scratches left by the
coarser grit. Finer grit is then used to nish the surface. Always continue
sanding with each grade of sandpaper until the surface is uniform.
MATERIAL APPROPRIATE GRIT
Coarse
Sanding
Fine
Sanding
Paintwork 180 400
Wood: Softwood 60 240
Hardwood 60 180
Veneer 240 320
Note: If intermediate sanding is required, choose a grit rating between
coarse and ne. The above table is intended as a guide only. To ensure a
satisfactory result, a small, inconspicuous area should rst be tested to
ensure the grit of sandpaper chosen is suitable for the desired nish.
Sawing Or Cutting
When sawing, the multi function tool can be used on wood, plastic and
sheet metal using the correct accessory.
Note: Ensure blades are not blunt or damaged in any way before
commencing.
1. Ensure the work piece is securely held down
and the accessory is secure.
2. Switch the tool on use a slight
pendulum motion while cutting.
Scraping
When being used as a scraper, the tool can remove materials such as fabric,
adhesives, vinyl or paint from wood, plastic and metal.
1. Ensure the accessory is secure, and then start
the tool.
2. Hold the tool at an angle of 10°-
15° to the workpiece.
Note: Allow the scraper to do the work; do not apply heavy pressure to
the tool. This may cause the multi function tool to overload or cut into the
surface of the material.
4. SANDING 5. SAWING & SCRAPING
10° - 15°
PXMFTS-018

MAINTENANCE
TROUBLESHOOTING DESCRIPTION OF SYMBOLS
Millimetre Warning
Regulatory Compliance Mark
(RCM)
Wear eye, ear & breathing
protection
VVolts Hertz
n0
mm
/min No load speed
Revolutions or reciprocations
per minute
Read Instruction Manual
Power tools that are no longer usable should not be disposed
of with household waste but in an environmentally friendly
way. Please recycle where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders
Desk at your local Bunnings Warehouse.
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer
Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
WARNING! BEFORE CLEANING OR CARRYING OUT
ANY MAINTENANCE PROCEDURE, ENSURE THAT
THE BATTERIES HAVE BEEN REMOVED.
Cleaning
• Keep the ventilation slots of the tool clean at all times to ensure efcient
operation.
• After each use, blow air through the tool housing to ensure it is free from
all dust, dirt, etc. Build up of dust or dirt particles may cause the tool to
overheat and shorten the life of the tool.
• If the housing of the tool requires cleaning, do not use solvents. Use of a
cloth only is recommended.
• Never allow any liquid to get inside the tool, never immerse any part of
the tool into liquid.
Storage
When not in use, the tool should be stored in a dry, frost free location, keep
out of children’s reach.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the tool by an unauthorised person or by
mishandling.
LED lights do not illuminate on charger
Check the charging adaptor is securely plugged into the wall out let.
Check the battery is rmly connected to the charging cradle.
Check that the charging jack is securely connected to the charging cradle.
The battery has a short run time
Ensure the battery is properly charged. It will take 4-5 charging cycles before
the battery reaches optimum charge and run time. On the initial charge, the
battery requires 5 hours of charging. Subsequent charging only requires 3-5
hours.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents. This is
normal and does not indicate a problem.

ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of fire, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an
emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New
Zealand.
This tools charger is double insulated; therefore no earth wire is required.
Note: Double insulation does not take the place of normal safety precautions when
operating this tool. The insulation system is for added protection against injury resulting
from a possible electrical insulation failure within the tool.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in
order to avoid a hazard.
The power supply for this products charger should be protected by a residual current device (rated
at 30mA or less). A residual current device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal
injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related
hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a
second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling and control of the tool in unexpected
situations.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery
packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
e. Do not use a battery pack or tool that is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or
temperature above 130°C may cause explosion.
g. Follow all charging instructions and do not charge the battery pack or tool outside the
temperature range specified in the instructions. Charging improperly or at temperatures
outside the specified range may damage the battery and increase the risk of fire.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
b. Never service damaged battery packs. Service of battery packs should only be performed by
the manufacturer or authorized service provider.
MULTI FUNCTION TOOL SAFETY WARNINGS
WARNING! This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Caution! Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks
cannot be rules out. The following hazards may arise in connection with the equipment’s
construction and layout:
• Lung damage if no suitable protective dust mask is used.
• Damage to hearing if no suitable ear protection is used.
• Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period
or is not properly guided and maintained.
• Hold power tool by insulated gripping surfaces only, when performing an operation where
the cutting accessory or the sanding surface may contact hidden wiring or its own cord.
Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool
“live” and shock the operator.
• The tool is recommended for use with a residual current device with a rated residual current
of 30mA or less.
• Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contain chemicals known to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated timber.
Your risk from exposure to these chemicals varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated area and work
with approved safety equipment, such as dust masks that are specially designed to filter out
microscopic particles.
