Ozito PXJSS-600U User manual

PENDULUM
JIGSAW
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Voltage: 18V
No Load Speed: 0 - 2,400spm
Stroke Depth: 25.4mm
Bevel: +/- 47°
Blade Fitment: T-Shank
Cutting Capacities: Timber 80mm
Mild Steel 10mm
Plastic 12mm
Weight: 1.6kg
PXJSS-600U
WHAT’S IN THE BOX
Jigsaw
ozito-diy.co.uk Battery & Charger
sold separately
Dust Extraction Adaptor
Parallel Guide
Line Guide
Splinter Guard
Blade
WARRANTY
OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG 0416
All of our products undergo strict quality checks to ensure that they reach you in perfect
condition. In the unlikely event that your device develops a fault, please contact our service
department at the address shown on this guarantee card. You can also contact us by
telephone using the customer service number shown. Please note the following terms under
which guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the manufacturer
mentioned below promises to buyers of its new products in addition to their statutory
guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or manufacturing faults on
a product which you have bought from the manufacturer mentioned below are limited to
either the rectication of said defects on the product or the replacement of the product,
whichever we prefer.
Please note that our devices are not designed for use in commercial, trade or professional
applications. A guarantee contract will not be created if the device has been used by
commercial, trade or industrial business or has been exposed to similar stresses during the
guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to
incorrect installation, a failure to follow the operating instructions (for example connecting
it to an incorrect mains voltage or current type) or a failure to follow the maintenance and
safety instructions or by exposing the device to abnormal environmental conditions or by
lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the
device or the use or unapproved tools or accessories), ingress of foreign bodies into the
device (such as sand, stones or dust, transport damage), the use of force or damage caused
by external forces (for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by
normal use of the device.
4. Your Product is guaranteed for a period of 60 months from the original date of purchase
and is intended for DIY (Do It Yourself) use only. Lithium Ion batteries and chargers are
covered by a 12 month warranty. Warranty excludes consumable parts, for example: cutting
blades. Guarantee claims should be submitted before the end of the guarantee period within
two weeks of the defect being noticed. No guarantee claims will be accepted after the end
of the guarantee period. The original guarantee period remains applicable to the device
even if repairs are carried out or parts are replaced. In such cases, the work performed or
parts tted will not result in an extension of the guarantee period, and no new guarantee
will become active for the work performed or parts tted. This also applies if an on-site
service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO
THE PLACE OF PURCHASE WITH YOUR REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts, consumables and
missing parts as set out in the service information in these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to the
online manual.
BATTERY & CHARGER (sold separately)
This tool is compatible with all battery and chargers from the Ozito
Power X Change Range.
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
THE BATTERY IS REMOVED BEFORE PERFORMING ANY
OF THE FOLLOWING TASKS.
CORDLESS PENDULUM JIGSAW
1 2 3 4 5 6 7
8 9 10 11
1 Guide Locking Screw
2 LED Light
3 Blade Lock
4 Lock Off Switch
5 On/Off Trigger
6 Sure Grip Handle
7 Battery Seating
8 Guide Roller
9 Adjustable Shoe
10 Pendulum Action Selector
11 Shoe Locking Lever
ACCESSORIES
12 13 14 15
12 Dust Extraction Adaptor
13 Splinter Guard
14 Parallel Guide
15 Line Guide
Removing the Blade
Inserting the Blade
2 Raise the blade to remove.
2 Slide the blade into the lock
with the teeth facing forward
making sure the blade is in
the middle of the guide roller
groove.
Ensure the shoulder of the
blade sits right at the bottom
of the blade holder.
1 Flip the saw upside
down and hold the
blade lock down.
1 Hold the blade lock
down.
3 Release the blade
lock and pull on the
blade to ensure it is
secured.

Battery Charge Indicator
The purchased battery is equipped with
a battery charge indicator to show the
state of the battery charge.
Press the charge indicator button and
look to see which LED lights.
Battery requires
immediate charging
Low state of charge, requires charging soon.
Mid state of charge
Full state of charge.
Note: The battery needs to be removed from the tool to check the state of
charge.
1 Connect the charger into a mains power outlet.
4 The charger LED will illuminate red signifying that the battery is
charging.
3 With the battery sitting on a at
surface, align the raised ribs on
the battery with the recess in the
charger and slide onto the battery
ensuring a rm connection.
2 The charger LED will ash
green showing power is being
supplied to the charger.
5 When removing the charger from
the battery, rst press the battery
release tab, then slide the charger
from its position.

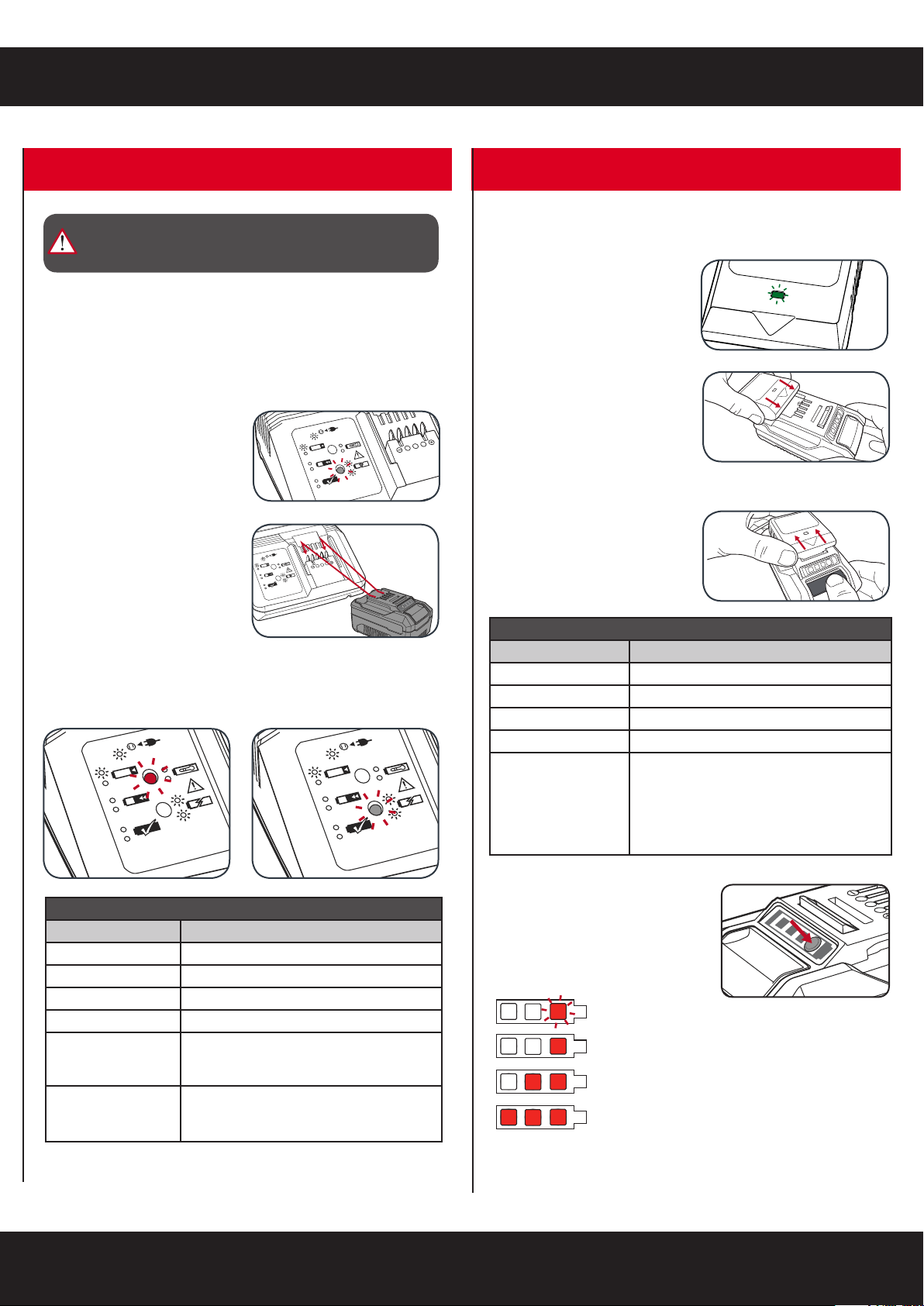

Charging your lithium ion battery - Eco Charger
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Illuminated) Battery is charging (low charge)
GREEN (Illuminated) Battery is charged and ready for use
RED (Flashing) Battery or Charger fault
RED & GREEN (Flashing) Battery pack is too hot or too cold (remove
battery from charger and store at room
temperature 20ºC. Insert battery again when at
correct charging temperature). If this happens
again, the battery is defective and needs to be
replaced.
2. BATTERY & CHARGING (sold separately)
The purchased battery will be shipped in a low charge condition, and requires charging
prior to use. Allow several cycles of charging and discharging (through use of the tool)
for the battery to reach its optimum performance / runtime.
CAUTION: THE CHARGER FOR THIS PRODUCT SHOULD
BE PROTECTED BY A RESIDUAL CURRENT DEVICE
(RATED AT 30MA OR LESS).
1 Connect the charger into a mains power outlet.
4 The charger LED will illuminate
red signifying that the battery
is charging.
3 With the charger sitting on a
at surface, align the raised
ribs on the battery with the
recess in the charger and slide
onto the charger ensuring a rm
connection.
2 The charger LED will ash
green showing power is being
supplied to the charger.
5 The charger LED will illuminate
green once the battery is
charged.
Charging your lithium ion battery - Fast Charger
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Flashing) Battery is charging (low charge)
RED (Illuminated) Battery is charging (mid charge)
GREEN (Illuminated) Battery is 85% - 100% Charged and ready for use
BOTH(Illuminated) Battery pack is too hot or too cold (charging
will begin automatically when battery reaches
correct charging temperature).
BOTH (Flashing) Defective battery. Never charge a defective
battery pack!
Remove battery pack from charger.

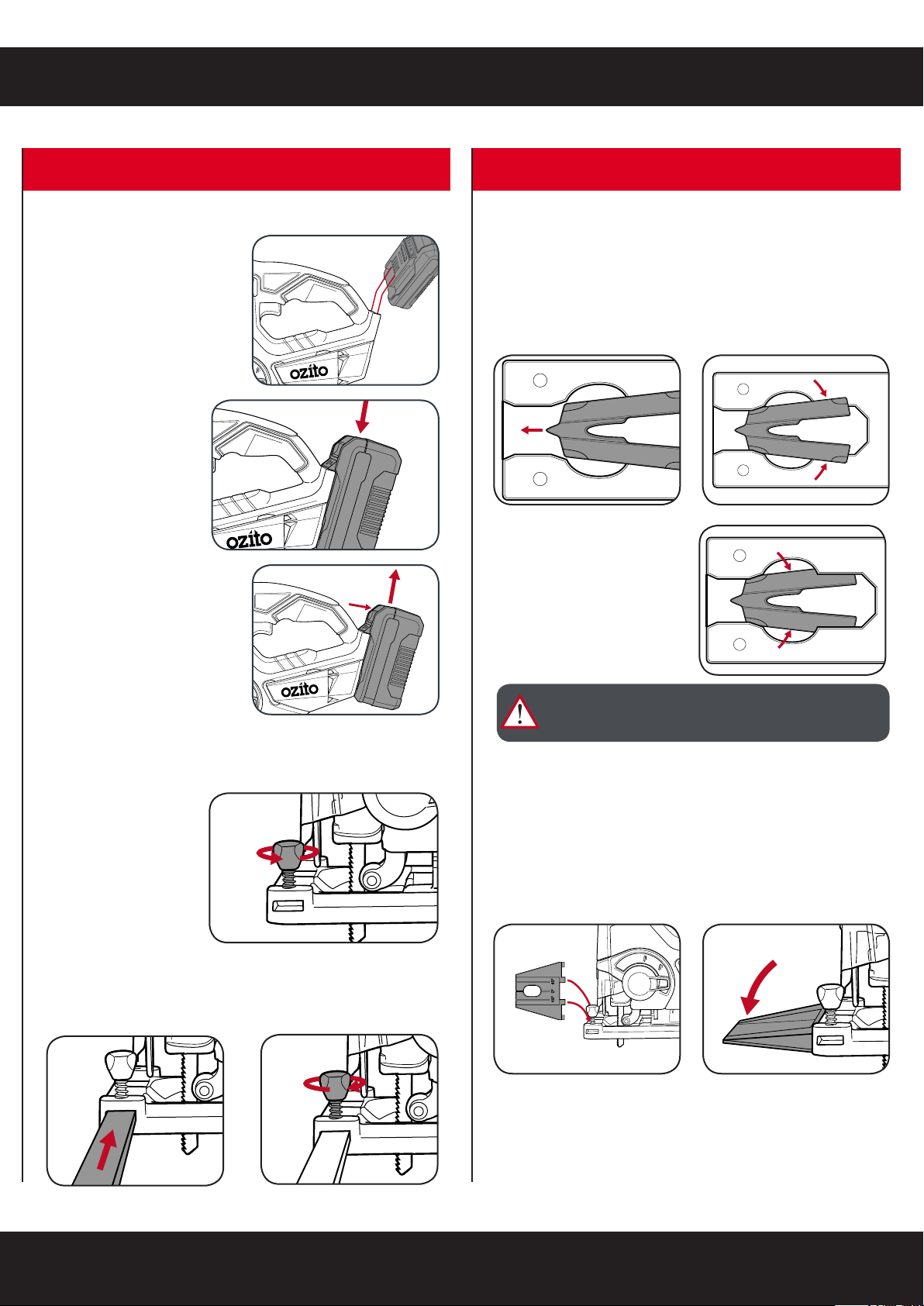

4. ATTACHING THE ACCESSORIES3. FITTING THE BATTERY & GUIDE
Inserting & Removing the Battery (not included)
1 Align the ribs of the battery
with the recess at the back of
the handle.
3 To remove, press and hold the
battery release tab and then
slide out.
2 Slide the battery into
the seating until it
clicks into place.
The parallel guide assists in cutting in a line parallel to an edge.
2 Slide the parallel guide into
the slots under the locking
screws.
1 Unscrew the guide
locking screws at
the front of the
jigsaw.
3 Tighten the guide locking
screws to secure position.
Attaching the Parallel Guide
The splinter guard ensures that the workpiece does not splinter and
crack while cutting.
The line guide helps maintain a straight line while cutting at a 900 or
450angle.
3 To Remove, squeeze the sides
of the guard and then pull the
splinter guard away from the
base.
WARNING! THE SPLINTER GUARD CAN ONLY BE USED
WHEN CUTTING AT A 900ANGLE TO THE WORKPIECE.
Using the Splinter Guard
Using the Line Guide
1 Slide the front of the splinter
guide into the recess on the
base of the jigsaw.
1 place the 2 hooks of the line
guide over the rail at the
front of the jigsaw.
2 Squeeze the sides of the
guard to allow the back to
be pushed into place.
2 Push the line guide down until
it clicks into place to allow the
line guide to be ush with the
base of the jigsaw.

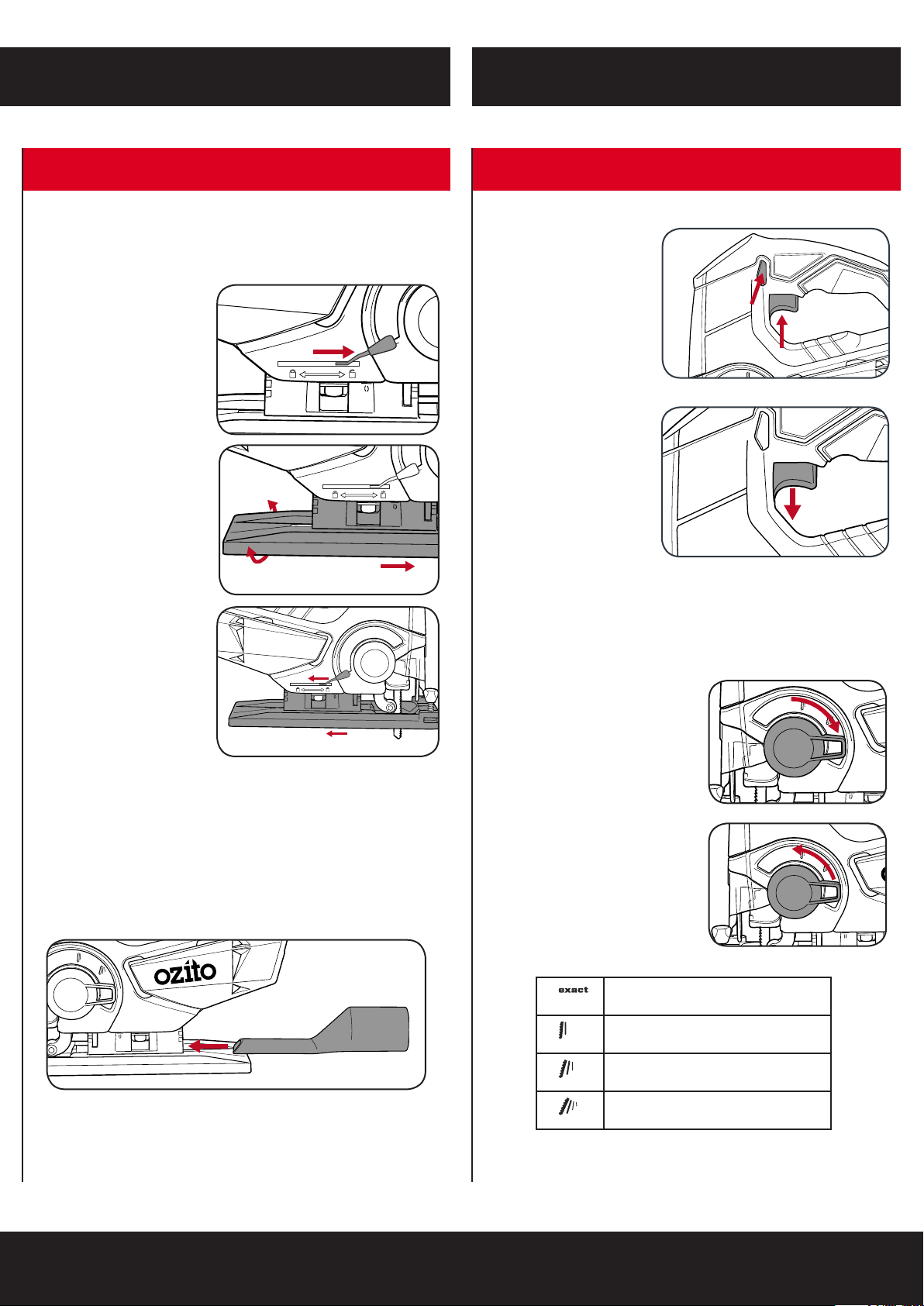

5. SHOE ANGLE & DUST EXTRACTOR
1 Hold the lock-off
switch down and then
squeeze the on/off
trigger to start the
jigsaw.
Switching On and Off
Adjusting the Cutting Action
2 To stop operation,
release the on/off
trigger.
6. CONTROLS
OPERATION
PXJSS-600U
The angle of the shoe can be adjusted to allow for bevel cuts between 0 and
47°.
2 Slide the shoe forwards
and tilt the shoe to the
desired angle using the
measurements.
1 Push the shoe locking lever
to the right to unlock the
adjustable shoe.
3 Once the angle is correct
slide the shoe back for the
pins to make contact and
secure in place by pulling
the shoe locking lever left.
A dust extractor can be tted to the jigsaw dust extraction adaptor to
remove dust and chips while cutting. The adaptor can also be removed
if it gets in the way.
Dust Extraction Adaptor
Adjusting the Shoe Angle
1 Fit the dust extraction adaptor to the jigsaw by pushing it into its
slot from the back.
2 To remove simply slide the dust extraction adaptor from the back
of the jigsaw.
The jigsaw has a pendulum action feature which enables the blade to
cut faster and more efciently in thick and softer materials. See below
for a guide on choosing the correct setting.
1 To use the pendulum action,
rotate the pendulum action
selector clockwise to a higher
setting.
2 To use standard cutting action,
rotate the pendulum action
selector anti-clockwise to a
lower setting.
1 - No pendulum action for ne clean cuts on
thin or hard materials
2 - Small pendulum action for faster cutting
on hard materials
3 - Medium pendulum action for faster
cutting on softer materials
4 - Large pendulum action for fast cutting
along the grain on soft materials.

MAINTENANCE
• Keep ventilation slots of the jigsaw clean at all times to ensure efcient operation.
• After each use, blow air through the tool housing to ensure it is free from all dust,
dirt, etc. Build up of dust, dirt particles may cause the tool to overheat and shorten
the life of the tool.
• If the housing of the jigsaw requires cleaning, do not use solvents but a moist soft
cloth or soft brush only.
• Never let any liquid get inside the tool, never immerse any part of the tool into liquid.
• No lubrication is necessary as the tool has sealed bearings.
• When not in use, the jigsaw should be stored in a dry, frost free location not within
the reach of children.
WARNING! ALWAYS ENSURE THE TOOL HAS
COMPLETELY STOPPED AND THE BATTERY IS
REMOVED PRIOR TO ANY MAINTENANCE.
Battery protection system
The tool is equipped with the battery protection system, which helps to ensure a long service
life.
The output power automatically cuts off during operation when the tool and/or battery are
placed under the following situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload, then pull the
switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use or immediately
after using the tool.
7. CUTTING 8. POCKET CUTTING
OPERATION
2 Mark your cutting line with a pencil
or attach the parallel guide.
4 Start the jigsaw by holding the lock-
off switch and depressing the on/off
trigger.
1 Ensure the correct blade
is inserted into the blade
lock and is secure.
3 Place the base onto the
workpiece with the blade
away from the edge.
5 Move jigsaw forward
with light pressure.
Allow the blade to stop
before lifting the jigsaw
away.
A pocket cut is when you need to cut a hole in the middle of a workpiece
2 Pass the blade through the hole and begin the cut.
1 Drill a hole in the
workpiece using a
12mm bit.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by the repair of the jigsaw by an unauthorised person or by mishandling of
the jigsaw.
Note: If the jigsaw switches off during use, the tool is overloaded. Please
reduce cutting pressure and/or increase pendulum action to reduce load on
the tool.

DESCRIPTION OF SYMBOLS
TROUBLESHOOTING
SPARE PARTS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger,
battery pack and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable batteries. Any
other use may result in risk of re, electric shock or electrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface that
may result in excessive internal heat. Place the charger in a position away from any heat
source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the
cord when disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise
subjected to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an improper
extension cord could result in the risk of re, electric shock or electrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or otherwise
damaged in any way. Have it checked by an electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when service
or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocu-
tion or re.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempting any
cleaning. Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may reach
or exceed 40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240 volts).
Do not attempt to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instructions
and then follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is charged
when the air temperature is between 18 - 24ºC. Do not charge the battery pack in an air
temperature below 10ºC or above 40ºC. This is important and will prevent damage to the
battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out.
The battery can explode in a re.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the battery
pack breaks or cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
BATTERY AND CHARGER SAFETY WARNINGS
LED lights do not illuminate on charger
Check the charging adaptor is securely plugged into the wall out let.
Check the battery is rmly connected to the charging cradle.
Check that the charging jack is securely connected to the charging cradle.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents. This is
normal and does not indicate a problem.
Cutting Metal
Your jigsaw can be used for cutting light gauge ferrous sheet and non-ferrous
metals such as copper, brass, aluminium, etc. It is advisable when cutting
sheet metal to clamp a backing sheet of soft wood or plywood to the work as
this will enable you to obtain a clean cut without vibration and the possibility
of tearing the metal. Both metal and wood backing are sawn together. Do
not force the cutting blade into the metal as this will reduce the life of the
blade and possibly damage the motor. Cutting thin metal will take longer
than cutting even a relatively thick piece of wood, so do not be tempted to
speed up the operation by forcing the saw. Spread a thin lm of oil along the
proposed cutting line before commencing to saw metal. Always select the
right blade for the job.
Jigsaw frequently cuts out during use
If the jigsaw switches off during use, the tool is overloaded. Please reduce
cutting pressure and/or increase pendulum action to reduce load on the tool.
Warning Read instruction manual
ø Diameter
mA Milliamperes
Recycle battery Do not put in the rubbish
Polarity
Do not incinerate Do not get battery wet
Thermal cut-out protection
Double insulated
spm Strokes per minute
Ah Amp hour
Indoor use only
Lithium Ion battery Do not use or store battery in
temperatures exceeding 50ºC
no No load speed
VVolts Hz Hertz
ac/~ Alternating current WWatts
Direct current
dc/
Do not expose to rain.
Spare parts can be ordered from the Special Orders Desk at your local
Bunnings Warehouse or Homebase store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: [e-mail]

WARNING! When using mains-powered tools, basic safety precautions, including the following,
should always be followed to reduce risk of re, electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an
emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for the UK.
This tools charger is double insulated, therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and
electric shock.
The power supply for this products charger should be protected by a residual current device (rated at 30mA
or less). A residual current device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets
will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious
personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related
hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power
tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specied by the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specically designated battery packs. Use of any other battery
packs may create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
WARNING! Hold power tool by insulated gripping surfaces when performing an
operation where the cutting accessory may contact hidden wiring or its own cord.
Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.
• Remove all nails in the work piece before the jigsaw. Cutting nails may damage your
tool.
• Do not cut hollow pipe with the jigsaw
• Do not cut material thicker or of a wider diameter than the specied limits.
• Always allow enough clearance underneath the work piece to ensure the blade does
not touch the oor or work bench, etc.
• Hold the tool at a comfortable distance from your body. Do not over reach to access
the work piece.
• Do not touch moving parts with your ngers or hand. 8. Do not cut through walls or
cavities without rst checking for hidden electrical wires.
• Ensure that you have tightened the blade prior to starting the machine. 10. When you
have nished the cut, wait until the saw blade has stopped moving prior to removing it
from the work piece.
• Do not touch the saw blade immediately after use. Allow time for the blade to cool, as
it may burn you due to the heat generated during sawing.
• Always check accessories to ensure that they are suitable for the operating speeds of
this tool.
• Incorrect accessories can break apart at high speed and cause serious damage or
injury.
This appliance is not intended for use by young or inrm persons unless supervised by a
responsible person to ensure that they can use the appliance safely. Young children should
be supervised to ensure that they do not play with the appliance.
JIGSAW SAFETY WARNINGS

size 445 x 210 mm
Danger! - Read the operating instructions to re-
duce the risk of inquiry
Caution! Wear ear-mus. The impact of noise
can cause damage to hearing.
Caution! Wear a breathing mask. Dust which
is injurious to health can be generated when
working on wood and other materials. Never use
the device to work on any materials containing
asbestos!
Caution! Wear safety goggles. Sparks gene-
rated during working or splinters, chips and dust
emitted by the device can cause loss of sight.
Store the battery only in dry rooms with an am-
bient temperature of +10°C to +40°C. Place only
charged batteries in storage (charged at least
40%). (not included in delivery)
The reprinting or reproduction by any other me-
ans, in whole or in part, of documentation and
papers accompanying products is permitted only
with the express consent of the iSC GmbH.
Subject to technical changes
PXJSS-600U
GB Additonal operating & safety instructions Cordless Jigsaw
Service information
We have competent service partners in all countries named on the guarantee certicate whose contact
details can also be found on the guarantee certicate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Guide roller, Battery, Splinter guard
Consumables* Saw blade
Missing parts
* Not necessarily included in the scope of delivery!
In the eect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Plea-
se ensure that you provide a precise description of the problem and answer the following questions in all
cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Yang/Product-ManagementWeichselgartner/General-Manager
- 135 -
explains the following conformity according to EU directives and norms for
the following product
Cordless Jigsaw PXJSS-600U / Fast Charger PXCG-030U (Ozito)
2014/29/EU
2005/32/EC_2009/125/EC
2014/35/EU
2006/28/EC
X2014/30/EU
2014/32/EU
2014/53/EC
2014/68/EU
90/396/EC_2009/142/EC
89/686/EC_96/58/EC
X2011/65/EU
X2006/42/EC
Annex IV
Noti ed Body:
Noti ed Body No.:
Reg. No.:
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured LWA = dB (A); guaranteed LWA = dB (A)
P = KW; L/Ø = cm
Noti ed Body:
2004/26/EC
Emission No.:
Standard references: EN 60745-1; EN 60745-2-11; EN 62233; EN 60335-1;
EN 60335-2-29; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3;
Landau/Isar, den 21.03.2016
First CE: 16 Archive-File/Record: NAPR014206
Art.-No.: 43.212.05 I.-No.: 11016 Documents registrar: R. Gerhard
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Declaration of conrmity

size 445 x 210 mm
Charger indicator / Fast Charger
Indicator status Explanations and actions
Red LED Green LED
O Flashing Ready for use
The charger is connected to the mains and is ready for use; there is no
battery pack in the charger
On O Charging
The charger is charging the battery pack in quick charge mode.
O On The battery is 85% -100% charged and ready for use.
(Charging time for 1.5 Ah battery: 30 min)
(Charging time for 2.0 Ah battery: 40 min)
(Charging time for 3.0 Ah battery: 60 min)
(Charging time for 4.0 Ah battery: 80 min)
(Charging time for 5.2 Ah battery: 105 min)
Action:
Take the battery pack out of the charger. Disconnect the charger from
the mains supply.
Flashing O Adapted charging
The charger is in gentle charging mode.
For safety reasons the charging is performed less quickly and takes
more than 1 hour. The reasons can be:
- The battery pack has not been used for a very long time or an already
at battery was further discharged (exhaustive discharge).
- The battery pack temperature is outside the ideal range (between 25°
C and 45° C).
Action:
Wait for the charging to be completed; you can still continue to charge
the battery pack.
Flashing Flashing Fault
Charging is no longer possible.The battery pack is defective.
Action:
Never charge a defective battery pack.
Take the battery pack out of the charger.
On On Temperature fault
The battery pack is too hot (e.g. due to direct sunshine) or too cold
(below 0° C).
Action:
Remove the battery pack and keep it at room temperature (approx. 20°
C) for one day .
Items supplied
Please check that the article is complete as
specied in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the equip-
ment with care.
• Remove the packaging material and any
packaging and/or transportation braces
(if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Battery and charger sold separately.
This tool is compatible with all 18V battery and
chargers from the Power X Change range.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suocating!
Proper use
The jigsaw is designed for sawing wood, metals,
non-ferrous metals and plastics using the approp-
riate saw blade.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse. The user/operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Technical data
Motor power supply: ............................... 18 V DC
Stroke speed: ................................. 0 – 2,400/min
Stroke height: ........................................ 25.4 mm
Cutting depth, wood: ................................ 80 mm
Cutting depth, plastic: .............................. 12 mm
Cutting depth, iron/aluminium: ................. 10 mm
Miter cut: ....................... up to 47° (left and right)
Weight: .......................................................1.6 kg
Danger!
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745.
LpA sound pressure level ........................ 84 dB(A)
KpA uncertainty ............................................. 3 dB
LWA sound power level ........................... 95 dB(A)
KWA uncertainty ............................................. 3 dB
Wear ear-mus.
The impact of noise can cause damage to hea-
ring.
Total vibration values (vector sum of three direc-
tions) determined in accordance with EN 60745.
Sawing particleboard
Vibration emission value ah= 7.417 m/s2
K uncertainty = 1.5 m/s2
Sawing sheet metal
Vibration emission value ah= 2.619 m/s2
K uncertainty = 1.5 m/s2
The specied vibration value was established in
accordance with a standardized testing method. It
may change according to how the electric equip-
ment is used and may exceed the specied value
in exceptional circumstances.
The specied vibration value can be used to
compare the equipment with other electric power
tools.
The specied vibration value can be used for initi-
al assessment of a harmful eect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect wor-
king order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever
necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in ac-
cordance with instructions, certain residual
risks cannot be rules out. The following ha-
zards may arise in connection with the equip-
ment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear protecti-
on is used.
3. Health damage caused by hand-arm vibra-
tions if the equipment is used over a pro-
longed period or is not properly guided and
maintained.
For EU countries only
Never place any electric power tools in your
household refuse.
To comply with European Directive 2012/19/EC
concerning old electric and electronic equipment
and its implementation in national laws, old elec-
tric power tools have to be separated from other
waste and disposed of in an environment-friendly
fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to
the manufacturer, the owner of the electrical
equipment must make sure that the equipment
is properly disposed of if he no longer wants to
keep the equipment.The old equipment can be
returned to a suitable collection point that will
dispose of the equipment in accordance with the
national recycling and waste disposal regulations.
This does not apply to any accessories or aids
without electrical components supplied with the
old equipment.
This consignment contains lithium-ion batteries.
In accordance with special provision 188 this
consignment is not subject to the ADR regula-
tions. Handle with care. Danger of ignition in case
of damage to the consignment package. If the
consignment package is damaged: Check and
if necessary repackage. For further information
contact: 0049 1807 10 20 20 66 (xed network
14 ct/min, mobile phone max. 42 ct/min) Outside
Germany charges will apply instead for a regular
call to a landline number in Germany.
