PAC Advanced AXT1 User manual

Congratulations on buying a PAC RemoteTrainer. PAC has over 10 years of experience in the design, manufacture
and supply of dog training and containment equipment for professionals, enthusiasts and pet owners. Many thousands
of PAC clients will testify to our enormous success through innovation,reliability and service. The advancedAXT
series are the world’s most versatile and effective digital remote trainers making them the de facto “best of breed”.
www.pacdog.com
[email protected]
[email protected]
made in EU
© PAC Products Ltd. 2004
Introduction 1

Kit Contents
1. Operating Instructions
2. Training Guide (Optional)
3. Mains Power Adaptor
4. Charging Dock
5. Active Collar
6. Dummy Collar (Optional)
7. Antenna
8. Transmitter Handset
9. Neon Tester
10. Pointed Probes(see p.3)
2

a. Active Collar
b. Dummy Colllar
c. Installed Probes for short-haired breeds
d. Long probes for hairy breeds
Active Collar/Dummy Collar 3

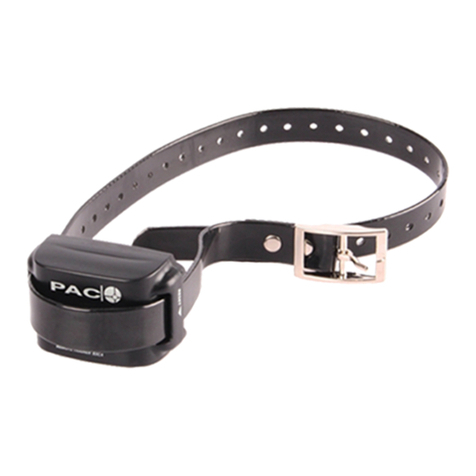

A. Active Collar:
1. Status Lamp
2. Positive Probe
3. Reset contact point
4. On/Off contact point
5. Negative Probe
B. Dummy Collar
Collar Features 4

1 .Battery Indicator, Red and Green
2. Intensity Control
3. Antenna
4. Triggers
5. Collar activator area
6. Model AXT 4 and 6 only
7. Recharging socket
Handset Features 5

Charging the Collar 6
1. Plug Power Unit into Mains
2. Plug DC jack into Charging Dock
3. Plug Charging Dock Lead into Handset
4. Plug Collar into Charging Dock. Observe polarity (reverse
protected)
5. Press ‘Set Timer’ for 16 hour charge
6. Position of Collar(s) and Handset on Charging Dock

Resetting Collar 7
Match collar to handset trigger(s) using Reset operation
1. Bring the handset arrow into contact with the RESET arrow on the collar.
2. Collar LED will fast flash orange
3. Press handset trigger to match collar to handset.
4. Fast flashing orange changes to slow flashing green

Turning the Collar ON and OFF
Turn collar on by bringing arrrow at base of handset into close proximity
with ON/OFF arrow on collar. A *beep* and green light will show status
Do the same to turn OFF the unit. A red light and *beep* will indicate action.
8

Neon Tester and Battery Status
1. Clip Neon Tester onto probes to test collar impulse.
2. Battery Status Indicator for Handset (green+red=OK, red only=Low)
3. Battery Status Indicator for Collar (Green=OK, Red=Low)
9
