Pacific energy ESPRIT User manual

INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
This appliance is suitable for installation in a
bedroom or bed sitting room.
ESPRIT
INSTALLATION
AND OPERATING
INSTRUCTIONS
Visit www. pacificenergy.net for the most recent version of this manual
MODEL: ESPR.BODYB
ESPRIT ZERO CLEARANCE
FIREPLACE
WARNING: If the information in these instruc-
tions is not followed exactly a fire or explosion
may result causing property damage, personal
injury or death.
FOR YOUR SAFETY
Installation and service must be per-
formed by a qualified installer, service
agency or the gas supplier
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical Switch.
• Do not use any phone in your building.
• Immediately call your gas supplier
• from a neighbour’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier
call the fire department.
Do not store or use gasoline or other
flammable vapours and liquids in the
vicinity of this or any other appliance.
This appliance may be installed in an after-
market permanently located, manufactured
home (USA only) or mobile home, where not
prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This appli-
ance is not convertible for use with other
gases unless a certified kit is used.
SERIAL #
ESPRIT280617-40 5056.201-A

Table of Contents
Important Note for the
Commonwealth of Massachusetts ......................... 3
Caution ....................................................................4
Safety ......................................................................5
First Fire .................................................................. 6
Remote Control Operation ......................................7
System Description ...............................................7
Transmitter (Remote Control with LCD Display) ....7

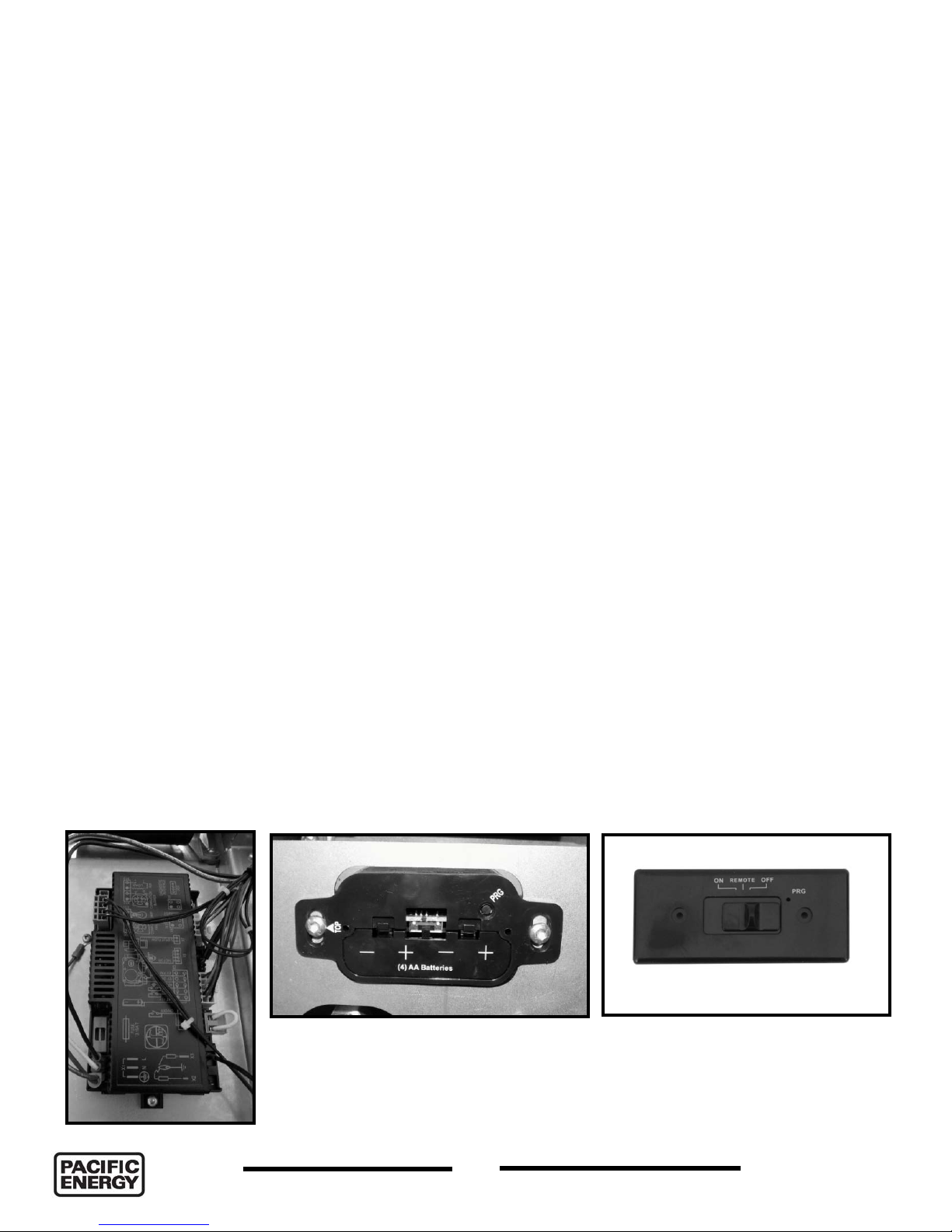

IFC Module........................................................... 8
Operating Procedure ............................................ 8
Initializing the System for the rst time ................ 8
Temperature indication Display ............................ 9
Turn on the Fireplace ............................................ 9
Turn off the Fireplace ............................................ 9
Manual Bypass of the Remote System................ 9

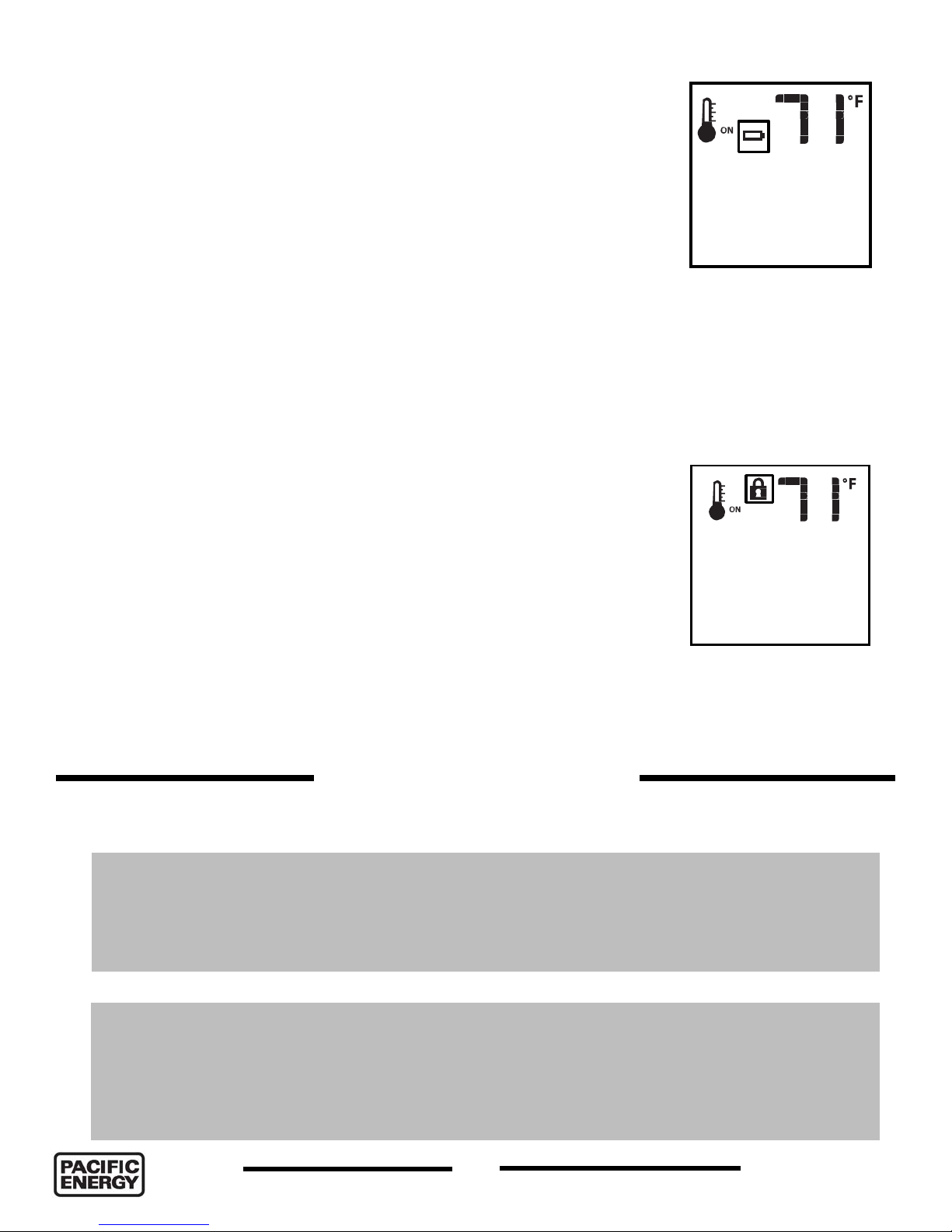

Key Lock............................................................... 9
Remote Flame Control ....................................... 10
ROOM THERMOSTAT (Transmitter Operation) .. 10
Smart Thermostat (Transmitter Operation) ........ 10
Comfort Fan Speed Control ................................11
Continuous Pilot/Intermittent Pilot
(CPI/IPI) selection ................................................11
Low battery detection ........................................12
Transmitter .........................................................12
Receiver...............................................................12
Key Lock..............................................................12
Warnings and Cautions .........................................12
Maintenance ......................................................... 13
Glass Door.......................................................... 13
Annual Inspection .............................................. 13
Periodically ......................................................... 13
Lighting Instructions ..............................................14
Fireplace Dimensions ............................................15
Clearances to Combustibles .................................17
Minimum Clearance to Combustible Materials ...17
Locating the Fireplace .......................................... 18

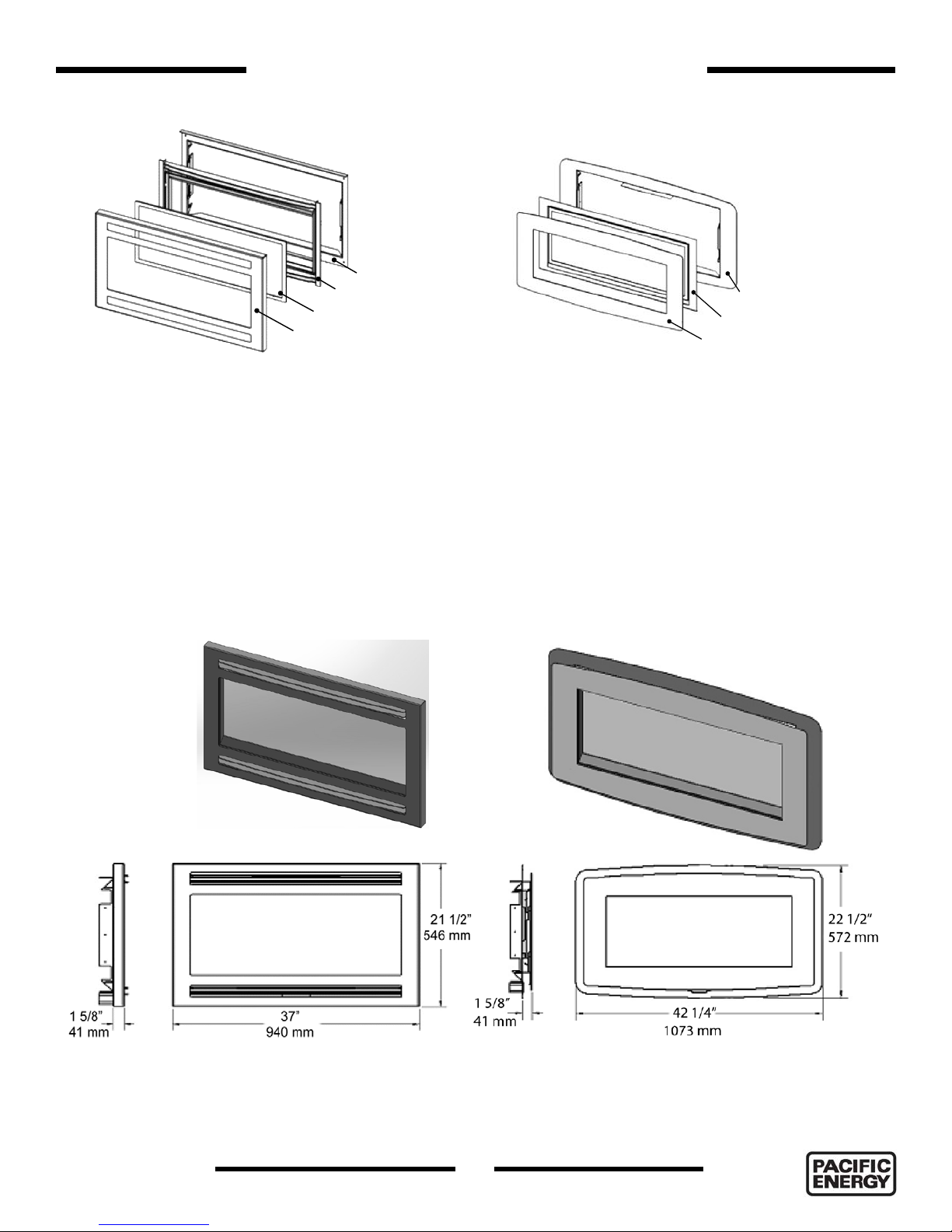

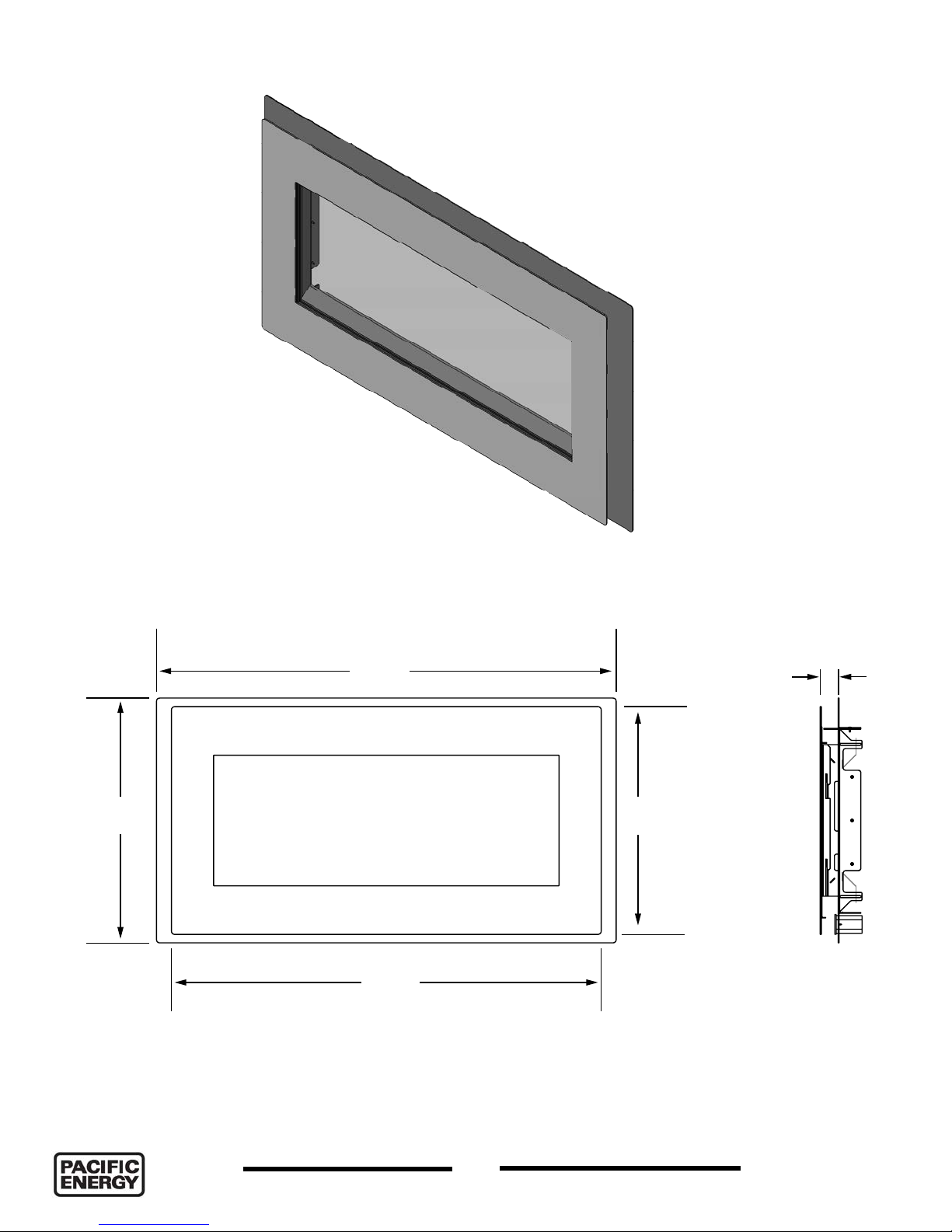

Surround Installation Instructions ......................... 19
Venting ...................................................................21
Vent Terminal Minimum Clearances ......................22
Venting Components ............................................ 23
Plumbing and Electrical .........................................24
Gas connection ...................................................24
Electrical connection ...........................................24
Gas Supply ............................................................25
Gas Pressure Check ..............................................25
Gas pressure requirements ................................25
Gas Pressure Testing Procedure .......................... 26
Propane Conversion ..............................................27
Door Installation/Removal .................................... 28
Fan Installation / Removal .................................... 28
Fan removal before replace installation............ 29
Panel Installation / Removal ................................. 29
Burner and Tray Installation / Removal ................ 30
Log Set Installation / Removal ..............................31
Glass Burner Kit Installation / Removal .................32
Intake Air Damper Installation .............................. 33
Replacement Parts ................................................34
Wiring Diagram ......................................................35
Rating Label ......................................................... 36
2
5056.201-A ESPRIT
280617-40

Important Note for the Commonwealth of Massachusetts
From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential
purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet
above nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satised.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fuelled equipment, the
installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor
level where the gas equipment is to be installed, in addition, the installing plumber or gas tter shall observe that a battery operated or hard-wired
carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal
vented gas fuelled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the
installation of hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired carbon monoxide
detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of thirty
(30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide
detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet
above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appliance or equipment. The sign shall
read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the installation unless,
upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.089(2)
(a) 1 through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling, building or structure
used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided
by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved
side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identies “special venting systems”, the
following requirements shall be satised by the manufacturer.
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed
installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions, all parts
lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.
3
280617-40 5056.201-A
ESPRIT

Caution
This fireplace is equipped with a micro mesh safety screen for your protection and
must be installed with the unit. Removal of the safety screen will cause the fireplace
to become a burn and fire hazard.
FOR YOUR SAFETY - Do not install or operate your Pacic Energy replace without rst reading
and understanding this manual. Any installation or operational deviation from the following instruc-
tions voids the Pacic Energy Warranty and may prove hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual manual
shut off valve during any pressure testing of the gas supply piping system at test pressures equal to
or less than 1/2 psi (3.5 kPa).
Do not use the replace if any part has been under water. Immediately call a qualied service
technician to inspect the replace and to replace any part of the control system and any gas control
which has been under water.
4
5056.201-A ESPRIT
280617-40

Safety
• Due to high temperatures, this gas appliance should be located out of trafc and away from
furniture and draperies.
• Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house. To restrict access to a
replace or stove, install an adjustable safety gate to keep toddlers, young children and other at
risk individuals out of the room and away from hot surfaces.
• Clothing or other ammable material should not be placed on or near the appliance.
• A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the
Surround Kit component and shall be installed.
• If the barrier becomes damaged, the barrier shall be replaced with the manufacturers barrier
for this appliance.
• Any grill, panel or door removed for servicing the unit must be replaced prior to operating.
• Installation and repair should be done by a qualied service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent
cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is
imperative that control compartments, burners and circulating air passageways of the appliance
be kept clean.
• This appliance must not be connected to a chimney ue serving a separate solid fuel burning
appliance.
• It is our policy that no responsibility is assumed by the Company or by any of its employees or
representatives for any damages caused by an inoperable, inadequate, or unsafe condition which
is the result, either directly or indirectly, of any improper operation or installation procedures.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical Switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier call the re department.
• Installation and service must be performed by a qualied installer, service agency or the gas
supplier.
5
280617-40 5056.201-A
ESPRIT

Congratulations on your purchase of a Pacific Energy Gas Appliance.
Your replace has been professionally installed by:
Dealer name: ___________________________________________________
Phone Number:___________________________________________________
If you discover any problems with your gas appliance contact your dealer immediately to have the
unit repaired.
Caution: Do not attempt to repair the replace because you may cause injury to yourself or others,
and risk causing damage to the unit.
Before operating your appliance carefully read this manual and pay close attention to all Safety
Warnings.
The manual contains important information on the unit’s safe operation and maintenance.
First Fire
When lit for the rst time, the replace will emit a slight odour for a couple of hours. This is due
to the curing of paints, sealants, gaskets, and lubricants used in the manufacturing process. This
condition is temporary. Open doors and windows to ventilate the area. Odour caused by the
curing process may cause discomfort to some individuals.
It is normal for replaces fabricated from steel to give off some expansion and/or contraction
noises during the start up or cool down cycle. Similar noises are found with your furnace heat
exchanger or cook stove oven.
6
5056.201-A ESPRIT
280617-40

Blue back lit LCD display
ON/OFF Key
THERMOSTAT Key
UP/DOWN Arrow Key
MODE Key
Figure 1: Proame 2 handset.
OFF
ON
SMART
MAX
KEY LOCK
LOW BATTERY ALARM
ROOM
TEMPERATURE
CPI MODE
FLAME LEVEL
SET POINT:
TEMPERATURE/LEVEL/STATE
THERMOSTAT OFF/
ON/SMART
TRANSMISSION
COMFORT FAN
Figure 2: Proame 2 LCD display.
System Description
The Proame 2 Remote Control System consists of two elements:
1. Proame2 Transmitter.
2. Proame2 Integrated Fireplace Control (IFC) board and a wiring harness to connect the IFC to
the gas valve and stepper motor.
Transmitter (Remote Control with LCD Display)
The Proame 2 Transmitter uses a streamline design with a simple button layout and informative
LCD display Figure 1. The transmitter is powered by 3 AAA type batteries. A Mode key is provided
to Index between the features and a Thermostat key is used to turn on/off or index through
thermostat functions (Figure 1 and Figure 2).
Remote Control Operation
7
280617-40 5056.201-A
ESPRIT

IFC Module
The Proflame 2 Integrated Fireplace Control (IFC) module (Figure 3) is a device that allows automatic
ignition and pilot flame supervision, and commands the functions of the hearth Fireplace. It’s
configured to control the ON/OFF main burner operation, giving the choice of both IPI (intermittent
pilot ignition), and CPI (continuous pilot ignition) modes. The Proflame2 IFC module controls and
connects directly to the pilot assembly and the automatic valve using low electric power.
The IFC module can be powered by both an AC power supply, and battery pack for back up. The
Proflame 2 offers the added ability to control the comfort fan speed from OFF through six (6)
speeds, a remotely actuated auxiliary outlet and a dimmable light outlet. The external batteries can
provide DC power to the IFC allowing the batteries to be used only when line power is interrupted or
lost, and if the Fireplace does not use a combustion fan.
Operating Procedure
Initializing the System for the first time
1. Install 4 AA batteries into the battery holder (Figure 4) located on the rear side behind the
surround below the rebox. Install the ON/OFF switch cover (Figure 5) over top of the battery bay.
Make sure that the selection switch is on the “Remote” setting.
2. Install 3 AAA batteries into the Proame2 Remote Transmitter (Figure 1).
3. Plug the power cord into the Brentwood/Broadway and open the gas supply line.
4. Insert a straightened paper clip into the opening marked “PRG” of the ON/OFF battery bay
cover (Figure 4) or (Figure 5) and press the program button once. The module will beep 3 times
indicating that it is ready to synchronize with a remote transmitter.
5. On the remote transmitter, push the power on button once. The remote transmitter will beep
4 times to indicate that the remote transmitter and the control module are now synchronized.
The remote transmitter is now ready to use.
Figure 3: IFC module.
Figure 4: On-off switch. Figure 5: On-off switch cover.
8
5056.201-A ESPRIT
280617-40

Temperature indication Display
With the system in the “OFF” position, press the Thermostat Key
and the Mode Key at the same time. Look at the LCD screen on the
transmitter to verify that a C or F is visible to the right of the Room
Temperature display (Figure 6 or Figure 7).
Turn on the Fireplace
With the system OFF, press the ON/OFF Key on the remote
transmitter. The remote transmitter display will show some other
active Icons on the screen. At the same time the Receiver will
activate the Heater. A single “beep” from the Receiver (module) will
conrm reception of the command.
Turn off the Fireplace
With the system ON, press the ON/OFF Key on the Remote
transmitter. The Remote transmitter LCD display will only show
the room temperature (Figure 6 or Figure 7). At the same time the
Receiver (module) will turn off the Heater. A single “beep” from the
Receiver conrms reception of the command.
Manual Bypass of the Remote System
If the batteries of the receiver or remote transmitter are low
or depleted, the Heater can be turned off manually using ON/
OFF switch located on battery box at the rear of the Broadway/
Brentwood. This will bypass the remote transmitter.
Key Lock
This function will lock the keys to avoid unsupervised operation.
To activate this function, press the MODE and UP keys at the
same time. The lock icon will appear (Figure 8). To de-activate this
function, press the MODE and UP keys at the same time.
Figure 6: Display in Fahrenheit.
Figure 7: Display in Celcius.
Figure 8: Key lock.
9
280617-40 5056.201-A
ESPRIT

Remote Flame Control
The Proame2 has six (6) ame levels. With the system turned
on, and the ame level at maximum in the Fireplace, press
the down arrow key once to reduce the ame height by one
step until the ame is turned off.
The up arrow key will increase the ame height each time it
is pressed. If the up arrow key is pressed while the system
is on but the ame is off, the ame will come on in the high
position (Figure 9). A single “beep” will conrm reception of
the command.
ROOM THERMOSTAT (Transmitter Operation)
The remote control can operate as a room thermostat. The
thermostat can be set to a desired temperature to control the
comfort level in a room.
To activate this function, press the thermostat key (Figure 1).
The LCD display on the remote transmitter will change to show
that the room thermostat is “ON” and the set temperature is
now displayed (Figure 10). To adjust the set point, press the up
or down arrow keys until the desired set point temperature is
displayed on the LCD screen of the remote transmitter.
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the ame height in
accordance to the difference between the set point and the
room temperatures. As the room temperature gets closer
to the set point, the Smart Function will modulate the ame
down. If the room temperature is cool the Smart function will
modulate the ame up.
To activate this function, press the THERMOSTAT key
(Figure 1) until the word “SMART” appears to the right of the
temperature bulb graphic (Figure 11). To adjust the set point,
press the up or down arrow keys until the desi red set point
temperature is displayed on the LCD screen of the remote
transmitter (Figure 12).
Flame Off
Flame level 5
Flame level Max
Flame level 1
Figure 9: Flame level control.
Figure 10:
Room temperature
control.
Figure 11: Smart ame
control.
Figure 12: Smart
ame function set low.
10
5056.201-A ESPRIT
280617-40

Figure 13: Comfort fan control.
Figure 14: IPI CPI Selection.
Comfort Fan Speed Control
If the replace is equipped with a hot air circulating fan, the speed of the fan can be controlled by
the Proame system. The fan speed can be adjusted through six (6) speeds. To activate this function
use the Mode Key (Fig.1) to index to the fan control icon (Fig. 13 ). Use the Up/Down Arrow Keys
(Fig.1) to turn on, off or adjust the fan speed (Fig. 13). A single “beep” will conrm reception of the
command.
Continuous Pilot/Intermittent Pilot (CPI/IPI) selection
With the system in “OFF” position press the Mode Key (g. 1) to index to the CPI mode icon
(g.14). Pressing the Up Arrow Key will activate the Continuous Pilot Ignition mode (CPI). Pressing
the Down Arrow Key will return to IPI. A single “beep” will conrm the reception of the command.
11
280617-40 5056.201-A
ESPRIT

Figure 15: Low battery
icon.
WARNING
Fire Hazard. Can cause severe injury or death
The Receiver causes ignition of the appliance. The appliance can turn on suddenly. Keep
away from the appliance burner when operating the remote system or activating manual
bypass of the remote system.
WARNING
Shock Hazard. Can cause severe injury or death
This device is powered by line voltage. Do not try to repair this device. In no way is the
enclosure to be tampered with or opened. Disconnect from line voltage before perform-
ing any maintenance.
LOW BATTERY POWER DETECTION
Transmitter
The life span of the remote control batteries depends on various factors:
quality of the batteries used, the number of ignitions of the appliance,
the number of changes to the room thermostat set point, etc.
When the Transmitter batteries are low, a Battery Icon will appear on the
LCD display of the Transmitter (Figure 15) before all battery power is lost.
When the batteries are replaced this Icon will disappear.
Receiver
The life span of the IFC batteries depends on various factors: quality of
the batteries used, the number of ignitions of the appliance and the number of changes to the room
thermostat set point, etc. When the IFC batteries are low, a “double-beep” will be emitted from
the IFC board when it receives a command from the transmitter. This is an alert for a low battery
condition for the IFC board. When the batteries are replaced the “beep” will be emitted from the IFC
board when a key is pressed. See “Initializing the System for the rst time” on page 8.
Key Lock
This function will lock the keys to avoid unsupervised operation. To
activate this function, press the MODE and UP keys at the same time
(Figure 1). The lock icon will appear (Figure 15). To de-activate this
function, press the MODE and UP key at the same time.
Figure 16: Lock icon.
Warnings and Cautions
12
5056.201-A ESPRIT
280617-40

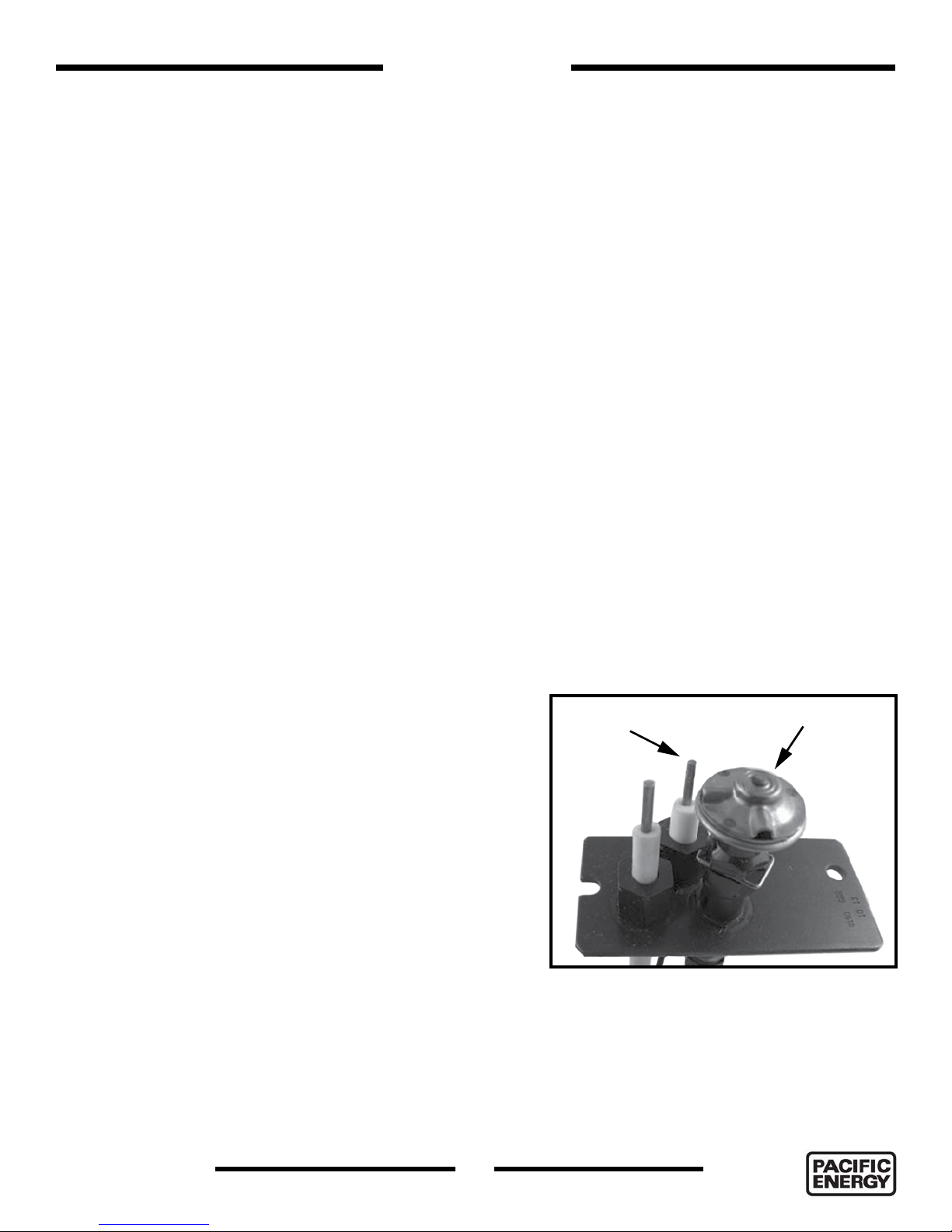

Ignitor Hood
Figure 17: Esprit pilot assembly.ai
Maintenance
Turn off gas and electrical power supply (if applicable) and allow ample time for unit to cool before
servicing appliance. It is recommended that the replace and its venting should be inspected at
least once a year by a qualied service person.
Glass Door:
Warning: Do not operate replace with glass door removed, cracked or broken. Replacement of
the glass door should be done by a licensed or qualied service person. Check glass panel gasket,
replace if necessary. It is important that the glass seal be maintained in good condition.
Do not strike or otherwise impact the glass in any way that may cause it to break. If the glass
becomes cracked or broken it must be replaced before using the replace. Replacement door
can be obtained from your nearest Pacic Energy dealer. Do not substitute with any other type. To
remove broken glass, remove Door as noted in “Door Removal” section.
Annual Inspection:
a) Remove glass door and decorative media (such as logs and rocks). Inspect decorative media
and burner assemblies for soot buildup. If excessive buildup of soot is present, have a
qualied service person inspect and adjust unit for proper combustion. Clean burners with a
brush or vacuum cleaner, paying close attention to burner ports.
b) Check the pilot system for proper ame size and operation. Clean pilot free (Figure 17) of soot,
dust or any other deposits.
c) Check that the vent pipe and vent terminal are open and free from blockage or debris. If the
venting is disassembled for cleaning, it must be
properly assembled and re-sealed. Refer to
VENTING section for proper procedure.
d) Check and replace batteries as needed.
Note: The appliance area must be kept clear and
free from combustible materials, gasoline and other
aable vapors and liquids.
Periodically:
a) Viewing glass may be cleaned as necessary with
replace glass cleaner.
b) Exterior nish may be cleaned with mild soap and
water.
CAUTION: Do not use abrasive cleaners on glass or any other part of the replace.
Do not clean glass when hot.
13
280617-40 5056.201-A
ESPRIT

Lighting Instructions
14
5056.201-A ESPRIT
280617-40

10”
254 mm
19”
482 mm
29 1/4”
725 mm
33 1/8”
841 mm
32”
813 mm
34 5/16”
871 mm
40 1/8”
1020 mm
43 3/8”
1101 mm
15 3/4”
400 mm
Figure 18: Esprit dimensions.
48”
1219 mm
24”
610 mm
33 5/8”
854 mm
1 1/8” (29 mm)
Minimum
Non-combustible
Combustible
19 1/2”
495 mm
Figure 19: Framing and nishing dimensions.
Fireplace Dimensions
The installation must conform with local codes or, in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1/NFPA 54, or the National Gas and Propane Installation Code, CSA
B149.1
A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such
a standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or standard for Gas Equipped Recreational Vehicles and Mobile Housing , CSA Z240.4
15
280617-40 5056.201-A
ESPRIT

24”
610 mm
48”
1220 mm
33 5/8”
854 mm
1 1/8”
29 mm
Minimum
Combustible
Non
Combustible
Figure 20: Framing at the corner.
Figure 21: Minimum clearance corner framing.
16
5056.201-A ESPRIT
280617-40

Mantel
(Reference point)
36” Min.
26” Min.
louvered
surround
Top of glass
(Reference point)
Figure 22: Minimum distance from top of the glass to ceiling.
36” Min.
Figure 23: Front and side
dimensions.
Clearances to Combustibles
Minimum Clearance to Combustible Materials
ENCLOSED SIDE WALL 1.75”
ENCLOSED BACK WALL NCR*
ENCLOSED CEILING 4”
ECLOSED FRONT WALL 24” From top of the glass
EXPOSED SIDE WALL 8” From side of the glass
VENT ENCLOSURE 1”
EXTERIOR SOFIT 16”
*NCR STANDS FOR NO CLEARANCE REQUIRED; YOU MAY USE COMBUSTIBLE
CONSTRUCTION MATERIALS IN DIRECT CONTACT WITH THE APPLIANCE ON THESE
SURFACES.
When the appliance is installed directly on carpeting, tile or other combustible material other
than wood ooring, the appliance shall be installed on a metal or wood panel extending the full
width and depth of the appliance. Specied clearances shall be maintained from the top surface
of carpeting, tile, etc.
Front of the appliance is an open side of the combustion chamber covered with the glass.
Facing the front of the appliance side from left is the left side of the appliance and side from right is
the right side of the appliance.
17
280617-40 5056.201-A
ESPRIT

Figure 24: Common installation options.
33 5/8”
854mm
45”
1143mm
Figure 25: Framing dimensions.
Locating the Fireplace
In planning the installation for the replace, it is necessary to determine where the unit is to
be installed, location of vent system and where gas supply piping may be plumbed. Various
installations are possible, such as, into an existing wall, a corner, a built in wall or a wall projection.
Due to high temperatures, do not locate this replace in areas of high trafc or near furniture or
draperies. For places where a second side wall is specied, replace should be accessible for
service
18
5056.201-A ESPRIT
280617-40

Surround base
Screen frame
Screen
Faceplate
Figure 26: Louvered surround.
Surround base
Faceplate
Screen with frame
Figure 27: Clean face surround.
Surround Installation Instructions
Installation
1. Fasten the surround base to the replace using supplied screws and mounting holes located
along the inner edge of the base.
2. Install screen with the frame in slots on inner side of the surround base.
3. Install the surround front by positioning it so as to clear the notches and secure by applying
downward pressure in order to engage the locking tabs.
Louvered Surround Clean face Surround
Figure 28: Surround dimensions.
19
280617-40 5056.201-A
ESPRIT

20 7/8”
530 mm
39 1/2”
990 mm
22 1/2”
559 mm
42 1/4”
1067 mm 1 5/8”
41 mm
Figure 29: Esprit straight edge surround dimensions.
20
5056.201-A ESPRIT
280617-40
