Pacific energy MIRAGE 30 SERIES A User manual

INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
110915-32 5055.MR30-A
WARNING: If the information in these
instructions is not followed exactly a re or
explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other
ammable vapours and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier
from a neighbour’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier
call the re department.
Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
This appliance may be installed in an
aftermarket permanently located,
manufacture home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This
appliance is not convertible for use with
other gases unless a certied kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
SERIAL #
MIRAGE 30
INSTALLATION AND
OPERATING INSTRUCTIONS
MODEL: MIRAGE 30, SERIES: A
DIRECT VENT FREE STANDING
GAS STOVE
MR30

2
5055.MR30-A 110915-32
Table of Contents
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with the appliance and
shall be installed for the protection of children and
other at-risk individuals.
This stove is equipped with a micro mesh safety screen for your
protection and must be installed with the unit. Removal of the
safety screen will cause the stove to become a burn hazard.
Caution ............................................................. 3
Safety ............................................................... 3
Important Note for the Commonwealth of
Massachusetts:................................................. 4
Mirage 30 Dimensions...................................... 5
Clearances to Combustibles............................. 6
Locating the Stove............................................ 6
Co-axial Venting.................................................7

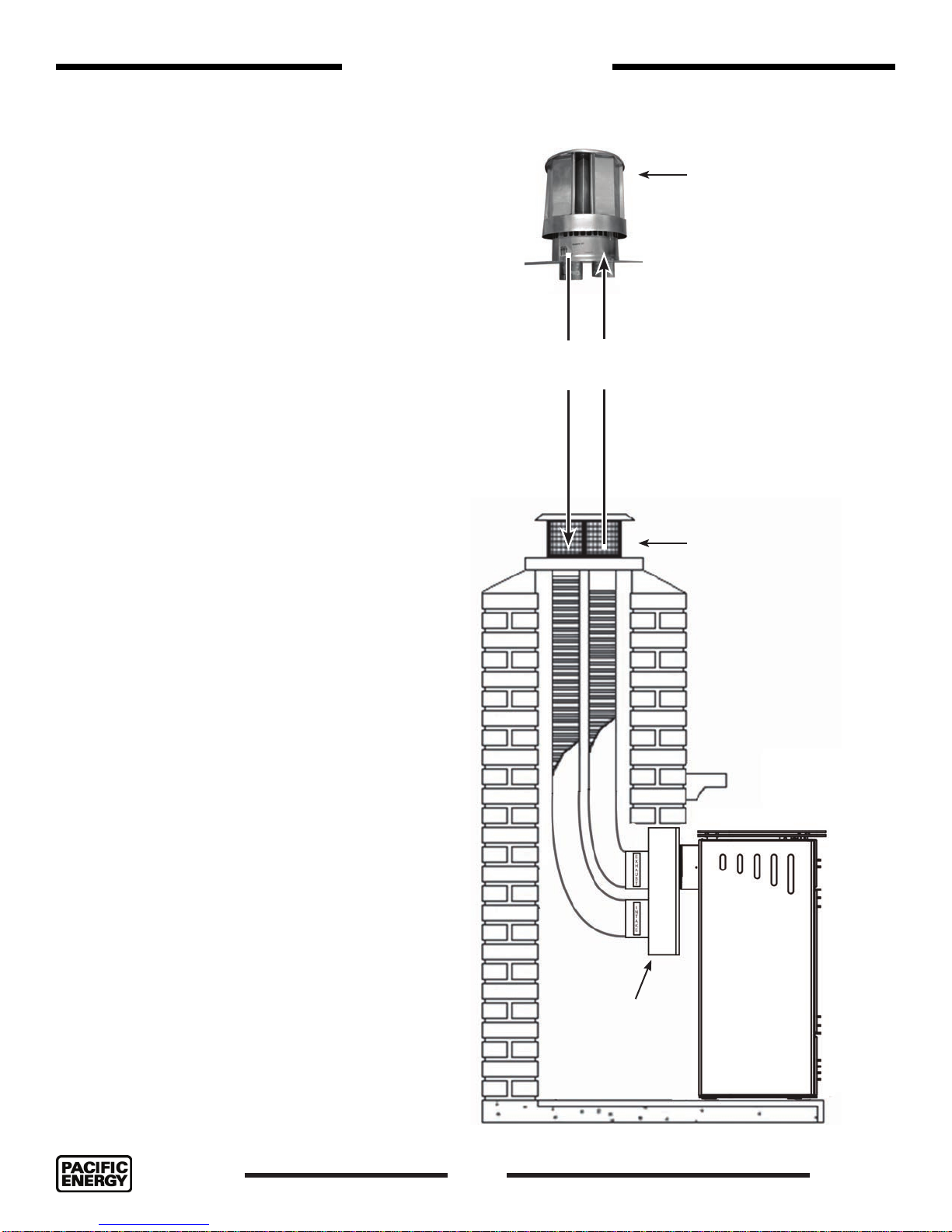

Co-Linear Venting ............................................. 8
Vent Terminal Minimum Clearances ................. 9

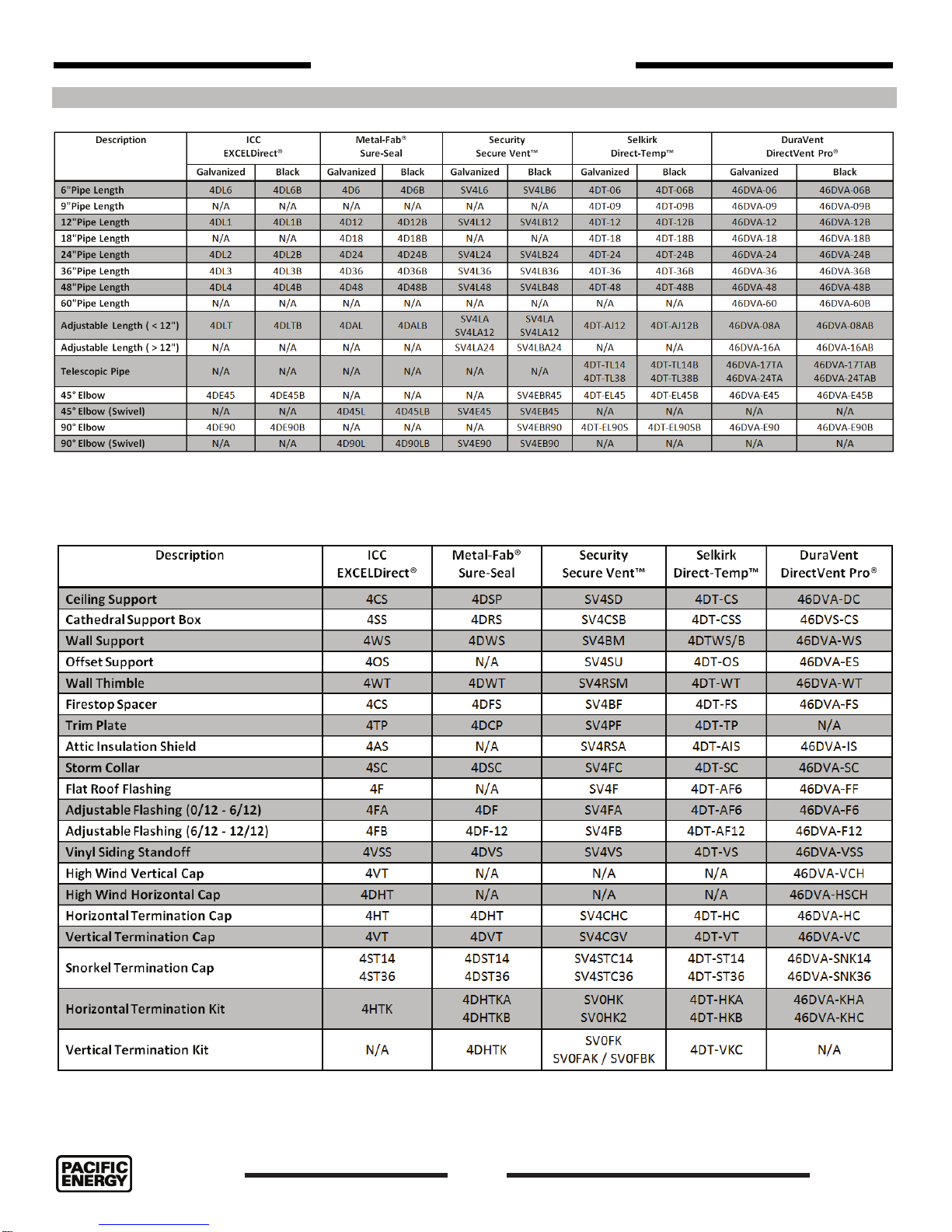

Venting Components ...................................... 10
Gas and Electrical Connections ...................... 11
Gas Supply ..................................................... 12
Gas Pressure Check....................................... 12
Gas Pressure Testing Procedure .................... 13
Pilot Adjustment.............................................. 13
Lighting Instructions ........................................14
First Fire.......................................................... 15
Special Operator Note .................................... 15

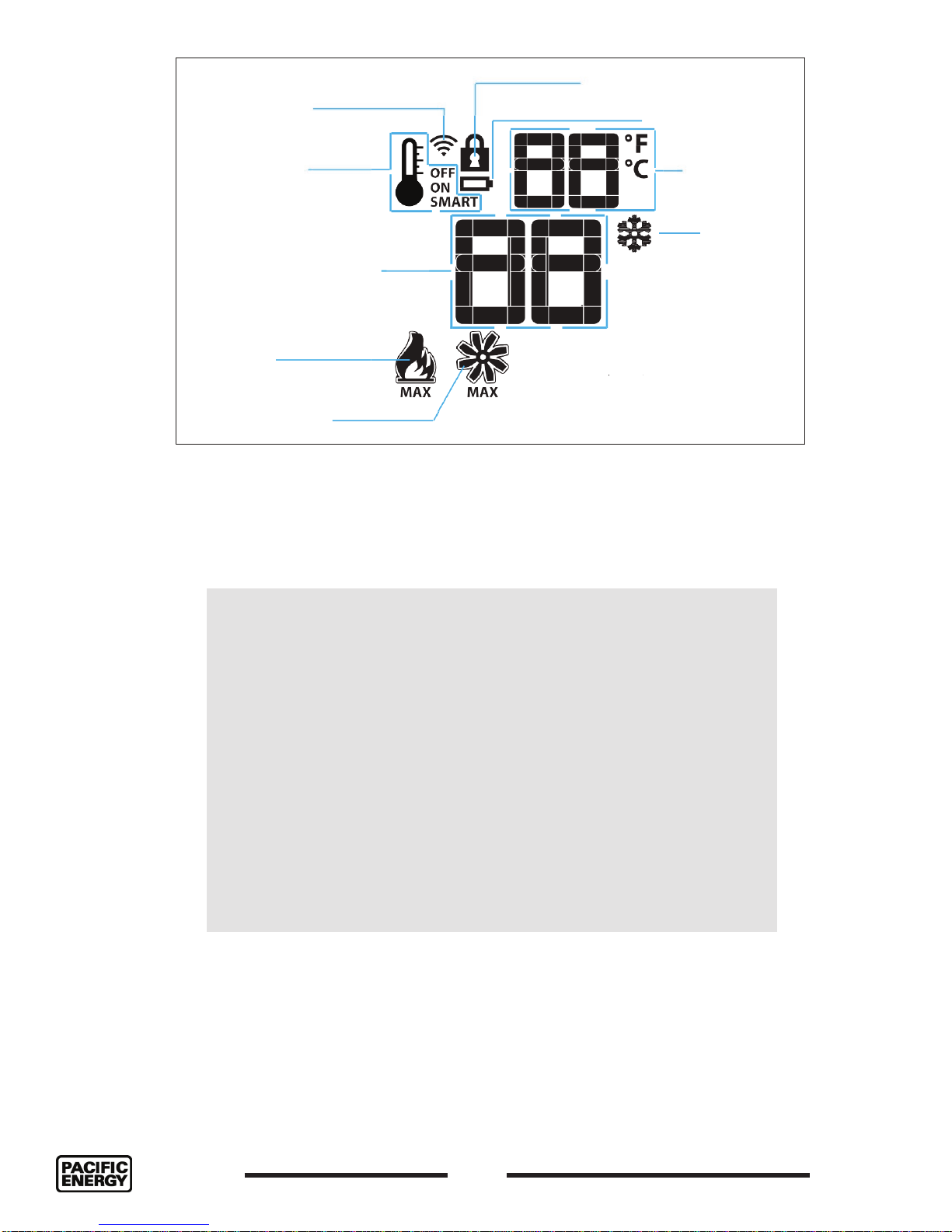

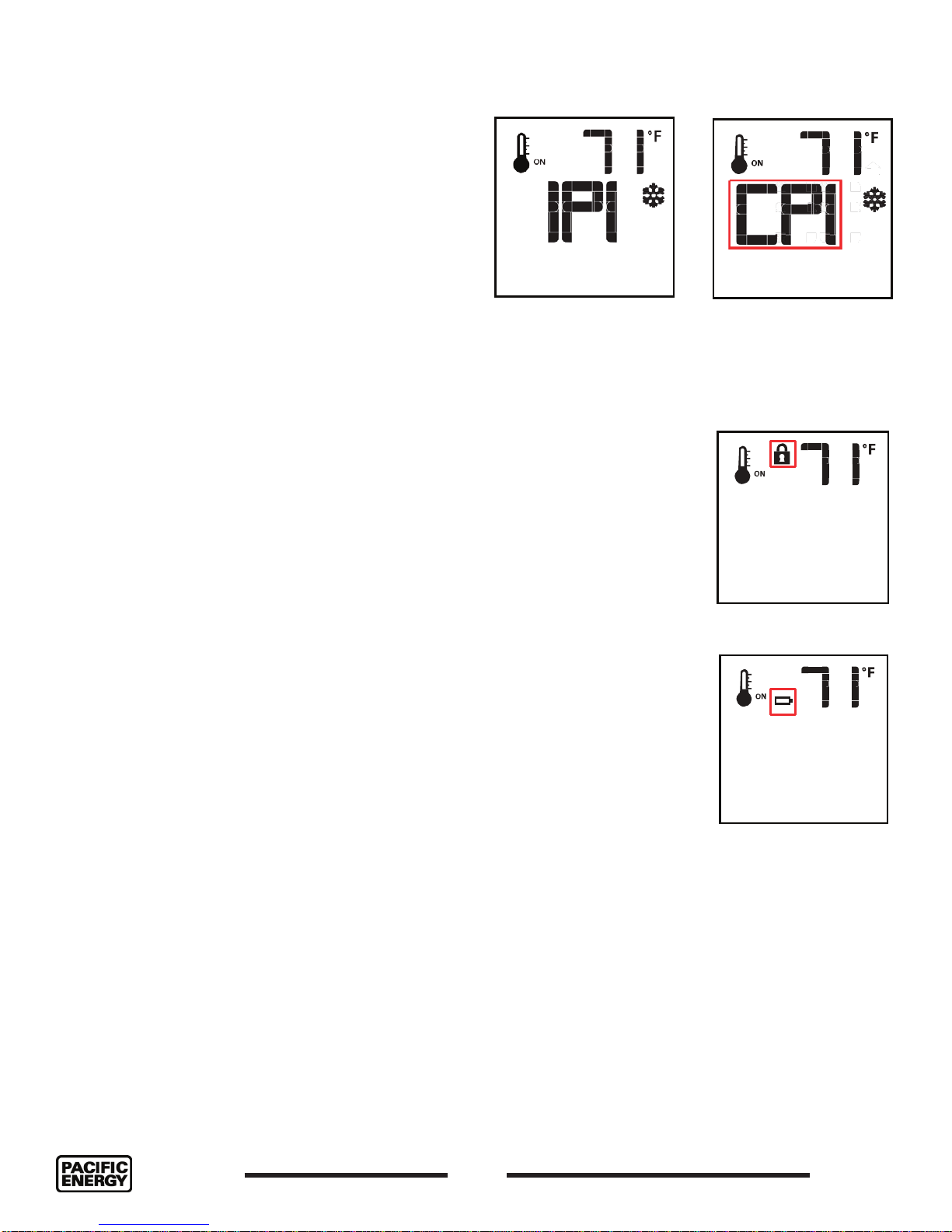

Remote Control Operation.............................. 15
Maintenance....................................................21
Propane Conversion ....................................... 22
Door Removal / Installation............................. 23
Fan Removal / Installation .............................. 23
Firebox Panel Removal / Installation............... 24
Burner Kit Installation/Removal ...................... 25
Optional Media ............................................... 26
Cladding Removal/Installation ........................ 26
Primary Air Adjustment ................................... 28
Replacement Parts......................................... 29
Wiring Diagram............................................... 30
Rating Label ....................................................31

3
110915-32 5055.MR30-A
FOR YOUR SAFETY - Do not install or operate your Pacic Energy gas
stove without rst reading and understanding this manual. Any installation or
operational deviation from the following instructions voids the Pacic Energy ™
Warranty and may prove hazardous.
This appliance and its individual shut off valve must be disconnected from gas
supply piping system during any pressure testing of that system at test pressures
in excess of 1/2 psig (3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing
its individual manual shut off valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the rst time, the appliance will emit a slight odour for a
couple of hours. This is due to the curing of paints, sealants and lubricants used
in the manufacturing process. This condition is temporary. Open doors and
windows to ventilate area. Smoke and fumes caused by the curing process may
cause discomfort to some individuals.
Do not use the gas stove if any part has been under water. Immediately call a
qualied service technician to inspect the gas stove and to replace any part of
the control system and any gas control which has been under water.
Due to high temperatures, this gas appliance should be located out of traffic and away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or
clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young
children, and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at-risk
individuals in the house. To restrict access to a replace or stove, install an adjustable safety gate to keep toddlers, young
children, and other at-risk individuals out of the room and away from hot surfaces. Clothing or other ammable material
should not be placed on or near the appliance.
Any grill, panel or door removed for servicing the unit must be replaced prior to operating. Failure to do so may create a
hazardous condition.
Installation and repair should be done by a qualied service person. The appliance should be inspected before use and
at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
It is our policy that no responsibility is assumed by the Company or by any of its employees or representatives for any
damages caused by an inoperable, inadequate, or unsafe condition which is the result, either directly or indirectly, of any
improper operation or installation procedures.
This appliance must not be connected to a chimney ue serving a separate solid fuel burning appliance.
We recommend that our gas
hearth products be installed and
serviced by professionals who are
certied in the United States by the
National Fireplace Institute®(NFI)
as NFI Gas Specialists
Caution
Safety

4
5055.MR30-A 110915-32
From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residen-
tial purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet
above nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satised.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the
installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor level
where the gas equipment is to be installed, in addition, the installing plumber or gas tter shall observe that a battery operated or hard-wired carbon
monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas
fueled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the installation of
hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard-wired carbon monoxide
detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide
detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8)
feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall
read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation un-
less, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.089(2)
(a) 1 through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fueled equipment installed in a room or structure separate from the dwelling, building or struc-
ture used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided
by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved
side wall horizontally vented gas fueled equipment does not provide the parts for venting the fuel gases, but identies “special venting systems”, the
following requirements shall be satised by the manufacturer.
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed
installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts
lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.
Important Note for the Commonwealth of Massachusetts:

5
110915-32 5055.MR30-A
Mirage 30 Dimensions
CENTER OF VENTING
9 5/16"
(237mm)
26 3/8"
(670mm)
45 13/16"
(1168mm)
27 7/16"
(646mm)
40 1/8" (1019mm)
21 3/16"
(538mm)
Figure 1: Mirage 30 Dimensions.

6
5055.MR30-A 110915-32
Clearances to Combustibles
Minimum Clearance to
Combustible Materials
In planning the installation for the stove, it is necessary to determine where the unit is to be installed, location
of vent system or a wall projection (Figure 3). Due to high temperatures, do not locate this stove in areas of high
traffic, near furniture or draperies. Also keep in mind that if the unit is positioned to its’ minimum clearances as
shown in (Figure 2), the unit may need to be moved in order to perform service, depending on the nature of
service to be performed.
Locating the Stove
4”
1”
4”
4”
4”
4”
4”
1”
1”
Vertical venting
Vertical venting
Vertical venting
Horizontal venting
Horizontal venting
Vertical venting
4”
4”
36”
4”
36”
30”
front
4”
Note on corner placement
Refer to minimum clearances
as shown in (Figure 3).
Refer to See (“Figure 4: Mirage
Venting Chart.” on page 7)
for venting allowances.
INTERIOR SIDE WALL 4”
INTERIOR BACK WALL 4”
INTERIOR CEILING 36”
IN FRONT OF HEATER 36”
VENTING CLEARANCE 1”
EXTERIOR SOFFIT 30”

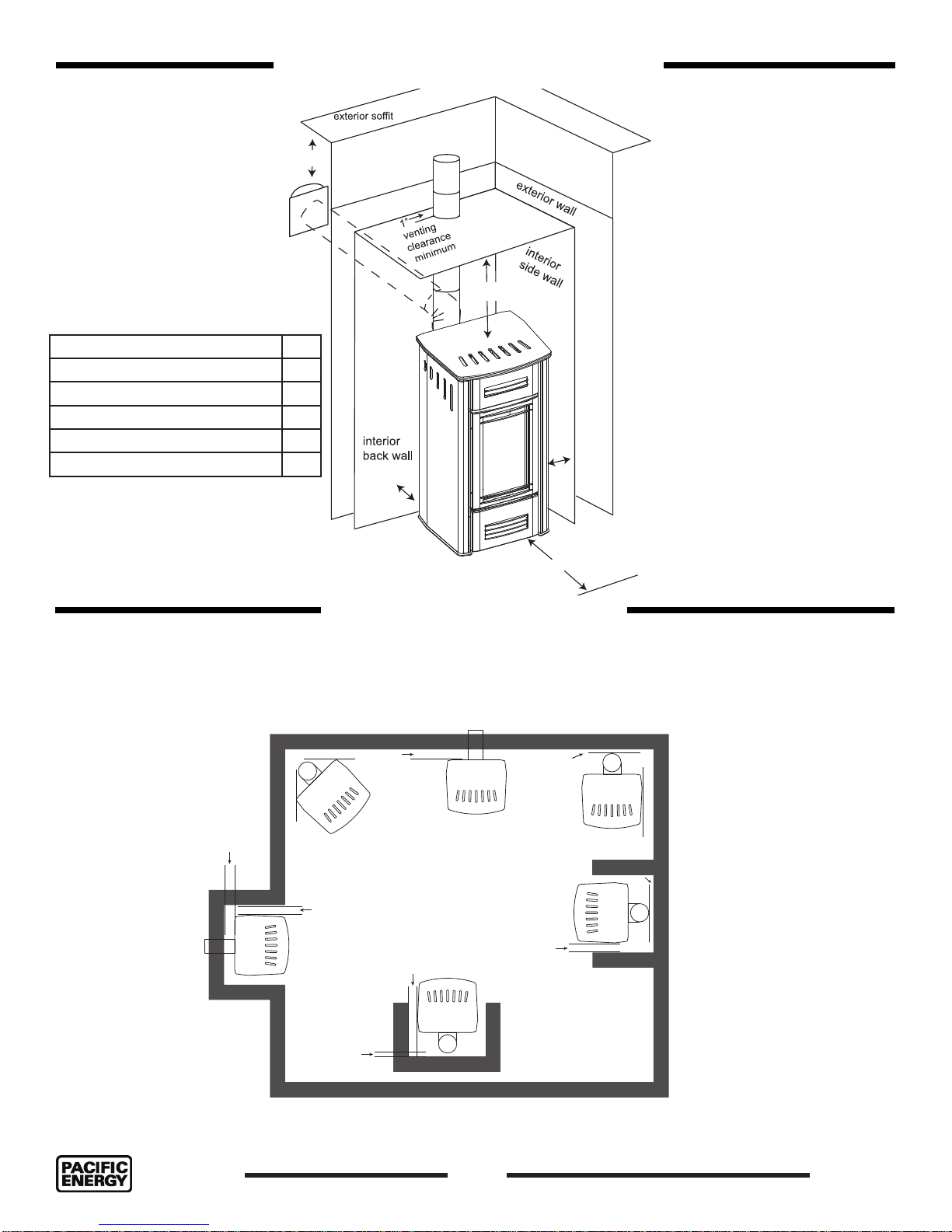

Figure 2: Mirage 30 clearance
to combustibles.
Figure 3: Mirage 30 Common locations & minimum clearances.

7
110915-32 5055.MR30-A
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
VENTING HORIZONTAL RUN
VENTING VERTICAL RISE
NO VENTING OPTION
VENTING ENVELOPE

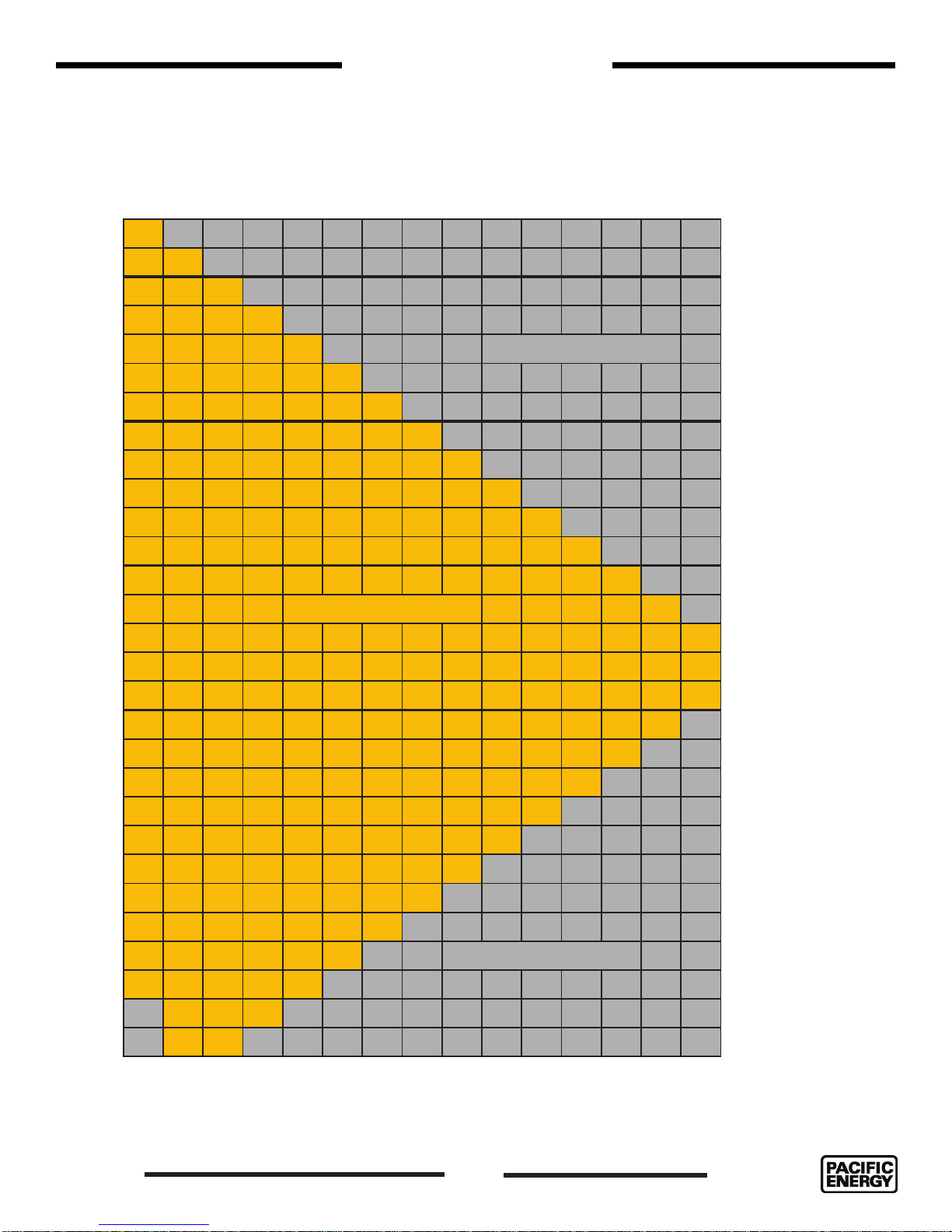

MIRAGE 18 / 30 CO-AXIAL VENTING CHART
NO VENTING OPTION
Note: The vent must
not exceed a total
length of 28 feet.
Any combination of
rise and run may be
used but must be
constrained to the
boundaries of this
chart. A Maximum of
three (3) 90° elbows
may be used. Only
one (1) 90° elbow or
combination of other
elbows equaling
90° can be used
without reducing
horizontal run. For
each additional
90° elbow, or an
equal combination
of elbows, reduce
horizontal vent run
by 2 feet. Ensure
vent pipe is properly
supported.
Co-axial Venting
The Mirage 30 can be vented using co-axial components, or co-linear components for venting
through an existing replace and chimney. Maximum and minimum venting lengths can be found
on the venting charts - co-axial (Figure 4) & co-linear (Figure 5).
Figure 4: Mirage Venting Chart.

8
5055.MR30-A 110915-32
1. Measure chimney height, cut ex liner (min.10’
to termination) as required. Mark one pipe at
both ends to identify combustion air intake pipe
from ue outlet pipe.
2. Attach marked ex liner pipe to the intake side
of vent terminal. Seal and secure with sealant
and screws provided. Attach the other pipe
to the outlet side of vent terminal. Seal and
secure with sealant and screws provided.
3. Insert both ex liners from top of the chimney,
down through the damper opening.
4. Before attaching vent terminal to top of chimney,
apply a bead of caulking to top of clay liner. Slip
vent terminal over liner and secure in place with
lateral retaining bolts.
5. For larger chimneys, ashing will need to be
constructed according to local building codes.
Intake
Air
Exhaust
Air
Co-Linear Venting
Figure 5: Mirage co-linear venting.
NOTE:
If venting the Mirage 30 through an existing
replace opening using a co-axial to co-linear
adapter, the customer will have a couple of
aesthetic options which include:
1. sealing up the existing replace opening
with a cover or other material, leaving
room in the cover or other material to
accomodate the adapter so that it is
positioned ush (Figure 5) with the cover
or other material.
2. Position the Mirage 30 so that it and
the adapter are located outside of the
existing replace opening.
Co-Axial to
Co-Linear
adapter
Co-Linear Venting Notes:
• Mirage 30 requires a 3
inch diameter exhaust
vent and a 3 inch
intake vent.
• Max. Vent Height 50’
(15.25M) to termination
• Min. Vent Height 10’ (3m)
to termination.
High wind cap
Prairie cap
Simpson Duravent High-Wind (cap style) Co-Linear
Kit w/Flex (46DVA-CL34) or Simpson Duravent Prairie
(cap style) Co-Linear Kit w/Flex (46DVA-CL34P) are
recommended for use with this appliance.
Visit http://www.duravent.com for kit details.

9
110915-32 5055.MR30-A
M
K
I
A
V
G
G
H
A
J
V
G
A
B
C
A
V
V
A
V
B
F
B
L
V
E
V
V
V
D
B
B
AIR SUPPLY INLET
VENT TERMINAL GAS METER
FIXED
CLOSED
FIXED
CLOSED OPEN-
ABLE
OPEN-
ABLE
AREA WHERE TERMINAL
IS NOT PERMITTED
A= *12 inches (30 cm) min. Clearances above grade, veranda, porch, deck, or balcony
B= *12 inches (30 cm) min. Clearance to window or door that may be opened
C= 12 inches (30 cm) min. Clearance to permanently closed window recommended to prevent condensation on window
D= 30 inches (76 cm) min. Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (60 cm) from the
edge of the terminal
E= 30 inches (76 cm) min. Clearance to unventilated soffit
F= 8 inches (15 cm) min. Clearance to outside corner
G= 8 inches (15 cm) min. Clearance to inside corner
H= 3 feet (90 cm) min. *Not to be installed above a meter/regulator assembly within 3 feet (90 cm) horizontally from the center-line of the
regulator
I= *6 feet (1.8 m) min. Clearance to service regulator vent outlet
J= *12 inches (30 cm) min. Clearance to non mechanical air supply inlet to building or the combustion air inlet to any other appliance
K= *6 feet (1.8 m) min. Clearance to a mechanical air supply inlet
L= *7 feet (2.1 m) min. ^ Clearance above paved side-walk or a paved driveway located on public property
M= **30 inches (76 cm) min Clearance under veranda, porch, deck, or balcony
^ a vent shall not terminate directly above a side-walk or paved driveway which is located between two single family dwellings and serves both dwellings*
** only permitted if veranda, porch, deck, or balcony is fully open on a minimum of 2 sides beneath the oor*
* as specied in CAN/CSA B149.1 Installation Codes, Note: local Codes or Regulation may require different clearances
* for U.S.A. Installations follow the current National Fuel Gas Code, NFPA54/ANSI Z223.1
Vent Terminal Minimum Clearances
This stove is certied for use with 4” x 6-5/8”co-axial venting, and co-linear venting components. It is permitted to only
use certied venting for this stove. See charts (Figure 8) & (Figure 9) for a list of approved co-axial venting components.
For co-linear venting, use approved co-axial to co-linear adapter and 3” venting material - (See page 8).
Figure 6: Minimum exterior clearances
Figure 7: Co-axial venting components.

10
5055.MR30-A 110915-32
Venting Components
NOTE: Mixing venng components from different manufacturers is inadvisable.
4” x 6 5/8” Rigid Piping Components Cross Reference
4” x 6 5/8” Rigid Pipe Components Cross Reference Chart
Figure 8: Venting Components 1.
Figure 9: Venting Components 2.

11
110915-32 5055.MR30-A
Gas and Electrical Connections
Gas connection
Electrical connection
Plug the provided IEC power cord into the receptacle at the rear of the unit as
shown in (Figure 10). The battery holder and manual “ON/REMOTE/OFF” switch
is also located here. See details of operation on page 17.
Connect the gas supply line to the 1/2” are tting at the rear of the unit as seen in
(Figure 10). Please see the gas supply section of the manual for requirements of
the gas supply.
Electrical connection
Gas connection
Battery holder
face plate and
manual “ON//
REMOTE/OFF”
switch
Battery holder
Figure 10: Gas and Electircal connection.
PRG reset

12
5055.MR30-A 110915-32
Servicing of the stove can be performed from the rear of the unit by removing the access panel from the unit.
Caution: The gas line should be installed by a qualied service person in accordance with all building codes.
This section is intended as a guide for qualied technicians installing this stove. Consult local and/or national
building codes before proceeding.
• Gas supply line connection is located on the rear of the stove. Gas connection accepts a ½” 45° are tting.
Correct gas line diameter must be used to assure proper operation and pressure.
• The stove input rating is shown in the chart below.
• A drip leg must be installed in the gas supply line going to the gas control valve to minimize the possibility of
any loose scale or dirt within the gas supply line from entering the control valve.
• It is essential that a union or anged connection be installed just upstream of the valve to allow for repair or
replacement of the gas valve.
Check local codes for additional requirements.
Turn on the gas supply and check that all connections are tight and leak free.
Gas Supply
Mirage
Gas Orice Output AFUE
NG 1.98mm 30,000 btu/hr 72%
LP 1.25mm 28,000 btu/hr 72%
Please refer to following page for gas pressure testing procedure.
Gas Pressure Check
Gas pressure requirements
Input Pressure Natural Gas Propane
Minimum 4.0” WC 11.0” WC
Maximum 13.9” WC 13.9” WC
Manifold Pressure
High 3.5” WC 10” WC
Low 1.6” WC 6.4” WC

13
110915-32 5055.MR30-A
Note:To test the gas pressure, turn off the gas supply to the stove before loosening
test point screws. Verify gas pressures with the stove lit and at the highest setting.
1. Remove switch cover and back panel and locate the valve as seen in (Figure 11).
2. Locate the inlet and outlet test points on the valve which can be seen in (Figure 12).
After locating test ports loosen the screws within the ports using a at-tip screwdriver.
3. Attach pressure gauge to the test ports.
4. Turn gas supply back on and test pressures.
5. After testing is nished turn off gas supply, remove the pressure gauges and re-tighten
the screws in the test points.
Gas Pressure Testing Procedure
The pilot ame level can
be adjusted by turning the
adjustment screw, using a at-tip
screwdriver, seen on the valve in
Figure 12.
Pilot Adjustment
Pilot adjustment screw Main gas solenoid Pilot solenoid
Outlet pressure test point Inlet pressure test point
Pressure modulator
device
Figure 11: Valve & IFC module location.
Figure 12: valve.

14
5055.MR30-A 110915-32
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN OFF GAS APPLIANCE
WARNING:
If you do not follow these instructions exactly, a
fire or explosion may result causing property damage,
personal injury or loss of life.
A.This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot by hand.
B.BEFORE LIGHTING smell all around the appliance area for gas. Be
sure to smell next to the floor because some gas is heavier than
air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
- Do not try to light any appliance.
- Do not touch any electric switch; do not use any phone in your
building.
- Immediately call your gas supplier from a neighbour's phone. Follow
the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.
C.Use only your hand to push in or turn the gas control knob. Never use
tools. If the knob will not push in or turn by hand, don't try to repair it,
call a qualified service technician. Force or attempted repair may
result in a fire or explosion.
D.Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance & to replace any part of the control system & any gas
control which has been under water.
1. STOP! Read the safety information above on this label.
2. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot by hand.
3. Push the "On/ Off" switch to turn the fireplace ON.
- If the burner does light go to step 6.
- If the burner does not light, complete steps 4 through 5.
- If the burner will not light or stay lit after several tries, push the
"On/ Off" switch for the fireplace to OFF, turn off all electric power
to the fireplace and call your service technician or gas supplier.
Note: Sufficient time must be allowed for air to escape from lines if
the unit is being lit for the first time.
4. Push the "On/ Off" switch to the fireplace Off.
5. Allow sufficient length of time (minimum 5 minutes) for any gas in the
combustion chamber to escape. If you still smell gas, STOP! Follow
"B" in the safety information above on this label. If you don't smell
gas, go to step 3.
6. Set fireplace to desired setting by using hand held remote.
1.
Push the "on/ off" switch to the "Off" position.
2. Turn off all electric power to the appliance and remove backup
batteries if service is to be performed or for extended shutdown.
Due to high surface temperatures, keep children, clothing and furniture away. Keep burner and control compartment clean. See installation and
operating instructions accompanying the appliance.
A cause de la temperature elevee des parios, tenir eloignes les enfants, les vetements et les meubles. Maintenir propres le bruleur et le
compartiment de commande. Voir les instructions relatives a l'installation et au fonctionnement qui accompagnent l'appareil.
CAUTION:
Hot while in operation. Do not touch. Severe burns may result. Keep children,
clothing, furniture, gasoline and other liquids having flammable vapours away. Keep burner and control
compartment clean. See installation and operating instructions accompanying the appliance.
ATTENTION:L'appareil est chaud lorsqu'il fonctionne. Ne pas toucher l'appareil. Risque de
brûlures graves. Serveiller les enfants. Garder les vêtements, le meubles, l'essence ou autres liquides
produisant des vapeurs infl ammables loin de l'appareil. S'assurer que le brûleur et le compartiment des
commandes sont propres. Voir les instructions d'installation et d'utilisation qui accompagnent l'appareil.
050615
5051.185
MR30/G963
Lighting Instructions
Figure 13: Mirage 30 Lighting Instructions.

15
110915-32 5055.MR30-A
First Fire
When lit for the rst time, the gas stove will emit a slight odour for a couple of hours. This is due to the curing
of paints, sealants and lubricants used in the manufacturing process. This condition is temporary. Open
doors and windows to ventilate area. Odours caused by the curing process may cause discomfort to some
individuals.
It is normal for stoves fabricated of steel to give off some expansion and/or contraction noises during the start
up or cool down cycle. Similar noises are found with your furnace heat exchanger or cook stove oven.
Remote Control Operation
NOTE: Fireplace may
take up to 30 seconds
to ignite each time the
“ON” button has been
selected.
Special Operator Note
Blue back lit LCD display
ON/OFF Key
THERMOSTAT Key
UP/DOWN Arrow Key
MODE Key
Figure 14: Proflame2remotecontrolhandset.

16
5055.MR30-A 110915-32
Key Lock
Transmission Low battery alarm
Thermostat OFF/
ON/SMART
Room
Temperature
CPI mode
Set Point:
Temperature/Level/State
Flame ON
Comfort fan
Attention!
• Turn off the main gas supply for the appliance during installation or
maintenance of the receiver/module device.
• Turn off main gas supply for the appliance prior to removing or
reinserting the batteries.
• In case of remote control malfunction, turn off the replace using
the “on/off” main switch located on back of stove.
• For installation/maintenance, turn off the replace at the on/off
switch located on the back of the unit and at the replace power
supply circuit breaker.
Figure 15: Proflame2LCDscreendetail.

17
110915-32 5055.MR30-A
Remote Transmitter Description
The Proame2 Remote Control consists of two elements:
1. Proame2 Remote Control Transmitter.
2. Proame Integrated Fireplace Control (IFC Module) board and a wiring harness to connect the IFC to the gas
valve and stepper motor (Figure 11).
Transmitter (Remote Control with LCD Display)
The Proame2 Transmitter uses a streamline design with a simple key layout and an informative LCD display (Figure 15).
The remote control transmitter is powered by 3 AAA batteries. A mode key is provided to index between the features and a
thermostat key is used to turn on/off or index through thermostat functions (Figure 14).
IFC Module
The Proame2 Integrated Fireplace Control (IFC) module is a device that allows automatic ignition and pilot ame
supervision and commands the functions of the replace. It’s congured to control the ON/OFF main burner operation,
giving the choice of both IPI (intermittent pilot ignition), and CPI (continuous pilot ignition) modes. The Proame 2 IFC
module controls and connects directly to the pilot assembly and the automatic valve using low electric power.
The IFC module can be powered by both an AC power supply, and battery pack for back up. The Proame 2 offers the
added ability to control the comfort fan speed from OFF through six (6) speeds. The external batteries can provide DC
power to the IFC allowing the batteries to be used only when line power is interrupted or lost.
Operating Procedure
Initializing the Fireplace for the rst time
1. With the gas stove power plug unplugged and the main switch - located in the rear of the stove, turned to the
OFF position, remove the switches’ face plate and install 4 AA batteries into the battery holder (Figure 10).
Once the batteries are installed and the switches’ face plate reattached, turn the selection switch to
“Remote” setting.
2. Install 3 AAA batteries into the Proame2 Remote Control Transmitter (Figure 16).
3. Plug the power plug in and turn on the gas supply.
4. Insert a straightened paper clip into the opening marked “PRG” of the switches’ face plate (Figure 10) and
press the program key once (alternately, if the face plate is already off, simply press the “PRG” button on the
battery holder). The IFC module, also located on the inside of the gas stove enclosure, will beep 3 times indicating
that it is ready to synchronize with a remote control transmitter.
5. On the remote control transmitter, push the power on key once. The remote control transmitter will beep 4 times
to indicate that the remote control transmitter and the IFC module are now synchronized. The remote control
transmitter is now ready to use.

18
5055.MR30-A 110915-32
Using the Remote Control Transmitter
Temperature indication Display
With the remote control transmitter in the “OFF” position, press the
thermostat and mode keys at the same time. Look at the LCD screen
on the remote control transmitter to verify that a C or F is visible to the
right of the room temperature display. (Figure 17) & (Figure 18).
Turn on the Stove
With the stove OFF, press the ON/OFF key on the remote control transmitter.
The remote control transmitter display will show the active icons on the screen.
At the same time the wall switch will activate the stove via the IFC module. A
single “beep” from the IFC module will conrm reception of the command.
Turn off the Stove
With the stove ON, press the ON/OFF key on the remote control transmitter.
The remote control transmitter LCD display will only show the room temperature
(Figure 17) & (Figure 18). At the same time the IFC module will turn off the stove.
A single “beep” from the IFC module conrms reception of the command.
Manual Bypass of the Remote Control Transmitter
If the batteries of the remote control transmitter are low or depleted, the gas
stove can be turned off manually using ON/OFF switch located on rear of the
gas stove (Figure 10). This will bypass the remote control transmitter.
Remote Flame Control
The Proame2 has six (6) ame levels (Figure 19). With
the gas stove turned on, and the ame level at maximum
height, press the down arrow key once to reduce the
ame height by one step until the ame is turned off.
The up arrow key will increase the ame height each
time it is pressed. If the up arrow key is pressed while
the gas stove is on but the ame is off, the ame will
come on in the high position. A single “beep” will
conrm reception of the command.
Flame level OFF Flame level 1
Flame level 5 Flame level MAX
Figure 16: Proflame2
remote control battery bay.
Figure 17: Display in
Fahrenheit.
Figure 18: Display in
Celsius.
Figure 19: Flame level control.

19
110915-32 5055.MR30-A
ROOM THERMOSTAT (Transmitter Operation)
The remote control transmitter can operate as a room thermostat. The
thermostat can be set to a desired temperature to control the comfort level in
a room. To activate this function, press the thermostat button (Figure 14), the
LCD display on the remote control transmitter will change to show that the
room thermostat is “ON” and the set temperature is now displayed
(Figure 20). To adjust the set point, press the up or down arrow button until the
desired set point temperature is displayed on the LCD screen of the remote
control transmitter.
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the ame height in accordance to the
difference between the set point and the room temperatures. As the room
temperature gets closer to the set point, the Smart Function will modulate the
ame down. If the room temperature is cool, the Smart Function will modulate
the ame up. To activate this function, press the THERMOSTAT button
(Figure 14) until the word “SMART” appears to the right of the temperature
icon (Figure 21). To adjust the set point, press the up or down arrow buttons
on the handset until the desired set point temperature is displayed on the LCD
screen of the remote control transmitter (Figure 22).
Comfort Fan Speed Control
If the Stove is equipped with a hot air circulating fan, the speed of the fan
can be controlled by the Proame2 System. The fan speed can be adjusted
through six (6) speeds (Figure 23). To activate this function use the Mode Key
(Figure 14) to index to the fan control icon (Figure 24). Use the Up/Down
Arrow Keys (Figure 14) to turn on, off or adjust the fan speed(Figure 23). A
single “beep” will conrm reception of the command.
Figure 20: Room
temperature.
Figure 21: Smartflame
function MAX temp.
Figure 22: Smartflame
adjusting temperature.
Figure 23: Comfort fan
max. Figure 24: Comfort fan off.

20
5055.MR30-A 110915-32
Continuous Pilot/Intermittent Pilot (CPI/IPI)
selection
With the system in the “OFF” position, press the
Mode Key (Figure 14) to index to the CPI mode icon
(Figure 25). Pressing the Up Arrow Key will activate the
Continuous Pilot Ignition mode (CPI). Pressing the Down
Arrow Key will return to IPI. A single “beep” will conrm
the reception of the command.
Low Battery Power Detection
Transmitter
The life span of the remote control batteries depends on various factors: quality of the
batteries used, the number of ignitions of the Stove, the number of changes to the room
thermostat set point, etc.
When the remote control transmitters’ batteries are low, an icon will appear on the LCD
display (Figure 27) of the remote before all battery power is lost. When the batteries are
replaced this icon will disappear.
Receiver
The life span of the IFC module batteries depends on various factors: quality of the
batteries used, the number of ignitions of the Stove, the number of changes to the room
thermostat set point, etc.
When the IFC batteries are low, a “double-beep” will be emitted from the IFC module
when it receives a command from the remote. This is an alert for a low battery condition
for the IFC module. When the batteries are replaced, a single “beep” will be emitted from
the IFC module when a key is pressed - See (“Initializing the Fireplace for the rst time”
on page 17).
Key Lock
This function will lock the keys to avoid unsupervised operation. To activate this function,
press the MODE and UP keys at the same time (Figure 14).The lock icon will appear
(Figure 26). To deactivate this function, press the MODE and UP key at the same time.
Figure 25: IPI - CPI control.
Figure 26: Key lock.
Figure 27: Low battery.
