Pacific energy SUPER 27 SPECTRUM User manual

071111-20 SUPER-SD1 5055.201
INSTALLATION
AND OPERATING
INSTRUCTIONS
SAFETY NOTICE
If this stove is not properly installed, a
house re may result. For your safety,
follow the installation instructions. Contact
local building or fire officials about
restrictions and installation inspection
requirements in your area.
TESTED and LISTED to CAN/ULC S627
AND UL 1482
Meets the Environmental Protection
Agency's July 1990 Particulate Emission
Standards
IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER
MODEL - SUPER 27
SPECTRUM
SPECTRUM CLASSIC
DESIGN-D

2 SUPER-SD1 07 1111-2 0
PLEASE SAVE THESE INSTRUCTIONS
NOTE: WE STRONGLY RECOMMEND THAT SMOKE DETECTORS BE INSTALLED.
If smoke detectors have been previously installed, you may notice that they are operating more frequently. This may
be due to curing of stove paint or fumes caused by accidentally leaving the re door open. Do not disconnect the
detectors. If necessary, relocate them to reduce their sensitivity.
SAFETY NOTICE: If this stove is not properly installed, a house re may result. For your safety, follow the
installation instructions. Contact local building or re officials about restrictions and installation inspection
requirements in you area.
Please read this entire manual before you install and use your new room heater. Failure to follow instructions may
result in property damage, bodily injury, or even death.
Contents
Safety and Maintenance...................................................................................... 3
Creosote ............................................................................................................... 4
Formation and Need for Removal.......................................................................................4
Chimney Fires..................................................................................................................... 4
In Case of a Chimney Fire .................................................................................................. 4
Avoiding a Chimney Fire.....................................................................................................4
Assembly.............................................................................................................. 5
Crate Removal.................................................................................................................... 5
Optional Ash Cleanout System -(Install rst) ......................................................................5
Pedestal Kit......................................................................................................................... 5
Leg Kit ................................................................................................................................ 5
Mobile Home Installation .................................................................................... 6
Clearances .........................................................................................................................6
Procedure:...........................................................................................................................6
Listed Chimney and Chimney Connector ...........................................................................7
Residential Installation ....................................................................................... 8
Clearances .........................................................................................................................8
Chimney and Connector .....................................................................................................8
Double-Wall Connector....................................................................................................... 8
Single-Wall Connector ........................................................................................................8
Procedure ...........................................................................................................................8
Floor Protector..................................................................................................... 9
Combustion Air.................................................................................................... 9
Operation............................................................................................................ 10
Over Firing ........................................................................................................................ 10
Wood Selection................................................................................................................. 10
How to Test Your Wood ..................................................................................................... 10
Lighting for the First Time ................................................................................................. 10
Lighting a Fire ................................................................................................................... 10
Normal Operation ............................................................................................................. 10
Restarting After Extended or Overnight Burns.................................................................. 11
More Wood, More Heat..................................................................................................... 11
Proper Draft ...................................................................................................................... 11
Ash Removal ....................................................................................................................11
Disposal of Ashes ............................................................................................................. 11
Baffle Removal ................................................................................................... 11
Removal............................................................................................................................ 11
Optional Blower ................................................................................................. 12
Blower Operation.............................................................................................................. 12
Optional Outside Air Adaptor ............................................................................................ 12
Appendix A......................................................................................................... 13
Troubleshooting ................................................................................................................13
Replacement Parts - Super 27 ......................................................................................... 14
Replacement Parts - Spectrum and Spectrum Classic .................................................... 15
Understanding & Operating Your Pacic Energy Stove..................................................... 16
Pedestal or Legs Installation Instructions ......................................................................... 17
NOTES ................................................................................................................ 18
Label................................................................................................................................. 19

07 1111-20 SUPER-SD1 3
Safety and
Maintenance
1. Burn wood only, dry and well seasoned. The denser or
heavier the wood when dry, the greater its heat value.
This is why hardwoods are generally preferred. Green
or wet wood will cause a rapid buildup of creosote.
If you feel it is necessary to burn wet or unseasoned
wood, do so only with the air inlet set open enough
to maintain a good strong re and fairly high chimney
temperatures. Do not attempt to burn overnight using
green wood or wet wood. Wet wood can cause up
to 25% drop in heater output, as well as contributing
signicantly to creosote buildup.
WARNING: Never use chemicals or any other
volatile liquid to start a re. Do not burn garbage,
or ammable uids such as gasoline, naptha, or
engine oil. We strongly recommend that smoke
detectors be installed.
2. Remove ashes frequently. Embers can roll out the
door and create a re hazard. Maintain a 1" minimum
ash base.
3. If glass becomes darkened through slow burning or
poor wood, it can readily be cleaned with replace
glass cleaner when stove is cold. Never scrape with
an object that might scratch the glass. The type and
amount of deposit on the glass is a good indication
of the ue pipe and chimney buildup. A light brown
dusty deposit that is easily wiped off usually indicates
good combustion and dry, well-seasoned wood and
therefore relatively clean pipes and chimney. On the
other hand, a black greasy deposit that is difficult to
remove is a result of wet and green wood and too
slow a burning rate. This heavy deposit is building
up at least as quickly in the chimney.
WARNING: ONLY USE MATERIALS SUPPLIED BY
MANUFACTURER WHEN DOING MAINTENANCE
OR REPLACEMENTS.
4. DOOR GASKETS -The gasket used by Pacic Energy
(7/8" medium density berglass rope) requires only
light pressure to seal. This will prolong seal life. It is
important that the door seal be maintained in good
condition. Periodically inspect seals and replace if
necessary. Follow instructions included in the DR31.
WDGKIT kit obtainable from your nearest Pacic
Energy dealer.
5. DOOR GLASS - Do not slam loading door or otherwise
impact glass. When closing door, make sure that no
logs protrude to impact the glass. If the glass gets
cracked or broken, it must be replaced before us-
ing the stove. Replacement glass can be obtained
from your dealer. Use 8-13/16" x 15-1/4" x 5 mm.
Ceramic glass only. Do not substitute with any
other type.
To remove broken glass, undo the four retaining screws
and remove clamps and frame, noting position for re-
assembly. Remove all particles of glass . Be careful as
they are very sharp. Install new glass complete with
gasket. Replace frame, clamps and screws.
CAUTION:
- do not overtighten, tighten screws very carefully
- do not clean glass when hot
- do not use abrasive cleaners on glass
6. The area where boost combustion air enters the
rebox must be kept clear of excessive ash buildup
which will block air ow. This area is at the front of
the rebox.
7. Do not store wood within heater installation clearances,
or within the space required for fuel loading and ash
removal. Keep the area around the heater clean and
free of loose combustibles, furniture, newspapers,
etc.
8. If gold door requires cleaning, use mild soap and
water only. Use of abrasive cleaners will void war-
ranty.
9. Establish a routine for the fuel, woodburning and r-
ing technique. Check daily for creosote buildup until
experience shows how often you need to clean to be
safe.
10. Be aware that the hotter the re, the less creosote
is deposited. Weekly cleaning may be necessary in
mild weather, even though monthly cleaning is usually
enough in the coldest months when burning rates are
higher.
11. Instruct all members of your family on the safe
operation of the heater. Ensure they have enough
knowledge of the entire system if they are expected
to operate it. Stress the section on chimney res
and the importance of following the steps outlined
"In Case of Chimney Fire".

4 SUPER-SD1 07 1111-2 0
Creosote
Formation and Need for Removal
When wood is burned slowly, it produces tar and other
organic vapours, which combine with expelled moisture
to form creosote. The creosote vapours condense in the
relatively cool chimney ue of a slow burning re. As a
result, creosote residue accumulates on the ue lining.
When ignited, this creosote makes an extremely hot re.
The chimney connector and chimney should be inspected
periodically (at least once every two months) during the
heating season to determine if a creosote buildup has
occurred.If creosote has accumulated (3 mm.or more), it
should be removed to reduce the risk of a chimney re.
1. Highest smoke densities occur when a large amount of
wood is added to a bed of hot coals and the air inlet is
closed. The heated wood generates smoke, but without
ample air, the smoke cannot burn. Smoke-free, clean
burning requires small fuel loads, two or three logs at
a time or 1/4 to 1/2 of fuel load and leaving the air inlet
relatively wide open, especially during the rst 10 to 30
minutes after each loading, when most of the smoke
generating reactions are occurring. After 30 minutes
or so, the air inlet can be turned down substantially
without excessive smoke generation. Wood coals
create very little creosote-producing smoke.
2. The cooler the surface over which the wood smoke is
passing, the more creosote will be condensed. Wet
or green wood contributes signicantly to creosote
formation as the excess moisture that is boiled off
cools the re, making it difficult for the tars and gases
to ignite, thus creating dense smoke and poor combus-
tion. This moisture-laden smoke cools the chimney,
compounding the problem by offering the smoke the
ideal place to condense.
In summary, a certain amount of creosote is inevitable
and must be lived with. Regular inspection and clean-
ing is the solution. The use of dry, seasoned wood
and ample combustion air will help to minimize the
buildup.
Chimney Fires
The result of excessive creosote buildup is a chimney re.
Chimney res are dangerous. Chimney inside tempera-
tures can exceed 2000° F. This causes much higher than
normal temperatures in the chimney and on its exterior
surfaces. Thus ignition of nearby or touching combusti-
ble material is more likely during a chimney re. Proper
clearances are critical during such a re.
Chimney res are easy to detect; they usually involve one
or more of the following:
-Flames and sparks shooting out of the top of the
chimney
-A roaring sound
-Vibration of the chimney
In Case of a Chimney Fire
1. Prepare to evacuate to ensure everyone's safety. Have
a well understood plan of action for evacuation. Have
a place outside where everyone is to meet.
2. Close air inlet on stove.
3. Call local re department. Have a re extinguisher
handy. Contact your local municipal or provincial re
authority for further information on how to handle a
chimney re. It is most important that you have a
clearly understood plan on how to handle a chimney
 r e .
4. After the chimney re is out, the chimney must be
cleaned and checked for stress and cracks before
starting another re. Also check combustibles around
the chimney and the roof.
-The services of a competent or certied installer, (certied
by the Wood Energy Technical Training program (WETT)
- in Canada, Hearth Education Foundation (HEARTH) - in
U.S.A.,) are strongly recommended.
Avoiding a Chimney Fire
There are two ways to avoid chimney res:
1. Do not let creosote build up to a point where a big
chimney re is possible.
2. Do not have res in the heater that may ignite chim-
ney res. These are hot res, such as when burning
household trash, cardboard, Christmas tree limbs,
or even ordinary fuel wood; (e.g.. with a full load on
a hot bed of coals and with the air inlet excessively
open.)

07 1111-20 SUPER-SD1 5

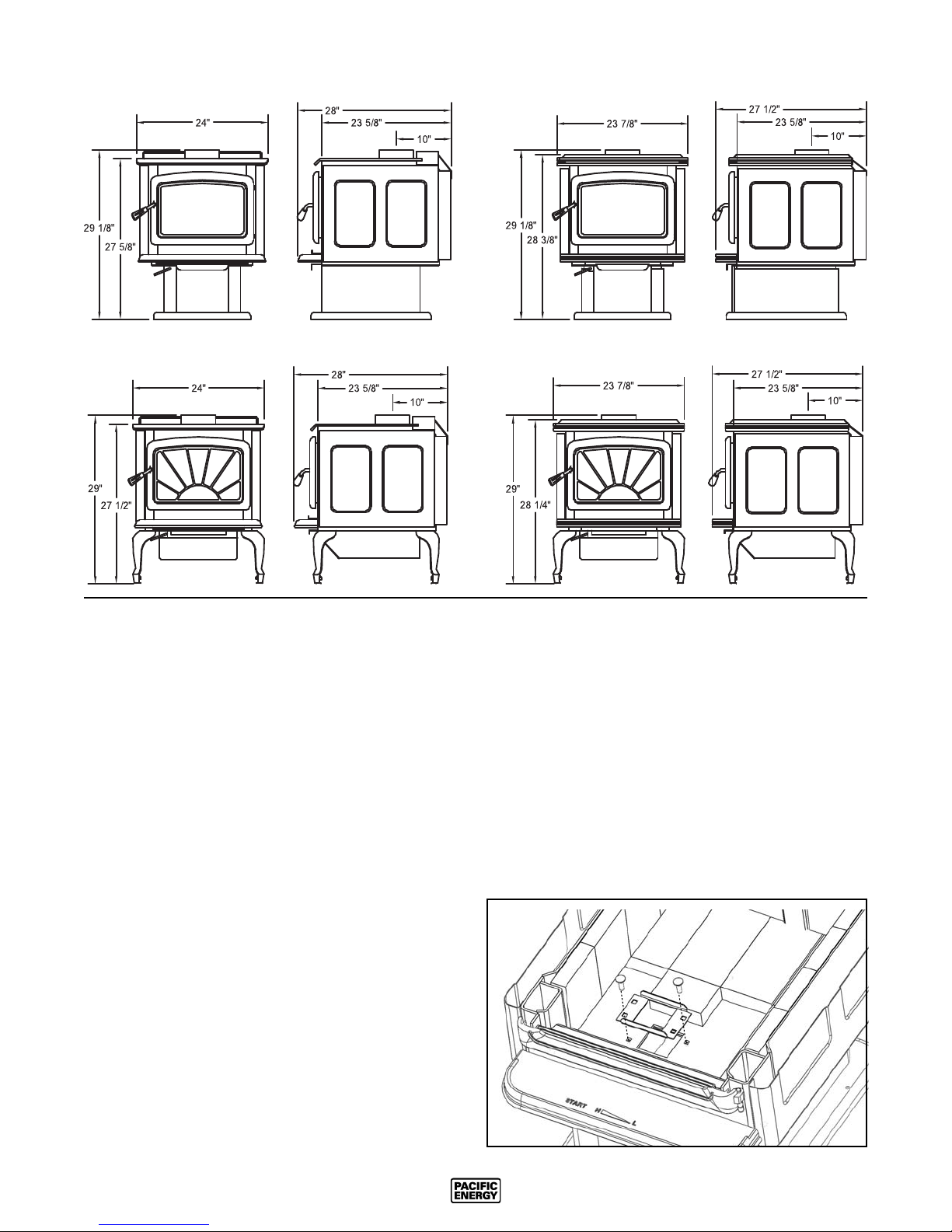

Super 27 - Pedestal Model Spectrum
Super 27 - Leg Model Spectrum Classic
2) Secure in place with 1" x 1/2" bolts previously re-
moved.
3) Carefully place the unit in the upright position.
Leg Kit
1) With the unit on its back, align the ash drawer enclo-
sure mounting holes (removable cover facing up) with
the holes on the stove.
2) Position the legs over top of the same holes on the
stove.
2) Secure in place with 1" x 1/2" bolts previously re-
moved.
3) Carefully place the unit in the upright position.
- Super 27 only -
Assembly
Crate Removal
1) Carefully remove wood top and supports.
2) Remove plastic cover.
3) Using a 7/16" wrench, remove lag bolts that secure
stove body to bottom pallet.
4) Place stove body carefully on its back.
5) Using two 3/4" wrench, remove 1" x 1/2" bolts and
save for later use.
6) Remove pallet retaining brackets from stove bottom.
Optional Ash Cleanout System -(Install
rst)
1) With stove body laying on its back, remove the ash
system hole cover and gasket located under the stove.
Discard cover plate and gasket.
2) Inside the stove, remove the two bolts for the ash dump
from the rebox bottom and insert into the brick retainer
with the anges on the the brick retainer pointed away
from the threads on the bolts.
3) Replace bolts with brick retainer in the firebox
bottom.
4) Place new gasket provided over existing bolts.
5) Install ash dump system over gasket and secure with
two nuts previously removed.
Pedestal Kit
1) With the unit on its back and the removable cover
facing up, align the pedestal mounting holes with the
holes on the stove.\

6 SUPER-SD1 07 1111-2 0
22" 12"
18"
30"
25"
11"
11"
20"
16"
26"
14"
15"
5" 10"
16"
18"
28"
4"
4"
8"
28"
18"
16"
8"
22"
8"
Minimum
Clearance to
Combustibles
Procedure:
CAUTION: THE STRUCTURAL INTEGRITY OF THE
MOBILE HOME FLOOR, WALL AND CEILING/ROOF
MUST BE MAINTAINED.
Note: See "Combustion Air" section onpage 9.
1. Position stove and oor protection with hole for combus-
tion air in accordance with the clearances as stated
on the label and in Figure #1.
2. Mark the position for the hole in the ceiling and roof
by using a string and plumb-bob.
3. Check that the intended location will not interfere with
oor joists, ceiling joists or rafters before proceeding
further.
4. Cut a hole in the ceiling and roof to suit the chimney
system and frame in the sides. The chimney support
is mounted to the framing.
5. Assemble chimney sections so the nished length
is resting on the support and protruding through the
roof. Avoid having joints between ceiling and roof.
Install radiation shield. Assemble ashing and storm
collar and be sure to maintain the vapour barrier at
this point. (Seal securely.) Attach rain cap and check
ashing for leaks.
6. Install connector as per manufacturer's instructions.
7. Attach stove to ooring using two 1/4" x 2" or longer
lag screws.
Mobile Home
Installation
Warning: Under no circumstances is this heater to be
installed in a makeshift or "temporary" manner. It may be
red only after the following conditions have been met.
- DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVING ANOTHER APPLIANCE.
- DO NOT INSTALL IN A SLEEPING ROOM.
- Outside air supply must be used for Mobile Home instal-
lations see Figure #2, Page 7.
-The services of a competent or certied installer, (certied
by the Wood Energy Technical Training program (WETT)
- in Canada, Hearth Education Foundation (HEARTH) - in
U.S.A.,) are strongly recommended.
Clearances
This heater must be installed with listed double-wall con-
nector and compatible chimney system listed on page 7.
Clearances to combustible surfaces and materials are
shown below in Figure #1 and Figure #2, page 7.
Clearances may be reduced with various heat insulating
materials. Consult local re codes and authorities for
approval.
NOTE: Longer chimney lengths and different pitch
ashings may be used. All other parts listed must be
installed (see Figure #2, Page 7). Install all components
to the connector or chimney manufacturer's installation
requirements. Consult your chimney supplier for instal-
lation advice.

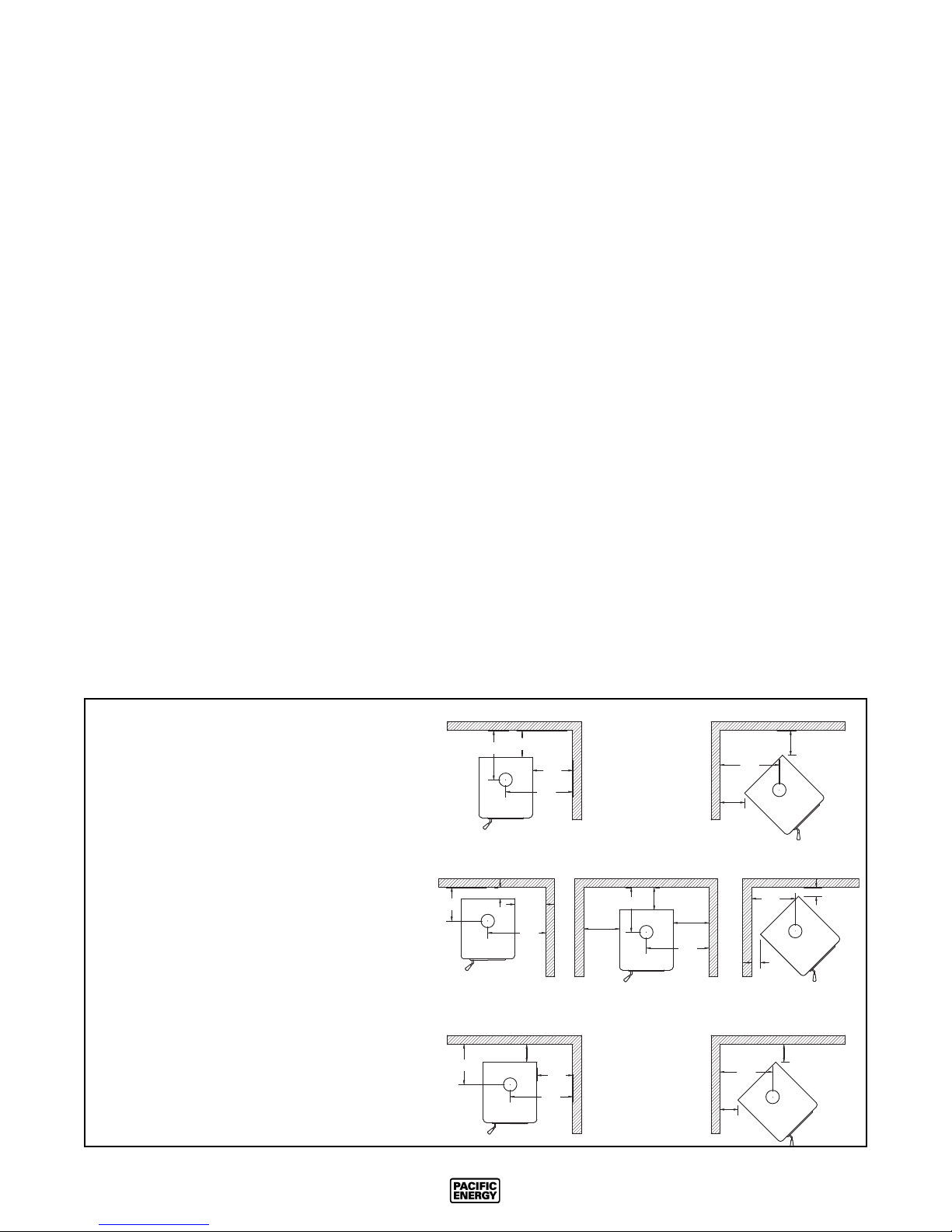

FIG. #1
Double Wall Connector - Residential
Single Wall Connector - Residential
Alcove: Min. Height 7 1/2'
Max. Depth 4'
Double Wall Connector - Mobile Home

07 1111-20 SUPER-SD1 7

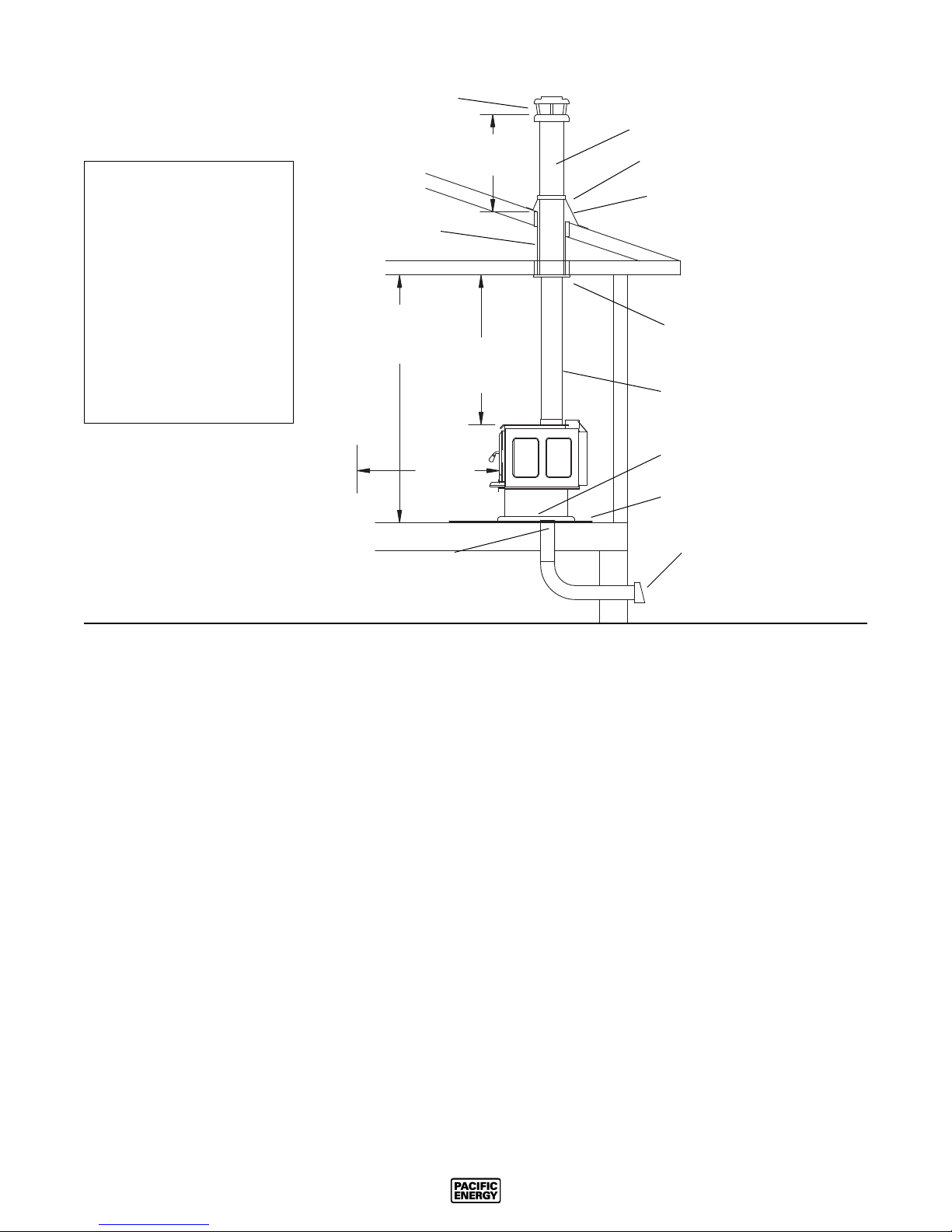

FIG. #2 Chimney
Roof ashing
Storm collar
* 4" diameter air inlet with rodent
screen
* If the crawl space is well ventilated
Spark arres-
tor rain cap
Radiation shield
Chimney Con-
Chimney Sup-
56" (1422 mm)
Minimum
Minimum 7' (2.1m.)
Ceiling Height
Attachment to oor for
mobile homes
Non-combustible
oor protector
48"
(1219 mm)
3' (914 mm)
Minimum
Hooded vent or
90 elbow turned
The chimney may incor-
porate an offset. To do
this safely, all sections
of listed connector, off-
set elbows and chim-
ney section must be
screwed together by at
least three sheet metal
screws per joint. The
chimney must be suit-
ably supported by the
chimney manufacturer's
Listed Chimney and Chimney Connector
This appliance, when installed in a Mobile Home, must be installed with:
A. One of the following 6" double-wall connector systems:
1. Security Model DL or DC 5. Metal Fab Model DW
2. Oliver MacLeod Model PV 6. Ameri-Tec Model DBSP
3. Energy Vent 7. Industrial Chimney Model Excel Ultra-Black
4. Selkirk Metalbestos Model DS 8. Simpson Dura-Vent Model DVL
B. As well as one of the following compatible chimney systems - All parts 6":
CANADA ONLY: Security Pro-Jet ICC Selkirk Energy Vent
S2100 H.T.3000 Excel 2100 Sentinal CF Commander 5000
Ceiling support XSF FCS SF CF-CSP CH6LCS
Rafter radiation shield RRS
3' Chimney length XL3 SL3 L3 CF-36SL CH636
2' Chimney length XL2 SL2 L2 CF-24 CH624
Roof ashing XFA RF17 FA CF-FRA CH6TCF
Storm collar XSC SC SC CF-SC CH6SC
Spark arrestor rain cap XCPE RCSA CPE CF-SA,CT CH6RC, SS
USA ONLY: Security Pro-Jet Security Pro-Jet Metalbestos MetalFab Ameritech ICC Simpson Dura-Vent
S2100 H.T.3000 ASHT HT3103 SSII 2100 TEC HS Excel 103HT Dura/Plus Dura Tech
Ceiling support XSF FCS SF FCS T-SFA TGCSP 6PL-CS RDS/SQS SDP-SB SDP-SB
Rafter radiation shield RRS RRS T-JSMH TGRS
3' Chimney length XL3 SL3 L3 SL3 T-36 TG3 HS 36 CL48 SDP-P SDT-P
2' Chimney length XL2 SL2 L2 SL2 T-24 TG2 HS 24 CL24 SDP-P SDT-P
Roof ashing XFA RF17 FA RF T-SFA TGF 8RFFU VF SDP-F SDT-F
Storm collar XSC SC SC SC T-SC TGSC PL-ASCG SC SDP-SC SDT-SC
Spark arrestor rain cap XCPE RCSA CPE RCSA T-CT TGC 6PL-MPC RCS SDP-C SDT-C

8 SUPER-SD1 07 1111-2 0
Residential
Installation
Warning: Under no circumstances is this heater to be
installed in a makeshift or "temporary" manner. It may be
red only after the following conditions have been met.
* DO NOT ATTEMPT TO CONNECT THIS HEATER
TO ANY AIR DISTRIBUTION DUCT.
* The services of competent installer are strongly rec-
ommended.
* Outside combustion air or fresh air into the room may
be required in your area, consult local building codes
(see Combustion Air section).
-The services of a competent or certied installer, (certied
by the Wood Energy Technical Training program (WETT)
- in Canada, Hearth Education Foundation (HEARTH) - in
U.S.A.,) are strongly recommended.
Clearances
1. This heater may be installed using a single-wall con-
nector (smoke pipe) or listed double-wall connector
(see Mobile Home installation).
2. Clearances to combustible surfaces and materials
using single-wall connector are shown in Figure #1,
page 6.
Clearances may be reduced with various heat insulat-
ing materials.Consult local re codes and authorities
for approval.
3. Alternately, for close clearances, use a listed double-
wall connector. See Diagram #1, page 6.
Chimney and Connector
Connect to a listed chimney or a chimney suitable for use
with solid fuel that is lined and in good condition and
meets local building codes.The chimney ue size should
be the same as the stove outlet for optimal performance.
Reducing or increasing the ue size may adversely affect
stove performance.Chimney ue exit is to be 3 feet (1 m.)
above roof and two feet (0.6 m.) above highest projection
within 10 feet (3 m.). The installation must meet all local
codes. Do not connect this unit to a chimney ue serving
another appliance.Minimum system height is 15 feet (4.6
m.) (measured from base of appliance).
Double-Wall Connector
- Use a listed double-wall connector.
- Install all components to the chimney connector
manufacturer's installation requirements.
Single-Wall Connector
Smoke pipe must be:
* as short and straight as possible, use six inch diam-
eter, 24 gauge black pipe that is clean and in new
condition.
* secured at every joint and collar with 3 sheet metal
screws.
* installed with the crimped or male ends pointing down.
This will carry any liquid creosote or condensation
back into the stove.
* The chimney connector shall not pass through an attic,
roof space, closet or similar concealed space, oor,
or ceiling. Where passage through a wall, or partition
of combustible material is desired, the installation
shall conform to CAN/CSA-B365, Installation Code
for Solid-Fuel-Burning Appliances and Equipment.
Procedure
1. If a listed chimney and double-wall connector is to
be connected to the stove, install all components to
the chimney manufacturer's installation requirements.
(Outside combustion air may be required, consult
local building codes. See Combustion Air section.)
2. If it is desirable to use smoke pipe in conjunction with
the insulated chimney, see step 4.
3. If a roof or ceiling support is used in the installation,
you will nd the chimney manufacturer's complete
instructions packed with the roof support.
4. To start installing smoke pipe (chimney connector),
slip crimped edge of the pipe inside the stove collar.
Use holes provided in collar to secure pipe with two
screws.
5. Install the remaining lengths of pipe one on top of the
other to the nished height of the chimney connector
and secure to each other.

07 1111-20 SUPER-SD1 9
16" [406mm]
8" [203mm]
8" [203mm]
Canada Only

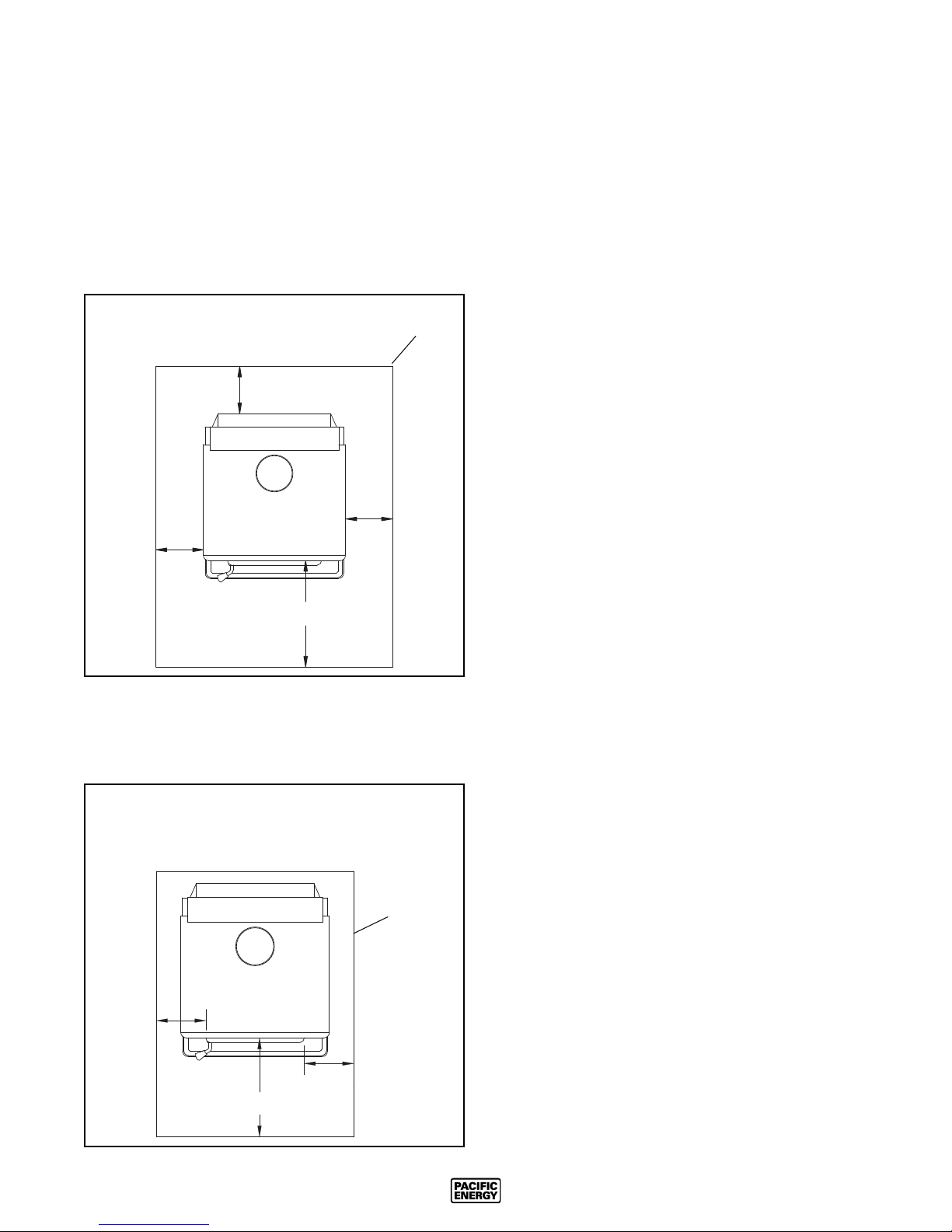

Floor Protector
The stove may be installed on a combustible oor provided
noncombustible ember protection is used.
This protection must extend as follows:
In Canada: 18" (457 mm) on the ring side and 8" (203
mm) to the other sides. See Figure #3, below.
In USA: 16" (406 mm) to the front and 8" (203 mm) to the
Combustion Air
Intake or combustion air can be supplied to the stove
in one of
two ways. Consult your local building code or CAN/CSA-
B365, Installation Code for Solid-Fuel-BurningAppliances
and Equipment before proceeding.
1. Outside air supply - (Necessary for mobile home in-
stallation, optional for residential installation.) To draw
outside air through the oor, leave the 4" knockout in
the rear of the pedestal or leg kit ash box enclosure
in place.
Pedestal Model: Cut or drill a 4" diameter or larger
hole in the oor anywhere inside the perimeter of the
pedestal. Cover the hole with a 4" x 4" (100 mm x
100 mm) rodent screen and staple/nail in place.
Leg Model: Cut or drill a 4" diameter hole directly
below the bottom knockout hole of the ash box en-
closure. Connect enclosure to the oor with a short
4" diameter pipe.
This hole must get its air from a ventilated crawl
space or be extended with duct to the outdoors (see
Figure #2, Page 7). The use of outside combustion
air for residential installation requires the unit to be
secured to the structure to prevent dislodging of the
air duct. Outside air may also be ducted from outside
through the 4" diameter knockout hole in the rear of the
pedestal or leg kit ash box enclosure. If this method
of supplying combustion air is used in conjunction
with the optional blower kit, an outside air adaptor
may be required (see Optional Blower section).
Note: This unit is not designed to be operated with the
ring door open. In addition to the obvious hazard of
sparks landing on combustibles, an open re door
will cause the heater to draw air from the living space
and possibly cause suffocation.
2. Room air supply - Remove the 4" plug from the rear
of the pedestal or leg kit ash box enclosure. The
stove will now draw its air from the room through this
opening and into the rebox intake.
Note: The living space around the heater must be well
ventilated with good air circulation. Anything that may
cause a negative pressure can cause gases or fumes
to be pulled into the living area. During extremely cold
weather, and especially when burning at very slow
rates, the upper parts of the exposed chimney may
ice up, partially blocking the ue gases. If blockage
occurs, ue gases may enter living space.
U.S.A. Only
Non-combustible
oor protector
FIG. #3
FIG. #4
sides of the fuel loading door opening. See Figure #4,
below. This protection is also required under the chimney
connector and 2" (51 mm) beyond each side.
8" [203mm]
18" [457mm]
8" [203mm]
8" [203mm]
Minimum Width - 40'
Minimum Overall Depth - 50 1/2"
Non-combus-
tible
Minimum Width - 34"
Minimum Overall Depth - 40 1/2"

10 SUPER-SD1 0 71111- 20
Operation
CAUTION: Never use gasoline, gasoline type lantern
fuel, kerosene, charcoal lighter uid or similar liquids to
start or "freshen up" a re in this heater. Keep all such
liquids well away from the heater while it is in use.
CAUTION: Hot while in operation. Keep children,
clothing and furniture away. Contact may cause
skin burns.
Over Firing
Your PACIFIC ENERGY heater is designed formany
years of trouble free operation. Over ring the appliance
will shorten the life of the product. Failure to recitify an
over ring condition can be hazardous and may void the
manufacturer's warranty.
Wood Selection
This heater is designed to burn natural wood only. Higher
efficiency and lower emissions generally result when
burning air-dried seasoned hardwoods, as compared to
softwoods or to green or freshly cut hardwoods.
Wood should be properly air dried (seasoned) for six
months or more. Wet or undried wood will cause the re
to smoulder and produce large amounts of creosote.
Wet wood also produces very little heat and tends to go
out often.
DO NOT BURN :
-Salt water wood * -Treated wood
-Wet or green wood - Coal/char-
coal
-Garbage/Plastic * -Solvents
* These materials contain chlorides which will rapidly
destroy metal surfaces and void warranty.
Do not burn anything but wood. Other fuels, eg.charcoal,
can produce large amounts of carbon monoxide, a taste-
less, odourless gas that can kill. Under no circumstances
should you attempt to barbecue in this heater.
How to Test Your Wood
Add a large piece of wood to the stove when it has a good
large bed of coals. It is dry if it is burning on more than
one side within one minute. It is damp if it turns black
and lights within three minutes. If it sizzles, hisses and
blackens without igniting in ve minutes it is soaked and
should not be burnt.
Lighting for the First Time
Curing of the Paint Finish
To achieve the best nish, the paint on your stove must
be baked on. When burning your stove for the rst 2-3
times it is very important that the room be well ventilated.
Open all windows and doors. Smoke and fumes caused
by the curing process may cause discomfort to some
individuals.
Lighting a Fire
WARNING: Never use chemicals or any other volatile
liquid to start a re.
1. Adjust air control to position H (maximum ring rate)
and open door.
2. Place crumpled newspaper in the centre of the heater
and criss-cross with several pieces of dry kindling.
Add a few small pieces of dry wood on top.
3. Ignite the paper and close the door.
4. After the re has established itself, open the door and
add a few small logs. Close door.
5. Begin normal operation after a good coal base exists
and wood has charred.
Normal Operation
1. Set air control to a desired setting. If smoke pours
down across the glass (waterfall effect) this indicates
you have shut the control down too soon or you are
using too low a setting. The wide range control panel
makes nding the desired setting for your application
easy. As every home's heating needs vary (ie. insu-
lation, windows, climate, etc.) the proper setting can
only be found by trial and error and should be noted
for future burns.
2. To refuel, adjust air control to high, and give the re
time to brighten. Open the door slowly, this will prevent
backpuffing.
3. Use wood of different shape, diameter and length (up
to 18"). Load your wood endwise and try to place the
logs so that the air can ow between them. Always
use dry wood.
4. Do not load fuel to a height or in such a manner that
would be hazardous when opening the door.
5. For extended or overnight burns, unsplit logs are
preferred. Remember to char the wood completely
on maximum setting before adjusting air control for
overnight burn.
WARNING: Always keep loading door closed when
burning. This heater is not designed for open door
burning.
WARNING: No alteration or modication of the
combustion air control assembly is permitted. Any
tampering will void warranty and could be very haz-
ardous.
WARNING: Do not use grates or andirons to elevate
the fuel. Burn directly on the re bricks. Replace
broken or missing bricks. Failure to do so may cre-
ate a hazardous condition.

07 1111-20 SUPER-SD1 11
Ash Removal
Caution: Ashes are to be removed only when the heater
is cold.
Whenever ashes get 3 to 4 inches deep in your rebox,
and when re has burned down and cooled, remove
excess ashes. Leave an ash bed approximately 1" (25
mm) deep on the rebox bottom to help maintain a hot
charcoal bed.
Optional Ash Cleanout system: The ash dump handle
is located under the ash lip on the left hand side. To oper-
ate ash dump, pull handle out 1/2" and turn clockwise.
This will unlock the ash dump and allow it to open. Hold
handle open while pulling ashes into the opening. Avoid
large embers as these still contain heat value. Release
handle and push in to lock. Ensure ash dump door is
properly engaged. Fill the cavity with the remaining ash
level with the rebox oor. Lift and pull out ashpan and
discard ashes into metal container. Replace ashpan and
ensure it is seated properly.
Do not burn with ash dump door open. Doing so will
create a hazardous condition. Always leave about 1"
of ash when cleaning.
Disposal of Ashes
Ashes should be placed in a metal container with a tight
tting lid. The closed container of ashes should be placed
on a non-combustible oor or on the ground, well away
from all combustible materials, pending nal disposal. If
the ashes are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in closed
container until all cinders have thoroughly cooled. Other
waste should not be placed in this container.
Baffle Removal
Chimney connector pipe should be disconnected from
stove to clean and inspect. Only if this is not possible
should you remove baffle assembly.
DO NOT OPERATE WITH BAFFLE ASSEMBLY OR
INSULATION REMOVED.
Removal
Remove retaining pin at the back top of the rebox, just
under the baffle. Lift baffle up and pull forward to discon-
nect from the supply tube. Tilt baffle sideways to drop
down and remove from rebox. Inspect gasket between
baffle and supply tube. If necessary, replace with gasket
#139.5 available from your Pacic Energy dealer. Re-install
baffle assembly in reverse order. The two side pieces of
insulation must be tight against the siderails.
Restarting After Extended or
Overnight Burns
1. Open door and rake hot embers towards the front of
the heater. Add a couple of dry, split logs on top of
embers, close door.
2. Adjust air control to high and in just a few minutes,
logs should begin burning.
3. After wood has charred, reset air control to desired
setting.
4. To achieve maximum ring rate, set control to high
"H". Do not use this setting other than for starting or
preheating fresh fuel loads.
DO NOT OVERFIRE THIS HEATER: Attempts to
achieve heat output rates that exceed heater design
specications can result in permanent damage to
the heater and chimney.
More Wood, More Heat
Seasoned wood has approximately 7500 BTU's per pound.
If you put 10 pounds of wood in your stove for an eight
hour burn the wood will be producing 9375 BTU's per hour.
(7500 BTU x 10 lbs./8hrs.=9375 BTU's per hr.) If you put
20 lbs of wood in your stove for eight hour burn you will
get 18,750 BTU's per hr.(7500 BTU x 20lbs./8hr.=18,750
BTU's per hr.). This is only an example and is based on
100% efficiency. In reality, your stove should perform
above the 80% range.
Experience will give you the right settings for proper
combustion and efficient burning. Remember the correct
air inlet setting is affected by variables such as type of
wood, outside temperature, chimney size and weather
conditions. With practice, you will become procient in
operating your heater and will obtain the performance
for which it was designed.
Proper Draft
1. Draft is the force which moves air from the appliance
up through the chimney. The amount of draft in your
chimney depends on the length of the chimney, local
geography, nearby obstructions and other factors.
2. Too much draft may cause excessive temperatures
in the appliance. An uncontrollable burn or a glowing
red stove part or chimney indicates excessive draft.
3. Inadequate draft may cause backpuffing into the room
and plugging of the chimney. Smoke leaking into the
room through appliance and chimney connector joints
indicates inadequate draft.

12 SUPER-SD1 0 71111- 20
Optional
Blower
The optional blower kit (kit #WODC.BLOW) is equipped
with a three prong power cord and may be installed at
any time.Follow installation instructions supplied with the
kit. Route power supply cord away from heater.
Electrical rating: 115 volts A.C.-1.02 amps.
Fan output rating: 125 CFM
Blower Operation
Proper blower speed matched with air control setting
will ensure peak performance from your stove. Operate
as follows:
- Air control set to "L" (low), operate blower speed
control on "Low".
- Air control set between "L" and "H" (low and high),
operate blower speed control at desired setting.
Automatic: To operate the blower automatically, set the
rocker switch on the side of the fan housing to "Auto"
and set the speed control to desired setting. This will al-
low the fan to turn on as the stove heats up to operating
temperature. It will also shut the blower off after the re
has gone out and the unit cooled to below a useful heat
output range.
Manual: To manually operate the blower, set the rocker
switch to "Man" and set the speed control to desired set-
ting. This will bypass the sensing device and allow full
control of the blower.
Switching from "Auto" to "Man" or selecting speed may
be done anytime.
Optional Outside Air Adaptor
The adaptor is only required if the blower kit is to be in-
stalled and outside combustion air to be ducted to rear
of pedestal.
Installation:
Remove blower kit if already installed. Place adaptor with
the 4" round hole facing up and opposite end covering
the room air knockout hole on the back of the pedestal.
Mark attachment holes on pedestal base and drill with
1/8" bit. Attach with #8 x 1/2" screws and reinstall fan.
Combustion air duct from outside can now be attached
to the 4" round collar.

07 1111-20 SUPER-SD1 13
Troubleshooting
Problem Cause Cure
Glass is Dirty 1. Wood is wet - Use dry wood
2.Turning down air control - Do not turn down until
or damper too soon a) there is a good bed of coals
b) the wood is charred
3.Draft too low - Improper chimney height and / or diameter
- Chimney plugged or restricted, check ue
- Provide outside air for combustion
4. Door gasket leakage - Replace gasket
- Check latch
Excessive Creosote Buildup - See 1,2,3, above.
Low Heat Output 1. Wood is wet - Use dry wood
2.Fire too small - Build a larger re
3.Draft too low - Chimney plugged or restricted, inspect and
clean
Won't Burn Overnight 1. Air control is set too high - Set control lower
2. Not enough wood - Unsplit wood is preferred for overnight burns
3. Draft too high - Excessive chimney height and/or diameter,
see page 11
Stove Won't Burn 1. Combustion air supply blocked - Check outside air supply for obstruction
- Check that room air cover is removed
2.Draft too low - Chimney plugged or restricted, inspect and
clean
Appendix A

14 SUPER-SD1 0 71111- 20
Replacement Parts - Super 27
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION)
ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO.
1............Side Shield, Left or Right.................... SUPD.4302
2............Rear Deector ...................................... SSER.229
3............ Door Catch ........................................ WODC.1461
4............Ash Lip (c/w Trim & Hardware)..ALIP.5037473MB
5............Glass Clamps (4 pc.)......................... SSER.1425
6............Glass Bar Set (2 pc.)...................... WODC.41405
7............Replacement Glass (c/w Tape) .....DR31.WGLKIT
8............Door Gasket Kit............................. DR31.WDGKIT
9............Door Casting, Arched Black ................CAST.31ST
..............Door Casting, Radiant Black ..........CAST.31RSST
..............Door Casting, Arched Gold.................CAST.31GD
..............Door Casting, Radiant Gold ..........CAST.31RSGD
..............Door Casting, Arched Nickel.................CAST.31NI
..............Door Casting, Radiant Nickel ..........CAST.31RSNI
10.......... Door Handle Assembly................... WODC.4147C
11..........Boost Manifold .............................................. 4105
12.......... Firebrick Set .................................... BRIC.SSERA
13a........ Brick Rail, Left/Right.................... SSER.RAILSET
14.......... Replacement Baffle Kit.................. SSER.DBAKIT
15.......... Baffle Pin.........................................SSER.125001
16.......... Baffle Gasket...................................... SSER.1395
17.......... Flame Shield (c/w Bolt and Nut).........SSER.4115
18.......... Pedestal Front Cover.......................... SSER.2075
19.......... Pedestal Assembly ..............................SUPD.PED All parts may be ordered from your nearest Pacic Energy
dealer. Contact Pacic Energy for the location of the dealer
20..........Ash System (Leg Model) ................ SUPD.LGADA
21..........Leg, Black.........................................CAST.LEGST
..............Leg, Gold Plated............................CAST.LEGGLD
..............Leg, Nickel Plated ............................ CAST.LEGNI
24..........Ash Dump Assembly .........................WODC.2261
25..........Ash Box (Pedestal Model)................ WODC.4316
26..........Air Shutter Assembly .........................WODC.4531
27..........Baffle Air Control Assembly .................. SSER.214
1
24
25
11
20
18
21
19
1
28
28
2
10
8
9
10
7
6
26
5
4
27
17
3
9
13a
13b
14
14
12
14
15
16
20
20

07 1111-20 SUPER-SD1 15
2
1
6
27
20
29
8
13
11
12
24
24
25
21
9
10
7
1
19
22
31
23
3
4
28
12
11
31
18
30
5
15b
15a
16
17
16
16
14

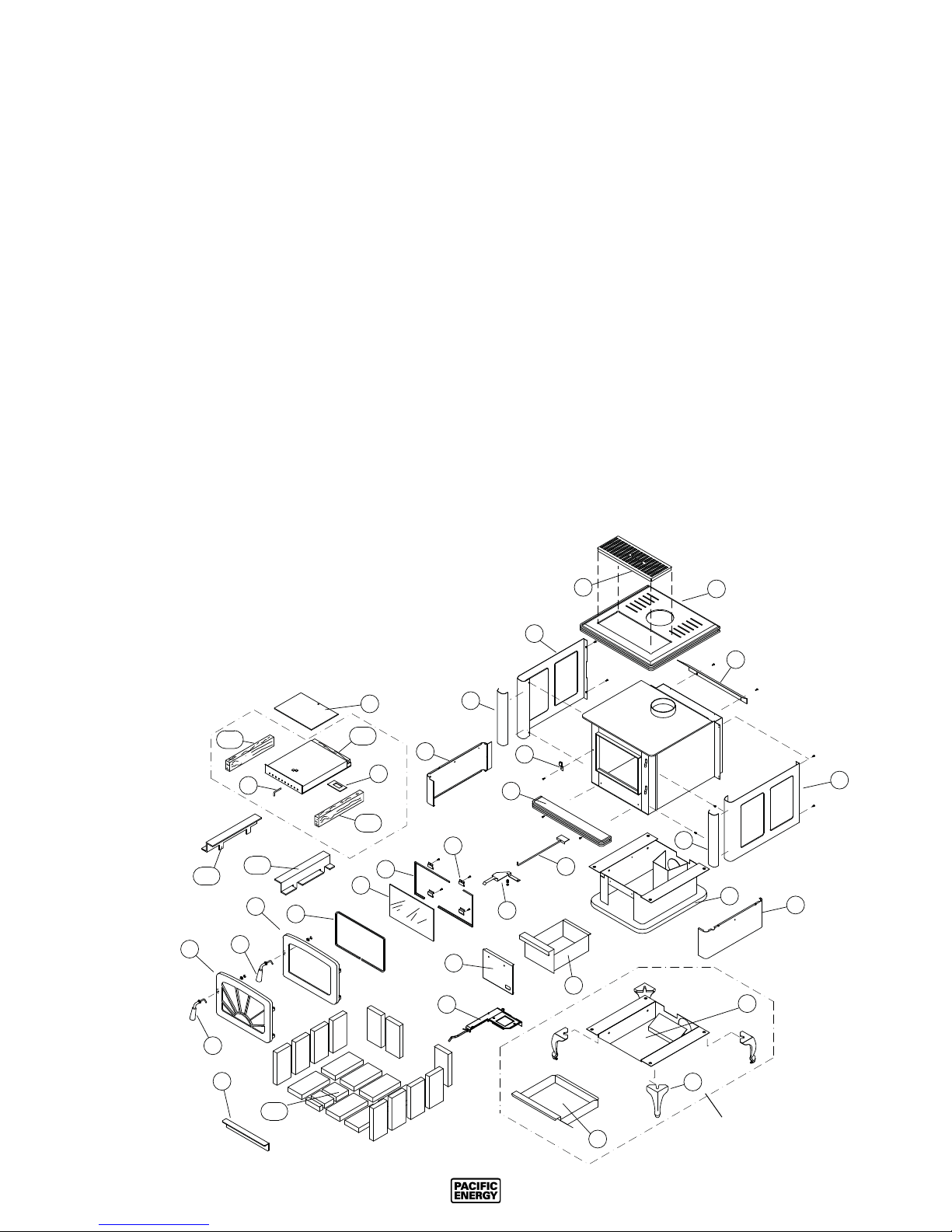

Replacement Parts - Spectrum and Spectrum Classic
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION)
ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO.
1............Side Shield, Left or Right............. SPED.4403_ _B
2............Rear Deector .....................................SPEC.4418
3............Top Panel (Porcelain Finish)......... SPED.401_ _A
4............Screen Trivet, Classic Gold ............ CLAD.CTGDA
..............Screen Trivet, Classic Nickel ............ CLAD.CTNIA
..............Screen Trivet, Black.........................CLAD.CTBKA
5............ Door Catch ........................................ WODC.1461
6............Ash Lip ........................................ SPED.4401_ _B
7............Glass Clamps (4 pc.)......................... SSER.1425
8............Glass Bar Set (2 pc.)...................... WODC.41405
9............Replacement Glass (c/w Tape) .....DR31.WGLKIT
10.......... Door Gasket Kit............................. DR31.WDGKIT
11..........Door Casting, Arched Black ................CAST.31ST
..............Door Casting, Radiant Black ..........CAST.31RSST
..............Door Casting, Arched Gold.................CAST.31GD
..............Door Casting, Radiant Gold ..........CAST.31RSGD
..............Door Casting, Arched Nickel.................CAST.31NI
..............Door Casting, Radiant Nickel ..........CAST.31RSNI
12..........Door Handle Assembly................... WODC.4147C
13.......... Boost Manifold .............................................. 4105
14.......... Firebrick Set .................................... BRIC.SSERA
15a........ Brick Rail, Left/Right.................... SSER.RAILSET
16.......... Replacement Baffle Kit.................. SSER.DBAKIT
17.......... Baffle Pin.........................................SSER.125001
18.......... Baffle Gasket...................................... SSER.1395
19.......... Flame Shield (c/w Bolt and Nut).........SSER.4115
20.......... Ash Box (Spectrum) ......................... WODC.4316
21..........Pedestal Assembly ..............................SUPD.PED
22..........Pedestal Cladding (Hinge Side) .......... SPEC.402
23..........Pedestal Cladding (Latch Side)........... SPEC.403
24..........Ash Drawer Enclosure (Classic)..SUPD.ASHLEG
25..........Leg, Gold Plated............................CAST.LEGGLD
..............Leg, Nickel Plated ............................CAST.LEGST
..............Leg, Black......................................... CAST.LEGNI
27..........Ash Dump Assembly .........................WODC.2261
28..........Ash Box Cladding (Por. Finish)......SPED.4406_ _
29..........Air Shutter Assembly .........................WODC.4531
30..........Baffle Air Control .................................. SSER.214
LEG KIT FOR SPECTRUM
CLASSIC ONLY
All parts may be ordered from your nearest Pacic Energy
dealer. Contact Pacic Energy for the location of the dealer
nearest you.
When ordering porcelain nish parts, please specify the
appropriate code as follows:
Black ......BK Black Pearl.........BP
Ivory.......IY Coffee Brown.....CB
Blue........BE Copper...............CU
Red ........RD Titanium.............GN
Green.....GN

16 SUPER-SD1 0 71111- 20
OPERATING TIPS
1.Always use dry, seasoned rewood, up to 18"
long. Load wood endwise, a mixture of large
and small pieces, on top of a good ash base
(1" minimum).
2. Operate on a medium to high setting, for up
to 1 hour from cold start. After the initial warm
up period, refuel and leave the air control on a
medium setting for 5 to 10 minutes more and
then set the air control to the desired position.
3. If a slow burn is desired, set the air control to
low. Active secondary burning should be present
above the wood load. If it is not present or goes
out shortly after, proper operating temperature
has not been reached and the stove needs ad-
ditional warm up time.
Understanding & Operating Your Pacic Energy Stove
The Pacic Energy SUPER SERIES line of
woodstoves is a culmination of years of research
and development. Designed to be efficient,
clean-burning and user-friendly, this heater will
give you years of warm service. However, a
knowledgeable operator is still the most impor-
tant factor for maximum performance and part
of this is understanding the basic functions of
this design.
Traditional wood stoves had a basic combustion
system which allowed a considerable amount of
heat energy to escape up the chimney as un-
burned gases and particulates (smoke). Pacic
Energy has designed a system that solves the
problem by burning the smoke and releasing
the additional heat to the room.

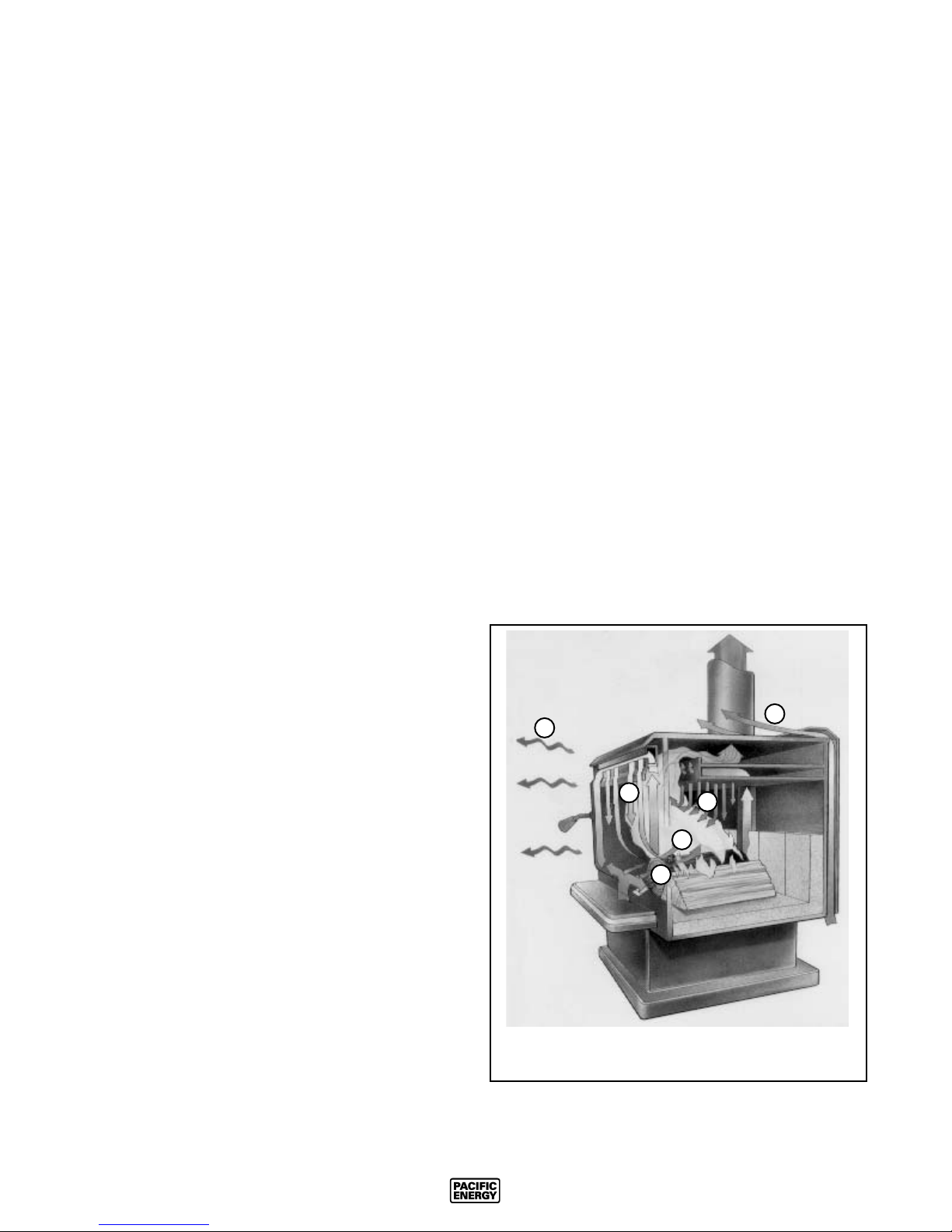

This system has two critical design features:
1. Above re secondary air injection:
The hollow "air baffle" injects super-heated sec-
ondary air just above the load. With the stove
at the proper operating temperature, this will
create a secondary ame that will be evident for
approximately 1/3 of the total burn time.
2. High mass and thermal insulation:
The high mass (weight) acts as a heat storage
and the thermal insulation keeps the combustion
zone hot. Active aming takes place during the
rst part of the burn. During this stage, heat is
stored in the mass of the unit and is later released
slowly and evenly. As wood chars, active aming
will diminish. This clean charcoal burning stage
will last for a considerable length of time and
refuelling should be avoided until the charcoal
base has become quite small.
1
2
3
5
6
4
1 -Boost Air 4 -Secondary Combustion Zone
2 -Main Combustion Air 5 -Radiant Heat
3 -Air Wash System 6 -Convected Heat

07 1111-20 SUPER-SD1 17
Super 27 and Pacic
NOTE: Optional ash dump kit should be installed prior to pedestal or leg kit
assembly.
Required: Pedestal Kit Leg Adapter
1 Pedestal base 1 Ash drawer enclosure
1 Front cover (attached) 1 Front cover (attached)
4 1/2" washers
with
Leg Set
4 Legs
Crate Removal
1) Carefully remove wood top and supports.
2) Remove plastic cover.
3) Using a 7/16" wrench, remove lag bolts that secure stove body to bottom
pallet.
4) Place stove body carefully on its back.
5) Using a 3/4" wrench, remove 1" x 1/2" bolts and save for later use.
6) Remove pallet retaining brackets from stove bottom.
Pedestal Kit
1) With the unit on its back and the removable cover facing up, align the pedestal
mounting holes with the holes on the stove.
2) Secure in place with 1" x 1/2" bolts previously removed.
3) Carefully place the unit in the upright position.
Leg Adapter and Leg Kit
1) With the unit on its back, align the ash drawer enclosure mounting holes
(removable cover facing up) with the holes on the stove.
2) Position the legs over top of the same holes on the stove.
3) Secure in place with 1" x 1/2" bolts previously removed.
Pedestal or Legs
Installation Instructions

18 SUPER-SD1 0 71111- 20
NOTES

07 1111-20 SUPER-SD1 19
Label
CERTIFIED FOR CANADA AND U.S.A.
LISTED ROOM HEATER, SOLID FUEL TYPE.
ALSO FOR USE IN MOBILE HOMES
TESTED TO CAN/ULC S627-M93 AND UL 1482-98 ALDERLEA T5
MODEL SERIES D: SUPER 27 SPECTRUM CLASSIC
WN# 16408
250509 5050.75 SUP1-A2
A. SIDEWALL TO UNIT 18 in. / 455 mm 14 in. / 355 mm 14 in. / 355 mm 14 in. / 405 mm 16 in. / 405 mm 16 in. / 405 mm
B. BACKWALL TO UNIT 12 in. / 305 mm 8 in. / 200 mm 5 in. / 127 mm 5 in. / 127 mm 10 in. / 255 mm 8 in. / 200 mm
C. CORNER TO UNIT 11 in. / 280 mm 11 in. / 280 mm 4 in. / 102 mm 4 in. / 102 mm N/A 8 in. / 200 mm
D. SIDEWALL TO CONNECTOR 27 in. / 685 mm 23 in. / 585 mm 22.5 in. / 570 mm 22.5 in. / 570 mm 24.5 in. / 620 mm 24.5 in. / 620 mm
E. BACKWALL TO CONNECTOR 19 in. / 485 mm 15 in. / 380 mm 11.5 in. / 292 mm 11.5 in. / 292 mm 16.5 in. / 420 mm 14.5 in. / 370 mm
F. CORNER TO CONNECTOR 22 in. / 560 mm 22 in. / 560 mm 14.5 in. / 370 mm 14.5 in. / 370 mm N/A 18.5 in. / 470 mm
DO NOT REMOVE THIS LABEL
• INSTALLAND USE IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS.
• CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS, INSTALLATION PERMIT AND INSPECTION IN
YOUR AREA.
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVINGANOTHER APPLIANCE (USA. ONLY).
• USE 6 INCH / 150MM DIAMETER MINIMUM 24 MSG BLACK OR LISTED CONNECTOR.
• CONNECT TO A LINED MASONRY CHIMNEY SUITABLE FOR USE WITH SOLID FUELS.
• DO NOT OBSTRUCT THE SPACE BENEATH THE HEATER.
• SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED WHEN PASSING
A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING.
• DO NOT PASS A CHIMNEY CONNECTOR THROUGH A COMBUSTIBLE WALL OR CEILING.
• MINIMUM CLEARANCE BETWEEN SINGLE WALL CHIMNEY CONNECTOR AND COMBUSTIBLE MATERIALS-
18INCHES/455MM. CLEARANCE MAY BE REDUCED BY THE USE OF LISTED PIPE SHIELDS, WALL PROTECTORS OR
OTHER MEANS APPROVED BY LOCAL BUILDING OR FIRE OFFICIALS.
HORIZONTAL CONNECTOR NOT PERMITTED IN MOBILE HOMES
 AS TESTED - PIPE SHIELD MAY BE REQUIRED BY LOCALAUTHORITIES.
* COMBUSTIBLE ALCOVE SIZE : DEPTH - 4 FT. / 1.22 M MAXIMUM, HEIGHT 7 1/2 FT. / 2.3 M MINIMUM
COMBUSTIBLE FLOOR MUST BE PROTECTED BY A CONTINUOUS NON-COMBUSTIBLE MATERIAL EXTENDED TO THE
FRONT, SIDES AND BACK AS INDICATED.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
• COMPONENTS REQUIRED FOR MOBILE HOME AND ALCOVE INSTALLATION: OUTSIDE AIR KIT, AND ONE OF THE
FOLLOWING LISTED CONNECTORS: SECURITY MODELS DP OR DC, OLIVER MACLEOD MODEL PV, ENERGY VENT
E VENT, SELKIRK METALBESTOS MODEL DS, METAL FAB MODEL DW, AMERI-TEC MODEL DBSP, INDUSTRIAL
CHIMNEY MODEL EXCEL ULTRA-BLACK, OR SIMPSON DURA-VENT MODEL DVL IN COMBINATION WITH ONE OF THE
FOLLOWING COMPATIBLE CHIMNEY SYSTEMS: APPLIANCE MUST BE INSTALLED WITH PEDESTAL OR LEG KIT
ATTACHED.
IN CANADA - SECURITY MODEL S2100, OLIVER MACLEOD PROJET MODEL HT 3000, SELKIRK SENTINEL MODEL CF,
INDUSTRIAL CHIMNEY MODEL EXCEL 2100.
IN USA - SECURITY MODEL ASHT OR S2100, OLIVER MACLEOD MODEL 3103 OR HT 3000, SELKIRK METALBESTOS
MODEL SS II, METAL FAB MODEL 2100, AMERI-TEC MODEL HS, INDUSTRIAL CHIMNEY MODEL EXCEL 103HT,
SIMPSON DURA-VENT MODEL DURA/PLUS AND DURA TECH.
USE COMPONENTS SPECIFIED IN PACIFIC ENERGY INSTALLATION INSTRUCTIONS.
• OPTIONAL COMPONENTS - WATER COIL (CANADA ONLY), FAN KIT #SSER.BLOW, FAN ELECTRICAL RATING: 115V,
60HZ, 80WATTS. DO NOT ROUTE POWER CORD BENEATH HEATER.
• CAUTION: RISK OF EXCESSIVE TEMPERATURES - KEEP ASH DUMP CLOSED DURING FIRING OF THE HEATER.
• OPERATE ONLY WITH FEED DOOR CLOSED. OPEN TO FEED FIRE ONLY.
• KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIALS WELL AWAY FROM HEATER.
• REPLACE GLASS ONLY WITH CERAMIC GLASS.
MADE IN CANADA
J F M A M J J A S O N D
2009 2010 2011 2012 2013 2014
DATE OF MANUFACTURE
MANUFACTURED BY:
PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
2975 ALLENBY RD., DUNCAN, BC V9L 6V8
HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN
BURNS. SEE NAMEPLATE AND INSTRUCTIONS.
U.S. ENVIRONMENTAL PROTECTION AGENCY
CERTIFIED TO COMPLY WITH
JULY, 1990, PARTICULATE EMISSION
STANDARDS
WH-
CAUTION
















 
IN CANADA G. 18 INCHES / 455 MM
H. 8 INCHES / 200 MM
I. 8 INCHES / 200 MM
IN U.S.A. G. 16 INCHES / 405 MM
H. 5 INCHES / 127 MM
I. 0 INCHES / 0 MM
* ALCOVE
INSTALLATION
USING
DOUBLE WALL
CONNECTOR
RESIDENTIAL INSTALLATION
USING SINGLE WALL CONNECTOR
MOBILE HOME
INSTALLATION
USING
DOUBLE WALL
CONNECTOR
VERTICAL CONNECTOR HORIZONTAL CONNECTOR VERTICAL CONNECTOR HORIZONTAL CONNECTOR
RESIDENTIAL CLOSE CLEARANCE
INSTALLATION
USING DOUBLE WALL CONNECTOR

PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
2975 Allenby Rd., Duncan, B.C. V9L 6V8
Phone: [phone]
Web site: http://www.pacicenergy.net
Printed in Canada
