Pacific energy SUPER 27 SPECTRUM Original operating instructions

TESTED and LISTED to CAN/ULC S627 AND UL 1482
Meets the Environmental Protection Agency's
July 1990 Particulate Emission Standards
INSTALLATION
& OPERATION
GUIDE
Design - D
Models
SUPER 27
SPECTRUM
SPECTRUM CLASSIC
PLEASE SAVE THESE INSTRUCTIONS
SAFETY NOTICE
If this stove is not properly installed,
a house fire may result. For your
safety, follow the installation
instructions. Contact local building
or fire officials about restrictions
and installation inspection
requirements in you area.
220206-20 SUPER-SD1 5055.201

2 SUPER-SD1 220206-20
Contents
Safety and Maintenance ................................................................................................... 3
Creosote ............................................................................................................................. 4
Formation and Need for Removal ..................................................................................................... 4
Chimney Fires ................................................................................................................................... 4
In Case of a Chimney Fire ................................................................................................................. 4
Avoiding a Chimney Fire .................................................................................................................. 4
Assembly ............................................................................................................................ 5
Crate Removal ................................................................................................................................... 5
Pedestal Kit ....................................................................................................................................... 5
Leg Kit .............................................................................................................................................. 5
Optional Ash Cleanout System .......................................................................................................... 5
Mobile Home Installation ................................................................................................ 6
Clearances ......................................................................................................................................... 6
Procedure: ......................................................................................................................................... 6
Listed Chimney and Chimney Connector .......................................................................................... 7
Residential Installation .................................................................................................... 8
Clearances ......................................................................................................................................... 8
Chimney and Connector .................................................................................................................... 8
Double-Wall Connector..................................................................................................................... 8
Single-Wall Connector ...................................................................................................................... 8
Procedure .......................................................................................................................................... 8
Floor Protector .................................................................................................................. 9
Combustion Air ................................................................................................................. 9
Operation......................................................................................................................... 10
Wood Selection ............................................................................................................................... 10
How to Test Your Wood .................................................................................................................. 10
Lighting for the First Time .............................................................................................................. 10
Lighting a Fire ................................................................................................................................. 10
Normal Operation ............................................................................................................................ 10
Restarting After Extended or Overnight Burns ............................................................................... 11
More Wood, More Heat .................................................................................................................. 11
Proper Draft..................................................................................................................................... 11
Ash Removal ................................................................................................................................... 11
Disposal of Ashes ............................................................................................................................ 11
Baffle Removal ................................................................................................................ 11
Removal .......................................................................................................................................... 11
Optional Blower .............................................................................................................. 12
Blower Operation ............................................................................................................................ 12
Optional Outside Air Adaptor ......................................................................................................... 12
Appendix A ......................................................................................................................13
Troubleshooting .............................................................................................................................. 13
Replacement Parts - Super 27 ......................................................................................................... 14
Replacement Parts - Spectrum and Spectrum Classic ..................................................................... 15
Understanding & Operating Your Pacific Energy Stove ................................................................. 16
Pedestal or Legs Installation Instructions ........................................................................................ 17
Ash System Assembly Instructions.................................................................................................. 18
Label ................................................................................................................................................ 19

220206-20 SUPER-SD1 3
PLEASE SAVE THESE INSTRUCTIONS
NOTE: WE STRONGLY RECOMMEND THAT SMOKE DETECTORS BE INSTALLED.
If smoke detectors have been previously installed, you may notice that they are operating more frequently. This may be due to curing
of stove paint or fumes caused by accidentally leaving the fire door open. Do not disconnect the detectors. If necessary, relocate
them to reduce their sensitivity.
SAFETY NOTICE: If this stove is not properly installed, a house fire may result. For your safety, follow the installation
instructions. Contact local building or fire officials about restrictions and installation inspection requirements in you area.
Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property
damage, bodily injury, or even death.
Safety and Maintenance
1. Burn wood only, dry and well seasoned. The denser or
heavier the wood when dry, the greater its heat value. This
is why hardwoods are generally preferred. Green or wet
wood will cause a rapid buildup of creosote. If you feel it
is necessary to burn wet or unseasoned wood, do so only
with the air inlet set open enough to maintain a good strong
fire and fairly high chimney temperatures. Do not attempt
to burn overnight using green wood or wet wood. Wet
wood can cause up to 25% drop in heater output, as well as
contributing significantly to creosote buildup.
WARNING: Never use chemicals or any other volatile
liquid to start a fire. Do not burn garbage, or flamma-
ble fluids such as gasoline, naptha, or engine oil. We
strongly recommend that smoke detectors be installed.
2. Remove ashes frequently. Embers can roll out the door and
create a fire hazard. Maintain a 1" minimum ash base.
3. If glass becomes darkened through slow burning or poor
wood, it can readily be cleaned with fireplace glass cleaner
when stove is cold. Never scrape with an object that might
scratch the glass. The type and amount of deposit on the
glass is a good indication of the flue pipe and chimney
buildup. A light brown dusty deposit that is easily wiped
off usually indicates good combustion and dry, well-sea-
soned wood and therefore relatively clean pipes and chim-
ney. On the other hand, a black greasy deposit that is
difficult to remove is a result of wet and green wood and too
slow a burning rate. This heavy deposit is building up at
least as quickly in the chimney.
WARNING: ONLY USE MATERIALS SUPPLIED
BY MANUFACTURER WHEN DOING MAINTE-
NANCE OR REPLACEMENTS.
4. DOOR GASKETS - The gasket used by Pacific Energy
(7/8" medium density fiberglass rope) requires only light
pressure to seal. This will prolong seal life. It is important
that the door seal be maintained in good condition. Periodi-
cally inspect seals and replace if necessary. Follow instruc-
tions included in the DR31.WDGKIT kit obtainable from
your nearest Pacific Energy dealer.
5. DOOR GLASS - Do not slam loading door or otherwise
impact glass. When closing door, make sure that no logs
protrude to impact the glass. If the glass gets cracked or
broken, it must be replaced before using the stove.
Replacement glass can be obtained from your dealer. Use
8-13/16" x 15-1/4" x 5 mm. Ceramic glass only. Do not
substitute with any other type.
To remove broken glass, undo the four retaining screws and
remove clamps and frame, noting position for re-assembly.
Remove all particles of glass . Be careful as they are very sharp.
Install new glass complete with gasket. Replace frame, clamps
and screws.
CAUTION:
- do not overtighten, tighten screws very carefully
- do not clean glass when hot
- do not use abrasive cleaners on glass
6. The area where boost combustion air enters the firebox
must be kept clear of excessive ash buildup which will
block air flow. This area is at the front of the firebox.
7. Do not store wood within heater installation clearances, or
within the space required for fuel loading and ash removal.
Keep the area around the heater clean and free of loose
combustibles, furniture, newspapers, etc.
8. If gold door requires cleaning, use mild soap and water
only. Use of abrasive cleaners will void warranty.
9. Establish a routine for the fuel, woodburning and firing
technique. Check daily for creosote buildup until experi-
ence shows how often you need to clean to be safe.
10. Be aware that the hotter the fire, the less creosote is
deposited. Weekly cleaning may be necessary in mild
weather, even though monthly cleaning is usually enough
in the coldest months when burning rates are higher.
11. Instruct all members of your family on the safe operation of
the heater. Ensure they have enough knowledge of the
entire system if they are expected to operate it. Stress the
section on chimney fires and the importance of following
the steps outlined "In Case of Chimney Fire".

4 SUPER-SD1 220206-20
Creosote
Formation and Need for Removal
When wood is burned slowly, it produces tar and other organic
vapours, which combine with expelled moisture to form creo-
sote. The creosote vapours condense in the relatively cool
chimney flue of a slow burning fire. As a result, creosote residue
accumulates on the flue lining. When ignited, this creosote
makes an extremely hot fire. The chimney connector and
chimney should be inspected periodically (at least once every
two months) during the heating season to determine if a creosote
buildup has occurred. If creosote has accumulated (3 mm. or
more), it should be removed to reduce the risk of a chimney fire.
1. Highest smoke densities occur when a large amount of
wood is added to a bed of hot coals and the air inlet is closed.
The heated wood generates smoke, but without ample air,
the smoke cannot burn. Smoke-free, clean burning requires
small fuel loads, two or three logs at a time or 1/4 to 1/2 of
fuel load and leaving the air inlet relatively wide open,
especially during the first 10 to 30 minutes after each
loading, when most of the smoke generating reactions are
occurring. After 30 minutes or so, the air inlet can be turned
down substantially without excessive smoke generation.
Wood coals create very little creosote-producing smoke.
2. The cooler the surface over which the wood smoke is
passing, the more creosote will be condensed. Wet or green
wood contributes significantly to creosote formation as the
excess moisture that is boiled off cools the fire, making it
difficult for the tars and gases to ignite, thus creating dense
smoke and poor combustion. This moisture-laden smoke
cools the chimney, compounding the problem by offering
the smoke the ideal place to condense.
In summary, a certain amount of creosote is inevitable and
must be lived with. Regular inspection and cleaning is the
solution. The use of dry, seasoned wood and ample com-
bustion air will help to minimize the buildup.
Chimney Fires
The result of excessive creosote buildup is a chimney fire.
Chimney fires are dangerous. Chimney inside temperatures can
exceed 2000° F. This causes much higher than normal tempera-
tures in the chimney and on its exterior surfaces. Thus ignition
of nearby or touching combustible material is more likely
during a chimney fire. Proper clearances are critical during
such a fire.
Chimney fires are easy to detect; they usually involve one or
more of the following:
-Flames and sparks shooting out of the top of the chimney
-A roaring sound
-Vibration of the chimney
In Case of a Chimney Fire
1. Prepare to evacuate to ensure everyone's safety. Have a
well understood plan of action for evacuation. Have a place
outside where everyone is to meet.
2. Close air inlet on stove.
3. Call local fire department. Have a fire extinguisher handy.
Contact your local municipal or provincial fire authority for
further information on how to handle a chimney fire. It is
most important that you have a clearly understood plan on
how to handle a chimney fire.
4. After the chimney fire is out, the chimney must be cleaned
and checked for stress and cracks before starting another
fire. Also check combustibles around the chimney and the
roof.
- The services of a competent or certified installer, (certified by
the Wood Energy Technical Training program (WETT) - in
Canada, Hearth Education Foundation (HEARTH) - in U.S.A.,)
are strongly recommended.
Avoiding a Chimney Fire
There are two ways to avoid chimney fires:
1. Do not let creosote build up to a point where a big chimney
fire is possible.
2. Do not have fires in the heater that may ignite chimney fires.
These are hot fires, such as when burning household trash,
cardboard, Christmas tree limbs, or even ordinary fuel
wood; (e.g.. with a full load on a hot bed of coals and with
the air inlet excessively open.)

220206-20 SUPER-SD1 5
Super 27 - Pedestal Model Spectrum
Super 27 - Leg Model Spectrum Classic
Pedestal Kit
1) With the unit on its back and the removable cover facing up,
align the pedestal mounting holes with the holes on the
stove.
2) Secure in place with 1" x 1/2" bolts previously removed.
3) Carefully place the unit in the upright position.
-OR-
Leg Kit
1) With the unit on its back, align the ash drawer enclosure
mounting holes (removable cover facing up) with the holes
on the stove.
2) Position the legs over top of the same holes on the stove.
2) Secure in place with 1" x 1/2" bolts previously removed.
3) Carefully place the unit in the upright position.
- Super 27 only -
Assembly
Crate Removal
1) Carefully remove wood top and supports.
2) Remove plastic cover.
3) Using a 7/16" wrench, remove lag bolts that secure stove
body to bottom pallet.
4) Place stove body carefully on its back.
5) Using two 3/4" wrench, remove 1" x 1/2" bolts and save for
later use.
6) Remove pallet retaining brackets from stove bottom.
Optional Ash Cleanout System -(Install first)
1) With stove body laying on its back, remove the 1/4" x 1" Tek
screw located at the top left of the stove bottom.
2) Remove the ash system hole cover and gasket located under
the stove. Discard cover plate and gasket.
3) Place new gasket provided over existing studs.
4) Install ash dump system over gasket and secure with two 1/
2" nuts previously removed.
5) Install the 1/4" Tek screw in the original hole and secure.

6 SUPER-SD1 220206-20
22" 12"
18"
30"
25"
11"
11"
20"
16"
26"
14"
15"
5" 10"
16"
18"
28"
4"
4"
8"
28"
18"
16"
8"
22"
8"
Mobile Home Installation
Minimum
Clearance to
Combustibles
Procedure:
CAUTION: THE STRUCTURAL INTEGRITY OF THE
MOBILE HOME FLOOR, WALL AND CEILING/ROOF
MUST BE MAINTAINED.
Note: See "Combustion Air" section onpage 9.
1. Position stove and floor protection with hole for combus-
tion air in accordance with the clearances as stated on the
label and in Figure #1.
2. Mark the position for the hole in the ceiling and roof by
using a string and plumb-bob.
3. Check that the intended location will not interfere with floor
joists, ceiling joists or rafters before proceeding further.
4. Cut a hole in the ceiling and roof to suit the chimney system
and frame in the sides. The chimney support is mounted to
the framing.
5. Assemble chimney sections so the finished length is resting
on the support and protruding through the roof. Avoid
having joints between ceiling and roof. Install radiation
shield. Assemble flashing and storm collar and be sure to
maintain the vapour barrier at this point. (Seal securely.)
Attach rain cap and check flashing for leaks.
6. Install connector as per manufacturer's instructions.
7. Attach stove to flooring using two 1/4" x 2" or longer lag
screws.
Warning: Under no circumstances is this heater to be installed
in a makeshift or "temporary" manner. It may be fired only after
the following conditions have been met.
- DO NOT CONNECT THIS UNIT TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE.
- DO NOT INSTALL IN A SLEEPING ROOM.
- Outside air supply must be used for Mobile Home installations
see Figure #2, Page 7.
- The services of a competent or certified installer, (certified by
the Wood Energy Technical Training program (WETT) - in
Canada, Hearth Education Foundation (HEARTH) - in U.S.A.,)
are strongly recommended.
Clearances
This heater must be installed with listed double-wall connector
and compatible chimney system listed on page 7.
Clearances to combustible surfaces and materials are shown
below in Figure #1 and Figure #2, page 7.
Clearances may be reduced with various heat insulating mate-
rials. Consult local fire codes and authorities for approval.
NOTE: Longer chimney lengths and different pitch flashings
may be used. All other parts listed must be installed (see Figure
#2, Page 7). Install all components to the connector or chimney
manufacturer's installation requirements. Consult your chim-
ney supplier for installation advice.
FIG. #1
Double Wall Connector - Residential
Single Wall Connector - Residential
Alcove: Min. Height 7 1/2'
Max. Depth 4'
Double Wall Connector - Mobile Home

220206-20 SUPER-SD1 7

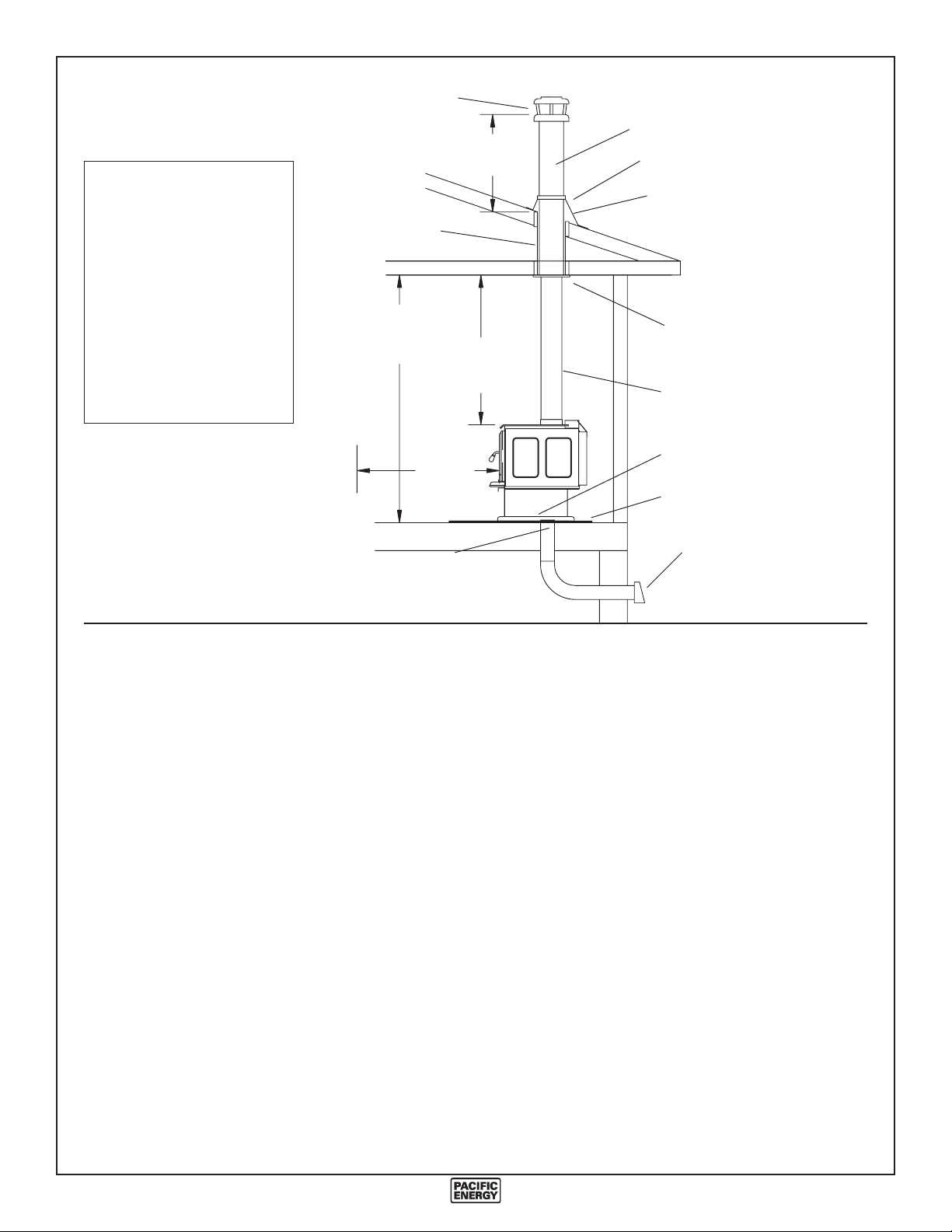

FIG. #2
Chimney
Roof flashing
Storm collar
* 4" diameter air inlet with rodent screen
* If the crawl space is well ventilated it is
not necessary to extend air inlet to outside
Spark arrestor
rain cap
Radiation shield
Chimney Connector
Chimney Support
56" (1422 mm)
Minimum
Minimum 7' (2.1m.)
Ceiling Height
Attachment to floor for
mobile homes
Non-combustible
floor protector
48"
(1219 mm)
3' (914 mm)
Minimum
Hooded vent or
90 elbow turned down
The chimney may incorpo-
rate an offset. To do this
safely, all sections of listed
connector, offset elbows
and chimney section must
be screwed together by at
least three sheet metal
screws per joint. The
chimney must be suitably
supported by the chimney
manufacturer's listed offset
support.
Listed Chimney and Chimney Connector
This appliance, when installed in a Mobile Home, must be installed with:
A. One of the following 6" double-wall connector systems:
1. Security Model DL or DC 5. Metal Fab Model DW
2. Oliver MacLeod Model PV 6. Ameri-Tec Model DBSP
3. Energy Vent 7. Industrial Chimney Model Excel Ultra-Black
4. Selkirk Metalbestos Model DS 8. Simpson Dura-Vent Model DVL
B. As well as one of the following compatible chimney systems - All parts 6":
CANADA ONLY: Security Pro-Jet ICC Selkirk Energy Vent
S2100 H.T.3000 Excel 2100 Sentinal CF Commander 5000
Ceiling support XSF FCS SF CF-CSP CH6LCS
Rafter radiation shield RRS
3' Chimney length XL3 SL3 L3 CF-36SL CH636
2' Chimney length XL2 SL2 L2 CF-24 CH624
Roof flashing XFA RF17 FA CF-FRA CH6TCF
Storm collar XSC SC SC CF-SC CH6SC
Spark arrestor rain cap XCPE RCSA CPE CF-SA,CT CH6RC, SS
USA ONLY: Security Pro-Jet Security Pro-Jet Metalbestos MetalFab Ameritech ICC Simpson Dura-Vent
S2100 H.T.3000 ASHT HT3103 SSII 2100 TEC HS Excel 103HT Dura/Plus Dura Tech
Ceiling support XSF FCS SF FCS T-SFA TGCSP 6PL-CS RDS/SQS SDP-SB SDP-SB
Rafter radiation shield RRS RRS T-JSMH TGRS
3' Chimney length XL3 SL3 L3 SL3 T-36 TG3 HS 36 CL48 SDP-P SDT-P
2' Chimney length XL2 SL2 L2 SL2 T-24 TG2 HS 24 CL24 SDP-P SDT-P
Roof flashing XFA RF17 FA RF T-SFA TGF 8RFFU VF SDP-F SDT-F
Storm collar XSC SC SC SC T-SC TGSC PL-ASCG SC SDP-SC SDT-SC
Spark arrestor rain cap XCPE RCSA CPE RCSA T-CT TGC 6PL-MPC RCS SDP-C SDT-C

8 SUPER-SD1 220206-20
Residential Installation
Warning: Under no circumstances is this heater to be installed
in a makeshift or "temporary" manner. It may be fired only after
the following conditions have been met.
* DO NOT ATTEMPT TO CONNECT THIS HEATER TO
ANY AIR DISTRIBUTION DUCT.
* The services of competent installer are strongly recom-
mended.
* Outside combustion air or fresh air into the room may be
required in your area, consult local building codes (see
Combustion Air section).
- The services of a competent or certified installer, (certified by
the Wood Energy Technical Training program (WETT) - in
Canada, Hearth Education Foundation (HEARTH) - in U.S.A.,)
are strongly recommended.
Clearances
1. This heater may be installed using a single-wall connector
(smoke pipe) or listed double-wall connector (see Mobile
Home installation).
2. Clearances to combustible surfaces and materials using
single-wall connector are shown in Figure #1, page 6.
Clearances may be reduced with various heat insulating
materials. Consult local fire codes and authorities for
approval.
3. Alternately, for close clearances, use a listed double-wall
connector. See Diagram #1, page 6.
Chimney and Connector
Connect to a listed chimney or a chimney suitable for use with
solid fuel that is lined and in good condition and meets local
building codes. The chimney flue size should be the same as the
stove outlet for optimal performance. Reducing or increasing
the flue size may adversely affect stove performance. Chimney
flue exit is to be 3 feet (1 m.) above roof and two feet (0.6 m.)
above highest projection within 10 feet (3 m.). The installation
must meet all local codes. Do not connect this unit to a chimney
flue serving another appliance. Minimum system height is 15
feet (4.6 m.) (measured from base of appliance).
Double-Wall Connector
- Use a listed double-wall connector.
- Install all components to the chimney connector manufac-
turer's installation requirements.
Single-Wall Connector
Smoke pipe must be:
* as short and straight as possible, use six inch diameter, 24
gauge black pipe that is clean and in new condition.
* secured at every joint and collar with 3 sheet metal screws.
* installed with the crimped or male ends pointing down.
This will carry any liquid creosote or condensation back
into the stove.
* The chimney connector shall not pass through an attic, roof
space, closet or similar concealed space, floor, or ceiling.
Where passage through a wall, or partition of combustible
material is desired, the installation shall conform to CAN/
CSA-B365, Installation Code for Solid-Fuel-Burning Ap-
pliances and Equipment.
Procedure
1. If a listed chimney and double-wall connector is to be
connected to the stove, install all components to the chim-
ney manufacturer's installation requirements. (Outside
combustion air may be required, consult local building
codes. See Combustion Air section.)
2. If it is desirable to use smoke pipe in conjunction with the
insulated chimney, see step 4.
3. If a roof or ceiling support is used in the installation, you
will find the chimney manufacturer's complete instructions
packed with the roof support.
4. To start installing smoke pipe (chimney connector), slip
crimped edge of the pipe inside the stove collar. Use holes
provided in collar to secure pipe with two screws.
5. Install the remaining lengths of pipe one on top of the other
to the finished height of the chimney connector and secure
to each other.

220206-20 SUPER-SD1 9
16" [406mm]
8" [203mm]
8" [203mm]
Canada Only
Floor Protector
The stove may be installed on a combustible floor provided
noncombustible ember protection is used.
This protection must extend as follows:
In Canada: 18" (457 mm) on the firing side and 8" (203 mm)
to the other sides. See Figure #3, below.
Combustion Air
Intake or combustion air can be supplied to the stove in one of
two ways. Consult your local building code or CAN/CSA-
B365, Installation Code for Solid-Fuel-Burning Appliances
and Equipment before proceeding.
1. Outside air supply - (Necessary for mobile home installa-
tion, optional for residential installation.) To draw outside
air through the floor, leave the 4" knockout in the rear of the
pedestal or leg kit ash box enclosure in place.
Pedestal Model: Cut or drill a 4" diameter or larger hole
in the floor anywhere inside the perimeter of the pedestal.
Cover the hole with a 4" x 4" (100 mm x 100 mm) rodent
screen and staple/nail in place.
Leg Model: Cut or drill a 4" diameter hole directly below
the bottom knockout hole of the ash box enclosure. Con-
nect enclosure to the floor with a short 4" diameter pipe.
This hole must get its air from a ventilated crawl space or
be extended with duct to the outdoors (see Figure #2, Page
7). The use of outside combustion air for residential
installation requires the unit to be secured to the structure
to prevent dislodging of the air duct. Outside air may also
be ducted from outside through the 4" diameter knockout
hole in the rear of the pedestal or leg kit ash box enclosure.
If this method of supplying combustion air is used in
conjunction with the optional blower kit, an outside air
adaptor may be required (see Optional Blower section).
Note: This unit is not designed to be operated with the firing
door open. In addition to the obvious hazard of sparks
landing on combustibles, an open fire door will cause the
heater to draw air from the living space and possibly cause
suffocation.
2. Room air supply - Remove the 4" plug from the rear of the
pedestal or leg kit ash box enclosure. The stove will now
draw its air from the room through this opening and into the
firebox intake.
Note: The living space around the heater must be well venti-
lated with good air circulation. Anything that may cause a
negative pressure can cause gases or fumes to be pulled into
the living area. During extremely cold weather, and espe-
cially when burning at very slow rates, the upper parts of the
exposed chimney may ice up, partially blocking the flue
gases. If blockage occurs, flue gases may enter living
space.

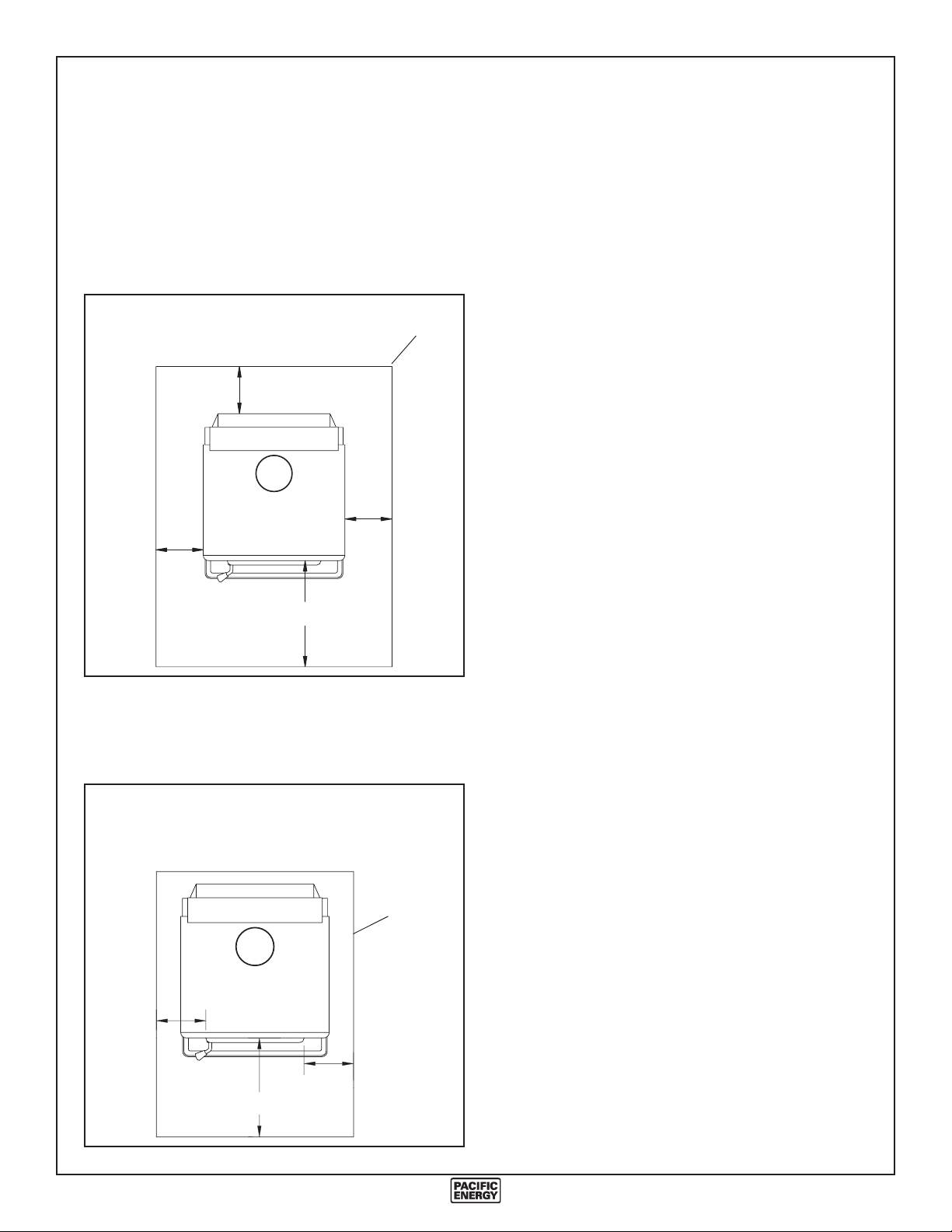

U.S.A. Only
Non-combustible
floor protector
FIG. #3
FIG. #4
In USA: 16" (406 mm) to the front and 8" (203 mm) to the sides
of the fuel loading door opening. See Figure #4, below. This
protection is also required under the chimney connector and 2"
(51 mm) beyond each side.
8" [203mm]
18" [457mm]
8" [203mm]
8" [203mm]
Minimum Width - 40'
Minimum Overall Depth - 50 1/2"
Non-combustible
floor protector
Minimum Width - 34"
Minimum Overall Depth - 40 1/2"

10 SUPER-SD1 220206-20
Operation
CAUTION: Never use gasoline, gasoline type lantern fuel,
kerosene, charcoal lighter fluid or similar liquids to start or
"freshen up" a fire in this heater. Keep all such liquids well
away from the heater while it is in use.
CAUTION: Hot while in operation. Keep children, cloth-
ing and furniture away. Contact may cause skin burns.
Your PACIFIC ENERGY heater is designed for maximum
overall efficiency at a moderate firing rate. Overfiring is
hazardous and a waste of fuel. Too slow a burn contributes to
creosote buildup and lowers combustion efficiency.
Wood Selection
This heater is designed to burn natural wood only. Higher
efficiency and lower emissions generally result when burning
air-dried seasoned hardwoods, as compared to softwoods or to
green or freshly cut hardwoods.
Wood should be properly air dried (seasoned) for six months
or more. Wet or undried wood will cause the fire to smoulder
and produce large amounts of creosote. Wet wood also pro-
duces very little heat and tends to go out often.
DO NOT BURN :
-Salt water wood * -Treated wood
-Wet or green wood -Coal/charcoal
-Garbage/Plastic * -Solvents
* These materials contain chlorides which will rapidly
destroy metal surfaces and void warranty.
Do not burn anything but wood. Other fuels, eg. charcoal, can
produce large amounts of carbon monoxide, a tasteless, odour-
less gas that can kill. Under no circumstances should you
attempt to barbecue in this heater.
How to Test Your Wood
Add a large piece of wood to the stove when it has a good large
bed of coals. It is dry if it is burning on more than one side
within one minute. It is damp if it turns black and lights within
three minutes. If it sizzles, hisses and blackens without igniting
in five minutes it is soaked and should not be burnt.
Lighting for the First Time
Curing of the Paint Finish
To achieve the best finish, the paint on your stove must be
baked on. When burning your stove for the first 2-3 times it is
very important that the room be well ventilated. Open all
windows and doors. Smoke and fumes caused by the curing
process may cause discomfort to some individuals.
Lighting a Fire
WARNING: Never use chemicals or any other volatile
liquid to start a fire.
1. Adjust air control to position H (maximum firing rate) and
open door.
2. Place crumpled newspaper in the centre of the heater and
criss-cross with several pieces of dry kindling. Add a few
small pieces of dry wood on top.
3. Ignite the paper and close the door.
4. After the fire has established itself, open the door and add
a few small logs. Close door.
5. Begin normal operation after a good coal base exists and
wood has charred.
Normal Operation
1. Set air control to a desired setting. If smoke pours down
across the glass (waterfall effect) this indicates you have
shut the control down too soon or you are using too low a
setting. The wide range control panel makes finding the
desired setting for your application easy. As every home's
heating needs vary (ie. insulation, windows, climate, etc.)
the proper setting can only be found by trial and error and
should be noted for future burns.
2. To refuel, adjust air control to high, and give the fire time
to brighten. Open the door slowly, this will prevent
backpuffing.
3. Use wood of different shape, diameter and length (up to
18"). Load your wood endwise and try to place the logs so
that the air can flow between them. Always use dry wood.
4. Do not load fuel to a height or in such a manner that would
be hazardous when opening the door.
5. For extended or overnight burns, unsplit logs are preferred.
Remember to char the wood completely on maximum
setting before adjusting air control for overnight burn.
WARNING: Always keep loading door closed when burn-
ing. This heater is not designed for open door burning.
WARNING: No alteration or modification of the combus-
tion air control assembly is permitted. Any tampering will
void warranty and could be very hazardous.
WARNING: Do not use grates or andirons to elevate the
fuel. Burn directly on the fire bricks. Replace broken or
missing bricks. Failure to do so may create a hazardous
condition.

220206-20 SUPER-SD1 11
Ash Removal
Caution: Ashes are to be removed only when the heater is cold.
Whenever ashes get 3 to 4 inches deep in your firebox, and
when fire has burned down and cooled, remove excess ashes.
Leave an ash bed approximately 1" (25 mm) deep on the
firebox bottom to help maintain a hot charcoal bed.
Optional Ash Cleanout system: The ash dump handle is
located under the ash lip on the left hand side. To operate ash
dump, pull handle out 1/2" and turn clockwise. This will unlock
the ash dump and allow it to open. Hold handle open while
pulling ashes into the opening. Avoid large embers as these still
contain heat value. Release handle and push in to lock. Ensure
ash dump door is properly engaged. Fill the cavity with the
remaining ash level with the firebox floor. Lift and pull out
ashpan and discard ashes into metal container. Replace ashpan
and ensure it is seated properly.
Do not burn with ash dump door open. Doing so will create
a hazardous condition. Always leave about 1" of ash when
cleaning.
Disposal of Ashes
Ashes should be placed in a metal container with a tight fitting
lid. The closed container of ashes should be placed on a non-
combustible floor or on the ground, well away from all combus-
tible materials, pending final disposal. If the ashes are disposed
of by burial in soil or otherwise locally dispersed, they should
be retained in closed container until all cinders have thoroughly
cooled. Other waste should not be placed in this container.
Baffle Removal
Chimney connector pipe should be disconnected from stove to
clean and inspect. Only if this is not possible should you
remove baffle assembly.
DO NOT OPERATE WITH BAFFLE ASSEMBLY OR
INSULATION REMOVED.
Removal
Remove retaining pin at the back top of the firebox, just under
the baffle. Lift baffle up and pull forward to disconnect from
the supply tube. Tilt baffle sideways to drop down and remove
from firebox. Inspect gasket between baffle and supply tube.
If necessary, replace with gasket #139.5 available from your
Pacific Energy dealer. Re-install baffle assembly in reverse
order. The two side pieces of insulation must be tight against
the siderails.
Restarting After Extended or Overnight
Burns
1. Open door and rake hot embers towards the front of the
heater. Add a couple of dry, split logs on top of embers,
close door.
2. Adjust air control to high and in just a few minutes, logs
should begin burning.
3. After wood has charred, reset air control to desired setting.
4. To achieve maximum firing rate, set control to high "H". Do
not use this setting other than for starting or preheating
fresh fuel loads.
DO NOT OVERFIRE THIS HEATER: Attempts to achieve
heat output rates that exceed heater design specifications
can result in permanent damage to the heater and chimney.
More Wood, More Heat
Seasoned wood has approximately 7500 BTU's per pound. If
you put 10 pounds of wood in your stove for an eight hour burn
the wood will be producing 9375 BTU's per hour. (7500 BTU
x 10 lbs./8hrs.=9375 BTU's per hr.) If you put 20 lbs of wood
in your stove for eight hour burn you will get 18,750 BTU's per
hr. (7500 BTU x 20lbs./8hr.=18,750 BTU's per hr.). This is
only an example and is based on 100% efficiency. In reality,
your stove should perform in the 70% efficiency range.
Experience will give you the right settings for proper combus-
tion and efficient burning. Remember the correct air inlet
setting is affected by variables such as type of wood, outside
temperature, chimney size and weather conditions. With
practice, you will become proficient in operating your heater
and will obtain the performance for which it was designed.
Proper Draft
1. Draft is the force which moves air from the appliance up
through the chimney. The amount of draft in your chimney
depends on the length of the chimney, local geography,
nearby obstructions and other factors.
2. Too much draft may cause excessive temperatures in the
appliance. An uncontrollable burn or a glowing red stove
part or chimney indicates excessive draft.
3. Inadequate draft may cause backpuffing into the room and
plugging of the chimney. Smoke leaking into the room
through appliance and chimney connector joints indicates
inadequate draft.

12 SUPER-SD1 220206-20
Optional Blower
The optional blower kit (kit #WODC.BLOW) is equipped with
a three prong power cord and may be installed at any time.
Follow installation instructions supplied with the kit. Route
power supply cord away from heater.
Electrical rating: 115 volts A.C.-1.02 amps.
Fan output rating: 125 CFM
Blower Operation
Proper blower speed matched with air control setting will
ensure peak performance from your stove. Operate as follows:
- Air control set to "L" (low), operate blower speed control
on "Low".
- Air control set between "L" and "H" (low and high),
operate blower speed control at desired setting.
Automatic: To operate the blower automatically, set the
rocker switch on the side of the fan housing to "Auto" and set
the speed control to desired setting. This will allow the fan to
turn on as the stove heats up to operating temperature. It will
also shut the blower off after the fire has gone out and the unit
cooled to below a useful heat output range.
Manual: To manually operate the blower, set the rocker switch
to "Man" and set the speed control to desired setting. This will
bypass the sensing device and allow full control of the blower.
Switching from "Auto" to "Man" or selecting speed may be
done anytime.
Optional Outside Air Adaptor
The adaptor is only required if the blower kit is to be installed
and outside combustion air to be ducted to rear of pedestal.
Installation:
Remove blower kit if already installed. Place adaptor with the
4" round hole facing up and opposite end covering the room air
knockout hole on the back of the pedestal. Mark attachment
holes on pedestal base and drill with 1/8" bit. Attach with #8
x 1/2" screws and reinstall fan. Combustion air duct from
outside can now be attached to the 4" round collar.

220206-20 SUPER-SD1 13
Troubleshooting
Problem Cause Cure
Glass is Dirty 1. Wood is wet - Use dry wood
2. Turning down air control - Do not turn down until
or damper too soon a) there is a good bed of coals
b) the wood is charred
3. Draft too low - Improper chimney height and / or diameter
- Chimney plugged or restricted, check flue
- Provide outside air for combustion
4. Door gasket leakage - Replace gasket
- Check latch
Excessive Creosote Buildup - See 1,2,3, above.
Low Heat Output 1. Wood is wet - Use dry wood
2. Fire too small - Build a larger fire
3. Draft too low - Chimney plugged or restricted, inspect and clean
Won't Burn Overnight 1. Air control is set too high - Set control lower
2. Not enough wood - Unsplit wood is preferred for overnight burns
3. Draft too high - Excessive chimney height and/or diameter,
see page 11
Stove Won't Burn 1.Combustion air supply blocked - Check outside air supply for obstruction
- Check that room air cover is removed
2. Draft too low - Chimney plugged or restricted, inspect and clean
- Chimney oversized or otherwise unsuitable,
consult Dealer
Appendix A

14 SUPER-SD1 220206-20

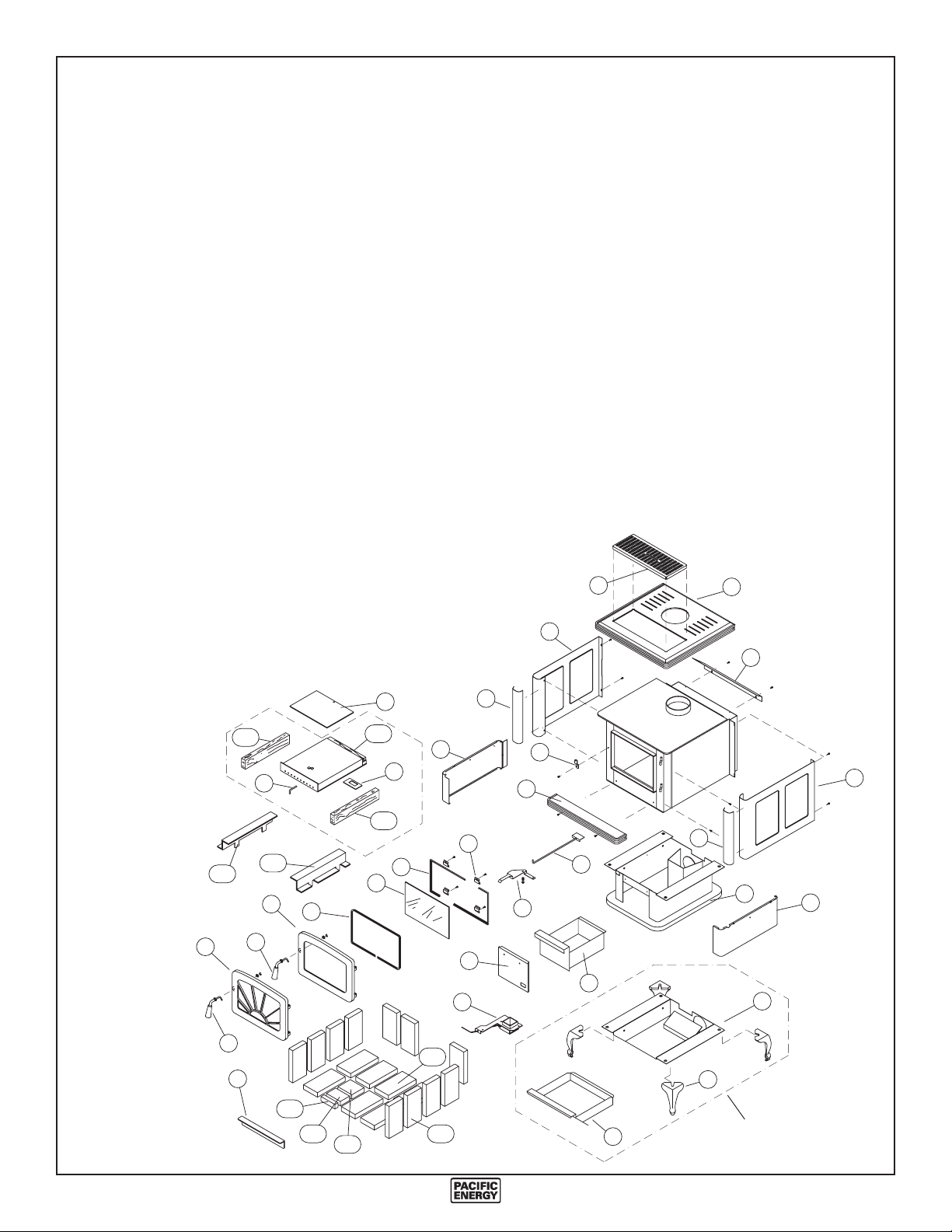

Replacement Parts - Super 27
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION)
ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO.
1 ............ Side Shield, Left or Right .......................... SUPD.4302
2 ............ Rear Deflector ............................................. SSER.229
3 ............ Door Catch .............................................. WODC.1461
4 ............ Ash Lip (c/w Trim & Hardware) ..... ALIP.221001MB
.............. Ash Lip Trim, Gold ......................................... 2210.51
.............. Ash Lip Trim, Nickel ......................................... 2210.6
.............. Ash Lip Trim, Black .......................................... 2210.2
.............. Ash Lip Trim Hardware ............................. ALIP.3211
5 ............ Glass Clamps (4 pc.) ................................. SSER.1425
6 ............ Glass Bar Set (2 pc.) ............................. WODC.41405
7 ............ Replacement Glass (c/w Tape) .......... DR31.WGLKIT
8 ............ Door Gasket Kit ................................. DR31.WDGKIT
9 ............ Door Casting, Arched Black ..................... CAST.31ST
.............. Door Casting, Radiant Black ............... CAST.31RSST
.............. Door Casting, Arched Gold ..................... CAST.31GD
.............. Door Casting, Radiant Gold ............... CAST.31RSGD
.............. Door Casting, Arched Nickel .................... CAST.31NI
.............. Door Casting, Radiant Nickel .............. CAST.31RSNI
10 .......... Door Handle Assembly ........................ WODC.4147B
11 .......... Boost Manifold ..................................................... 4105
12a ........ Firebrick - 1 1/2" x 4 1/2" x 1 1/4" (1 pc.) ............ 248
12b ........ Firebrick - 3" x 4 1/2" x 1 1/4" (1 pc.) .................. 247
12c ........ Firebrick - 4" x 4 1/2" x 1 1/4" (1 pc.) .................. 246
12d ........ Firebrick - 7 1/4" x 4 1/2" x 1 1/4" (1 pc.) ............ 245 All parts may be ordered from your nearest Pacific Energy dealer.
Contact Pacific Energy for the location of the dealer nearest you.
12e ........ Firebrick - 9" x 4 1/2" x 1 1/4" (17 pc.) ......... 5096.99
.............. Firebrick Set .......................................... BRIC.SSERA
13a ........ Brick Rail, Left (Latch Side) ............... SSER.4122001
13b ........ Brick Rail, Right (Hinge Side) ............ SSER.4122101
.............. Replacement Baffle Kit ...................... SSER.DBAKIT
14a ........ Baffle (not sold separately) ...................... SSER.DBAF
14b ........ Side Insulation (not sold separately) ......... 5068.732.B
15 .......... Baffle Pin ................................................................ 125
16 .......... Baffle Gasket ....................................................... 139.5
17 .......... Flame Shield (c/w Bolt and Nut) .............. SSER.4115
18 .......... Pedestal Front Cover ................................. SSER.2075
19 .......... Pedestal Assembly ................................... WODC.4312
20 .......... Ash Drawer Enclosure (Leg Model) ...... WODC.4219
21 .......... Leg, Black .............................................. CAST.LEGST
.............. Leg, Gold Plated ................................ CAST.LEGGLD
.............. Leg, Nickel Plated ................................. CAST.LEGNI
22 .......... Front Cover (Leg Model) ....................... WODC.4221
23 .......... Ash Box (Leg Model) ........................... WODC.43155
24 .......... Ash Dump Assembly ............................... WODC.2261
25 .......... Ash Box (Pedestal Model) ..................... WODC.4316
26 .......... Air Shutter Assembly .............................. WODC.4531
27 .......... Baffle Air Control Assembly ....................... SSER.214
1
24
25
11
20
23
18
21
19
1
28
28
22
2
10
8
9
10
7
626
5
4
27
17
3
9
13a
13b
14b
14a
12b
12d
12a
12c
12e
14b
15
16

220206-20 SUPER-SD1 15
2
1
6
27
20
29
8
13
11
12
24
26
25
21
9
10
7
1
19
22
31
23
3
4
28
12
11
31
18
30
5
14b 14c
14a
14d
14e
15b
15a
16a
17
16b
16b
Replacement Parts - Spectrum and Spectrum Classic
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION)
ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO.
1 ............ Side Shield, Left or Right ..................... SPED.4412_ _
2 ............ Rear Deflector ............................................. SPEC.418
3 ............ Top Panel (Porcelain Finish) .............. SPED.401_ _A
4 ............ Screen Trivet, Metallic Black ...................... SPEC.408
.............. Screen Trivet, Classic Gold .................... CLAS.GDSC
.............. Screen Trivet, Classic Nickel ................ CLAS.NISCA
.............. Screen Trivet, Black ............................. CLAS.BKSCA
5 ............ Door Catch .............................................. WODC.1461
6 ............ Ash Lip .............................................. SPED.4414_ _A
7 ............ Glass Clamps (4 pc.) ................................. SSER.1425
8 ............ Glass Bar Set (2 pc.) ............................. WODC.41405
9 ............ Replacement Glass (c/w Tape) .......... DR31.WGLKIT
10 .......... Door Gasket Kit ................................. DR31.WDGKIT
11 .......... Door Casting, Arched Black ..................... CAST.31ST
.............. Door Casting, Radiant Black ............... CAST.31RSST
.............. Door Casting, Arched Gold ..................... CAST.31GD
.............. Door Casting, Radiant Gold ............... CAST.31RSGD
.............. Door Casting, Arched Nickel .................... CAST.31NI
.............. Door Casting, Radiant Nickel .............. CAST.31RSNI
12 .......... Door Handle Assembly ........................ WODC.4147B
13 .......... Boost Manifold ..................................................... 4105
14a ........ Firebrick - 1 1/2" x 4 1/2" x 1 1/4" (1 pc.) ............ 248
14b ........ Firebrick - 3" x 4 1/2" x 1 1/4" (1 pc.) .................. 247
14c ........ Firebrick - 4" x 4 1/2" x 1 1/4" (1 pc.) .................. 246
14d ........ Firebrick - 7 1/4" x 4 1/2" x 1 1/4" (1 pc.) ............ 245
14e ........ Firebrick - 9" x 4 1/2" x 1 1/4" (17 pc.) ......... 5096.99
.............. Firebrick Set .......................................... BRIC.SSERA
15a ........ Brick Rail, Left (Latch Side) ............... SSER.4122001
15b ........ Brick Rail, Right (Hinge Side) ............ SSER.4122101
.............. Replacement Baffle Kit ...................... SSER.DBAKIT
16a ........ Baffle (not sold separately) ...................... SSER.DBAF
16b ........ Side Insulation (not sold separately) ......... 5068.732.B
17 .......... Baffle Pin ................................................................ 125
18 .......... Baffle Gasket ....................................................... 139.5
19 .......... Flame Shield (c/w Bolt and Nut) .............. SSER.4115
20 .......... Ash Box (Spectrum) ............................... WODC.4316
21 .......... Pedestal Assembly ................................... WODC.4312
22 .......... Pedestal Cladding (Hinge Side) ............ SPEC.402_ _
23 .......... Pedestal Cladding (Latch Side) ............. SPEC.403_ _
24 .......... Ash Drawer Enclosure (Classic) ............ WODC.4219
25 .......... Leg, Gold Plated ................................ CAST.LEGGLD
.............. Leg, Nickel Plated ................................. CAST.LEGST
.............. Leg, Black .............................................. CAST.LEGNI
26 .......... Ash Box (Classic) ................................. WODC.43155
27 .......... Ash Dump Assembly ............................... WODC.2261
28 .......... Ash Box Cladding (Por. Finish) .......... SPED.4406_ _
29 .......... Air Shutter Assembly .............................. WODC.4531
30 .......... Baffle Air Control ........................................ SSER.214
LEG KIT FOR SPECTRUM
CLASSIC ONLY
All parts may be ordered from your nearest Pacific Energy dealer.
Contact Pacific Energy for the location of the dealer nearest you.
When ordering porcelain finish parts, please specify the appropri-
ate code as follows:
Black ...... BK
Ivory ...... IY
Blue ....... BE
Red ......... RD
Green ..... GN

16 SUPER-SD1 220206-20
Understanding & Operating Your Pacific Energy Stove
The Pacific Energy SUPER SERIES line of
woodstoves is a culmination of years of research and
development. Designed to be efficient, clean-burn-
ing and user-friendly, this heater will give you years
of warm service. However, a knowledgeable opera-
tor is still the most important factor for maximum
performance and part of this is understanding the
basic functions of this design.
Traditional wood stoves had a basic combustion
system which allowed a considerable amount of heat
energy to escape up
the chimney as
unburned gases and
particulates (smoke).
Pacific Energy has de-
signed a system that
solves the problem by
burning the smoke
and releasing the ad-
ditional heat to the
room.
This system has two
critical design fea-
tures:
1. Above fire second-
ary air injection:
The hollow "air baf-
fle" injects super-
heated secondary air
just above the load.
With the stove at the proper operating temperature,
this will create a secondary flame that will be evident
for approximately 1/3 of the total burn time.
2. High mass and thermal insulation:
The high mass (weight) acts as a heat storage and the
thermal insulation keeps the combustion zone hot.
Active flaming takes place during the first part of the
burn. During this stage, heat is stored in the mass of
the unit and is later released slowly and evenly. As
wood chars, active flaming will diminish. This
clean charcoal burning stage will last for a consider-
able length of time and refuelling should be avoided
until the charcoal base has become quite small.
OPERATING TIPS
1. Always use dry, seasoned firewood, up to 18"
long. Load wood
endwise, a mixture
of large and small
pieces, on top of a
good ash base (1"
minimum).
2. Operate on a me-
dium to high setting,
for up to 1 hour from
cold start. After the
initial warm up pe-
riod, refuel and leave
the air control on a
medium setting for 5
to 10 minutes more
and then set the air
control to the desired
position.
3. If a slow burn is
desired, set the air
control to low. Active secondary burning should be
present above the wood load. If it is not present or
goes out shortly after, proper operating temperature
has not been reached and the stove needs additional
warm up time.
1
2
3
5
6
4
1 -Boost Air 4 -Secondary Combustion Zone
2 -Main Combustion Air 5 -Radiant Heat
3 -Air Wash System 6 -Convected Heat

220206-20 SUPER-SD1 17
Super 27 and Pacific Summit
NOTE: Optional ash dump kit should be installed prior to pedestal or leg kit assembly.
Required tools: 1 - Claw hammer, 1 - 3/4" wrench, and 1- 7/16" wrench
Required: Pedestal Kit Leg Adapter
1 Pedestal base 1 Ash drawer enclosure
1 Front cover (attached) 1 Front cover (attached)
4 1/2" washers
with
Leg Set
4 Legs
Crate Removal
1) Carefully remove wood top and supports.
2) Remove plastic cover.
3) Using a 7/16" wrench, remove lag bolts that secure stove body to bottom pallet.
4) Place stove body carefully on its back.
5) Using a 3/4" wrench, remove 1" x 1/2" bolts and save for later use.
6) Remove pallet retaining brackets from stove bottom.
Pedestal Kit
1) With the unit on its back and the removable cover facing up, align the pedestal
mounting holes with the holes on the stove.
2) Secure in place with 1" x 1/2" bolts previously removed.
3) Carefully place the unit in the upright position.
Leg Adapter and Leg Kit
1) With the unit on its back, align the ash drawer enclosure mounting holes (removable
cover facing up) with the holes on the stove.
2) Position the legs over top of the same holes on the stove.
3) Secure in place with 1" x 1/2" bolts previously removed.
4) Carefully place the unit in the upright position.
Pedestal or Legs
Installation Instructions

18 SUPER-SD1 220206-20
Ash System - Leg model Ash System - Pedestal model
1 .. Ash dump assembly 1 .. Ash dump assembly
1 .. Ash dump gasket 1 .. Ash dump gasket
1 .. Ash pan (Super 27 model) 1 .. Ash pan (Super 27 model)
or . Ash pan (Vista model) or . Ash pan (Vista model)
or . Ash pan (Summit model) or . Ash pan (Summit model)
Super 27 - Leg Model ....................... (SUPR.ASHLEG) ... (SUPD.ASHLEG)
Super 27 - Pedestal Model ............... (SUPR.ASHPED) .... (SUPD.ASHPED)
Vista - Leg Model ............................. (VIST.ASHLEG)
Vista - Pedestal Model...................... (VIST.ASHPED)
Summit - Pedestal Model ................. (SUMM.ASHPED)
Summit - Leg Model ......................... (SUMM.ASHLEG)
Ash System Assembly
Instructions
Contents:
Note: Ash dump assembly should be installed prior to leg kit or pedestal kit assembly
Required tools: two - 1/2" wrench or socket or one - 3/4" wrench or socket
and one - 3/8" wrench or socket, one - 7/16" wrench or socket
Remove crate ( all models )
1) Carefully remove wood top and supports.
2) Remove plastic cover.
3) Using 7/16" wrench, remove lag bolts that secure stove body to bottom pallet.
4) Place stove body carefully on its back.
5) Using two 1/2" wrenches or a 3/4" wrench, remove pallet retaining brackets from stove
bottom.
Assembly
1) With stove body laying on its back, remove the 1/4" x 1" Tek screw located at the top
left of the stove bottom.
2) Remove the ash system hole cover and gasket located under the stove. Discard cover
plate and gasket.
3) Place new gasket provided over existing studs.
4) Install ash dump system over gasket and secure with two 1/2" nuts previously removed.
5) Install the 1/4" Tek screw in the original hole and secure.

220206-20 SUPER-SD1 19
CERTIFIED FOR CANADA AND U.S.A.
LISTED ROOM HEATER, SOLID FUEL TYPE.
ALSO FOR USE IN MOBILE HOMES
TESTED TO CAN/ULC S627-M93 AND UL 1482-98
MODEL SERIES D: SUPER 27 SPECTRUM CLASSIC
Label
280801 5050.75 SUP1-A2
A. SIDEWALL TO UNIT 18 in. / 455 mm 14 in. / 355 mm 14 in. / 355 mm 14 in. / 405 mm 16 in. / 405 mm 16 in. / 405 mm
B. BACKWALL TO UNIT 12 in. / 305 mm <<
<<
<8 in. / 200 mm 5 in. / 127 mm 5 in. / 127 mm 10 in. / 255 mm 8 in. / 200 mm
C. CORNER TO UNIT 11 in. / 280 mm 11 in. / 280 mm 4 in. / 102 mm 4 in. / 102 mm N/A 8 in. / 200 mm
D. SIDEWALL TO CONNECTOR 27 in. / 685 mm 23 in. / 585 mm 22.5 in. / 570 mm 22.5 in. / 570 mm 24.5 in. / 620 mm 24.5 in. / 620 mm
E. BACKWALL TO CONNECTOR 19 in. / 485 mm <<
<<
<15 in. / 380 mm 11.5 in. / 292 mm 11.5 in. / 292 mm 16.5 in. / 420 mm 14.5 in. / 370 mm
F. CORNER TO CONNECTOR 22 in. / 560 mm 22 in. / 560 mm 14.5 in. / 370 mm 14.5 in. / 370 mm N/A 18.5 in. / 470 mm
DO NOT REMOVE THIS LABEL
• INSTALL AND USE IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS.
• CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS, INSTALLATION PERMIT AND INSPECTION IN
YOUR AREA.
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE (USA. ONLY).
• USE 6 INCH / 150MM DIAMETER MINIMUM 24 MSG BLACK OR LISTED CONNECTOR.
• CONNECT TO A LINED MASONRY CHIMNEY SUITABLE FOR USE WITH SOLID FUELS.
• DO NOT OBSTRUCT THE SPACE BENEATH THE HEATER.
• SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED WHEN PASSING
A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING.
• DO NOT PASS A CHIMNEY CONNECTOR THROUGH A COMBUSTIBLE WALL OR CEILING.
• MINIMUM CLEARANCE BETWEEN SINGLE WALL CHIMNEY CONNECTOR AND COMBUSTIBLE MATERIALS-18INCHES/
455MM. CLEARANCE MAY BE REDUCED BY THE USE OF LISTED PIPE SHIELDS, WALL PROTECTORS OR OTHER
MEANS APPROVED BY LOCAL BUILDING OR FIRE OFFICIALS.
HORIZONTAL CONNECTOR NOT PERMITTED IN MOBILE HOMES
<<
<<
<AS TESTED - PIPE SHIELD MAY BE REQUIRED BY LOCAL AUTHORITIES.
* COMBUSTIBLE ALCOVE SIZE : DEPTH - 4 FT. / 1.22 M MAXIMUM, HEIGHT 7 1/2 FT. / 2.3 M MINIMUM
COMBUSTIBLE FLOOR MUST BE PROTECTED BY A CONTINUOUS NON-COMBUSTIBLE MATERIAL EXTENDED TO THE
FRONT, SIDES AND BACK AS INDICATED.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
• COMPONENTS REQUIRED FOR MOBILE HOME AND ALCOVE INSTALLATION: OUTSIDE AIR KIT, AND ONE OF THE
FOLLOWING LISTED CONNECTORS: SECURITY MODELS DP OR DC, OLIVER MACLEOD MODEL PV, ENERGY VENT
E VENT, SELKIRK METALBESTOS MODEL DS, METAL FAB MODEL DW, AMERI-TEC MODEL DBSP, INDUSTRIAL
CHIMNEY MODEL EXCEL ULTRA-BLACK, OR SIMPSON DURA-VENT MODEL DVL IN COMBINATION WITH ONE OF THE
FOLLOWING COMPATIBLE CHIMNEY SYSTEMS: APPLIANCE MUST BE INSTALLED WITH PEDESTAL OR LEG KIT
ATTACHED.
IN CANADA - SECURITY MODEL S2100, OLIVER MACLEOD PROJET MODEL HT 3000, SELKIRK SENTINEL MODEL CF,
INDUSTRIAL CHIMNEY MODEL EXCEL 2100.
IN USA - SECURITY MODEL ASHT OR S2100, OLIVER MACLEOD MODEL 3103 OR HT 3000, SELKIRK METALBESTOS
MODEL SS II, METAL FAB MODEL 2100, AMERI-TEC MODEL HS, INDUSTRIAL CHIMNEY MODEL EXCEL 103HT,
SIMPSON DURA-VENT MODEL DURA/PLUS AND DURA TECH.
USE COMPONENTS SPECIFIED IN PACIFIC ENERGY INSTALLATION INSTRUCTIONS.
• OPTIONAL COMPONENTS - WATER COIL (CANADA ONLY), FAN KIT #SSER.BLOW, FAN ELECTRICAL RATING: 115V,
60HZ, 80WATTS. DO NOT ROUTE POWER CORD BENEATH HEATER.
• CAUTION: RISK OF EXCESSIVE TEMPERATURES - KEEP ASH DUMP CLOSED DURING FIRING OF THE HEATER.
• OPERATE ONLY WITH FEED DOOR CLOSED. OPEN TO FEED FIRE ONLY.
• KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIALS WELL AWAY FROM HEATER.
• REPLACE GLASS ONLY WITH CERAMIC GLASS.
MADE IN CANADA
J F M A MJ J A S OND
1999 2000 2001 2002 2003 2004
DATE OF MANUFACTURE
MANUFACTURED BY:
PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
PO. BOX 1060, DUNCAN, BC V9L 3Y2
HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN
BURNS. SEE NAMEPLATE AND INSTRUCTIONS.
U.S. ENVIRONMENTAL PROTECTION AGENCY
CERTIFIED TO COMPLY WITH
JULY, 1990, PARTICULATE
EMISSION STANDARDS
WH-
WH-
CAUTION
IN CANADA G. 18 INCHES / 455 MM
H. 8 INCHES / 200 MM
I. 8 INCHES / 200 MM
IN U.S.A. G. 16 INCHES / 405 MM
H. 5 INCHES / 127 MM
I. 0 INCHES / 0 MM
REPORT NO.
5041 (MAY. 89)
* ALCOVE
INSTALLATION
USING
DOUBLE WALL
CONNECTOR
RESIDENTIAL INSTALLATION
USING SINGLE WALL CONNECTOR
MOBILE HOME
INSTALLATION
USING
DOUBLE WALL
CONNECTOR
VERTICAL CONNECTOR HORIZONTAL CONNECTOR VERTICAL CONNECTOR HORIZONTAL CONNECTOR
RESIDENTIAL CLOSE CLEARANCE
INSTALLATION
USING DOUBLE WALL CONNECTOR

PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
Box 1060, Duncan, BC V9L 3Y2
Phone: [phone]
Web site: http://www.pacificenergy.net
