Pacific energy T4 Original operating instructions

TESTED and LISTED to
CAN/ULC S627 AND UL 1482
Meets the Environmental Protection Agency’s
July 1990 Particulate Emission Standards
PLEASE SAVE THESE INSTRUCTIONS
INSTALLATION & OPERATION GUIDE
ALDERLEA CAST IRON WOOD STOVE
MODELS T4, T5, T6
SAFETY NOTICE
If this stove is not properly installed, a house re may result. For your safety,
follow the installation instructions. Contact local building or re ofcials about
restrictions and installation inspection requirements in your area.
261107-28 T4-5-6 5055.202

Safety and Maintenance.....................................................................................3
Creosote.......................................................................................................................4
Formation and Need for Removal ........................................................................4
Chimney Fires......................................................................................................4
Avoiding a Chimney Fire ......................................................................................4
In Case of a Chimney Fire ...................................................................................5

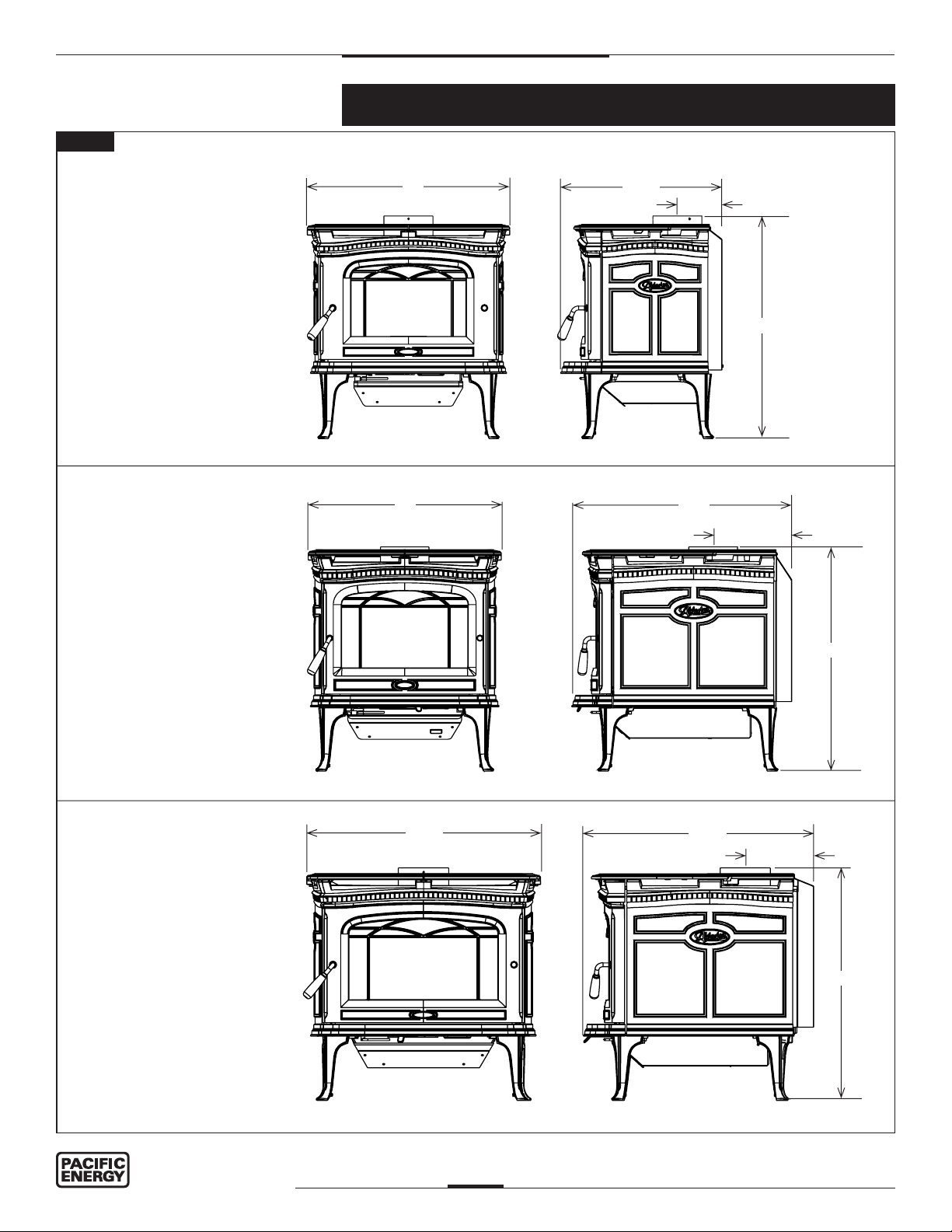

Appliance Dimensions........................................................................................6
Installation – Residential ...................................................................................7
Clearances – Residential .....................................................................................7

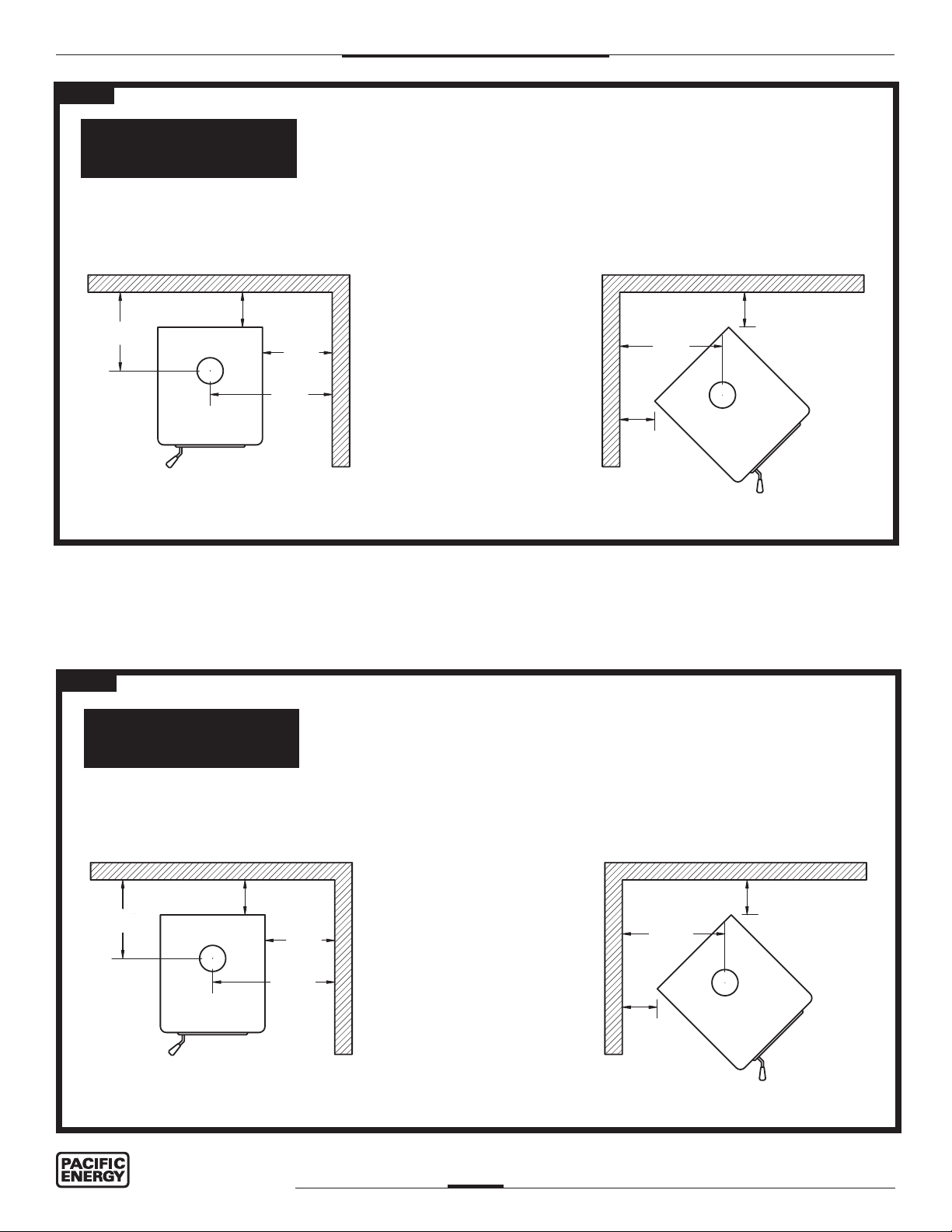

Minimum Clearances to Combustibles – Residential........................................7-8
Chimney and Connector ......................................................................................9
Double-Wall Connector ......................................................................................10
Single-Wall Connector .......................................................................................10
Installation Procedure ........................................................................................10
Installation – Mobile Home.............................................................................11
Clearances – Mobile Home................................................................................11
Minimum Clearances to Combustibles – Mobile Home ................................11-12

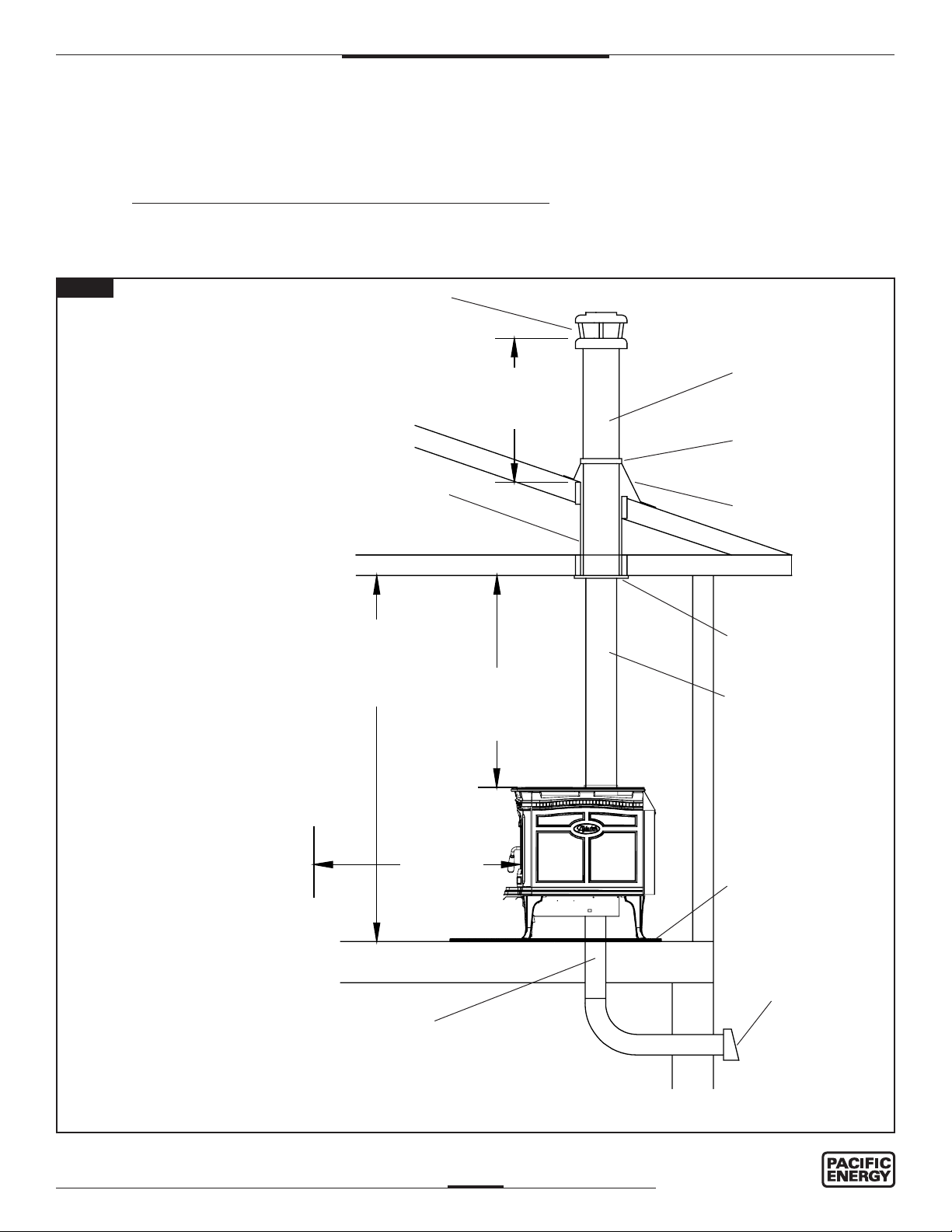

Listed Chimney and Chimney Connector for Mobile Home Installation .............13
Installation Procedure ........................................................................................13

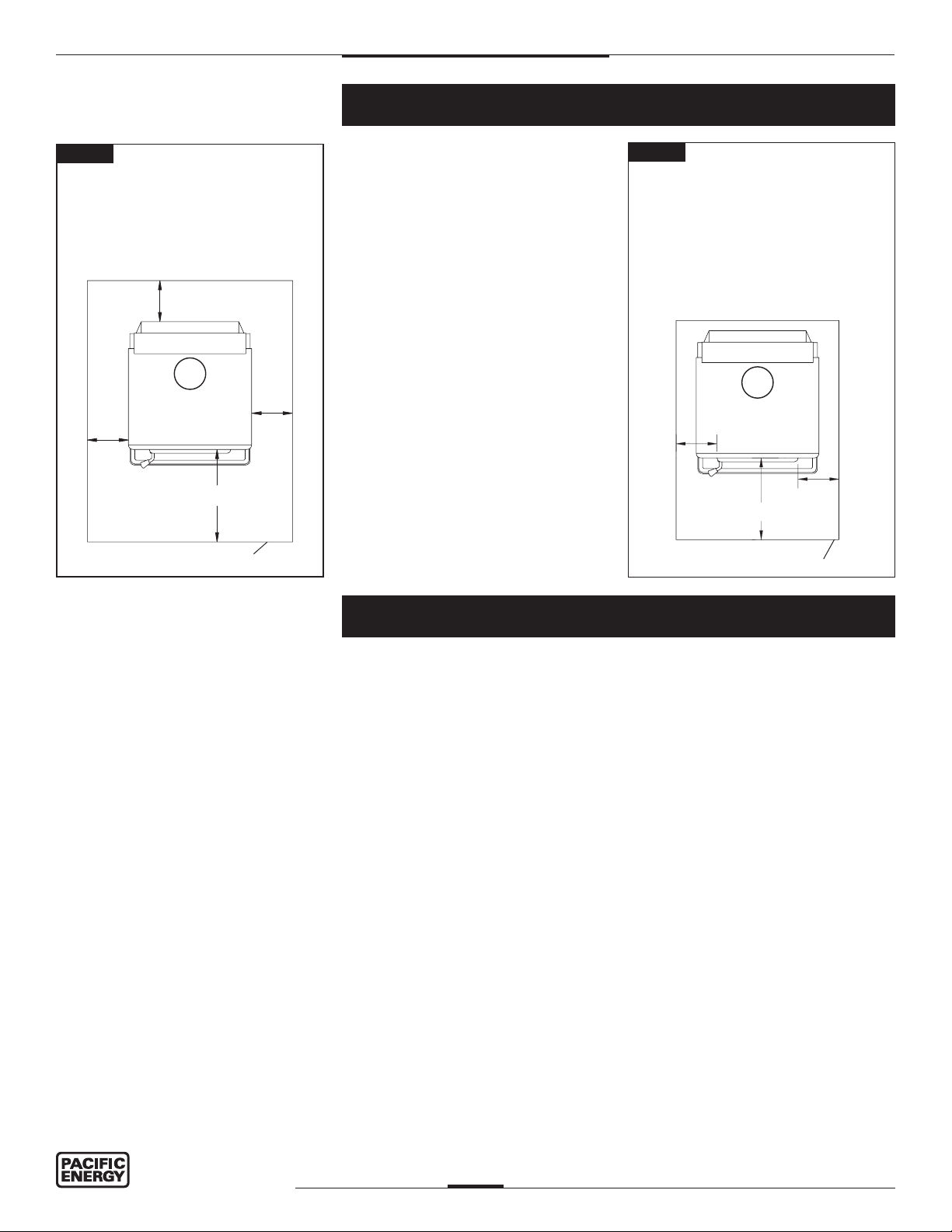

Floor Protector.......................................................................................................14
Combustion Air......................................................................................................14
Operation...................................................................................................................15
Wood Selection..................................................................................................15
How to Test Your Wood.....................................................................................15
Lighting for the First Time ..................................................................................16
Lighting a Fire ....................................................................................................16
Normal Operation...............................................................................................16
Restarting After Extended or Overnight Burns...................................................17
More Wood, More Heat......................................................................................17
Proper Draft........................................................................................................17
Ash Removal......................................................................................................17
Disposal of Ashes ..............................................................................................18
Bafe Removal.......................................................................................................18
Removal.............................................................................................................18
Optional Blower.....................................................................................................18
Blower Operation ...............................................................................................18
APPENDIX A
Troubleshooting....................................................................................................19
T4 Replacement Parts .......................................................................................20
T5 Replacement Parts .......................................................................................21
T6 Replacement Parts .......................................................................................22
Firebrick Installation Instructions..............................................................23
Label T4......................................................................................................................24
Label T5......................................................................................................................25
Label T6......................................................................................................................26
NOTE:
WE STRONGLY
RECOMMEND THAT
SMOKE DETECTORS BE
INSTALLED.
If smoke detectors have been previ-
ously installed, you may notice that
they are operating more frequently.
This may be due to curing of stove
paint or fumes caused by accidentally
leaving the re door open. Do not
disconnect the detectors. If neces-
sary, relocate them to reduce their
sensitivity.
SAFETY NOTICE:
If this stove is not
properly installed, a
house re may result.
For your safety,
follow the installation
instructions. Contact
local building or
fire officials about
restrictions and
installationinspection
requirements in your
area.
Please read this entire manual before
you install and use your new room
heater. Failure to follow instructions
may result in property damage, bodily
injury, or even death.
2
261107-28 T4-5-6
Contents

3
261107-28 T4-5-6
Safety and Maintenance
1. Burn only dry and well seasoned wood. The denser or heavier the wood when dry,
the greater its heat value. This is why hardwoods are generally preferred. Green or
wet wood will cause a rapid buildup of creosote. If you feel it is necessary to burn wet
or unseasoned wood, do so only with the air inlet set open enough to maintain a good
strong re and fairly high chimney temperatures. Do not attempt to burn overnight using
green wood or wet wood. Wet wood will reduce heat output, as well as contributing
signicantly to creosote buildup.
2. Remove ashes frequently and only when cold. Too much ash could cause embers to
roll out the door when it is opened. This may pose a re hazard. For proper operatrion,
maintain a 1" minimum ash base.
3. If glass becomes darkened through slow burning or poor wood, it can readily be cleaned
with replace glass cleaner when stove is cold. Never scrape with an object or use
abrasive cleaners that might scratch the glass. The type and amount of deposit on the
glass is a good indication of the ue pipe and chimney buildup. A light brown dusty
deposit that is easily wiped off usually indicates good combustion and dry, well-seasoned
wood and therefore relatively clean pipes and chimney. On the other hand, a black
greasy deposit that is difcult to remove is a result of wet and green wood and too slow
a burning rate. This heavy deposit is building up at least as quickly in the chimney.
4. DOOR GASKETS - The gasket used by Pacic Energy (5/16" medium density berglass
rope) requires only light pressure to seal. This will prolong seal life. It is important that
the door seal be maintained in good condition. Periodically inspect seals and replace
if necessary. Follow instructions included in the door gasket kit obtainable from your
nearest Pacic Energy dealer.
5. DOOR GLASS - Do not slam loading door or otherwise impact glass. When closing
door, make sure that no logs protrude to impact the glass. If the glass gets cracked
or broken, it must be replaced before using the stove. Replacement glass can be
obtained from your dealer. Use ceramic glass only. Do not substitute with any other
type.
T4 – 16.250” x 10.5” x 5mm
T5 – 17.25” x 11.395” x 5mm
T6 – 20.125” x 11.875” x 5mm
To remove broken glass, undo the four retaining screws and remove clamps, noting position
for re-assembly. Remove all particles of glass. Be careful as they are very sharp. Install
new glass complete with gasket. Replace clamps and screws.
6. Do not store wood within heater installation clearances, or within the space required
for fuel loading and ash removal. Keep the area around the heater clean and free of
loose combustibles, furniture, newspapers, etc.
7. If the heater requires cleaning, use mild soap and water only. Use of abrasive cleaners
will void warranty.
8. Establish a routine for fuelling and ring the heater. Check daily for creosote buildup
until experience shows how often you need to clean the chimney to be safe.
9. Be aware that the hotter the re, the less creosote is deposited. Weekly cleaning may
be necessary in mild weather, even though monthly cleaning is usually enough in the
coldest months when burning rates are higher.
10. Instruct all members of your family on the safe operation of the heater. Ensure they
have enough knowledge of the entire system if they are expected to operate it. Study
the section on chimney res and the importance of following the steps outlined "In Case
of Chimney Fire".
WARNING:
Never use chemicals or any other volatile
liquid to start a re. Do not burn garbage,
or ammable uids such as gasoline,
naptha, or engine oil. We strongly
recommend that smoke detectors be
installed.
CAUTION:
• do not overtighten, tighten screws very
carefully
• do not clean glass when hot
• do not use abrasive cleaners on glass
WARNING:
Only use materials supplied by
manufacturer when doing maintenence
or replacements.
NATIONAL
FIREPLACE
INSTITUTE
CERTIFIED
We recommend that
our woodburning hearth
products be installed and
serviced by professionals
who are certied in the
U.S. by the National
Fireplace Institute®(NFI)
as NFI woodburning
Specialists or who are
certied in Canada by
Wood Energy Technical
Training (WETT).
Wood Energy
Technical Training

4
261107-28 T4-5-6
Creosote
Formation and Need for Removal
When wood is burned slowly, it produces tar and other organic vapours, which combine
with expelled moisture to form creosote. The creosote vapours condense in the relatively
cool chimney ue of a slow burning re. As a result, creosote residue accumulates on the
ue lining. When ignited, this creosote makes an extremely hot re.
The chimney connector and chimney should be inspected periodically (at least once every
two months) during the heating season to determine if a creosote buildup has occurred. If
creosote has accumulated (3 mm. or more), it should be removed to reduce the risk of a
chimney re.
1. Highest smoke densities occur when a large amount of wood is added to a bed of hot
coals and the air inlet is closed. The heated wood generates smoke, but without ample
air, the smoke cannot burn. Smoke-free, clean burning requires small fuel loads, two
or three logs at a time or 1/4 to 1/2 of fuel load and leaving the air inlet relatively wide
open, especially during the rst 10 to 30 minutes after each loading, when most of the
smoke generating reactions are occurring. After 30 minutes or so, the air inlet can be
turned down substantially without excessive smoke generation. Wood coals create
very little creosote-producing smoke.
2. The cooler the surface over which the wood smoke is passing, the more creosote will
be condensed. Wet or green wood contributes signicantly to creosote formation as
the excess moisture that is boiled off cools the re, making it difcult for the tars and
gases to ignite, thus creating dense smoke and poor combustion. This moisture-laden
smoke cools the chimney, compounding the problem by offering the smoke the ideal
place to condense.
In summary, a certain amount of creosote is inevitable and must be lived with. Regular
inspection and cleaning is the solution. The use of dry, seasoned wood and ample
combustion air will help to minimize the buildup.
Chimney Fires
Excessive creosote build-up can cause a chimney re. Creosote comes from tar and organic
vapours released from a slow burning wood re. Flammable creosote will condense and
accumulate in the lining of a relatively cool chimney. When ignited, this creosote can result
in an extremely hot re.
Avoiding a Chimney Fire
There are two ways to avoid chimney res:
1. Keep your chimney clear of creosote build-up by cleaning your chimney before each
burn season, and as necessary (accumulations of 3 mm/1/8” or more) during the
season.
2. Burn clean well-seasoned wood only (seasoned at least one year). Avoid wet or
green wood.
3. Do not burn household trash, cardboard, plastics, construction lumber, treated or
beach wood. (salt from beach wood will corrode your replace and void your
warranty)
4. Do not leave the air inlet wide-open for extended periods of time.
5. Keep a re extinguisher handy.

We recommend that our woodburning hearth products be installed and serviced by
professionals who are certied in the U.S. by the National Fireplace Institute®(NFI) as
NFI woodburning Specialists or who are certied in Canada by
Wood Energy Technical Training (WETT).
5
261107-28 T4-5-6
6. Prepare a home evacuation plan with a place outside where everyone
is to meet.
If You Suspect a Chimney Fire
Signs of a chimney re may be one or more of the following:
1. A roaring sound
2. Vibration of the chimney
3. Flames and sparks shooting out of the top of the chimney
In Case of a Chimney Fire
1. Immediately close the air inlets on the stove.
2. Evacuate the home, and call the local re department.
3. After the chimney re has been extinguished, the chimney must be cleaned and
checked for stress and cracking before starting another re. Also check combustibles
around the chimney and roof.

Fig #1
Appliance Dimensions
MODEL T4
MODEL T5
MODEL T6
26” 20.75”
5.75”
28”
25” 28.5”
10.125”
29.11/16”
29.25” 28.75”
8.5”
29.13/16”
6
261107-28 T4-5-6

22" 12"
18"
30"
25"
11"
11"
20"
16"
26"
14"
15"
5" 10"
16"
18"
28"
4"
4"
Fig #2
SINGLE WALL
CONNECTOR
DOUBLE WALL
CONNECTOR
ALCOVE: Min. Height 7 1/2 feet
Max. Depth 4 feet
Fig #2a
15”
14”
20.75”
26”
7”
12”
12.75”
24”
10”
10”
22.625”
3”
3”
15.625”
11”
12”
12”
16.75”
24”
Minimum Clearances to Combustibles – Residential
MODEL T4
Do not connect this unit
to a chimney ue serving
another appliance.
7
261107-28 T4-5-6
Clearances – Residential
1. This heater may be installed using a single-wall connector (smoke pipe) or listed double-
wall connector (see Mobile Home installation).
2. Clearances to combustible surfaces and materials using single-wall connector are shown
in Figures #2, #2b & #2d.
Clearances may be reduced with various heat insulating materials. Consult local re
codes and authorities for approval.
3. Alternately, for close clearances, use a listed double-wall connector.
See Figures #2a, #2c & #2e.
Installation – Residential
Warning:
Under no circumstances is this heater to be installed in a makeshift or "temporary" manner.
It may be red only after the stove is installed properly.
• DO NOT ATTEMPT TO CONNECT THIS HEATER TO ANY AIR DISTRIBUTION
DUCT.
• We recommend that our woodburning hearth products be installed and serviced by
professionals who are certied in the U.S. by the National Fireplace Institute®(NFI)
as
NFI woodburning Specialists or who are certied in Canada by Wood Energy
Technical Training (WETT).
• Outside combustion air or fresh air into the room may be required in your area, consult
local building codes (see Combustion Air section).

22" 12"
18"
30"
25"
11"
11"
20"
16"
26"
14"
15"
5" 10"
16"
18"
28"
4"
4"
Fig #2d
SINGLE WALL
CONNECTOR
DOUBLE WALL
CONNECTOR
ALCOVE: Min. Height 7 1/2 feet
Max. Depth 4 feet
Fig #2e
Minimum Clearances to Combustibles – Residential
22" 12"
18"
30"
25"
11"
11"
20"
16"
26"
14"
15"
5" 10"
16"
18"
28"
4"
4"
Fig #b
SINGLE WALL
CONNECTOR
DOUBLE WALL
CONNECTOR
ALCOVE: Min. Height 7 1/2 feet
Max. Depth 4 feet
Fig #2c
Minimum Clearances to Combustibles – Residential
6”
9”
12”
17.5”
24.75”
4”
27.75”
4”
18.75”
12”
14.5”
24.75”
18.75”
9”
15”
15”
17.5”
MODEL T5
MODEL T6
8
261107-28 T4-5-6

Fig #3
Chimney and Connector – Residential
Connect to a listed chimney or a chimney suitable for use with solid fuel that is lined and
in good condition and meets local building codes. The chimney ue size should be the
same as the stove outlet for optimal performance. Reducing or increasing the ue size may
adversely affect stove performance. Chimney ue exit is to be 3 feet (1 m) above roof and
two feet (0.6 m) above highest projection within 10 feet (3 m). The installation must meet all
local codes. Do not connect this unit to a chimney ue serving another appliance. Minimum
system height is 15 feet (4.6 m) (measured from base of appliance).
CHIMNEY
ROOF FLASHING
STORM COLLAR
* 4" diameter air inlet with rodent screen
* If the crawl space is well ventilated it is not
necessary to extend air inlet to outside
SPARK ARRESTOR
RAIN CAP
RADIATION SHIELD
CHIMNEY CONNECTOR
CHIMNEY SUPPORT
*
MINIMUM 7' (2100 mm)
CEILING HEIGHT
NON-COMBUSTIBLE
FLOOR PROTECTOR
48"
(1219 mm)
3' (914 mm)
MINIMUM
HOODED VENT OR
90º ELBOW TURNED
DOWN
The chimney may incorporate an
offset. To do this safely, all sections
of listed connector, offset elbows
and chimney section must be
screwed together by at least three
sheet metal screws per joint. The
chimney must be suitably supported
by the chimney manufacturer's
listed offset support.
*
T4 - 56 3/4” (1441 mm)
T5 - 55 1/4” (1403 mm)
T6 - 56 1/2” (1409 mm)
9
261107-28 T4-5-6

Double-Wall Connector – Residential
• Use a listed double-wall connector suitable for solid fuel.
• Install all components to the chimney connector manufacturer's installation require-
ments.
Single-Wall Connector – Residential
Smoke pipe must be:
• As short and straight as possible, use six inch diameter, 24 gauge black pipe that is
clean and in new condition.
• Secured at every joint and collar with 3 sheet metal screws.
• Installed with the crimped or male ends pointing down. This will carry any liquid creosote
or condensation back into the stove.
• The chimney connector shall not pass through an attic, roof space, closet or similar
concealed space, oor, or ceiling. Where passage through a wall, or partition of com-
bustible material is desired, the installation shall conform to CAN/CSA-B365, Installation
Code for Solid-Fuel-Burning Appliances and Equipment.
Installation Procedure – Residential
1. If a listed chimney and double-wall connector is to be connected to the stove, install all
components to the chimney manufacturer's installation requirements. (Outside combus-
tion air may be required, consult local building codes. See Combustion Air section on
page 14.)
2. If it is desirable to use smoke pipe in conjunction with the insulated chimney,
see step 4.
3. If a roof or ceiling support is used in the installation, you will nd the chimney manufac-
turer's complete instructions packed with the roof support.
4. To start installing smoke pipe (chimney connector), slip crimped edge of the pipe inside
the stove collar. Use holes provided in collar to secure pipe with two screws.
5. Install the remaining lengths of pipe one on top of the other to the nished height of the
chimney connector and secure to each other.
10
261107-28 T4-5-6

CAUTION:
The structural integrity of the mobile
home oor, wall, and ceiling/roof
must be maintained.
8"
28"
18"
16"
8"
22"
8"
Fig #4a
DOUBLE WALL CONNECTOR
Minimum Clearances to Combustibles – Mobile Home
12”
20.625”
12”
17.75”
24”
MODEL T4
Warning:
Under no circumstances is this heater to be installed in a makeshift or "temporary" manner.
It may be red only after the following conditions have been met.
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER
APPLIANCE.
• DO NOT INSTALL IN A SLEEPING ROOM.
Outside air supply must be used for Mobile Home installations see Figure #3, Page 9.
We recommend that our woodburning hearth products be installed and serviced by
professionals who are certied in the U.S. by the National Fireplace Institute®(NFI) as
NFI woodburning Specialists or who are certied in Canada by Wood Energy Technical
Training (WETT).
Clearances – Mobile Home
This heater must be installed with listed double-wall connector and compatible chimney
system listed on page 13.
Clearances to combustible surfaces and materials are shown below in Figures #4a–c
Clearances may be reduced with various heat insulating materials. Consult local re
codes and authorities for approval.
NOTE: Longer chimney lengths and different pitch ashings may be used. All other parts
listed must be installed (see Figure #3, Page 9). Install all components to the connector
or chimney manufacturer's installation requirements. Consult your chimney supplier for
installation advice.
11
261107-28 T4-5-6
Installation – Mobile Home

MODEL T5
8"
28"
18"
16"
8"
22"
8"
Fig #4c
DOUBLE WALL CONNECTOR
Minimum Clearances to Combustibles – Mobile Home
7”
19.75”
14”
15.5”
26.75”
5”
5”
MODEL T6
8"
28"
18"
16"
8"
22"
8"
Fig #4b
DOUBLE WALL CONNECTOR
Minimum Clearances to Combustibles – Mobile Home
12
261107-28 T4-5-6

Installation Procedure – Mobile Home
CAUTION: THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL
AND CEILING/ROOF MUST BE MAINTAINED.
Note: See "Combustion Air" section on page 14
1. Position stove and oor protection with hole for combustion air in accordance with the
clearances as stated on the label and in Figures #4a–c.
2. Mark the position for the hole in the ceiling and roof by using a string and plumb-bob.
3. Check that the intended location will not interfere with oor joists, ceiling joists or rafters
before proceeding further.
4. Cut a hole in the ceiling and roof to suit the chimney system and frame in the sides. The
chimney support is mounted to the framing.
5. Assemble chimney sections so the nished length is resting on the support and pro-
truding through the roof. Avoid having joints between ceiling and roof. Install radiation
shield. Assemble ashing and storm collar and be sure to maintain the vapour barrier
at this point. (Seal securely.) Attach rain cap and check ashing for leaks.
5. Install connector as per manufacturer's instructions.
6. To attach stove to oor, rst remove the leveling bolts from the legs. Then attach stove
to ooring using two 1/4" x 2" or longer lag screws through the leveling bolt holes.
Listed Chimney and Chimney Connector for Mobile Home Installation
This appliance, when installed in a Mobile Home, must be installed with:
A. One of the following 6" double-wall connector systems:
1. Security Model DL or DC 5. Metal Fab Model DW
2. Oliver MacLeod Model PV 6. Ameri-Tec Model DBSP
3. Energy Vent 7. Industrial Chimney Model Excel Ultra-Black
4. Selkirk Metalbestos Model DS 8. Simpson Dura-Vent Model DVL
B. As well as one of the following compatible chimney systems - All parts 6":
CANADA ONLY: Security Pro-Jet ICC Selkirk Energy Vent
S2100 H.T.3000 Excel 2100 Sentinal CF Commander 5000
Ceiling support XSF FCS SF CF-CSP CH6LCS
Rafter radiation shield RRS
3' Chimney length XL3 SL3 L3 CF-36SL CH636
2' Chimney length XL2 SL2 L2 CF-24 CH624
Roof ashing XFA RF17 FA CF-FRA CH6TCF
Storm collar XSC SC SC CF-SC CH6SC
Spark arrestor rain cap XCPE RCSA CPE CF-SA,CT CH6RC, SS
USA ONLY: Security Pro-Jet Security Pro-Jet Metalbestos MetalFab Ameritech ICC Simpson Dura-Vent
S2100 H.T.3000 ASHT HT3103 SSII 2100 TEC HS Excel 103HT Dura/Plus Dura Tech
Ceiling support XSF FCS SF FCS T-SFA TGCSP 6PL-CS RDS/SQS SDP-SB SDP-SB
Rafter radiation shield RRS RRS T-JSMH TGRS
3' Chimney length XL3 SL3 L3 SL3 T-36 TG3 HS 36 CL48 SDP-P SDT-P
2' Chimney length XL2 SL2 L2 SL2 T-24 TG2 HS 24 CL24 SDP-P SDT-P
Roof ashing XFA RF17 FA RF T-SFA TGF 8RFFU VF SDP-F SDT-F
Storm collar XSC SC SC SC T-SC TGSC PL-ASCG SC SDP-SC SDT-SC
Spark arrestor rain cap XCPE RCSA CPE RCSA T-CT TGC 6PL-MPC RCS SDP-C SDT-C
Follow chimney and chimney
components manufacturer’s
instruction for assembly and
installtion.
13
261107-28 T4-5-6

Fig #5 Fig #6
Non-combustible oor protector Non-combustible oor protector
16" [406mm]
8" [203mm]
8" [203mm]
U.S.A. Only
8" [203mm]
18" [457mm]
8" [203mm]
8" [203mm]
Canada Only
Minimum Width T4 - 40”
T5 - 40”
T6 - 41 1/2”
Minimum Overall Depth T4 - 43 1/4”
T5 - 50 1/2”
T6 - 50 1/2
Minimum Width T4 - 32”
T5 - 34”
T6 - 36”
Minimum Overall Depth T4 - 33 1/4”
T5 - 40 1/2”
T6 - 40 1/2
The stove may be installed on a combustible
oor provided noncombustible ember protec-
tion is used.
This protection must extend as follows:
In Canada: 18" (457 mm) on the ring side
and 8" (203 mm) to the other sides. See
Figure #5 on left.
In USA: 16" (406 mm) to the front and 8" (203
mm) to the sides of the fuel loading door open-
ing. See Figure #6 on right. This protection
is also required under the chimney connector
and 2" (51 mm) beyond each side.
Intake or combustion air can be supplied to the stove in one of two ways. Consult your local
building code or CAN/CSA-B365, Installation Code for Solid-Fuel-Burning Appliances and
Equipment before proceeding.
1. Outside air supply - (Necessary for mobile home installation, optional for residential
installation.) To draw outside air through the oor, cut or drill a 4" diameter hole directly
below the bottom knockout hole of the ash box enclosure. Connect enclosure to the
oor with a short 4" diameter pipe.
This hole must get its air from a ventilated crawl space or be extended with duct to
the outdoors (see Figure #3, Page 9). The use of outside combustion air for residential
installation requires the unit to be secured to the structure to prevent dislodging of the
air duct.
Note: When installed in a mobile home, this unit is not designed to be operated with the
ring door open. In addition to the obvious hazard of sparks landing on combustibles,
an open re door will cause the heater to draw air from the living space and possibly
cause suffocation.
2. Room air supply - Remove the 4" knockout from the ash box enclosure. The stove will
now draw its air from the room through this opening and into the rebox
intake.
Note: The living space around the heater must be well ventilated with good air circulation.
Anything that may cause a negative pressure can cause gases or fumes to be pulled
into the living area. During extremely cold weather, and especially when burning at very
slow rates, the upper parts of the exposed chimney may ice up, partially blocking the
ue gases. If blockage occurs, ue gases may enter living space.
14
261107-28 T4-5-6
Floor Protector
Combustion Air

15
261107-28 T4-5-6
Operation
CAUTION:
Never use gasoline, gasoline type lantern fuel, kerosene, charcoal lighter uid or similar
liquids to start or "freshen up" a re in this heater. Keep all such liquids well away from the
heater while it is in use.
CAUTION:
Hot while in operation. Keep children, clothing and furniture away. Contact may
cause skin burns.
Your PACIFIC ENERGY heater is designed for maximum overall efciency at a moderate
ring rate. Overring is hazardous and a waste of fuel. Too slow a burn contributes to
creosote buildup and lowers combustion efciency.
Wood Selection
This heater is designed to burn natural wood only. Higher efciency and lower emissions
generally result when burning air-dried seasoned hardwoods, as compared to softwoods
or too green or freshly cut hardwoods.
Wood should be properly air dried (seasoned) for six months or more. Wet or undried wood
will cause the re to smoulder and produce large amounts of creosote. Wet wood also
produces very little heat and tends to go out often.
DO NOT BURN :
• Salt water wood *
• Treated wood
• Wet or green wood
• Coal/charcoal
• Garbage/Plastic *
• Solvents
* These materials contain chlorides which will rapidly destroy metal surfaces and
void warranty.
Do not burn anything but wood. Other fuels (eg. charcoal) can produce large amounts of
carbon monoxide, a tasteless, odourless gas that can kill. Under no circumstances should
you attempt to barbecue in this heater.
How to Test Your Wood
Add a large piece of wood to the stove when it has a good large bed of coals. It is dry if it
is burning on more than one side within one minute. It is damp if it turns black and lights
within three minutes. If it sizzles, hisses and blackens without igniting in ve minutes it is
soaked and should not be burnt.

16
261107-28 T4-5-6
Lighting for the First Time
Curing of the Paint Finish
To achieve the best nish, the paint on your stove must be baked on. When burning your
stove for the rst 2-3 times it is very important that the room be well ventilated. Open all
windows and doors. Smoke and fumes caused by the curing process may cause discomfort
to some individuals.
Lighting a Fire
WARNING: Never use chemicals or any other volatile liquid to start a re.
1. Adjust air control to maximum ring position (start position) and open door.
2. Place crumpled newspaper in the centre of the heater and criss-cross with several
pieces of dry kindling. Add a few small pieces of dry wood on top.
3. Ignite the paper and close the door.
4. After the re has established itself, open the door and add a few small logs. Close the
door.
5. Begin normal operation after a good coal base exists and wood has charred.
Normal Operation
1. Set air control to a desired setting. If smoke pours down across the glass (waterfall
effect) this indicates you have shut the control down too soon or you are using too low
a setting. As every home's heating needs vary (based on insulation, windows, climate,
etc.) the proper setting can only be found by trial and error and should be noted for
future burns.
2. To refuel, adjust air control to high, and give the re time to brighten. Open the door
slowly, this will prevent backpufng.
3. Use wood of different shape, diameter and length (up to 18"). Load your wood endwise
(side to side with Model T4) and try to place the logs so that the air can ow between
them. Always use dry wood.
4. Do not load fuel to a height or in such a manner that would be hazardous when opening
the door.
5. For extended or overnight burns, unsplit logs are preferred. Remember to char the wood
completely on maximum setting before adjusting air control for overnight burn.
WARNING: Always keep loading door closed when burning. This heater is not de-
signed for open door burning.
WARNING: No alteration or modication of the combustion air control assembly is
permitted. Any tampering will void warranty and could be very hazardous.
WARNING: Do not use grates or andirons to elevate the fuel. Burn directly on the
re bricks. Replace broken or missing bricks. Failure to do so may create a hazard-
ous condition.

17
261107-28 T4-5-6
Restarting After Extended or Overnight Burns
1. Open door and rake hot embers towards the front of the heater. Add a couple of dry,
split logs on top of embers, close door.
2. Adjust air control to high (left position) and in just a few minutes, logs should begin
burning.
3. After wood has charred, reset air control to desired setting.
4. To achieve maximum ring rate, set control to high (left position). Do not use this setting
other than for starting or preheating fresh fuel loads.
More Wood, More Heat
Seasoned wood has approximately 7500 BTU's per pound. If you put 10 pounds of wood
in your stove for an eight hour burn the wood will be producing 9375 BTU's per hour. (7500
BTU x 10 lbs./8hrs.=9375 BTU's per hr.) If you put 20 lbs of wood in your stove for eight
hour burn you will get 18,750 BTU's per hr. (7500 BTU x 20lbs./8hr.=18,750 BTU's per
hr.). This is only an example and is based on 100% efciency. In reality, your stove should
perform in the 70% efciency range.
Experience will give you the right settings for proper combustion and efcient burning. Re-
member the correct air inlet setting is affected by variables such as type of wood, outside
temperature, chimney size and weather conditions. With practice, you will become procient
in operating your heater and will obtain the performance for which it was designed.
Proper Draft
1. Draft is the force which moves air from the appliance up through the chimney. The
amount of draft in your chimney depends on the length of the chimney, local geography,
nearby obstructions and other factors.
2. Too much draft may cause excessive temperatures in the appliance. An uncontrollable
burn or a glowing red stove part or chimney indicates excessive draft.
3. Inadequate draft may cause backpufng into the room and plugging of the chimney.
Smoke leaking into the room through appliance and chimney connector joints indicates
inadequate draft.
Ash Removal
Whenever ashes get 3 to 4 inches deep in your rebox, and when re has burned down
and cooled, remove excess ashes. Leave an ash bed approximately 1" (25 mm) deep on
the rebox bottom to help maintain a hot charcoal bed.
Ash Chute Operation: Your Alderlea stove is equipped with an ash chute system to
ease removal of ash from the ash lip area. To use this system, rst pull out the ash pan
approximately 2”, sweep the ash into the chute located to the right side of the ash lip, and
close the ash pan again.
Ash Cleanout System: The ash dump handle is located under the ash lip on the left hand
side. To operate ash dump, pull handle out 1/2" and turn clockwise. This will unlock the ash
dump and allow it to open. Hold handle open while pulling ashes into the opening. Avoid
large embers as these still contain heat value. Release handle and push in to lock. Ensure
ash dump door is properly engaged. Fill the cavity with the remaining ash level with the
rebox oor. Pull out ashpan and discard ashes into metal container. Replace ashpan and
ensure it is seated properly.
DO NOT OVERFIRE THIS HEATER:
Attempts to achieve heat output rates that
exceed heater design specications can
result in permanent damage to the heater
and chimney.
Do not burn with ash dump door open.
Doing so will create a hazardous
condition. Always leave about 1" of ash
when cleaning.
CAUTION:
Ashes are to be removed only when the
heater is cold.

18
261107-28 T4-5-6
Chimney connector pipe should be disconnected from stove to clean and inspect.
Only if this is not possible should you remove bafe assembly.
DO NOT OPERATE WITH BAFFLE ASSEMBLY OR INSULATION RE-
MOVED.
Removal
Remove retaining pin located at the rear top of the rebox, just below the
bafe. Lift bafe up and pull forward to disconnect from the supply tube. Tilt bafe
sideways to drop down and remove from rebox. Inspect gasket between bafe
and supply tube. If necessary, replace with gasket #139.5 available from your
Pacic Energy dealer. Re-install bafe assembly in reverse order. The two side
pieces of insulation must be tight against the siderails.
Bafe Removal
Optional Blower
The optional blower kit (kit #WODC.BLOW) is equipped with a three prong power
cord and may be installed at any time. Follow installation instructions supplied with
the kit. Route power supply cord away from heater.
Electrical rating: 115 volts A.C.- 0.84 amps.
Fan output rating: 125 CFM
Blower Operation
Proper blower speed matched with air control setting will ensure peak performance
from your stove. Operate as follows:
• Air control set to low (right position), operate blower speed control on "Low".
• Air control set between low and high (middle position), operate blower
speed control at desired setting.
Automatic: To operate the blower automatically, set the rocker switch on the
side of the fan housing to "Auto" and set the speed control to desired setting. This
will allow the fan to turn on as the stove heats up to operating temperature. It will
also shut the blower off after the re has gone out and the unit cooled to below a
useful heat output range.
Manual: To manually operate the blower, set the rocker switch to "Man" and set
the speed control to desired setting. This will bypass the sensing device and allow
full control of the blower.
Switching from "Auto" to "Man" or selecting speed may be done anytime.
Disposal of Ashes
Ashes should be placed in a metal container with a tight tting lid. The closed container of
ashes should be placed on a non-combustible oor or on the ground, well away from all
combustible materials, pending nal disposal. If the ashes are disposed of by burial in soil
or otherwise locally dispersed, they should be retained in closed container until all cinders
have thoroughly cooled. Other waste should not be placed in this container.

19
261107-28 T4-5-6
Problem Cause Cure
Glass is Dirty 1. Wood is wet • Use dry wood
2. Turning down air control • Do not turn down until
or damper too soon a) there is a good bed of coals
b) the wood is charred
3. Draft too low • Improper chimney height and / or
diameter, consult dealer
• Chimney plugged or restricted,
check ue
• Provide outside air for combustion
4. Door gasket leakage • Replace gasket
• Check latch for proper operation
Excessive Creosote Buildup See 1,2,3, above. See 1,2,3, above.
Low Heat Output 1. Wood is wet • Use dry wood
2. Fire too small • Build a larger re
3. Draft too low • Chimney plugged or restricted,
inspect and clean
Won't Burn Overnight 1. Air control is set too high • Set air control lower
2. Not enough wood • Unsplit wood is preferred for
overnight burns
3. Draft too high • Excessive chimney height and/or
diameter
4. Poor quality or wet wood • Use good quality, dry wood
Wood Won't Burn 1. Combustion air supply blocked • Check outside air supply for
obstruction
• Check that room air cover is
removed
2. Draft too low • Chimney plugged or restricted,
inspect and clean
• Chimney oversized or otherwise
unsuitable, consult Dealer
Troubleshooting
APPENDIX A

#1
#2
#3
#4
#5
#6
#7
#8
#6
#9
1b
1a
1c
1d
4b
4a
4c
4d
4f
4e
5b
5a
5c
7b
7a
10
11
12
13
14
16 15
17
7c
20
19
18
21
#1 BAFFLE KIT
1a ...BAFFLE
1b ...SIDE INSULATION
1c....BAFFLE PIN
1d ...BAFFLE GASKET
#2 BRICK RAILS
#3 FLAME SHIELD
#4 DOOR ASSEMBLY
4a ...DOOR HANDLE
4b ...DOOR CASTING MBK
4c....HINGE PIN & BRASS BUSHING
4d ...DOOR GASKET
4e ...GLASS
4f ....GLASS CLAMPS (4)
#6 SIDE CASTING MBK (2)
#7 TOP GRILL
7a ...LH TOP GRILL MBK
7b ...RH TOP GRILL MBK
7c....REAR TOP GRILL MBK
#8 ASH DUMP ASSEMBLY
#9 LEG CASTING (4)
10 ...DOOR CATCH
11 ...DOOR WASHER
12 ...DOOR CROWN
13 ...DOOR ADJUST PLATE (2)
14 ...ASHLIP CASTING MBK
15 ...FIRE BOX
16 ...AIR SHUTTER ASSEMBLY
17 ...LEG ADAPTER
18 ...ASH PAN ASSEMBLY
19 ...OPTIONAL FAN
20 ...AIR DEFLECTOR
21 ...DOOR STOP
#5 FIREBRICK SET
5a ...FIREBRICK - 1 1/2” x 4 1/2” x 1 1/4” (1)
5b ...FIREBRICK - 4” x 4 1/2” x 1 1/4” (1)
5c....FIREBRICK - 9” x 4 1/2” x 1 1/4” (16)
#1 BAFFLE KIT ............................................................................ VIST.BAFKIT
#2 BRICK RAILS (2) .................................................................. VIST.RAILSET
#3 FLAME SHIELD ........................................................................... VIST.2115
#4 DOOR ASSEMBLY ............................................................. ALT4.4900MBK
#5 FIREBRICK SET ....................................................................... BRIC.VISTA
#6 SIDE CASTING MBK (2)..................................................... ALT4.4905MBK
#7 TOP GRILL ASSEMBLY (3) .........................................ALT4.TGASSYMBK
#8 ASH DUMP ASSEMBLY............................................................ ALDR.4731
#9 LEG CASTING (4) .............................................................. ALDR.4807MBK
ALL OTHER PARTS NOT INCLUDED IN ABOVE KITS ARE NOT SOLD SEPARATELY
20
261107-28 T4-5-6
T4 Replacement Parts
