Pacific Floorcare AM-15 User manual
AM-15
PARTS & OPERATING MANUAL
15 GALLON MISTER
Thank you for purchasing a Pacic Floorcare product. Carefully inspect all components for freight damage. If such
damage is discovered, le a “CONCEALED DAMAGE REPORT” immediately with the delivering carrier.
Read this manual carefully and keep it near the machine, protected from liquids and other damaging substances. Failure
to follow the instructions may result in injury or damage to equipment and property.
The contents of this manual are based on the latest product information available at the time of publication. Pacic
Floorcare reserves the right to make changes or improvements without being obliged to apply changes to the machines
previously sold.
New manuals can be downloaded from: www.pacicoorcare.com/manuals
15 GALLON MISTER SPECIFICATIONS
Power Requirements 120 Vac at 60 Hz, 8.5 A (GFCI protected outlet)
Power Cable Length 9 Ft.
Noise Level (dBA) 60
Machine Weight 90 Lbs.
Liquid Temperature Range 40-100° F (4.4-37° C)
Chemical Compatibility Chemical products used with this equipment must be formulated for the type of
application and compatible with this unit’s materials and pump seals. For more
information on chemical compatibility, consult the manufacturer, SDS for your
product, or our contact customer service department.
Chemical Pickup Type Draws from pre-mixed solution
Capacity 15 Gallons (56.8 Liters)
Suction Line Diameter 3/8 In. (9.5 mm) inside diameter
Discharge Line Length/Diameter 25 Ft. (7.6 M) coiled twin-line tubing with 1/4 In. (6.4 mm) outside diameter
Discharge Wand/Tip Type Polypropylene trigger handle with misting nozzle
Output Distance 3-4.5 Ft. (0.9-1.4 M)
Output Volume 8.9 oz/min (263.2 ml/min) at 50 psi (3.4 bar)
Flow Rate* 8.9 oz/min (263.2 ml/min) at 50 psi (3.4 bar)
Pump Seals Santoprene
Run Time - Full Tank** Approx. 3.5 hours
Nozzle Type Pneumatic fog nozzle
Number of Nozzles 1 nozzle
Droplet Size*** 15 micron at 50 psi (3.4 bar)
Wheel Type Two 10 In. (25.4 cm) non-marking wheels
Two 5 In. (12.7 cm) locking casters
* Dilution rates and ows rates given are based on chemical viscosity the same as water and factory air pressure settings.
** Area covered and run time may vary based on humidity, air ow, and product used.
*** Refer to chemical supplier for recommended application for sanitizing and disinfecting ecacy.
TABLE OF CONTENTS
SAFETY INFORMATION �����������������������������������������������������������������������������������������������������������������������������������1
MACHINE OVERVIEW ��������������������������������������������������������������������������������������������������������������������������������������2
ASSEMBLY������������������������������������������������������������������������������������������������������������������������������������������������������������4
OPERATION����������������������������������������������������������������������������������������������������������������������������������������������������������5
MACHINE USE .............................................................................................................................................5
AFTER USE INSTRUCTIONS .....................................................................................................................6
TROUBLESHOOTING GUIDE ��������������������������������������������������������������������������������������������������������������������������7
PARTS���������������������������������������������������������������������������������������������������������������������������������������������������������������������8
BACK PANEL ................................................................................................................................................8

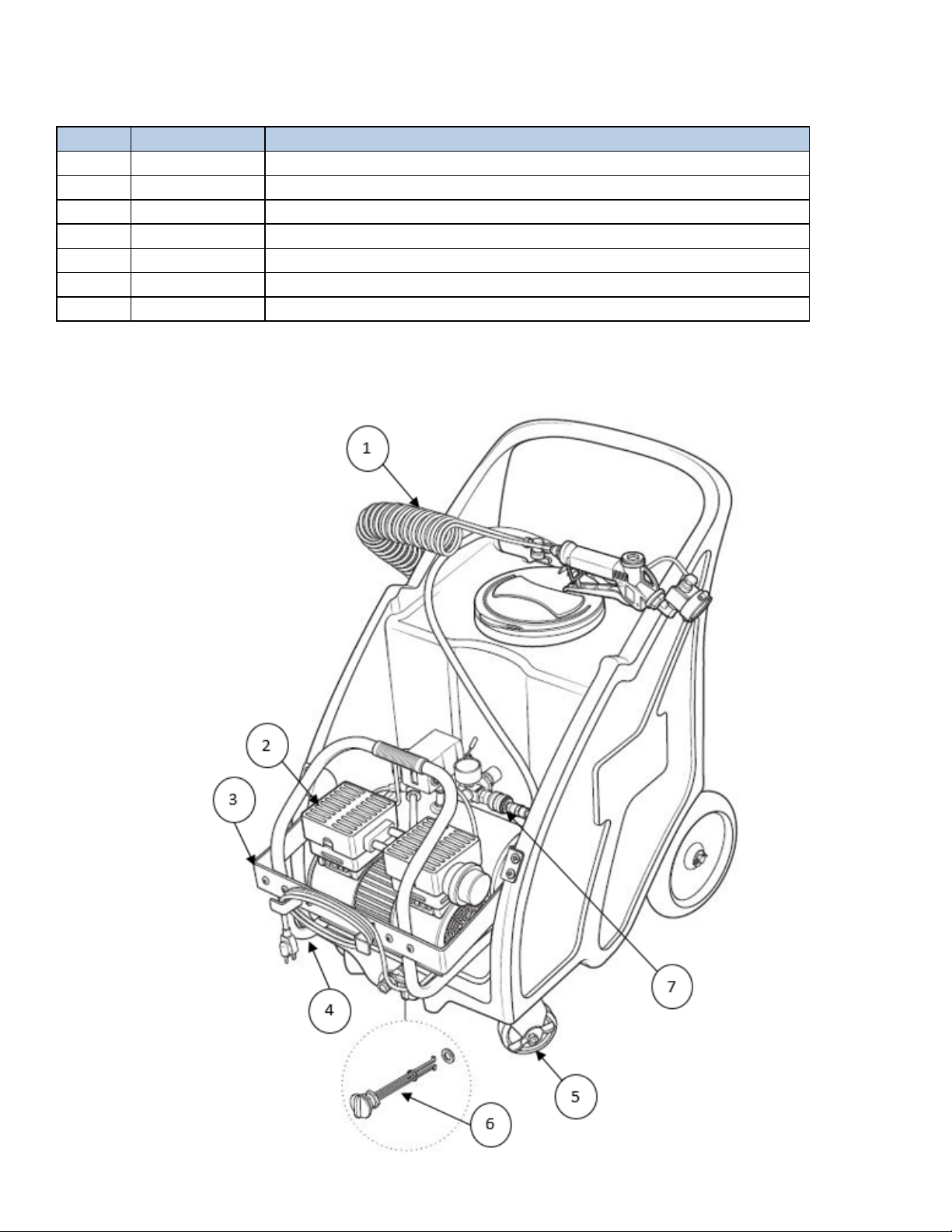

MACHINE - FRONT .....................................................................................................................................9
MACHINE - REAR ......................................................................................................................................10

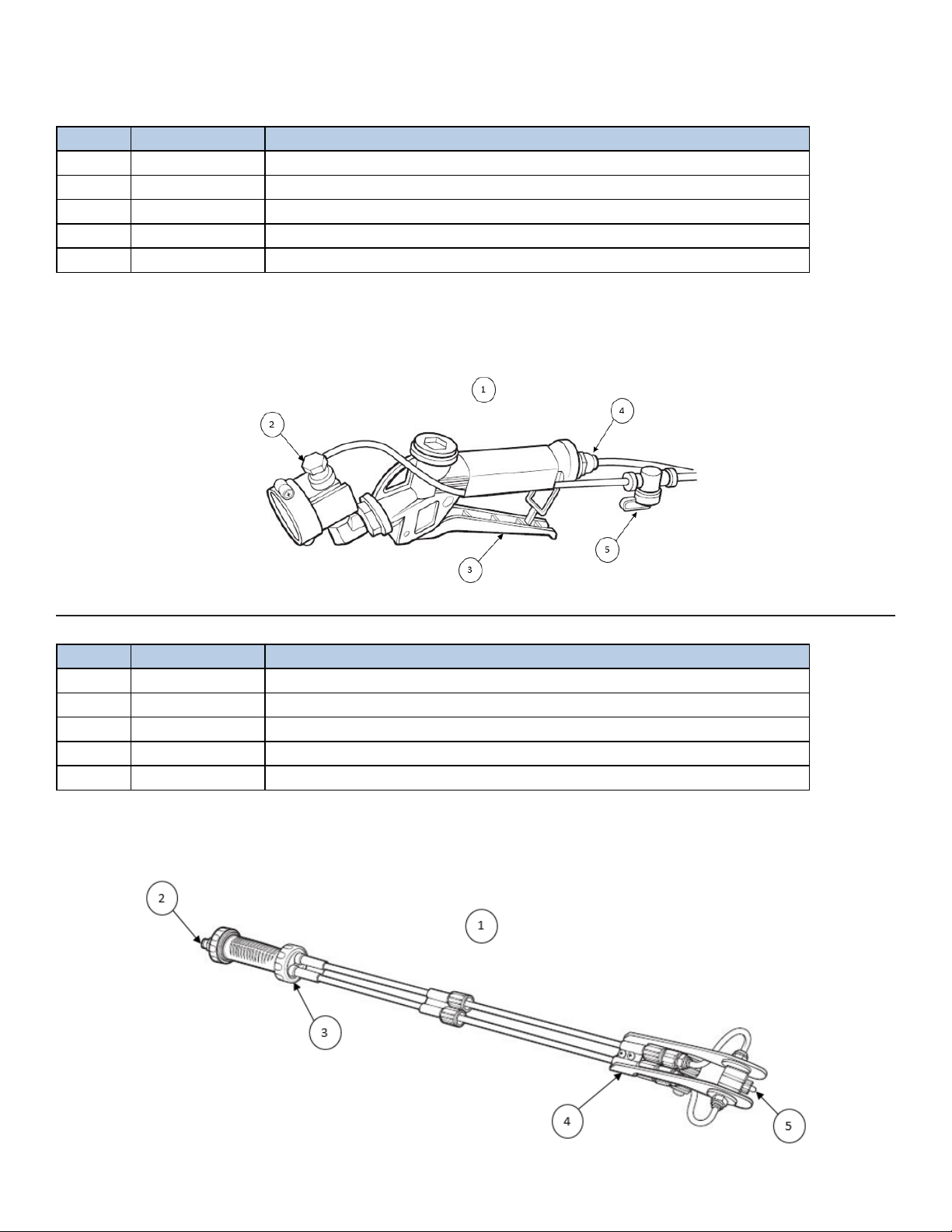

WAND ASSEMBLIES .................................................................................................................................11
WARRANTY ��������������������������������������������������������������������������������������������������������������������������������������������������������13
RETURN TO
TABLE OF
CONTENTS - 1 -
SAFETY INFORMATION
Warning: People or objects can be hurt or damaged if this unit is not used correctly�
Warning: Failure to read all the instructions before operating the unit may result in personal injury or death from the
improper use of the chemical solution. Anyone handling, operating or using the unit must read, and understand,
the instructions in the manual. The buyer assumes all responsibility for safety and proper use in accordance with
the instructions.
Warning: Using, or servicing, the unit without proper protective clothing, gloves, and eye wear may result in serious
injury such as burns, rashes, eye, throat or lung damage and death. Always wear protective clothing, gloves, and
eye wear when using, or servicing, the unit. Protect eyes, skin, and lungs against drifting spray.
Warning: Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled or swallowed.
Always read, and follow, all chemical safety precautions and handling instructions provided by the chemical
manufacturer and the Safety Data Sheet (SDS) associated with the chemical solution being used before using
the unit.
Warning: Pressure within the equipment may cause an unexpected release of the chemical solution and cause serious
injury such as burns, rashes, eye damage, throat or lung damage and death. Always depressurize and clean the
unit after each use. Never leave the unit unattended while pressurized.
Warning: Using the unit with uid temperatures above 100°F (37.77°C) may result in scalding, burns, serious injury or
death. DO NOT use a solution with a temperature above 100°F (37.77°C).
Warning: Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious injury or
death. Never use the unit if it is damaged or leaking.
Warning: Never point the discharge wand at yourself, another person, or any object you do not want covered in chemical.
Warning: Using incoming air pressure exceeding 100 psi (7 bar) may result in pressure buildup, explosion, serious injury
or death. DO NOT exceed 100 psi (7 bar) incoming air pressure when operating the unit.
Warning: Use of hydrocarbons and ammable products may result in explosions, re and serious injury or death. Never
use hydrocarbons or ammable products with the unit.
Warning: Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may cause it to
splatter caustic compounds or release hazardous fumes, gas and vapors. Always ush the unit with fresh water
for ve (5) minutes when switching from an alkaline to an acid or an acid to an alkaline.
Warning: Touching damaged electrical cords (i.e.: bare wires, bare receptacles) may result in electrical shock, serious
injury or death. Always inspect the electrical cords and extension cords for damage before connecting the unit
to the power supply. DO NOT touch a damaged electrical cord, or extension cord, that is connected to the power
supply.
Warning: Operating the air compressor in wet weather or in wet conditions may result in electrical shock, serious injury
or death. Always place the unit (air compressor) in an area away from the misting direction. DO NOT touch the
air compressor, electrical or extension cords if your hands or feet
are wet.
• Servicing, or modication, of this unit with parts not listed in this manual may cause the unit to operate improperly.
Do not use unauthorized parts when servicing the unit.
• Use of an air lubricator before the unit may result in diminished performance and damage to the unit. Do not use an
air lubricator before the unit.
• Moisture in the air lines will damage the pump and diminish the pumps life. The air must be ltered, clean, dry and
free of moisture. If needed, install an air dryer before the unit.
• Using an excessively long or thin-wired extension cord will cause severe damage to the motor. Always use a 3-wire
extension cord that has a 3-blade grounding plug and is no more than 25 ft. long and at least 14 gauge.
• Operating the air compressor motor with excessive, or insucient, electrical supply (i.e.: low voltage and/or an
overloaded circuit) can cause the air compressor motor’s overload protection system circuit breaker to trip. Refer
to the serial label for voltage and amperage requirements. Ensure the electrical supply supports the air compressor
motor’s requirements. For best results use a dedicated circuit.
- 2 -
RETURN TO
TABLE OF
CONTENTS

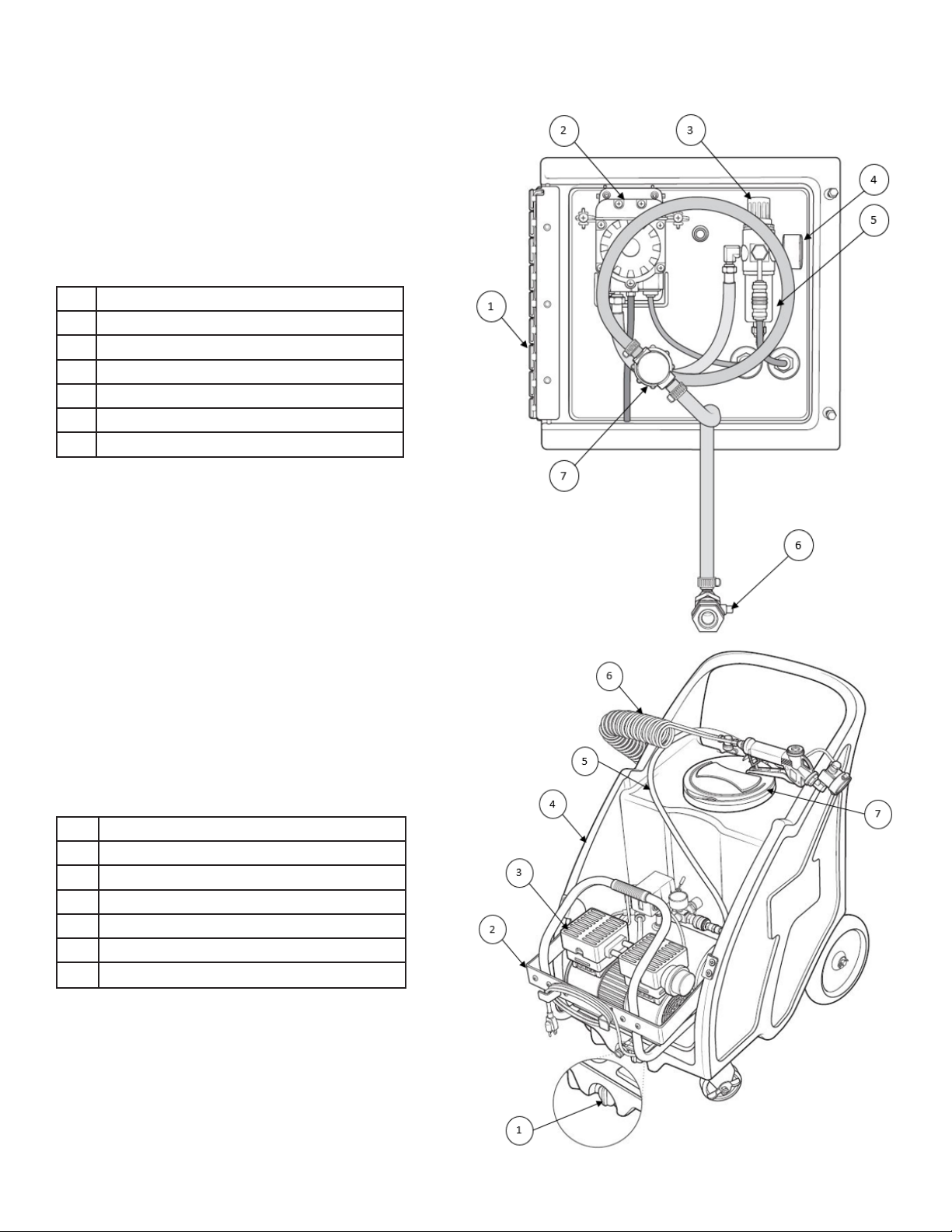

MACHINE OVERVIEW
(Page 1 of 2)
1Hinged Back Plate
2Pump w/ Santoprene seals
3 Air Regulator
4Air Pressure Gauge
5 Quick Disconnect Fitting w/ Check Valve
6 Suction Line Valve
7 In-Line Strainer
1Drain Plug
2Air Compressor Bracket
3 120 VAC Air Compressor
4 Tank
5 Air Supply Line
6 25 Ft. Coiled Tubing Assembly
7 Hinged Cap Assembly
- 4 -
RETURN TO
TABLE OF
CONTENTS

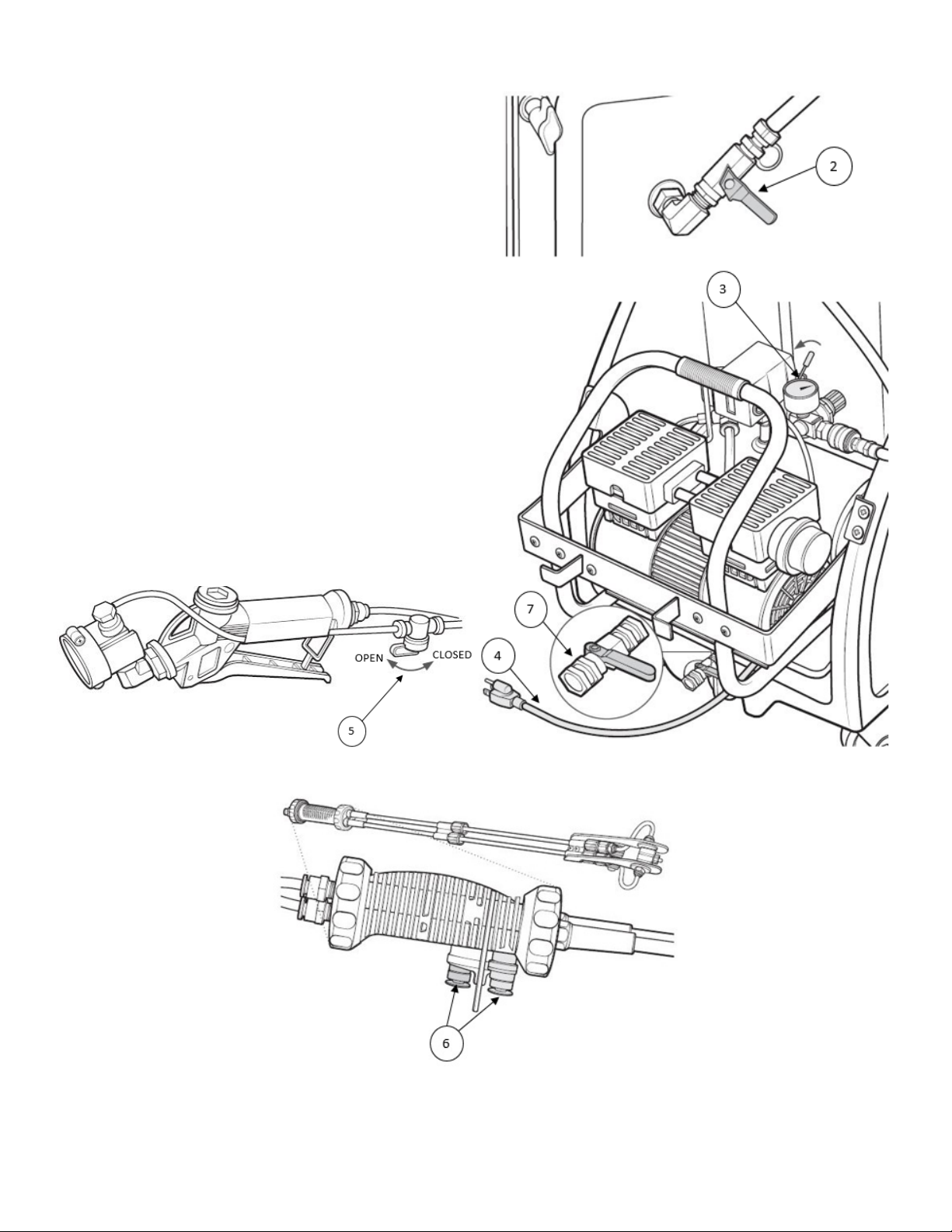

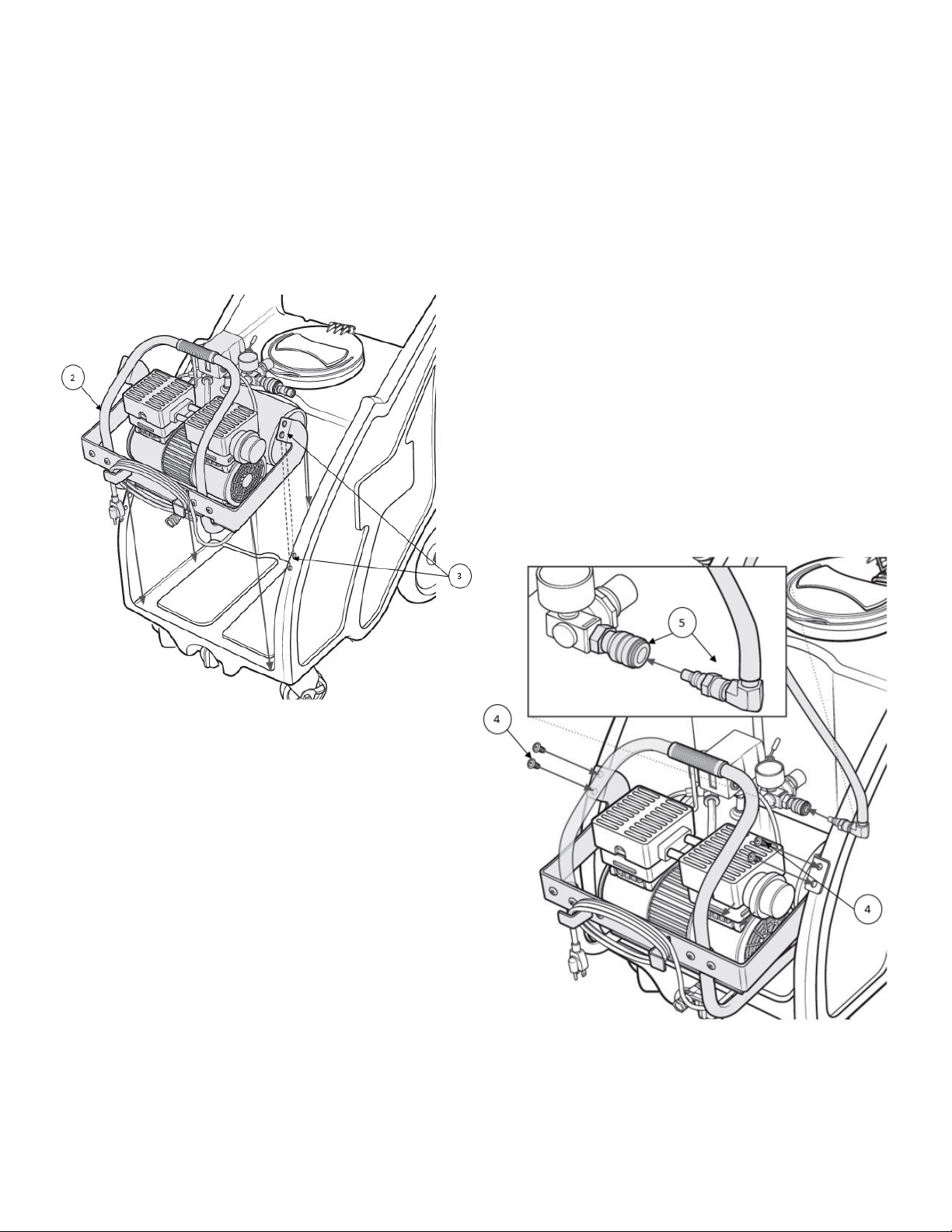

ASSEMBLY
1. Unpackage all components and discard all packaging.
2. Place the compressor and pre-assembled compressor bracket into the mounting cavity.
3. Align the holes on the compressor bracket with the holes on the tank.
4. Secure the compressor bracket to the tank using the supplied hardware.
5. Attach the 1/4 in. blue air hose from the back of the unit to the air compressor using the quick connect ttings.
RETURN TO
TABLE OF
CONTENTS - 5 -
OPERATION
1. Follow all instructions from the chemical manufacturer
and ll the tank with a ready-to-use solution or mix to
the chemical manufacturer instructions.
Caution: Do not spill the solution onto the air compressor.
Note: Both discharge buttons should be completely open
while misting.
MACHINE USE
Note: Both discharge valves should be completely open
while misting.
2. Plug the unit in to a 120 VAC GFCI protected power
outlet.
3. Turn the power switch ON to start the air compressor.
4. Set the pressure setting to 85 psi.
5. Verify that the air shut-o valve at the trigger gun is in
the closed position and open the air inlet valve on the
back plate.
6� Standard PSG-N130 Wand: Point the discharge wand
in a safe direction and open the air shut-o valve at the
trigger gun. Then squeeze the trigger handle to begin
misting.
7� Extended MGA-RAC-N130 Wand: Point the discharge
wand in a safe direction and press the red and blue
discharge trigger buttons at the same time to begin
misting.
8. To stop misting, release the red and blue discharge
trigger buttons.
- 6 -
RETURN TO
TABLE OF
CONTENTS
AFTER USE INSTRUCTIONS
1. Flush the unit with fresh water for 5 minutes.
2. Shut o the air supply to the unit by closing the air inlet
valve on the back plate.
3. Turn the power switch OFF to shut o the air
compressor.
4. Unplug the air compressor.
5� Standard PSG-N130 Wand: Press the red and blue
trigger buttons to relieve any pressure remaining in
the unit. Once pressure is relieved, release both trigger
buttons.
6� Extended MGA-RAC-N130 Wand: Open the air
shut-o valve at the trigger gun and squeeze the trigger
handle to relieve any pressure remaining in the unit.
Once pressure is relieved, release the trigger handle and
close the air shut-o valve at the trigger gun.
7. Depressurize and drain the air compressor tank by
opening the ball valve on the compressor tank.
RETURN TO
TABLE OF
CONTENTS - 7 -
TROUBLESHOOTING GUIDE
ISSUE SOLUTION
Air passes through the pump
without cycling
If air passes through the pump (687001) without cycling, the pump needs to be
replaced.
The solution backs up into the
air regulator
If solution backs up into the air regulator, the check valve (683302) needs to be
replaced.
The unit operates at a reduced
pressure
Check the discharge tubing to ensure that there are no kinks that could obstruct uid
ow.
Check for proper air pressure on the air gauge and adjust the air regulator if needed.
The air regulator is factory set at 50 psi. Operating pressure is 50 psi.
Check the air compressor (682401) to conrm sucient air pressure is being
supplied.
If the air supply is 50 psi (3.4 bar) or above, check the air gauge, which should read
near 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar), adjust
the pressure by turning the knob on the top of the air regulator. Check the chemical
suction line and strainer for debris or damage. Clean or replace as needed. To
prevent damage to the unit, the strainer (688501) must always be used.
MACHINE TROUBLESHOOTING
AIR COMPRESSOR TROUBLESHOOTING
ISSUE POTENTIAL CAUSE SOLUTION
The compressor stopped and
does not start.
Overloaded because of motor
overheating.
Check that the main voltage corresponds to
specications. An extension cord that is too thin
or too long can cause a voltage drop and cause the
motor to overheat. Allow the motor to cool down.
Use heavy duty extension cords. Insure that the
compressor is plugged into a socket as close as
possible to the consumer unit or fuse box.
Motor windings are burned out. Contact Technical Service.
The motor does not start and
makes a humming noise.
Low voltage supply to the motor. Check that the main voltage corresponds to
specications. An extension cord that is too thin
or too long can cause a voltage drop and cause the
motor to overheat. Allow the motor to cool down.
Use heavy duty extension cords. Insure that the
compressor is plugged into a socket as close as
possible to the consumer unit or fuse box
The compressor is noisy with
metallic clangs.
Compressor head gasket broken
or valve plate faulty.
Stop the compressor and contact the dealer.
Compressor has a worn or
broken piston ring.
Stop the compressor and contact the dealer.
Compressor has a worn or
broken cylinder ring.
Stop the compressor and contact the dealer.
- 8 -
RETURN TO
TABLE OF
CONTENTS
PARTS

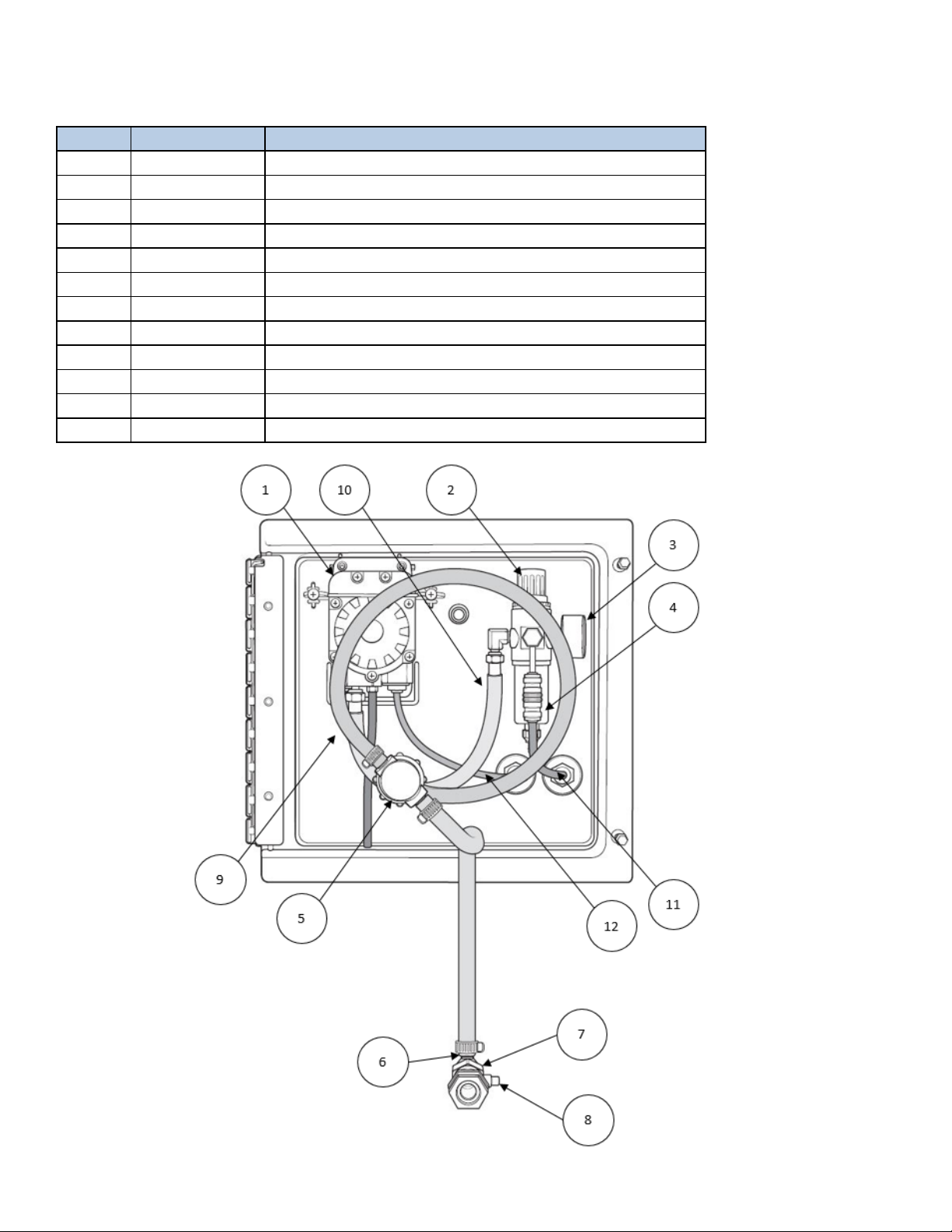

BACK PANEL
ITEM PART NUMBER DESCRIPTION
1687001 PUMP - SANTOPRENE SEALS W FITTINGS
2687501 REGULATOR AIR W/ FILTER
3683801 GAUGE DUAL SCALE MODEL 20 1.5IN
4683302 FITTING CHECK QD 1/4 TUBE - 1/4 TUBE
5688501 STAINER IN-LINE MESH SS
6683303 FITTING HOSE ELBOW 1/4 MPT - 3/8 BARB SS
7681101 BUSHING HEX 3/4 MPT - 1/4 FPT
8689402 VALVE PVC 3/4 FPT - 3/4 MPT
9684104 HOSE TPE BLUE 3/8 IN X 3 FT H38B-F
10 684101 HOSE TPE BLUE 1/4 IN X 4FT H14B-F
11 684102 HOSE POLY BLUE 1/4 IN X 3 FT H14BU
12 684103 HOSE POLY RED 1/4 IN X 2 FT H14RU
RETURN TO
TABLE OF
CONTENTS - 9 -
PARTS
MACHINE - FRONT
ITEM PART NUMBER DESCRIPTION
1689002 TUBE ASSY 25FT RED & BLUE
2682401 COMPRESSOR AIR 120V 1HP
3680801 BRACKET AIR COMPRESSOR SS
4689701 WHEEL CASTER SWIVEL 5IN S.S. NON-LOCKING
5689702 WHEEL CASTER SWIVEL 5IN S.S. LOCKING
6686801 PLUG ASSEMBLY DRAIN
7683301 FITTING AIR 1/4 MPT - PLUG BRASS PLATED
RETURN TO
TABLE OF
CONTENTS - 11 -
PARTS
WAND ASSEMBLIES
ITEM PART NUMBER DESCRIPTION
1688801 TOOL MGA-RAC-N130 WAND ASSEMBLY
2683304 FITTING QD 1/8 MPT - 1/4 OD TUBE SS
3688803 TOOL BODY MGA-RAC-N130
4680802 BRACKET NOZZLE SS
5685701 NOZZLE FOG 3.7 GAL/HR PFN-N130
ITEM PART NUMBER DESCRIPTION
1688802 TOOL PSG-N130 GUN ASSEMBLY
2685701 NOZZLE FOG 3.7 GAL/HR PFN-N130
3688804 TOOL BODY PSG WAND W/ HANDLE
4683305 FITTING QD 1/2 MPT X 1/4 OD TUBE
5689403 VALVE SHUT OFF 1/4 TUBE
RETURN TO
TABLE OF
CONTENTS - 13 -
WARRANTY
Pacic Floorcare warrants to the original purchaser only (“Buyer”) that each mister shall be free from defect in material
and workmanship upon delivery.
Pacic Floorcare warrants to the original purchaser only (“Buyer”) that each mister shall be free from defect in material
and workmanship upon delivery. Pacic Floorcare’s liability is limited to repair or replacement of parts at the discretion of
Pacic Floorcare and/or the factory authorized service centers, transportation prepaid (Buyer expense).
Pacic Floorcare equipment used in commercial applications has a limited warranty of 12 months (one year) parts
and labor.
ITEMS NOT COVERED BY WARRANTY INCLUDE, BUT ARE NOT LIMITED TO:
• Damage resulting from accidents, abuse, misuse or acts of God (lightning, ood, etc.).
• Damage in transit (rental units).
• Failure due to lack of proper maintenance or care.
• Relatively minor adjustments such as tightening of screws or bolts, etc. not connected with the replacement of parts.
• Repairs or alterations by an organization other than the factory or an authorized Pacic Floorcare service center.
• Normal wear and tear items such as handles, wheels, nozzles, hoses, lters, cords, shall not be consider a defect in
workmanship or materials.
“This warranty covers all defects in workmanship and material for the warranty period. The warranty does not cover any
damage resulting from any misuse, abuse or neglect of the product or any parts needing replacement due to normal wear
and usage.”
The substitution of the pump or air compressor under warranty will therefore be aected only in case of production
defect (this has to be veried by the authorized Pacic Floorcare service centers). If, after inspection of the returned
machine or any part or parts, Pacic determines that the defect is not covered by the warranty, all expenses incurred by
Pacic Floorcare in connection with the replacement or repair if the machine or any parts thereof shall be at the buyer’s
responsibility. Any parts returned to Pacic Floorcare for replacement shall become the property of Pacic Floorcare.
In no event shall Pacic Floorcare be liable for any indirect, special, incidental, consequential or other damages including
but not limited to damage or loss of property or equipment, lost revenues or prots, claims of customers, or harm to
goodwill or business reputation directly or indirectly arising from the sale, handling or use of the mister, or from any other
costs relating thereto and Pacic Floorcare’s liability hereunder. Pacic Floorcare shall not be liable to the buyer for any
claims, damages, injures, actions, or causes of action whatsoever based on negligence or strict liability. Pacic Floorcare
makes no warranty that its mister shall be merchantable or that such machine shall be t for any particular purpose.
Moreover Pacic Floorcare makes no expressed or implied warranties except for the limited warranty set forth herein. In
addition no representation or warranty, expressed or implied, made by any dealer, sales representative, or eld agent of
Pacic Floorcare which is not specically set forth herein shall be binding on Pacic Floorcare. Genuine Pacic Floorcare
replacement parts shall be free from defects in material and workmanship for a period of 90 days after “installation” and
shall be subject in all respects to the limitations and exclusions of this limited warranty.
Table of contents
Other Pacific Floorcare Cleaning Equipment manuals
