Panasonic PM-25 Series User manual

2021.12 panasonic.net/id/pidsx/global
U-shaped Micro-photosensor
PM-□25 / PM-□45 series
When Using for Safety Applications
WUME-PMSAFETY-1

WUME-PMSAFETY-12
(MEMO)

WUME-PMSAFETY-1 3
Thank you for purchasing a PM-□25 / PM-□45 series U-shaped Micro photosensor with built-in
amp.
Read this document carefully and thoroughly for the correct and optimum use of this product.
Keep this document in a convenient place for quick reference.
This document contains “When Using for Safety Applications” related to the PM-□25 / PM-□45
series when used as part of a safety system. Before using this device, be sure to read this doc-
ument in addition to the documentation included with other devices used in the safety system.
This document is for the following persons who have received appropriate training and have
knowledge of safety and photoelectric safety sensors.
● Those who are in charge of introduction of this device.
● Those who incorporate this device into systems or design them.
● Those who install and / or connect this device.
● Those who manage or perform operations at sites where this device is used.
Notes
1) No part of this document should be copied or reprinted in any form or by any means without
prior permission in writing from the publisher.
2) The contents of this document are subject to change without notice for future improvement.
3) Every e󰀨ort is made to produce this document. If you nd any question, error, incorrect col-
lating and / or missing page, please do not hesitate to contact our nearest local o󰀩ce to you:
Panasonic Industrial Devices SUNX.
4) This document (Japanese and English) is an original publication.

WUME-PMSAFETY-14
Contents
Chapter 1 Introduction ···································································· 1-5
1.1 Safety Precautions Always observe ··············································· 1-6
1.2 Handling Precautions································································· 1-6
Chapter 2 Standards and Regulations················································ 2-1
2.1 Standards and Regulatory Compliance·········································· 2-2
2.2 Safety Functions ······································································· 2-2
2.3 Parameters related to safety (Parameters described in ISO13849-1) ··· 2-2
2.4 Cautions when using in a ISO13849-1 Category 3 PLd system··········· 2-4
Chapter 3 Maintenance··································································· 3-1
3.1 Daily Inspection ········································································ 3-2
3.2 Regular (Bi-annual) Inspection····················································· 3-2
3.3 Inspection upon product replacement / installation ··························· 3-2
Chapter 4 Troubleshooting ······························································ 4-1
4.1 Troubleshooting ········································································ 4-2

1-5
1.1 Safety Precautions Always observe ··············································· 1-6
1.2 Handling Precautions································································· 1-6
Chapter 1 Introduction

WUME-PMSAFETY-11-6
1.1 Safety Precautions Always observe
The PM-□25 / PM-□45 conforms to the international standard ISO 13849-1 (Category 1, PLc)
and can be used as a detection device to indirectly protect the human body.
This manual explains important rules that must be observed to prevent personal injury and prop-
erty damage.
■The hazards that may occur if the product is used incorrectly are described and clas-
sied by level of harm.
WARNING Risk of death or serious injury.
WARNING
●Do not use this product for an application where it directly detects the human body. Otherwise,
there is a risk of death or serious injury.
●When the human body needs to be detected for safety application, use products that conform to the
laws and standards related to human body detection for safety application in each country, such as
OSHA, ANSI, and IEC.
1.2 Handling Precautions
■In this manual, the following symbols are used to indicate safety information that must
be observed.
Indicates an action that must be taken.
Specications
●Before using this device, be sure to conrm the standards / regulations applied in the rele-
vant nation and region.
●Since parts or all of a human body may not be detected, use this product solely for indirect
protection methods only.
●Objects within the deadband region or outside of the detection area, and transparent objects
cannot be detected.
Usage environment
●Since the sensor is intended for use inside machines, no special countermeasures have
been taken against extraneous light. Please take care that extraneous light is not directly in-
cident on the beam receiving section.
Power supply
● Be sure to use a SELV (Safety Extra Low Voltage) power supply unit with this device.
Wiring
●All electrical wiring should conform to the regional electrical regulations and laws. The wiring
should be done by engineer(s) having the special electrical knowledge.
●Power supply and output wires for connecting to this device should be 0.3 mm2or greater
with a total length of less than 30 m.

WUME-PMSAFETY-1 1-7
●Cables that are 0.3 mm2or greater can be used for a length of up to 30 m, but since voltage
will drop as the cable gets longer, ensure that the power supply voltage at the end of the sen-
sor's included cable and at the terminal is within the rating.
Overall length: 100 m
Extension cable
Supply voltage:
4.5 V or more
5 to 24 V DC ±10%
Output
+V
+
-
0 V
●If there is a large surge generating equipment, such as, motor, solenoid, electromagnetic
valve, etc., in the vicinity of the micro-photosensor, use a surge absorber on that equipment.
Further, do not run the sensor cables along power lines and use a capacitor between +V and
0 V. Use the sensor after conrming that the surge has been eliminated.
● Do not use during the initial transient time (50 ms) after the power supply is switched on.
Operation
● In case this device does not perform properly, the operator should report this to the person in
charge and stop the machine operation immediately. The machine must not be operated until
correct performance of this device has been conrmed.
Maintenance and Inspection
● If the sensor is used in a place having excessive dust, periodically clean the emitting and re-
ceiving sections with a dry, soft cloth.
Other precautions
● This product has been developed / produced for industrial use only. This product must be dis-
posed of using environmentally-friendly methods in accordance with applicable disposal and
processing regulations of the country it is used in.

WUME-PMSAFETY-11-8
(MEMO)

2-1
Chapter 2 Standards and
Regulations
2.1 Standards and Regulatory Compliance·········································· 2-2
2.2 Safety Functions ······································································· 2-2
2.3 Parameters related to safety (Parameters described in ISO13849-1) ··· 2-2
2.4 Cautions when using in a ISO13849-1 Category 3 PLd system··········· 2-4

WUME-PMSAFETY-12-2
2.1 Standards and Regulatory Compliance
This product complies with the following standards and regulations.
<EU Directives>
EMC Directive 2014/30/EU
<European Standards>
EN 60947-5-2
<International Standards>
ISO 13849-1: 2015(Category 1, PLc)
2.2 Safety Functions
This product has semiconductor output. Conrm the following before use.
■During detection (When using Dark-ON) : OUT1/OFF & OUT2/ON
■During non-detection (When using Light-ON) : OUT1/ON & OUT2/OFF
2.3 Parameters related to safety (Parameters described in ISO13849-1)
■Safety side: During detection (When using Dark-ON)
Name NPN output type PNP output type
OUT1 OUT2 OUT1 OUT2
Safety side: Output status OFF ON OFF ON
MTTFd 100 years
DCavg 0
CCF 75
T1 (Proof Test Interval) 20 years
Operating altitude 2,000 m or lower
Response time
Under light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less
(Maximum response frequency: 3 kHz) (Note 1)
Ambient temperature
(Note 2,3)
–25 to +55 °C (No dew condensation or icing allowed),
Storage: –30 to +80 °C
■Safety side: During non-detection (When using Light-ON)
Name NPN output type PNP output type
OUT1 OUT2 OUT1 OUT2
Safety side: Output status ON OFF ON OFF
MTTFd 100 years
DCavg 0
CCF 75
T1 (Proof Test Interval) 20 years
Operating altitude 2,000 m or lower
Response time
Under light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less
(Maximum response frequency: 3 kHz) (Note 1)
Ambient temperature
(Note 2,3)
–25 to +55 °C (No dew condensation or icing allowed),
Storage: –30 to +80 °C

WUME-PMSAFETY-1 2-3
Notes: 1) The response frequency is the value when the disc, given in the gure below, is rotated.
1.6mm
1.8mm
t=0.2mm
Disc
Disc
1.6mm
Notes: 2) In case the PM-25 series is used at an ambient temperature of +50 °C, or more, make sure to mount it
on a metal body.
Notes: 3) Note that the cable of PM-□25-R loses its exibility when the ambient temperature decreases to about
-10 °C.

WUME-PMSAFETY-12-4
2.4 Cautions when using in a ISO13849-1 Category 3 PLd system
This product has been certied for use together with a Category 4 PLe safety controller / safety
relay unit, which means it fullls the requirements of Category 3 PLd. When using in this way,
be sure to use two sensors in a sensor redundancy conguration.
To prevent loss of safety functionality due to accumulation of faults, build a control system with
two redundant outputs which will stop the whole system when a discrepancy of output is detect-
ed.
Furthermore, before use, conrm that the calculated results of MTTFd and DCavg fulll the re-
quirements for Category 3, PLd.

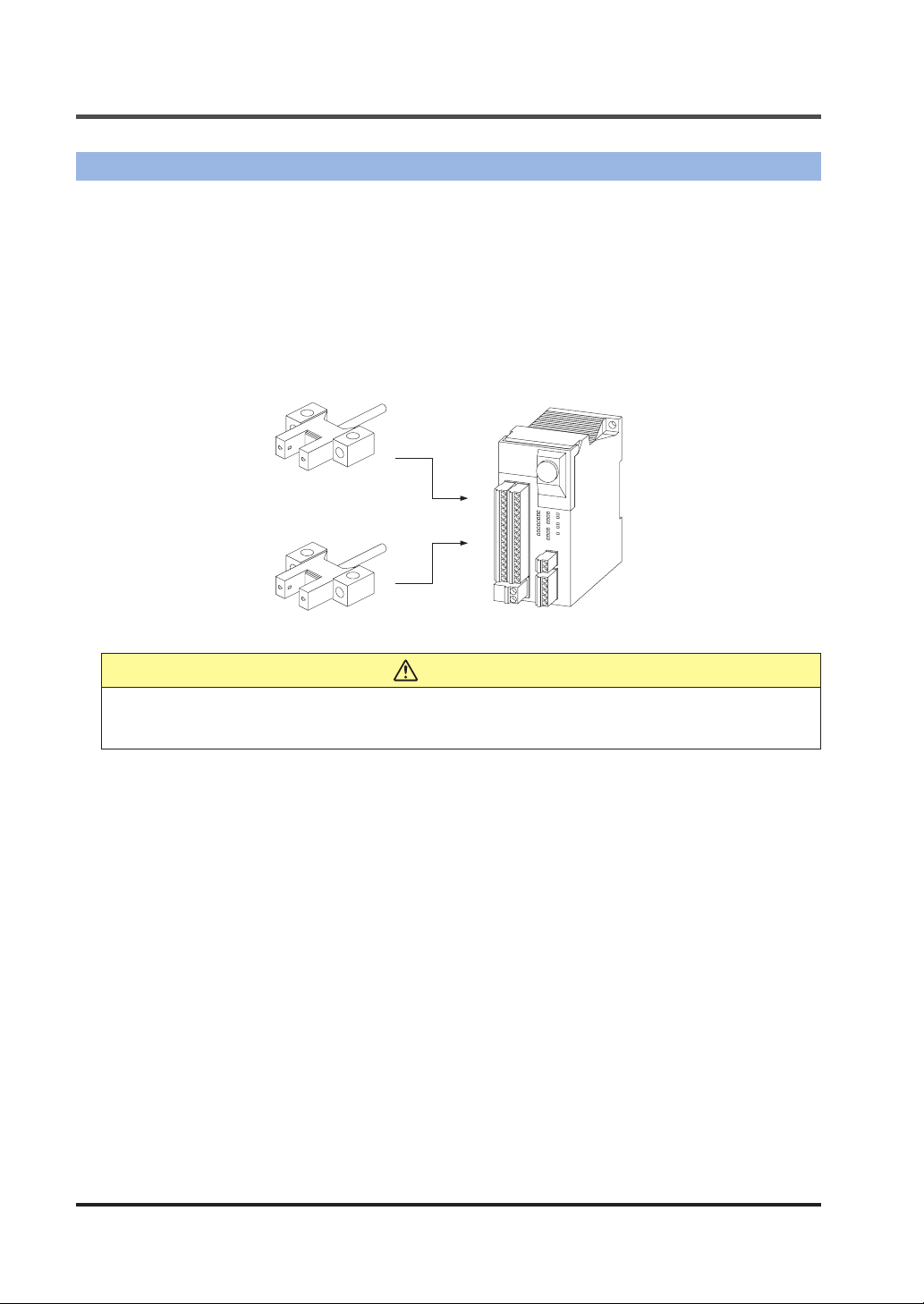

■Connection Example
Micro-photosensor
Ex. PM-K45-P
Micro-photosensor
Ex. PM-K45-P
Safety Controller
Safety Relay Unit
Ex. SF-C21
Output
Output
WARNING
Do not use the two outputs of a single device as the two outputs for a redundant safety system.
When using this product alone, the safety system it is used in may stop functioning if there is a
sensor fault.

3-1
Chapter 3 Maintenance
3.1 Daily Inspection ········································································ 3-2
3.2 Regular (Bi-annual) Inspection····················································· 3-2
3.3 Inspection upon product replacement / installation ··························· 3-2

WUME-PMSAFETY-13-2
3.1 Daily Inspection
WARNING
Before starting work, the worker should inspect the following items and verify that there are no
abnormalities. Operating this device without performing the inspection or without removing the
abnormal condition may cause death or serious injury.
Checklist (daily inspection)
Check column Inspection item
□The output of this product should operate correctly as follows.
(When using Light-ON) Output is ON when light is detected, and OFF when dark is detected.
(When using Dark-ON) Output is OFF when light is detected, and ON when dark is detected.
□No objects are added that create ambient or reected light
□No damage to safety fences or protective structures
3.2 Regular (Bi-annual) Inspection
WARNING
Inspect the following items every 6 months and verify that there are no abnormalities. Operating
this device without performing the inspection or without removing the abnormal condition may
cause death or serious injury.
Checklist (periodic inspection)
Check column Inspection item
□The structure of the machine does not prevent any safety mechanisms from causing the ma-
chine to stop or to make an emergency stop.
□No modication has been made in the machine control system that obstructs the safety mecha-
nisms.
□Wiring from this device has been performed correctly.
□No screws or connectors related to the device are loose.
□The current number of operation cycles (time) of parts (such as relays) with a limited service life
is less than the number of service life cycles (time).
3.3 Inspection upon product replacement / installation
WARNING
Before starting work, the worker should inspect the following items and verify that there are no
abnormalities. Operating this device without performing the inspection or without removing the
abnormal condition may cause death or serious injury.
Inspection list (inspection upon product replacement / installation)
Check column Inspection item
□Output from the device can be detected correctly
□Wiring from this device has been performed correctly.
□No screws or connectors related to the device are loose.

4-1
4.1 Troubleshooting ········································································ 4-2
Chapter 4 Troubleshooting

WUME-PMSAFETY-14-2
4.1 Troubleshooting
Solutions to frequently encountered problems and errors are described below.
Symptom Cause Solution
Operation indicator
(Note 1) is OFF.
Power is not supplied. Check the supplied voltage of the power supply.
There is a mistake in the wiring. Check the wiring. (Note 2)
Light is not being emitted. The emitting element or circuit is damaged.
In such a case, replace this product.
The output does not
turn ON.
Something is wrong with the
output circuit.
The output circuit is damaged.
In such a case, replace this product.
(Note 1)Position of operation indicator
Operation indicator (Orange)
(Note 2) I/O circuit diagram
NPN output type
Main circuit
(Brown) + V
(Black) Output 1
(White) Output 2
(Blue) 0 V
Load
Load +
5 to 24 V DC± 10%
−
50 mA MAX.
50 mA MAX.
PNP output type
50 mA MAX.
50 mA MAX.
Main circuit
(Brown) + V
(Black) Output 1
(White) Output 2
(Blue) 0 V Load
Load
+
5 to 24 V DC± 10%
−
●Ensure to insulate the unused output wire.

Revision history Revision date Revision item
1st edition December 2021 ―

Please contact ..........
Panasonic Industrial Devices SUNX Co., Ltd.
https://panasonic.net/id/pidsx/global
Please visit our website for inquiries and about our sales network.
© Panasonic Industrial Devices SUNX Co., Ltd. 2021
December, 2021 PRINTED IN JAPAN WUME-PMSAFETY-1
