Panasonic CS-A182KR User manual

F563264
Room Air Conditioner
Operating Instructions
ENGLISH ............. P. 1 – P. 22
Before using your air-conditioner, please
read this operating instructions carefully
and keep it for future reference.
Outdoor
Model CU-A182KR
CU-A242KR
Indoor
Model CS-A182KR
CS-A242KR

▲
1
Before use
Contents
Safety Precautions ................................................ 2 – 4
– Installation precautions
– Operation precautions
Name of Each Part ................................................ 5 – 6
– Indoor unit
– Outdoor unit
– Accessories
– Remote control
Preparation Before Operation ............................... 7 – 8
– Before operating the unit
– How to insert batteries
– Operating the remote control
How to Operate ................................................... 9 – 10

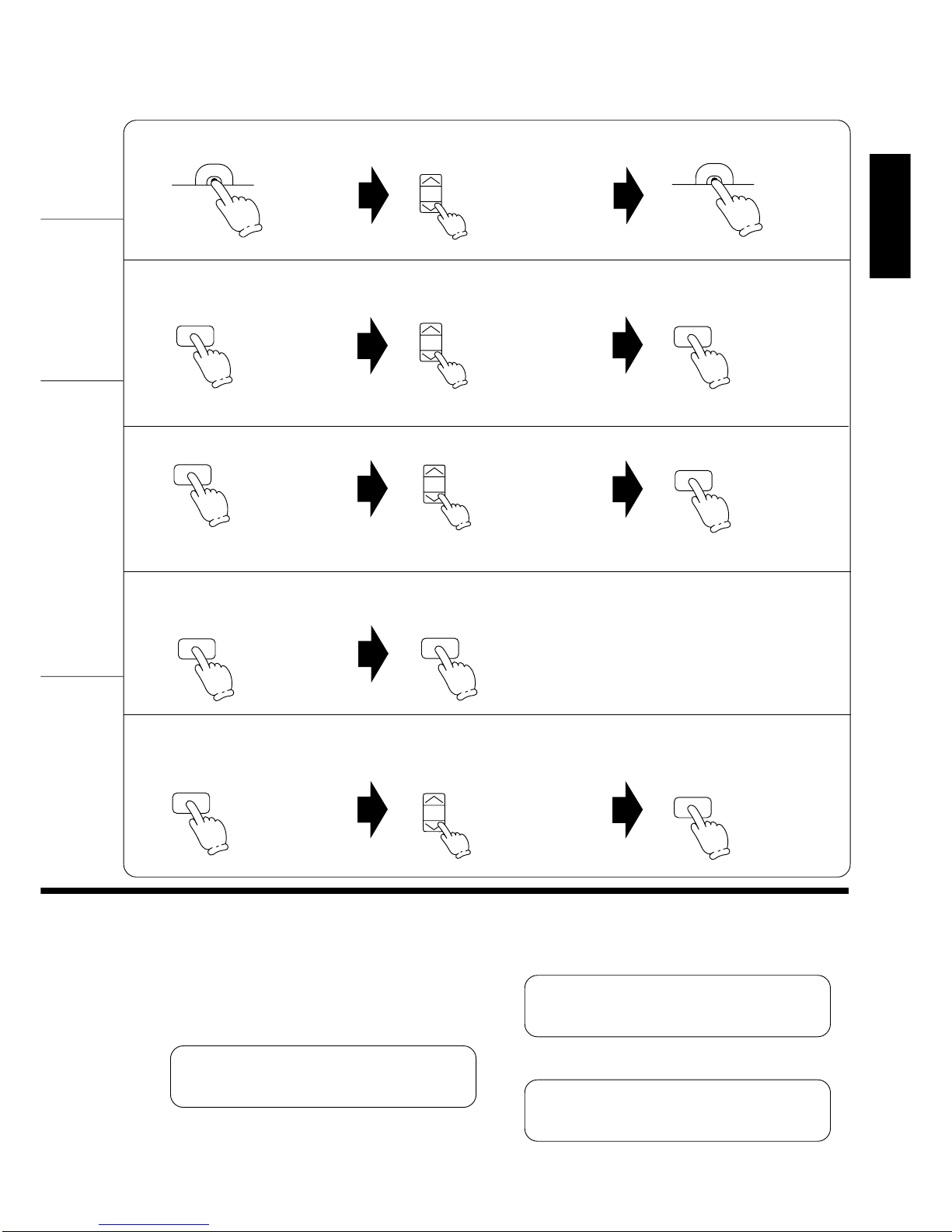

Setting the Timer ............................................... 11 – 12
Convenient Operation ....................................... 13 – 14

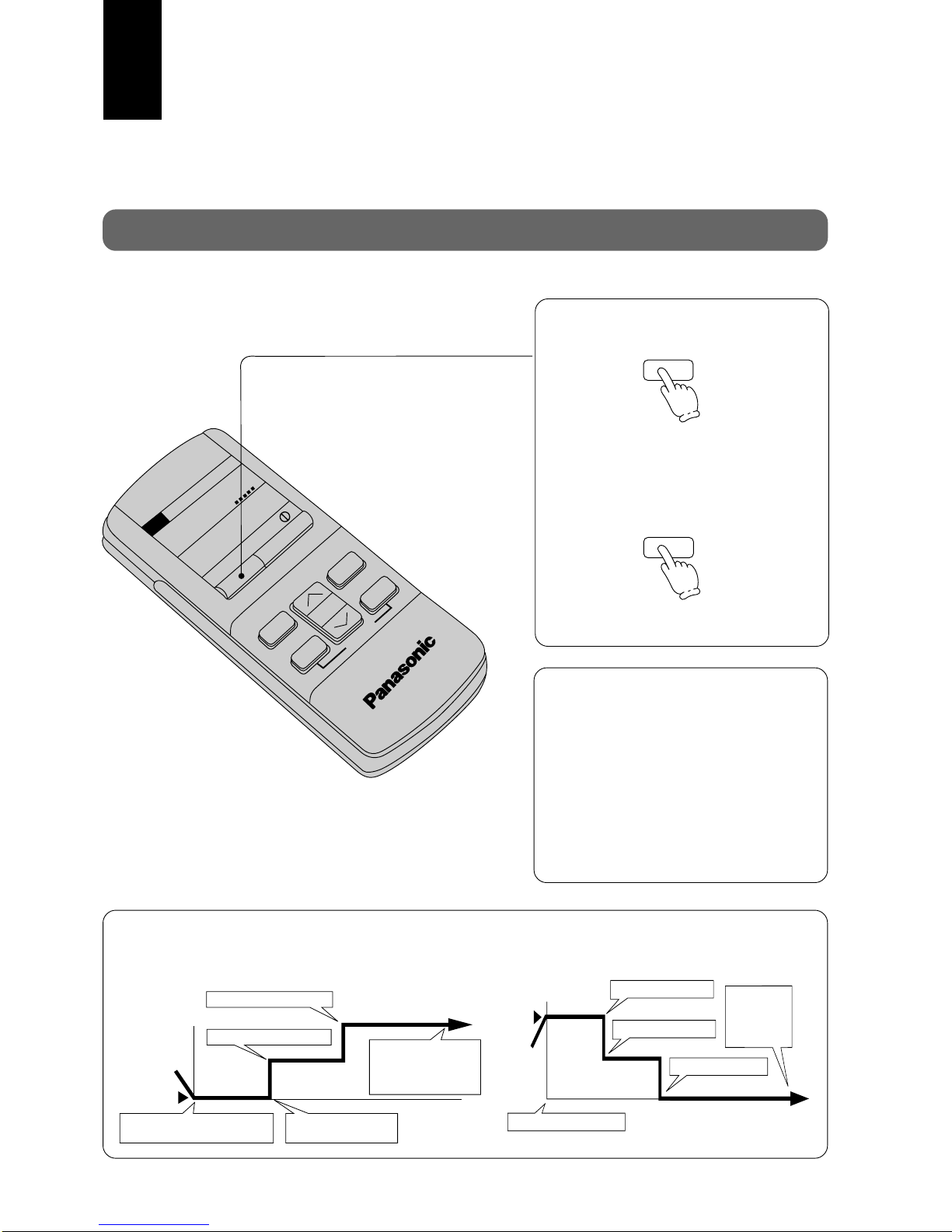

– Sleep mode
– When remote control cannot be used
– OFF/ON remote control signal receiving
sound
Operation Hints ................................................. 15 – 16
Better Care and Maintenance ........................... 17 – 18
– Cleaning the air conditioner and air filters
– Cleaning of front panel
– Replacement of air purifying filters
– When not using the air conditioner for a
long period
– Pre-season inspection
Troubleshooting ........................................ 19 – 20
– Normal operation
– Abnormal operation
– Call the dealer immediately
●
●
●
●
●
●
●
●
●
How to use
If necessary

▲
2
ENGLISH
Safety Precautions
■Do not install, remove and reinstall the unit yourself.
Improper installation will cause leakage, electric shock or fire. Please engage an authorized dealer or
specialist for the installation work.
Warning
To prevent personal injury, injury to others and property damage, the following instructions must be followed.
■Incorrect operation due to ignoring of instructions will cause harm or damage, the seriousness of which is
classified as follows :
Caution
Warning : This sign warns of death or serious injury.
This sign warns of injury or damage to property only.
■The instructions to be followed are classified by the following symbols :
!
!
!
Installation precautions
Before operating, please read the following “Safety Precautions” carefully.
■This room air conditioner must be earthed.
Improper grounding could cause
electric shock.
■Do not install the unit in a place where there
may be explosive gas leaks.
Gas leaks near the unit could cause
fires.
■Ensure that drainage piping is connected
properly.
Otherwise, water will leak out.
Caution :
!
This symbol (with a white background) denotes an action that is
PROHIBITED.
These symbols (with a black background) denote an action that is
COMPULSORY.
OFF

▲
3
Operation precautions
■Insert the power plug
properly.
Heat generated by a loose power
plug could cause electric shock
or fire.
Electrical outlet and power plug
shall be easily accessible.
■Do not modify the length of
the power cord or use an
extension cord.
It could cause electric shock or
fire.
■Do not be directly exposed
to the cold airstream for too
long.
It could lead to health problems.
■Do not operate or stop the
unit by inserting or pulling
out the power plug.
It could cause electric shock or fire.
■Do not operate the unit with
wet hands.
It could cause an electric shock.
■If there is a smell of burning,
stop the air conditioner and
disconnect the power supply.
The heat generated could cause
electric shock or fire. Please con-
sult an authorized dealer or service
centre.
Warning
■Do not damage or use an
unspecified power cord.
It will cause electrical shock or
fire.
■Do not insert finger, sticks
or other objects into the
units.
It could lead to physical injury
and cause damage to the units.
■Do not try to repair the unit
yourself.
It could lead to fire or cause an
electric shock. Please call an au-
thorized dealer or service centre.
!
OFF
Switch off
the breaker. Disconnect the power
plug.

▲
4
ENGLISH
■Do not remove the power
plug by pulling the cord.
Hold the plug when disconnect-
ing the plug from the wall outlet.
■Do not use for other pur-
poses.
Do not use for preservation pur-
poses. It will affect food quality,
animals or plants.
■Do not wash the unit with
water.
It could cause an electric shock.
Caution
■When cleaning the unit, re-
move the plug.
This is to prevent injury due to the
rotating fan in the unit.
■ Ventilate the room regularly.
Since windows are kept closed, it
does good to open them periodi-
cally to ventilate the room.
■Do not sit or place anything
on the outdoor unit.
You might fall off or the unit might
collapse.
■Switch off the power supply if
the unit is not going to be
used for a long period of time.
If dust accumulates on the plug, it
will generate heat and this could
cause a fire.
■Do not place combustor in the
path of the airflow from the
unit.
Incomplete combustion could
cause toxic gas (CO) poisoning.
■Inspect the unit for any
damage.
Ensure that the necessary repairs
are carried out.
OFF
Switch off
the breaker.
Disconnect
the power
plug.
!
OFF

▲
5
Name of Each Part
Indoor unit
Front Panel Air Intake Vent
POWER : Red
SLEEP : Orange
TIMER : Orange
Air Outlet Vent
Operation Indication
Lamps (LED)
Auto Operation Button
Test Run Button
Panel Opener
Power Switch
Power Supply
Cord
Horizontal
Airflow Direction Louver
(Manually adjusted)
Vertical Airflow
Direction Louver Signal
Receptor
Air Outlet Vents
Drain Hose
Piping
(Rear)
(Side)
Ground
Terminal
(Inside Cover)
Outdoor unit
Air Intake Vents

▲
6
ENGLISH
OFF/ON
SLEEP
PM
MODE TEMP. FAN SPEED
MANUAL
SWING
AIR SWING
DRY
COOL
HEAT
AUTO
AM
ON-TIMER
OFF-TIMER
°C
AUTO FAN
c
h j k
m n o
Separate displays and functions are available when the door is opened.
Remote control
Room Temperature
Setting Button
Sleep Mode
Operation Button
Operation Display
Door
Airflow Direction Manual
Control Button
Signal Transmitter
Operation Mode
Selection Button
Airflow Direction Auto
Control Button
OFF-Timer Button ON-Timer Button
Set Button
Cancellation Button
Clock Button
Time
Button
Accessories
q
OFF-TIMER ON-TIMER
CANCEL SET
TIME
Door
OFF/ON Button
Airflow Volume
Selection Button
OFF/ON
SLEEP
PM
MODE TEMP. FAN SPEED
MANUAL
SWING
AIR SWING
DRY
COOLHEAT
AUTO
AM
ON-TIMER
OFF-TIMER
°C
AUTO FAN
c
h j k
m n o
Remote Control Two R03 (AAA) dry-cell
batteries or equivalent
Air Purifying Filters
(Catechin Air Purifying Filters and
Deodorizing Filters)

▲
7
Airflow Direction Adjustment
Preparation Before Operation
Before operating the unit
■Open the front panel. ■Switch on the power
switch and close the front
panel.
■Remove air filter.
■Insert air purifying filter.
Insert the air filters.
Hold the tab to raise up
slightly and then pull down.
234
Hold the panel openers at both
sides and pull up the front panel.
Air
filter
2
1
■Connect the power
supply cord to an
independent power
supply.
1
Air purifying
filter
Be careful not to
hurt your hands by
metal parts.
(Unit in °C)
Outdoor
DBT
32
16
WBT
23
11
Indoor
DBT
43
16
WBT
26
11
Outdoor
DBT
30
16
WBT
_
_
Indoor
DBT
24
-5
WBT
18
-6
Cooling Heating
DBT: Dry Bulb Temp
WBT:Wet Bulb Temp
Maximum Temperature
Minimum Temperature
Use the air conditioner under the following conditions.

▲
8
ENGLISH
OPEN
er
er
OPEN
How to insert batteries
Operating the remote control
Gently press the
place marked
[OPEN] and slide
the cover toward
you.
er Be sure
that the (+) and
(–) directions
are correct.
Set the power switch to “t” (OFF) when:
■The air conditioner is not going to be used for
an extended period of time.
If the power switch is left at “I” (ON), approximately
3.25 watts of electric power are used even if the main
unit is turned off by remote control.
■There is a danger of lightning.
The air conditioner is provided with a built-in protective
device, but the control equipment may be adversely
affected depending on the extent of lightning activity.
Regarding the batteries.
■The batteries can be used for approximately one year.
■Do not use rechargeable (Ni-Cd) batteries,
because such batteries differ from standard
dry-cell batteries in shape, dimensions and
performance.
■Be sure to replace the batteries with two new
batteries of the same type.
■Remove the batteries if the air conditioner is not going
to be used for an extended period of time.
Make sure that the
signal path is not
obstructed.
The maximum dis-
tance at which signals
can be received is
about 10 m.
12 00
:
PM
■Aim at the signal receptor on the room air condi-
tioner when operating.
■Do not drop or throw the remote control.
■Do not place the remote control in a location that
is exposed to direct sunlight or next to a heating
unit or other heat source.
■Signal received sound:
One short beep or one long beep.
(Two R03 (AAA) dry-cell
batteries or equivalent)
■Fix the cover to the back of the remote
control (“PM 12:00” will flash in the opera-
tion display.)
If the display does not appear when the batteries
are inserted, remove the batteries and
insert them once more.

▲
9
Recommended temperature for health
and comfort.
■If there is a power failure, operation will be
automatically restarted after 3 minutes when the
power is resumed with previous operation mode
and airflow direction.
(When the operation is not stopped by remote
control.)
■If you do not intend to continue the operation
when the power is resumed, switch off the power
switch at main unit or power supply.
When you switch on the power switch, the
operation will be automatically restarted
with previous operation mode and airflow
direction.
Note: 1. If you do not require Auto Restart
Control, please consult your dealer.
2. Auto Restart Control is not available
when Timer or Sleep Mode is set.
Auto Restart Control.
Cooling Operation until
room temperature
reaches the setting
temperature
When room temperature reaches the setting tempera-
ture, operation will switch to Soft Dry.
Setting
Temperature
DRY – Soft Dry Operation.
■Soft Dry is a very gentle Cooling Operation
consisting primarily of dehumidifying. It does not
lower the room temperature very much.

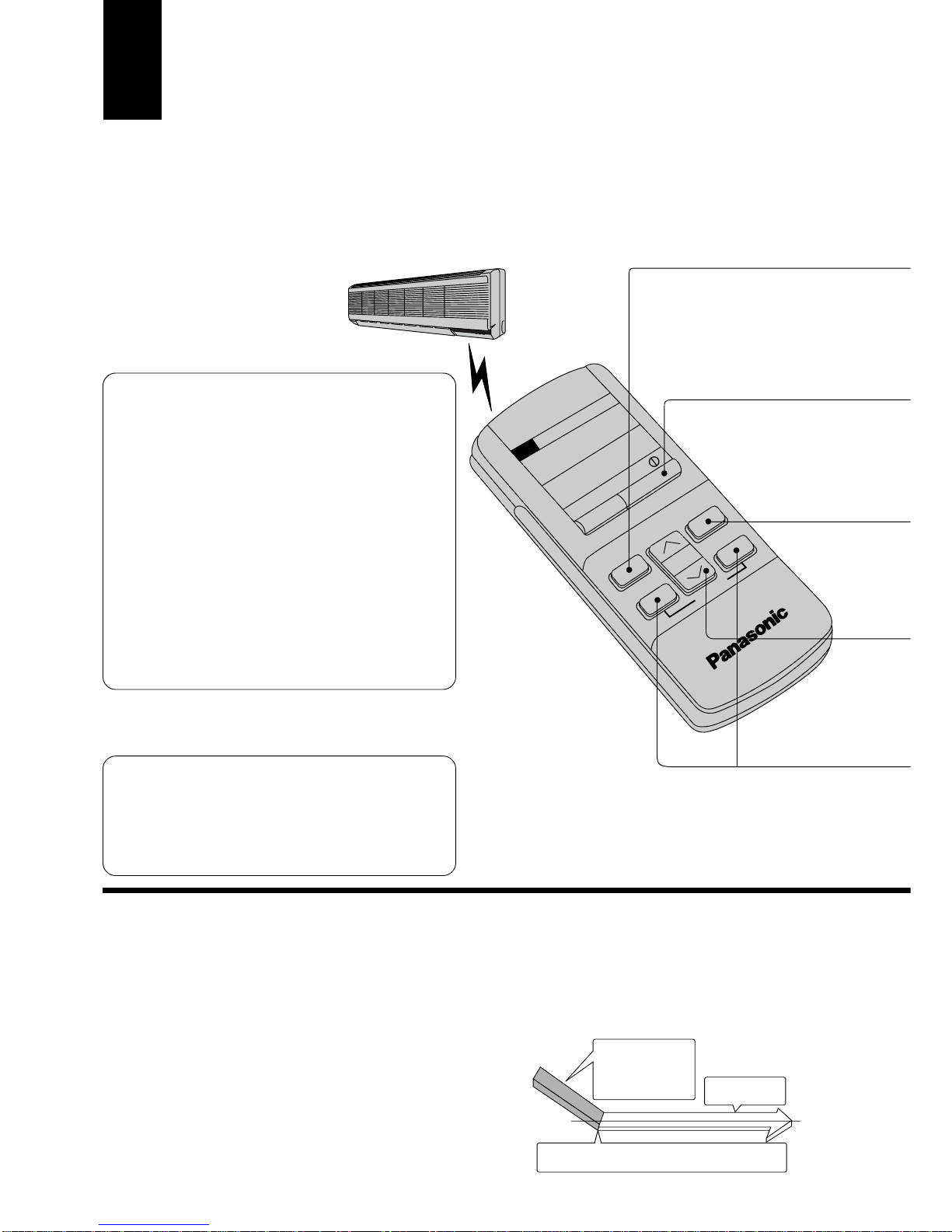

How to Operate
For Heating : 20°C – 24°C
For Cooling : 26°C – 28°C
For Soft Dry : 1°C – 02°C lower than
room temperature.
<Operation Details>
AUTO – Automatic Operation.
■Once the Automatic Operation is selected, the in-
door temperature sensor operates automatically
to select the desired operation mode with Cooling,
Soft Dry or Heating.
■The Operation mode changes every hour, when
necessary.
■Temperature is not displayed on remote control
during Auto mode operation. Super Low airflow
amount
OFF/ON
AUTO FAN
SLEEP
MODE TEMP. FAN SPEED
MANUAL
SWING
AIR SWING
AUTO
h j k
m

▲
10
ENGLISH
HEAT – Heating Operation
■Defrosting Operation
Depend on the outdoor temperature, the operation
occasionally stops to melt the frost on the outdoor
unit.
■Heat is obtained from outdoor air to warm up the
room. When the outdoor ambient air temperature
falls, the heating capacity of the unit might be
reduced.
Automatic Airflow Volume
■The speed of the indoor fan is adjusted automati-
cally according to the operation. The indoor fan
stops occasionally during cooling operation.
Range of louver adjustment
34°
57°
46°
Heating
(Airflow
Direction Manual)
Heating
(Airflow
Direction Auto)
Cooling/Soft Dry
(Airflow Direction
Manual and Auto)
SWING
MANUAL
1
2
3
4
5
m n
2°C lower than
standard standard
nn o
2°C higher than
standard
▼
MANUAL
▼
OFF/ON I
FAN SPEED
MODE
i
TEMP.
MANUAL
SWING
Press to select operation mode.
■The display changes in the order
each time the button is pressed.
Press to start the operation.
■Operation indication lamp (RED) will light up.
■Press once more, to stop the operation.
Press to select airflow volume.
■The display changes in the order.
Automatic Low Medium High
Press to select room temperature.
■Heating, Cooling, Soft Dry – Select temperature as desired.
(16°C ~ 30°C)
■Automatic. (See <Operation Details>)
Press continuously.
■The vertical airflow direction louver will move up and down. Release the
button when the louver is at the desired position.
Press .
■Cooling & Soft Dry – The vertical airflow direction louver will swing up and down
automatically.
Heating – When the discharge air temperature is low such as at the start of
heating operation, the air blows at horizontal level. As the
temperature rises, the hot air blows in a downwards direction.
To stop the automatic airflow direction operation, press button.

▲
11
<Note>

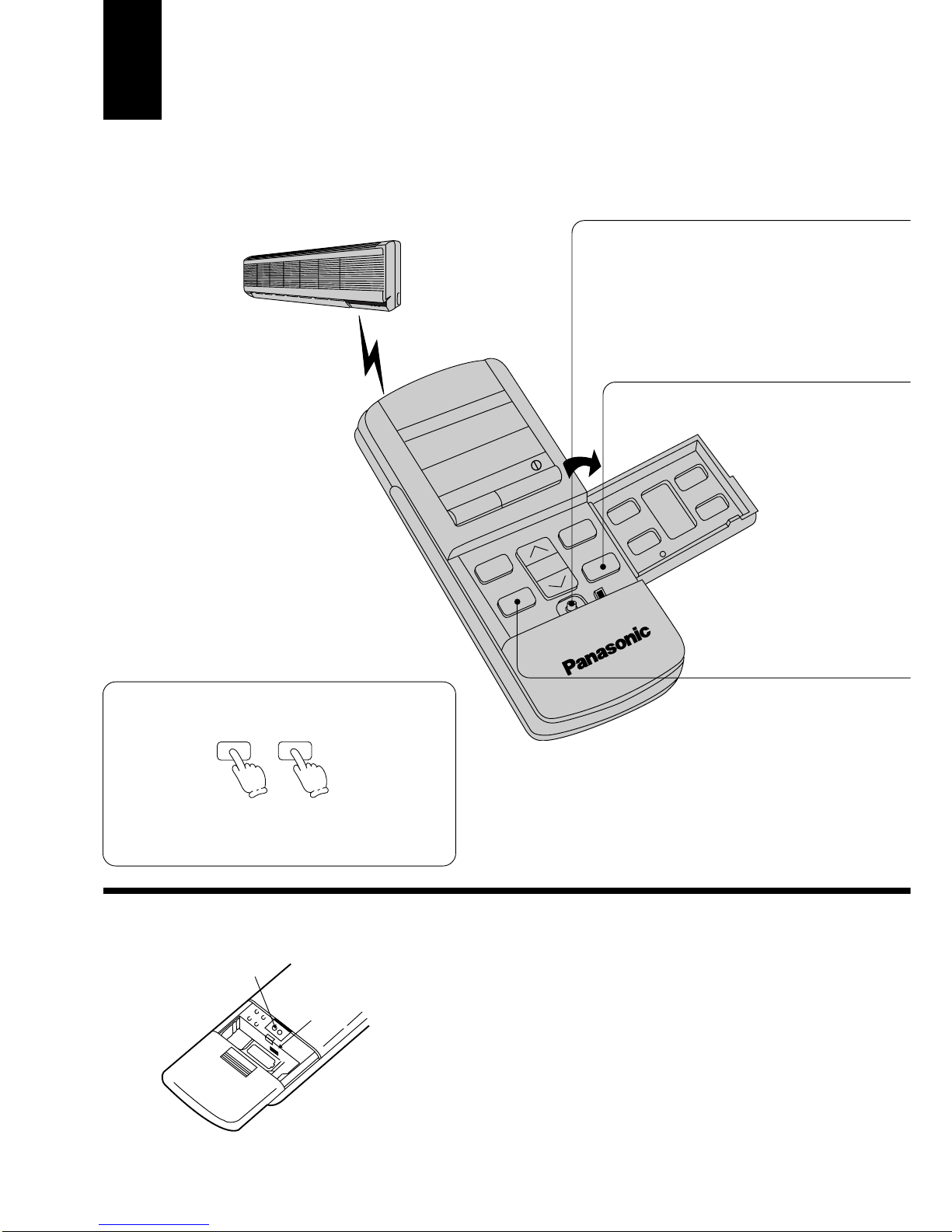

Regarding remote control. ■If the current time is not set correctly, correct
Timer setting will not be possible.
■When the Timer is set, the current time display will
vanish.
■[RESET] points will clear the memory once they
are shorted.
■[B ↔A] switch is used when two air conditioners
units have been installed in one room. Please
consult your dealer.
[RESET] points
Setting the Timer
[B ↔A] switch
If there is a power failure.
OFF-TIMER SET
➡
To reset the Timer.
(Example) If the OFF Timer has been set.
■Even if there is a power failure, the setting
time is still stored in the memory because the
remote control is a battery operated type.
q
OFF/ON
SLEEP
PM
OFF-TIMER TIME ON-TIMER
SET
CANCEL
11:30
OPEN

▲
12
ENGLISH
■Setting the OFF Timer.
■Setting the ON Timer.
Timer
■The ON Timer and OFF Timer can only be set
once during a day.
■The operation will start before the actual setting
time with ON Timer setting.
This is to allow time to attain your desired set
temperature.
If the air conditioner is set before you go out,
the room temperature will be close to your
desired temperature when you return.
This is useful for saving electricity costs in-
curred by forgetting to turn off the air condi-
tioner.
.... to increase 10 minutes
each step.
.
... to decrease 10 minutes
each step.
TIME
The Timer indication lamp at main
unit will light up. LED colour: Orange.
●The Timer indication lamp at
main unit will go off.
●To cancel the ON Timer, follow
the same procedure.
TIME
.... to increase 10 minutes
each step.
.
... to decrease 10 minutes
each step.
The Timer indication lamp at main
unit will light up. LED colour: Orange.
. ... to increase 10 minutes
each step.
. ... to decrease 10 minutes
each step.
TIME
OFF-TIMER
q
SET
0N-TIMER
SET
OFF-TIMER
CANCEL
SET
0N-TIMER
Cooling and Soft Dry : 15 minutes before
Heating and Automatic : 30 minutes before
TIME
.... to advance the time
.... to reverse the time
q
To set the current time.
■Set hours and minutes
To set the Timer.
■OFF Timer Set hours and minutes
The “ OFF-TIMER ” will blink.
■ON Timer Set hours and minutes
The “ ON-TIMER ” will blink.
To cancel the Timer.
■OFF Timer
To change the Timer setting time.
■(Example) To change the ON Timer
setting time. Change hours and minutes setting

▲
13
Convenient Operation
Sleep Mode
This is to gain a comfortable room temperature while sleeping.
Sleep Mode Operation.
■When the room temperature reaches
the setting temperature or after 1
hour of operation, sleep shift
operation starts and the airflow
volume will automatically change to
low.
■Sleep Mode Operation time is 8
hours.
■When using together with the Timer,
the Timer has priority.
To set Sleep Mode.
■Press
(The sleep indication lamp on the
main unit will light up.)
To cancel Sleep Mode.
■Press once more
(The sleep indication lamp on the
main unit will switch off.)
SLEEP
SLEEP
OFF/ON
SLEEP
PM
MODE TEMP. FAN SPEED
MANUAL
SWING
AIR SWING
AUTO
°C
11:30
c
27
h j k
0 – 1 hour
1 hour
TEMP.
SETTING
TEMPERATURE
TIME
Approx. 0.5°C increase
Approx. 0.5°C increase
SETTING
TEMPERATURE
TEMP.
0 – 1 hour
1 hour
TIME
Approx. 2°C decrease
Approx. 3°C decrease
■Heating Operation for Sleep Mode move-
ment will start to avoid overheating.
<Information>
■Cooling or Soft Dry Operation for Sleep Mode
movement will start to avoid overcooling.
Sleep shift operation
starts
Sleep Operation button is pressed
Approx. 8 hours after sleep
shift operation starts, stops
automatically
Sleep Operation button is pressed
Sleep shift operation starts
Approx. 8 hours
after sleep shift
operation starts,
stops
automatically

▲
14
ENGLISH
When the remote control cannot be used
Test Run Button.
(Use when installing and moving)
Auto Operation Button.
■When the remote control cannot be
used, press Auto Operation Button to run
Automatic Operation.
(Airflow direction setting will be automatic.)
OFF/ON remote control signal receiving sound
■The Remote Control Signal receiving sound can be omitted as desired.
■To switch OFF the signal receiving sound, press Auto Operation Button for 10 seconds or more. At the
same time, Automatic Operation starts.
(To switch ON, press Auto Operation Button once more for 10 seconds or more.)
■Press Auto Operation Button.
(The operation indication lamp will blink for 20
seconds, and then light up)
●If the button is pressed once more, the
air conditioner will stop.
(The operation indication lamp will switch
off.)
To set Auto Operation.
■Confirm the power switch is at “I” (ON).
POWER
ON
OFF
AUTO
OFF/ON

▲
15
Operation Hints
Adjust room temperature properly. Set the
temperature 1°C higher (Cooling Operation) or
2°C lower (Heating Operation) than actually de-
sired.
Approximately 10% of electricity costs can be
saved.
Prevent wastage with the Timer. Use Timer
when sleeping or going out to save electricity
cost.
Clean the air filter regularly. Blockage in the air
filter reduces the airflow and lowers the cooling
or heating. Clean at least once every 2 weeks.
Otherwise, about 6% of electricity cost will be
wasted.
Do not block the air outlet vents at outdoor unit.
Otherwise, it will lower the cooling or heating
performance.
1°C higher
2°C lower

▲
16
ENGLISH
Make sure that the doors and windows are shut.
Otherwise, cooling and heating performance
will be reduced and electricity cost is wasted.
Proper airflow direction adjustment. Set the air-
flow direction louvers horizontal for Cooling
Operation and downwards for Heating Opera-
tion. Operation result will be better.
Keep blinds or curtains closed. Do not let sun-
shine enter the room directly. About 5% of elec-
tricity cost can be saved.
Use insulating material for better performance.
Use insulating material during construction or
renovations. It will save electricity cost.
Cooling
Heating

▲
17
Cleaning of front panel (Must be removed before washing)
Cleaning the air conditioner and air filters
Better Care and Maintenance
Do not use water or volatile liquids.
■Do not make air conditioner wet, as there is the danger that it could cause
electric shocks.
Be sure not to apply water when cleaning or at any other time.
■Using water above 40°C could cause deformation and/or discolouration.
■Volatile liquids such as thinner or benzene may damage the air condi-
tioner.
Caution
■Clean the air filters.
■To remove the dust adhering to the filters,
either use a vacuum cleaner, or wash them in
water and dry in the shade.
■Re-insertthefilterscorrectlyattheleftandright,
with the side marked [FRONT] facing forward.
■Purchase replacement filters from your air con-
ditioner dealer if the air filters become damage.
Air Filter No. CWD00231 (right)
CWD00232 (left)
Regular care and maintenance will extend the life of the air conditioner and prevent wastage of electricity. Before
performing any maintenance procedure, be sure to switch off the main power supply.
Once every 2 weeks is recommended.
To clean the front panel, gently wash with sponge. Wipe dry or dry in shade.
IMPORTANT: • It may lead to shaft damage if the front panel is removed or fixed without releasing the shaft.
• Be careful not to drop the front panel.
■Clean the air conditioner.
Wipe gently with a soft, dry cloth.
■To remove front panel.
1. Raise the front panel. 2. Release either one of the fulcrum from the ditch.
Ditch
Press to
the right
Fulcrum
Left side Right side
Fulcrum
Press to
the left
Ditch
3. Release the shaft from
the fixing hole.
■To fix the front panel, reverse the above procedure accordingly.
Press Fixing Hole
Shaft
5. Remove the front panel.
4. Repeat step 2 to release
the other fulcrum.
(
Illustration is shown
)
as above

▲
18
ENGLISH
3
When not using the air conditioner for a long period
■Is the discharge air
cold (warm)?
Operation is normal if, 15
minutes after the start of
operation, the tempera-
ture difference between
the air intake and outlet
vents is 8°C or above for
cooling and 14°C or
above for heating.
■Are the air outlet
vents and air intake
vents obstructed?
■Is the drain hose
cracked or crushed? ■Are the remote control batteries in
good condition?
Iftheyare,coolingor
heatingperformancewill
dropandcauseproblems.
Ifdisplayisfaintor
nodisplayisvisible,
thebatteriesshould
bereplaced.
If itis,leakswill
result.
Iscool(warm)
aircomingout?
Remove the batteries
from the remote control.
2
1
For air conditioners with a
power plug, stop opera-
tion by remote control and
pull out the power plug.
Note: If the unit is not off by
remote control, the unit
will operate when you
plug in (because
of Auto-restart
Control is provided).
Pre-season inspection (The earlier the better)
In order to dry out the
internal mechanisms
Operate the air condi-
tioner for 2 to 3 hours.
■Type of operation: Cooling.
■Temperature setting: 30°C
Replacement of air purifying filters
Filters
<Note> ■If air purifying filters turn the same colour as the sample colour attached to
the indoor unit within a three month period, replace the filters.
■Re-insert the filters correctly at the left and right with the side marked
[FRONT] facing forward.
■Dusty filters cannot be re-used, even if they are cleaned and washed.
■Purchase replacement filters from your air conditioner dealer.
■Part number for air purifying filters: CZ-SFD50N
■Note:
Catechin is natural brown element. The filter is coated with catechin in
order to prevent the growth of bacteria and viruses.
!Caution
Be careful not to
hurt your hands on
metal parts.
Remove the air purifying
filters. Remove the filters from
the filter frame.
Remove the air filters.
3
2
1
Recommended about once every 3 months.
Air filter Air purifying filter
Sample colour

▲
19
Troubleshooting
Normal operation
?
z
z
z
During Soft Dry Mode
Operation, the air condi-
tioner stops.
QIs it okay? AThis is the answer.
Air conditioner has been re-
started, but does not
operate for 3 minutes.
During Automatic Airflow
Volume setting, indoor fan
stops occasionally.
Operation stops for about
12 minutes during heating.
(The operation lamp
blinks.)
It seems that fog is coming
out from the air
conditioner.
Airflow does not begin
immediately during Heat-
ing Operation.
The room has a peculiar
odour.
This is to protect the air conditioner. Wait until the
air conditioner begins operating.
Soft Dry Mode Operation is a very gentle cooling
operation consisting primarily of dehumidifying.
The air conditioner may stop for approximately 6
minutes in order to prevent overcooling.
If the room temperature rises again, the operation
will recommence.
If the airflow begins before its temperature be-
come warm, it will cause an undesired cooling ef-
fect. In order to prevent this, the airflow will not
begin until it is sufficiently warm.
(The operation lamp will blink until the airflow
begins.)
This may be a damp smell exuded by the walls,
carpet, furniture or clothing in the room.
Condensation occurs when the airflow from the
air conditioner cools the room air.
This is to remove the smell exuded by the
surroundings.
This is the sound of refrigerant flowing inside the
air conditioner unit.
This is the sound of reversing the freon flow in-
side the unit at the starting and finishing the de-
frosting during Heating operation.
This is to melt the frost which has accumulated on the outdoor
unit (Defrosting Operation). This will take no longer than about
12 minutes, so wait for operation. (Frost accumulates on the
outdoor unit when the outdoor temperature is low and the hu-
midity is high.) Water comes out from the outdoor unit.
Stopfor12minutes.
Sight
Blinks
A sound like water flowing
can be heard. A noise that
sounds like the com-
pressed air releasing into
atmosphere
