Panasonic DH-4US1 User manual

Model No.
 DH-4UD1 DH-4US1
DH-3UD1 DH-3US1
TABLE OF CONTENTS
BEFORE USING ELECTRIC HOME SHOWER EN2
SAFETY PRECAUTIONS ………………………… EN2
ACCESSORIES …………………………………… EN4
PARTS IDENTIFICATION ………………………… EN4
DESCRIPTION OF LCD DISPLAY &
CONTROL PANEL ………………………………… EN5
U-MODE (DH-4UD1 & DH-3UD1) ……………… EN5
U-MEMORY (DH-4UD1 & DH-3UD1) …………… EN5
HOW TO USE ELECTRIC HOME SHOWER EN6
HOW TO USE ……………………………………… EN6
WATER FLOW RATE ADJUSTMENT …………… EN9

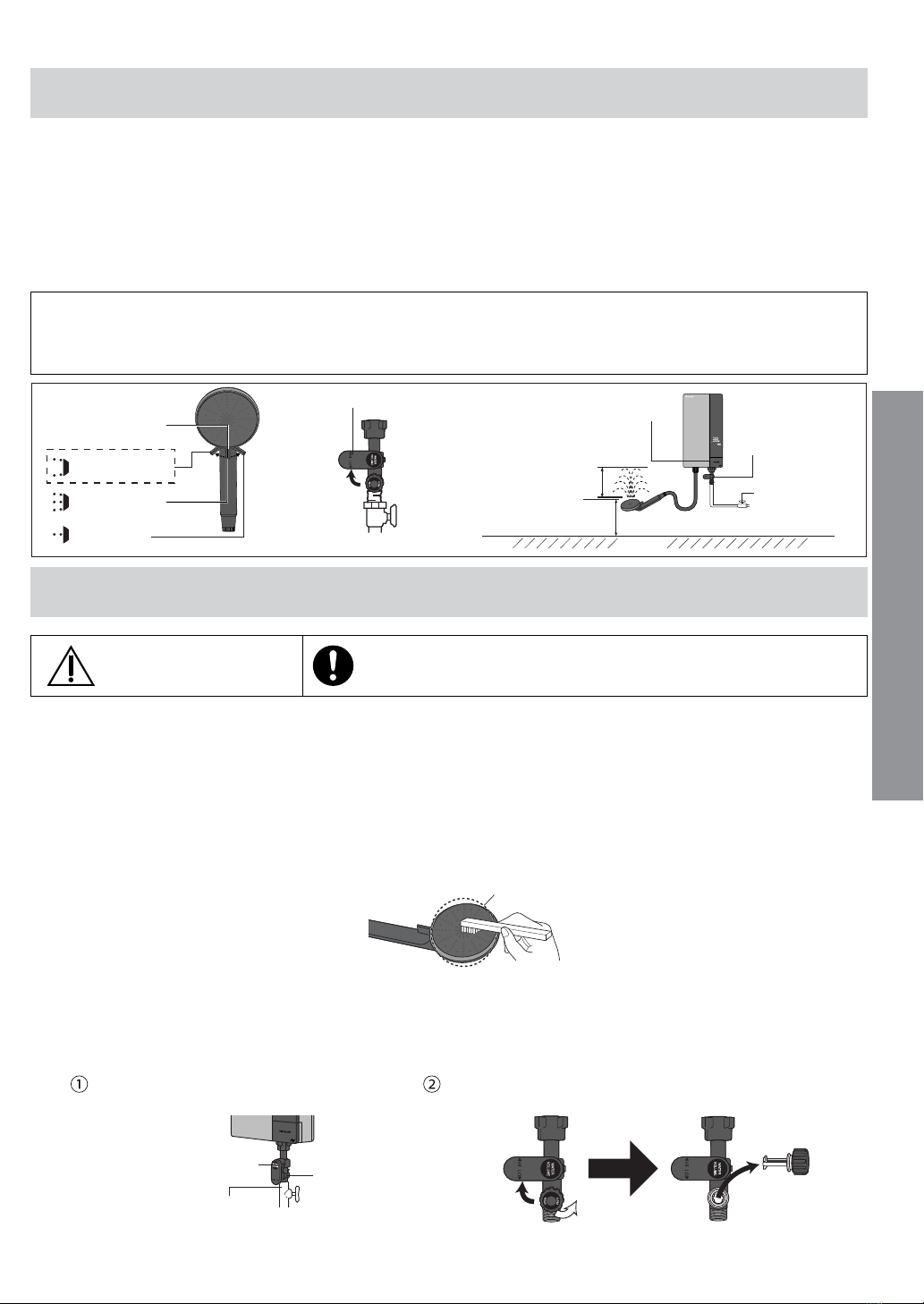

MAINTENANCE …………………………………… EN9
TROUBLESHOOTING …………………………… EN10
SPECIFICATIONS ………………………………… EN10
HOW TO INSTALL ELECTRIC HOME SHOWER EN11
BEFORE INSTALLATION ………………………… EN11
HOW TO INSTALL ………………………………… EN12
TEST OPERATION ………………………………… EN15
Operating and Installation Instructions
Thank you for purchasing the Panasonic Electric Home Shower.
This appliance is intended for household use only.
For optimum performance and safety, please carefully read
this Operating and Installation Instructions and keep this
documentation in a safe place for future reference.
   Panasonic 
   
    
   


Safe
+
-
U-Mode Set
123
U-Memory
U-Memory
PowerControl
Off High
ELB
Electric Home Shower (Household Use)
៉ សុីនទឹកេ អគិសនីមផះ (រេបស់ក ងផះ)
ងតិ
មុនេពលេបស់៉ សុីនទឹកេ ទឹកតក់អគិសនីមផះ
KH2
បម  ងបយ័តមុនែផកសុវតិព ………………… KH2
  ………………………………………… KH4
   ………………… KH4
 LCD &   ………… KH5
U-MODE (DH-4UD1 & DH-3UD1)………………… KH5
U-MEMORY (DH-4UD1 & DH-3UD1)…………… KH5
រេបបេបស់៉ សុីនទឹកេ ទឹកតក់អគិសនីមផះ
KH6
 ……………………………………… KH6
  ……………………………… KH9
 ……………………………………………… KH9
 …………………………………… KH10
 …………………………………… KH10
រេបបដំេឡង៉ សុីនទឹកេ ទឹកតក់់អគិសនីមផះ
KH11
 ……………………………………… KH11
 ………………………………………… KH12
 ………………………………… KH15
េសចកីែណំអំពីដំេណររ និងរដំេឡង
DH940A4UD1K0
English ែខរ

EN2

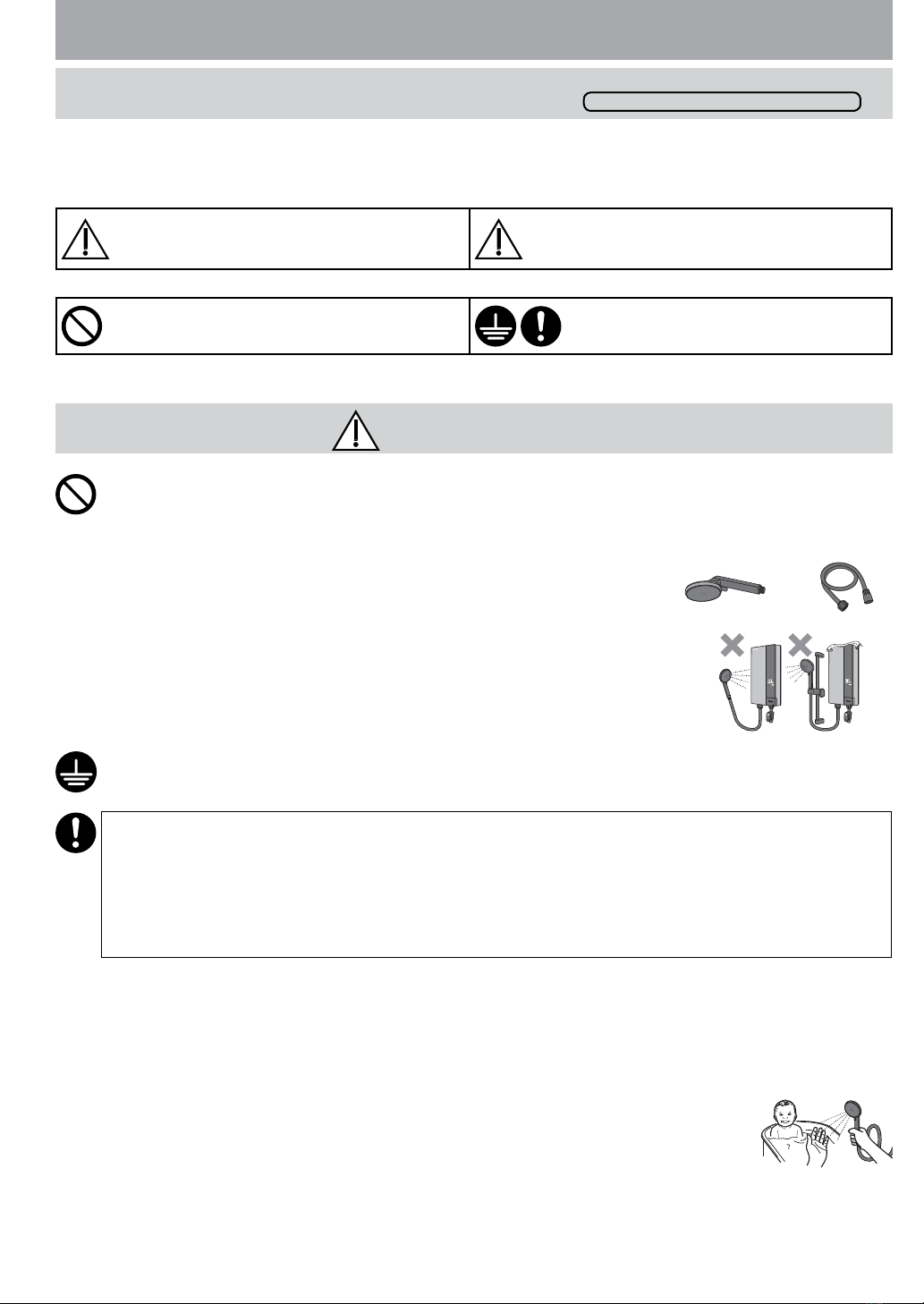

Before operating, please read the following "Safety Instructions" carefully.
To prevent personal injury, injury to others and property damage, the following instructions must be followed.
■Incorrect operation caused by failure to follow instructions will cause harm or damage, the seriousness of which is
classified as follow:
WARNING
This sign warns of
death or serious
injury.
CAUTION
This sign warns of
injury to users or
damage to property.
■The instructions to be followed are classified by the following symbols:
This symbol (with a white background) denotes an
action that is PROHIBITED.
This symbol (with a black background)
denotes action that is COMPULSORY.
SAFETY PRECAUTIONS
To be followed absolutely
WARNING
●If the ELB Reset Lever cannot be reset even if you push it up or if it soon slides down during operation, please do
not use the Electric Home Shower Unit and contact the authorized dealer immediately to avoid a hazard to users
such as damage to property, serious injury or death. Never fix the ELB Reset Lever forcibly with tape, etc.
●Do not insert finger or other objects into the Unit to avoiding physical and electric shock hazards.
●Do not replace the Shower Head, Shower Hose or any other parts of the Unit with spare parts other than genuine
parts.
Shower Head Shower Hose
• Parts for other models will not fit to this model and may cause hazardous
condition to user.
●Do not spray water to the Unit, nor put wet towels on it to avoid from
Safe
+
-
U-Mode Set
123
U-Memory
U-Memory
Safe
+
-
U-Mode Set
123
U-Memory
U-Memory
coming into contact with any live parts etc., in order to prevent smoke
emission, ignition, fire and electric shock hazards.
●This appliance is not to be used for a potable water supply.
●The Unit must be earthed.
• Improper grounding could cause electric shock.
●Stop using the Unit when any abnormality / failure occurs and turn "OFF" the Miniature Circuit Breaker (MCB).
(Risk of smoke / fire / electric shock / scalding)
Example of abnormality / failure:
• The ELB Reset Lever cannot be reset. Please refer to item no. 3. “TEST OPERATION” at page EN15.
• Burnt odor or smoke is detected during operation.
• The Front Plate / Back Plate is deformed or abnormally hot.
• The outlet water temperature become extremely hot and cannot be controlled using the - and + button at Control Panel.
→Contact your authorized dealer immediately for maintenance / repair.
●Switch off the Miniature Circuit Breaker (MCB) before any service to avoid electric shock hazards.
●In time of lightning / thunder, switch "OFF" the Miniature Circuit Breaker (MCB) in advance to protect the Electric
Home Shower Unit against possible damage.
●Inspect on the built-in ELB (once a month) to avoid a hazard to users such as damage to property, serious injury or
death. Please refer to item no. 3. “TEST OPERATION” at page EN15.
●Each time shower water is turned ‘ON’, check the water temperature by hand before showering.
●When the shower is used by someone such as child, old person, sick person and physically handicapped person,
the person responsible for their safety is kindly requested to pay attention
and check the shower temperature by using hand from time to time.
●Pay attention to shower temperature when reducing the volume of water.
• The shower temperature will become very hot if the water flow rate is too low.
●This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
BEFORE USING ELECTRIC HOME SHOWER

EN3
English
CAUTION
●Never use benzene, thinner, bleaching agent, etc. for cleaning purpose to avoid smoke
THINNER
emission, ignition, fire and electric shock hazards.
●Avoid using dirty water as it may affect heater performance and other components.
●Do not block the Shower Head with hand, towel or bend the hose. The water
flow rate will drop and water temperature may become very hot.
●In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied
through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and
off by the utility.
●Please make sure the O Ring is not removed and shall be free from foreign
O
P
E
N
C
L
O
S
E
O Ring
Filter
Unit
particle to avoid water leaking.
●Press Push On-Off Button before and after each shower.
• Press the Push On-Off Button only.
• Do not pull.
• Do not turn "On" and "Off" the Main Water Valve to operate the Home Shower Unit to avoid
any possible damage.

EN4
PARTS IDENTIFICATION
Safe
+
-
U-Mode Set
123
U-Memory
U-Memory
CLEANING
FILTER
ON/OFF DP (Double Pole) Switch
Earth
Miniature Circuit Breaker (MCB)
Upper Rail Holder
Shower Head
Shower Hanger
Shower Hanger Knob
Sliding Rail
Lower Rail Holder
Filter Body Assembly Parts not included
Water Inlet
Main Water Valve
Filter Knob
Water Volume Knob
Back Plate
Front Plate
Parts not included
Outlet Inlet
ELB Reset Lever
View from the bottom
ELB Test Button
Push On-Off Button
ACCESSORIES
Packing: Included Items:
Shower Head Packing Shower Head (1 set)
x 2
Shower Hanger Packing Shower Hose (1 set) Rail Holder (2 set) Shower Hanger Ass’y (1 set)
Filter Body Packing Filter Body Assembly (1 set) Rubber Packing (1 pc)
Filter Body Assembly Caution Sheet
(1 pc)
Sliding Rail Sliding Rail (1 pc)
x 6 x 2 x 6
Installation Packing Wall Plug (6 pcs) Rubber Packing (2 pcs) Screws (6 pcs)

EN5
English
U-Mode (DH-4UD1 & DH-3UD1)
1. U-Mode works to provide different after-shower experience depending on the individual.
2. U-Mode has three modes.
a) Cool Down
• User feels refreshed after shower.
• Body temperature cool after shower.
b) Warm Up
• User feels warmth and comfort after shower.
• Body temperature will slightly warm after shower.
c) Hot & Cool
• Alternately changes hot shower to cool shower has the effects of accelerating blood vessel dilation / constriction,
improving blood circulation.
• User feels relax and refresh after shower.
Note: Please be aware that the effects are different for each individual.
CAUTION
Please stop using U-Mode function immediately if any discomfort is felt during usage.
Note: For how to use the function, please refer to page EN7.
U-Memory (DH-4UD1 & DH-3UD1)
1. U-Memory allows users to store a combination one data from function as below:
a) U-Mode function.
b) Shower temperature.
2. U-Memory provides three different data combination that can be saved (U-Memory button [1 / 2 / 3]).
Note: For how to use the function, please refer to page EN8.
DESCRIPTION OF LCD DISPLAY & CONTROL PANEL
DH-4UD1 & DH-3UD1
LCD DISPLAY & CONTROL PANEL
Hot WarmCoolHot &
Up DownCool
Cool
Safe
Max
U-Memory
123
__ +
U-Mode
Set
1
2 3
U-Memory
Hot and Cool
Indicator
Temperature
Indicator
U-Memory Set
Minus Button
U-Mode Button
U-Memory Set
Button
Set Button
Plus Button
Clock
Power Display Bar
Safe Indicator
Selected U-Mode Indicator
PowerControl
Off High
ELB
ELB Lamp
Power Control
Knob
High Indicator
Off Indicator
DH-4US1 & DH-3US1
CONTROL PANEL

EN6
HOW TO USE
1. Turn “On” the Main Water Valve.
2. Switch “ON” the Miniature Circuit Breaker (MCB) and ON/OFF DP (double pole) Switch.
3. Push up the ELB Reset Lever if it is down.
ELB: ON condition ELB: OFF condition
4. Turn the Water Volume Knob clockwise.
• Turning it clockwise increases the volume of water thus decrease
the water temperature.
• Turning it anticlockwise decreases the volume of water thus increase
the water temperature.
5. Press the Push On-Off Button.
Make sure push at the
center of Push On-Off
Button only.
a) Water will flow out of the Shower Head.
b) Simultaneously,
DH-4UD1 & DH-3UD1 - LCD Display illuminates and display Temperature Indicator,
Clock & Shower Head Indicator.
(When the power ON, the temperature becomes 38°C)
DH-4US1 & DH-3US1 - The ELB light will be light up.
c) To stop the water flow, press the Push On-Off Button again.
d) This Lever control both water and electricity supply to the set.
CAUTION
Press Push On-Off Button before and after each shower.
Press the Push On-Off Button only. Do not pull.
Do not turn "On" and "Off" the Main Water Valve to operate the shower Unit to
avoid any possible damage.
6. Select the preferred shower by turn the Shower Select Lever.
Note:
When stop the water flow or
change water shower selection
from Wide Shower to Spot Shower,
some water will continue to drip
from Shower Head for less than
2 minutes. This is normal due to
some water remain in the
Shower Head and no abnormality
to the Unit.
Wide Shower
Shower Select Lever
Normal Shower
Spot Shower
7. Shower Head can be set at various positions.
(a) (b) (c)
a) Loosen Shower Hanger Knob and Shower Hanger can be adjusted higher or
lower position.
Tighten Shower Hanger Knob.
b) Loosen Shower Hanger Knob and Shower Hanger can be adjusted to the left or
right position.
Tighten Shower Hanger Knob.
c) The angle of Shower Head can be adjusted by moving the Shower Head upward
and downward.

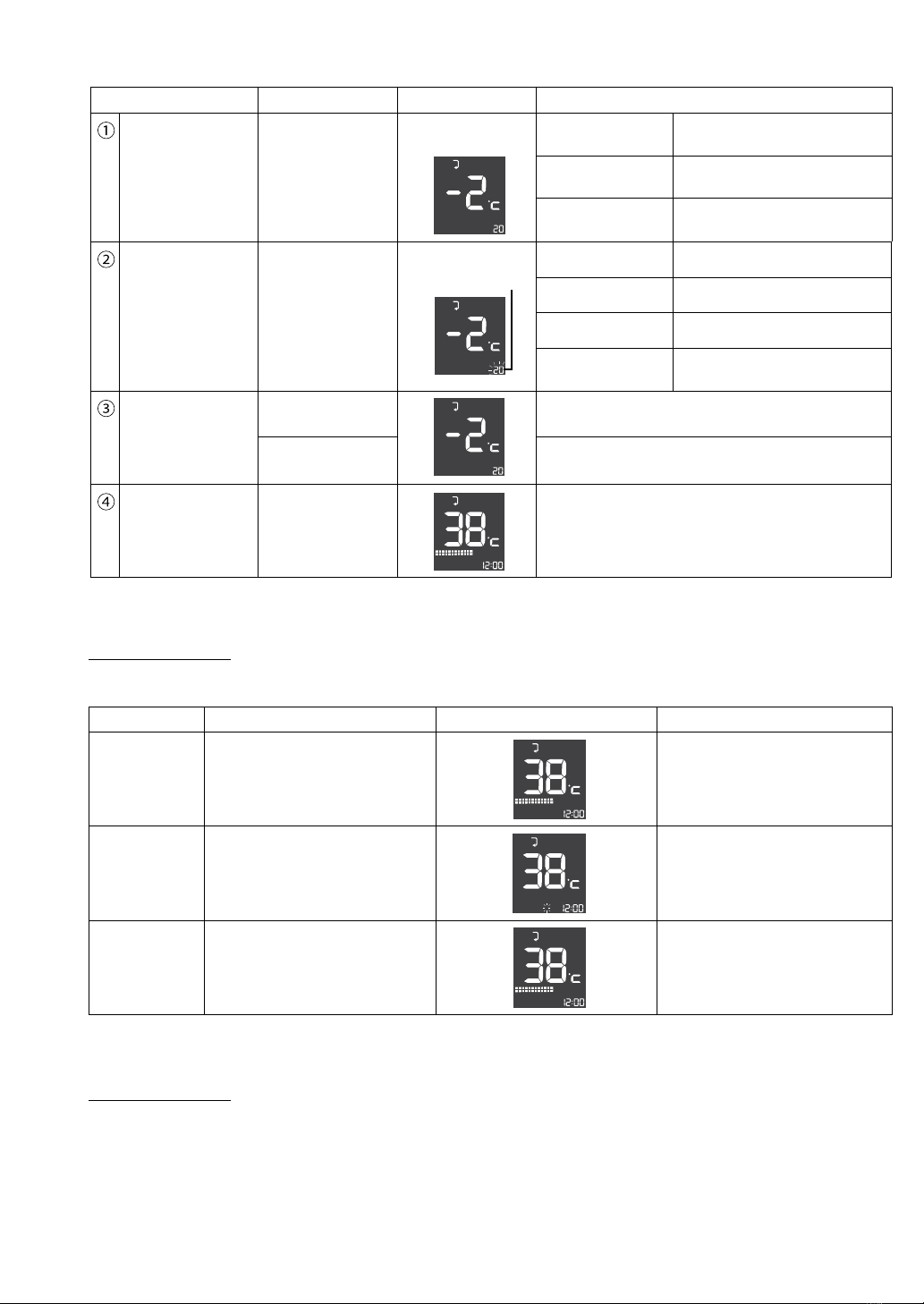

8. Temperature setting.
DH-4US1 & DH-3US1
Off High
Power Control
ELB
a) The shower temperature can be gradually controlled by setting the Power Control Knob to
the desired position.
b) If you turn the Power Control Knob clockwise the shower temperature will go up, reaching the
highest temperature at “High”.
c) If the Power Control Knob is at “Off” position, the water temperature will remain at inlet
temperature.
d) In case of continuous usage at high temperature setting, water temperature will increase and it
may cause the control device in the set to activate temporarily resulting water temperature to drop.
HOW TO USE ELECTRIC HOME SHOWER

EN7
English
Temperature setting.
DH-4UD1 & DH-3UD1
a) The shower temperature can be gradually controlled by pressing either - or + button.
b) Each press of the button will either reduce or increase the temperature by 1 °C.
Continuous press of the button will either continuously reduce or increase the temperature.
Figure 1
CLEANING
FILTER
Water Volume Knob
c) Lowest adjustable temperature is 32 °C.
d) Further press of the button will change the display to "PO" which is power off mode
(Shower temperature will be same as inlet water temperature).
e) Highest adjustable temperature is 45 °C.
f) When the word "MAX" appear at the Power Display a higher temperature is required, reduce the
water flow by turning the Water Volume Knob anticlockwise until "MAX" disappear (refer to Figure 1).
g) In case of continuous usage at high temperature setting, water temperature will increase and it may
cause the control device to activate temporarily resulting water temperature to drop.
9. U-Mode setting.
Safe
WarmCoolHot &
Up Down Cool
Cool
Safe
U-Memory
Hot WarmCoolHot &
Up DownCool
Cool
Safe
U-Memory
Hot WarmCoolHot &
Up DownCool
Safe
U-Memory
Press U-Mode
Button
__ +
U-Mode
Set
1
2 3
U-Memory
Control Panel
Press U-Mode
Button
Press U-Mode
Button
Press U-Mode
Button
DH-4UD1 & DH-3UD1
a) There are three types of U-Mode.
i. Cool Down Mode
ii. Warm Up Mode
iii. Hot & Cool
b) U-Mode operation will start by
press U-Mode button at Control
Panel.
c) The U-Mode function will vary by subsequently
pressing the U-Mode button (U-Mode Cool Down ->
U-Mode Warm Up -> U-Mode Hot & Cool).
d) After select the U-Mode function, Hot & Cool Indicator
will flash (approximately 3 second) and selected U-Mode
Indicator will illuminate depending on the selected U-Mode function.
e) Once the U-Mode process starts, Hot & Cool Indicator will flash
again.
Note:
While the U-Mode process is running, the display temperature will
remain, while the actual shower temperature will decrease or increase
(depending on the selected U-Mode function).
WarmCoolHot &
Up Down Cool
Cool
Safe
U-Memory
Hot and Cool
Indicator
Selected U-Mode
Indicator
f) There are few options for each of the U-Mode function.
Please refer to Table below for details.
U-Mode function setup:
Menu Display Indication Setting
Cool Down
Mode
r
mCoolH
o
p
Down
C
W
CoolCool
< illuminate >
< flash >
Temperature
Default Option [1] Option [2] Option [3]
-2 °C -3 °C -4 °C PO
**Power Off
Time
Default Option [1] Option [2] Option [3]
20 s 10 s 40 s 60 s
Warm Up
Mode
WarmC
Up D
o
Hot
< illuminate >
< flash >
Temperature Default Option [1] Option [2]
2 °C 3 °C 4 °C
Time
Default Option [1] Option [2] Option [3]
20 s 10 s 40 s 60 s
Hot & Cool
Mode
o
olHot &
o
wnCool
o
olHot &
o
wnCool
< illuminate >
< flash >
Temperature
Default Option [1] Option [2] Option [3]
-4 °C -3 °C -2 °C PO
**Power Off
Time
Default Option [1] Option [2]
Hot: 40 s ;
Cool: 30 s
Hot: 30 s ;
Cool: 20 s
Hot: 50 s ;
Cool: 40 s

EN8
g) U-Mode temperature and timer setting.
Steps To Do LCD Display Remarks
Entering U-Mode
setting.
Long Press the
Set button until
"-2" appear at
temperature
Display.
WarmCoolHot &
Up Down Cool
Cool
Safe
U-Memory
Now in "Cool
Down" U Mode Other U-Mode Press U-Mode button.
Warm Up 1 time.
Hot & Cool 2 times.
Temperature
Setting.
Press - or + button
to set temperature.
Press Set button to
confirm.
WarmCoolHot &
Up Down Cool
Cool
Safe
U-Memory
Timer indication
"20" will flash.
U-Mode Timer
Cool Down 20
Warm Up 20
Hot & Cool H: 40; C:30
(Alternately)
Timer Setting. Press - or + button
to set timer.
WarmCoolHot &
Up Down Cool
Cool
Safe
U-Memory
The timer indication will continue to flash during
selection.
Press Set button to
confirm.
The display will become as default after confirm the
timer setting.
Enter U-Mode
function.
Press U-Mode
button follow to
desired U-Mode.
WarmCoolHot &
Up Down Cool
Cool
Safe
U-Memory
The selected U-Mode with the New Temperature and
Timer Setting appear.
10. U-Memory setting.
DH-4UD1 & DH-3UD1
a) U-Memory function can be selected by pressing U-Memory button.
b) U-Memory enables users to record, recall and erase data up to three memories.
Steps To Do LCD Display Remarks
U-Memory
Data Record.
Press and hold the U-Memory
[1 / 2 / 3] button until U-Memory
number flash.
WarmCoolHot &
Up Down Cool
Cool
Safe
O
U-Memory
1
When U-Memory number
illuminates, data will be recorded.
U-Memory
Data Recall.
Press one of U-Memory button
[1 / 2 / 3].
WarmCoolHot &
Up Down Cool
Cool
Safe
U-Memory 1
U-Memory number will flash.
U-Memory
Data Erase.
Press and hold the U-Memory
[1 / 2 / 3] button until U-Memory
number disappear.
WarmCoolHot &
Up Down Cool
Cool
Safe
O
U-Memory
U-Memory number disappear.
(The Indication on LCD Display
will blinking before the U-Memory
number disappear, data will be
erased).
11. Time Setting.
DH-4UD1 & DH-3UD1
i. Press Set button.
Time indication will flash.
ii. Press + or - button to set the time.
iii. Press Set button to confirm new time setting. The new time indication will illuminate.

EN9
English
WATER FLOW RATE ADJUSTMENT
1. How to adjust to maximum water flow rate.
Step 1 : Push the Push On-Off Button and select Wide Shower type on the Shower Head using the Shower Select
Lever (refer Figure 1).
Step 2 : Turn “Off” the Main Water Valve.
Step 3 : Turn the Shower Head upward at waist height.
Step 4 : Turn the Water Volume Knob to maximum volume position (refer Figure 2).
Step 5 : Gradually “On” the Main Water Valve and adjust the splashing height (H) of the shower.
It is recomended to adjust the water splashing height (H) at 35 cm ~ 45 cm (approximately 3 L/min).
(If splashing height (H) is too high, hot water temperature will drop because of an excessive flow rate).
Note: 1. Pay attention to shower temperature when reducing the volume of water.
The shower temperature will become very hot if the water flow rate is too low.
2. Water Volume Knob is at maximum position at this stage (refer Step 4).
Please adjust it to suitable flow rate using the Water Volume Knob by turning it anticlockwise.
CLEANING
FILTER
Safe
U-Memory
__
+
U-Mode
Set
1
2 3
U-Memory
Wide Shower
Normal Shower
Spot Shower
Shower Select Lever
Water Volume Knob
Waist Height
H = 35 cm ~ 45 cm
Floor
Main Water Valve
Water Volume Knob
Push On-Off Button
Figure 1 Figure 2
MAINTENANCE
WARNING
Switch off the Miniature Circuit Breaker (MCB) before any service to
avoid electric shock hazards.
1. Main Body cleaning.
Be sure to switch “OFF” the Miniature Circuit Breaker beforehand.
1) Clean it with moist cloth.
2) Never use benzene, thinner, detergent, bleach, etc.
3) Do not spray water to the Unit, not put wet towels on it.
4) Make sure to use suitable cloth to clean the Front Plate surface to avoid scratch.
2. Shower Head cleaning.
1) Clean the Shower Head's holes by using a soft brush from time to time. (Recommended once a week).
Shower Head
3. Filter Unit Cleaning (Filter Unit is fixed to Filter Knob).
Clean the Filter of the Filter Unit with water once a week.
Clean the Filter Unit when hot water is not drawn normally.
Dismantle, cleaning and assemble of Filter Unit.
Close the Main Water Valve.
123
Water Volume Knob
Main Water Valve
Filter Knob
Turn Water Volume Knob clockwise if it is blocking the Filter Knob.
Turn the Filter Knob anticlockwise and pull it out.
CLEANING
FILTER

EN10
Clean the Filter Unit.
CAUTION
Please make sure the O Ring is not
removed and shall be free from foreign
particle to avoid water leaking.
O
P
E
N
C
L
O
S
E
O Ring
Filter Unit
Insert the Filter Unit and tighten it properly (clockwise).
Turn the Water Volume Knob to its original position base on Water
Flow Rate Adjustment at page EN9.
TROUBLESHOOTING
1. Check the following points before asking for repair.
Symptom Points to be checked
Fault display, E3 flashing at
display for DH-4UD1 and
DH-3UD1 models.
1. Reset the Set by turn off and turn on again by pressing the Push On-Off Button.
Water is not drawn normally.
1. Check the Filter Unit. Clean the Filter if it is clogged by stain and dirt (refer Filter Unit
Cleaning at page EN9).
2. Check the Shower Head and Shower Plate. Clean the Shower Head and Shower Plate if it is
clogged by dirt (refer Shower Head Cleaning at page EN9).
No hot water comes out from
the outlet (no electric supply
to the Unit).
1. Make sure the Push On-Off is at “On” position.
2. Make sure the ELB Reset Lever is not slide down.
Push up the ELB Reset Lever to reset the ELB (see TEST OPERATION at page EN15).
3. Make sure to switch On the ON/OFF DP (double pole) Switch.
4. Make sure to switch On the Miniature Circuit Breaker (MCB).
No water flows out from the
Shower Head at all.
1. Check the Main Water Valve. Turn “On” the Main Water Valve if it is closed (refer HOW TO
USE at page EN6).
2. Check the Push On-Off Button. If the LCD Panel still light “OFF”.
Please do not use the Unit and contact the authorized dealer immediately.
Water not hot enough. 1. Check the WATER FLOW RATE ADJUSTMENT as in page EN9.
2. If abnormalities as mentioned below are found during usage, please do not use the Unit and contact your authorized dealer
immediately.
• Water leakage.
• No water flow.
Safe
• Water temperature cannot be controlled.
• No display on LCD.
3. Special skill is required for repairing. Never try to repair the Unit by yourself.
4. For DH-4UD1 and DH-3UD1 model, in case of continuous faulty (E1, E2 or E3 flashing at
Temperature Indication display), do not use the Unit and contact your authorized dealer immediately.
SPECIFICATIONS
Model No. DH-4UD1 DH-4US1 DH-3UD1 DH-3US1
Voltage 220 V a.c. 50 Hz
Power Consumption 4800 W 3800 W
Electric Temperature
Control
Inlet Water Temp. PO
(Off), 32 °C - 45 °C-Inlet Water Temp. PO (Off), 32 °C - 45 °C-
Electric Power Control - Inlet Water Temp. (Off),
4800 W -Inlet Water Temp. (Off), 3800 W
Min. Water Pressure 9.8 kPa / 0.1 kgf/cm² / 1.42 psi
Max. Water Pressure 380 kPa / 3.87 kgf/cm² / 55 psi
Dimension 385 (H) mm x 210 (W) mm x 78 (D) mm
Weight 2.0 kg1.6 kg1.9 kg1.5 kg
Outlet System Single Point System (Open Outlet)

EN11
English
WARNING
●Proper size of Flexible Cord and electric wiring must be installed to avoid smoke emission and fire hazards.
●During installation process make sure electric and water supply is turn "OFF".
●The home shower must be permanently connected to the electric supply through the ON/OFF DP (double pole)
Switch having a contact separation of at least 3 mm in all poles incorporated in the fixed wiring. This switch must
be clearly identifiable but out of reach of a person using a fixed bath or shower.
●The Unit must be earthed.
• Improper grounding could cause electric shock.
●Never install Filter Body Assembly at the outlet, inlet water cannot be filtered and allows
Safe
+
-
U-ModeSet
123
U-Memory
U-Memory
Water
Volume
Knob
Water InletWater Outlet
foreign particles to enter the Unit. It will cause Heater Unit and Shower Head to clog up.
●Do not install, remove or reinstall the Unit by yourself.
• Improper installation will cause leakage, electric shock or fire. Installation and wiring must
be done by competent personnel.
●Do not share the inlet and outlet pipe of the Home Shower Unit with other outlets.
• The pressure may drop due to water being drawn off at other point. The shower temperature
may become very hot.
CAUTION
●Flexible Cord must enter the Unit thru designated point only (do not make additional holes).
BEFORE INSTALLATION
1. Make sure water flow pressure.
Min. water pressure : 9.8 kPa / 0.1 kgf/cm² / 1.42 psi
Max. water pressure : 380 kPa / 3.87 kgf/cm² / 55 psi
• How to measure the water pressure is as illustrated. Water should flow out of the Hose 2.0 m
above the Main Water Valve.
2.0 m
Note:
When removing the Unit from package, some water may be found inside.
This is normal as the Unit is tested during the manufacturing process.
HOW TO INSTALL ELECTRIC HOME SHOWER

EN12
HOW TO INSTALL
WARNING
During installation process make sure electric and water supply is turn
"OFF".
PowerControl
JET PUMP
Off High
ELB
Safe
+
-
U-Mode Set
123
U-Memory
U-Memory
Figure 1
Figure 2
1.5 m ~
1.7 m
1. Where to install the Unit.
• Be sure to install the Unit on the wall as illustrated
in Figure 1 (vertical condition only).
• Do not install the Unit away from wall surface as
shown in Figure 2.
• The Unit must be installed at 1.5 m ~ 1.7 m
above the floor.
2. How to remove the Front Plate.
DH-4UD1 & DH-3UD1 Lift up Front Plate
Screw
Remove the screw at the bottom of the Unit.
Remove the Front Plate by lifting up the bottom side and then
unhook the top side.
DH-4US1 & DH-3US1
Off High
Power Control
ELB
Front Plate
Power Control Knob
Lift up
Screw
Power Control Knob
Note:
Power Control Knob attached to Front Plate.
Make sure the Power Control Knob is
at “Off” condition.
Remove the Screw at the bottom of
the Unit.
Lift up the Power Control Knob to
make it free (Power Control Knob is
attached to “VR Shaft” inside the Unit).
Make sure the Power Control Knob is
not detached from the Front Plate.
Remove the Front Plate by lifting up the bottom side and then unhook the top side.
3. How to fix Electric Home Shower.
250 mm
minimum
250 mm
minimum
25 mm
Ø6 mm
113 mm
170 mm
354.5 mm
Screw
Screw WallWall
Wall Plug
Figure 1
The distance of the Unit should be more than
250 mm at right and left of the wall.
Make 4 holes in the wall using a drill. The location
of the hole position as shown in the INSTALLATION
TEMPLATE provided.
Drive a Wall Plug into the hole.
Lead the Flexible Cord to the set thru Portion 1 or 2 as shown below for electric wiring process.
Portion 1: Portion 2:
Flexible Cord Entry Point
CAUTION
Flexible Cord must enter the Unit thru designated point only
(do not make additional holes).

EN13
English
• Mount the Unit on the wall
with 4 screws.
• Drive each Screw into the
two upper Wall Plugs through
the screw holes on the Back
Plate.
• After tighten up the two
upper Screws, tighten up the
remaining two Screws.
Back
Plate
Screw
Wall
Wall Plug
Please ensure the Unit fixed
tightly on wall by shaking it left
and right.
Note:
The Back Plate must be
mounted with 4 Screws.
Back
Plate
Wall
Wall Plug
4. Electric wiring.
WARNING
Proper size of Flexible Cord and electric wiring must be installed to
avoid smoke emission and fire hazards.
WARNING
The Home Shower must be permanently connected to the electric
supply through the ON/OFF DP (double pole) Switch having a contact
separation of at least 3 mm in all poles incorporated in the fixed wiring.
This switch must be clearly identifiable but out of reach of a person
using a fixed bath or shower.
Lead the Flexible Cord connected to ELB terminal
inside the Unit: 2.5 mm², 3 core Flexible Cord.
Miniature Circuit
Breaker (MCB)
%DWK5RRP
ON/OFF DP
(double pole) Switch
)OH[LEOH&RUGPPtFRUH
Earth
L
N
60 mm
80 mm
13 mm
13 mm Flexible
Cord
1ڞP
Ground
Point
PP
L N
(/%7HUPLQDO
Cord
Holder
Flexible Cord
L = 205 mm
(approximately)
Unscrew the Cord Holder and fix the Flexible Cord.
Strip the lead wire (coating). Fasten the live wire (L)
and neutral wire (N) to the ELB (L,N) and earth wire
to the Ground Point with 1 N•m (10 kgf.cm) torque.
Fix back the Cord Holder to its position to clamp the
Flexible Cord.
Connect wires in correct polarity (L,N). Main Power Board
Power-Supply
Terminals
Earth
• Connect the wires in wrong polarity (L,N) causes an abnormal condition which may lead
to electric leaking, burning, etc.
• Before wiring, please check polarity (L,N) with voltage range of a tester or voltmeter by
connecting one terminal of the meter to earth while the other to one of the Power Supply
terminals.
• When the needle of the meter deflects greatly, the polarity of the Power Supply terminal is ‘L’.
Earth Rod.
WARNING
The Unit must be earthed.
Improper grounding could cause an electric shock.
• The Unit must be earthed.
• Earth Rod fixing procedure. Select suitable place to bury the optional Earth Rod (DQ-6H) for at least 70 cm below ground
surface.
• Ensure that the ground resistance is less than 100 . If it is not, drive the Rod deeper into ground surface or use 2 or 3
Rods.
Ground
Surface
Burying tool
Earth Rod
70 cm at least
(Bevel Style) (Parallel Style)
70 cm at least
Connection
70 cm at least
Connection
About 2 m About 2 m

EN14
5. Piping installation procedure.
Safe
+
-
U-Mode Set
123
U-Memory
U-Memory
Main Body
Thread End
Filter Body
Assembly
Shower Hose
Rubber
Packing
Shower
Head
Parts not included
Use flexible pipe
minimum length 150 mm
Water
Volume Knob
Water Inlet
Water Outlet
Place Rubber Packing between Filter Body Assembly and Flexible Pipe.
Do not use Piping Tape. Tighten it by Spanner firmly.
Place Rubber Packing between Filter Body Assembly and Main Body.
Do not use Piping Tape. Tighten it by hand firmly.
Place Rubber Packing between Shower Hose and Main Body.
Do not use Piping Tape. Tighten it by hand firmly.
Place Rubber Packing between Shower Hose and Shower Head.
Do not use Piping Tape. Tighten it by hand firmly.
The Filter Body Assembly should be placed in the front direction of the Unit.
WARNING
Do not share the inlet or outlet pipe of Home Shower Unit with
other outlets.
The pressure may drop due to water being drawn off at other point.
The shower water temperature may become very hot.
CAUTION
Avoid using dirty water as it may affect heater performance
and other components.
Note: Make sure no water leaks from pipe connection.
Note: When glue is used for external piping connection, must wait for the glue
to dry before proceed to test run with water.
6. How to fix the Front Plate.
DH-4UD1 & DH-3UD1
+
-
U-Mode Set
123
U-Memory
+
-
U-Mode Set
123
U-Memory
+
-
U-Mode Set
123
U-Memory
Front Plate
Back
Plate
Press
Screw
Close the Front Plate of the Unit according
to the sequence as illustrated
(Close from top to bottom).
Fix the screw at the bottom of the Unit.
Note:
Do not push the ELB Test Button during fixing the
Front Plate.
DH-4US1 & DH-3US1
Off High
Power Control
ELB
Power Control
Knob Back Plate
"D-Cut" Position
Make sure the Power Control Knob on Front Plate and it is at
“Off” position.
Make sure the “D-Cut” position of the VR Shaft are located as shown.
Close the Front Plate of the Unit according to the sequence as
illustrated.
Push in the Power Control Knob until it is fully insert <Power
Control Knob cannot be inserted if Step and Step is not done accordingly>.
Fix the Screw at the bottom of the Unit.
Note:
1. Do not push the ELB Test Button during fixing
the Front Plate.
2. Do not apply extreme force to insert the
Power Control Knob during fixing the Front
Plate because it will damage the switch inside
the Unit.
PowerControl
ELB
High
Off
PowerControl
ELB
High
Off
PowerControl
ELB
High
Off
Front Plate
Back
Plate
Press
Screw
Press

EN15
English
7. Shower Hanger installation.
Tighten the Shower
Hanger with Shower
Hanger Knob.
Shower Hanger
Sliding Rail
Shower Hanger Knob
Hole to fix
Shower Head
To p
Bottom
* Shower Hanger will drop off easily
once the knob is loosen.
Install to the Upper and
Lower Rail Holder with
the Grooves of the Sliding
Rail inserted to the Rail
Holder's Notches. Tighten
the Lower Rail Holder
with 1 Screw. (Make sure
to insert the Wall Plugs
into the screw hole)
Sliding Rail
Groove
Screw Notch
Cover the Upper and
Lower Rail Holder with
the Rail Holder Covers.
Upper Rail Holder
Cover
Lower Rail Holder
Cover
Adjust the Shower
Hanger at the required
level and hang the
Shower Head as shown
in diagram below.
Shower Head
Shower Hanger
Tighten the Screw
if Shower Head
moves downward.
Install the Rail Holder so
that the Shower Head
height not higher than the
unit top.
Make sure the wall level must
be same to the Rail Holder
fixing position. If the wall is not
at the same level, please use
spacer (not included) to fix the
accessory.
Safe
+
-
U-Mode Set
123
U-Memory
U-Memory
Upper Rail Holder
Shower Head
Lower Rail Holder
Push the Rail Holder
Cover (in detaching
direction) at back of wall
edge using suitable tool
to detach it from Rail
Holder.
Rail Holder
Cover
Rail Holder
Install the Upper Rail
Holder on the wall but not
higher than the Unit top.
Tighten the Upper Rail
Holder with 1 screw.
Screw
Upper Rail Holder
Prepare the Shower
Hanger and Sliding Rail,
remove the Shower
Hanger Knob by rotating
it (anticlockwise) then
install the parts following
the number , and .
Sliding Rail
Shower
Hanger
Shower Hanger
Knob
TEST OPERATION
1. • Before switch “ON” electricity supply check the wiring.
• Switch “ON” the Miniature Circuit Breaker (MCB) and ON/OFF DP (double pole) Switch.
• Set the ELB of the Unit to “On”. (Push up the ELB Reset Lever if it is down)
• Push the ELB Test Button.
• It is normal if the ELB turns “Off” (the ELB Reset Lever falls) and push the ELB Reset Lever
up. Refer figure as shown.
• Inspection on the built-in ELB (once a month) to avoid a hazard to users such as damage to
property, serious injury or death.
WARNING
If the ELB Reset Lever cannot be reset even if you push it up or if it soon slides
down during operation, please do not use the Unit and contact the authorized dealer
immediately to avoid a hazard to users such as damage to property, serious injury or
death. Never fix the ELB Reset Lever forcibly with tape, etc.
ELB
Test Button
ELB
Reset Lever
Safe
U-Memory
__
+
U-Mode
Set
1
2 3
U-Memory
Push
2. • Turn “On” the Main Water Valve.
• Turn the Water Volume Knob clockwise.
• Check if water leaks from the Pipe Line.
3. • Press the Push On-Off Button once, the LCD Panel (DH-4UD1 & DH-3UD1) or ELB lamp lights (DH-4US1 & DH-3US1) will
be activated and water start flowing out of the Shower Head.
• Adjust the water temperature.
4. • Refer detail for HOW TO USE and WATER FLOW RATE ADJUSTMENT on page EN6 & EN9.

KH2
មុនេពលបតិបតិរ សូ មន "រែណំអំពីសុវតិព" ងេមេយប  ងបយ័ត។
េដមីប ររបួស ល់ខ  នរបួសដល់អកដៃទ និងរខូចតទពសមតិ េសចកីែណំងេមតវែតអនុវតម។
■បតិបតិរមិនតឹមតវែដលប លមកពីរខកនមិននអនុវតមរែណំនឹងប លឱនេះ ក់ ឬខូចត ពធន់
ធរែដលតវនត់ ក់ដូចងេម៖
រពន
ស េនះពនអំពី
រ ប់ ឬរបួសធន់ធរ។
បម  ងបយ័ត
ស េនះពនអំពី
ររងរបួសដល់អក
េបស់ ឬរខូច
តដល់ទពសម
តិ។
■រែណំែដលតវអនុវតមតវនត់ ក់េយនិមិតស ដូចងេម៖
និមិតស េនះ (ែដលនៃផងេយពណ៌ស) ប ញ
ពីសកមពែដលតវនមត់។
និមិតស េនះ (ែដលនៃផងេយពណ៌េ )
ប ញពីសកមពែដលតពកិច។
បម  ងបយ័តមុនែផកសុវតិព
តវែតអនុវតមច់ត
រពន
●បសិនេបដងកុងក់ ELB មិនចកំណត់េឡងវ ញនេទ េះបីអករុញេឡងេល ឬបសិនេប ក់ចុះមកវ  ញ មៗចុះេម
អំឡ ងេពលបតិបតិរក៏េយ សូ មកុំេប៉ សុីនទឹកេ េហយក់ទង ក់រែចកយប ន់ េដមីេជសងេះ ក់ដល់អក
េបស់ ដូចរខូចតទពសមតិ របួសធន់ធរ ឬរ ប់។ កុំជួសជុលដងកុងក់ ELB េយក ំងឬបិតស
  តស   ត
េដម។ល។
●កុំលូ កមៃដ ឬវត េផងេទតេក ង៉ សុីនទឹកេ ទឹកតក់អគិសនីមផះ េដមីេជសងេះ ក់ដល់ងយ
និងរឆក់ចរនអគិសនី។
●កុំ ស់ប រកលទឹក ឈូក ទុេទឹក ឈូក ឬែផកេផងេទតៃនឧបករណ៍េនះេយេគងប ស់េពីេគងប ស់សុទល ។
     
•  
 
●មិនតវញ់ទឹកចូលក ងឧបករណ៍ ឬក់កែនងទទឹកេសមេេលឧបករណ៍
Safe
+
-
U-Mode Set
123
U-Memory
U-Memory
Safe
+
-
U-Mode Set
123
U-Memory
U-Memory
េជសងរប៉ះល់មួយែផកចំហេផងៗេដម េដមីរររបេ ញែផង
រប់េឆះ េភងេចះ និងរឆក់ចរនអគិសនី។
●ឧបករណ៍េនះមិនតវេបសប់រផត់ផង់ទឹកសប់បរេគេទេទ។
●ឧបករណ៍េនះតវែតត ប់ ែខដី។
•   
●ឈប់េបស់ឧបករណ៍ េេពលែដលនពមិនបកតី / រខូចតមួយេកតេឡង េហយ "បិទ"
ឧបករណ៌បំ ែបកេសគីតូច(MCB) ។
(និភ័យៃនែផង / េភងេឆះ / រឆក់អគិសនី / ររកទឹកេ )
 / :
•  ELB     3 ""  KH15 
•   
•  /   
•      -  +   
→   / 
●បិទឧបករណ៍បំ ែបកេសគីតូច(MCB) មុនេពលេធរជួសជុលមួយេដមីេជសងេះ ក់ពីរឆក់ចរនអគិសនី។
●េេពលែដលនរនះ / ផរន់ សូ ម "បិទ" ឧបករណ៍បំ ែបកេសគី តតូច(MCB) មុន េដមីប រ៉ សុីនទឹកេ ទឹកតក់អគិ
សនីមផះពីរខូចតែដលចេកតន។
●តតពិនិតេមលេល ELB ែដលដំេឡងមកប់ (មួយែខមង) េដមីេជសងេះ ក់ដល់អកេបស់
ដូចរខូចតទពសមតិ ររងរបួសធន់ធរ ឬរ ប់។ សូ មនចំណុ ចេលខ 3 ។"បតិបតិរកលង" េទំព័រ KH15 ។
●ល់េពលែដលទឹក ឈូកតវន 'េបក' សូ មពិនិតេមលសីតុណ ពទឹកេយៃដមុនេពលងូតទឹក។
●េេពលែដលទឹក ឈូកតវនេបស់េយនរ ក់ដូច កុរ មនុសស់ មនុសឈឺ
និងអកពិរងយ អកែដលទទួលខុសតវចំេះសុវតិពរបស់ពួកេគតវន
េស សុំេយនរយកចិតទុកក់ខស់ និងពិនិតេមលសីតុណ ពទឹក ឈូកេយេបៃដយ
ូរៗមង។
●យកចិតទុកក់េលសីតុណ ពទឹក ឈូកេេពលបនយបរ ណទឹក។
•        
●ឧបករណ៍េនះមិនតវនេបស់សប់បុគល (រួមប លំងកុរ) ែដលចត់បនយសមតពងយ
ខួរកល ឬផ វចិត ឬខះបទពិេធ និងចំេណះដឹងលុះែតពួកេគតវនផល់រតតពិនិត ឬរែណំក់ទងនឹងរេបស់
ឧបករណ៍េយអកែដលទទួលខុសតវសប់សុវតិពរបស់ពួកេគ។ កុរគួរែតតវនតតពិនិតេមលេដមីពួកេគមិន
េលងមួយឧបករណ៍េនះ។
មុនេពលេបស់៉ សុីនទឹកេ ទឹកតក់អគិសនីមផះ

KH3
ែខរ
បម 
ងបយ័ត
●កុំេបបង់ ែហន រតុវ  ក់រក ត់ មបក់ េដម សប់េលបំណងស ត
THINNER
េដមីេជសងរបេ ញែផង របេឆះ េភងេឆះ និងេះ ក់េយរឆក់ចរនអគិសនី។
●េជសងរេបស់ទឹកកខក់ េះចប៉ះល់ដល់ដំេណររកេ និងសសតុេផងេទត។
●កុំខប់កលទឹក ឈូកេយៃដ កែនង ឬបត់ទុេ។ អរហូ រទឹកនឹង ក់ចុះ
េហយសីតុណ ពទឹកចនឹងេឡងេ  ំង។
●េដមីេជសងេះ ក់េយររកំណត់េឡងវ ញេយមិនយកចិតទុកក់ៃនរត់ ច់កេ ឧបករណ៍េនះមិនតវផត់ផង់
មរយៈឧបករណ៍ប រងេ ដូចឧបករណ៍កំណត់េពលេវ ឬ ប់េេសគីែដលតវនេបក និងបិទបំេយឧបករណ៍
េបស់េះេទ។
●សូ មកដ O- រ ងមិនតវនេះេចញេទ េហយស ិតេ យពីបំ ែណកដៃទេដមីេជស
O
P
E
N
C
L
O
S
E
O- 

ងរេលច យទឹក។
●ចុចដងរុញេបក-បិទ មុន និងេយេពលងូតទឹកមងៗ។
• - 
• 
•  ""  "" 
   


KH4
រកំណត់អតស ណេគងប ស់
Safe
+
-
U-Mode Set
123
U-Memory
U-Memory
CLEANING
FILTER
 DP / ()

   (MCB)
 
  
   
  
 
 
   
 




 


   
 
 
ELB

 ELB
 -
េគងប ស់
រេវចខប់៖តុរួមប ល៖
      
(1  )
x 2
       
(1  )   (2  )     (1  )
  
(1  )   (1  )
  
 (1  )
   
(1  )
x 6 x 2 x 6
  
(6  )   (2  )   (6  )

KH5
ែខរ
U-Mode (DH-4UD1 & DH-3UD1)
1. U-Mode   
2. U-Mode 
a) Cool Down
• 
•    

b) Warm Up
•     
•      
c) Hot & Cool
•    / 

•    

ចំំ៖    
បម  ងបយ័ត
សូ មបប់រេបស់មុខរ U-Mode ប ន់ បសិនេបនរមណ៍មិនស
លក ងអំឡ ងេពលេបស់។
ចំំ៖    KH7
U-Memory (DH-4UD1 & DH-3UD1)
1. U-Memory       
a)  U-Mode 
b)    
2. U-Memory  
   ( U-Memory [1 / 2 / 3])
ចំំ៖    KH8
រពិពណ៌អំពីេអកង់ LCD &  ំងប
DH-4UD1 & DH-3UD1
េអកង់ LCD និង ំងប
Hot WarmCoolHot &
Up DownCool
Cool
Safe
Max
U-Memory
123
__ +
U-Mode
Set
1
2 3
U-Memory
 Hot
 Cool

 

U-Memory

 U-Mode

U-Memory
 Set



 Safe
 U-Mode
 
PowerControl
Off High
ELB
 ELB


  
 
DH-4US1 & DH-3US1
 ំងប

KH6
រេបបេបស់
1.  "" 

2. ""   (MCB)  DP / ( ) 
3.  ELB   
ELB៖   ELB៖  
4.  
•     
•    
 
5. -

 -
  
a)    
b)  
DH-4UD1 & DH-3UD1 -  LCD        
  
(   38°C)
DH-4US1 & DH-3US1 -  ELB 
c)    - 
d)  
បម  ងបយ័ត
ចុចដងរុញេបក-បិទ មុន និងេយេពលងូតទឹកមងៗ។
-  
 ""  "" 
  
 
6.       
ចំំ៖
េេពលបប់រហូ រទឹក ឬ ស់ប ររ
េជសេរ សជិសេរ សបេភទទឹក ឈូកពីទឹក
 ឈូកធំ េទឹក ឈូកតូចទឹកមួយចំនួន
នឹងបនសក់ពីកលទឹក ឈូកក ងរយៈ
េពលតិចង 2 ទី។េនះេរងធមេទ
េយរែតទឹកមួយចំនួនេែតនេ
ក ងកលទឹក ឈូកេហយមិននអីខុស
បកតីចំេះឧបករណ៍េនះេទ។
  
 
  
  
  
7.    
(a) (b) (c)
a)       

    
b)          
  
    
c)      

8.  
DH-4US1 & DH-3US1
Off High
Power Control
ELB
a)     

b)     
  “High” 
c)   “Off”   
d)       
    
 
រេបបេបស់៉ សុីនទឹកេ ទឹកតក់អគិសនីមផះ
