Panasonic AW-HHD100N User manual

Operating Instructions
SDI Output Card
Model No. AW-HHD100N
Before operating this product, please read the instructions carefully and save this manual for future use.
VQTB0340-1
AW-HHD100N(VQTB0340-1)英.indd 1 2008/09/02 10:50:02
責任者 担当者
2008 年 月 日
法規
船
本
難
波
関
口
919

2
indicates safety information.
Safety precautions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (service) instructions in the
literature accompanying the appliance.
WARNING:
• TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
• THE APPARATUS SHALL NOT BE EXPOSED TO
DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE
APPARATUS.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, REFER CHANGES OF SWITCH
SETTINGS INSIDE THE UNIT TO QUALIFIED
SERVICE PERSONNEL.
AW-HHD100N(VQTB0340-1)英.indd 2 2008/09/02 10:50:03

3
This Class A digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la class A est conforme à
la norme NMB-003 du Canada.
For CANADA
indicates safety information.
FCC Note:
This equipment has been tested and found to comply
with the limits for a class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if
not installed and used in accordance with the
instruction manual, may cause harmful interference
to radio communications. Operation of this equipment
in a residential area is likely to cause harmful
interference in which case the user will be required to
correct the interference at his own expense.
Warning:
To assure continued FCC emission limit compliance,
the user must use only shielded interface cables when
connecting to external units. Also, any unauthorized
changes or modifications to this equipment could void
the user’s authority to operate it.
AW-HHD100N(VQTB0340-1)英.indd 3 2008/09/02 10:50:03

4
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord form being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by
the manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the
applicable safety instructions listed below. Keep these operating instructions handy for future reference.
IMPORTANT SAFETY INSTRUCTIONS
indicates safety information.
AW-HHD100N(VQTB0340-1)英.indd 4 2008/09/02 10:50:03

5
Contents
Accessory ........................................................................... 5
Preface ............................................................................... 5
Warning/caution for safety .................................................. 6
Precautions ......................................................................... 7
Major operating controls and their functions ....................... 8
Mounting ............................................................................. 9
Appearance ...................................................................... 10
Specifications ................................................................... 11
Accessory
Operating Instructions ............................ 1
Preface
This product is an option card which can be installed in
the option slot of the AW-HE100N HD integrated camera.
It is made for HD-SDI/SD-SDI signal output and is
equipped with two BNC output jacks (dual channel).
AW-HE100N settings can be used to switch between
HD-SDI and SD-SDI output.
The AW-HHD100N can be installed only to the
AW-HE100N.
Note
AW-HHD100N(VQTB0340-1)英.indd 5 2008/09/02 10:50:03

6
Warning/Caution for safety
WARNING
Refer all servicing to qualified personnel
To reduce the risk of electric shock, don’t remove cover
or back, unless you are a qualified personnel. Refer all
mountings, connections, servicing to qualified service
personnel.
No water or moisture inside
Do not let water or moisture into the product, or expose it
to moisture, to prevent a fire and electric shock.
If you see smoke or smell an odor from the product, if
water or other foreign matter gets inside, if it is damaged
by dropping, or if you find anything wrong with it,
immediately stop using it.
Do not disassemble or modify the product to prevent
a fire and electric shock.
CAUTION
Do not drop the product, do not expose it to strong shock,
or do not step on it, to prevent a fire and injuries.
Do not install the product at a place full of moisture and
dust, which may cause a fire and electric shock.
AW-HHD100N(VQTB0340-1)英.indd 6 2008/09/02 10:50:03

7
Precautions
Power off before connecting or disconnecting cables
Before plugging or unplugging the cables, be sure to
switch power off.
Handle carefully.
Do not drop the product, or subject it to strong shock or
vibration. This is important to prevent trouble.
Avoid humidity and dust.
Avoid using the product at a humid, dusty place because
much humidity and dust will cause damage to the parts
inside.
Operating temperature range
Avoid using the product at a cold place below 32 °F
(0 °C) or at a hot place above 104 °F (+40 °C) because
extremely low or high temperature will adversely affect
the parts inside.
When the SDI output card is to be discarded at the
end of its service life, ask a specialized contractor
to dispose of it properly in order to protect the
environment.
Caution
AW-HHD100N(VQTB0340-1)英.indd 7 2008/09/02 10:50:03

8

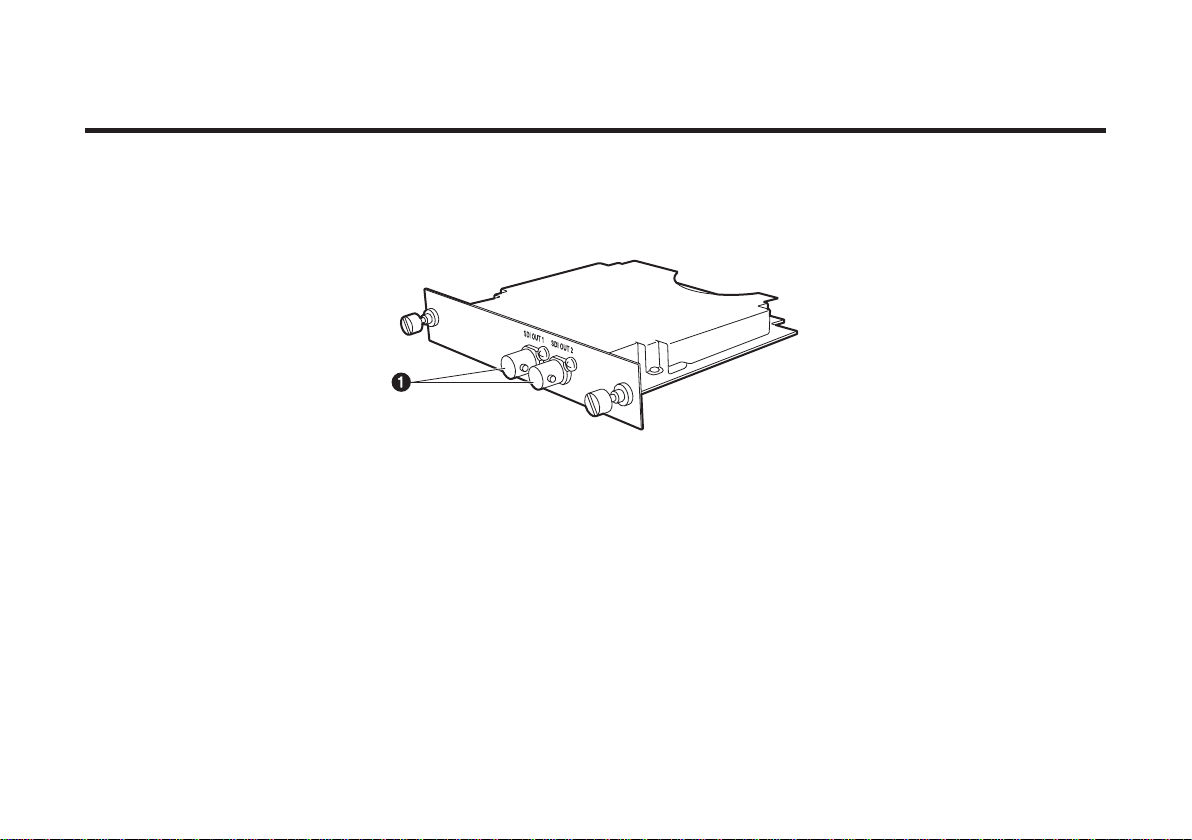

Major operating controls and their functions
1SDI output connector [SDI OUT1, SDI OUT2]
Serial digital component signal can be output.
AW-HHD100N(VQTB0340-1)英.indd 8 2008/09/02 10:50:03

9
Mounting
Be sure to ask your dealer, where you purchased the
product, for mounting.
Unplug the AW-HE100N power cord and all the cables
before performing the installation work.
Before handling the card, touch a metal part of the
camera to discharge the static from the human body.
An anti-static wrist strap is recommended for added
safety.
If you touch the card while you are still charged with
static, it may cause trouble.
Keep the metal parts of the card free of contact with
other metal parts.
Notes

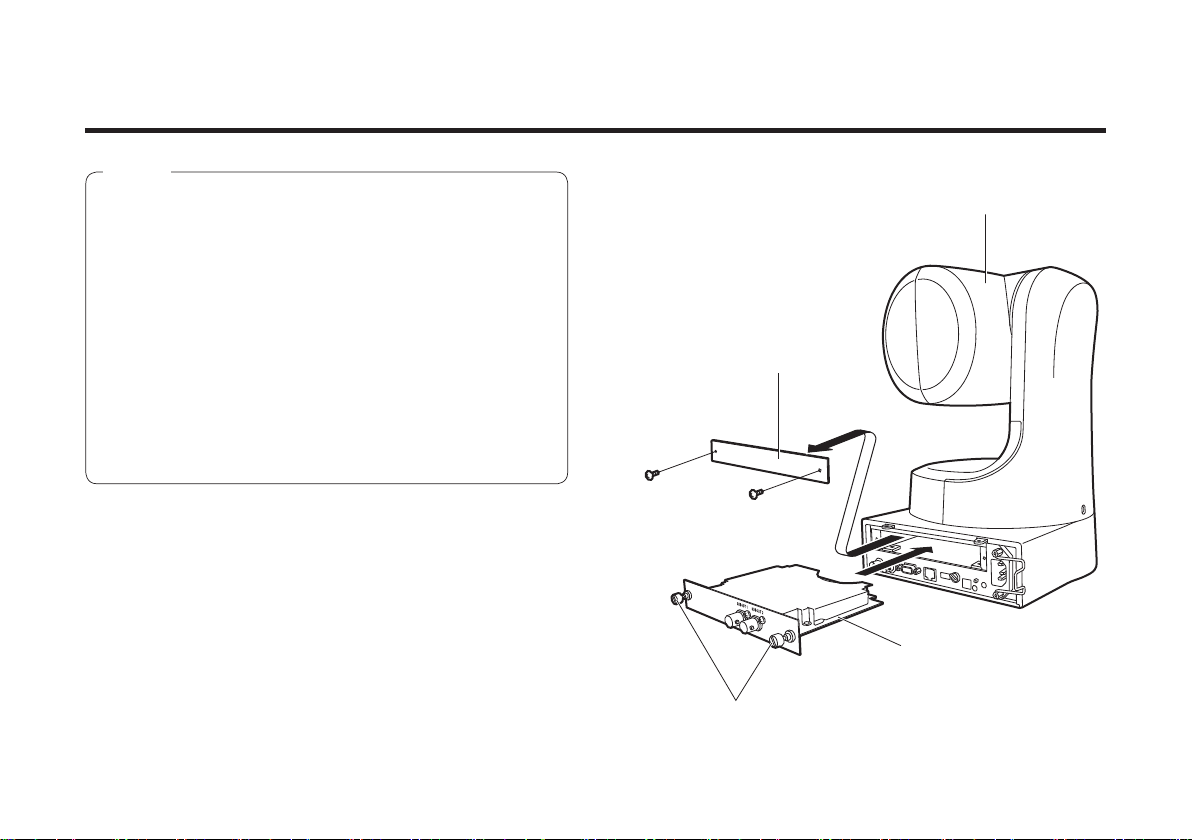

1Remove the 2 screws from the option slot cover.
2Remove the option slot cover.
3Line up the card with the guide rails and insert it.
(Make sure that it is inserted all the way.)
4Fasten the card in place with the 2 setscrews.
Card setscrews
Option slot cover
SDI Output Card
AW-HHD100N
HD Integrated Camera
AW-HE100N
AW-HHD100N(VQTB0340-1)英.indd 9 2008/09/02 10:50:03

10

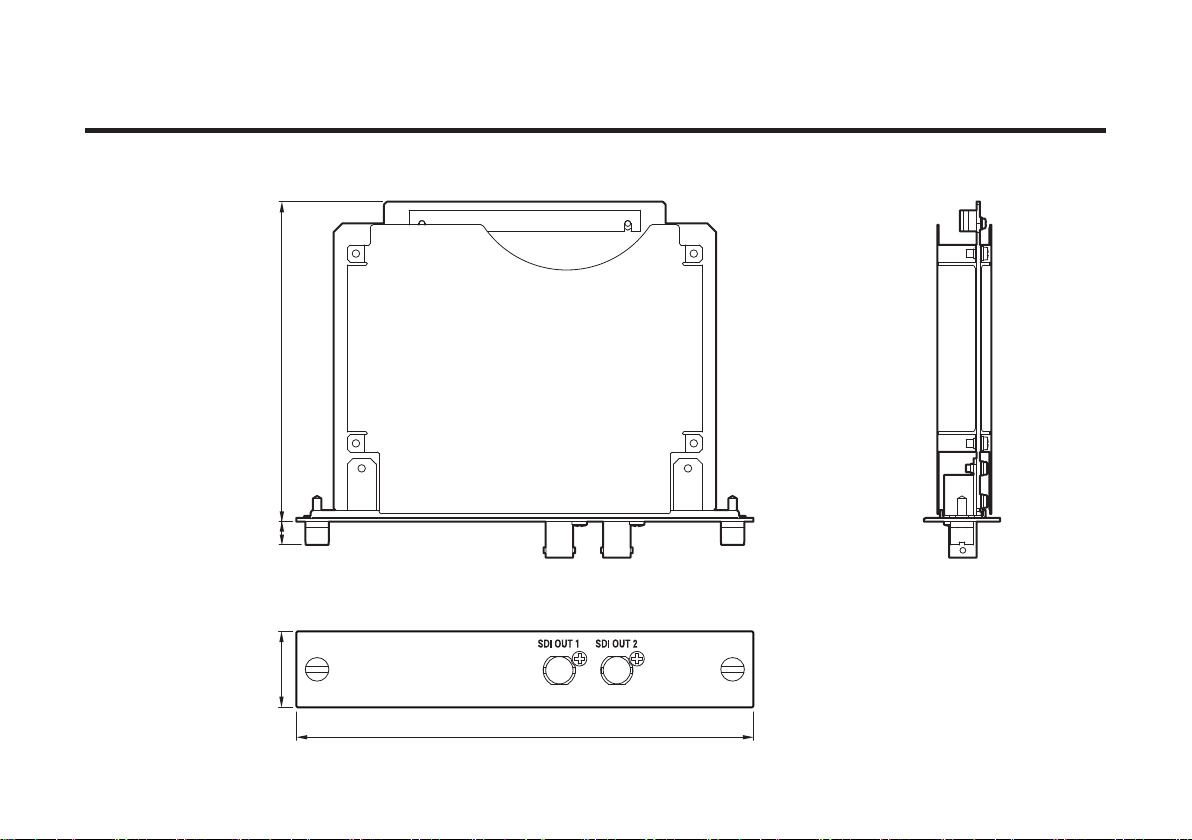

Appearance
Unit: inch (mm)
6-1/4 (159)
1-1/16 (26.5) 5/16 (8) 4-3/8 (111)
AW-HHD100N(VQTB0340-1)英.indd 10 2008/09/02 10:50:04

11
Specifications
Power requirements: 12 V DC (supplied from camera)
Power consumption: Approx. 1.5 W
indicates safety information.
Operating temperature: 32 °F to +104 °F (0 °C to +40 °C)
Storage temperature: –4 °F to +122 °F (–20 °C to +50 °C)
Allowable humidity ranges: 85 % or less (without condensation)
Weight: Approx. 0.51 lbs. (230 g)
Dimensions (W D H): 6-1/4˝ 4-3/8˝ 1-1/16˝ (159 111 26.5 mm) [excluding protrusions]
Output connectors: SDI OUT1, SDI OUT2 connector (BNC)
HD: Compliant with the SMPTE292M (BTA S-004B)
SD: Compliant with the SMPTE259M
Weight and dimensions indicated are approximate.
Specifications are subject to change without notice.
AW-HHD100N(VQTB0340-1)英.indd 11 2008/09/02 10:50:04

F0508Y1098 D
Printed in Japan
PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY
UNIT COMPANY OF PANASONIC CORPORATION OF NORTH AMERICA
Headquarters:
3 Panasonic Way 4E-7, Secaucus, NJ 07094 [phone]
EASTERN ZONE:
3 Panasonic Way 4E-7, Secaucus, NJ 07094 [phone]
WESTERN ZONE:
3330 Cahuenga Blvd. West, Los Angeles, CA 90068 [phone]
Government office:
[phone]
Broadcast PARTS INFORMATION & ORDERING:
9:00 a.m. – 5:00 p.m. (PST) [phone]/24 Hr. Fax [phone]
Emergency after hour parts orders [phone]
TECHNICAL SUPPORT:
Emergency 24 Hour Service [phone]
Panasonic Canada Inc.
Panasonic Puerto Rico, Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 [phone]
Corporativo Panasonic de México
Moras No. 313, Col. Tlacoquemecatl del Valle, Del. Benito Juárez, México, Distrito Federal, C.P. 03200. 01 (55) 54 88 10 00
AVE 65de Inf, Km 9.5 Carolina, PR 00985 [phone]
© Panasonic Corporation 2008
AW-HHD100N(VQTB0340-1)英.indd 12 2008/09/05 11:28:09

取扱説明書
SDI出力カード
品番 AW-HHD100N

 
 ご使用前に「安全上のご注意」（3 ～ 4ページ）を必ずお読みください。
 
保証書別添付
VQTB0340-1
AW-HHD100N(VQTB0340-1)日.indd 1 2008/09/02 10:50:30

2
もくじ
付属品 .................................................................................... 2
概 要 .................................................................................... 2
安全上のご注意..................................................................... 3
使用上のお願い..................................................................... 5
個人情報の保護について ..................................................... 5
各部の名前とはたらき ......................................................... 6
取り付けかた ........................................................................ 7
外形寸法図 ............................................................................ 8
定格 ........................................................................................ 9
保証とアフターサービス .................................................. 10
付属品

概 要
 


   
 
  

  
ご注意
AW-HHD100N(VQTB0340-1)日.indd 2 2008/09/02 10:50:30

3
安全上のご注意 必ずお守りください


■ 表示内容を無視して誤った使い方をしたときに生じる危害や損害の程度を、次の表示で区分し、
説明しています。
■ お守りいただく内容の種類を、次の絵表示で区分し、説明しています。
（下記は、絵表示の一例です。）

警告


AW-HHD100N(VQTB0340-1)日.indd 3 2008/09/02 10:50:30

4
安全上のご注意 必ずお守りください
警告
工事は販売店に依頼する



分解しない、改造しない

分解禁止

異物を入れない




禁 止
異常があるときは、すぐ使用をやめる





AW-HHD100N(VQTB0340-1)日.indd 4 2008/09/02 10:50:31

5
使用上のお願い
 ケーブルの抜き差しは電源を切って
 

 取り扱いはていねいに
 


 湿気、ホコリの少ない所で
 

 使用温度範囲は
   




ご注意





個人情報の保護について
AW-HHD100N(VQTB0340-1)日.indd 5 2008/09/02 10:50:31

6
各部の名前とはたらき
 SDI 出力コネクター [SDI OUT1, SDI OUT2]

AW-HHD100N(VQTB0340-1)日.indd 6 2008/09/02 10:50:31

7
取り付けかた 販売店にお申しつけください。

 








ご注意
1  
2
3


4   カード固定ねじ
オプションスロットカバー
SDI 出力カード
AW-HHD100N
HD インテグレーテッドカメラ
AW-HE100N
AW-HHD100N(VQTB0340-1)日.indd 7 2008/09/02 10:50:31

8
外形寸法図
単位：mm
159
26.5 8 111
AW-HHD100N(VQTB0340-1)日.indd 8 2008/09/02 10:50:31
