Panasonic GP-KH232CUE User manual

Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Operating Instructions
HD Camera Control Unit
Model No. GP-KH232CUE
DC POWER
GP-KH232
CAMERA
ON
OFF
D RANGE
SEL AWC
FREEZE
MENU
GAIN
D RANGE
Camera head: Option
Camera cable: Option
FRANÇAIS DEUTSCH ENGLISHESPAÑOLITALIANO

2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
The lightning flash with arrow-
head symbol, within an equilat-
eral triangle, is intended to alert
the user to the presence of
uninsulated “dangerous volt-
age” within the product's
enclosure that may be of suffi-
cient magnitude to constitute a
risk of electric shock to per-
sons.
The exclamation point within
an equilateral triangle is intend-
ed to alert the user to the pres-
ence of important operating
and maintenance (servicing)
instructions in the literature
accompanying the appliance.
WARNING:
• To prevent fire or electric shock hazard, do not
expose this apparatus to rain or moisture.
• The apparatus should not be exposed to drip-
ping or splashing and that no objects filled
with liquids, such as vases, should be placed
on the apparatus.
• All work related to the installation of this prod-
uct should be made by qualified service per-
sonnel or system installers.
• The connections should comply with local
electrical code.
CAUTION:
• Before attempting to connect or operate this
product, please read the label on the bottom.
We declare under our sole responsibility that the
product to which this declaration relates is in
conformity with the standard or other normative
document following the provisions of Directive
2004/108/EC.
Wij verklaren als enige aansprakelijke, dat het product
waarop deze verklaring betrekking heeft, voldoet aan
de volgende norm of ander normatief dokument,
overeenkomstig de bepalingen van Richtlijn 2004/108/
EC.
Vi erklærer os eneansvarlige for, at dette produkt, som
denne deklaration omhandler, er i overensstemmelse
med standard eller andre normative dokumenter i følge
bestemmelserne i direktiv 2004/108/EC.
Vi deklarerar härmed vårt fulla ansvar för att den
produkt till vilken denna deklaration hänvisar är i
överensstämmelse med standarddokument eller annat
normativt dokument som framställs i direktiv 2004/108/
EC.
Ilmoitamme yksinomaisella vastuullamme, että tuote,
jota tämä ilmoitus koskee, noudattaa seuraavaa
standardia tai muuta ohjeellista asiakirjaa, jotka
noudattavat direktiivin 2004/108/EC säädöksiä.
Vi erklærer oss alene ansvarlige for at produktet som
denne erklæringen gjelder for, er i overensstemmelse
med følgende norm eller andre normgivende
dokumenter som følger bestemmelsene i direktiv
2004/108/EC.
ENGLISH VERSION

3
Contents
Important safety instructions......................................................................................................... 4
Limitation of liability....................................................................................................................... 5
Disclaimer of warranty................................................................................................................... 5
Preface .......................................................................................................................................... 6
Trademarks and registered trademarks......................................................................................... 6
Precautions ................................................................................................................................... 7

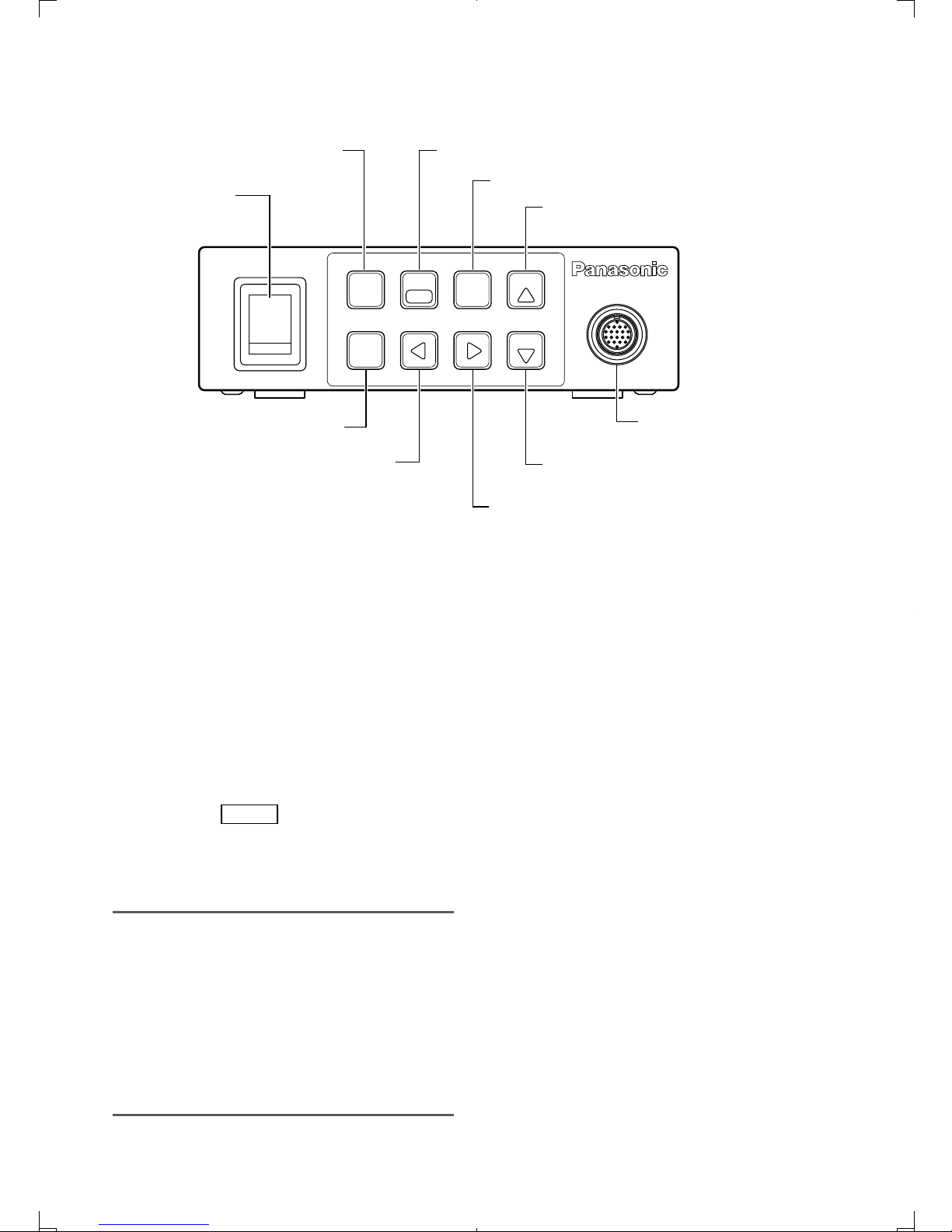

Major operating controls and their functions ................................................................................ 9

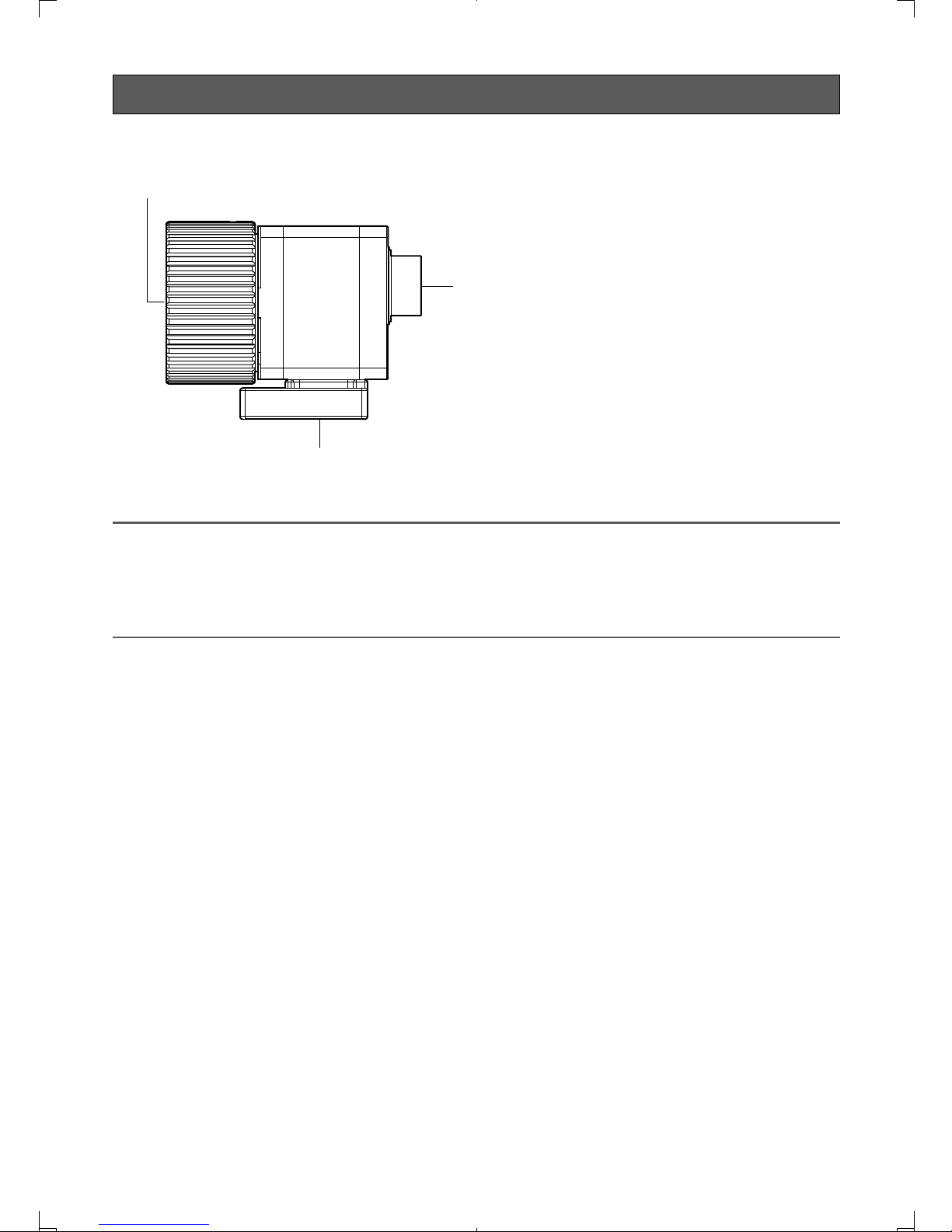

Camera head (Option)................................................................................................................ 9
Camera control unit (CCU)....................................................................................................... 10
Setting the video format.............................................................................................................. 13
To change video format ........................................................................................................... 13
To change frame frequency ..................................................................................................... 13
Precautions for installation.......................................................................................................... 15
How to Install............................................................................................................................... 16
How to mount lens................................................................................................................... 17
Setup through the SETUP Menu................................................................................................. 18
About the setup menus ........................................................................................................... 18
Basic operation........................................................................................................................ 19
1. Camera title setting [CAMERA ID].................................................................................... 21
2. ELC setting [ELC].............................................................................................................22
3. Electronic shutter setting [SHUTTER] .............................................................................. 24
4. Gain adjustment [GAIN].................................................................................................... 24
5. Electronic sensitivity enhancement setting [SENS UP].................................................... 25
6. RGB/YPbPr output signal setting [OUTPUT SEL]............................................................ 25
7. HDMI output signal setting [HDMI OUTPUT]................................................................... 25
8. SD ASPECT setting.......................................................................................................... 26
9. Scene file setting [SCENE FILE]....................................................................................... 26
10. White balance setting [WHITE BAL]...............................................................................33
11. Synchronization setting [SYNC]..................................................................................... 34
12. Configure the settings relating to the electronic zoom [ELECTRIC ZOOM]................... 35
13. Image freezing [FREEZE]................................................................................................ 35
14. Setting of vertical flip function [FLIP ENABLE]............................................................... 36
15. Setting of horizontal flip function [MIRROR ENABLE] ...................................................36
16. Status display setting of vertical and horizontal flip function [STATUS DISPLAY] ......... 36
Default restoring................................................................................................................... 36
SEL menu .................................................................................................................................... 37
How to display/operate the SEL menu....................................................................................37
Button assignment................................................................................................................... 38
Troubleshooting........................................................................................................................... 39
Specifications.............................................................................................................................. 41
Standard accessories.................................................................................................................. 42
Optional accessories................................................................................................................... 42
ENGLISH

4
Important safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instruc-
tions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara-
tus (including amplifiers) that produce heat.
9) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
10) Only use attachments/accessories specified by the manufacturer.
11) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus combi-
nation to avoid injury from tip-over.
12) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
S3125A

5
Limitation of liability
THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF
THE THIRD PARTY’S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL
ERRORS. CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S).
Disclaimer of warranty
IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY
PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT,
FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:
(1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT,
SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE
PRODUCT;
(2) PERSONAL INJURY OR ANY DAMAGE CAUSED BY INAPPROPRIATE USE OR NEGLIGENT
OPERATION OF THE USER;
(3) UNAUTHORIZED DISASSEMBLE, REPAIR OR MODIFICATION OF THE PRODUCT BY THE
USER;
(4) INCONVENIENCE OR ANY LOSS ARISING WHEN IMAGES ARE NOT DISPLAYED, DUE TO
ANY REASON OR CAUSE INCLUDING ANY FAILURE OR PROBLEM OF THE PRODUCT;
(5) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE, OR LOSS OR DAMAGE, ARISING
OUT OF THE SYSTEM COMBINED BY THE DEVICES OF THIRD PARTY;
(6) ANY CLAIM OR ACTION FOR DAMAGES, BROUGHT BY ANY PERSON OR ORGANIZATION
BEING A PHOTOGENIC SUBJECT, DUE TO VIOLATION OF PRIVACY WITH THE RESULT OF
THAT SURVEILLANCE-CAMERA’S PICTURE, INCLUDING SAVED DATA, FOR SOME
REASON, BECOMES PUBLIC OR IS USED FOR ANY PURPOSE.

6
Preface
This system is a compact and light type HD camera control unit (hereafter called CCU) with high
image quality and multiple functions by introducing digital signal processing. The camera head is
separately mounted.
GP-KH232CUE: HD Camera Control Unit•
This product is used in combination with the optional HD camera head (hereafter called camera
head).
GP-KH232HE: HD Camera head•
• The multi-format output is available.
• Signal transmission without signal degradation has been achieved thanks to the HDMI output
connector.
• The dynamic range expansion function allows users to shoot even images with a wide range of
brightness contrast and improve their visibility.
The descriptions in this book are predicated on a system with the camera head.
Trademarks and registered trademarks
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trade-
marks of HDMI Licensing LLC in the United States and other countries.

7
Precautions
Refer installation work to the dealer.
Installation work requires technique and expe-
riences. Failure to observe this may cause fire,
electric shock, injury, or damage to the prod-
uct.
Be sure to consult the dealer.
Stop the operation immediately when
something is wrong with this product.
When smoke goes up from the product or the
smell of smoke comes from the product, con-
tinued use will result in fire, injury, or damage
to the product.
Turn the power off immediately and contact
qualified service personnel for service.
Do not attempt to disassemble or modify
this product.
Failure to observe this may cause fire or elec-
tric shock.
Consult the dealer for the repair or inspec-
tions.
Do not insert any foreign objects.
This could permanently damage this product.
Unplug the power plug immediately and con-
tact qualified service personnel for service.
Do not use the product in an atmosphere
of flammable gases.
Failure to observe this may cause an explosion
resulting in injury.
Avoid installing this product in the loca-
tions where salt damage occurs or corro-
sive gas is produced.
Otherwise, the mounting portions will deterio-
rate and accidents such as a fall of this prod-
uct may occur.
Tighten screws and mounting fixtures to
the specified torque.
Failure to observe this may cause a drop
resulting in injury or accidents.
Select an installation area that can sup-
port the total weight.
Selecting an inappropriate installation surface
may cause the product to fall down or topple
over, resulting in injury.
Reinforce the mounting point to the appropri-
ate level before mounting.
Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause
a fall of the product resulting in injury or acci-
dents.
Consult the dealer for the inspections.
Do not pull the cables.
Failure to observe this may cause injury.
Do not damage the cables.
Putting a heavy thing or pinching may damage
the cables and cause injury.
[Precautions for use]
To keep on using with stable performance
Parts of this product may deteriorate and it
may shorten the lifetime of this product when
using in locations subject to high temperatures
and high humidity. Use this product at temper-
atures between 0 °C to 40 °C. Failure to
observe this may adversely affect the compo-
nents inside or cause this product to malfunc-
tion. Use of this product at temperatures of
30 °C or lower is recommended without direct
heat from heaters in consideration of heat
release at the camera location.
Handle this product with care.
Do not drop this product, nor apply shock or
vibration to the product. The product could be
damaged by improper handling or storage.

8

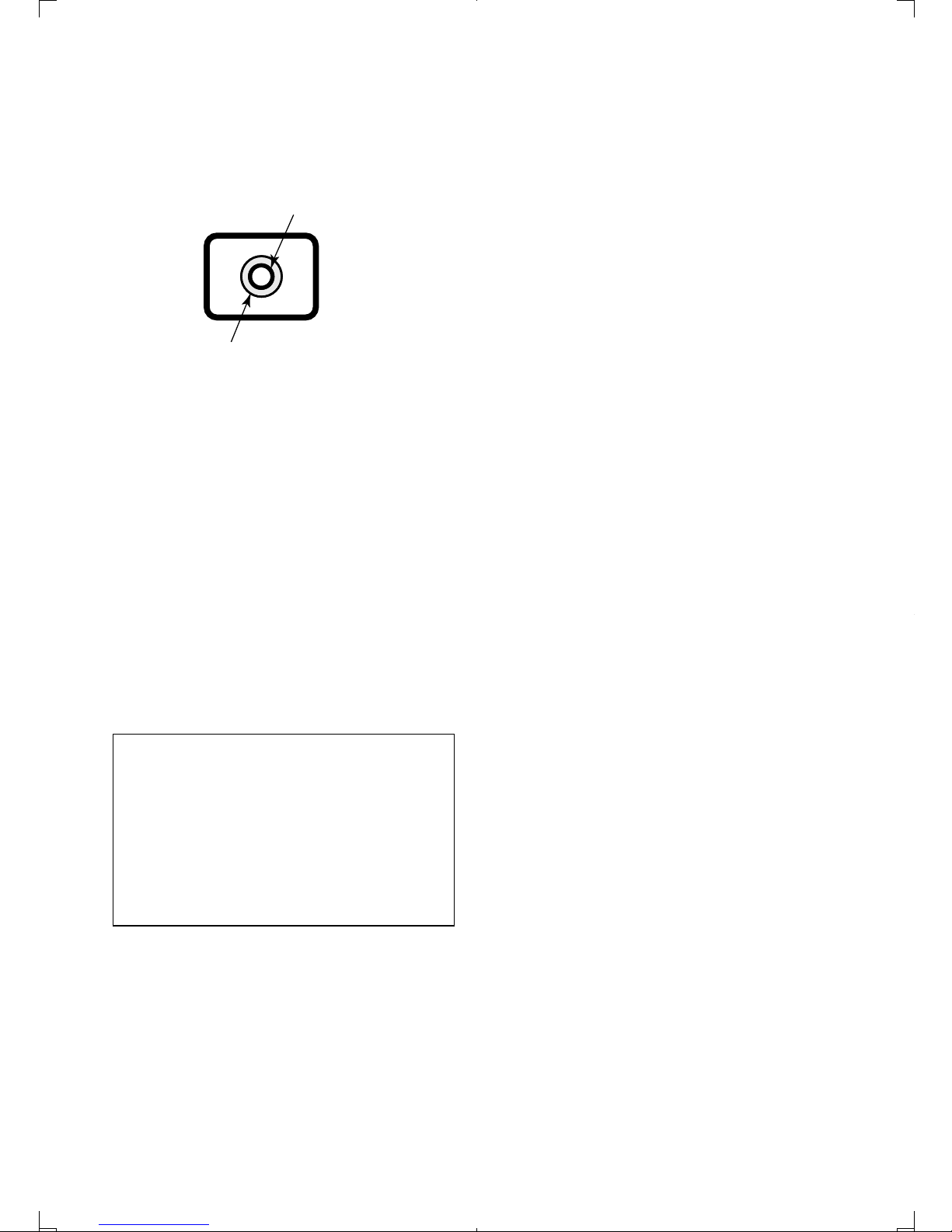

Do not aim this product at strong light
sources.
A light source such as a spot light on a part of
the MOS sensor causes a blooming (light
bleeding).
Cleaning this product body
Turn the power off when cleaning this product.
Failure to observe this may cause injury or
trouble.
Do not use strong abrasive detergent when
cleaning this product. Otherwise, it may cause
discoloration. When using a chemical cloth for
cleaning, read the caution provided with the
chemical cloth product.
Indication label
Refer to the indication label placed on the sur-
face of the product as to the indications of
equipment classification and power source,
etc.
This product is designed for normal uses
as a general electronic equipment. Using
the product for special purposes (such as
traffic, transportation and medical treat-
ment) without taking the necessary proce-
dures according to the regulations relating
to one’s country or field on one’s own
responsibility may be prohibited.
Blight subject
Blooming

9
Major operating controls and their functions
Camera head (Option)
Important:
Be sure to turn off the power of the CCU before connecting or disconnecting the camera•
cable.
Avoid bending excessively or breaking the camera cable.•
Use the specific-camera head only.•
qLens mount section
A C-mount lens is mounted on this section. (☞page 17)
wCamera cable connector
One of the following optional HD camera cables (hereafter called camera cables) is connected
to this connector.
GP-KC23202/V (2 m)•
GP-KC232M4 (4 m)•
GP-KC23206/V (6 m)•
GP-KC23215/V (15 m)•
eTripod mount base
The tripod socket hole is used when the camera head is secured to the tripod.
Tripod socket hole: 1/4UNC-20
qLens mount section
eTripod mount base
wCamera cable connector

10
Camera control unit (CCU)
<Front>
r Power switch [DC POWER]
This switch toggles the power of the CCU
and camera head on and off. The switch
lights green while the power is turned on.
t Scene file selection button [SCENE]
The button selects a scene file from 1 to
3. Each scene file should be set up
beforehand using the SETUP menu.
(☞Page 26)
y Freeze/menu button
[FREEZE MENU ]
Pressing this button: Displays the current
image as a still image when “FREEZE” in
the SETUP menu is set to “ON”.
Note:
Pressing a button other than the [• g] but-
ton provides freeze cancellation.
When the electronic zoom function or ver-•
tical/horizontal flip function is assigned to
the [e]/[f] button, the image can be
scaled up/down or flipped in the image
freezing state. Refer to page 38 for func-
tion assignment to buttons.
Pressing for 2 seconds or more: Displays
the SETUP menu.
u Selection button [SEL]
Pressing this button while the SETUP
menu is displayed determines the setting.
Pressing this button except while the
SETUP menu is displayed calls up the
SEL menu. (☞Page 37)
i Gain selection button [GAIN]
Selects the gain from OFF, LOW and
HIGH. Selectable gain varies depending
on the setting in the SETUP menu
(☞page 24).
When “AUTO” is selected for “GAIN” and
“OFF” is selected for “SENS UP”: Fixed to
“HIGH”
o AWC/Up button [AWC [g]]
Pressing this button: This button moves
the cursor upward to change a setting
item while the SETUP menu is displayed.
When “FLIP ENABLE” or “MIRROR
ENABLE” in the SETUP menu is set to
“ON” (☞page 36), the image can be
flipped vertically or horizontally.
DC POWER
ON
OFF
D RANGE
FREEZE
MENU
CAMERA
GP-KH232
AWC
SEL
GAIN
SCENE
tScene file selection button
[SCENE] yFreeze/menu button [FREEZE (MENU)]
uSelection button [SEL]
oAWC/Up button [AWC [g]]
!3 Camera cable connector
!2 Dynamic range/Down button
[D RANGE [h]]
!1 Right button [f]
!0 Left button [e]
iGain selection button [GAIN]
rPower switch
[DC POWER]

11
Pressing for 2 seconds or more: Starts up
AWC while an image is displayed if
“WHITE BAL” in the SETUP menu is set to
“AWC” (☞page 33).
! 0Left button [e]
This button moves the cursor leftward or
selects a setting while the SETUP menu is
displayed. This button moves the cursor in
the minus direction on the level adjust-
ment scale or selects a setting item while
the SEL menu is displayed. A function of
the SEL menu can also be assigned to
this button. (☞Page 38)
! 1Right button [f]
This button moves the cursor rightward or
selects a setting while the SETUP menu is
displayed. This button moves the cursor in
the plus direction on the level adjustment
scale or selects a setting item while the
SEL menu is displayed. A function of the
SEL menu can also be assigned to this
button. (☞Page 38)
! 2Dynamic range/Down button
[D RANGE [h]]
This button toggles the dynamic range
between NORMAL and EXPAND.
“EXPAND” shall be selected when dark
portions are less viewable because too
bright portions are present in a screen.
This button moves the cursor downward
to change a setting item while the SETUP
menu is displayed.
Note:
The dynamic range can be set in the•
scene file. (☞Page 29)
!3 Camera cable connector
The camera cable (option) is connected to
this connector.
<REAR>
DC 12V IN
RGB / YPbPr
S-VIDEO REMOTE
!5 RGB/YPbPr output connector
[RGB/YPbPr]
!6 S-video output connector [S-VIDEO]
!9 Cable clamp
!8 12 V DC power terminal
[DC 12V IN]
!7 Remote terminal [REMOTE]
!4 HDMI output
connector [HDMI]

12
!4 HDMI output connector [HDMI]
This connector is used to connect to an
HDMI-ready monitor.
!5 RGB/YPbPr output connector
[RGB/YPbPr]
This connector provides the RGB signal
(red, green, and blue) output or the YPbPr
signal (luminance, color difference B, and
color difference R) output. The output sig-
nal can be set up with use of “OUTPUT
SEL” in the SETUP menu. (☞Page 25)
The connector also provides G/L OUT sig-
nal and G/L IN signal can be input into the
connector.

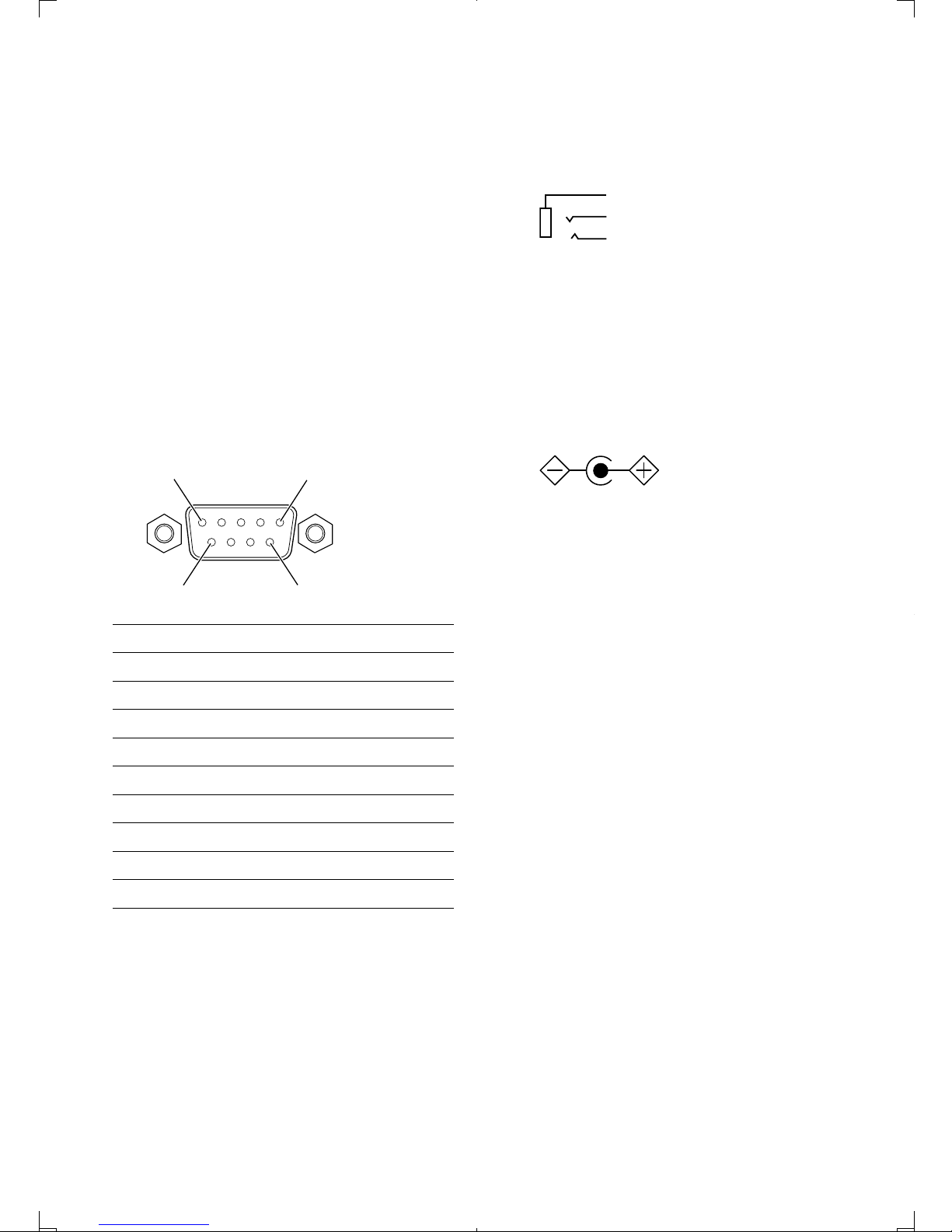

(D-sub 9-pin connector, female)
Pin No. Signal
1 GND
2 GND
3 R, Pr
4 G, Y
5 B, Pb
6 G/L OUT
7 G/L IN
8 GND
9 Open
!6 S-video output connector [S-VIDEO]
This connector provides the luminance
signal (Y) output with synchronizing sig-
nals and color signal (C) output.
5 1
96
!7 Remote terminal [REMOTE]
This port is used to perform external con-
trol. (ø3.5 mini jack, 3-pole, serial)
Circuit diagram:
!8 12 V DC power terminal [DC 12V IN]
This connector is used to connect an
external DC power supply of 12 volts
(1.2 A or more).
(DC jack type: EIAJ RC-5320A voltage
class 4)
Polarity:
!9 Cable clamp
This clamp is used to hold the 12 V DC
power cable.
GND
RXD
TXD

13
Setting the video format
Starting up the CCU by turning the power switch to ON while holding down the corresponding but-
ton can select the video format for each video output connector. The default video format is
1080/50i.
To change video format
Select the video format.
(Default: 1080/50i)
Turn the power switch to ON while holding down one of the following buttons.
Keep holding down the button until the picture appears on the monitor.
[SCENE] button:
1080/50p (1080/59.94p)
[FREEZE MENU ] button:
1080/50i (1080/59.94i)
[SEL] button:
720/50p (720/59.94p)
[GAIN] button:
1080/25p(sF) (1080/29.97p(sF))
[e] button:
576/50p (480/59.94p)
[f] button:
576/50i (480/59.94i)
Note:
The setting will be saved even after turning off the power of the CCU.•
This operation is unnecessary when using this unit at a predetermined video format.•
Check that the monitor to be used is compatible with the video format.•
To change frame frequency
To change the frame frequency, start up the CCU by turning the power switch to ON while holding
down the [D RANGE [h]] button. When using analog output, keep holding down the button until
the picture appears on the monitor, then release the button. CCU restarts automatically.
Or when using only HDMI output, keep holding down the button for 8 to 12 seconds, then release
the button. CCU restarts automatically.
The frame frequency will be switched toA59.94 Hz.
Each operation can switch the frequency between 59.94 Hz and 50 Hz.
Note:
The setting will be saved even after turning off the power of the CCU.•
This operation is unnecessary when using this unit at a predetermined frame frequency.•
Check that the monitor to be used is compatible with the video format.•

14
Assignment of video formats to the buttons on the front face
DC POWER
ON
OFF
D RANGE
FREEZE
MENU
CAMERA
GP-KH232
AWC
SEL
GAIN
SCENE
1080/29.97p(sF)
1080/25p(sF)
1080/59.94p
1080/50p
1080/59.94i
1080/50i
720/59.94p
720/50p
480/59.94p
576/50p
480/59.94i
576/50i
59.94Hz/50Hz
Selection of video format and terminal output
Output terminal HDMI RGB/YPbPr
Video format
480/59.94i
576/50i
480/59.94i
576/50i
480/59.94i
576/50i
480/59.94p
576/50p
480/59.94p
576/50p
480/59.94p
576/50p
720/59.94p
720/50p
720/59.94p
720/50p
720/59.94p
720/50p
1080/59.94i
1080/50i
1080/59.94i
1080/50i
1080/59.94i
1080/50i
1080/29.97p(sF)
1080/25p(sF)
1080/29.97p(sF)
1080/25p(sF)
1080/29.97p(sF)
1080/25p(sF)
1080/59.94p
1080/50p
1080/59.94p
1080/50p
1080/59.94i
1080/50i

15
Precautions for installation
The installation should comply with local electrical code.
This product is designed to be used indoors.
This product is not operable outdoors.
Do not expose this product to direct sunlight for hours and do not install the product near a heater
or an air conditioner.
Otherwise, it may cause deformation, discoloration and malfunction. Keep this product away from
water.

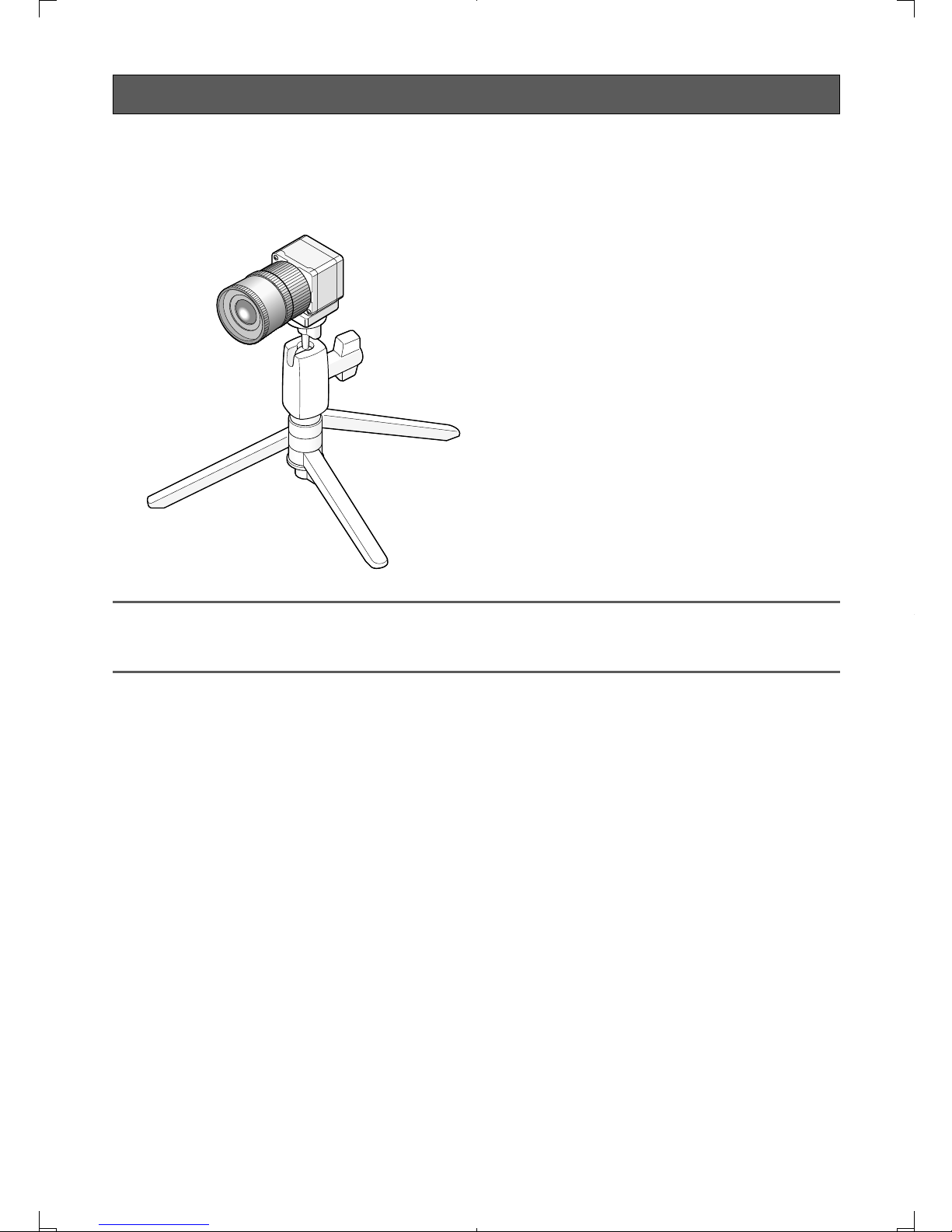

Procure a tripod separately.
The tripod to mount the camera head is not supplied. Prepare it according to the area where the
camera is to be installed.
Avoid moist or dusty places to install this system.
Otherwise, lifetime of the internal parts may be shortened.
Avoid installing or using this system in the following locations:
Locations where it may get wet from rain or water splash•
Locations where a chemical agent is used such as a swimming pool•
Locations subject to humidity, dust, steam and oil smoke•
Locations where a radiation, an X-ray, a strong radio wave or a strong magnetic field is gener-•
ated
Locations where corrosive gas is produced•
Locations where the temperature is not within 0 °C to 40 °C•
Locations subject to vibrations (This product is not designed for on-vehicle use.)•
Locations subject to condensation as the result of severe changes in temperature•
Radio interference
Images may be distorted near a transmitting antenna for TV or radio broadcasting signals or electric
or magnetic fields (for example, caused by a motor and a transformer).
Be sure to remove this product if it is not in use.

16
How to Install
The following shows how to mount the camera on the tripod (locally procured).
<Sample of camera mounting on tripod>
Important:
The tripod and CCU shall be horizontally placed.•
The CCU shall be horizontally placed. Do not place the unit in an upright or tilted position.•

17
How to mount lens
Important:
A lens whose projection length of the lens mount section is 7 mm•
or less shall be used.
The recommended lens aperture ranges from F2.8 to F16.•
Selection of less than F2.8 of the lens aperture may result in image
blurring.
When a zoom lens is used, focus adjustment method varies with•
the lens. For further information, refer to the operating instructions
for the lens.
When the lens is removed, be sure to put the cap on the lens mount section of the camera•
head.
Securing the lens excessively to the lens mount may deviate the back focal length.•
Do not loosen the fixing screw on the side of the lens mount. The adjusted back focal length•
may deviate.
Step 1
Remove the cap from the lens mount section
of the camera head.
Important:
Check to see whether the surface of the•
optical filter is clean before mounting a
lens. If the surface is dirty, use a blower
brush for general camera to remove dust.
Step 2
Turn a C-mount lens clockwise to engage the
lens with the lens mount section.
Recommended lenses (As of February, 2012)
Manufacturer Model
FUJIFILM DF6HA-1B
FUJIFILM HF9HA-1B
FUJIFILM HF12.5HA-1B
FUJIFILM HF16HA-1B
FUJIFILM HF25HA-1B
FUJIFILM HF35HA-1B
FUJIFILM HF50HA-1B
C mount:
7 mm or less

18
Performing each setting item in the SETUP menu should be completed in advance to use this unit.
Perform the settings for each item in accordance with the conditions of the camera shooting area.
Note:
In addition to the SETUP menu, this system has a simplified menu (SEL menu) that is displayed•
using the [SEL] button on the front face of the CCU. Refer to page 37 for further information
about the SEL menu.
About the setup menus
The following items can be set with use of the SETUP menu:
Setup item Description Page
qCAMERA ID This item specifies the camera title. Through this item, a cam-
era title is created with alphanumerics and symbols and dis-
played on the screen.
21
wELC Specifies the ELC function. 22
eSHUTTER Specifies the electronic shutter speed. 24
rGAIN Specifies the gain. 24
tSENS UP Specifies electronic sensitivity enhancement. 25
yOUTPUT SEL The output signals of the RGB/YPbPr output connector are
specified.
25
uHDMI OUTPUT The output signals of the HDMI output connector are speci-
fied.
25
iSD ASPECT Specifies the display format for the SD format. 26
oSCENE FILE Registers the settings of details, gamma, hue, etc. 26
DTL MODE Specifies the details. 27
RED DTL Adjusts the enhancement of red edge. 28
GAMMA Corrects the gamma. 28
KNEE Adjusts the knee point. 28
BLACK STRECH Toggles the black stretch function on and off. 29
D RANGE Toggles the dynamic range between NORMAL and EXPAND. 29
WHITE CLIP Adjusts the white clip level. 29
FLARE COMP Toggles the flare compensation on and off. 29
DNR Selects the level of the digital noise reduction function. 29
MATRIX Adjusts the hue and chroma. 30
CHROMA GAIN Adjusts chroma gain. 31
TOTAL PED Adjusts the pedestal level. 31
Setup through the SETUP Menu

19
Setup item Description Page
FILE LABEL Puts a label name instead of a scene file number. 32
AWC MEMORY Specifies the destination where the AWC setting is saved. 33
!0 WHITE BAL Specifies white balance adjustment. 33
!1 SYNC Specifies the synchronization type. 34
!2 ELECTRIC ZOOM Toggles the electronic zoom on and off. 35
!3 FREEZE Toggles the freeze function on and off. 35
!4 FLIP ENABLE Toggles vertical image flip on and off. 36
!5 MIRROR ENABLE Toggles horizontal image flip on and off. 36
!6 STATUS DISPLAY Toggles vertical and horizontal image flip status display on
and off.
36
Basic operation
This section explains how to display the SETUP menu on the monitor connected for adjustment
and how to perform the basic operations in the SETUP menu.
Important:
The color bar will be called out on the screen when the camera head is not connected. In this•
case, the following functions will become unavailable.
AWC startup for white balance•
MATRIX•
ELECTRIC ZOOM•
FREEZE•
FLIP•
MIRROR•
** SET UP ** P1
CAMERA ID *OFF
ELC *OFF
SHUTTER OFF
GAIN OFF
SENS UP OFF
OUTPUT SEL RGB
HDMI OUTPUT YPbPr(422)
SD ASPECT SIDE CUT
END
** SET UP ** P2
SCENE FILE *FILE1
WHITE BAL AWC
SYNC INT
END
** SET UP ** P3
ELECTRIC ZOOM ON
FREEZE ON
FLIP ENABLE OFF
MIRROR ENABLE OFF
STATUS DISPLAY OFF
END

20
Top screen of SETUP menu
Step 1
Hold down the [FREEZE MENU ] button for 2
seconds or more.
The top screen of the SETUP menuA
appears.
Step 2
The SETUP menu consists of 3 pages of con-
tents.
To turn a page, move the cursor to “P1” or
“P2”, “P3” and press the [e] or [f] button.
Note:
The cursor is a blinking part.•
The corresponding part is shaded on each
screenshot in this document.
Step 3
Perform the settings for each item.
Selection of setting item: Press the [g] but-
ton or [h] button to move the cursor.
Change of settings: Press the [e] button or
[f] button.
Display of advanced setup screen: Press
the [SEL] button when “*” is attached to
the target item.
Return to previous setup screen: Move the
cursor to “RET” and press the [SEL] but-
ton.
Step 4
To return to the camera image screen after
saving the setting contents, move the cursor
to “END” and press the [SEL] button. The set-
ting contents can be saved even if the power
of the CCU is turned off.
