Panasonic Sonic Vibration Toothbrush User manual
Operating Instructions
(Household use) Sonic Vibration Toothbrush
Model No. EW‑DP52
2
English 3
Deutsch 25
Français 47
Italiano 69
Español 91
Nederlands 113
Português 135
Svenska 157
Dansk 179
Norsk 201
Suomi 223
Polski 245
Türkçe 355
3
English
Operating Instructions
(Household use) Sonic Vibration Toothbrush
Model No. EW‑DP52
Thank you for purchasing this Panasonic product.
Safety precautions..................... 6
11
12
Features12
Charging the toothbrush13
Basic usage14
Tips on usage16
After use
Changing the brush head
20
FAQ20
Troubleshooting21
23
Removing the built-in rechargeable
23
24
Contents
4
English
Warning
• Be sure to switch off the appliance and remove the power
plug from a household outlet before performing any
maintenance. Failure to do so may result in electric shock.
•Do not wash the AC adaptor and the charging stand.
Doing so may result in electric shock.
•The supply cord cannot be replaced. If the cord is
damaged, the AC adaptor should be scrapped.
• Toothbrushes can be used by children and persons with
reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Children shall not play with the appliance.
5
English
•Do not use anything other than the supplied AC
adaptor and the charging stand for any purpose.
Also, do not use any other product with the AC adaptor
and the charging stand. (See page 11.)
•
detachable power supply unit is required for
connecting the electrical appliance to the supply
mains. The type references of power supply unit and
charging stand are marked near the symbol.
6
English
To reduce the risk of injury, loss of life, electric shock,
following safety precautions.
The following symbols are used to classify and
describe the level of hazard, injury, and property
damage caused when the denotation is disregarded
and improper use is performed.
DANGER
Denotes a potential
hazard that will result in
serious injury or death.
WARNING
Denotes a potential
hazard that could
result in serious
injury or death.
CAUTION
Denotes a hazard
that could result in
minor injury or
property damage.
The following symbols are used to classify and
describe the type of instructions to be observed.
operating procedure that must not be performed.
operating procedure that must be followed in
order to operate the unit safely.
WARNING
Do not connect or disconnect the adaptor to
‑ Doing so may cause electric shock or injury.
Do not immerse the AC adaptor and the
Do not place the AC adaptor and the charging
Do not use when the AC adaptor is damaged or
•
‑
to a short circuit.
7
English
WARNING
‑ Exceeding the rating by connecting too many
power plugs to one household outlet may cause
an electric power source matched to the
‑
outlet when cleaning the AC adaptor and the
‑
Failure to do so may cause electric shock or injury.
appliance plug to prevent dust from
‑
failure caused by humidity.
Disconnect the adaptor and wipe with a dry cloth.
‑
or injury.
•The main unit, adaptor, charging stand or
•The main unit, adaptor, charging stand or
•There is abnormal sound during use or
charging of the main unit, adaptor, charging
‑ Immediately request inspection or repair at an
authorized service centre.
This product
use, or leave in a high temperature
‑ Doing so may cause overheating, ignition, or
explosion.
‑
injury.
Contact an authorized service centre for repair
(battery change, etc.).
Never disassemble except when disposing of
‑
8
English
WARNING
Preventing accidents
Do not store within the reach of children or
‑ Doing so may cause an accident or injury due
to accidental ingestion of removable parts.
CAUTION
Preventing damage to teeth and gums
Do not use the brush with toothpaste that
contains a high abrasive content, such as
‑ Doing so may cause injury or damage to teeth
and gums.
have teeth being treated, or who are
‑ Failure to do so may cause injury or damage to
teeth and gums.
as itchiness, redness, or rash while using the
silicone brush should stop using it
‑ Failure to do so may make symptoms worse.
This product
Never use for a purpose other than cleaning
‑ Doing so may cause an accident or injury.
‑
Do not place a metallic object such as a coin
‑
Doing so may cause burns due to excessive heat.
Note the following precautions
‑ Doing so may cause injury.
9
English
CAUTION
Do not wrap the cord around the adaptor
‑ Doing so may cause the wire in the cord to
a short circuit.
Do not allow metal objects or trash to adhere
‑
to a short circuit.
Disconnect the adaptor from the household
‑
due to electrical leakage resulting from
insulation deterioration.
Disconnect the adaptor or the appliance plug
while holding onto the adaptor or the
‑
Failure to do so may cause electric shock or injury.
‑ Failure to do so may affect pacemakers, etc.,
due to electromagnetic waves generated by the
charging stand while it is powered.
DANGER
•
•
•
•
•Do not let the positive and negative
•
•
be exposed to high temperatures, such as
under direct sunlight or near other sources
•
‑ Doing so may cause overheating, ignition, or
explosion.
10
English
WARNING
‑
The battery will harm the body if accidentally
swallowed.
If this happens, consult a physician immediately.
‑ Failure to do so may cause eye injury.
Consult a physician immediately.
CAUTION
contact with the skin or clothes, rinse off with
‑
11
English
Back Front
Storage diagram
AMain unit
1Toothbrush shaft
2
Waterproof rubber seal
3Power switch
(power off/on/mode
selection)
4Mode indicator
5Battery capacity lamp
()
6Charge status lamp
()
7Charging ring stopper
(Insert the main unit
into the charging stand
up to this position
while charging.)
B
8
C
DStain care brush
9
High‑density bristles
;Tongue cleaner
EPoint brush
FSilicone brush
G
(The shape of the power
plug differs depending
Adaptor
Power plug
Cord
Appliance plug
H
Charging ring
Stand socket
Accessories
IBrush stand
J
BInner frame
12
English

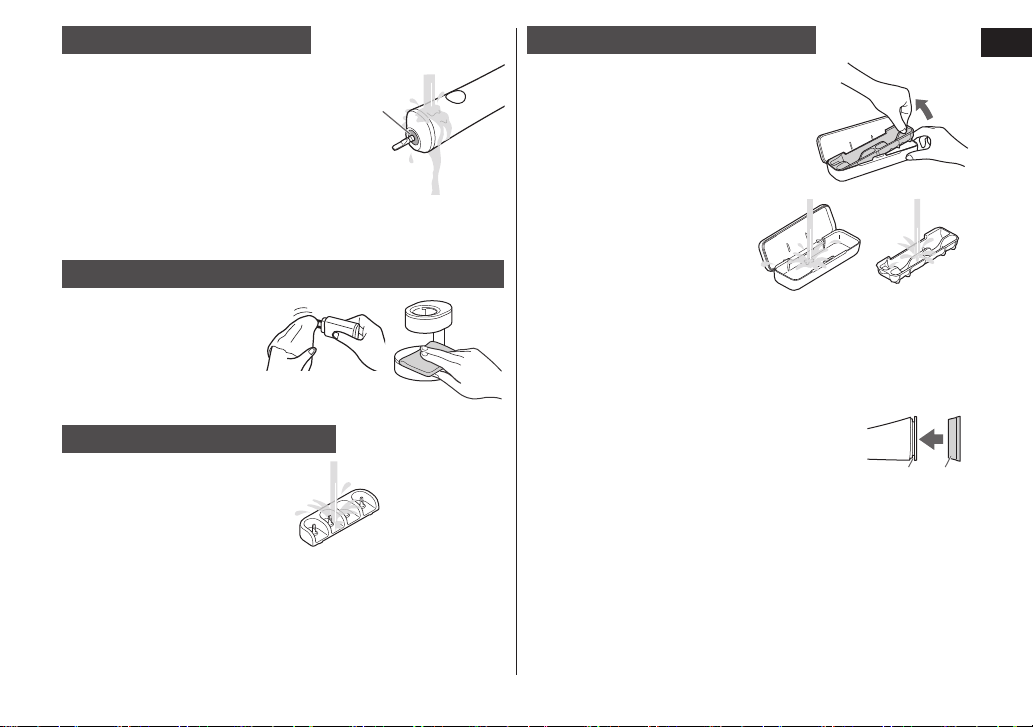

If the top case has come off
1.Align the mounting
section of the top case
and the bottom case
(2 locations) as shown
2.
Press the top case in
the direction indicated
by arrows, taking care
11
22
22
This product
The Sonic Vibration Toothbrush is an electric toothbrush
with sonic vibration* of approximately 31 000 horizontal
and 12 000 vertical brush strokes/minute.
Bleeding of the gums
experience slight bleeding of the gums even though
your gums may be healthy. This is because your gums
time. The bleeding should stop after one or two weeks
of use. Bleeding that persists for more than two weeks
may be indication of an abnormal condition of your
gums, such as periodontal disease. In this case, stop
using the toothbrush and consult your dentist.
Features
About soft start function
To get accustomed to the high speed vibration, the
toothbrush will gradually reach the selected speed and
vibration approximately 2 seconds after it starts operating.
function
The toothbrush will pause once at 30‑second intervals
to indicate the brushing time. It pauses twice at
2‑minute intervals then starts again.
• This function is not available in W‑GUMCARE mode
and STAINOFF mode.
About quick charge
Even if the charge runs out, charging for 2 minutes will
provide approximately 2 minutes of use.
• Use time may vary depending on ambient
temperature and use conditions.
About mode storage function
The mode used last is stored.
• The toothbrush operates in the mode last used when
the power switch is turned on.
13
English
Charging the toothbrush
Preparation Place the charging stand on a
horizontal and stable place.
1 Insert the appliance plug
• Align with the +-symbol as
illustrated.
2 With the main unit facing
forwards, set straight into
• The charging ring stopper (a)
touches the charging ring and
the main unit will stop in a
raised position.
About the approximate remaining charge and
charging time
• When you turn off the main unit while the battery
capacity is low, the unit beeps.
High battery
capacity
Low battery
capacity
( :Glows/ :Blinks/ :Turns off)
3 Insert the adaptor into the
• Charging is completed after approx.
1 hour.
(The charging time may differ with the charging
capacity.)
While
charging
(Low battery
capacity)
While
charging
After
charging is
completed
5 seconds
later after
charging is
completed
( :Glows/ :Blinks/ :Turns off)
How to check if charging is completed
Removing and attaching the main unit after charging
will cause the charge status lamp ( ) to glow and then
turn off after 5 seconds.
14
English
4 Disconnect the adaptor from the household
(for safety and to reduce energy usage)
• Charging the battery for more than 1 hour will not
damage the main unit.
Mode Battery runtime
W‑CLEAN
W‑GUMCARE Approx. 45 minutes
REGULAR
SOFT
STAINOFF
Approx. 90 minutes
(Use time may vary depending on ambient
temperature and use conditions.)
Notes
• If the charge status lamp ( ) blinks quickly (twice per
second), it may be due to a charging error or because
the main unit is not properly mounted on the charging
mount the main unit on the charging stand properly.
• Recommended ambient temperature for charging is
5 °C – 35 °C. The battery may not charge properly or
not at all under extreme low or high temperatures.
•
time, or when it has not been in use for more than
6 months. Also, the charge status lamp ( ) may not
glow for a few minutes after charging starts, but it will
glow if charging continues.
Basic usage
Preparation Select the appropriate brush for the
desired use. (See page 16.)
1 Attach the brush head to the
• Align the front of the main unit and
the front of the brush head.
1.Ensure that the direction is correct.
• Do not attach the brush head by
twisting it into place. Doing so
may damage the brush head and
main unit.
• The toothbrush shaft will move when a force is
applied. This is required for operation, and is
not a malfunction.
2.Apply a small amount of toothpaste.
There is a small gap between the
brush head and the main unit (a
few mm), but this is not a malfunction.
15
English
2 To avoid spattering of toothpaste, put the
Select the desired mode
• The device starts in the
previous mode used when
the power is turned on.
• Press the switch within
5 seconds to change modes.
(The blue mode indicator
illuminates to indicate the
selected mode.)
To switch the mode,
press the power switch
W-CLEAN
REGULAR
SOFT
W-GUMCARE
STAINOFF
3
Example brushing sequence
Divide your teeth into 4 parts
(upper and lower, left and right),
and brush one part in order such
as “
1
front of the teeth”, “
2
biting
plane of the teeth”, and “
3
back of
the teeth” spending 30 seconds.
Repeat this same procedure for
the other 3 areas.
• By brushing the above 4 parts
for 30 seconds each (about
2 minutes), you can evenly
brush your teeth without missing
any spots in your mouth.
•
timer function.”
4 Turn off the main unit before removing it from
• Press the switch after at least 5 seconds of
operation in one mode to turn the toothbrush off.
If you press the switch before 5 seconds of
operation have elapsed, the mode changes.
(See this page.)
Notes
• Do not put the main unit in contact with hair products,
hand creams, etc.
Doing so may damage the exterior.
• The appliance may not operate in an ambient
temperature approximately 5 °C or lower.
• Use REGULAR mode if the brushing feels too strong
in W‑CLEAN mode, and use SOFT mode if it feels too
strong in REGULAR mode.
•
experience a tickling or tingling sensation caused by
the sonic vibrations.
The sensation should subside after you use the
toothbrush several more times.
• If you push the brush head too hard, the sound may
change, but this is not an abnormality.
16
English
Tips on usage
Change the orientation and manner in which you brush
your teeth in accordance with your objective and the
area you are brushing.
Periodontal pocket care
Recommended mode: REGULAR
When you want to brush mainly the
periodontal pockets or between the teeth
and gums.
• You can also brush the teeth front surface
and the biting surface.
Dental plaque removal
Recommended mode: W‑CLEAN
When you want to make your teeth front
surface and biting surface clean.
• You cannot brush the periodontal pocket.
Stain care
Recommended mode: STAINOFF
Stain care brush
When you want stain care during normal
brushing.
(This does not mean that all stains can be
removed.)
• The intensity of vibration in STAINOFF
mode reduces approximately every
30 seconds and then gradually increases.
Apply the bristles of the brush lightly against the teeth
and move the toothbrush slowly.
Front surface and the biting surface of teeth
• Apply the brush head at a 90°
angle.
90°
teeth and gums
•
• Place the brush head at a 45° angle.
• Apply the bristles lightly into the
periodontal pocket and move the
toothbrush slowly.
45°
17
English
For the back of the front teeth or misaligned teeth
• Place the brush vertically.
• Move toothbrush to match the angle of the
teeth.
Gum care
Recommended mode: W‑GUMCARE
Silicone brush
When you want to clean the gums.
• Do not use toothpaste.
Use the toothbrush so that the tips of the silicone brush
bristles are lightly touching your gums. Move the brush
back and forth gently across your entire gums.
Gum
• Use as close as possible to a
right angle.
• Use gently at points of concern.
(Use for around 10 to 20 seconds
at each area.)
• Recommended usage is once a
day, for approximately 2 minutes.
90°
Notes
• Be careful when using the brush head. Forcefully
pulling or biting it may tear it.
• Do not apply the brush to your teeth. (This can cause
the silicone brush to degrade.)
Tongue care
Recommended mode: SOFT
Tongue cleaner
When you want to clean
the tongue.
Apply the tongue cleaner so that it barely touches the
tongue, and move forward with slight force from the
area that becomes dirty.
Tongue
• Repeat several times.
• Poke your tongue out
forward and apply the
brush while you are
breathing out to prevent
emetic response.
Places where
dirt easily
accumulates
Note
• You may injure your tongue if the tongue cleaner is
pressed against the tongue too strong.
18
English
Point brushing
Recommended mode: W‑CLEAN
Point brush
For the gap between teeth, the rear of the
back teeth or misaligned teeth.
Apply the bristles of the brush lightly against your teeth.
Gap between teeth Rear of the back teeth
• Place the brush at gap
between teeth or areas
that are hard to brush.
• Move the toothbrush
slowly in line with the
gums.
• Apply the brush to the
rear of the back teeth
thoroughly, as they are
hard to reach.
Misaligned teeth Braces
• Apply the brush into the
gap between braces
and teeth.
After use
After using the toothbrush, clean the toothbrush to
maintain cleanliness of the device.
• Use neutral kitchen detergent when cleaning the
toothbrush with detergent.
• Do not use thinner, benzine, alcohol, etc. to clean the
appliance.
Doing so may cause failure, cracking or discoloration
of the parts.
Remove the brush head straight from
the toothbrush shaft.
Cleaning the brush head
Wash the brush head under running
Wash the soiling on the inside and bottom
areas of the brush head thoroughly.
• Do not forcefully pull the bristles of the
brush or bend them out excessively.
• Do not wash the tongue cleaner
excessively with pointed objects or
• Do not wash with water hotter than 80 °C.
Doing so may damage the brush head.
19
English
Cleaning the main unit
Wash the main unit under
• Do not damage or rub the
waterproof rubber seal (A) with
hard materials.
Do not leave the main unit under
water. Water may enter inside.
• Do not wash with water hotter than 40 °C.
Doing so may damage the main unit.
Cleaning the AC adaptor and the charging stand
• Do not wash with water.
Cleaning the brush stand
1.Remove the inner frame.
1Hold the right end of the
carrying case.
2With the right end of the
inner frame facing up, pull up
the inner frame.
2.Wash with water and
wipe off water.
After cleaning
Wipe off water from the brush head and main unit for storage.
• Do not charge while it is wet. Doing so may cause soiling.
Attach by aligning the indentation (a) in
the brush head with the raised part (b)
•
Doing so may cause damage.
•
has no effect on its performance.
20
English

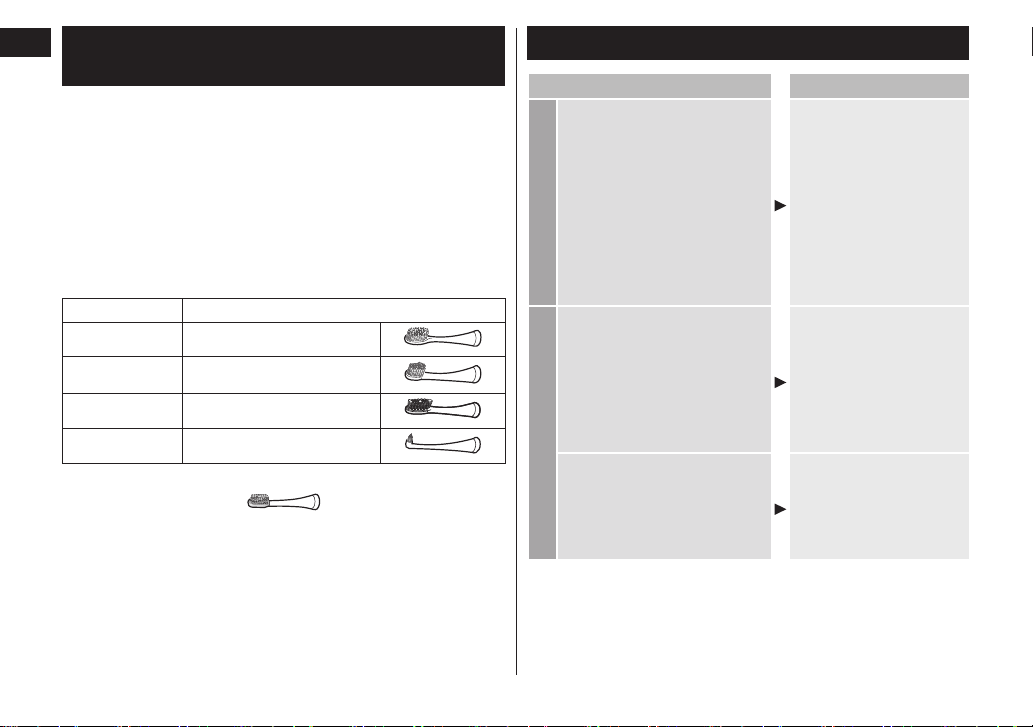

Changing the brush head
• Brushes are consumables.
• The brush should be replaced with a new one every
3 months or so due to hygiene reasons, even if its
shape is unchanged.
Even within 3 months, please exchange the brush
head if the bristles are frayed.
•
separately sold brush.
several persons to share the main unit.
Part number Replacement Brush for EW‑DP52
EW0917
WEW0915
WEW0929 Stain care brush
EW0940 Point brush
Silicone brush
Silicone brush is treated as service parts.
If you want to replace the silicone brush,
please contact an authorized service centre.
FAQ
Question Answer
While using
Why does the toothbrush
pause once, or the intensity
of vibration reduce, at
30‑second intervals?
The toothbrush will
notify you of the
elapsed brushing time
every 30 seconds.
(See page 12 about
“30‑second brushing
function.”)
(See page 16 about
“STAINOFF mode.”)
Will the battery deteriorate
if not used for an
extended period of time?
The battery will
deteriorate if not
used for over
6 months, so make
sure to perform a full
charge at least once
every 6 months.
Can I charge the
appliance after every use?
The battery used is a
lithium‑ion, so
charging after every
use will have no
effect on battery life.
This manual suits for next models
1
Table of contents
Languages:
Other Panasonic Electric Toothbrush manuals
Panasonic
Panasonic EW-PDP51 User manual
Panasonic
Panasonic EW-DL75 User manual
Panasonic
Panasonic ER-CTB1 User manual
Panasonic
Panasonic EW1012 User manual
Panasonic
Panasonic EW?DL82 User manual
Panasonic
Panasonic EW-DS11 User manual
Panasonic
Panasonic EW-DC12 User manual
Panasonic
Panasonic EW-DL75 User manual
Panasonic
Panasonic EW?DE92 User manual
Panasonic
Panasonic EW-DS90-K User manual
Panasonic
Panasonic EW?DL82 User manual
Panasonic
Panasonic ER-CTB1 User manual
Panasonic
Panasonic ER-CTB1 User manual
Panasonic
Panasonic ER-CTB1 User manual
Panasonic
Panasonic EW-DM81 User manual
Panasonic
Panasonic EW DL84 User manual
Panasonic
Panasonic EW-DL83 User manual
Panasonic
Panasonic EW-DP52 User manual
Panasonic
Panasonic EW1031A User manual
Panasonic
Panasonic EW?DL82 User manual
Popular Electric Toothbrush manuals by other brands
Waterpik
Waterpik Water Flosser WP-450 instruction manual
Nevadent
Nevadent IAN 102605 operating instructions
Philips
Philips Sonicare FlexCare Platinum HX9112/12 manual
Philips
Philips Sonicare Sensiflex HX1610 quick guide
Philips
Philips Sonicare AirFloss Ultra FS1000 manual
Maxcare
Maxcare MAX-M01MC0539 manual
Philips
Philips Sonicare CleanCare Quick manual
Kompernass
Kompernass KH 107 operating instructions
Philips
Philips Sonicare PowerUp HX3100 Series user manual
Braun
Braun SMART SERIES Oral-B BLACK 7000 user guide
Philips
Philips Sonicare FlexCare Data list
Philips
Philips Sonicare DiamondClean Smart HX9903/03 user manual
