Panasonic ET-EMW200 User manual

ENGLISH
FRANÇAIS
日本語
Commercial Use
Model No.
ET-EMW200 / ET-EMW300 / ET-EMW400 /
ET-EMW500 / ET-EMS600 / ET-EMT700 /
ET-EMT800 / ET-EMU100
DPQX1425ZE/X1
Zoom Lens
Operating Instructions
Thank you for purchasing this Panasonic product.
■To ensure correct use of this lens, please read the operating instructions supplied
with the lens and the projector carefully.
■Before using this product, be sure to read “Read this rst!” (Page 3).
■Please save this manual for future use.
ET-EMW200 ET-EMW300 ET-EMW400
ET-EMS600
ET-EMT700 ET-EMT800
ET-EMU100
ET-EMW500

2-ENGLISH
Read this rst! ......................................................................................3
Before Use.............................................................................................4
Preparation............................................................................................5
Before replacing the projection lens........................................................ 5
Attaching the Lens / Detaching the Lens................................................. 5
Peripheral focus adjustment function ...................................................... 6
Lens calibration ....................................................................................... 6
Projection relationships.......................................................................7
Lens shift ranges..................................................................................8
Specications .....................................................................................10
Dimensions .........................................................................................10
Projected image size and Projection distance.......Appendix / Annexe / 付録 1
The "Appendix" can be found after the Japanese language section ( 日本語 ).
█ Contents

ENGLISH-3
Read this rst! Always follow these precautions
WARNING:
Do not look at or place your skin into the light emitted from the lens while the
projector is being used.
Doing so can cause burns or loss of sight.
zStrong light is emitted from the projector’s lens. Do not look at or place your hands
directly into this light.
zTurn off the power when moving away from the projection lens or projector.
Do not project an image with the lens cover attached.
zDoing so can cause re.
Do not allow children to reach the lens xing screw.
Accidentally swallowing them can cause physical harm.
zIf swallowed, seek medical advice immediately.
CAUTION:
Before replacing the projection lens, be sure to turn off the power and
disconnect the power plug from the wall outlet.
zUnexpected projection of light may cause injury to eyes.
zReplacing the projection lens without removing the power plug may result in electric
shock.
Do not stand in front of the lens while the projector is being used.
Doing so can cause damage and burns to clothing.
zStrong light is emitted from the projector’s lens.
Do not place objects in front of the lens while the projector is being used.
Doing so can cause re, damage to the object, or malfunction of the lens and
projector.
zStrong light is emitted from the projector’s lens.
Do not open the desiccant bag. Do not eat the contents.
Inadvertently ingesting desiccant could be harmful.
zIf the desiccant gets into your eyes or mouth, immediately rinse with plenty of water
and seek medical attention.
zKeep desiccant out of the reach of children.

4-ENGLISH
■Supported projectors
PT-MZ16K / PT-MZ13K / PT-MZ10K
Note
zThis manual omits the alphabets at the end of projector model numbers.
zModels other than the above may also be supported. Refer to the operating instructions for
your projector or the website (https://panasonic.net/cns/projector/).
zIf the main version of the firmware of the PT-MZ16K / PT-MZ13K / PT-MZ10K is less than
1.23 or less than 2.10, the ET-EMU100 cannot be used.
Update the firmware to the latest version before use.
Check the update procedure by accessing the page containing the latest information on
the firmware at the website (https://panasonic.net/cns/projector/pass/).
■Supplied Accessories
Make sure that the following has been provided.
Part name Appearance (quantity)
Lens cover
1 each for front and rear
Lens xing screw
(DPHD1008ZA/X1)
x4
Hex driver
x1
zThe product is delivered with lens
covers attached.
zThe shape and size of the lens
covers are different for each pro-
duct.
zSupplied only with the ET-EMU100.
The product may be delivered with
the lens fixing screws attached.
zUsed when attaching the projection
lens to the projector.
zSupplied only with the ET-EMU100.
zUsed when attaching the projection
lens to the projector.
Before Use

ENGLISH-5
Preparation
Before replacing the projection lens
Return the projection lens to the home position before replacing or removing it.
For details on how to return the lens to the home position, refer to the operating
instructions of the projector.
Attention
zMake sure that the projector power supply is switched off before attaching or detaching the
projection lens.
zAfter removing the projection lens, store it safely away from vibration or impacts.
zDo not touch the electric contact points of the projection lens with your fingers. Dust and dirt
on the contacts may cause contact malfunctions, while static electricity may damage the unit.
zDo not turn the gear (ring) part of the projection lens barrel by hand. Doing so may damage
the motor.
zDo not touch the surface of the lens with bare hands. Finger prints and dirt on the surface
of the lens will be magnified by the lens and lower the quality of the projected image. Place
the supplied lens cover on the zoom lens when the projector is not in use.
zThe lens is made of glass. The lens could be damaged if brought into contact with or
rubbed against hard objects. Handle the lens carefully.
zUse a clean, soft and dry cloth to wipe away dust and dirt from the projection lens.
Do not use fl uffy cloths containing oil, water or dust for cleaning. The lens is easily
damaged, so do not apply excessive pressure when wiping it.
Attaching the Lens / Detaching the Lens
For details on attaching or removing the projection lens, refer to the operating
instructions for the projector.
Attention
zWhen attaching the ET-EMU100 to the projector, fix it in place by tightening the lens fixing
screws (4 locations) as shown in the figure below to stabilize focus performance.
zUse the hex driver supplied with the ET-EMU100 to tighten the lens fixing screws.
Lens xing screw
Lens xing screw

6-ENGLISH
Preparation (continued)
Peripheral focus adjustment function
When you change the size of the projected image, the focal balance between the center
and peripheral areas of the screen may shift.
The ET-EMW200 / ET-EMW300 / ET-EMW400 / ET-EMW500 / ET-EMU100 is equipped
with a peripheral focus adjustment function to correct the shift in focal balance between
the center and peripheral areas of the screen.
For instructions on adjusting the peripheral focus, refer to “Projecting” in the operating
instructions for the projector.
Lens calibration
Perform lens calibration after attaching the lens.
For instructions on lens calibration, refer to “Projecting” in the operating instructions for
the projector.

ENGLISH-7
Projection relationships
The dimensional relationship between the screen and the projector is shown below.
■Dimensional relationship diagram
L (LW/LT)
L (LW/LT)
SW SH
H
SH
SW
SD
L1
L1
Screen
Projected image
Note
zThis diagram assumes that the size and position of the projected image will be adjusted so
that the image fills the entire screen.
zThis illustration is not drawn to scale.
L Projection distance
LW Minimum distance
LT Maximum distance
L1 Lens protrusion dimension
SH Projected image height
H Distance from the lens center to the lower edge of the projected image
SW Projected image width
SD Projected image size
zDimension for L1 (approximate values) (Unit: m)
Projector
model
ET-EMW200 ET-EMW300 ET-EMW400 ET-EMW500 ET-EMS600 ET-EMT700 ET-EMT800 ET-EMU100
PT-MZ16K /
PT-MZ13K /
PT-MZ10K
0.152 0.121 0.121 0.122 0.117 0.167 0.172 0.346
Note
zThe illustrations of projectors in this manual are for informational purposes only and do not
represent a specific projector model. Configurations may vary with the model.
Attention
zTo prevent blocking of the intake and exhaust vents, maintain clearances from walls and objects
of at least 1 000 mm (3'3") for the exhaust vent and at least 500 mm (1'8") for the intake vent.
zAvoid setting up in places which are subject to sudden temperature changes, such as near
an air conditioner or lighting equipment (studio lamps, etc.).

8-ENGLISH
Projection relationships (continued)
■Dimensional relationship
For details on the projection distance (L), refer to “Projected image size and Projection
distance” and “Projection distance formulas” in the Appendix.
Note
zFor details on “Projected image size and Projection distance” for projector models other
than PT-MZ16K / PT-MZ13K / PT-MZ10K, refer to “Setting up” in the operating instructions
of the projector.
Perform the lens position shift within the adjustment range.
Perform lens shift adjustment within the ranges shown in the following illustrations.
The focus may change when the lens position is shifted out of the adjustment range.
This is because the movement of the lens is restricted to protect the optical parts.
Projection position can be adjusted with the optical axis shift based on the home position
in the respective range.
ET-EMW400 / ET-EMW500 /
ET-EMS600 / ET-EMT700 /
ET-EMT800
0.6V 0.6V
0.2H0.2H
0.28V 0.28V
Standard projection
position
Projected image height V
Projected image width H
Origin position of
the lens mounter
ET-EMW200
0.4V
0.19H0.19H
0.4V
Standard projection
position
Projected image height V
Projected image width H
Origin position of
the lens mounter
Lens shift ranges

ENGLISH-9
Lens shift ranges (continued)
ET-EMW300
0.5V 0.5V
0.2H0.2H
0.13V 0.13V
Standard projection
position
Projected image height V
Projected image width H
Origin position of
the lens mounter
ET-EMU100
0.2V 0.5V
0.2H
0.12H
0.2H
0.12H
Standard projection
position
Projected image height V
Projected image width H
Origin position of
the lens mounter
Note
zThe home position of the projector a point of origin position for the lens shift (i.e., vertical
and horizontal positions of the lens) based on the results of lens calibration. It is not the
optical center position of the screen.

10-ENGLISH

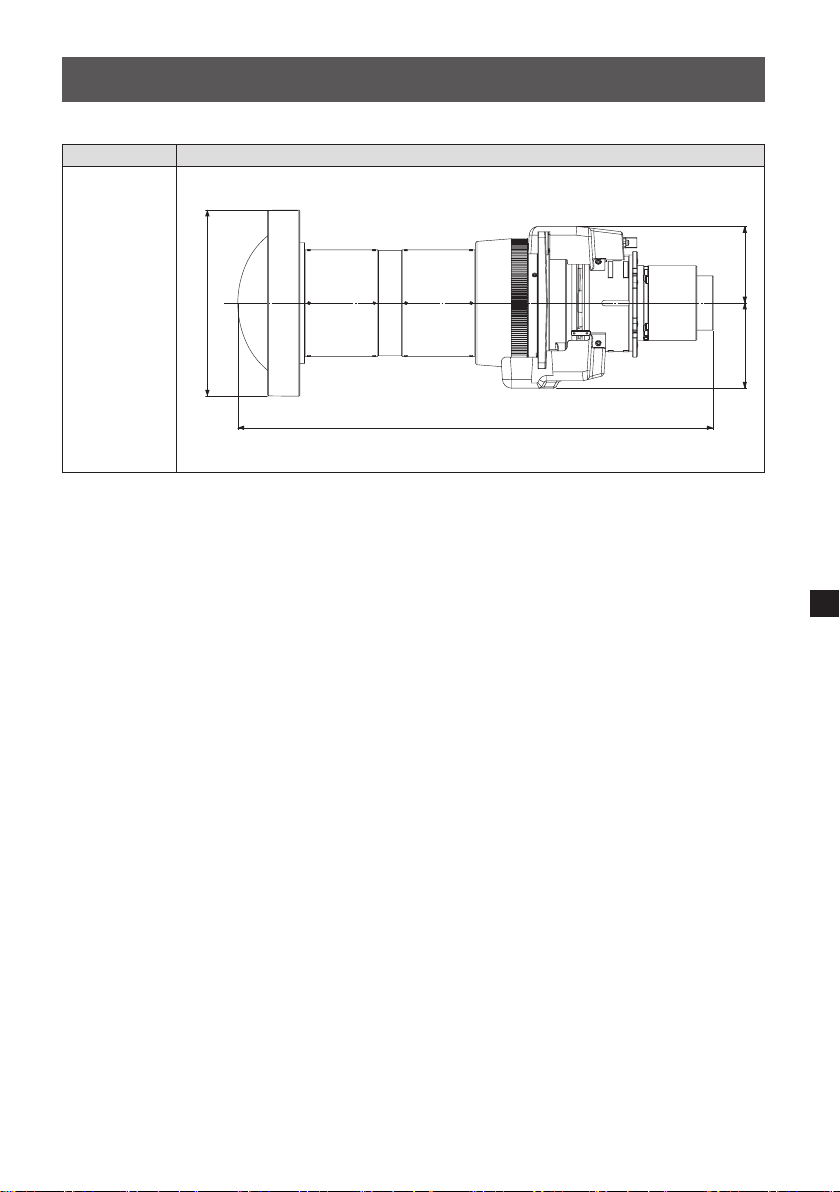

Dimensions
(Unit: mm)
Model number Dimensions
ET-EMW200
φ175 (6-7/8")
179 (7-1/16")
82 (3-7/32")91 (3-19/32")
314 (12-3/8")
Specications
Check the specifications of each projection lens, and use the appropriate lens for your
intended use.
Model No. ET-EMW200 ET-EMW300 ET-EMW400 ET-EMW500
F value 1.84 - 2.14 1.84 - 2.24 1.84 - 2.24 1.80 - 2.35
Focal Length (f)
10.80 mm (7/16ʺ) -
12.52 mm (1/2ʺ)
12.31 mm (1/2ʺ) -
15.43 mm (19/32ʺ)
15.30 mm (19/32ʺ) -
21.10 mm (27/32ʺ)
21.08 mm (27/32ʺ) -
30.00 mm (1-3/16ʺ)
Dimensions
Width 179 mm (7-1/16ʺ) 179 mm (7-1/16ʺ) 179 mm (7-1/16ʺ) 179 mm (7-1/16ʺ)
Height 175 mm (6-7/8ʺ) 175 mm (6-7/8ʺ) 175 mm (6-7/8ʺ) 175 mm (6-7/8ʺ)
Depth 314 mm (12-3/8ʺ) 284 mm (11-3/16ʺ) 284 mm (11-3/16ʺ) 285 mm (11-7/32ʺ)
Net Weight 5.20 k](11.46 lb) 5.20 k](11.46 lb) 5.05 k](11.13 lb) 5.15 k](11.35 lb)
Model No. ET-EMS600 ET-EMT700 ET-EMT800 ET-EMU100
F value 1.75 - 2.17 1.82 - 2.53 1.85 - 2.39 1.9
Focal Length (f)
29.90 mm (1-3/16ʺ) -
46.32 mm (1-13/16ʺ)
46.00 mm (1-13/16ʺ) -
90.50 mm (3-9/16ʺ)
90.30 mm (3-9/16ʺ) -
162.60 mm (6-13/32ʺ)
7.23 mm (9/32ʺ) -
7.73 mm (5/16ʺ)
Dimensions
Width 173 mm (6-13/16ʺ) 173 mm (6-13/16ʺ) 173 mm (6-13/16ʺ) 200 mm (7-7/8ʺ)
Height 130 mm (5-1/8ʺ) 130 mm (5-1/8ʺ) 130 mm (5-1/8ʺ) 200 mm (7-7/8ʺ)
Depth 267 mm (10-1/2ʺ) 327 mm (12-7/8ʺ) 334 mm (13-5/32ʺ) 509 mm (20-1/32ʺ)
Net Weight 3.60 k](7.94 lb) 4.55 k](10.03 lb) 4.75 k](10.47 lb) 7.20 k](15.87 lb)

ENGLISH-11
Dimensions (continued)
(Unit: mm)
Model number Dimensions
ET-EMW300
φ175 (6-7/8")
179 (7-1/16")
82 (3-7/32")91 (3-19/32")
284 (11-3/16")
ET-EMW400
φ175 (6-7/8")
179 (7-1/16")
82 (3-7/32")91 (3-19/32")
284 (11-3/16")
ET-EMW500
φ175 (6-7/8")
179 (7-1/16")
285 (11-7/32")
82 (3-7/32")91 (3-19/32")

12-ENGLISH
Dimensions (continued)
(Unit: mm)
Model number Dimensions
ET-EMS600
φ130 (5-1/8")
173 (6-13/16")
267 (10-1/2")
82 (3-7/32")91 (3-19/32")
ET-EMT700
φ130 (5-1/8")
173 (6-13/16")
82 (3-7/32")91 (3-19/32")
327 (12-7/8")
ET-EMT800
φ130 (5-1/8")
173 (6-13/16")
82 (3-7/32")91 (3-19/32")
334 (13-5/32")

ENGLISH-13
Dimensions (continued)
(Unit: mm)
Model number Dimensions
ET-EMU100
509 (20-1/32ʺ)
φ200 (7-7/8")
82 (3-7/32")91 (3-19/32")

14-ENGLISH
English
Manufactured by:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importer:
Panasonic Connect Europe GmbH
Authorized Representative in EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Importer for UK;
Panasonic Connect UK,
a branch of Panasonic Connect
Europe GmbH,
Maxis 2, Western Road, Bracknell,
Berkshire, RG12 1RT
Français
Fabriqué par:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japon
Importateur :
Panasonic Connect Europe GmbH
Représentant autorisé dans l’UE :
Panasonic Testing Centre
Winsbergring 15, 22525 Hambourg, Allemagne
Español
Fabricado por:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japón
Importador:
Panasonic Connect Europe GmbH
Representante Autorizado para la UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgo, Alemania
Deutsch
Hergestellt von:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importeur:
Panasonic Connect Europe GmbH
Vertretungsberechtigter in der EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Deutschland
Italiano
Fabbricato da:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Giappone
Importatore:
Panasonic Connect Europe GmbH
Rappresentante autorizzato nell’UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Amburgo, Germania
Български
Производител:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Япония
Вносител:
Panasonic Connect Europe GmbH
Упълномощен представител в ЕС:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Германия
Čeština
Vyrobil:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonsko
Dovozce:
Panasonic Connect Europe GmbH
Oprávněný zástupce v EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburk, Německo
Dansk
Fremstillet af:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importør:
Panasonic Connect Europe GmbH
Autoriseret repræsentant i EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland

ENGLISH-15
Eesti
Tootja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Jaapan
Maaletooja:
Panasonic Connect Europe GmbH
Volitatud esindaja ELis:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Saksamaa
Ελληνικά
Κατασκευάστηκε από:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Ιαπωνία
Εισαγωγέας:
Panasonic Connect Europe GmbH
Εξουσιοδοτημένος αντιπρόσωπος στην ΕΕ:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Γερμανία
Hrvatski
Proizvodi:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Uvoznik:
Panasonic Connect Europe GmbH
Ovlašteni zastupnik u EU-u:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Njemačka
Latviešu
Ražotājs:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japāna
Importētājs:
Panasonic Connect Europe GmbH
Ociālais pārstāvis ES:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Vācija
Lietuvių
Gamintojas:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonija
Importuotojas:
Panasonic Connect Europe GmbH
Įgaliotasis atstovas ES:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgas, Vokietija
Magyar
Gyártotta:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japán
Importőr:
Panasonic Connect Europe GmbH
Hivatalos képviselő az EU-ban:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Németország
Nederlands
Geproduceerd door:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importeur:
Panasonic Connect Europe GmbH
Bevoegde vertegenwoordiger in de EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Duitsland
Norsk
Produsert av:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importør:
Panasonic Connect Europe GmbH
Autorisert representant i EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland

16-ENGLISH
Polski
Wyprodukowano przez:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonia
Importer:
Panasonic Connect Europe GmbH
Upoważniony przedstawiciel w UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Niemcy
Português
Fabricado por:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japão
Importador:
Panasonic Connect Europe GmbH
Representante Autorizado na UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgo, Alemanha
Română
Fabricat de:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonia
Importator:
Panasonic Connect Europe GmbH
Reprezentant autorizat în UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germania
Slovenčina
Výrobca:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonsko
Dovozca:
Panasonic Connect Europe GmbH
Autorizovaný zástupca v EÚ:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Nemecko
Slovenščina
Proizvaja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonska
Uvoznik:
Panasonic Connect Europe GmbH
Pooblaščeni zastopnik v EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Nemčija
Türkçe
Tarafından Üretilmiştir:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonya
İthalatçı:
Panasonic Connect Europe GmbH
AB Yetkili Temsilcisi:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Almanya
Suomi
Valmistaja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japani
Maahantuoja:
Panasonic Connect Europe GmbH
Valtuutettu edustaja EU:ssa:
Panasonic Testing Centre
Winsbergring 15, 22525 Hampuri, Saksa
Svenska
Tillverkad av:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importör:
Panasonic Connect Europe GmbH
Auktoriserad representant i EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland

ENGLISH-17
MEMO

Panasonic Connect North America
Two Riverfront Plaza, Newark, NJ 07102
TEL: (877) 803 - 8492
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
TEL: (905) 624 - 5010
Panasonic Connect Co., Ltd.
Web Site : https://panasonic.net/cns/projector/
© Panasonic Connect Co., Ltd. 2022
SS1119AM4042 -PS
Printed in Japan
Environment care information for users in China
This symbol is only valid in China.
Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents means that
used electrical and electronic products must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to
applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local authority.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
Product Information (for Turkey only)
AEEE Yönetmeliğine Uygundur.
Eski Ekipman ve Bataryaların İşlenmesi.
Sadece geri dönüşüm sistemleri olan Avrupa Birliği ve ülkeleri için geçerlidir.
Ürünler, ambalaj ve/veya ekli belgeler üzerindeki bu semboller kullanılmış elektrik ve
elektronik ürünlerin genel ev atığı ile karıştırılmaması gerektiğini ifade eder.
Eski ürünlerin toplanması ve geri kazanılması için bu atıklar lütfen yasayla belirlenmiş olan
uygun toplama merkezlerine teslim ediniz.
Bu atıkların doğru işlenmesiyle, değerli kaynakların korunmasına ve insan sağlığı ve
çevreye olası negatif etkilerinin engellenmesine yardımcı olabilirsiniz.
Atıkların toplanması ve geri dönüşümü için detaylı bilgi için lütfen bağlı olduğunuz yerel
yönetimlerle iletişime geçiniz.
Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet verebilir.
